ALDI AUTOXS MD 19787 User manual

CAR BATTERY CHARGER
User Manual

Dok./Rev.-Nr. 19787ENALDIUK_IECover50065609finalrev1
Overview ......................................................................................... 3
Use.................................................................................................... 4
Device parts.....................................................................................6
About this user manual ..................................................................9
Proper use ......................................................................................12
Safety information .........................................................................13
Package contents.......................................................................... 20
Mounting on the wall.....................................................................21
Operation....................................................................................... 22
Description of the charging cycle................................................. 29
Protection against wrong polarity................................................31
Overheating cut-out ..................................................................... 32
Disconnecting the battery ............................................................ 32
Switching off ................................................................................. 32
Cleaning and care ......................................................................... 33
Storing/transporting .................................................................... 33
Disposal.......................................................................................... 34
Technical specifications ................................................................ 35
EU Declaration of conformity........................................................36
Service information ...................................................................... 37
Legal Notice ................................................................................... 38
Privacy statement ......................................................................... 39
Contents

3
A
B
64
1 2
3
83
5
7
12
11
109
1314
1516
17
Overview

4
C
red black
1. 2.
Use

5

6

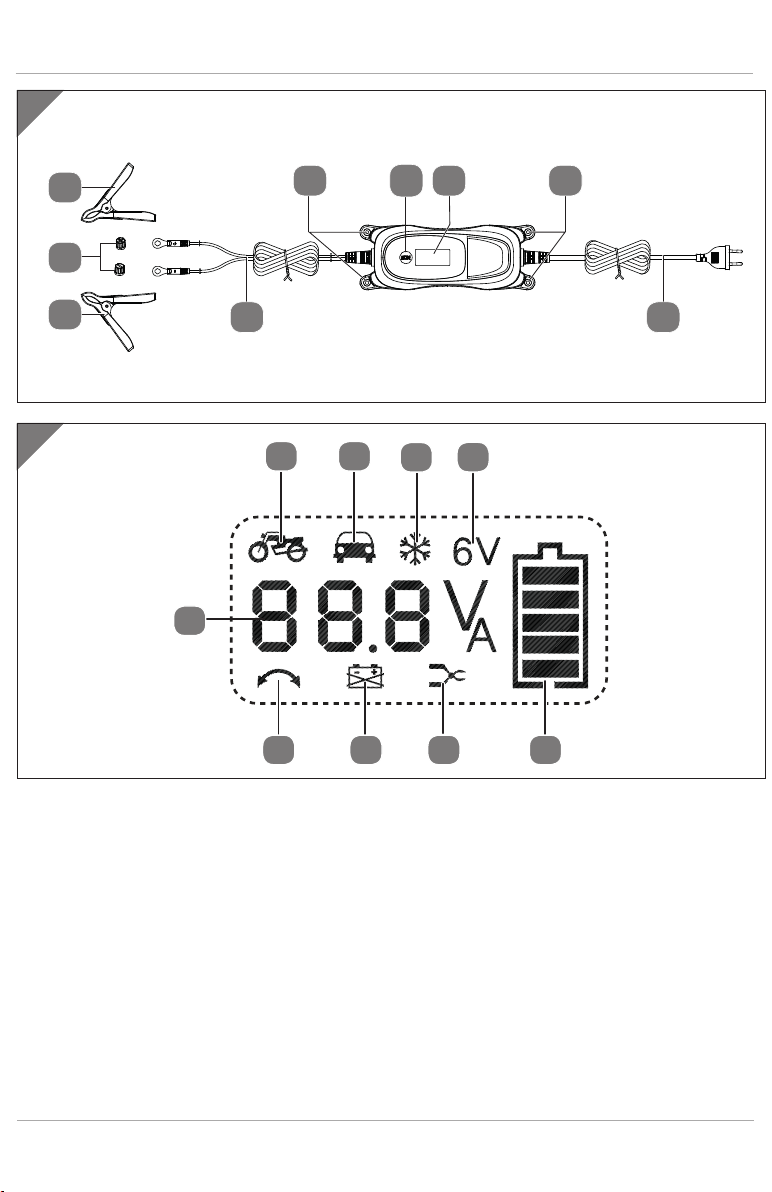

Device parts
Device parts
1MODE button
2Display
3Fixing holes
4Mains cable with mains plug
5Connection cable with ring terminals
6Negative terminal clamp (black), with connection cable
7Fixing screws
8Positive terminal clamp (red), with connection cable
9+10 12 V / 0.8 A charging mode active – standard charging
9+10 +11 12 V / 0.8 A /COLD charging mode active – standard charging at
low ambient temperatures
10 12 V / 5 A charging mode active – rapid charging
11 12 V / 5 A / COLD charging mode active – rapid charging at low
ambient temperatures
12 6 V / 0.8 A charging mode active – standard charging
13 Charge display (see Page <?>)
14 Fault display (no battery connected, short circuit)
15 Battery defective
16 Fault display (incorrectly connected terminals)
17 Charging current display/
current battery voltage display

Contents
7
Contents
Overview ......................................................................................................... 3
Use .................................................................................................................. 4
Device parts..................................................................................................... 6
About this user manual................................................................................... 9
Explanation of symbols ......................................................................................9
Proper use ...................................................................................................... 12
Safety information ......................................................................................... 13
Setting up the appliance.................................................................................. 16
Charging process................................................................................................17
Handling rechargeable batteries ................................................................... 18
Package contents .......................................................................................... 20
Mounting on the wall..................................................................................... 21
Operation........................................................................................................22
Connecting the charger to the battery .......................................................... 22
Select charging mode....................................................................................... 23
Status displays................................................................................................... 23
6 V / 0.8A charging mode (6V batteries up to max. 14Ah)......................... 26
12 V / 0.8A charging mode (12 V batteries up to max. 120Ah).....................26
12 V / 0.8A charging mode (12 V batteries up to max. 120Ah, at low
temperatures).................................................................................................... 27
12 V / 5 A / Cold (charging process for 12V batteries, from 1.2Ah to 120
Ah, at low temperatures) .................................................................................28
Regenerating/recharging fully discharged 12V batteries (regeneration
mode)..................................................................................................................29
Description of the charging cycle ................................................................. 29
Protection against wrong polarity ................................................................31
Overheating cut-out.......................................................................................32
Disconnecting the battery..............................................................................32
Switching off ..................................................................................................32
Cleaning and care...........................................................................................33
Storing/transporting......................................................................................33
Disposal ......................................................................................................... 34
Technical specifications................................................................................. 35

Contents
8
EU Declaration of conformity ........................................................................ 36
Service information........................................................................................37
Legal Notice ................................................................................................... 38
Privacy statement ......................................................................................... 39

About this user manual
9
About this user manual
Thank you for choosing our product. We hope you enjoy using this
appliance.
Read the safety instructions carefully before using the appliance for the
first time. Note the warnings on the appliance and in the user manual.
Always keep the user manual close to hand. If you sell the appliance or
give it away, please ensure that you also pass on this user manual. It is an
essential component of the product.
Explanation of symbols
If a block of text is marked with one of the warning symbols listed below, the hazard
described in that text must be avoided to prevent the potential consequences
described there from occurring.
DANGER!
This keyword denotes a high-risk hazard situation which will result in death or serious
injury if it is not avoided.
WARNING!
This keyword denotes a medium-risk hazard situation which can result in death or a
serious injury if it is not avoided.
CAUTION!
This keyword denotes a low-risk hazard situation which can result in moderate or
minor injuries if it is not avoided.
NOTICE!
This keyword serves as a warning for possible damage to property.

About this user manual
10

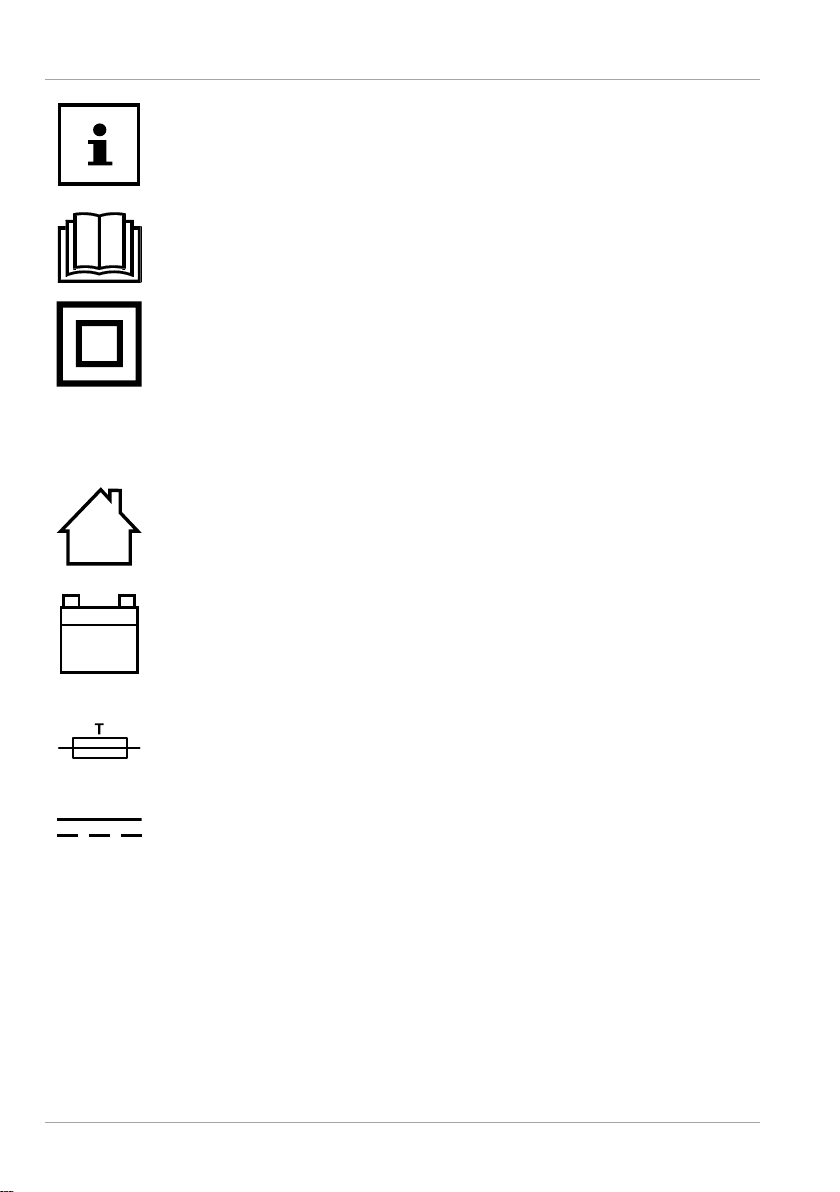

Additional information on using the appliance!
Read the user manual and observe its instructions.
Protection class II
Electrical appliances in protection class II are electrical appliances that
permanently have double and/or reinforced insulation and do not
have any connection options for a protective earth. The housing of an
electrical appliance in protection class II that is enclosed in insulated
material can partially or fully act as the additional or reinforced
insulation.
Indoor use
Devices with this symbol are only suitable for use indoors.
Battery symbol
The information next to this symbol defines the maximum and
minimum current for the batteries to be charged..
Safety fuse
Appliances with this symbol have a protective fuse that blows when
the rated current (2 A) is exceeded and breaks the electrical circuit.
Symbol for direct current
+Positive polarity
–Negative polarity
IP65 This appliance offers protection class IP65 in compliance with
DINEN60529. This means:
• The appliance is dust-proof and completely protected against
contact.
• The appliance is protected against water jets from any angle.
