Alecto ACP-80 User manual
First time use:
1. use the slider to open the ACP-80
2. remove the battery compartment cover
3. activate the button cell by pulling out the insu-
lating strip from the ACP-80
4. install a 1.5V alkaline battery, paying attention
to the polarity (+ and -)
Replacing the button cell:
1. slide the white
tab to the right
until it releases
from the left
side
2. remove this tab
and replace the
button cell (the
+ upward)
3. replace the tab
to the right in
the opening, push it down and slide it to the left
until it secures the battery again
4. now press 1x the RESET button and set the
clock and alarm times again
Don’t discard exhausted batteries as normal
domestic waste, but bring them to a collec-
tion point for small chemical waste.
Setup:
clock:
1. unlock the buttons by sliding the switch to
the left
2. press and hold the button for 2 seconds until
the hour display starts ashing
3. rotate the white knurled ring to set the hours
4. briey press the button; the minute display
starts ashing
5. rotate the white knurled ring to set the minutes
6. briey press the button to save the time
alarm times:
1. unlock the buttons by sliding the switch to
the left
2. press and hold the button for 2 seconds
until alarm time 1 starts ashing
3. rotate the white knurled ring to set the alarm
time for the rst medication of the day; the
alarm time is set in increments of half an hour
4. briey press the button; alarm time 2
starts ashing
5. repeat instructions 3 and 4 for alarm times 2,
3, 4and 5(*)
6. briey press the button to save the alarm
times
*: If less than 5 alarm times are required, continue
rotating the ring until -:-- appears in the display; this
alarm time is now disabled
to change the alarm times:
1. unlock the buttons by sliding the switch to
the left
2. press and hold the button for 2 seconds
until alarm time 1 starts ashing
3. repeatedly press the button until the alarm
time you’d like to change starts ashing
4. rotate the white knurled ring to set the new
alarm time (*)
5. repeatedly press the button to save the new
alarm time(s)
*: If you want to delete an alarm time completely,
continue rotating the ring until the display shows
-:--; this alarm time is now disabled

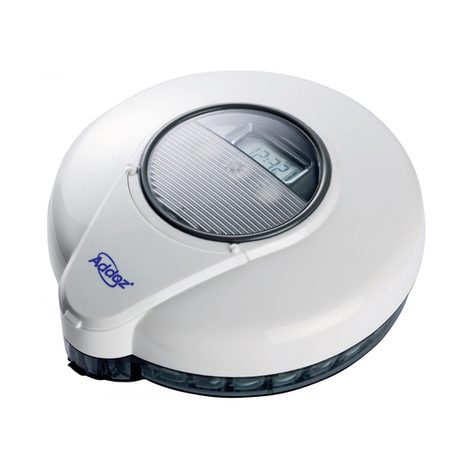

ACP-80
Electronic pill box with alarm.
Introduction:
The Alecto ACP-80 pill box allows you to store
medicine for 5 daily moments. You can program up
to 5 times at which the alarm must sound while the
display indicates which medicine must be taken.
This schedule is repeated daily until you program
different times.
The ACP-80 pill compartments are only suitable for
dry medicine (pills, capsules, etc.), not for liquid or
ointments.
Power supply:
The ACP-80 is powered by 2 batteries: One
CR2025 lithium button cell for the clock and timer
function. This battery is already installed by the
factory, but can only be used after removing the
insulating strip.
The other is a 1.5V battery (size AAA) for the
sound and vibration alarm and for the display light-
ing. This battery is not included. Please use an
alkaline battery for this, not a rechargeable one.
123
1
2
4
alarm signal:
Use the + slider to set your desired
alarm signal. This setting will also be indicated in
the display:
: at the set alarm time, only the acoustic
alarm signal will sound for up to 30 seconds
: at the set alarm time, only the pill box will
start vibrating for up to 30 seconds
+ : at the set alarm time, the alarm will sound
alternating with the vibration of the pill box
for up to 30 seconds
Storing medicine in the pill box:
1. carefully rotate the transparent pill cover until
compartment 1 opens
2. ll this compartment with the medicine you
should take rst, in accordance with the alarm
time you’ve set at 1
3. rotate the pill cover until compartment 2 opens
and ll it with the medicine you should take at
alarm time 2
4. repeat this, if applicable, for compartments 3, 4
and 5.
5. nally, rotate the pill cover back to the starting
position (all 5 compartments are closed)
Operation:
as soon as the alarm time is reached, the pill box
starts beeping, vibrating or starts beeping and vi-
brating alternatively for up to 30 seconds while the
symbol appears in the display.
if you don’t notice the alarm, the alarm signal will
be repeated up to 2x after 5 minutes. After this, the
colon in the alarm time keeps ashing to indicate
you ‘didn’t see’ the alarm
if you press the or button during an alarm,
the alarm signal will stop but repeat itself after
5 minutes
if you rotate the cover to open a new pill compart-
ment, the alarm signal will stop and the alarm time
changes into -:--
also when rotating the cover 15 minutes before
the set alarm time, the alarm time will disappear
and -:-- is displayed; the ACP-80 assumes you’ve
already taken your medication and this alarm will
no longer activate that day
automatic reset: each morning at 0:13 the medication
alarm resets itself and the programmed times will be
displayed again, ready for a new day
Heartbeat measurement:
1. unlock the buttons by sliding the switch to
the left
2. briey press the button; the symbol will
appear in the display
3. place the top of your
index nger on the sen-
sor (completely cover
the sensor); the starts
ashing
4. after 15 to 60 seconds, a
beep tone will sound and your heart
rate will be shown in the display.
The screen will return to the time display
after several seconds.
Key-lock:
At the side of the pill box, slide the switch in the
direction of the arrow to lock the buttons, to ensure
you cannot change your settings by accident.
Display lighting:
1. unlock the buttons by sliding the switch to
the left
2. briey press the button to switch on the dis-
play lighting for 10 seconds.
Table stand:
You can detach the clock/alarm part of the
ACP-80 from the medicine part and use it
as a separate clock using the table stand.
Manual reset:
In case of a possible error in the ACP-80, you
might need to reset the electronics.
1. use the slider to open the
ACP-80
2. use a sharp object to briey
press the RESET button
3. the ACP-80 will be reset after
several seconds
Attention: both the clock and the alarm times will
now be deleted and must be programmed again.
Service:
• If the alarm signal is weak or doesn’t function
at all and the display lighting is poor or non-
functional, please replace the 1.5V AAA battery.
• If the display read-out of the clock and
programmed alarm times becomes weak,
please replace the button cell.
• In case of a possible error, please rst press
the RESET button to reset the electronics.
• Keep in mind that the non-functioning of a
button can also be caused by the switch in
the right position.
v1.04 5 6
