Alemite 6713-4 User manual

Service Guide
Alemite Corporation
PO Box 473515, Charlotte, North Carolina 28247-3515
Copyright © 2002 by Alemite Corporation
This document contains confidential information that is the property of Alemite Corporation
396214 and is not to be copied, used, or disclosed to others without express written permission. Revision (2-02)
SER 6713-4
6713-4
Specifications
Dual Outlet
Connections
Max. Operating
Pressure Delivery/Stroke Tank Capacity Measurements (LWH) Weight
psi Bars Ounce Grams Pounds Kg Inches Cm Pounds Kg
1/4 “ NPTF (f) 15,000 1034 0.063 1.78 30 13.6 13 x 10.5 x 30 33 x 26.7 x 76.2 30 13.6
Table 2 High-Pressure Bucket Pump Model 6713-4- Specifications

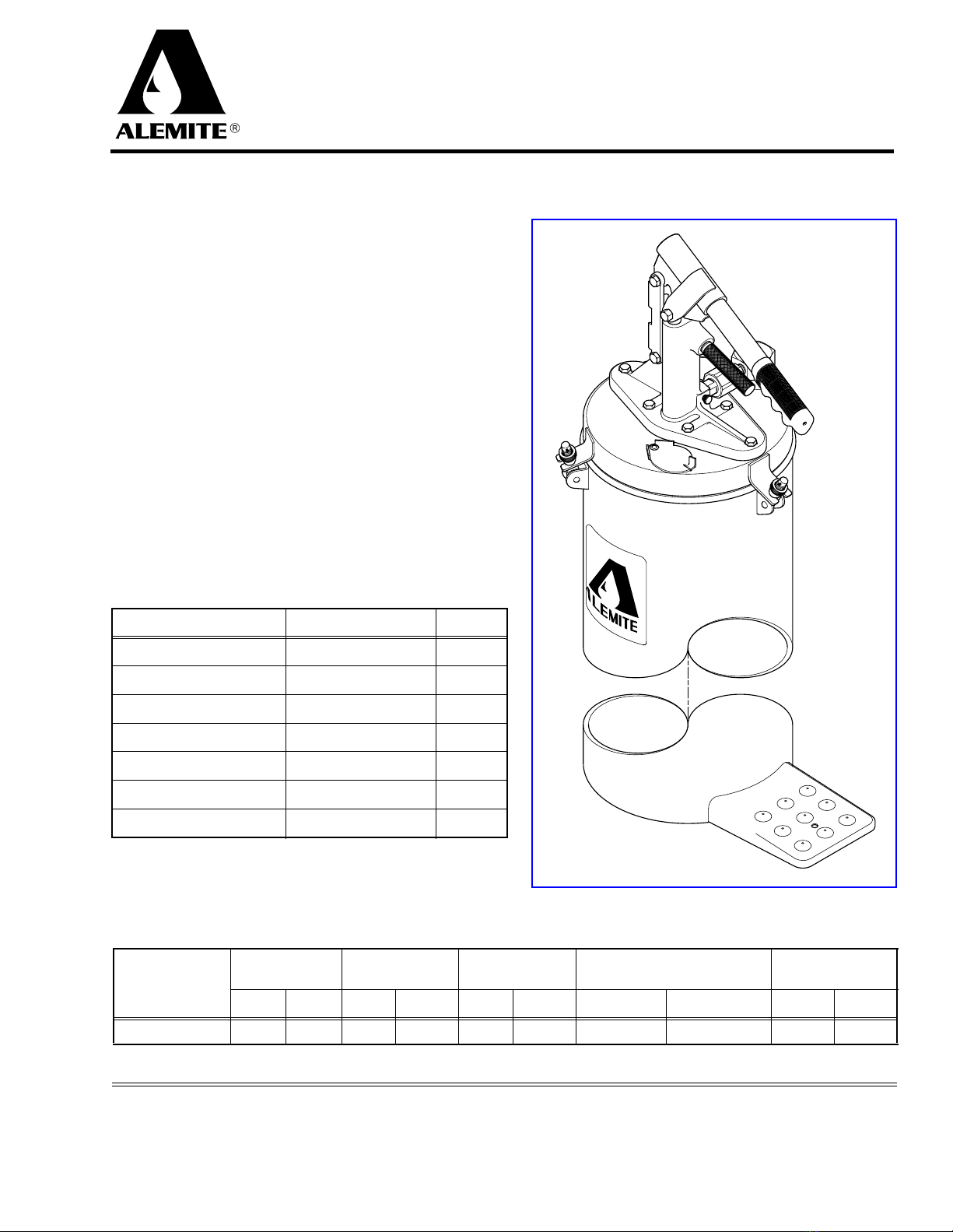

Figure 1 High-Pressure Bucket Pump
Model 6713-4
Description
The major components of model 6713-4 bucket pump
assembly consist of a:
• hand-operated, two-stage pumping mechanism with
bleed valve, and pressure relief valve
• 30 pound (13.6 kg) capacity tank
• bolt-down cover with fill port/inspection cover
This high-pressure pump is designed to deliver bulk
fibrous and heavy-bodied lubricants. It can also pump light-
bodied greases.
Pump Delivery
The pump develops 15,000 psi (1034 Bars) and delivers
approximately 1 ounce (28.4 g) of product in 16-strokes.
Accessories
Component Size Part No.
Follower Plate 314898
High-Pressure Gauge 1/4 " NPTF (m) 317150
High-Pressure Hose Assembly 1/ 2 " -27 (f) 317875-7
Giant Button-Head Coupler 1/4 " PTF (f) 319702
Standard Coupler 1/8 " NPTF (f) B330070
High-Pressure Straight Swivel 1/4 " NPTF (f) x 1/ 2 " -27 B52750
High-Pressure Z-Swivel 1/4 " NPTF (f) x 1/ 2 " -27 B52752
Table 1 Bucket Pump Model 6713-4 - Accessories
High-Pressure Bucket Pump

SER 6713-4 High-Pressure Bucket Pump
Revision (2-02) 2 Alemite Corporation
Model Assembly
Refer to Figure 2-A for the assembly of the
components that are shipped loose.
Filling
The pump’s container can be filled from a transfer
pump or manually.
NOTE: The three steps that follow consider
the pump without a follower plate.
Transfer Pump Loading
NOTE: Refer to Figure 2-A for component
identification on the following procedures.
1. Slide the fill-hole cover away from the pump.
2. Insert the hose from the transfer pump into the
opening.
• Make sure the hose reaches the bottom of Container
Assembly (7) or the surface of the product.
IMPORTANT: Keep the end of the hose (or
wand) just underneath the surface of the
grease. This prevents air from mixing with
the product during the fill process.
3. Fill the Container within 2-inches (5 cm) from the top.
Manual Loading (Paddle)
4. Loosen Knobs (3) from the bolts on Container
Assembly (7).
• Swing the bolts away from Cover Assembly (9).
CAUTION
Point the bottom of the pump tube upward. Pre-
vent contamination from foreign material. Damage
to components can occur.
5. Remove the cover and pump assembly from the
Container Assembly.
6. Fill the Container within 2-inches (5 cm) from the top.
• Do not allow air to be entrapped during the filling
process.
7. Place the optional follower plate onto the top of the
product.
• With a wobbling motion, eliminate any air that may
be trapped underneath the follower. Force the
product through the hole in the center of the plate.
8. Position the cover and pump tube assembly into the
follower plate and fit the Cover onto the Container.
9. Secure the Cover to the Container with the Knobs.
Operation
WARNING
Do not exceed the lowest pressure rating of
any component in the system.
Ensure all components are in operable condition.
Replace any suspect parts prior to operation.
Personal injury can occur.
Priming the Pump
NOTE: Refer to Figure 2-B for component
identification on the following procedures.
1. Turn Bleed Valve Screw (26) counterclockwise to open.
2. Make sure Pressure-Relief Valve Screw (29) is closed.
3. Cycle the Lever until product causes the cycling of the
Lever to stiffen.
If the pump assembly does not prime, refer to the
Troubleshooting Chart for details.
4. Close the Bleed Valve Screw until it seats.
Dispensing
5. Wipe the end of the coupler and the fitting to be
lubricated with a clean cloth.
6. Attach the coupler to the lubrication fitting.
7. Operate the lever until the proper amount of lubricant is
dispensed.
NOTE: Certain applications can create exces-
sive back-pressure at the fitting that inhibits
the removal of the coupler. Should this occur:
8. Turn Pressure-Relief Valve Screw (29)
counterclockwise to open.
• This allows the product within the delivery hose to
return to the Container.
9. Remove the coupler from the fitting and close the
Pressure-Relief Valve Screw.
NOTE: Should the Lever be stopped in the
upward position:
10. Turn Bleed Valve Screw (26) counterclockwise to open.
• This allows the Lever to be pushed downward without
product discharge.

High-Pressure Bucket Pump SER 6713-4
Alemite Corporation 3 Revision (2-02)

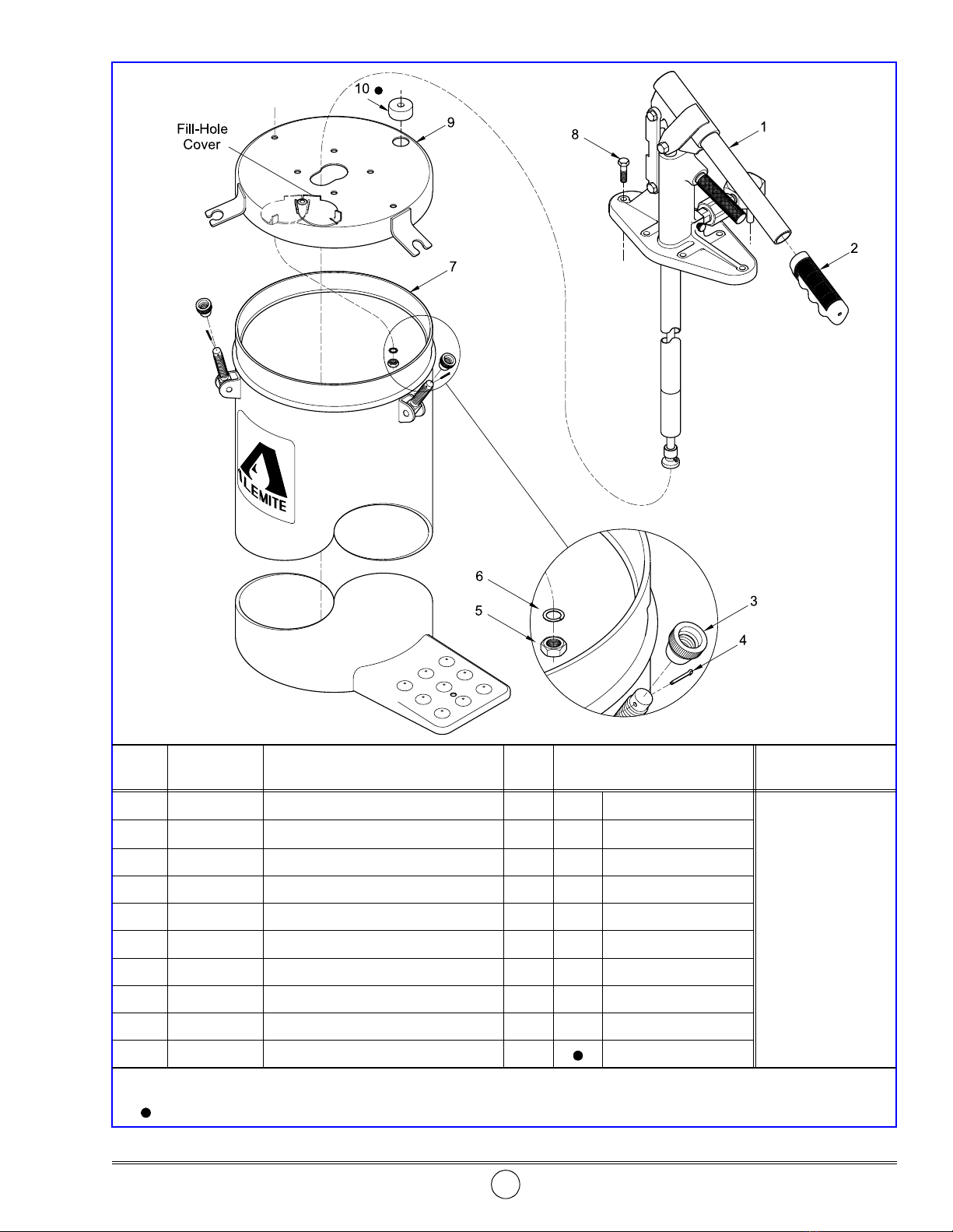

Figure 2-A High-Pressure Bucket Pump Model 6713-4 - Exploded View
Item
No. Part No. Description Qty Notes Numeric Order Part # (Item #)
1 310750-4 Pump Assembly 1 See Figure 2-B 12369 (6)
2Grip, Handle 177650 (5)
3 303087 Knob 3 77736 (8)
4Pin,Cotter 3 172212-1 (4)
5 Nut 6 303087 (3)
6 Washer, Lock 6 308725-B4 (7)
7 308725-B4 Container Assembly (w/o Decal) 1 308726-B4 (9)
8 Screw 6 310750-4 (1)
9 308726-B4 Cover Assembly 1 337066 (2)
10 Seal 1 337438 (10)
Legend:
Part numbers left blank (or in italics) are not available separately
designates a repair kit item - See Figure 2-B for part number

SER 6713-4 High-Pressure Bucket Pump
Revision (2-02) 4 Alemite Corporation

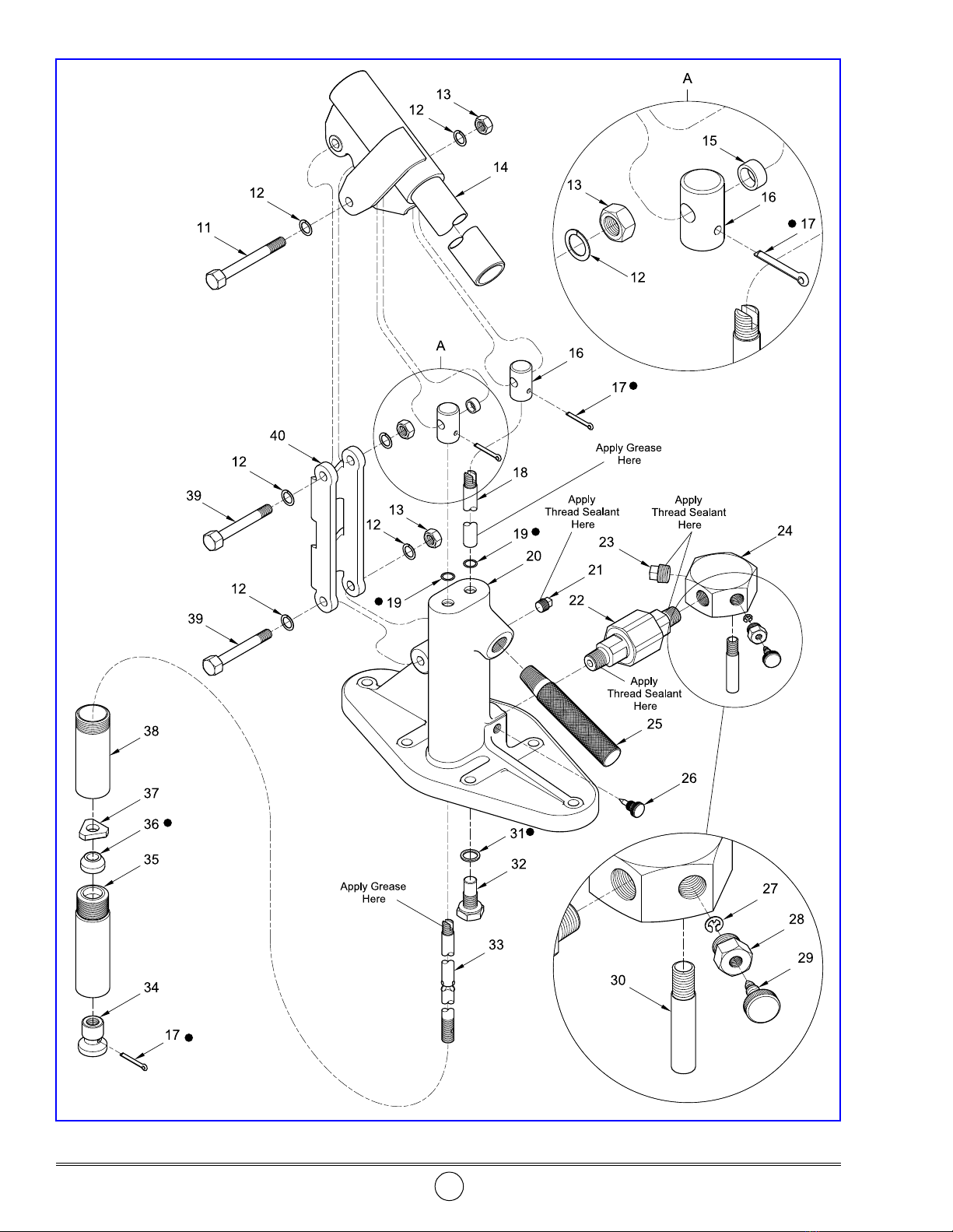

Figure 2-B Pump Assembly Model 310750-4 - Exploded View

High-Pressure Bucket Pump SER 6713-4
Alemite Corporation 5 Revision (2-02)
Item
No. Part No. Description Qty Notes Numeric Order Part # (Item #)
11 Bolt, Toggle, 1/4 " -28 x 1-15/16 " 1 1480 (21)
12 Washer, Lock 6 10522 (23)
13 Nut, 1/4 " -28 3 47123 (26)
14 308723-B4 Handle Assembly 1 49801 (31)
15 Spacer 1 54282 (22)
16 308714 Adapter 2 77676 (13)
17 Pin, Cotter 3 79312 (12)
308727-4 Body and Plunger Assembly 170705 (27)
18 Plunger (Select Fit w/ item 20) 1 Included w/ 308727-4 171001-6 (19)
19 171001-6 O-Ring, 5/16 " ID x 7/16 " OD 2 Included w/ 308727-4 172212-11 (17)
20 Body (Select Fit w/ item 18) 1 Included w/ 308727-4 303126 (40)
21 1480 Plug, Pipe, 1/8 " NPTF (m) 1 303817 (37)
22 54282 Valve Assembly , High-Pressure Check 1 See Figure 2-C 303822 (34)
23 10522 Plug, Pipe, 1/4 " NPTF (m) 1 305336 (25)
24 322546 Body, Adapter 1 308707-2 (20)
25 Handle 1 308708 (32)
26 47123 Screw, Bleed Valve 1 308709 (35)
322549 Screw Assembly, Pressure-Relief Valve 1 308710 (38)
27 170705 Ring, Retaining 1 Included w/ 322549 308711 (36)
28 Bushing 1 Included w/ 322549 308712 (33)
29 Screw, Pressure-Relief Valve 1 Included w/ 322549 308713 (18)
30 308720 Tube, Drain 1 308714 (16)
31 Gasket (Copper) 1 308720 (30)
32 308708 Plug 1 308723-B4 (14)
33 308712 Rod, Primer 1 308727-4
34 303822 Plunger, Priming 1 319347 (1)
35 308709 Seat, Valve 1 319379 (39)
36 Valve 1 322546 (24)
37 303817 Washer, Stop 1 322547 (29)
38 308710 Tube 1 322548 (28)
39 Bolt, Toggle, 1/4 " -28 x 1-5/16 " 2 322549
40 303126 Toggle 1 415950-1 (15)
Legend:
Part numbers left blank (or in italics) are not available separately
designates a repair kit item
Repair Kit
Part No. Kit Symbol Description
398954-1 Kit, Repair (Includes items on Figures 2-A, 2-B and 2-C)

SER 6713-4 High-Pressure Bucket Pump
Revision (2-02) 6 Alemite Corporation
Overhaul
Prior to performing any maintenance procedure, the
following safety precautions must be observed. Personal
injury may occur.
WARNING
Do not use halogenated hydrocarbon sol-
vents such as methylene chloride or 1,1,1-trichlor-
ethane in this pump. An explosion can result
within an enclosed device capable of containing
pressure when aluminum and/or zinc-plated parts
come in contact with halogenated hydrocarbon
solvents.
Read each step of the instructions carefully. Make
sure a proper understanding is achieved before
proceeding.
Disassembly
NOTE: Refer to Figures 2-A and 2-B for
component identification on the following
procedures.
Separate Pump Tube from Cover
1. Remove Nuts (5) Lock Washers (6), and Screws (8)
that secure Pump Assembly (1) to Cover Assembly
(9).
• Separate the Pump Assembly from the Cover
Assembly.
2. Remove Seal (10) from the Pump Assembly.
Pump Tube
3. Remove Check Valve Assembly (22) [with attached
components] from Body (20).
4. Remove Nuts (13), Lock Washers (12), and lower
Toggle Bolt (39) that secures Toggle (40) to the Body.
5. Remove Nut (13), Lock Washers (12), and Toggle Bolt
(11) that secures Handle Assembly (14) to
Adapters (16).
• Remove the Handle Assembly and Toggle from the
Adapters.
6. Remove Spacer (15) from the Handle Assembly.
7. Remove Nut (13), Lock Washers (12), and upper
Toggle Bolt (39) that secures the Toggle to the Handle
Assembly as needed.
8. Remove Cotter Pin (17) that secures the Adapter to
Primer Rod (33).
• Unscrew the Adapter from the Primer Rod.
NOTE: Grip Priming Plunger (34) to prevent
rotation.
9. Unscrew Tube (38) from the Body.
• Remove the entire pump tube assembly from the Body.
10. Remove Cotter Pin (17) that secures Priming Plunger
(34) to the Primer Rod.
• Unscrew the Priming Plunger from the Primer Rod.
11. Unscrew Valve Seat (35) from Tube (38).
12. Remove Valve (36) and Stop Washer (37) from the
Primer Rod.
13. Remove the Adapter and Plunger (18) as an assembly
from the Body.
14. Remove both O-Rings (19) from the Body.
• Use a pick or a small flat-head screwdriver.
15. Remove Cotter Pin (17) that secures the Adapter to the
Plunger as necessary.
• Unscrew the Adapter from the Plunger.
16.Unscrew Plug (32) from the Body as necessary.
• Remove Gasket (31).
17.Unscrew Handle (25) from the Body as required.
Check Valve Assembly
18. Unscrew Check Valve Assembly (22) from Adapter
Body (24).
19. Unscrew Drain Tube (30) from the Adapter Body as
necessary.
20. Unscrew Bushing (28) from the Adapter Body as
necessary.
21. Remove Retaining Ring (27) that secures Pressure-
Relief Valve Screw (29) to the Bushing.
• Separate the Valve Screw from the Bushing.
NOTE: Refer to Figure 2-C for component
identification on the remaining procedures.
22. Unscrew Coupling Nut (41) from Coupling Adapter
(47).
23. Remove Gasket (43) and Coupling Adapter (42) from
the Coupling Nut.
24. Unscrew Ball Seat (44) from the Coupling Adapter.
25. Remove Ball (46), Spacer (49), Spring (48), and Washer
(45) from the Coupling Adapter.

High-Pressure Bucket Pump SER 6713-4
Alemite Corporation 7 Revision (2-02)
Clean and Inspect
NOTE: Use the repair kit for replacement parts. Make
sure all the components are included in the kit before
discarding used parts.
1. Clean all metal parts in cleaning solvent. The solvent should be
environmentally safe.
2. Inspect all parts for wear and/or damage.
• Replace as necessary.
3. Inspect Plunger (18) closely. Use a magnifying glass to detect any
score marks.
• Replace as necessary.
4. Closely inspect the mating surfaces of Valve (36) and Valve Seat
(35) for any imperfections Ensure a smooth and clean contact is
obtained when assembled.
5. Inspect the mating surfaces of Check Valve (22).
EXAMPLE: Place Ball
(46) in Ball Seat (44).
While supporting the
Ball, fill the Ball Seat
with solvent. Make sure
no leakage occurs.
Assembly
IMPORTANT: Prior to
assembly, lubricate the
upper threads (slotted) of
Primer Rod (33) in clean
grease. Also, lubricate
the bottom of Plunger
(18) and both O-Rings
(19). See Figure 2-B.
Pump Tube
NOTE: Refer to Figure 3
for a section view of the
pump tube assembly.
1. Install and seat both lubricated O-
Rings (19) into Body (20).
CAUTION
Install Plunger (18) and Primer
Rod (33) with care. Damage to O-
Rings can occur.
2. Install Plunger (18) [stem end first]
into the top of the Body.
•SeeFigure 2-B for the proper
hole.
3. Install Primer Rod (33) [slotted end
first] into the bottom of the Body.
• Gently rotate the Primer Rod past
the O-Ring.
4. Screw both Adapters (16) onto the
Plunger and Primer Rod.
• Make sure the cotter pin hole
aligns with the slot in the Plunger
and Primer Rod.
5. Secure the Adapters to the Plunger
and Primer Rod with Cotter Pins
(17).
Figure 2-C Check Valve Assembly Model 54282 - Exploded View
Item
No. Part No. Description Qty Notes Numeric Order Part # (Item #)
41 317302 Nut, Coupling 1 54288 (42)
42 54288 Adapter, Coupling 154290 (43)
43 Gasket (Copper) 1 54393 (45)
44 Seat, Ball 1 171700-26 (46)
45 Washer (Copper) 1 300518 (49)
46 Ball, 13/32 " Dia. 1 300519 (44)
47 300520 Adapter, Coupling 1 300520 (47)
48 Spring 1 300596 (48)
49 300518 Spacer 1 317302 (41)
Legend:
Part numbers left blank (or in italics) are not available separately
designates a repair kit item - See Figure 2-B for part number

SER 6713-4 High-Pressure Bucket Pump
Revision (2-02) 8 Alemite Corporation
6. Install and seat Gasket (31) into the
bottom of the Body.
7. Install Plug (32) into the Body.
• Tighten the Plug securely.
8. Screw Tube (38) into the Body.
• Do not tighten at this time.
9. Install Stop Washer (37) and Valve
(36) [small diameter first] onto the
Primer Rod.
10. Screw Valve Seat (35) into the
Tube.
• Tighten the components securely.
11. Screw Priming Plunger (34) onto
the Primer Rod.
• Make sure the holes are aligned.
12. Install Cotter Pin (17).
13. Screw Handle (25) into the Body as
required.
14. Install Bleed Valve Screw (26) into
the Body as required.
Check Valve Assembly
15. Install Pressure-Relief Valve Screw
(29) into Bushing (28).
16. Install Retaining Ring (27) that
secures the Valve Screw to the
Bushing.
17. Screw the Pressure-Relief Valve
Screw Assembly into Adapter
Body (24) [port with the drain
hole].
18. Screw Drain Tube (30) into the
Adapter Body.
NOTE: Refer to Figure
2-C for component identi-
fication on procedures
19-25.
19. Install and seat Spring (48), Spacer
(49) [large diameter first], Washer
(45), and Ball (46) into Coupling
Adapter (47).
Figure 3 Pump Assembly Model 310750-4 - Section View
Refer to Figure 2-B Parts List
for Parts Identification
20. Screw Ball Seat (44) [with Loctite 242] into the Coupling Adapter.
• Tighten the Ball Seat to 200 inch-pounds (22.6 Nm).
21. Install Gasket (43) onto the Coupling Adapter.
22. Install Coupling Adapter (42) into Coupling Nut (41).

High-Pressure Bucket Pump SER 6713-4
Alemite Corporation 9 Revision (2-02)
23. Screw the Coupling Adapter [with Loctite 242] into
the Coupling Nut.
• Tighten the Coupling Nut securely.
24. Screw the Check Valve Assembly [with thread sealant]
[coarse thread first] into the Body.
• Tighten the Check Valve securely.
25. Screw the Adapter Body assembly [with thread sealant
on Check Valve] onto the Check Valve.
• Tighten the Adapter Body securely.
Pump Tube (Continued)
26. Position Handle Assembly (14) properly on Adapters
(16). See Figure 2-B.
27. Hold Spacer (15) between the Adapter and the Handle
Assembly. See Figure 2-B.
28. Install Toggle Bolt (11), Lock Washers (12), and Nut
(13) that secures the Handle Assembly to the Adapters.
• Tighten the Nut securely.
29. Install upper Toggle Bolt (39), Lock Washers (12), and
Nut (13) that secures Toggle (40) to the Handle
Assembly.
• Do not tighten the Nut at this time.
30. Install lower Toggle Bolt (39), Lock Washers (12), and
Nut (13) that secures the Toggle to the Body.
• Tighten both Toggle Nuts securely.
Attach Pump Tube to Cover
NOTE: Refer to Figure 2-A for component
identification on the following procedures.
31. Install Seal (10) onto the Drain Tube.
32. Install Nuts (5) Lock Washers (6), and Screws (8) that
secure the Pump Assembly to Cover Assembly (9).
• Tighten the Screws securely in a crisscross pattern.

SER 6713-4 High-Pressure Bucket Pump
Revision (2-02) 10 Alemite Corporation
Troubleshooting Chart
Gun Indications Possible Problems Solution
Pump will not prime 1. Foreign material between Valve (36) and
Valve Seat (35)
2. Worn or damaged Valve (36) and/or Valve
Seat (35)
1. Disassemble Pump Tube and
eliminate foreign material
2. Replace Valve (36) and/or Valve
Seat (36)
Pump lacks pressure 1. Bleed Valve Screw (26) in the open position
(not seated)
2. Pressure Relief Valve Screw (29) in the
open position (not seated)
3. Worn Plunger (18) and/or bore in Body (20)
1. Tighten Bleed Valve Screw (26)
into Body (20)
2. Tighten Pressure Relief Valve
Screw (29) into Bushing (28)
3. Replace Plunger (18) and/or
Body (20)
Pump does not hold pressure
(pressure falls when lever is raised) 1. Foreign material between Ball (46) and Ball
Seat (44) in Check Valve Assembly (22)
2. Worn or damaged Ball (46) and/or Ball Seat
(44)
1. Disassemble Check Valve
Assembly (22) and eliminate
foreign material
2. Use Repair Kit 398954-1
External Leakage
Product leakage visible at top of
Body (20)Worn or damaged O-Ring(s) (19) Use Repair Kit 398954-1
Product leakage at Check Valve
Assembly (22)Check Valve Assembly (22) not sufficiently tight and/or incorrect or no sealant Apply thread sealant * to Check Valve Assembly (22) and tighten
into Body (20)
Product leakage visible at Plug (32) 1. Plug (32) loose
2. Worn or damaged Gasket (31)1. Tighten Plug (32) 2. Replace Gasket (31)
Product leakage visible at delivery
system components Initial tightening of components not sufficient and/or incorrect or no sealant Apply thread sealant* to component and tighten securely
* Do not apply thread sealant to the first two (2) threads. Contamination can occur.
Changes Since Last Printing
Revised Exploded View
