Alert J5 User manual

Instruction Manual

Federal Communications Commission (FCC) Disclaimer
Changes or modications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC rules. Operations are subject to the
following 2 conditions:
1. This device may not cause harmful interference
2. This device must accept any interference received, including interference that may
cause undesired operations
Industry Canada
This device complies with Industry Canada licence-exempt RSS standard(s). Operation
is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux
appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions
suivantes:
1. l’appareil ne doit pas produire de brouillage, et
2. l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si
le brouillage est susceptible d’en compromettre le fonctionnement.
Alcohol Countermeasure Systems Corp
60 International Boulevard
Toronto, Ontario M9W 6J2 CANADA
ALERT, Alcohol Countermeasure Systems, and the Molly are trademarks of Alcohol
Countermeasure Systems (International) Inc. and are used under license.
© Alcohol Countermeasure Systems Corp 2011
The information disclosed in this document is the valuable property of Alcohol
Countermeasure Systems Corp and all copyright and other proprietary rights
to this document are reserved. No reproduction of this document is permitted
without the prior written consent of Alcohol Countermeasure Systems Corp.

INSTRUCTION MANUAL
TABLE OF CONTENTS
INTRODUCTION .............................................................. v
SAFETY AND PRECAUTIONS ........................................ v
WARRANTY .................................................................... vi
MAINTENANCE .............................................................. vi
CONTACT INFORMATION .............................................. vi
GETTING STARTED ........................................................ 1
Buttons and Menus ..................................................2
BAC/BrAC Format.................................................... 3
Power On/Shut Down .............................................. 3
Activating ................................................................. 4
Battery...................................................................... 4
TESTING .......................................................................... 5
Taking a Breath Test ................................................ 5
Recalling a Breath Test ............................................ 7
PRINTING ........................................................................ 8
Serial Printing........................................................... 8
Inserting/Charging the Printer Battery ................... 10
Loading the Paper Roll .......................................... 11
MAINTENANCE & TROUBLESHOOTING ..................... 12
Troubleshooting Table ............................................ 12
INDEX............................................................................. 13

p. v/viINSTRUCTION MANUAL p. v/vi
INTRODUCTION
Thank you for purchasing the ALERT™ J5 – a breath
alcohol tester (BAT) that measures the alcohol level in
human breath. Based on your jurisdiction, your ALERT J5
comes with preset levels that indicate whether the alcohol
breath test result is a fail (red LED light), warning (amber
LED light) or pass (green LED light).
SAFETY AND PRECAUTIONS
Take the following precautions to ensure smooth and
uninterrupted use of your device:
• Use the product for its intended purpose only
• Use AA Alkaline batteries only
• Do not store in extreme heat or cold and avoid
exposing the device to direct sunlight for extended
periods of time
• Do not blow smoke or any uids into the mouthpiece,
as these can damage the sensor
• Do not open the BAT case. Doing so will void the
warranty and may also damage the components within
• Keep all magnets and transmitting devices (such as
mobile phones) away from the BAT to minimize RF
interference
• If you spill any liquid on the ALERT J5, remove all
excess uid with a cloth and allow the device to dry
thoroughly before attempting to power on. Do not
power on in case of excessive water damage

ALERTTMJ5
p. vi/vi
WARRANTY
All ACS products are warranted to be free of defects in
workmanship and materials for a period of one year from
the date of shipment. ACS agrees to replace or repair any
defective device, provided the defect was not caused by
misuse or mishandling.
The ALERT J5 being returned for warranty repairs
must be properly packaged and shipped prepaid to an
authorized service provider.
MAINTENANCE
ALERT J5 requires periodic maintenance and calibration.
After testing and calibrating at the factory, ALERT J5 is
deactivated so it can be stored without losing any clock
time from the calibration period. You need to activate it to
start using it (see the “Activating” section). Once activated,
ALERT J5 automatically increments the date for the next
calibration by 365 days from the date of activation.
NOTE: ALERT J5 is calibrated for optimal performance at
the point of shipment.
CONTACT INFORMATION
[email protected]
acs-corp.com
Alcohol Countermeasure Systems Corp
60 International Boulevard
Toronto, Ontario M9W 6J2
Canada
T [phone]
F [phone]
Battery
Compartment

p. 1/13
INSTRUCTION MANUAL
GETTING STARTED
The ALERT J5 is a professional series breath alcohol
tester (BAT) that is accurate and easy to use. It
measures breath alcohol concentration (BrAC), which
is directly proportional to blood alcohol concentration
(BAC).
This section familiarizes you with the basic features, such
as the menus, buttons, and batteries of the device.

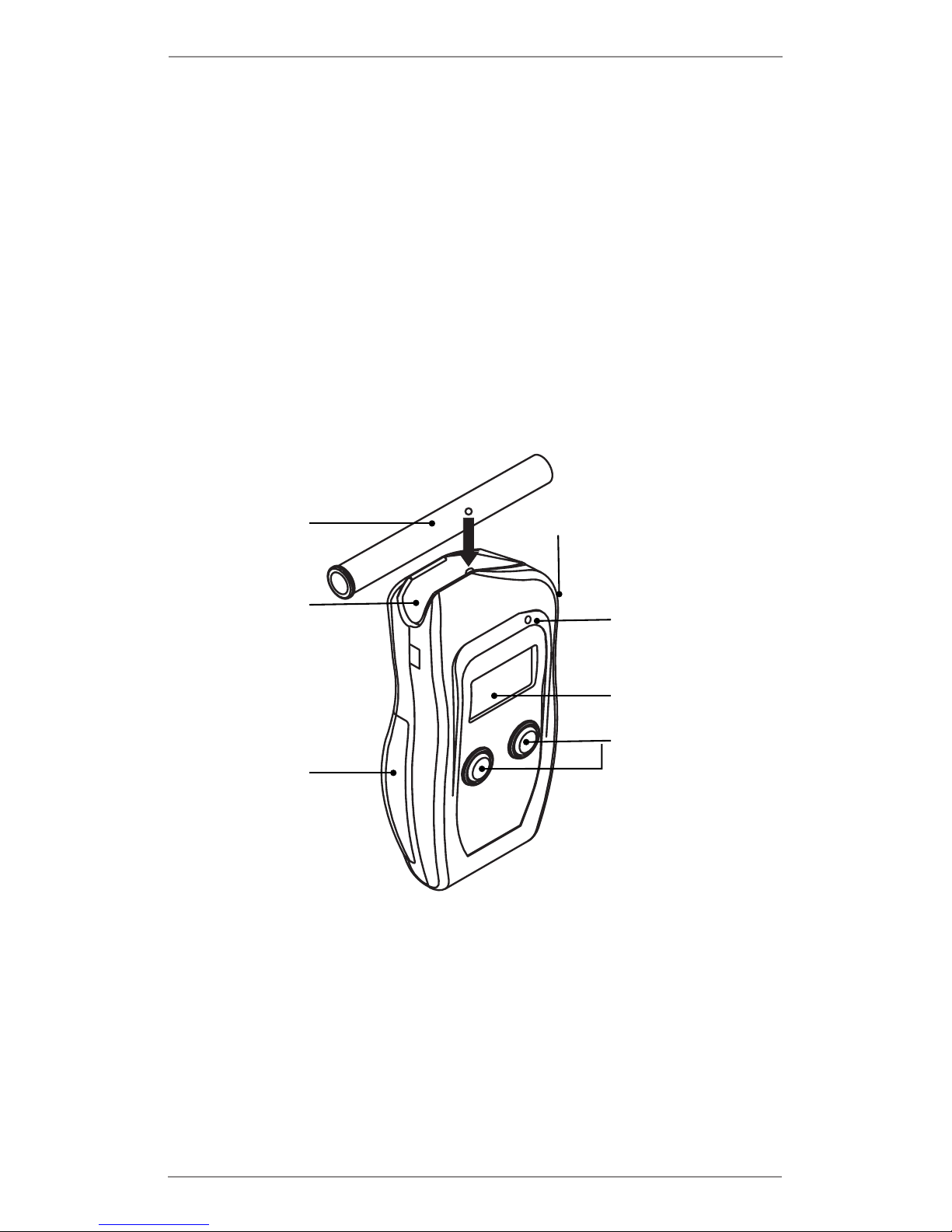

Display
Battery
Compartment
Intake Port
Serial Port
Indicator Light
Two-Button
Operation
Mouthpiece

INSTRUCTION MANUALp. 2/13 ALERTTMJ5 p. 3/13
Buttons and Menus
The ALERT J5 has an interface similar to a cellular
phone, which allows you to navigate all menus using the
two buttons.
Either button powers on the device. To navigate using the
two buttons:
• Use the right button to scroll down to your selection
(scrolling up is not possible)
• Use the left button to select (Enter) the option
The device has the following menus:
• Last 100 tests: Recalls and displays the last 100 test
results. You have the option of printing using the right
button. Refer to the “Printing” section for details
• Calibration: Shows the date of last calibration. You
can re-calibrate using the right button. Specialized
equipment is required to accurately calibrate ALERT
J5 and you should not attempt to calibrate it yourself
• Deactivation/Activation: A service menu option for
use by manufacturer or distributer. Units are supplied
to customer in “Activated” state
• Date/Time: Shows the current date and time of the
device. Use the right button to scroll through the digits
and the left button to change the values. You can also
set the time to a 12 or 24 hour format
• Settings:
- Change the units of the BrAC/BAC. Using the
right button, scroll to the desired unit and press
left button to select. The units available are: mg%,
%BAC, g/L, mg/L, and μg/100mL
- Backlight: Set the brightness of the backlight and
the time you would like the light to stay on

INSTRUCTION MANUALp. 2/13 ALERTTMJ5 p. 3/13
- Shutdown timer: Set the time for auto shut off. This
time can be between 30 seconds and 900 seconds
(15 minutes)
• Language: Set the display language using the right
button. Scroll through to view available options
• Shut down: Use this menu to manually shut down
the device without waiting for automatic shut off. This
option does not deactivate the device; it only shuts off
the device
BAC/BrAC Format
The blood alcohol concentration (BAC) or the breath
alcohol concentration (BrAC) format is available in ve
formats; mg%, mg/L, %BAC, g/L and μg/100mL. You can
select the desired unit from the Settings menu.
Power On/Shut Down
Press either of the two buttons to power on the device.
A ashing amber LED light indicates that the device is
warming up for a test, and you will see a WAIT message
on the display (for approximately 3 seconds). A green
ashing LED light with a READY message on display
indicates that the device is ready and you can now do a
breath test.
You can manually shut down the device by selecting
Shut down from the Main Menu. Alternatively, the
device shuts down automatically after a specic period
of time. You can set this time to suit your needs from the
Settings menu option.

INSTRUCTION MANUALp. 4/13 ALERTTMJ5 p. 5/13
Activating
ALERT J5 is shipped deactivated after it is calibrated
and passes inspection at the factory. This allows the
device to be stored without losing any time from the
calibration period. You have to activate the device to start
using it. Once activated, the date for the next calibration
increments by 365 days from the date of activation.
A Not Activated message when you initially power on
the device indicates that it is not activated and no test
can be performed until it is activated.
NOTE: This feature is displayed on the Main Menu, only
if your ALERT J5 has been previously calibrated. It is not
possible for you to deactivate the device.
To activate:
1. From the Not Activated screen, press the left button
to activate it. The date the device was deactivated is
shown.
2. Press the right button to activate the device. The
calibration due date is now 365 days from the current
date.
Battery
The ALERT J5 requires two AA Alkaline batteries to
operate. To insert, remove the battery compartment rear
cover (press the tab to release).

INSTRUCTION MANUALp. 4/13 ALERTTMJ5 p. 5/13
TESTING
Taking a Breath Test
NOTE: Certain things like drinking, eating, and smoking
may distort the results of a breath alcohol test. It is
recommended that you rinse your mouth with water or
wait for at least 20 minutes before taking a test.

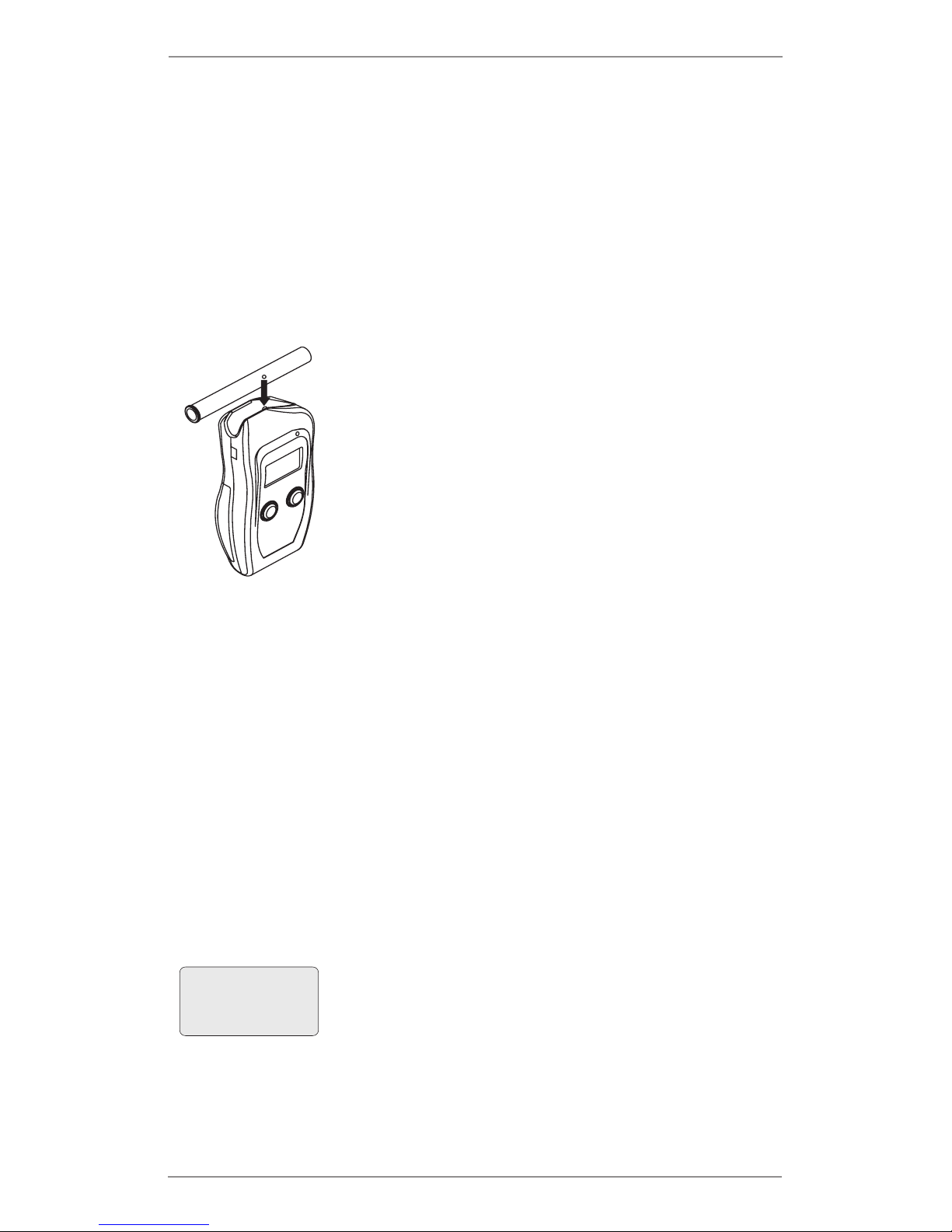

1. Take a new mouthpiece and insert
it on top of the ALERT J5 device.
With the display facing you, connect
the mouthpiece to the device by
aligning the holes and having the
rimmed (larger) end of the mouthpiece
pointing to the left.
NOTE: To ensure accurate results,
use a new mouthpiece for each
test. A used mouthpiece may be
contaminated from the previous
tests, which may result in inaccurate
readings. Use part number 95-000130
to order more mouthpieces from ACS.
2. Power on the device by pressing
either of the two buttons. You will
see a ashing amber LED light and
a WAIT message as the device goes
through the boot up sequence.
3. After 2 to 3 seconds, once the ashing
LED light turns green and the device
displays a READY message, you can
begin a breath test.
ABOUT
READY
MENU

INSTRUCTION MANUALp. 6/13 ALERTTMJ5 p. 7/13

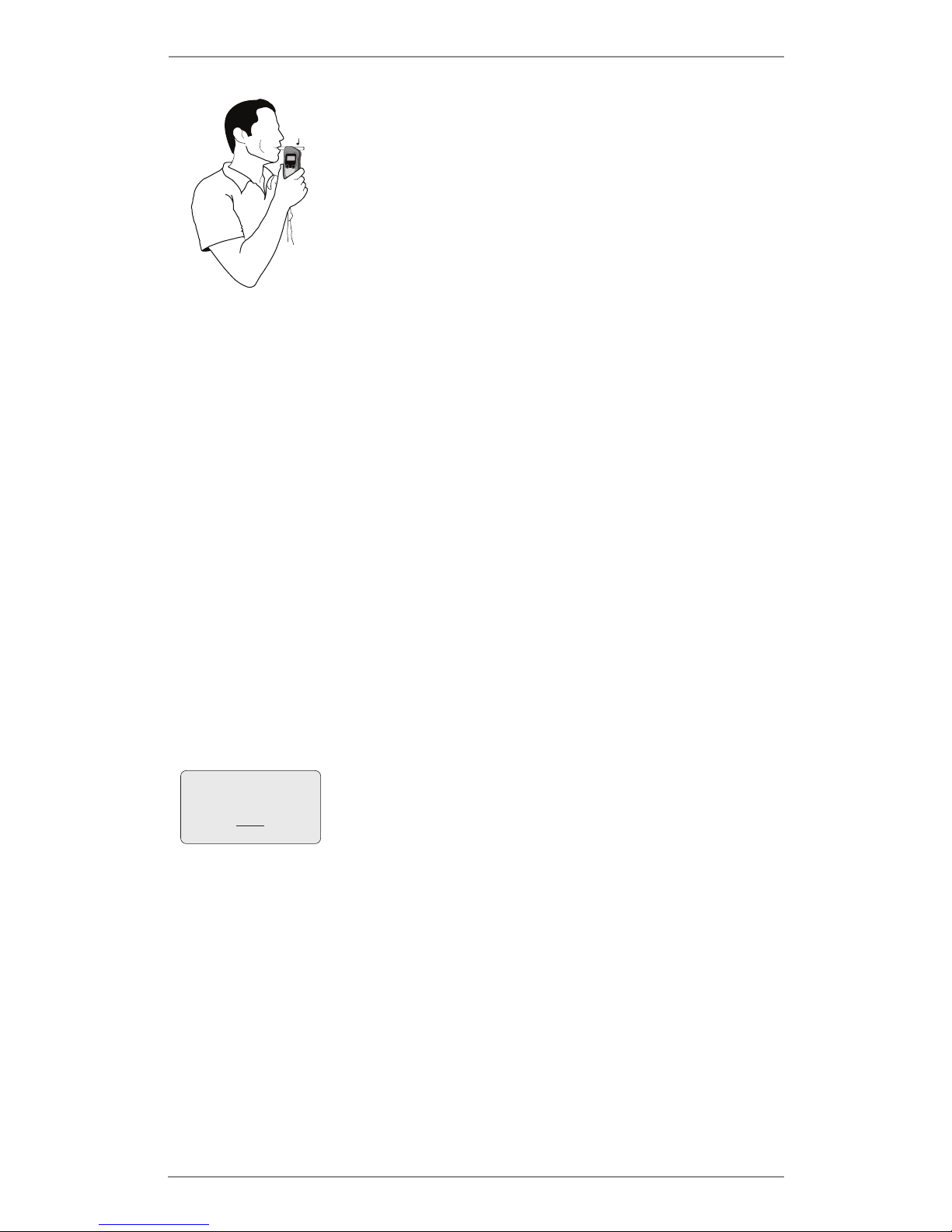

4. Take a deep breath and blow into
the mouthpiece moderately, at a
constant rate and pressure, until you
hear a click sound (approximately
5 seconds). You should hear a
continuous beep, indicating a proper
breath ow. The click indicates the
sampling process is complete.
NOTE: If the breath sample is
insufcient, the LED light ashes
red and you will see a message to
correct the problem. Refer to the
“Troubleshooting” section for details.
5. Stop blowing when you hear the click
and the tone stops.
6. The device analyzes the sample.
Time taken (a few seconds) depends
on the amount of alcohol present
in the breath sample. If the breath
test is being done outdoors in colder
weather, the time to analyze may
increase by a few seconds.
7. ALERT J5 analyzes and displays the
results.
NOTE: The colour of the LED light
that accompanies the results is
for reference only; results given in
numbers should be considered at
all times, especially for new and
professional drivers that may have a
different maximum limit as per local
regulations.
0.020
% BAC
PRINT MENU

INSTRUCTION MANUALp. 6/13 ALERTTMJ5 p. 7/13
Recalling a Breath Test
You can recall any of the 100 most recent tests to either
view on screen or print. To recall a test:
1. Press the right button to access the
menu.
2. Scroll down to the Last 100 Tests
option, using the right button and
select the option using the left button.
This displays the details of the most
recent breath test.
NOTE: You can print a test result from
here. Scroll down to the Print option
using the right button and select the
option by pressing the left button.
Refer to the “Printing” section for more
information.
3. To view other recent tests, use the
right button to select the X/100 (such
as 1/100) option and press the left
button to scroll to the specic test you
wish to view.
Last100 Tests
Calibration
Date/Time
Enter Scroll
BACK TO TEST
Deactivation
BACK TO MENU
3/100
0.049 %BAC
MAR20, 2008
12:49:13 PM
Enter
Print
Scroll Scroll Through Breath Tests
8. You can:
• Print the displayed result by
pressing the left button. Refer to the
“Printing” section for details
• Start a new test by pressing the
right button

INSTRUCTION MANUALp. 8/13 ALERTTMJ5 p. 9/13
PRINTING
An optional battery operated printer can be purchased to
print the BAC results on site. This rechargeable printer
connects to ALERT J5 using a serial communication
cable. The printer kit includes:
• Rechargeable battery pack
• 12V power adaptor
• Paper roll
• Serial communication cable (RS-232)
NOTE: Fully charge the battery pack
overnight before using the printer for
the rst time. The printer cannot print
while the battery is charging (refer to
the “Inserting/Charging the Printer
Battery” section).
Serial Printing
Follow these steps to print the results of the current
breath test using the provided communication cable:
1. Power on the printer by pressing the
left power button. If the printer does
not turn on, the battery may require
charging.
2. Connect the ALERT J5 to the serial
jack below the printer, using the serial
communication cable.
3. With the breath test result showing on
the ALERT J5 display, select the Print
option by pressing the left button.
ALERT J5 detects the cable, and uses
the serial (RS-232) port.
Line Feed
Button
Power Button
Serial (RS-232)
Port

INSTRUCTION MANUALp. 8/13 ALERTTMJ5 p. 9/13
NOTE: To print a recalled test, refer to
the “Recalling a Breath Test” section
for details.
4. You will see Port: RS-232 message
displayed to indicate serial printing.
5. Press the right button to start printing.
This displays a Wait... message until
the printing begins.
6. A Done! message is displayed when
the printing is complete.
7. To return to the breath test result,
press the left button to select the
Back option.
Port: RS-232
Back Print
J5
BreathAlcohol Tester
Serial Number: 000056
Unitof Measurement: %BAC
Test Record No: 8
Subject Test August 28, 2007
0.051%BAC 09:57:06
Subject Name
Licence Plate
Operator Name
Test Location
Department Name
Print Sample

INSTRUCTION MANUALp. 10/13 ALERTTMJ5 p. 11/13
Inserting/Charging the Printer Battery
1. Align the power terminals and push the battery pack in
the compartment below the printer.
2. Plug the provided AC or DC car charger to the jack at
the rear of the case.
3. The left power button on the printer also lights up red,
indicating the battery is charging. Allow the battery to
charge for 12-16 hours initially.
4. When the battery is fully charged both red lights turn
off. Unplug the power to the case.
NOTE: To prolong the battery life, remove the battery
when the printer is not in use, and let the battery drain
fully before recharging.

INSTRUCTION MANUALp. 10/13 ALERTTMJ5 p. 11/13
Loading the Paper Roll
1. Open the printer top cover by pushing up on either
side of the printer.
2. Pull the tab to the right and insert the paper roll, so
that the paper dispenses under. Release the tab to
align the paper roll.
3. Feed the paper into the slot between the roller and
ribbon cassette.
4. Turn the printer power on (left button), and press the
right line feed button until the paper feeds smoothly
through the printer.
5. Close the top cover.
NOTE: Use part number 95-000171 to order more
paper rolls from ACS.
Insert Paper Under
Line Feed Button

INSTRUCTION MANUALp. 12/13 ALERTTMJ5 p. 13/13
MAINTENANCE & TROUBLESHOOTING
Troubleshooting Table
IF THE ALERT J5 THEN
Does not power on Change the batteries
Displays Not Activated Press the left button
Cannot print serially (using
communication cable)
• Check that the printer is on
• Check the cable connection
• Check the cable
Is displaying irregular
results
• Change the mouthpiece. Use
part number 95-000130, to
order more mouthpieces from
ACS
• Eating, drinking or smoking 20
minutes prior to taking the test
can contaminate results. Wait
for at least 20 minutes and
repeat the test
• Check if a calibration is due
Has a clogged or dirty
mouthpiece
• Change the mouthpiece
• Use part number 95-000130
to order more mouthpieces
from ACS
Is using a printer that is
out of paper
• Replace the paper roll
• Use part number 95-000171
to order more rolls from ACS
Is displaying
PEAK ERROR
• You are trying to calibrate the
device with a solution less
than 100 BAC
• Do not attempt to calibrate
yourself
Requires service Contact ACS for return procedure

INSTRUCTION MANUALp. 12/13 ALERTTMJ5 p. 13/13
INDEX
B
BAC, 3
Format, 3
Limits, 6
Basic Features, 1
Battery
ALERT J5, 4
Printer, 10
BrAC, 3
Format, 3
Limits, 6
C
Contact Information, vi
Calibration, vi, 2, 12
M
Maintenance, vi
Mouthpiece, v, 1,
5, 12
P
Printer, 8
R
Results, 6
RS-232, 8, 9
S
Safety, v
Settings, 2, 3
T
Troubleshooting,
12
W
Warranty, vi
Repairs, vi
Website, vi

IRM-ENG-60-000032-F
Copyright © 2011
