Alfalaval TE67D Series User manual

TE67Dxxxxxxxxx
ESE01764-EN5 2019-04
Original manual
Instruction Manual
Alfa Laval Pressure Gauge

Table of contents
The information herein is correct at the time of issue but may be subject to change without prior notice
1. General information ................................................................................... 4
1.1. Information on the Instruction manual .......................................................... 4
1.2. Target group ....................................................................................... 4
1.3. Limitation of liability ............................................................................... 4
1.4. Intended use ...................................................................................... 4
1.5. Package contents ................................................................................ 4
2. Product identification ................................................................................. 5
2.1. Manufacturing label ............................................................................... 5
3. Mechanical installation ............................................................................... 6
3.1. Mounting and safety instructions ................................................................ 6
3.2. General installation steps ........................................................................ 6
4. Initial start-up, placing out of service and maintenance ....................................... 7
4.1. Initial start-up ...................................................................................... 7
4.2. Placing out of service ............................................................................. 7
4.3. Maintenance ....................................................................................... 7
5. Technical data ......................................................................................... 8
5.1. Specifications ..................................................................................... 8
5.2. Measuring range (bar/kPa or bar/psi) ........................................................... 8
5.3. Dimensional drawings ............................................................................ 9
6. Ordering ................................................................................................. 13
6.1. Ordering key table ................................................................................ 13
6.2. Available certificates .............................................................................. 13
7. Service/repair and warranty conditions ........................................................... 14
7.1. Service/repair ...................................................................................... 14
7.2. Warranty conditions .............................................................................. 14
7.3. How to contact Alfa Laval Kolding A/S ......................................................... 14
8. Miscellaneous .......................................................................................... 15
8.1. Technical data sheet for SILFAR® 350 ......................................................... 15
3

1 General information
Unsafe practices and other important information are emphasised in this manual.
Always read the manual before using the device!
1.1 Information on the Instruction manual
This Instruction manual contains important information on proper usage of the device. Read this instruction manual carefully
before installing and starting up the pressure measuring device.
Adhere to the safety notes and operating instructions which are given in the instruction manual. Additionally applicable
regulations regarding occupational safety, accident prevention as well as national installation standards and engineering rules
must be complied with!
This instruction manual is part of the device, must be kept nearest its location, always accessible to all employees.
This instruction manual is copyrighted. The contents of this instruction manual reflect the version available at the time of
printing. It has been issued to our best knowledge. However, errors may have occurred. Alfa Laval Kolding A/S is not liable
for any incorrect statements and their effects.
- Technical modifications reserved –
1.2 Target group
WARNING
To avoid operator hazards and damages of the device, the following instructions have to be worked out by qualified technical
personnel.
1.3 Limitation of liability
By non-observance of the instruction manual, inappropriate use, modification or damage, no liability is assumed and warranty
claims will be excluded.
1.4 Intended use
The Alva Laval Pressure Gauges TE67Dxxxxxxxxx have, according to the type, been developed for applications in overpressure
and vacuum measurement. It is the operator’s responsibility to check and verify the suitability of the device for the intended
application. If any doubts remain, please contact our local Alfa Laval Company in order to ensure proper usage. Alfa Laval
Kolding A/S is not liable for any incorrect selections and their effects.
Permissible media are gases or liquids, specified in the data sheet. In addition it has to be ensured, that this medium is
compatible with the media wetted parts.
The technical data listed in the current data sheet are engaging and must be complied with. If the data sheet is not available,
please order or download it from our homepage (http://www.alfalaval.com).
WARNING
DANGER THROUGH IMPROPER USAGE
1.5 Package contents
Please verify that all listed parts are undamaged included in the delivery and check for consistency specified in our order:
- Pressure gauge
- Mounting instructions
4

2 Product identification
2.1 Manufacturing label
The device can be identified by its manufacturing label. It provides the most important data. By the ordering code the product
can be clearly identified.
Figure 1 Manufacturing label, example
TE67D
3/8” BSP
4507-0006
The manufacturing label must not be removed from the device.
5

3 Mechanical installation
3.1 Mounting and safety instructions
WARNING
Install the device only when depressurized.
WARNING
This device may only be installed by qualified technical personnel who has read and understood the instruction manual!
- Handle this high-sensitive precision measuring device with care, both in packed and unpacked condition!
- There are no modification/changes to be made on the device. Do not throw the package/device!
- To avoid damaging the instrument, remove packaging and protective cap directly before starting assembly. The delivered
protective cap has to be stored!
- Place the protective cap on the pressure post again immediately after disassembling.
- Do not use any force when installing the device to prevent damage of the device and the plant!
3.2 General installation steps
Carefully remove the pressure measuring device from the package and dispose of the package properly.
6

4 Initial start-up, placing out of service and maintenance
4.1 Initial start-up
WARNING
Before start-up, the user must check for proper installation and for any visible defects.
WARNING
The device can be started and operated by authorized personnel only, who have read and understood the instruction manual.
WARNING
The device has must be used within the technical specifications only! (Compare the data in the data sheet).
The instrument housing is filled with glycerin. The glycerin level must be checked on a regular basis. The liquid level must not
drop below 75% of the instrument dial diameter. Small amount of leakage from the vent on top of the gauge is normal.
Pressure buildup can occur in the gauge, for example during air freight. In this case venting the gauge is necessary to equalize the
gauge pressure with the atmosphere. To vent the gauge carefully push the side of the vent plug on top of the gauge. Keep the fill
plug vented for 2-3 seconds to ensure the case pressure is allowed to equalize with the outside pressure. Do not remove the plug.
4.2 Placing out of service
WARNING
Disassemble the device only in pressure less condition!
WARNING
Depending on the medium, it may cause danger for the user. Comply therefore with adequate precautions for purification.
4.3 Maintenance
In principle, this device is maintenance-free. If desired, the housing of the device can be cleaned usíng a damp cloth and
non-aggressive cleaning solutions.
7

5 Technical data
5.1 Specifications
Case material AISI 304
Window PC (unbreakable)
Bezel AISI 304
Liquid filling Glycerine
Transmission fluid Silicone oil
Overload pressure 130% of full span
Accuracy Class 1 (at 20°C) acc. to EN 13190: 2001
Thermal drift +- 0,4% per +- 10°C
Approvals Conforms to EN 837-1 and PED 2014/68/EU
5.2 Measuring range (bar/kPa or bar/psi)
bar/kPa bar/psi
-1 to +1,5 bar -14,5 to +22 psi
-1 to +3 bar -14,5 to +45 psi
0to+2.5bar 0to+40psi
0to+4bar 0to+60psi
0to+6bar 0to+90psi
0 to +10 bar 0 to +150 psi
0 to +16 bar 0 to +230 psi
0 to +25 bar 0 to +360 psi
0 to +40 bar 0 to +600 psi
0 to +60 bar 0 to +870 psi
8

5 Technical data
5.3 Dimensional drawings
TE67Dx1xxxxx6x Dial 80 mm, Clamp 38
4507-0007
TE67Dx2xxxxx6x Dial 80 mm, Clamp 51
4507-0008
9

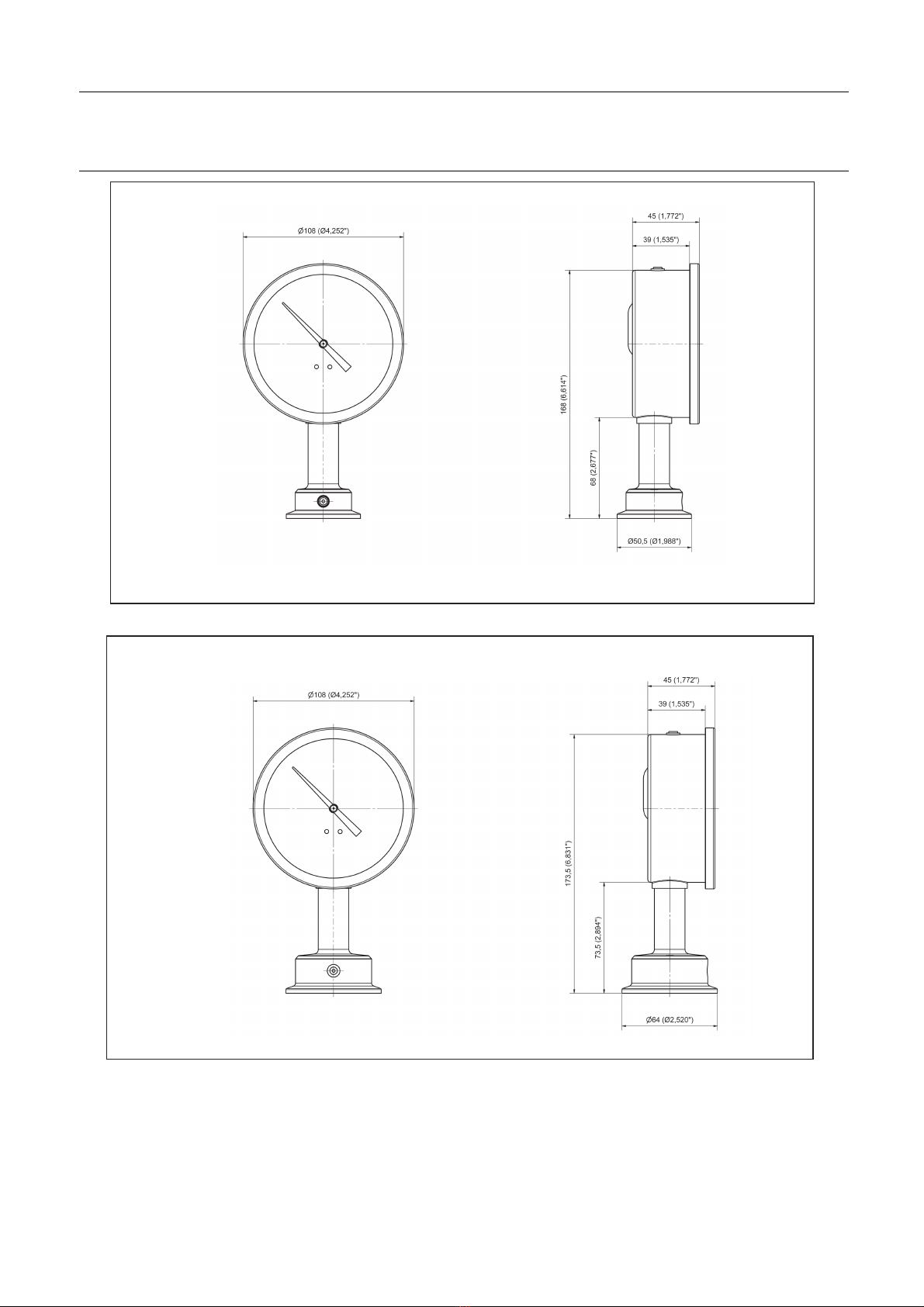

5 Technical data
TE67Dx1xxxxx4x Dial 100 mm, Clamp 38
4507-0009
TE67Dx2xxxxx4x Dial 100 mm, Clamp 51
4507-0010
10

5 Technical data
TE67Dx1xxxxx7x Dial 80 mm, Clamp 38
4507-0011
TE67Dx2xxxxx7x Dial 80 mm, Clamp 51
4507-0012
11

5 Technical data
TE67Dxxxxxxx5x Dial 100 mm, Clamp 38
4507-0013
TE67Dx2xxxxx5x Dial 100 mm, Clamp 51
4507-0014
12

6Ordering
6.1 Ordering key table
Ordering Key Table Pressure Gauge
Description Option Item number code
´-1to1,5bar(-14,5-21,76psi) TE67D1xxxxxxxx
0-4 bar (0 - 58 psi) TE67D2xxxxxxxx
0-10 bar (0-145 psi) TE67D3xxxxxxxx
0-16 bar (0-232 psi) TE67D4xxxxxxxx
0-40 bar (0-580 psi) TE67D5xxxxxxxx
0-60 bar (0-870 psi) TE67D6xxxxxxxx
´-1to3bar(-14,5-43,5psi) TE67D7xxxxxxxx
0-2,5 bar (0-36,3 psi) TE67D8xxxxxxxx
Measuring Range
0-6 bar (0-87 psi) TE67D9xxxxxxxx
Clamp DN 38 (ISO2852) / Clamp DN 40 (DIN32676) TE67Dx1xxxxxxx Process Connection Clamp DN 50 (ISO2852) / Clamp DN 51 (DIN32676) TE67Dx2xxxxxxx
Ra<0,8µ TE67Dxx3xxxxxx
Surface Finish Wetted Parts Ra<0,4µ (Electropolished) TE67Dxx2xxxxxx
AISI 316L TE67Dxxx1xxxxx
Wetted Part Material Teflon TE67Dxxx2xxxxx
Power Supply N/A TE67Dxxxx0xxxx
Bar/Kpa TE67Dxxxxx0xxx Scale Bar/Psi TE67Dxxxxx1xxx
Accuracy K1 TE67Dxxxxxx1xx
Dial 80 bottom connection TE67Dxxxxxxx6x
Dial 80 back connection TE67Dxxxxxxx7x
Dial 100 bottom connection TE67Dxxxxxxx4x
Others
Dial 100 back connection TE67Dxxxxxxx5x
6.2 Available certificates
Ordering key table Certificate types Item number code
Calibration Certificate TE67Dxxxxxxxx1
3.1 Certificate TE67Dxxxxxxxx2
Calibration Certificate + 3.1. Certificate TE67Dxxxxxxxx6
N/A TE67Dxxxxxxxx0
3-A Certificate Authorization number: 1612
A copy of the certificate can be downloaded from 3-A Sanitary Standards, Incorporated: http://www.3-a.org/
13

7 Service/repair and warranty conditions
7.1 Service/repair
Upon every return of a product, no matter if for modifications or repair, it is necessary to contact your local Alfa Laval office to
guarantee a quick execution of your request.
You will receive instructions regarding the return procedure from your local Alfa Laval office. Be sure to follow the instructions
closely.
7.2 Warranty conditions
The warranty conditions are subject to the legal warranty period of 12 months from the date of delivery. In case of improper use,
modifications of or damages to the device, we do not accept warranty claims. Damaged diaphragms will also not be accepted.
Furthermore, defects due to normal wear are not subject to warranty services.
7.3 How to contact Alfa Laval Kolding A/S
For further information please feel free to contact:
Alfa Laval Kolding A/S
31, Albuen - DK 6000 Kolding - Denmark
Registration number: 30938011
Tel switchboard: [phone] - Fax switchboard: [phone]
www.toftejorg.com, www.alfalaval.dk - [email protected]
Contact details for all countries are continually updated on our websites
14

8 Miscellaneous
8.1 Technical data sheet for SILFAR® 350
15

8 Miscellaneous
16

17
