Allen-Bradley 6300V-RVLDV-TX User manual

Installation Instructions
Original Instructions
Remote Video Link Transmitter for 6300B Box PCs and 6300T Box Thin Clients
Catalog Number 6300V-RVLDV-TX, 6300V-RVLDV-RXTX
Product Overview
Your remote video link (RVL) transmitter provides long-distance video connection up to 100 m (328 ft) in one of two ways.
• Industrial Monitor with Integrated RVL Receiver > RVL Transmitter > Industrial PC
• Industrial Monitor > RVL Receiver > RVL Transmitter > Industrial PC
UL/cUL Mark Compliance
Equipment with the UL/cUL mark complies with the requirements of UL 61010-1, UL 61010-2-201, CSA C22.2 No. 61010-1, and CSA C22.2 No. 61010-2-201. A copy of the
certificate of compliance is available at rok.auto/certifications.
Topic Page
Product Overview 1
UL/cUL Mark Compliance 1
European Union Directive and UKCA Compliance 2
Installation Site Guidelines 2
Mount the RVL Transmitter 4
Connect the RVL Transmitter 5
Additional Resources 8
ATTENTION: Read this document and the documents that are listed in the Additional Resources section about installation, configuration, and
operation of this equipment before you install, configure, operate, or maintain this product. Users are required to familiarize themselves with
installation and wiring instructions in addition to requirements of all applicable codes, laws, and standards.
Activities including installation, adjustments, putting into service, use, assembly, disassembly, and maintenance are required to be carried out by
suitably trained personnel in accordance with applicable code of practice. If this equipment is used in a manner that is not specified by the
manufacturer, the protection that is provided by the equipment may be impaired.
Industrial Monitor
with Integrated RVL Receiver
RVL Transmitter
6300V-RVLDV-TX Industrial PC
USB 2.0 Cable
DVI Cable
RVL Cable
100 m (328 ft) Maximum Length
Industrial Monitor RVL Receiver
6300V-RVLDV-RX
RVL Cable
100 m (328 ft) Maximum Length
RVL Transmitter
6300V-RVLDV-TX Industrial PC
USB 2.0 Cable
DVI Cable
USB 2.0 Cable
DVI Cable

2Rockwell Automation Publication 6300V-IN005A-EN-P - November 2022
Remote Video Link Transmitter for 6300B Box PCs and 6300T Box Thin Clients Installation Instructions
European Union Directive and UKCA Compliance
This equipment meets the European Union Directive and UK requirements when installed within the European Union or EEA regions and have the CE marking. A copy of the
declaration of the conformity is available at rok.auto/certifications.
Unpack your RVL Transmitter
Your RVL transmitter ships with the following items:
• RVL transmitter, 6300V-RVLDV-RTX
• DC terminal block kit
•Mountingkits
- Book mount kit: bracket (quantity 1) and screws (quantity 2)
- Wall mount kit: brackets (quantity 2) and screws (quantity 4)
- DIN rail mount kit: rail hook (quantity 1) and screws (quantity 2)
Installation Site Guidelines
Follow these installation site guidelines to make sure that your RVL transmitter provides service with excellent reliability.
• When choosing the installation site, consider the following:
- The site must have sufficient power.
- The site must be indoors and non-hazardous.
- The site must not expose the RVL transmitter to direct sunlight.
• The maximum operating ambient temperature of the RVL transmitter is 50 °C (122 °F).
- Measure the ambient temperature 5 cm (2 in.) away from all cooling openings.
- Make sure all cooling openings/grids are not obstructed to confirm proper airflow.
- The surrounding air temperature must not exceed the maximum operating ambient temperature of 50 °C (122 °F), especially when mounted in an enclosure.
- The RVL transmitter can be stored in a surrounding air temperature range of -5…+60 °C (23…140 °F).
- The relative humidity (RH) of the ambient air must be 80% noncondensing when the RVL transmitter is operating or being stored.
Required Equipment
To complete the installation of your RVL transmitter, the following components, cables, and tools are required.
ATTENTION: This equipment is intended to operate in an industrial or control room environment, which uses some form of power isolation from the
public low-voltage mains. Some computer configurations cannot comply with the EN 61000-3-2 Harmonic Emissions standard as specified by the EMC
Directive of the European Union.
ATTENTION: All I/O cables must be used only indoors.
Before you unpack your RVL transmitter, inspect the shipping carton for damage. If damage is visible, immediately contact the shipper and request
assistance. If there is no visible damage, proceed with unpacking.
WARNING: This RVL transmitter is:
• suitable for use in CLASS I, DIVISION 2, GROUPS A, B, and D Hazardous Locations or Non-hazardous Locations only.
• considered open equipment, which means that it may only be integrated in housings or cabinets where the front panel can be accessed for operation.
Components Cables Tools
• Industrial monitor with integrated RVL receiver or
integrated monitor with external RVL Receiver, 
6300V-RVLDV-RX)
• Industrial PC
• DIN rail (for DIN rail-mount installation only)
• 24V DC (input voltage 18…32V DC) power supply (1)
(1) The power supply must: (a) satisfy the requirements of a safe extra low voltage (SELV) in accordance with IEC/EN/DIN EN/UL60950-1 and (b) fulfill the requirements NEC Class 2 LPS in accordance with
IEC/EN/DIN EN/UL60950-1. Connect the system with a cable cross-section of 0.75…1.5 mm2(from 18…16 AWG) suitable in a minimum of 75 °C (167 °F).
• DVI cable, 11 m (36 ft) maximum length (2)
• USB 2.0 cable, 11 m (36 ft) maximum length (2)
• RVL (Cat. 5E/Cat. 6 A connection) cable, 100 m (328 ft)
maximum length, quantity 1
(2) Two cables are required if your installation requires a separate RVL receiver (6300V-RVLDV-RX).
For wall mount, shelf mount, or DIN rail attachment:
• Drill and 4 mm drill bit
• #2 Phillips screwdriver
• M4x20 stainless steel screws, quantity 4
For DC power connector assembly and ground wire installation:
•2.5mmhexscrewdriver
• Wire stripper, cutter, and crimper tool
•Cuttingpliers
• Safety glasses

Rockwell Automation Publication 6300V-IN005A-EN-P - November 2022 3
Remote Video Link Transmitter for 6300B Box PCs and 6300T Box Thin Clients Installation Instructions
Approximate Dimensions
Figure 1 - Approximate Dimensions with Mounting Kit [cm (in.)]
DIN Rail Bottom Mount Installation DIN Rail Back Mount Installation
1.45
(0.57)
0.45
(0.18)
Ø 0.90
(0.35)
Ø 0.45
(0.18)
1.30
(0.51)
1.30
(0.51)
16.00
(6.30)
12.00
(4.72)
2.00
(0.79)
14.10
(5.56)
2.00
(0.79)
9.48
(3.73)
2.60
(1.02)
6.00
(2.36) 6.00
(2.36)
Ø 0.45
(0.18)
Ø 0.90
(0.35)
12.00
(4.72)
14.50
(5.71)
13.30
(5.24)
0.60
(0.24)
6.00
(2.36)
9.40
(3.70)
2.30
(0.91)
3.60
(1.42)
2.30
(0.91)
2.68
(1.06)
Book Mount Installation Wall Mount Installation
View of Unit from Front
View of Unit from Top View of Unit from Front
View of Unit from Top
2.60
(1.02)
1.34
(0.53)
2.60
(1.02)
3.94
(1.55)
4.80
(1.89)
4.80
(1.89)
2.40
(0.94)
12.00
(4.72)
1.50
(0.59)
5.25
(2.07) 5.25
(2.07)
4.70
(1.85)
4.70
(1.85)
9.40
(3.70)
9.40
(3.70)
10.74
(4.23) 0.55
(0.22)
0.55
(0.22)
1.5
(0.59)
6.00
(2.36)
6.00
(2.36)
2.60
(1.02)
2.60
(1.02)
12.00
(4.72)
View of Unit from Front
View of Unit from Front
View of Unit from Bottom View of Unit from Side
View of Unit from Side
View of Unit from Top

4Rockwell Automation Publication 6300V-IN005A-EN-P - November 2022
Remote Video Link Transmitter for 6300B Box PCs and 6300T Box Thin Clients Installation Instructions
Mount the RVL Transmitter

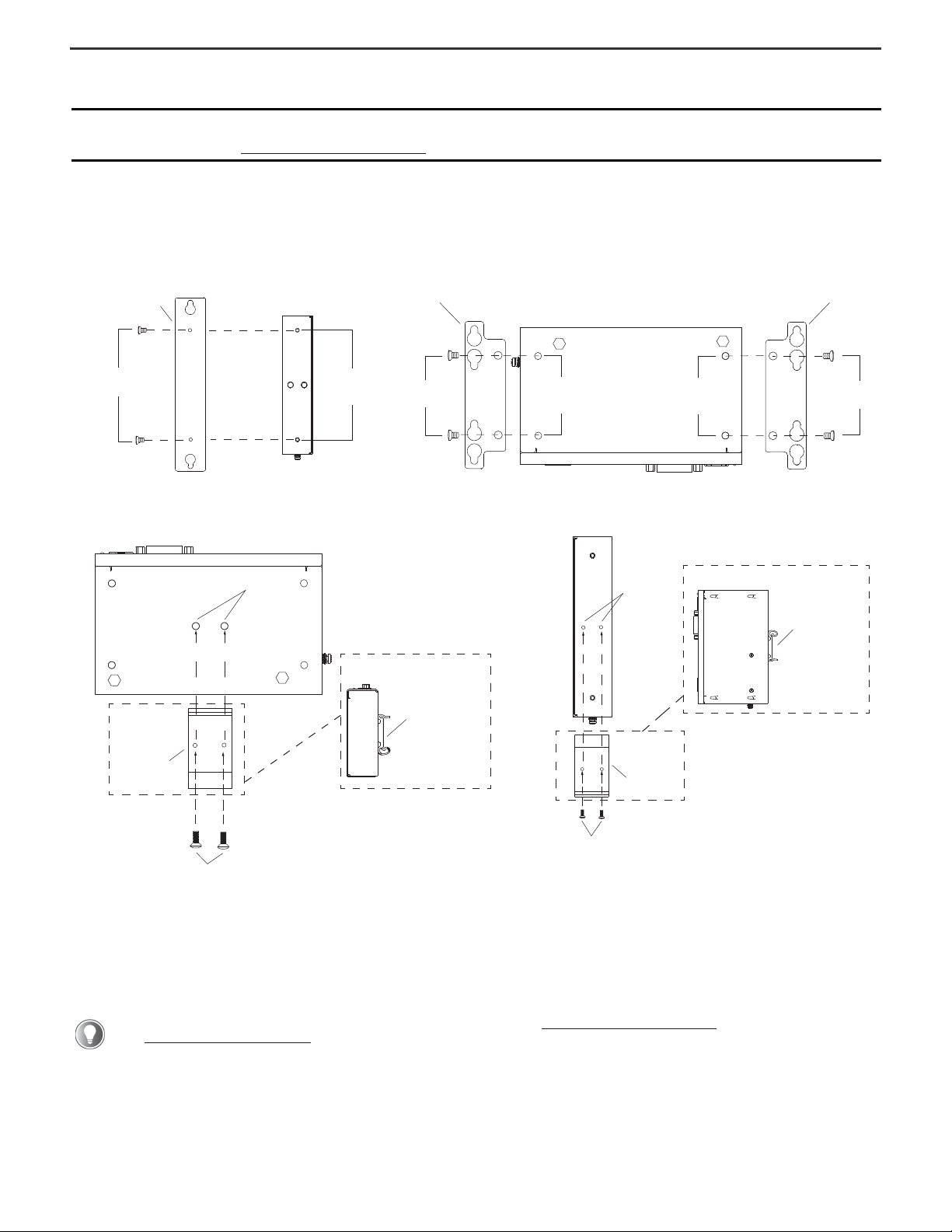

Attach the Bracket Kit
A book mount bracket kit, wall mount bracket kit, and a DIN rail mount kit for bottom mount or back mount installation is supplied with your RVL transmitter.
Figure 2 - Mounting Bracket Kits and Attachment
1. Select the correct mounting kit for your installation.
2. Align the bracket(s) to the mounting holes of your RVL transmitter.
3. Using a 2.5 mm hex screwdriver, hand tighten the screws to your RVL transmitter.
Secure the RVL Transmitter
4. Place the RVL transmitter against the wall or shelf.
5. Check that the RVL transmitter is level and square.
6. Mark and drill pilot holes in the wall or shelf.
7. For book mount or wall mount installation: Insert and tighten the M4x20 mounting screws (not provided) into the pilot holes on the wall or shelf.
For DIN rail bottom mount or DIN rail side mount installation: Attach the bracket to the DIN rail.
IMPORTANT If you will be installing your RVL transmitter in an environment where vibration is present, your RVL transmitter must be secured to a shelf, wall, or
DIN rail using one of the three mounting kits (supplied). If vibration is not present and your RVL transmitter will not be mounted to a wall, shelf or DIN
rail, proceed to Connect the RVL Transmitter on page 5.
Before securing the RVL transmitter to the wall or shelf, be sure you are adhering to the Installation Site Guidelines on page 2.
See Approximate Dimensions on page 3 to help with proper placement.
Bracket Wall Mount
DIN Rail Back MountDIN Rail Bottom Mount
Book Mount
Bracket
Screws
View of Unit from Side
Bracket
Attachment
Bracket
Bracket
AttachmentScrews
Screws
View of Unit from Top
Screws
Bracket
Attachment
Bracket
Attachment
DIN Rail Hook
Profile
View of Unit from Side
View of Unit from Top
DIN Rail Hook
Bracket
Attachment
Screws
DIN Rail Hook
Profile
DIN Rail Hook
View of Unit from Side
View of Unit from Top
DIN Rail Hook Installation

Rockwell Automation Publication 6300V-IN005A-EN-P - November 2022 5
Remote Video Link Transmitter for 6300B Box PCs and 6300T Box Thin Clients Installation Instructions

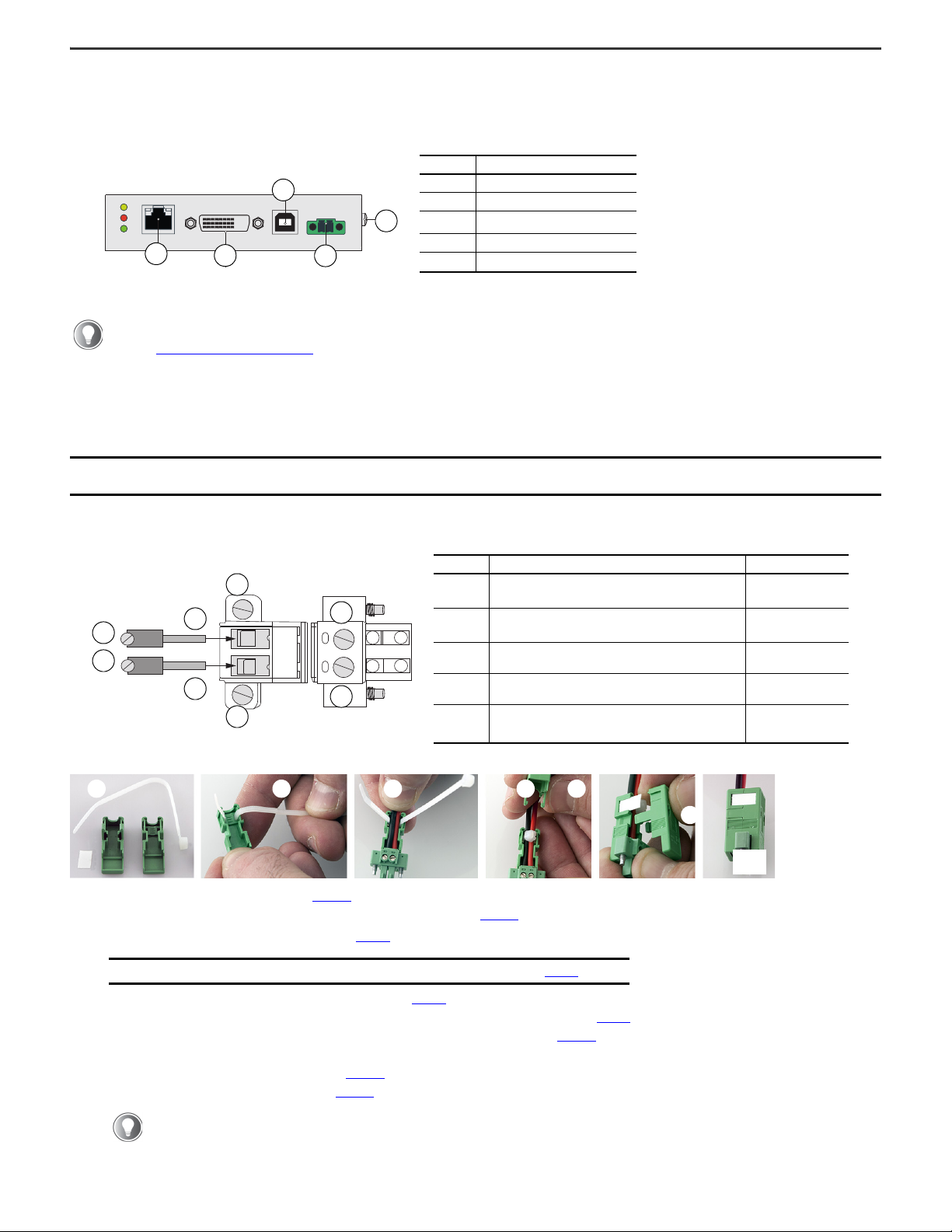

Connect the RVL Transmitter
The following table identifies the input/output (I/O) ports on the front of your RVL transmitter
.
Assemble the DC Terminal Block Kit
The connector assembly provides strain relief for the DC power wires by reducing their movement. To assemble and attach the DC terminal block kit:
DC Power Conn ector Assembly S teps
Figure 3 - DC Terminal Block Assembly Steps
1. Open the DC terminal block (supplied) (A in Figure 3).
2. Insert the cable tie through the slots of the appropriate connector clamp (B in Figure 3).
3. Strip the end of each DC power wire to the length in Table 2.
4. Insert each stripped end into the DC terminal block as shown in Table 2.
5. Tighten the screws on top of the DC terminal block to secure the DC power wires to the torque value in Table 2.
6. Slide the connector half with the attached cable tie onto the end of the DC terminal block (C in Figure 3).
7. Tighten the cable tie so it is snug against the terminal wires.
8. Use cutting pliers to cut the excess cable tie (D in Figure 3).
9. Install the white label supplied with the kit (E in Figure 3).
Table 1 - RVL Transmitter I/O Port Locations and Ground Screw
Note No. Component/Cable Type
1 RVL In
2 DVI-D Output
3USB 2.0 (1)
(1) The USB ports are not for use in hazardous locations. Only use the USB ports for initial setup and maintenance.
424VDCPower
5Ground Screw
• Your DC powered RVL transmitter requires a safety extra low voltage (SELV) power supply. The internal power supply is protected against reverse polarity.
• To minimize ground loop currents and noise, we recommend that your DC powered RVL transmitter uses only one grounded connection. 
See Install the Ground Wire on page 6 for the ground connection on these models.
IMPORTANT The DC terminal block in the photos is only for illustrative purposes. Your DC terminal block can differ in size, shape, and color to what is shown
in the photos.
Table 2 - DC Terminal Block Connection Specifications
Note No. Description Attribute
1 DC+ (24V DC nominal) recommended power wire size 1.5 mm2
(16 AWG)
2 DC- (0V DC) recommended power wire size 1.5 mm2
(16 AWG)
3 Stripped wire length 7 mm
(0.275 in.)
4 Torque range to secure DC power wires 0.22...0.25 N•m
(0.16...0.18 lb•ft)
5 Torque value to reinstall DC terminal block to computer 0.3 N•m
(0.22 lb•ft)
IMPORTANT DC power wires must be of stranded copper and sized according to Table 2
The white label can be used for identification or other information.
4
5
2
3
1
View of Unit from Front
1
2
3
3
5
5
4
4
DA B C E
F
G
Ground
Screw

6Rockwell Automation Publication 6300V-IN005A-EN-P - November 2022
Remote Video Link Transmitter for 6300B Box PCs and 6300T Box Thin Clients Installation Instructions
10. Align and install the other connector clamp half to complete the assembly (F in Figure 3).
11. Reconnect the DC terminal block with the connector assembly to your RVL receiver (G in Figure 3 on page 5).
12. Torque the DC terminal block flange screws to the values in Table 2 on page 5.
13. Turn on the main power switch or breaker.
14. Tighten the screws on top of the DC terminal block to secure the DC power wires to the torque value in Table 2 on page 5.

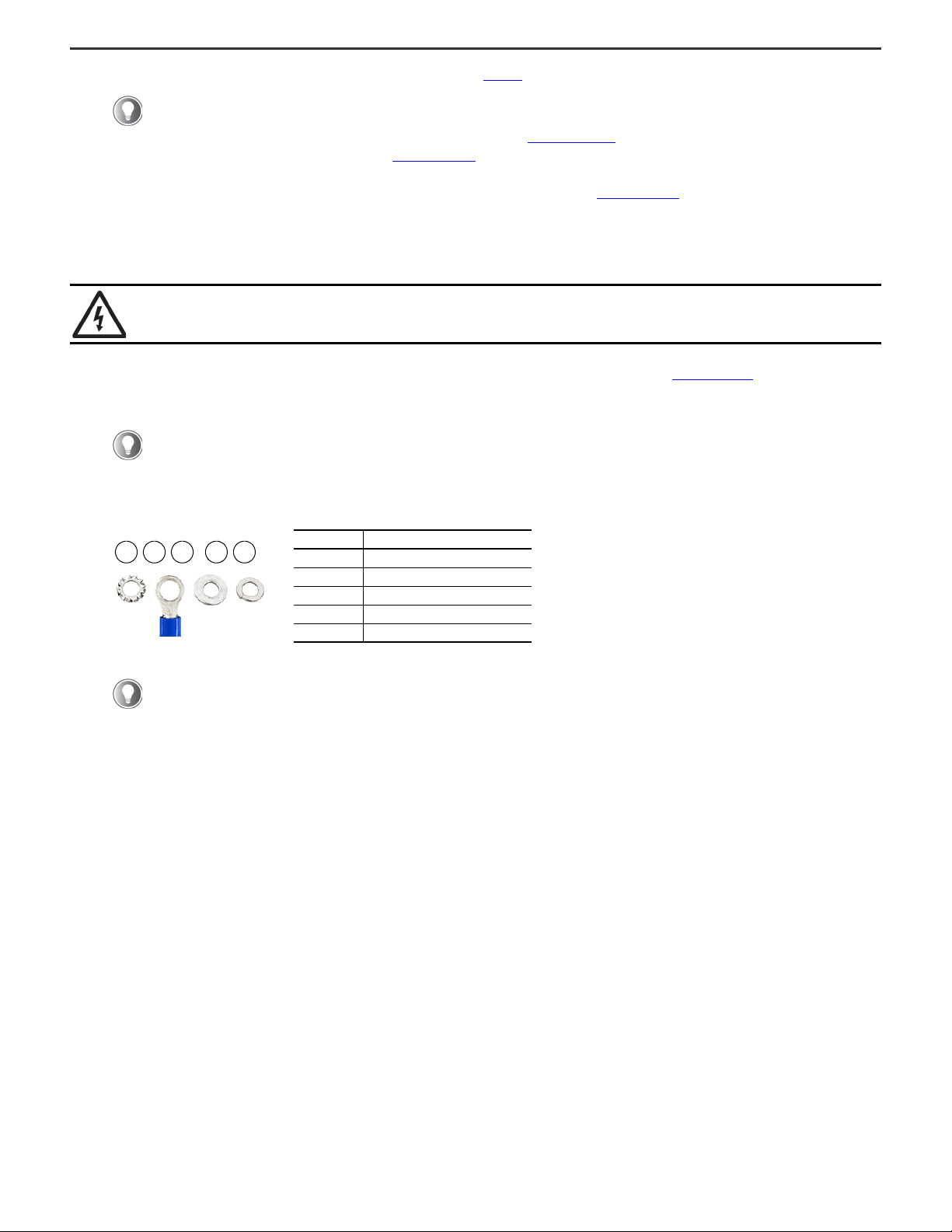

Install the Ground Wire
1. Be sure that the main power switch or breaker is still turned off.
2. Remove the supplied nut, eyelet terminal, and washers from the ground screw on the side of your RVL transmitter. See Table 1 on page 5 for the ground screw
location.
3. Attach a 2.50 mm2(14 AWG) or larger external wire to the eyelet terminal.
4. Strip 5.00 mm (0.20 in.) from the covering at the end of the grounding wire.
5. Insert the stripped end of the grounding wire into the open end of the eyelet terminal, and crimp it securely to the wire.
6. Install the ground wire and washers to the ground screw in the following sequence:
7. Reinstall the ground screw to the chassis of your RVL transmitter.
When installed correctly, both tabs of the clamp half lock into place.
SHOCK HAZARD: The chassis of your RVL transmitter must be connected to ground via the ground screw.
Use a grounding wire with an insulation color that is approved by your local inspection authority.
Note No. Description
1Toothedwasher
2Eyeletterminal
3Washer
4Lockwasher
5 Ground screw
We recommend that the computer circuit be supplied with its own disconnect.
Use an uninterruptible power supply (UPS) to help protect against unexpected power failure or power surges.
1 42 3 5

Rockwell Automation Publication 6300V-IN005A-EN-P - November 2022 7
Remote Video Link Transmitter for 6300B Box PCs and 6300T Box Thin Clients Installation Instructions
Attach the I/O Cables and Power Cords
Figure 4 - I/O Cable Connection
1. Attach the RVL cable, DVI-D Output, and USB 2.0 cable to the I/O ports at the front of your RCL transmitter. See Table 1 on page 5 to identify I/O port locations.
2. Connect the free end of the I/O cables and power cords to your hardware as shown in Figure 4.
3. Connect the free end of the power cords to your wall outlet.
Once power is supplied to your RVL transmitter and other hardware, light-emitting diode (LED) status indicators will illuminate on the front of your RVL transmitter.
Table 3 - LED Status Indicators
Note No. Description
1Link
2Run
3Power
DVI-D USB 24V DC
RVL IN USB USB
DVI-D OUT
POWER
24V DC
+
-
RVL OUT USB
DVI-D IN
POWER
24V DC
-+
DVI-D OUT
E1
E2
DVI-D USB 24V DC
RVL OUT USB
DVI-D IN
POWER
24V DC
-+
DVI-D OUT
E1
E2
RVL IN
USB 2.0 cable
Industrial Monitor > RVL Receiver > RVL Transmitter > Industrial PC
RVL (Cat. 5/Cat. 6 A) cable, 100 m (328 ft) maximum length
Industrial Monitor
RVL Receiver
Industrial PC
RVL Transmitter
DVI cable
Ground
Ground
Ground
Specified Input
Power
24V DC
Ground
DVI cable
Industrial Monitor with Integrated Receiver > RVL Transmitter > Industrial PC
Industrial Monitor
RVL (Cat. 5/Cat. 6 A) cable, 100 m (328 ft) maximum length
RVL Transmitter
Industrial PC
USB 2.0 cable
Ground
24V DC
DVI cable
USB 2.0 cable
24V DC
24V DC
Ground
Specified Input
Power
24V DC
LINK
RUN
PWR
1
2
3
View of Unit from Front

Publication 6300V-IN005A-EN-P - November 2022
Copyright © 2022 Rockwell Automation, Inc. All rights reserved. Printed in the U.S.A.
Rockwell Otomasyon Ticaret A.Ş. Kar Plaza İş Merkezi E Blok Kat:6 34752 İçerenköy, İstanbul, Tel: [phone] EEE Yönetmeliğine Uygundur
PN-685687
DIR 10007071343 (Version 00)
Vendor Code: 80460102.00
Allen-Bradley, expanding human possibility, and Rockwell Automation are trademarks of Rockwell Automation, Inc.
Trademarks not belonging to Rockwell Automation are property of their respective companies.
*PN-685687*
PN-685687
Your comments help us serve your documentation needs better. If you have any suggestions on how to improve our content, complete the form at rok.auto/docfeedback.
For technical support, visit rok.auto/support.
Waste Electrical and Electronic Equipment (WEEE)
Rockwell Automation maintains current product environmental compliance information on its website at rok.auto/pec.
At the end of life, this equipment should be collected separately from any unsorted municipal waste.
Additional Resources
This publication provides basic installation instructions. For more information, see the following Rockwell Automation publications at https://rok.auto/literature.
Resource Description
6300B Box PC and 6300T Thin Clients User Manual, publication 6300B-UM001 Provides details on how to configure, operate, and troubleshoot the 6300B book mount box
PCs and 6300T book mount box thin clients.
6300 Industrial Computer and Monitor Specifications Technical Data, publication 6300-TD001 Provides technical specifications for 6300 industrial computers and monitors.
6300V RVL Receiver and RVL Transmitter User Manual, publication 6300V-UM004-EN-P Provides detail on how to configure, operate, and troubleshoot the 6300V RVL receiver and
RVL transmitter.
Industrial Automation Wiring and Grounding Guidelines, publication 1770-4.1 Provides general guidelines to install a Rockwell Automation industrial system.
Product Certifications website, rok.auto/certifications Provides declarations of conformity, certificates, and other certification details.
