Alliance Laundry Systems Drying Tumblers 50 Pound Capacity 75 Pound Capacity Model Identification Part No.... Owner's manual

Operation/Programming/Maintenance
www.comlaundry.com
Drying Tumblers
50 Pound Capacity
75 Pound Capacity
Refer to Page 3 for Model Identification
Part No. 70400301R3
August 2007
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
70400301 1
Installation must conform with local codes or in the absence of local codes with:
In the U.S.A., installation must conform to the latest edition of the American National Standard Z223.1/
NFPA 54 “National Fuel Gas Code” and Standard ANSI/NFPA 70 “National Electric Code.”
In Canada, installation must comply with Standards CSA-B149.1 or Natural Gas and Propane Code CSA
C22.1, latest edition, Canadian Electric Code, Part I.
In Australia, installation must comply with the Australian Gas Association Installation Code for Gas
Burning Appliances and Equipment.
IMPORTANT: Information must be obtained from a local gas supplier on instructions to be followed if the
user smells gas. These instructions must be posted in a prominent location. Step-by-step instructions of the
above safety information must be posted in a prominent location near the tumbler for customer use.
FOR YOUR SAFETY, the information in this
manual must be followed to minimize the
risk of fire or explosion or to prevent
property damage, personal injury or death.
W033
• Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
• WHAT TO DO IF YOU SMELL GAS:
– Do not try to light any appliance.
– Do not touch any electrical switch; do
not use any phone in your building.
– Clear the room, building or area of all
occupants.
– Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
– If you cannot reach your gas supplier,
call the fire department.
• Installation and service must be
performed by a qualified installer, service
agency or the gas supplier. W052
FOR YOUR SAFETY
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance. W053
WARNING
POUR VOTRE SÉCURITÉ, les informations
de ce guide doivent être respectées afin de
réduire les risques d’incendie, d’explosion
ou d’éviter les dommages matériels,
personnels ou blessures mortelles. W033R3QU
• Ne pas entreposer ou utiliser d’essence
ou toutes autres vapeurs et liquides
inflammables à proximité de cette
machine ou de tout autre appareil.
• QUE FAIRE EN CAS D’ODEUR DE GAZ :
– Ne pas mettre d’appareil en marche.
– Ne pas toucher aux interrupteurs
électriques ; ne pas utiliser le
téléphone des lieux.
– Évacuer la pièce, le bâtiment ou la zone
de tous les occupants.
– Appeler immédiatement le fournisseur
de gaz de la maison d’un voisin.
Respecter les instructions
communiquées par le fournisseur.
– Si vous ne pouvez pas joindre le
fournisseur de gaz, appeler le service
d’incendie.
• L’installation et l’entretien doivent être
effectués par un installateur, service
d’entretien qualifiés ou par le fournisseur
de gaz. W052R5QU
POUR VOTRE SÉCURITÉ
Ne pas entreposer ou utiliser d’essence ou
toutes autres vapeurs et liquides
inflammables à proximité de cette unité ou
de tout autre appareil. W053R2QU
MISE EN GARDE

© Copyright 2007, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any
means without the expressed written consent of the publisher.
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
270400301
Table of
Contents
Introduction......................................................................................... 3
Model Identification ............................................................................. 3
Customer Service.................................................................................. 4
Serial Plate Location............................................................................. 4
Wiring Diagram .................................................................................... 4
Safety Information.............................................................................. 5
Explanation of Safety Messages........................................................... 5
Important Safety Instructions ............................................................... 6
Operating Instructions ....................................................................... 8
Emergency Stop Button on CE Models................................................ 8
Operating Instructions .......................................................................... 8
Control Instructions .............................................................................. 9
Electromechanical Coin Control...................................................... 9
Manual Timer Control ..................................................................... 10
Dual Digital Timer Control.............................................................. 11
Single Drop Control......................................................................... 13
Diagnostic Microprocessor Control................................................. 15
DMP Coin ........................................................................................ 16
DMP OPL Models ........................................................................... 18
Ignition Control Operation ................................................................... 22
Maintenance ........................................................................................ 24
Daily ..................................................................................................... 24
Monthly................................................................................................. 25
Quarterly ............................................................................................... 25
Bi-Annually .......................................................................................... 25
Before You Call for Service ............................................................... 28
Customer Service.................................................................................. 28

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 3
70400301
Introduction
Model Identification
Information in this manual is applicable to these models:
Includes models with control suffixes:
Gas Steam/Thermal Oil Electric
50 Pound
CHD50G2-CA050L
CHD50G2-CA050N
CHD50G2-CT050L
CHD50G2-CT050N
CHD50G2-CU050L
CHD50G2-CU050N
DR50G2-BA050L
DR50G2-BA050N
DR50G2-BT050L
DR50G2-BT050N
DR50G2-BU050L
DR50G2-BU050N
IPD50G2-IT050L
IPD50G2-IT050N
BT050T
BU050T
CHD50S2-CT050S
CHD50S2-CU050S
CT050T
CU050T
DR50S2-BT050S
DR50S2-BU050S
IPD50S2-IT050S
IT050T
CHD50E2-CT050E
CHD50E2-CU050E
DR50E2-BT050E
DR50E2-BU050E
IPD50E2-IT050E
75 Pound
CHD75G2-CA075L
CHD75G2-CA075N
CHD75G2-CT075L
CHD75G2-CT075N
CHD75G2-CU075L
CHD75G2-CU075N
DR75G2-BA075L
DR75G2-BA075N
DR75G2-BT075L
DR75G2-BT075N
DR75G2-BU075L
DR75G2-BU075N
IPD75G2-IT075L
IPD75G2-IT075N
BT075T
BU075T
CHD75S2-CT075S
CHD75S2-CU075S
CT075T
CU075T
DR75S2-BT075S
DR75S2-BU075S
IPD75S2-IT075S
IT075T
CHD75E2-CT075E
CHD75E2-CU075E
DR75E2-BT075E
DR75E2-BU075E
IPD75E2-IT075E
3O – DX4 OPL
3V – DX4 vended
3X – DX4 prep for coin
CD – rotary coin drop
CX – prep for coin
DO – DMP OPL
DV – DMP vended
DX – DMP prep for coin
MT – manual timer
QT – dual digital timer
R3 – reversing DX4 OPL
RD – reversing DMP OPL
RQ – reversing dual digital timer
RT – reversing manual timer
SD – single drop
SX – single drop, prep for coin

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Introduction
70400301
4
Customer Service
If literature or replacement parts are required, contact
the source from which the machine was purchased or
contact Alliance Laundry Systems at [phone]
for the name and address of the nearest authorized
parts distributor.
For technical assistance, call [phone].

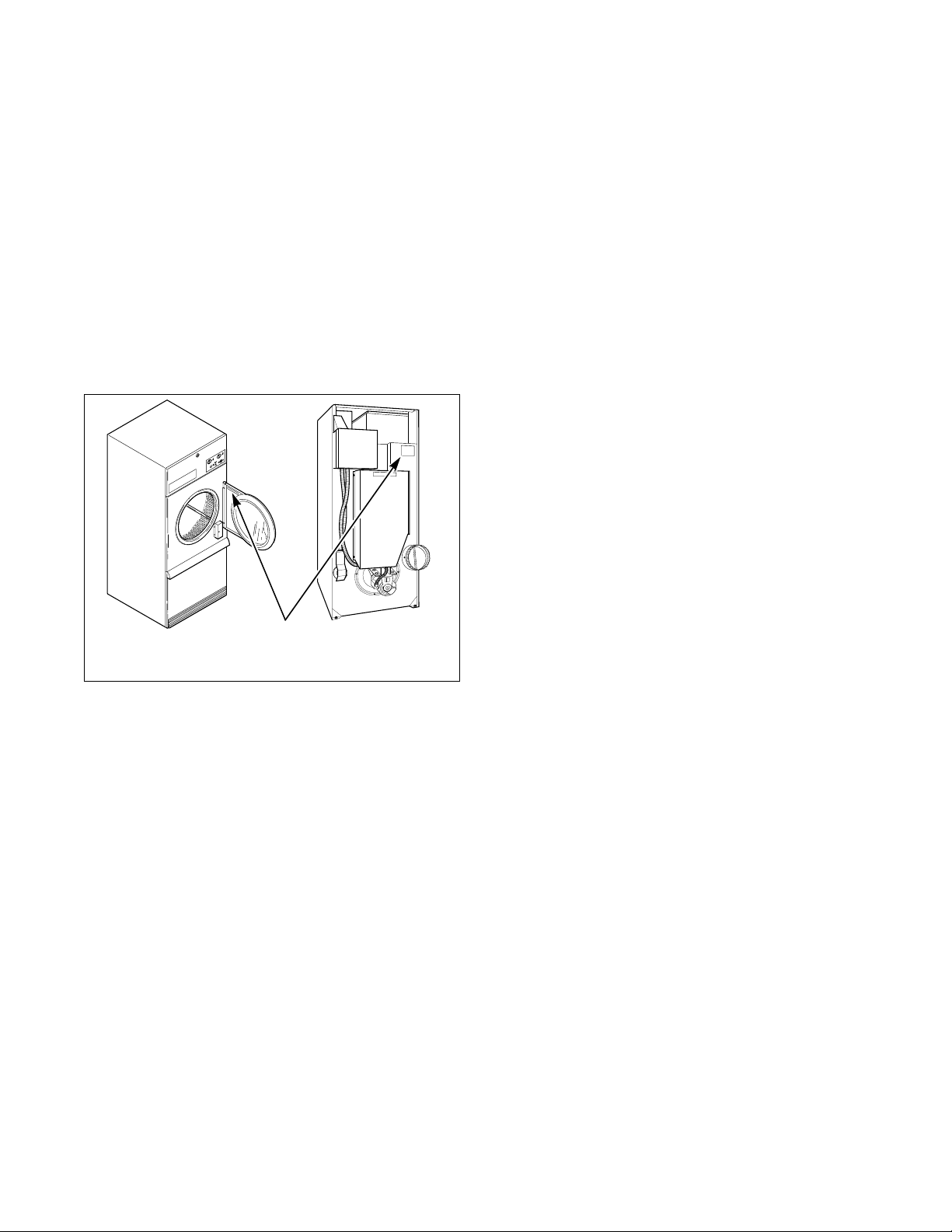

Serial Plate Location
When calling or writing for information about your
product, be sure to mention model and serial numbers.
Model and serial numbers are found on serial plate on
rear of machine, and inside door hinge. Refer to
Figure 1.
Wiring Diagram
The wiring diagram is located in the junction or
contactor box.
Models starting Serial No. 0309___ or later will have
the wiring diagram part number in the lower portion of
the electrical data on the serial plate.
1Serial Plate
Figure 1
TMB803N
10
20
4030
50
60
0
10
5
PUSH
TO
START
HEATCOOL
DOWN
HIGH
TEMPERATURE
LOW
15
0
1TMB803N

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 5
70400301
Safety Information
Explanation of Safety Messages
Precautionary statements (“DANGER,” “WARNING,”
and “CAUTION”), followed by specific instructions,
are found in this manual and on machine decals. These
precautions are intended for the personal safety of the
operator, user, servicer, and those maintaining the
machine.
Additional precautionary statements (“IMPORTANT”
and “NOTE”) are followed by specific instructions.
IMPORTANT: The word “IMPORTANT” is used
to inform the reader of specific procedures where
minor machine damage will occur if the procedure
is not followed.
NOTE: The word “NOTE” is used to communicate
installation, operation, maintenance or servicing
information that is important but not hazard
related.
IMPORTANT: Warranty is void unless tumbler
is installed according to instructions in the
Installation Manual. Compliance with minimum
specifications and requirements detailed herein,
and with applicable local gas fitting regulations,
municipal building codes, water supply regulations,
electrical wiring regulations, and any other
relevant statutory regulations. Because of varied
requirements, applicable local codes should be
thoroughly understood and all pre-installation
work arranged for accordingly.
NOTE: The WARNING and IMPORTANT
instructions appearing in this manual are not
meant to cover all possible conditions and
situations that may occur. It must be understood
that common sense, caution and carefulness are
factors which CANNOT be built into this tumbler.
These factors MUST BE supplied by the person(s)
installing, maintaining or operating the tumbler.
Always contact your dealer, distributor, service agent
or the manufacturer on any problems or conditions you
do not understand.
Indicates an imminently hazardous
situation that, if not avoided, will cause
severe personal injury or death.
DANGER
Indicates a hazardous situation that, if not
avoided, could cause severe personal
injury or death.
WARNING
Indicates a hazardous situation that, if not
avoided, may cause minor or moderate
personal injury or property damage.
CAUTION
Failure to install, maintain, and/or operate
this machine according to manufacturer’s
instructions may result in conditions which
can produce serious injury, death and/or
property damage. W051R1
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Safety Information
70400301
6
Important Safety Instructions
Save These Instructions
1. Read all instructions before using the tumbler.
2. Refer to the GROUNDING INSTRUCTIONS
for the proper grounding of the tumbler.
3. Do not dry articles that have been previously
cleaned in, washed in, soaked in, or spotted with
gasoline, dry cleaning solvents, other flammable
or explosive substances as they give off vapors
that could ignite or explode.
4. Do not allow children on or in the tumbler. This
appliance is not intended for use by young
children or infirm persons without supervision.
Young children should be supervised to ensure
that they do not play with the appliance.
5. Before the tumbler is removed from service or
discarded, remove the door to the drying
compartment and the door to the lint
compartment.
6. Do not reach into the tumbler if the cylinder is
revolving.
7. Do not install or store the tumbler where it will
be exposed to water and/or weather.
8. Do not tamper with the controls.
9. Do not repair or replace any part of the tumbler,
or attempt any servicing unless specifically
recommended in the user-maintenance
instructions or in published user-repair
instructions that you understand and have the
skills to carry out.
10. Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
11. To reduce the risk of fire, DO NOT DRY plastics
or articles containing foam rubber or similarly
textured rubberlike materials.
12. Always clean the lint filter daily.
13. Keep area around the exhaust opening and
adjacent surrounding area free from the
accumulation of lint, dust and dirt.
14. The interior of the tumbler and the exhaust duct
should be cleaned periodically by qualified
service personnel.
15. If not installed, operated and maintained in
accordance with the manufacturer’s instructions
or if there is damage to or mishandling of this
product’s components, use of this product could
expose you to substances in the fuel or from fuel
combustion which can cause death or serious
illness and which are known to the State of
California to cause cancer, birth defects or other
reproductive harm.
16. Tumbler will not operate with the loading door
open. DO NOT bypass the door safety switch to
permit the tumbler to operate with the door open.
The tumbler will stop tumbling when the door is
opened. Do not use the tumbler if it does not stop
tumbling when the door is opened or starts
tumbling without pressing or turning the START
mechanism. Remove the tumbler from use and
call for service.
17. Tumbler will not operate with lint panel open.
DO NOT bypass lint panel safety switch to
permit the tumbler to operate with the lint panel
open.
18. Do not put articles soiled with vegetable or cooking
oil in the tumbler, as these oils may not be
removed during washing. Due to the remaining
oil, the fabric may catch on fire by itself.
19. To reduce the risk of fire, DO NOT put clothes
which have traces of any flammable substances
such as machine oil, flammable chemicals,
thinner, etc. or anything containing wax or
chemicals such as in mops and cleaning cloths, or
anything dry-cleaned at home with dry-cleaning
solvent in the tumbler.
20. Use the tumbler only for its intended purpose,
drying fabrics.
21. ALWAYS disconnect and lockout the electrical
power to the tumbler before servicing. Disconnect
power by shutting off appropriate breaker or fuse.
22. Install this tumbler according to the
INSTALLATION INSTRUCTIONS. All
connections for electrical power, grounding, and
gas supply must comply with local codes and be
made by licensed personnel when required.
Hazardous Voltage. Can cause shock, burn
or cause death. Allow machine power to
remain off for two minutes prior to working
in and around AC inverter drive. W359
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Safety Information
7
70400301
23. Remove laundry immediately after tumbler
stops.
24. Always read and follow manufacturer’s
instructions on packages of laundry and cleaning
aids. Heed all warnings or precautions. To reduce
the risk of poisoning or chemical burns, keep
them out of reach of children at all times
(preferably in a locked cabinet).
25. Do not tumble fiberglass curtains and draperies
unless the label says it can be done. If they are
dried, wipe out the cylinder with a damp cloth to
remove particles of fiberglass.
26. Always follow the fabric care instructions
supplied by the garment manufacturer.
27. Never operate the tumbler with any guards and/or
panels removed.
28. DO NOT operate the tumbler if it is smoking,
grinding, has missing or broken parts.
29. DO NOT bypass any safety devices.
30. Solvent vapors from dry-cleaning machines
create acids when drawn through the heater of the
drying unit. These acids are corrosive to the
tumbler as well as to the laundry load being
dried. Be sure make-up air is free of solvent
vapors.
31. Failure to install, maintain, and/or operate this
machine according to the manufacturer’s
instructions may result in conditions which can
produce bodily injury and/or property damage.
WARNING
To reduce the risk of serious injury, install
lockable door(s) to prevent public access
to rear of tumblers. W055

70400301
8© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Operating Instructions
Emergency Stop Button on CE
Models
All CE approved OPL tumblers are factory equipped
with an emergency stop button located on the front
panel. Refer to Figure 2.
Figure 2
To operate emergency stop button:
a. Press red emergency stop button to stop all
action.
b. To restart machine, pull red emergency stop
button out and press START pad or button.
NOTE: Activation of the emergency stop button
stops all machine control circuit functions, but
DOES NOT remove all electrical power from
machine.
Operating Instructions
Step 1: Clean Lint Screen/Compartment
Remove any accumulated lint from the lint screen and
compartment. Close panel tightly against tumbler
frame and lock panel securely, if applicable.
IMPORTANT: Clean lint screen and lint
compartment daily. Failure to clean the lint screen
daily will result in higher than normal
temperatures that may damage laundry.
Step 2: Load Laundry
Open loading door and load cylinder with laundry. DO
NOT OVERLOAD.
NOTE: Overloading causes slow drying and
wrinkling.
Close loading door. Tumbler will not operate with the
door open.
Step 3: Determine Control Type and
Temperature Setting
Refer to the various controls, pages 9 - 21, follow
instructions for the appropriate control type.
The type of fabric being dried will determine the
temperature setting. Consult the fabric care label or
fabric manufacturer to determine proper temperature
setting.
IMPORTANT: Always follow the fabric care
instructions supplied by the garment manufacturer.
Step 4: Remove Laundry
When the cycle is complete, open door and remove the
laundry.
To reduce the risk of fire:
• DO NOT DRY articles containing foam rubber or similarly textured rubberlike materials.
• DO NOT DRY plastics, anything containing wax or chemicals such as mops and cleaning
cloths, or anything dry-cleaned at home with a dry-cleaning solvent.
• DO NOT TUMBLE fiberglass curtains and draperies unless the label says it can be done. If
they are dried, wipe out the cylinder with a damp cloth to remove particles of fiberglass. W076
To reduce the risk of serious injury, allow cylinder to stop before cleaning lint screen. W412
WARNING
TMB1664N
1Emergency Stop Button
1

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Operating Instructions
9
70400301
Control Instructions

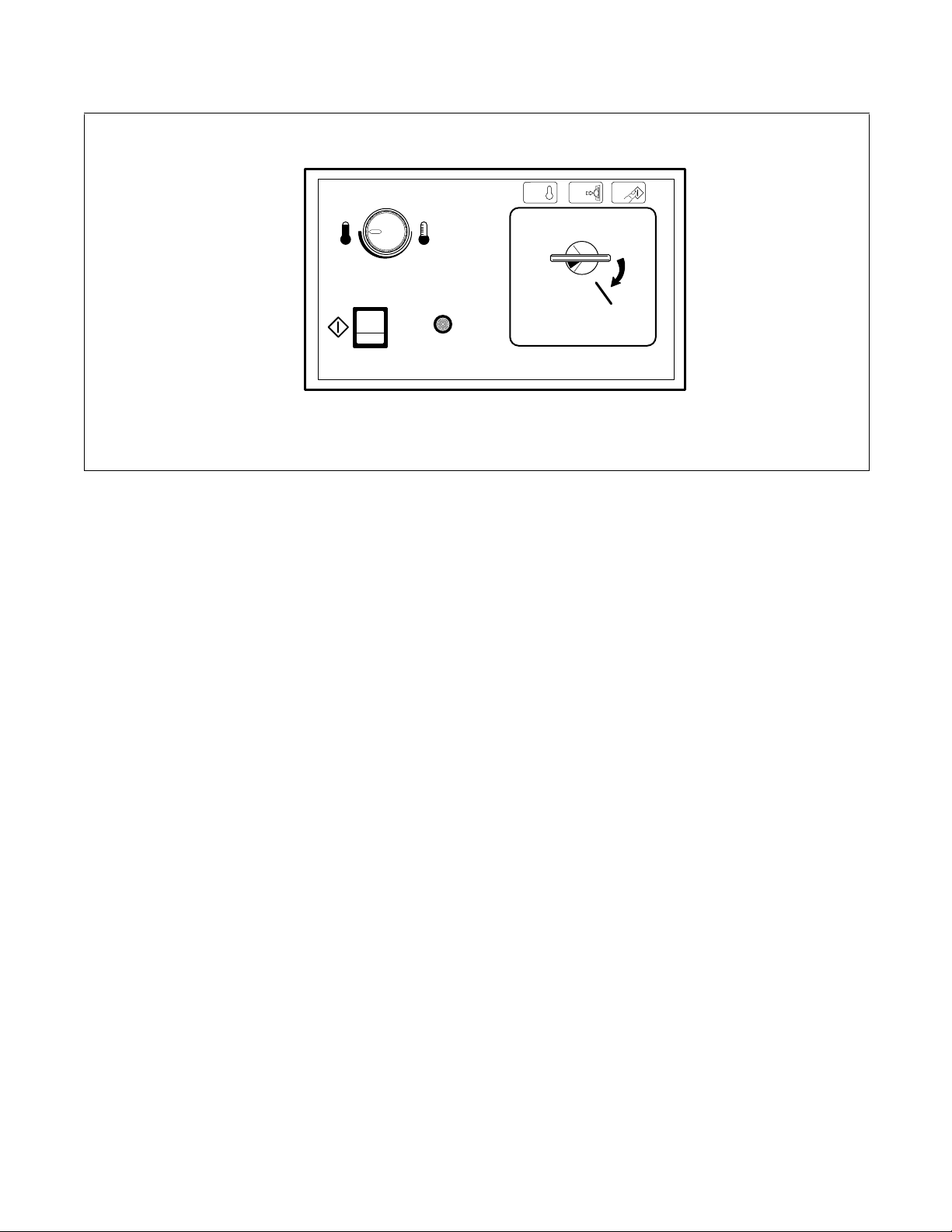

Figure 3
Electromechanical Coin Control
CD and CX Control Suffixes
1. Set the TEMPERATURE selector at HIGH or
LOW, or anywhere between these settings.
2. Coin Drop Models: Insert the coin(s) in the coin
slot, turn the knob to the right and release it.
3. Press the PUSH TO START button and hold it for
approximately three (3) seconds.
IMPORTANT: If the loading door or lint panel
door is opened during the cycle, the heating system
will shut off and the motor will stop. However, the
timer will continue to run. To restart the cycle, both
doors must be closed and the PUSH TO START
button must be pressed in.
4. When the cycle is complete, open door and
remove the laundry.
TMB807N
PUSH
TO
START
HIGH
TEMPERATURE
LOW
INSERT QUARTER
TURN KNOB
Q
U
A
R
T
E
R
M
A
S
T
E
R
25
1 2 3
SELECT
TEMP
INSERT
COIN
PUSH
START
TMB807N

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Operating Instructions
70400301
10

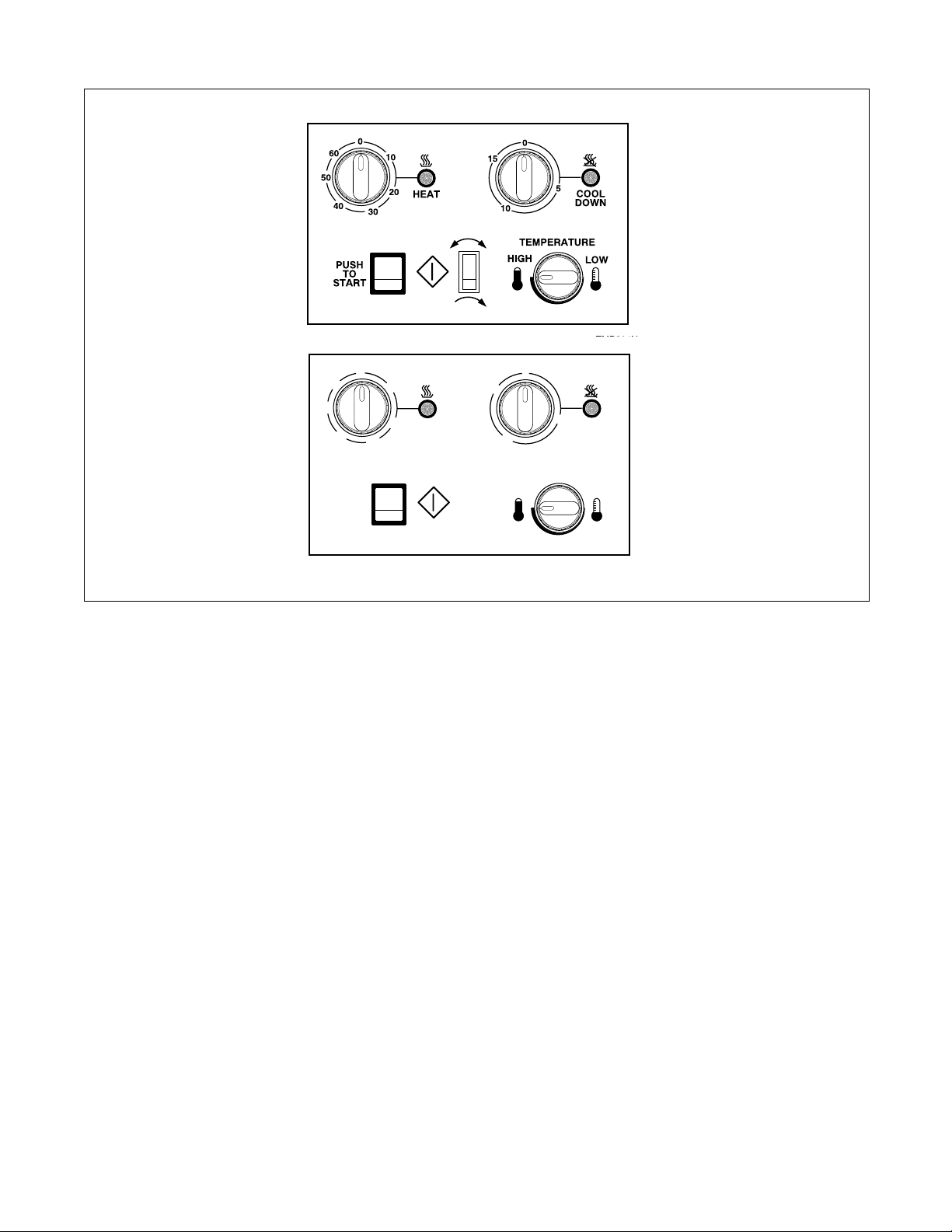

Figure 4
Manual Timer Control
MT and RT Control Suffixes
1. Set the HEAT/DRYING timer for the number of
minutes (from 0-60) desired.
2. Set the COOL DOWN/COOLING timer for the
number of minutes (from 0-15) desired.
3. Set the TEMPERATURE selector at HIGH,
LOW or anywhere between these settings.
4. Select reversing or nonreversing cylinder rotation
setting, if applicable.
5. Press the PUSH TO START button in and hold it
in for approximately three seconds. This starts
the tumbler cycle.
IMPORTANT: If the loading door or lint panel
door is opened during the cycle, the heating system
will shut off and the motor will stop. To restart the
cycle, both doors must be closed and the PUSH TO
START button must be pressed in.
6. When the cycle is complete, open door and
remove the laundry.
TMB805N
10
20
40 30
50
60
0
10
5
PUSH
TO
START
HEAT COOL
DOWN
HIGH
TEMPERATURE
LOW
15
0
TMB804N
TMB805N
NONREVERSING MODELS
REVERSING MODELS

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Operating Instructions
11
70400301

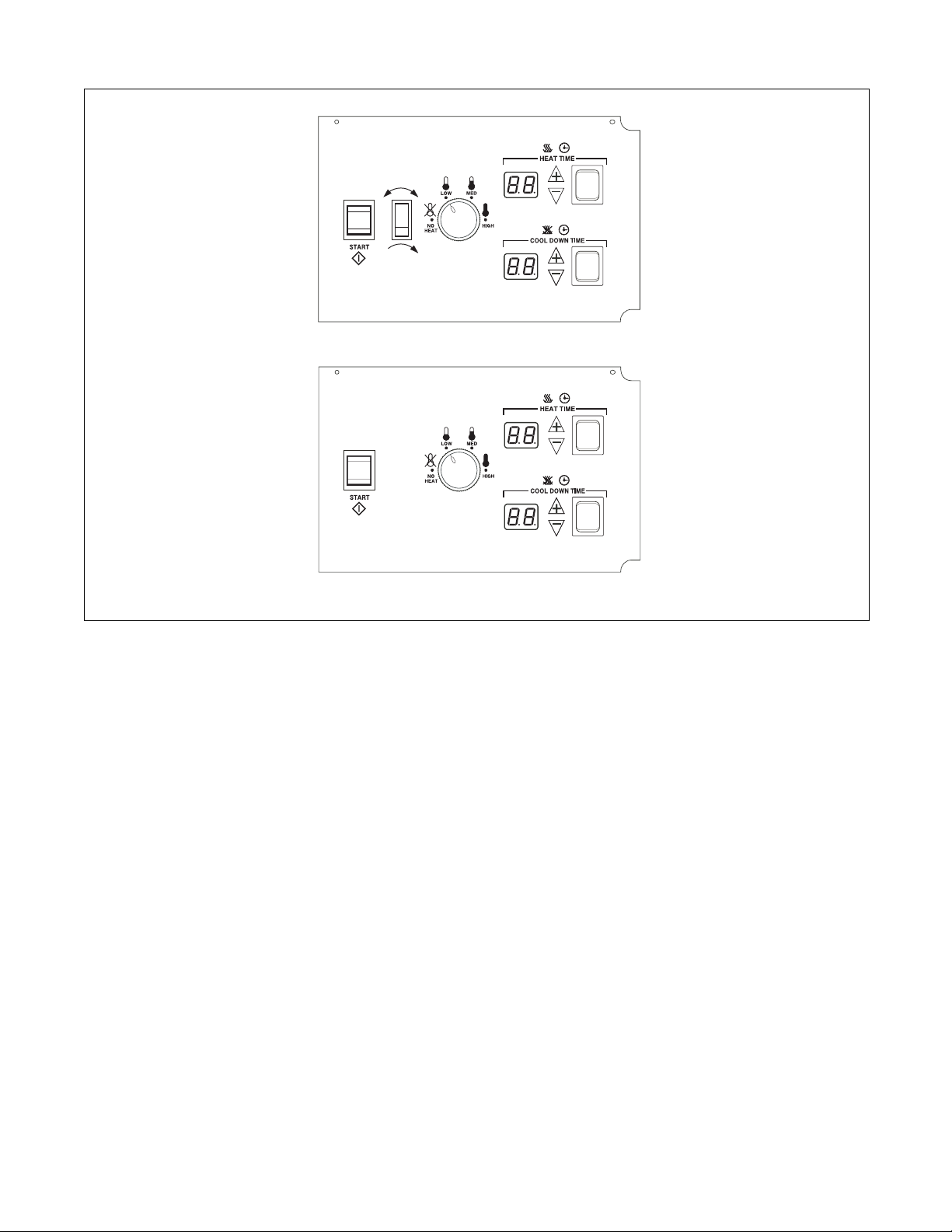

Figure 5
Dual Digital Timer Control
QT and RQ Control Suffixes
1. Select HIGH, MED, LOW or NO HEAT by
turning the temperature knob.
2. Set the HEAT TIME for the number of minutes
(from 0-60) desired.
3. Set the COOL DOWN TIME for the number of
minutes (from 0-15) desired.
4. Select reversing or nonreversing cylinder rotation
setting, if applicable.
5. Press and release START button to start tumbler.
Display will show minutes remaining before end
of cycle.
NOTE: One touch drying is available for repetitive
loads. If the START button is pressed while the
machine is in Idle Mode, when the display is dark,
the tumbler will repeat the last drying cycle. If the
cycle time is adjusted before the cycle is started, the
time displayed when the start button was pressed
will be used for future cycles.
IMPORTANT: To stop the tumbler at any time
during the cycle, OPEN DOOR. If the loading door
or lint panel door is opened during the cycle, the
heating system will shut off and the motor will stop.
To restart the cycle, both doors must be closed and
the START button must be pressed in.
If the load cools to 90° F before cool down time
expires, the control will flash “Lr” (load ready) in the
heat time display. If the door is not opened, the
tumbler completes the selected cool down time. If the
door is opened after reaching “Lr” temperature, the
cycle will be terminated.
NOTE: If display shows an error code, refer to
Error Codes section.
6. When the cycle is complete, open door and remove
the laundry. Anti-wrinkle feature will tumble the
load without heat for 30 seconds every 2 minutes
for 1 hour OR until the loading door is opened.
NOTE: This machine includes an anti-wrinkle
extended tumble feature. After the drying cycle is
complete, the cylinder will tumble without heat
every few minutes. The intermittent tumbling will
continue for one hour or until the door is opened.
TMB2136N
TMB2136N
REVERSING MODELS
TMB2133N
NONREVERSING MODELS

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Operating Instructions
70400301
12
To Program a Short Test Cycle:
1. Unplug machine power cord.
2. Write down machine control dip switch settings,
then set them all to the off position. Refer to
Figure 6.
3. Plug machine in and start a cycle.
NOTE: With all control dip switches off, the total
cycle time will be 1 minute long.
4. Once all testing is complete, unplug machine and
re-set dip switches to their original settings.
5. Plug machine in.
Figure 6
Error Codes
TMB2216N
1 2 3 4 5 6 7 8O
N
12345678
To reduce the risk of electric shock, fire, explosion, serious injury or death:
• Disconnect electric power to the tumbler before servicing.
• Close gas shut-off valve to gas tumbler before servicing.
• Close steam valve to steam tumbler before servicing.
• Never start the tumbler with any guards/panels removed.
• Whenever ground wires are removed during servicing, these ground wires must be
reconnected to ensure that the tumbler is properly grounded. W002
WARNING
Display Definition Corrective Action
OP
Open thermistor error ●Check thermistor. Replace if inoperative.
●Check wiring diagram between control and
thermistor. Refer to wiring diagram for proper
wiring.
●Check control. Replace if inoperative.
SH
Shorted thermistor error ●Check thermistor. Replace if inoperative.
●Check wiring between control and thermistor.
Refer to wiring diagram for proper wiring.
●Check control. Replace if inoperative.
AF - 1 Airflow switch closed when cycle
started
●Check airflow switch. Replace if inoperative.
AF - 2 Airflow switch failed to close after
cycle started
●Check airflow switch. Replace if inoperative.

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Operating Instructions
13
70400301
Figure 7
Single Drop Control
SD and SX Control Suffixes
1. Select HIGH, MED, LOW or NO HEAT by
turning the temperature knob.
2. Insert the coin(s) in the coin slot.
3. Press START button to start tumbler.
IMPORTANT: To stop the tumbler at any time
during the cycle, OPEN DOOR. To restart the
tumbler, CLOSE door and press START button.
NOTE: If display shows an error code, refer to
Error Codes section.
4. When the cycle is complete, open door and
remove the laundry.
NOTE: This machine includes an extended tumble
feature. Starting 20 minutes after a cycle ends, the
cylinder will tumble for two minutes every hour
without heat, up to 18 hours or until door is
opened.
Preliminary Control Information
Power-Up Mode
When power is applied to the tumbler the control will
enter Ready Mode, unless a cycle was in process prior
to a disruption of power. If a power disruption is less
than 5 seconds, with a cycle in process, the control
will enter Run Mode once power is restored and
continue the cycle. If a power disruption is more than
5 seconds, with a cycle in process, the control will
enter Start Mode once power is restored.
If the dry time dipswitch settings have not changed
from the factory default, the IN USE LED will flash
two to five times, depending on model.
Ready Mode
In Ready Mode, the control waits for the vend to be
satisfied before entering Start Mode.
Start Mode
In Start Mode, the vend has been satisfied, but the
Start button has not been pressed. The IN USE LED
will be lit. The timer will not count down until the
Start button is pressed.
Run Mode
In Run Mode, the control is running a cycle. The IN
USE LED is lit.
Door Open Mode
In Door Open Mode, the control turns off the heater
and motor when the door is opened during a run
cycle. The timer will continue to count down time
and the IN USE LED is lit.
End of Cycle Mode
In End of Cycle Mode, a cycle is complete and the
IN USE LED is off. The control remains in this
mode until the door is opened or additional vend has
been satisfied.
TMB2123N

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Operating Instructions
70400301
14
Topoffs
Any time the control receives a coin drop pulse during
a cycle it will add the programmed dry time to the time
currently remaining in the cycle. The maximum cycle
time is 99 minutes, the control will not add time
beyond 99 minutes. The cool down time will not
change.
If the control receives a coin drop pulse during cool
down the IN USE LED will flash briefly to indicate the
coin input, the machine will exit cool down and it will
start heating. The cycle time will be equal to the
programmed dry time
Temperature Selector Switch
For five minutes after the control is powered up, there
is a diagnostic feature that allows the temperature
selector switches to be tested.
When the temperature selector is changed, the new
setting is displayed by flashing the IN USE LED as
follows:
High/Normal: 4 flashes
Medium/PP: 3 flashes
Low/Delicate: 2 flashes
No Heat: 1 flash
NOTE: To change dipswitch settings refer to
Installation Manual.
Error Codes
To reduce the risk of electric shock, fire, explosion, serious injury or death:
• Disconnect electric power to the tumbler before servicing.
• Close gas shut-off valve to gas tumbler before servicing.
• Close steam valve to steam tumbler before servicing.
• Never start the tumbler with any guards/panels removed.
• Whenever ground wires are removed during servicing, these ground wires must be
reconnected to ensure that the tumbler is properly grounded. W002
WARNING
Display Definition Corrective Action
AF (flashing) Airflow switch opened/closed 5 or
more times in a running cycle.
●Check airflow switch. Replace if inoperative.

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Operating Instructions
15
70400301
Diagnostic Microprocessor Control
General Operation
The Diagnostic Microprocessor Control (DMP) is
designed to manage the drying and cooling cycles of
the tumbler. The controller is also programmed from
the factory with five different default programs as
described below. The operator has the flexibility to
select the time for the drying and the cool down cycles
and the drying temperature. The operator may also
select either reversing or nonreversing basket action
only if the tumbler is equipped for reversing. The
operator may also reprogram the default programs.
See Programming.
Default Programs
Features
●Drying time: 0-60 minutes
●Cooling time: 2-60 minutes
●LED display of cycle time, set temperature, and
actual temperature
●Thermistor controlled temperature
●Safety tumble cycle
●Buzzer for end of cycle, audible alarm
●Reversing/Nonreversing selection
●Five user programmable programs
●RPM display – when equipped with rotational
sensor only
●Monitors the lint door switch operation
●Monitors the thermistor for operation
The minimum drying time is 0 minutes, and the
minimum cooling time is 2 minutes. The maximum
drying or cooling time is 60 minutes. The drying
temperature may be set from 100ºF (38ºC) to 185º/
195ºF (85º/91ºC). The drying time, cooling time, or
temperature may be modified during an operating
cycle.
If it is necessary to reset the drying and cooling times
for the current cycle, press STOP once to stop the
tumbler. Press STOP again to cancel the cycle.
If it is necessary to change programs during a current
cycle, press STOP once to stop the tumbler and press
STOP again to cancel the current cycle.
Programs Dry Time (Min.) Cool Time (Min.) Temp. Set Point Reversing
1 – Towels 40 5 185º/195ºF
(85º/91ºC) No
2 – Sheets 30 5 165ºF (74ºC) Yes
3 – Misc-1 30 5 150ºF (66ºC) No
4 – Misc-2 25 5 135ºF (57ºC) Yes
5 – Extra Dry 5 2 150ºF (66ºC) No
NOTE: If an altered program is determined to be corrupted, the default program settings will be used.
Table 1

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Operating Instructions
70400301
16
DMP Coin
DV and DX Control Suffixes

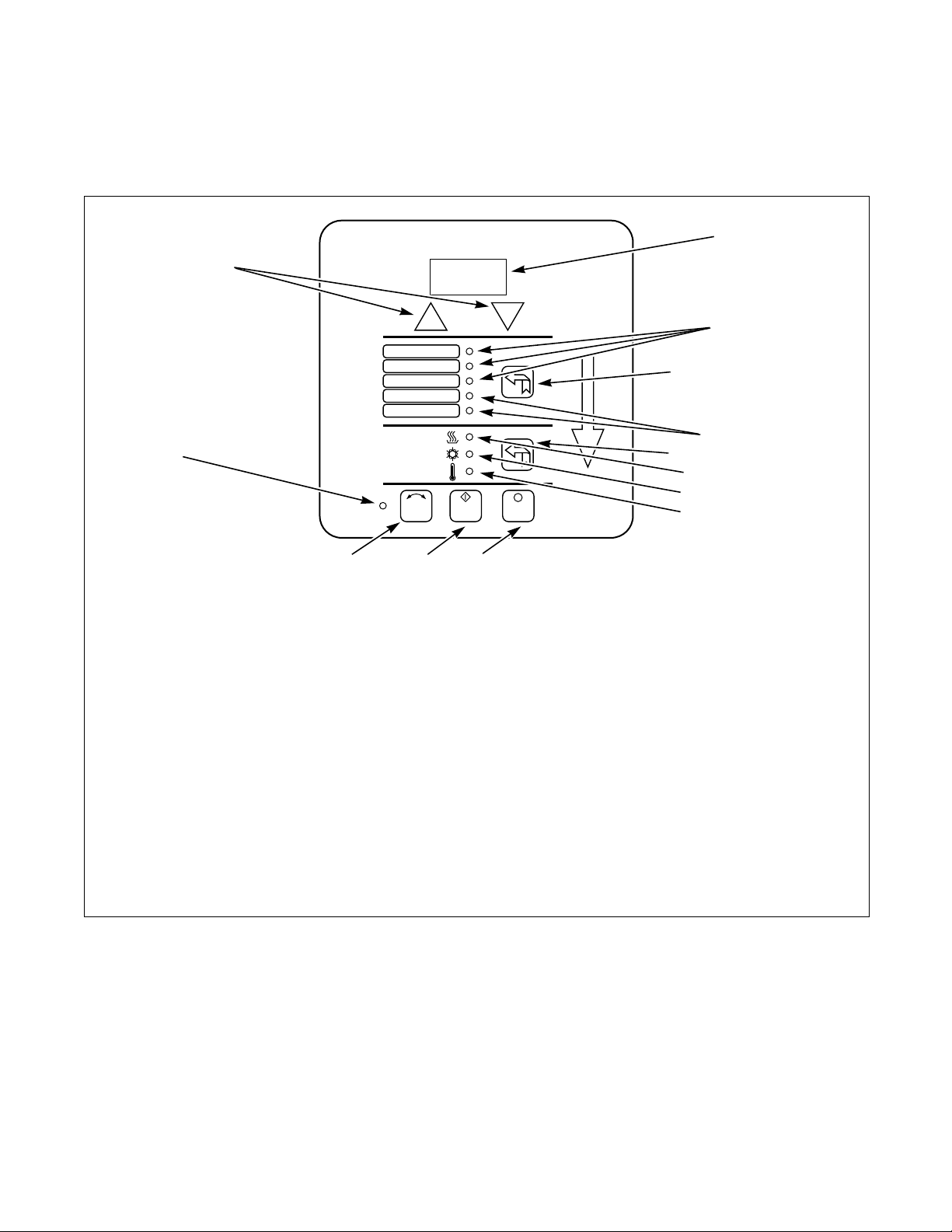

Description of The Coin Control Panel
Refer to Figure 8.
TMB1955N
1Clock Symbol. This symbol of a clock indicates that the time in the display is counting down to zero.
2Display. Displays the drying time, cooling time, drying temperature, and diagnostics.
3Hidden Keys. Used for programming in the coin mode – increases or decreases the value in the display. In
conjunction with the START button, these buttons are used to adjust the drying time, cooling time, temperature,
clockwise time, dwell time, counterclockwise time, and minutes per coin.
4Temperature LEDs. Indicate temperature setting.
5DRYING LED. Illuminated when in the drying cycle.
6INSTRUCTIONS. Instructions to start a drying cycle.
7COOLING LED. Illuminated when in the cooling cycle or when the display is currently showing the time for the
cooling cycle.
8START. Starts or resumes the current program or cycle
9Temperature Select. This button toggles through the three temperature selections.
Figure 8
DRYING
PERM. PRESS
COOLING
INSTRUCTIONS
START
TEMP
INSERT COIN (S)
SELECT TEMP.
PUSH START
1
2
3
HIGH
MINUTES
MEDIUM
LOW
TMB1955N
8
9
1
2
3
4
5
6
7

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Operating Instructions
17
70400301
DMP Coin Features
Coin Keypad Interface
- START button to start or resume a cycle.
- TEMP button to select HIGH, MEDIUM, or LOW
temperature.
- Two hidden buttons to increment or decrement the
programmable time and temperature options.
Power-Up
Upon applying power to the tumbler, the display will
show “PAy” and the DRYING and COOLING LEDs
will be off until coins are deposited to increase the
tumbler run time. When time is displayed, the default
(LOW) temperature setting LED will be on until a
different temperature setting is selected.
Power Failure
If a power loss occurs during operation, a cycle will
not resume until the START button is pressed. To
cancel the remaining cycle, press the internal CLEAR
button.
Coin Operation
The tumbler run time is determined by the pre-
programmed run time per coin and the number of
coins deposited into the tumbler. The maximum time
that can be accumulated and displayed is 99 minutes.
The drying time is the difference between the run time
and the cooling time. The cooling time is pre-
programmed to be 2 to 5 minutes. The drying
temperature can be selected from LOW, MEDIUM, or
HIGH temperature settings by pressing the TEMP
button.
Coin Programming
The Coin board programming mode can only be
entered when “PAy” is displayed. DIP switch #7 must
be in the OFF position.
Programming is enabled by setting DIP switch #8 to
the ON position.
The programming mode is entered by pressing and
holding the CLEAR button for three seconds.
The programming follows the following parameter
order:
1. Tumbler run time per coin (DRYING),
COOLING time, HIGH temperature setpoint,
MEDIUM temperature setpoint, LOW
temperature setpoint.
2. An LED will be on to indicate which parameter is
flashing on the display.
3. The hidden front panel increment and decrement
keys are used to change the value.
4. The CLEAR button is used to recall the default
value.
5. The START button is used to step to the next
parameter.
6. After the last parameter, “End” will be flashing.
7. Press the START button one last time to store the
settings and exit the program mode.
8. “PAy” will be displayed.
9. If it is determined that the data did not program
correctly, the error message “E2F” will flash for
4 seconds, and then the default coin parameters
will be used.
The tumbler run time per coin is programmable for 1
to 20 minutes with the default preset to 10 minutes.
The cooling run time is programmable from 2 to
5 minutes with the default preset to 2 minutes.
The three temperatures setpoints are programmable for
100ºF (38ºC) to 185º/195ºF (85º/90ºC) with the
following default settings:
- HIGH equal to 185ºF (85ºC)
- MEDIUM equal to 150ºF (66ºC)
- LOW equal to 135ºF (57ºC)
Stop
When in the Coin mode, the tumbler will stop if the
tumbler door is opened while the tumbler is running. If
the CLEAR button, located behind the board, is
pressed, the tumbler will stop, the tumbler time will be
zeroed and the display will show “PAy.”
Coin Count
The unit will count the number of coins deposited.
Setting DIP switch #7 to the ON position will display
the coin count since it was the last reset.
To reset the count, press the CLEAR button and “00”
will be displayed.
If the coin count is greater than “999,” the display will
flash “999.”
Setting DIP switch #7 to the OFF position will return
the display to “PAy.”

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Operating Instructions
70400301
18
DMP OPL Models
DO Control Suffix
Description of the OPL Control Panel
Refer to Figure 9.
Figure 9
TMB1956N
1START. Starts or resumes the current program or cycle.
2STOP. Temporarily halts the current cycle or cancels the current program.
3Reversing/Nonreversing (REV). Changes the selection between reversing and nonreversing cylinder action.
4Reversing LED. Illuminated when set for reversing.
5Up/Down Arrows. Increases or decreases the value in the display. In conjunction with the DISPLAY button, these
buttons are used to adjust the drying time, cooling time, temperature, clockwise time, dwell time,
counter-clockwise time, and minutes per coin (Coin only).
6Display. Displays the drying time, cooling time, drying temperature and diagnostic codes.
7Program Select. This button toggles through the five user programmable programs. Holding this button will save
a program, as indicated in Programming.
8User Program LEDs. Illumination shows which user program is currently being displayed.
9Display Select. Toggles the display between the drying time, cooling time, and temperature settings. Pressing the
Display button for 3 seconds allows the user to display the drying cycle temperature.
10 DRYING LED. Illuminated when in the drying cycle.
11 COOLING LED. Illuminated when in the cooling cycle, or when the display is currently showing the time for the
cooling cycle.
12 TEMPERATURE LED. Illuminated when the display is showing the temperature setting.
1
2
3
4
5
DRYING
COOLING
TEMPERATURE
REV START STOP
(CANCEL)
TMB1956N
12 3
4
5
6
7
8
8
10
11
12
9
