Alliance Laundry Systems UniLinc 35 Series User manual

Programming
Tumble Dryer
UniLinc
Refer to Page 10 for Model Identification
Designs 3, 5 and 6
TMB2436N_SVG
?
Original Instructions
Keep These Instructions for Future Reference.
CAUTION: Read the instructions before using the machine.
(If this machine changes ownership, this manual must accompany machine.)
www.alliancelaundry.com Part No. 70549501ENR6
October 2022

WARNING
Machine installations must comply with minimum
specifications and requirements stated in the appli-
cable Installation Manual, any applicable municipal
building codes, water supply requirements, electrical
wiring regulations and any other relevant statutory
regulations. Due to varied requirements and applica-
ble local codes, this machine must be installed, ad-
justed, and serviced by qualified maintenance per-
sonnel familiar with applicable local codes and the
construction and operation of this type of machinery.
They must also be familiar with the potential hazards
involved. Failure to observe this warning may result
in personal injury, property damage, and/or equip-
ment damage, and will void the warranty.
W820
NOTE: The WARNINGS and IMPORTANT SAFETY IN-
STRUCTIONS appearing in this manual are not meant
to cover all possible conditions and situations that may
occur. Common sense, caution, and care must be exer-
cised when installing, maintaining, or operating the
machine.
NOTE: The default values written in this manual are set
according to the EU market. There is a possibility that
default values can differ in other markets settings.
Any problems or conditions not understood should be reported to
the dealer, distributor, service agent or the manufacturer.
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
3 Part No. 70549501ENR6

Table of Contents
Safety Information..................................................................................8
Explanation of Safety Messages....................................................................... 8
Important Safety Instructions (Tumble Dryer) ...................................................8
Introduction..........................................................................................10
Model Identification......................................................................................10

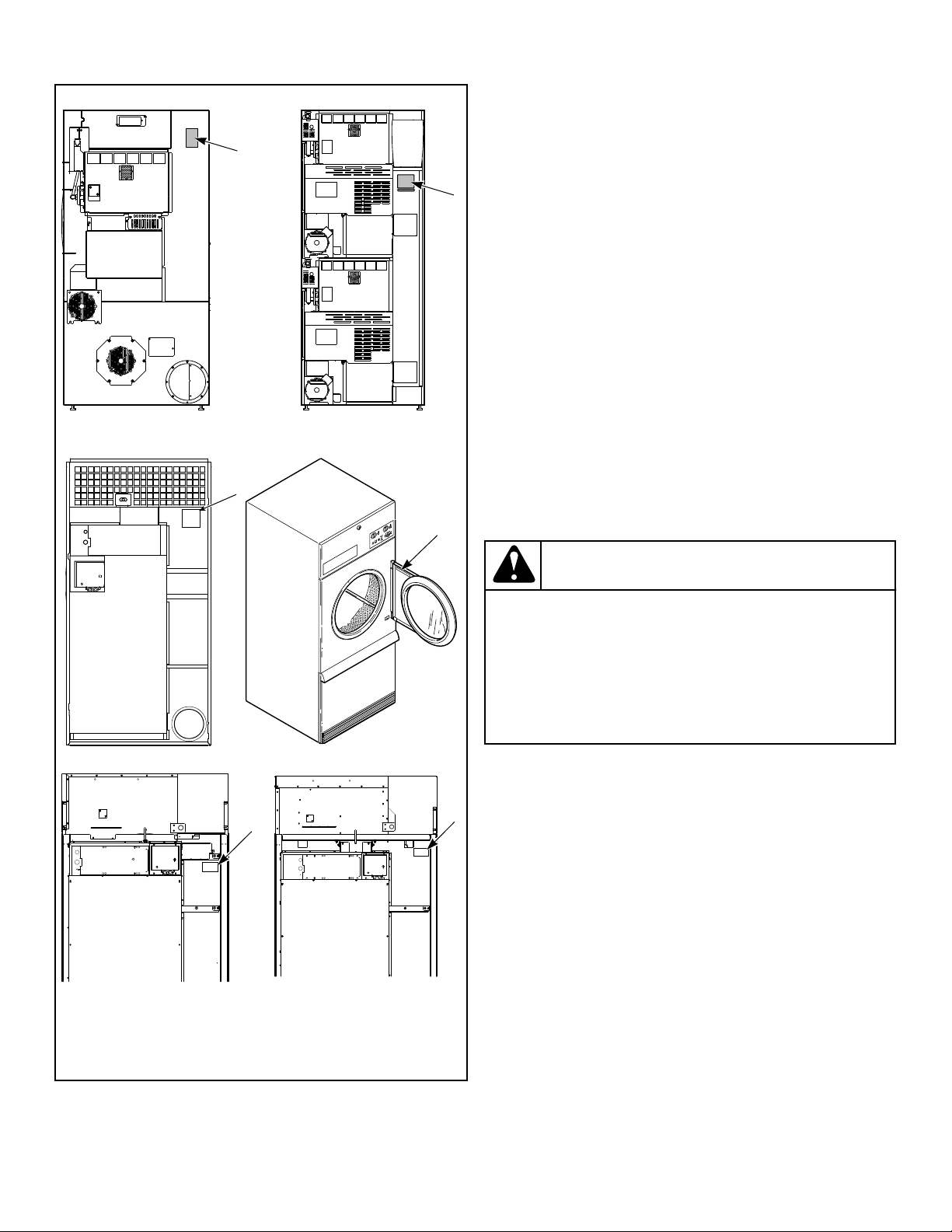

Serial Plate Location..................................................................................... 13
Preliminary Information.......................................................................15
About the Control......................................................................................... 15
Power Failure Recovery................................................................................ 15
IR Communications...................................................................................... 15
IR Communications Error.......................................................................... 15
IR Communications Menu..........................................................................15
USB Communications...................................................................................15
Network Communications............................................................................. 15
Audit Information......................................................................................... 15
Error Status Indicator.................................................................................... 15
Control Identification........................................................................... 17
Operational Keypad ..................................................................................... 17
Operation Modes.......................................................................................... 17
Power-Up Mode........................................................................................17
Pause Mode.............................................................................................. 18
Power Failure Display Mode...................................................................... 18
Start Mode................................................................................................18
Run Mode.................................................................................................18
End of Cycle Mode....................................................................................18
System Check Mode..................................................................................18
Factory Test Mode.....................................................................................18
Machine Error Mode..................................................................................18
Communication Mode............................................................................... 18
Manual Mode............................................................................................18
Rapid Advance Mode................................................................................ 18
Manual Diagnostic Mode........................................................................... 18
Error Display Mode...................................................................................18
Anti-Wrinkle Mode................................................................................... 19
Extended Tumble Mode............................................................................. 19
Machine Cycle Definition and Operation.............................................. 20
© Copyright 2022, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed
written consent of the publisher.
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
4 Part No. 70549501ENR6

Machine Cycle Operation.............................................................................. 20
Time Dry Cycle.........................................................................................20
Auto Dry Cycle.........................................................................................20
Moisture Dry Cycle (if equipped)................................................................20
Start a Cycle.................................................................................................20
Cycle Selection Menu................................................................................... 20
Cycle Options Menu..................................................................................... 20
Cycle Info Menu....................................................................................... 21
Close Door Menu..........................................................................................21
Run Menu.................................................................................................... 23
Menu Navigation.................................................................................. 24
Menu Navigation.......................................................................................... 24
Opening Service Door........................................................................... 27
Stacked Tumble Dryer...................................................................................27
Stand Alone Tumble Dryer............................................................................ 27
Programming Control...........................................................................28
System Menu................................................................................................28
Save Changes Menu......................................................................................28
Advanced Info Menu............................................................................ 29
General Information...................................................................................... 29
Step Settings.................................................................................................30
Modify a Cycle While Running.................................................................. 30
I/O Menu..................................................................................................... 31
Modify Cycle Menu.............................................................................. 32
Manual Cycle Programming.......................................................................... 32
Modify an existing or copied cycle..............................................................33
Globals Menu....................................................................................... 35
Audit Data Menu.................................................................................. 39
View Audit Data on the Display..................................................................... 39
Diagnostics Menu..................................................................................40
Machine ID Menu.........................................................................................40
Alarms Menu................................................................................................41
Inputs/Outputs Menu.....................................................................................41
Factory Test Menu........................................................................................ 42
Individual Diagnostic Tests Menu...................................................................44
Diagnostic Test Descriptions..........................................................................45
Dryer On Temp Test.................................................................................. 45
12.5VDC Voltage Test............................................................................... 45
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
5 Part No. 70549501ENR6

24VDC Voltage Test.................................................................................. 45
AC Mains Voltage Test.............................................................................. 45
Machine Config Test #1............................................................................. 45
Machine Config Test #2............................................................................. 46
Machine Config Test #3............................................................................. 46
Machine Config Test #4............................................................................. 47
Machine Config Test #5............................................................................. 47
ICM Alarm Status (gas models only)...........................................................47
Heat Interlock Test.................................................................................... 47
Fan Motor Test..........................................................................................48
Damper Motor Test (steam models only)..................................................... 48
Motor Test................................................................................................ 48
Moisture Test #1........................................................................................48
Moisture Test #2........................................................................................48
Machine Errors.................................................................................... 50
Heat Error (Auto-Ignite Retries Error)............................................................ 50
Manual Reset Limit Error.............................................................................. 50
Stove Limit Cycles........................................................................................50
Cabinet Limit Cycle...................................................................................... 50
Air Flow Switch Errors..................................................................................51
Air Flow Switch Failed to Open..................................................................51
Air Flow Switch Failed To Close................................................................ 51
Air Flow Switch Bounces...........................................................................51
ICM Errors...................................................................................................51
ICM Communication Error............................................................................ 51
Fan and Drive Motor Errors........................................................................... 51
Drive and Fan Communication Error.............................................................. 52
Communication B Errors............................................................................... 52
Shorted Output Error.....................................................................................52
Output Board Errors......................................................................................52
Shorted Thermistor Error...............................................................................52
Open Thermistor Error.................................................................................. 52
SCI Comm Error...........................................................................................53
Network Communications Error.....................................................................53
Machine ID Chip Error..................................................................................53
IR Communications Error..............................................................................53
Board Not Ready Error..................................................................................53
Brownout/Voltage Configuration Error............................................................53
Break-In Alarm Error.................................................................................... 53
Board ID Error............................................................................................. 53
Error Codes..................................................................................................54
Service Schedule Menu......................................................................... 58
Reset Menu...........................................................................................59
Cycle Charts.........................................................................................60
Moisture Sensing Cycle Charts.......................................................................60
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
6 Part No. 70549501ENR6

Non-Moisture Sensing Cycle Chart.................................................................63
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
7 Part No. 70549501ENR6

Safety Information
Explanation of Safety Messages
Precautionary statements (“DANGER,” “WARNING,” and
“CAUTION”), followed by specific instructions, are found in this
manual and on machine decals. These precautions are intended
for the personal safety of the operator, user, servicer, and those
maintaining the machine.
DANGER
Indicates an imminently hazardous situation that, if
not avoided, will cause severe personal injury or
death.
WARNING
Indicates a hazardous situation that, if not avoided,
could cause severe personal injury or death.
CAUTION
Indicates a hazardous situation that, if not avoided,
may cause minor or moderate personal injury or
property damage.
Additional precautionary statements (“IMPORTANT” and
“NOTE”) are followed by specific instructions.
IMPORTANT: The word “IMPORTANT” is used to in-
form the reader of specific procedures where minor
machine damage will occur if the procedure is not fol-
lowed.
NOTE: The word “NOTE” is used to communicate in-
stallation, operation, maintenance or servicing informa-
tion that is important but not hazard related.
Important Safety Instructions (Tumble
Dryer)
WARNING
To reduce the risk of fire, electric shock, serious in-
jury or death to persons when using your tumble
dryer, follow these basic precautions.
W776R1
Save These Instructions
• Read all instructions before using the tumble dryer.
• Install the tumble dryer according to the INSTALLATION in-
structions. Refer to the EARTHING (grounding) instructions
for the proper earthing (grounding) of the tumble dryer. All
connections for electrical power, earthing (grounding) and gas
supply must comply with local codes and be made by licensed
personnel when required. It is recommended that the machine
be installed by qualified technicians.
• Do not install or store the tumble dryer where it will be ex-
posed to water and/or weather. The tumble dryer cannot be
used in a closed room where the air supply is insufficient. If
necessary, ventilation grids must be installed in the doors or
the windows.
• This tumble dryer must not be activated without lint screen
filter.
• When you perceive a gas odor, immediately shut off the gas
supply and ventilate the room. Do not power on electrical ap-
pliances and do not pull electrical switches. Do not use
matches or lighters. Do not use a phone in the building. Warn
the installer, and if so desired, the gas company, as soon as
possible.
• To avoid fire and explosion, keep surrounding areas free of
flammable and combustible products. Regularly clean the cyl-
inder and exhaust tube should be cleaned periodically by
competent maintenance personnel. Daily remove debris from
lint screen filter and inside of filter compartment.
• Do not use or store flammable materials near this appliance.
• Do not place into tumble dryer articles that have been previ-
ously cleaned in, washed in, soaked in or spotted with gaso-
line or machine oils, vegetable or cooking oils, cleaning wax-
es or chemicals, dry-cleaning solvents, thinner or other flam-
mable or explosive substances as they give off vapors that
could ignite, explode or cause fabric to catch on fire by itself.
• Do not spray aerosols in the vicinity of this appliance while it
is in operation.
• Items such as foam rubber (latex foam), shower caps, water-
proof textiles, rubber backed articles and clothes or pillows
filled with foam rubber pads should not be dried in the tumble
dryer. Do not use the appliance to dry materials with a low
melting temperature (PVC, rubber, etc.).
• Do not tumble fiberglass curtains and draperies unless the la-
bel says it can be done. If they are dried, wipe out the cylinder
with a damp cloth to remove particles of fiberglass.
• Do not allow children to play on or in the dryer. Close super-
vision of children is necessary when the dryer is used near
children. This appliance is not intended for use by persons
(including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning the use
of the appliance by a person responsible for their safety. This
is a safety rule for all appliances.
Safety Information
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
8 Part No. 70549501ENR6

• Cleaning and user maintenance shall not be made by children
without supervision.
• Children less than three years should be kept away unless
continuously supervised.
• Do not reach into the tumble dryer if the cylinder is revolving.
• Use tumble dryer only for its intended purpose, drying fab-
rics. Always follow the fabric care instructions supplied by
the textile manufacturer and only use the dryer to dry textiles
that have been washed in water. Only insert spin-dried linen
in the dryer to avoid damage to dryer.
• Always read and follow manufacturer’s instructions on pack-
ages of laundry and cleaning aids. Follow all warnings or pre-
cautions. To reduce the risk of poisoning or chemical burns,
keep them out of the reach of children at all times (preferably
in a locked cabinet).
• Do not use fabric softeners or products to eliminate static un-
less recommended by the manufacturer of the fabric softener
or product.
• Remove laundry immediately after tumble dryer stops.
• DO NOT operate the tumble dryer if it is smoking, grinding
or has missing or broken parts or removed guards or panels.
DO NOT tamper with the controls or bypass any safety devi-
ces.
• Tumble dryer will not operate with the loading door open. DO
NOT bypass the door safety switch to permit the tumble dryer
to operate with the door open. The tumble dryer will stop ro-
tating when the door is opened. Do not use the tumble dryer if
it does not stop rotating when the door is opened or starts
tumbling without pressing the START mechanism. Remove
the tumble dryer from use and call for service.
• Tumble dryer will not operate with lint panel open. DO NOT
bypass lint panel door safety switch to permit the tumble dry-
er to operate with the lint panel door open.
• Do not alter this tumble dryer from factory construction ex-
cept as otherwise described in the technical instructions.
• Always clean the lint filter daily. Keep area around the ex-
haust opening and adjacent surrounding area free from the ac-
cumulation of lint, dust and dirt. The interior of the tumble
dryer and the exhaust duct should be cleaned periodically by
qualified service personnel.
• Solvent vapors from dry-cleaning machines create acids when
drawn through the heater of the drying unit. These acids are
corrosive to the tumble dryer as well as the laundry load being
dried. Be sure make-up air is free of solvent vapors.
• At the end of each working day, close off all main supplies of
gas, steam and electricity.
IMPORTANT: For fire suppression equipped tumble
dryers, electricity and water should NOT be turned
off.
• Do not repair or replace any part of the tumble dryer, or at-
tempt any servicing unless specifically recommended in the
user-maintenance instructions or in published user-repair in-
structions that the user understands and has the skills to carry
out. ALWAYS disconnect and lockout the electrical power to
the tumble dryer before servicing. Disconnect power by shut-
ting off appropriate breaker or fuse.
• Activation of the emergency stop switch stops all tumble dry-
er control circuit functions, but DOES NOT remove all elec-
trical power from tumble dryer.
• Exhaust ductwork should be examined and cleaned annually
after installation.
• Before the tumble dryer is removed from service or discarded,
remove the door to the drying compartment and the door to
the lint compartment.
• Failure to install, maintain, and/or operate this tumble dryer
according to the manufacturer’s instructions may result in
conditions which can produce bodily injury and/or property
damage.
NOTE: The WARNINGS and IMPORTANT SAFETY IN-
STRUCTIONS appearing in this manual are not meant
to cover all possible conditions and situations that may
occur. Observe and be aware of other labels and pre-
cautions that are located on the machine. They are in-
tended to provide instruction for safe use of the ma-
chine. Common sense, caution and care must be exer-
cised when installing, maintaining, or operating the
tumble dryer.
Always contact your dealer, distributor, service agent or the man-
ufacturer about any problems or conditions you do not under-
stand.
NOTE: All appliances are produced according to the
EMC-directive (Electro-Magnetic-Compatibility). They
can be used in restricted surroundings only (comply
minimally with class A requirements). For safety rea-
sons there must be kept the necessary precaution dis-
tances with sensitive electrical or electronic device(s).
These machines are not intended for domestic use by
private consumers in the home environment.
Safety Information
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
9 Part No. 70549501ENR6

Introduction
Model Identification
Information in this manual is applicable to these models. Refer
to the machine serial plate for the model number.
25 Series (11 Kg)
UA025E UG025D UG025S UH025S UJ025R UK025R UT025F UU025F
UA025F UG025E UH025E UJ025D UJ025S UL025E UT025L UU025L
UA025L UG025F UH025F UJ025E UK025E UL025L UT025N UU025N
UA025N UG025L UH025L UJ025F UK025F UR025E UT025R UU025R
UA025R UG025N UH025N UJ025L UK025L UR025S UT025S UU025S
UA025S UG025R UH025R UJ025N UK025N UT025E UU025E
30 Series (13 Kg)
UA030E UG030D UG030S UH030S UJ030R UK030R UT030E UU030E
UA030F UG030E UH030E UJ030D UJ030S UL030E UT030F UU030F
UA030L UG030F UH030F UJ030E UK030E UL030L UT030L UU030L
UA030N UG030L UH030L UJ030F UK030F UR030E UT030N UU030N
UA030R UG030N UH030N UJ030L UK030L UR030S UT030R UU030R
UA030S UG030R UH030R UJ030N UK030N UT030D UT030S UU030S
T30 Series (13/13 Kg)
UAT30E UGT30D UGT30S UHT30S UJT30R UKT30R UTT30E UUT30E
UAT30F UGT30E UHT30E UJT30D UJT30S ULT30E UTT30F UUT30F
UAT30L UGT30F UHT30F UJT30E UKT30E ULT30L UTT30L UUT30L
UAT30N UGT30L UHT30L UJT30F UKT30F URT30E UTT30N UUT30N
UAT30R UGT30N UHT30N UJT30L UKT30L URT30S UTT30R UUT30R
UAT30S UGT30R UHT30R UJT30N UKT30N UTT30D UTT30S UUT30S
Introduction
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
10 Part No. 70549501ENR6

35 Series (16 Kg)
UA035E UG035D UG035S UH035S UJ035R UL035E UT035L UU035F
UA035F UG035E UH035E UJ035D UJ035S UL035L UT035M UU035L
UA035L UG035F UH035F UJ035E UK035E UR035E UT035N UU035M
UA035M UG035L UH035L UJ035F UK035F UR035S UT035R UU035N
UA035N UG035M UH035M UJ035L UK035L UT035D UT035S UU035R
UA035R UG035N UH035N UJ035M UK035N UT035E UU035E UU035S
UA035S UG035R UH035R UJ035N UK035R UT035F
T45 Series (20/20 Kg) * Only available in gas
UAT45L UGT45L UHT45L UJT45D UJT45R UKT45R UTT45L UUT45L
UAT45N UGT45N UHT45N UJT45L UKT45L ULT45L UTT45N UUT45N
UAT45R UGT45R UHT45R UJT45N UKT45N UTT45D UTT45R UUT45R
UGT45D
50 Series (25 Kg)
UA050E UG050E UH050L UJ050E UK050E UL050L UT050E UU050E
UA050L UG050L UH050N UJ050L UK050L UR050E UT050L UU050L
UA050N UG050N UH050S UJ050N UK050N UR050S UT050N UU050N
UA050S UG050S UJ050D UJ050S UL050E UT050C UT050S UU050S
UG050D UH050E
55 Series (24 Kg) * Only available in gas and electric
UA055E UG055E UH055E UJ055D UJ055R UK055R UT055E UU055E
UA055F UG055F UH055F UJ055E UK055E UL055E UT055F UU055F
UA055L UG055L UH055L UJ055F UK055F UL055L UT055L UU055L
UA055N UG055N UH055N UJ055L UK055L UR055E UT055N UU055N
UA055R UG055R UH055R UJ055N UK055N UT055D UT055R UU055R
UG055D
75 Series (34 Kg)
UA075E UG075E UGF75L UH075R UJ075N UK075R UT075L UU075E
Table continues...
Introduction
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
11 Part No. 70549501ENR6

75 Series (34 Kg)
UA075F UG075F UGF75N UH075S UJ075R UR075E UT075M UU075F
UA075L UG075L UH075E UJ075D UJ075S UR075S UT075N UU075L
UA075M UG075M UH075F UJ075E UK075E UT075C UT075R UU075M
UA075N UG075N UH075L UJ075F UK075F UT075D UT075S UU075N
UA075R UG075R UH075M UJ075L UK075L UT075E UTF75L UU075R
UA075S UG075S UH075N UJ075M UK075N UT075F UTF75N UU075S
UG075D
120 Series (55 Kg)
UA120E UG120E UH120E UJ120E UK120E UR120S UT120N UU120L
UA120L UG120L UH120L UJ120L UK120L UT120C UT120S UU120N
UA120N UG120N UH120N UJ120N UK120N UT120E UU120E UU120S
UA120S UG120S UH120S UJ120S UR120E UT120L
170 Series (77 Kg) * Only available in gas and steam
UA170L UG170L UH170L UJ170L UK170L UT170C UT170S UU170N
UA170N UG170N UH170N UJ170N UK170N UT170L UU170L UU170S
UA170S UG170S UH170S UJ170S UR170S UT170N
200 Series (90 Kg)* Only available in gas and steam
UA200L UG200L UH200L UJ200L UK200L UT200C UT200S UU200N
UA200N UG200N UH200N UJ200N UK200N UT200L UU200L UU200S
UA200S UG200S UH200S UJ200S UR200S UT200N
Heater Digit (Position 6)
C - Steam (CRN)
D - Liquid Petroleum (L.P.) Gas, Japan
E - Electric
F - Reduced Electric (Eco Line)
L - L.P. Gas
M - Medium Electric
Table continues...
Introduction
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
12 Part No. 70549501ENR6

Heater Digit (Position 6)
N - Natural Gas
R - Reduced Gas, Natural Gas (Eco Line)
S - Steam
OPL Control Suffixes
Control Digit (position 7) Actuation Digit (position 8)
Example Control Suffix Combi-
nation
D - UniLinc N - OPL DN- UniLinc, OPL
Serial Plate Location
The serial plate is located on the rear panel of the machine and is
programmed in the control. To access Machine ID Menu through
the control:
1. Press the keypad to enter System Menu.
2. Scroll to highlight Diagnostics and press the keypad to en-
ter Diagnostics Menu.
3. Scroll to highlight Machine ID and press the keypad to en-
ter Machine ID Menu.
Always provide the machine’s serial number and model number
when ordering parts or when seeking technical assistance. Refer
to Figure 1 .
Introduction
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
13 Part No. 70549501ENR6

25, 30, T30, 35, T45, 55 Series
TMB2441N_SVG
1
1
50, 75 Series
TMB2470N_SVG1
1
1
120, 170, 200 Series
TMB2427N_SVG1
120 170/200
11
1. Serial Plate
Figure 1
If service is required, contact the nearest Factory Authorized
Service Center.
If you are unable to locate an authorized service center or are un-
satisfied with the service performed on your unit, contact:
Alliance Laundry Systems
Shepard Street
P.O. Box 990
Ripon, WI 54971-0990
U.S.A.
www.alliancelaundry.com
Phone: [phone] Ripon, Wisconsin
When calling or writing about your unit, PLEASE GIVE THE
MODEL AND SERIAL NUMBERS. The model and serial num-
bers are located on the serial plate. The serial plate will be in the
location shown in Figure 1 .
Date Purchased ______________________________
Model Number ______________________________
Serial Number _______________________________
Please include a copy of your bill of sale and any service receipts
you have.
WARNING
To reduce the risk of serious injury or death, DO NOT
repair or replace any part of the unit or attempt any
servicing unless specifically recommended in the
user-maintenance instructions or in published user-
repair instructions that you understand and have the
skills to carry out.
W329
If replacement parts are required, contact the source from where
you purchased your unit or call [phone] for the name
and address of the nearest authorized parts distributor.
Introduction
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
14 Part No. 70549501ENR6

Preliminary Information
About the Control
The control on the machine is an advanced, graphical, program-
mable computer that lets the owner control most machine fea-
tures by interacting with the control.
This control allows the owner to program custom cycles, run di-
agnostic cycles and retrieve audit and error information.
Machines shipped from the factory have default cycles built in.
The owner can change the default cycles or any cycle.
IMPORTANT: It is extremely important that the machine
has a positive ground and that all mechanical and elec-
trical connections are made before applying power to
or operating the machine.
Power Failure Recovery
If a cycle is in progress when the power fails, and if the power
outage lasts five (5) or more seconds, the cycle is lost and cannot
be resumed when power recovers. If the power outage lasts less
than five (5) seconds, the control will resume the cycle when the
power recovers.
IR Communications
The control has the ability to communicate with a PDA or PC
with an IrDA device running the control software. Devices such
as PDAs and PCs that are IrDA capable (able to transmit infor-
mation to machine) that have been tested and approved for use
with the control software can be used as a tool for managing the
machine.
IR Communications Error
Figure 2
The IR Communications Error Menu displays after the control
had an error communicating with a PC/PDA. The control will re-
turn to previous page.
IR Communications Menu
Figure 3
The IR Communications Menu displays while the control is com-
municating with a PC/PDA. The control will jump back to the
previous page when the communication is complete.
USB Communications
The control has the ability to program and audit with a PC using
a USB connection between the control and a USB adapter don-
gle.
Network Communications
For certain models, the control has the ability to communicate
through a network. The network link allows the user to program,
collect data, and run diagnostics on any machine in the network
from a central location.
Audit Information
The control collects and stores audit information which can be
accessed with key presses, IR and USB communication or
through the network. Refer to Audit Data Menu for a list of avail-
able audit information.
Error Status Indicator
If the control recognizes an error, the Error Status Indicator will
be shown in the upper left corner of the display. Refer to Figure
4 . The Error Status Indicator is displayable from any menu.
Preliminary Information
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
15 Part No. 70549501ENR6

Figure 4
Preliminary Information
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
16 Part No. 70549501ENR6

Control Identification
Operational Keypad
The control includes nine (9) keypads. These functions are avail-
able to the operator to control and manage operation of the ma-
chine. Refer to Figure 5 and Table 1 .
TMB2436N_SVG
?
Figure 5
Keypad Description
UP ARROW Press to move the cursor up on the display, to scroll up through menu options, to edit
programming values or to access QR codes from the Audit Data Menu.
DOWN ARROW Press to move the cursor down on the display, to scroll down through menu options or
edit programming values.
LEFT ARROW Press to move cursor left on the display, to scroll left through menu options or edit pro-
gramming values.
RIGHT ARROW Press to move cursor right on the display, to scroll right through menu options or edit
programming values.
STOP Press to pause and stop a running cycle.
START/ENTER Press to start a cycle or press and hold to rapid advance a machine cycle during Rapid
Advance Mode. Also, press to select menu items and save edited programming values
when used in programming menus.
HELP/INFO Press to enter the Cycle Options Menu from the Cycle Selection Menu or press and hold
to show error message if error indicator is shown.
SETTINGS Press to display the System Menu.
HOME Press to display the Cycle Selection Menu.
Table 1
Operation Modes
In each mode of operation, the user may press keypads or com-
municate with the control to change the displayed menu.
Power-Up Mode
The control enters this mode at power-up. After the control com-
pletes operation in Power-Up Mode it will enter Start Mode. The
display will show a clock during Power-Up Mode.
Control Identification
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
17 Part No. 70549501ENR6

Pause Mode
Pressing the keypad with the door closed resumes the cycle.
Pressing the keypad terminates the cycle.
Power Failure Display Mode
The control enters this mode after a power failure while a cycle
was running. This informs the user that a cycle was interrupted
and did not complete normally. The display will show "Power
Failure" and "Press any key to exit".
Start Mode
The control displays different menus depending on user input
(keypad press, opening or closing the loading door, or IR commu-
nication). If there is no user input for 4.25 minutes, the control
dims the display's LCD backlight. The display lights when there
is user input.
In this mode, press the keypad to put the control in Run Mode
and save the hour and minute of the day the cycle was started.
Any cycle selection key or the Home key will change the display
to the Cycle Selection Menu. The Start key will start the selected
cycle or show the Close Door Menu. All other key presses are in-
valid.
Run Mode
Press the keypad once to enter Pause Mode. Press the key-
pad twice to stop the cycle. The control enters Run Mode during
a cycle. The display shows the Cycle Status Menu. The loading
door is closed during Run Mode. The control enters Door Open
Mode if the loading door opens.
End of Cycle Mode
The control enters this mode when a cycle is complete. The dis-
play shows "Cycle Complete" and time since completion, if Time
Since Completed Disp is enabled. The control enters Start Mode
when loading door is opened or a key is pressed.
System Check Mode
The front end control enters this mode after Power-Up Mode.
System Check Mode acts as an extension to Power-Up Mode and
during this mode, the control will check if the correct drive mo-
tor, fan motor and ignition control (for gas machines only) are
connected to the machine. If the motor type checks have success-
fully been completed or if the door is not closed prior to the five
(5) second timer expiring, the front end control will continue to
the next mode. The mode that is entered after System Check
Mode completes is determined in Power-Up Mode. If the door
was not closed and the motor type check was not completed, this
check will be done the next time the motor drive contactor is ena-
bled. If the test detects an incorrect drive motor, fan motor or ig-
nition control, a Board ID Error will be set
Factory Test Mode
The user can enter this mode via the keypad shortcut (if enabled,
refer to Globals Menu) or the Diagnostics Menu, network, or the
IrDA device from Start Mode.
While in Factory Test Mode the machine cycles through test steps
and displays. Refer to Factory Test Menu for more information.
Machine Error Mode
The control enters this mode when an error is set and displays all
alarms and machine errors.
Communication Mode
The control enters this mode while IR communication is in prog-
ress. The display shows the IR Communications Menu.
Manual Mode
Manual Mode allows the user to manually program, audit, and
access diagnostic functions rather than requiring the use of IR or
other communication source. When in Manual Mode, the control
displays the System Menu.
The owner can program the control (refer to Globals Menu) to re-
quire users to enter a passcode to access Manual Mode. The pass-
code can only be set with an external device or network.
Rapid Advance Mode
The user can enter Rapid Advance Mode via network or IR de-
vice from Start Mode or Run Mode.
If enabled (refer to Globals Menu), the user can access Manual
Rapid Advance (refer to Rapid Advance) via the keypad through
the System Menu.
When in Manual Rapid Advance, press the keypad to advance
to the next step for moisture dry or auto-dry cycles. For time dry
cycles, each press of the keypad will subtract one minute of
time. If keypad is pressed and held, time will decrement four
minutes per second.
Manual Diagnostic Mode
Manual Diagnostic Mode allows the user to manually access di-
agnostic functions rather than requiring the use of IR or other
communication source. When in Manual Diagnostic Mode, the
control displays the Diagnostics Menu.
Error Display Mode
If the control detects a machine error, it enters Error Display
Mode and displays the error. Only one (1) error displays at a time
if there are multiple errors. Once the highest priority error is
cleared, the control displays the next highest priority error if mul-
tiple errors exist. See Machine Errors for more details on error
descriptions, error displays and priorities.
Control Identification
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
18 Part No. 70549501ENR6

Anti-Wrinkle Mode
The cycle will enter Anti-Wrinkle Mode two (2) minutes after the
cycle has ended. The display will show "Anti-Wrinkle". Upon en-
tering Anti-Wrinkle Mode, the control will increment the Total
Number of Extended Tumble Cycles audit counter. The control
will continue to show the End of Cycle Mode display. During the
Anti-Wrinkle portion, the control, if enabled will sound an audio
warning prior to turning on the motor for 30 seconds every two
(2) minutes.
The dryer will remain in this mode for up to 1 hour, or until the
door is opened, a key is pressed or a start pulse is received. When
the Anti-Wrinkle Mode timer expires the control increments the
Anti-Wrinkle Exceeded audit counter and enters Extended Tum-
ble Mode. If the door is opened, a key is pressed or a start pulse
is received before Anti-Wrinkle Mode expires, the control will
enter Ready Mode. Anti-Wrinkle Mode is not included in the To-
tal Operating Minutes counter.
The dryer will remain in this mode for up to 1 hour, or until the
door is opened, a key is pressed. When the Anti-Wrinkle Mode
timer expires the control increments the Anti-Wrinkle Exceeded
audit counter and enters Extended Tumble Mode. If the door is
opened or a key is pressed before Anti-Wrinkle Mode expires, the
control will enter Start Mode. Anti-Wrinkle Mode is not included
in the Total Operating Minutes counter.
Extended Tumble Mode
Extended Tumble Mode is entered after Anti-Wrinkle Mode has
finished. The display will show "Extended Tumble". During the
Extended Tumble, the control will turn on the motor for 2 mi-
nutes every 1 hour. If the extended tumble audio option is ena-
bled, the control will beep for five seconds and then stay solid for
five seconds prior to turning on the motor.
The control will remain in this mode for up to 18 hours, or until
the door is opened, a key is pressed or a start pulse is received.
When the Extended Tumble timer expires the control will remain
in Extended Tumble Mode. If the door is opened, a key is pressed
or a start pulse is received before Extended Tumble Mode ex-
pires, the control will enter Ready Mode or Start Mode. Extended
Tumble Mode is not included in the Total Operating Minutes
counter.
The control will remain in this mode for up to 18 hours, or until
the door is opened or a key is pressed. When the Extended Tum-
ble timer expires the control will remain in Extended Tumble
Mode. If the door is opened or a key is pressed before Extended
Tumble Mode expires, the control will enter Start Mode. Extend-
ed Tumble Mode is not included in the Total Operating Minutes
counter.
WARNING
Disabling this feature may lead to overheating of
clothes, which may lead to spontaneous combustion
and fire. By disabling this feature, you hereby re-
lease and hold harmless Alliance Laundry Systems
LLC of any damages caused by fire, including but
not limited to, property damage, personal injury or
death, and agree to indemnity Alliance Laundry Sys-
tems LLC from in any proceeding or cause of action
related to such action.
W960
Control Identification
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
19 Part No. 70549501ENR6

Machine Cycle Definition and Operation
The control comes programmed with 41 machine cycles with the
ability to enable up to 48 cycles. The user can modify machine
cycles or set them to enabled or disabled by manually editing
them in Modify Cycle Menu, or through IR communication or the
network by downloading a modified machine cycle into the con-
trol. Machine cycles cannot be deleted, but can be made “unavail-
able” so that they are not visible from the Cycle Selection Menu.
New machine cycles cannot be created, but existing machine cy-
cles that have been edited to be “unavailable” may be re-edited to
be available again.
Machine Cycle Operation
When a cycle is run, the control runs the cycle step by step in a
sequence. First the control examines the Cycle Type chosen to
determine if it is a Time Dry, Auto-Dry or Moisture Dry cycle
type. Then the first step is examined to see if it is programmed to
on or off. If the step is programmed to off, control skips to the
next step.
At the start of some machine cycles, the control displays a Total
Remaining Cycle time. This time is taken from the machine cy-
cles as they are programmed. The Total Remaining Cycle Time
begins to count down as soon as the cycle is started.
Time Dry Cycle
In this type of cycle, the control will regulate the temperature and
time duration as programmed for the cycle chosen.
Auto Dry Cycle
If this type of cycle is selected, the control determines the cycle
time based on the temperature and dryness level programmed for
the cycle chosen.
Moisture Dry Cycle (if equipped)
In this type of cycle, the control checks the programmed material
type, programmed target moisture content, programmed tempera-
ture and the size/type of machine.
Start a Cycle
1. While in Start Mode, press the or keypad to scroll
through the cycle list in the Cycle Selection Menu.
2. Press the keypad to start the highlighted cycle.
NOTE: If door is not closed when the keypad is
pressed, display will show the Close Door Menu.
Every night at midnight the control enters the Service Schedule
Menu if the machine is in Start Mode on the Cycle Selection
Menu.
When a keypad is pressed or the door is opened or an IR commu-
nication takes place, the control turns the backlight back on (if
programmed, refer to Globals Menu).
The control also enters a specific service sub-menu for that day.
The Monthly Menu displays on the first day of the month. The
Yearly Menu displays on the first day of the year. The Daily
Menu displays on all other days.
Press any keypad to clear the menu and enter Cycle Selection
Menu.
Optional settings are performed by additional keypad presses:
•Press the keypad to enter the System Menu.
• Press the keypad to enter the Cycle Options Menu.

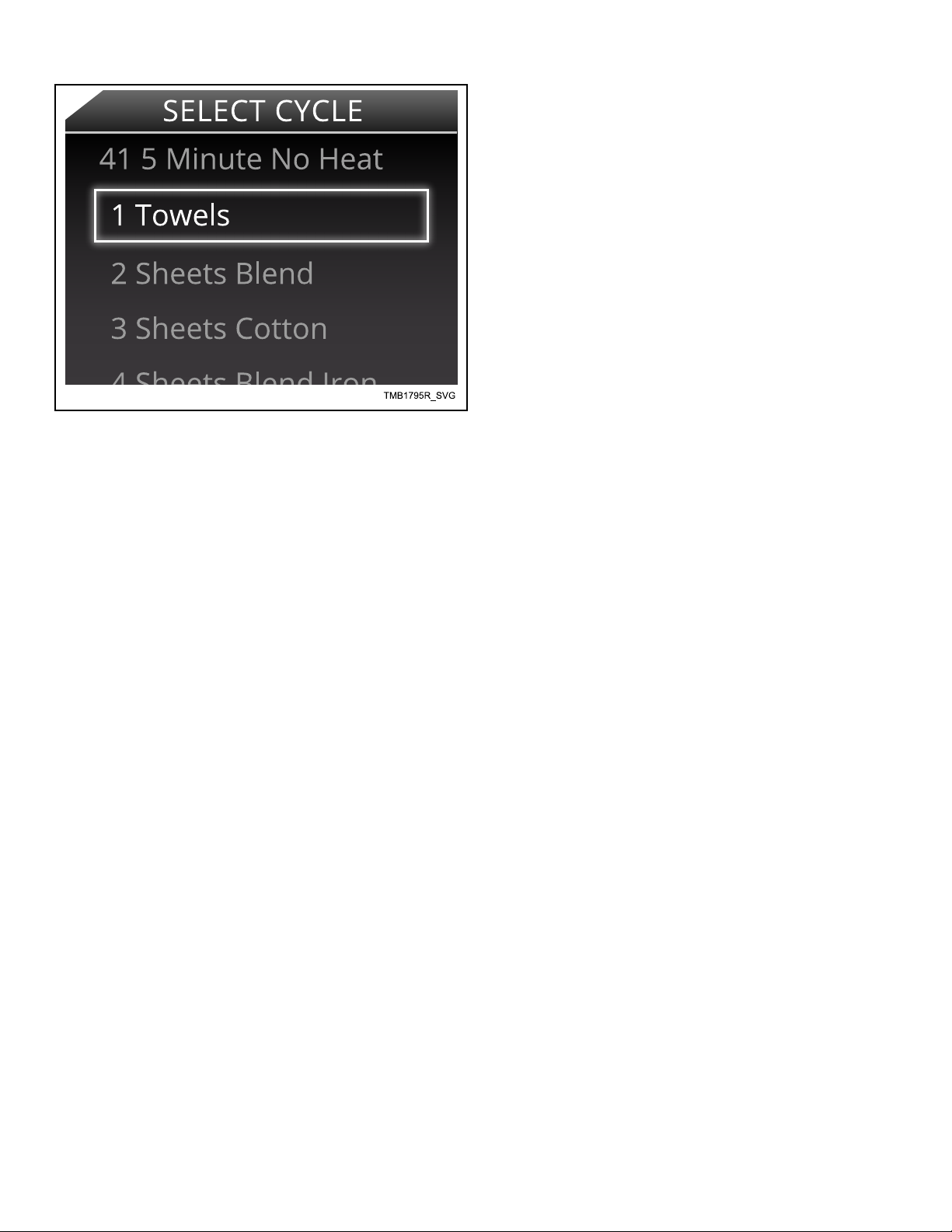

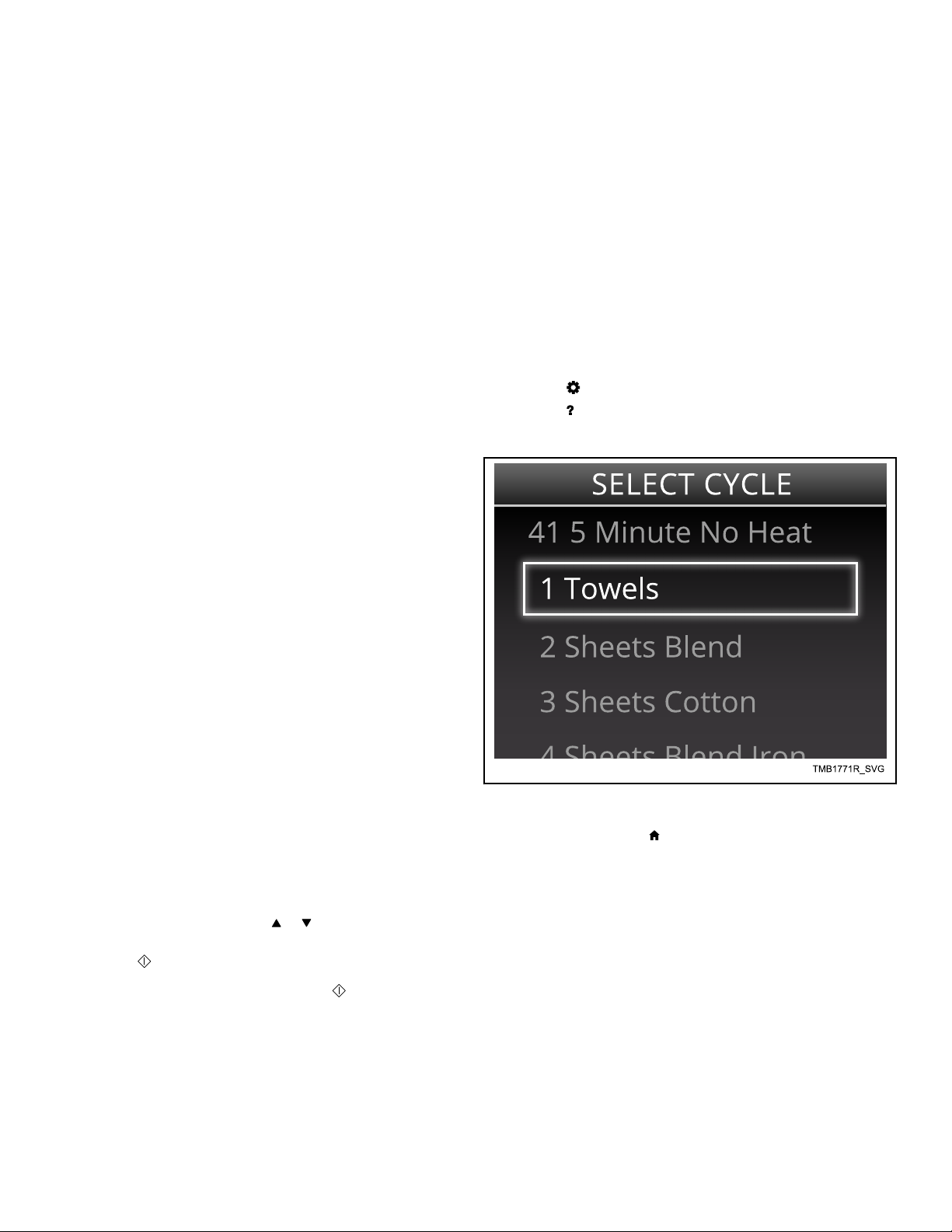

Cycle Selection Menu
Figure 6
Upon power-up, press the keypad to enter the Cycle Selection
Menu. The Cycle Selection Menu allows the user to select one
(1) of the 48 machine cycles. Machine cycles that are set to "un-
available" are not displayed in the Cycle Selection Menu. By de-
fault, the last run cycle displays in the highlighted position. The
factory default cycle is Cycle 1.
Machine Cycle Definition and Operation
