Alliance Laundry Systems ATB50CG Operating instructions

www.comlaundry.com
Troubleshooting
Part No. 70410501
September 2007
Drying Tumblers
50 Pound Capacity
75 Pound Capacity
Refer to Page 5 for Model Numbers
T012c

© Copyright 2007, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without
the expressed written consent of the publisher.
70410501 1
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Table of
Contents
Section 1 – Safety Information ...............................................................3
Locating An Authorized Service Person ...............................................4
Section 2 – Introduction..........................................................................5
Model Identification ..............................................................................5
Customer Service...................................................................................6
Serial Plate Location..............................................................................6
Safety Warnings and Decals..................................................................7
Safety Precautions for Servicing Tumblers...........................................7

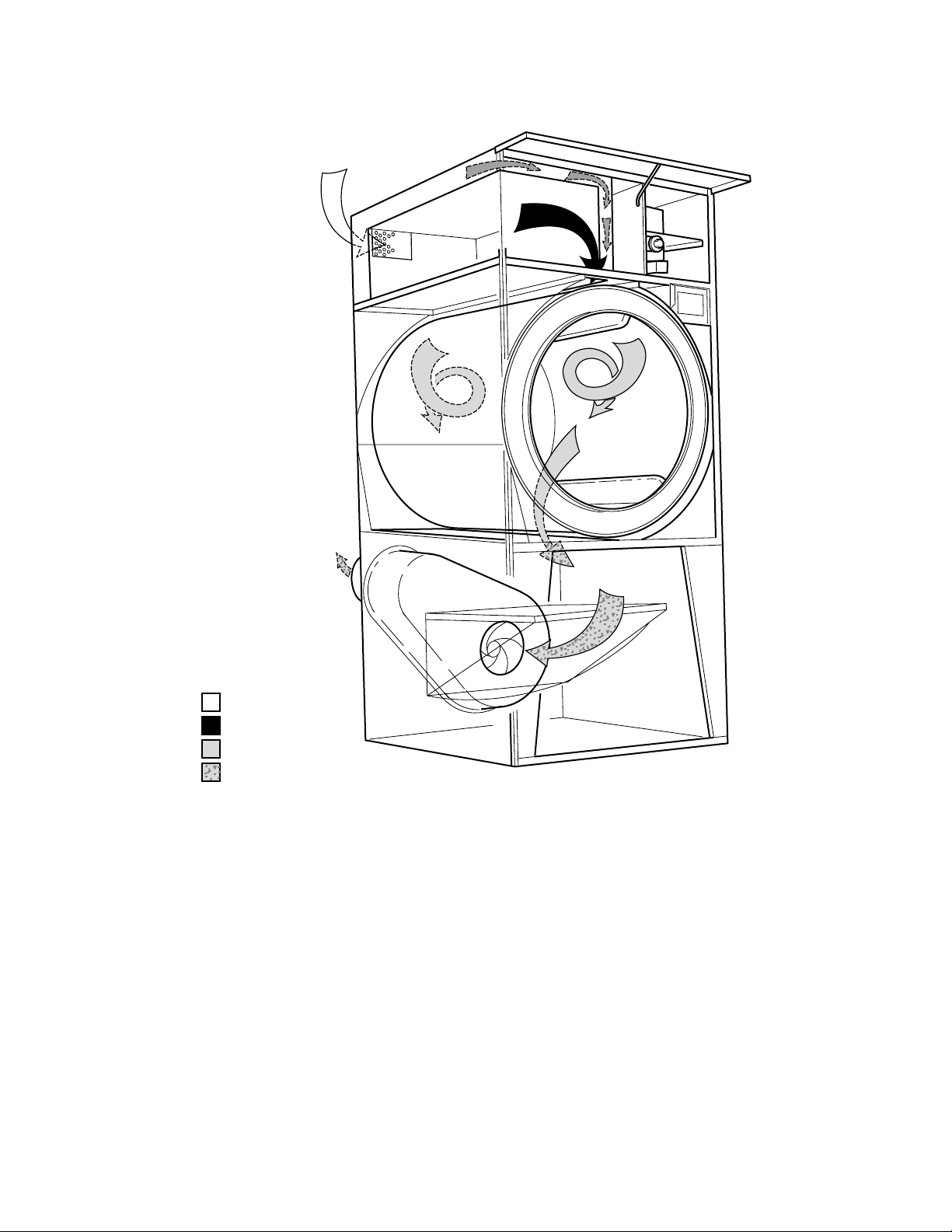

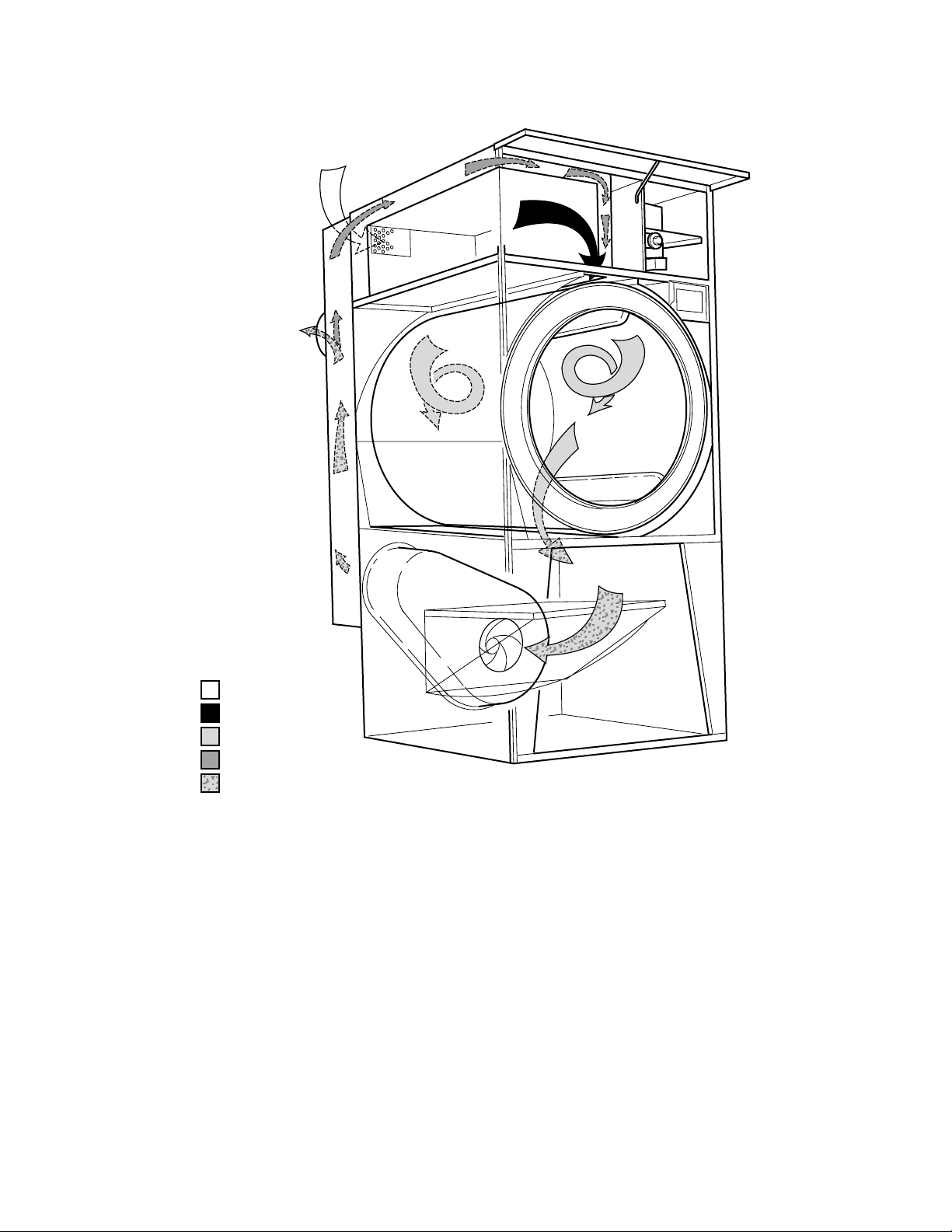

How A Tumbler Works.........................................................................8
Section 3 – Troubleshooting..................................................................10
1. Motor Does Not Start..................................................................11
2. Motor Overload Protector Cycles Repeatedly ............................13
3. Motor Runs But Cylinder Does Not Turn...................................14
4. Motor Does Not Stop..................................................................15
5. Heating Element Does Not Heat Or Burner Does Not Ignite
– Gas and Electric Models ..........................................................16
6. Pilot Does Not Ignite – Standing Pilot Ignition Gas Models......18
7. Pilot Goes Out – Standing Pilot Ignition Gas Models ................19
8. Igniter Does Not Shut Off After Gas Ignition
– Automatic Pilot Ignition Gas Models ......................................20
9. Gas Supply Sufficient But Igniter Does Not Glow
– Glow-Bar Ignition Gas Models................................................21
10. Igniter Glows, Sensor Opens But No Ignition
– Johnson Controls System Gas Models.....................................22
11. Igniter Glows, Sensor Opens But No Ignition
– White Rodgers Glow-Bar Ignition Gas Models.......................23
12. Burner Ignites and Goes Out Repeatedly
– Glow-Bar Ignition Gas Models................................................24
13. Heating Element or Burner Shuts-Off Prematurely....................25
14. Heating Element or Burner Repeatedly Cycles Off On
High Limit Thermostat................................................................26
15. Heating Element or Burner Does Not Shut-Off..........................27
16. Clothes Do Not Dry ....................................................................28
17. Tumbler Overheating ..................................................................29
18. Burners Not Burning Properly – Gas Models.............................30
19. Loading Door Opens During Operation......................................31
20. Tumbler Runs But No Steam To Coils – Steam Models ............32
21. Water In Steam Line – Steam Models ........................................33
22. Troubleshooting Electronic Control Models...............................34
23. Tumbler Will Not Start, Time on Drying Timer,
Door Closed – Manual Timer Models ........................................36
24. Motor Runs, Time on Drying Timer But No Heat......................37
25. No Spark to Pilot Burner – Electronic Pilot Ignition Models.....39
26. Spark to Pilot Burner, No Pilot Flame
– Electronic Pilot Ignition Models..............................................40
27. Spark To Pilot Burner, Pilot Lights, No Main Burner
– Electronic Pilot Ignition Models..............................................41

270410501
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
28. Igniter Does Not Glow – Johnson Controls
Glow-Bar System........................................................................42
29. Igniter Glows Constantly – Johnson Controls and
White Rodgers Glow-Bar System...............................................43
30. Igniter Glows, Cycles Off But Burner Does Not Ignite
– Johnson Controls Glow-Bar System........................................44
31. Igniter Does Not Glow – White Rodgers Glow-Bar System......45
32. Igniter Glows, Cycles Off But Burner Does Not Ignite
– White Rodgers Glow-Bar System............................................46
33. Igniter Sparks, No Main Burner Ignition
– Instant Electronic Ignition........................................................47
34. CSH OM Models: No Heat With Cycle Selected,
Unit Running and Calling For Heat............................................48
35. OM Models: No Start With Cycle Selected, Start Button
Pressed and Door Closed ............................................................50
36. OM Models: No Display After Selecting One Of The
ON/SELECT Keys......................................................................52
37. CE OM Models: No Heat With Cycle Selected, Unit
Running and Calling For Heat ....................................................53
38. CG OM Models: No Heat With Cycle Selected, Unit
Running and Calling For Heat ....................................................55
39. OM Models: No Fan Motor Rotation With Cycle Selected
and Start Pressed.........................................................................57
40. MM Models: Fan Motor Does Not Run With Door Closed,
Cycle Selected and Start Button Pressed ....................................58
41. MM Models: Cylinder Motor Does Not Run or Reverse With
Door Closed, Cycle Selected and Start Button Pressed In
Reversing Mode or Nonreversing Mode.....................................59
42. MM Models: No Heat With Cycle Selected, Unit Running
and Calling For Heat...................................................................61
43. MM Models: No Heat With Cycle Selected, Unit Running
and Calling For Heat...................................................................63
44. OM Reversing Models: No Cylinder Rotation or Reversing
Capabilities..................................................................................65
45. MM Models: No Display After Pressing the ON/SELECT
Keys ............................................................................................67
46. MM Models: Motor Does Not Run With Door Closed, Cycle
Selected and Start Button Pressed...............................................68
47. MM Models: Cylinder Motor Does Not Run or Reverse With
Door Closed, Cycle Selected and Start Button Pressed In
Reversing Mode or Nonreversing Mode.....................................69
48. MM Nonreversing Models: Motor Does Not Run With Door
Closed, Cycle Selected and Start Button Pressed .......................71
49. CD Models: No Start With Vend Satisfied and Start Button
Pushed.........................................................................................73
50. CD Models: No Heat With Vend Satisfied and Unit Running ...75
51. CD Models: No Heat With Vend Satisfied and Unit Running ...77
52. CD Models: No Start With Vend Satisfied and Start Button
Pushed.........................................................................................79
53. CD Models: No Start With Vend Satisfied and Start Button
Pushed.........................................................................................81
Section 4 – Adjustments........................................................................82
54. Cylinder Clearance......................................................................82

70410501 3
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Section 1
Safety Information
Throughout this manual and on machine decals, you
will find precautionary statements (“CAUTION”,
“WARNING”, and “DANGER”) followed by specific
instructions. These precautions are intended for the
personal safety of the operator, user, servicer, and those
maintaining the machine.
Additional precautionary statements (“IMPORTANT”
and “NOTE”) are followed by specific instructions.
IMPORTANT: The word “IMPORTANT” is used
to inform the reader of specific procedures where
minor machine damage will occur if the procedure
is not followed.
NOTE: The word “NOTE” is used to communicate
installation, operation, maintenance or servicing
information that is important but not hazard
related.
In the interest of safety, some general precautions
relating to the operation of this machine follow.
DANGER indicates the presence of a
hazard that will cause severe personal
injury, death, or substantial property
damage if the danger is ignored.
DANGER
WARNING indicates the presence of a
hazard that can cause severe personal
injury, death, or substantial property
damage if the warning is ignored.
WARNING
CAUTION indicates the presence of a
hazard that will or can cause minor
personal injury or property damage if the
caution is ignored.
CAUTION
• Failure to install, maintain and/or operate
this product according to the
manufacturer’s instructions may result in
conditions which can produce serious
injury, death and/or property damage.
• Do not repair or replace any part of the
product or attempt any servicing unless
specifically recommended or published in
this Service Manual and unless you
understand and have the skills to carry
out the servicing.
• Whenever ground wires are removed
during servicing, these ground wires
must be reconnected to ensure that the
product is properly grounded and to
reduce the risk of fire, electric shock,
serious injury or death.
W006R2
WARNING

470410501
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Safety Information
IMPORTANT INFORMATION: During the
lifetime of a tumbler, it may require service. The
information contained in this manual was written
and is intended for use by qualified service
technicians who are familiar with the safety
procedures required in the repair of a tumbler, and
who are equipped with the proper tools and testing
equipment.
NOTE: The WARNING and IMPORTANT
instructions appearing in this manual are not meant
to cover all possible conditions and situations that
may occur. It must be understood that common
sense, caution and carefulness are factors which
CANNOT be built into this tumbler. These factors
MUST BE supplied by the person(s) installing,
maintaining or operating the tumbler.
Always contact your dealer, distributor, service agent
or the manufacturer on any problems or conditions you
do not understand.
Locating An Authorized Service
Person
Alliance Laundry Systems is not responsible for
personal injury or property damage resulting from
improper service. Review all service information
before beginning repairs.
Warranty service must be performed by an
authorized technician, using authorized factory
parts. If service is required after the warranty
expires, Alliance Laundry Systems also
recommends contacting an authorized technician
and using authorized factory parts.
To reduce the risk of electric shock, fire,
explosion, serious injury or death:
• Disconnect electric power to the tumbler
before servicing.
• Never start the tumbler with any guards/
panels removed.
• Whenever ground wires are removed
during servicing, these ground wires
must be reconnected to ensure that the
tumbler is properly grounded.
W240
WARNING
Repairs that are made to your products by
unqualified persons can result in hazards
due to improper assembly or adjustments
subjecting you or the inexperienced person
making such repairs to the risk of serious
injury, electrical shock or death.
W007
WARNING
If you or an unqualified person perform
service on your product, you must assume
the responsibility for any personal injury or
property damage which may result. The
manufacturer will not be responsible for
any injury or property damage arising from
improper service and/or service
procedures.
W008
CAUTION

70410501 5
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Section 2
Introduction
Model Identification
Information in this manual is applicable to these models:
Gas Steam/Thermal Oil Electric
50
Pound
ATB50CG
DCB50CG
DCB50EG
DTB50CG
DTB50EG
JC50CG
JC50EG
JCB50CG
JCB50EG
JT37CG
JT37CGI
JT37EG
JT37EGI
JT50CG
JT50CGI
JT50EG
JT50EGI
JTB50CG
JTB50EG
SC50CG
SC50EG
SCB50CG
SCB50EG
ST37CG
ST37CGI
ST37EG
ST37EGI
ST50CGI
ST50EGI
STB50CG
STB50EG
TKD50CGMT
ATB50CSH
DCB50CSH
DTB50CSH
DTB50CSL
JC50CSH
JCB50CSH
JT37CSH
JT37CSL
JT50CSH
JT50CSL
JTB50CSH
JTB50CSL
SC50CSH
SCB50AT
SCB50CSH
ST37CSH
ST37CSL
ST50CSH
ST50CSL
STB50CSH
STB50CSL
DCB50CE
DTB50CE
JC50CE
JCB50CE
JT37CE
JT50CE
JTB50CE
SC50CE
SCB50CE
ST37CE
ST50CE
STB50CE
TKD50CEMT
75
Pound
ATB75CG
DCB75CG
DCB75FG
DTB634
DTB75CG
DTB75EG
DTB75FG
JCB75CG
JT75CG
JT75EG
JTB75CG
JTB75EG
SCB75CG
ST75CG
STB634
STB75CG
STB75EG
ATB75CSH
DCB75CSH
DCB75CSL
DTB75CSH
DTB75CSL
JCB75CSH
JCB75CSL
JT75CSH
JT75CSL
JTB75CSH
JTB75CSL
SCB75CSH
SCB75CSL
ST75CSH
ST75CSL
STB75CSH
STB75CSL
DCB75CE
DTB75CE
JCB75CE
JT75CE
JTB75CE
SCB75CE
ST75CE
STB75CE

670410501
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Introduction
Customer Service
If literature or replacement parts are required, contact
the source from whom the machine was purchased or
contact Alliance Laundry Systems at [phone]
for the name and address of the nearest authorized
parts distributor.
For technical assistance, call [phone].
Serial Plate Location
When calling or writing about your product, be sure to
mention model and serial numbers. Model and serial
numbers are located on serial plate(s) as shown.
T419IE3B

70410501 7
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Introduction
Safety Warnings and Decals
SAFETY WARNINGS and decals have been provided
in key locations to remind you of important precautions
for the safe operation and maintenance of your tumbler.
Please take the time to review these warnings before
proceeding with service work.
All decals have been designed and applied to withstand
washing and cleaning. Decals should be checked
periodically to be sure they have not been damaged,
removed, or painted. Refer to Parts Manual for
ordering replacement decals.
Safety Precautions for Servicing Tumblers
• Disconnect electrical service.
• Shut off supply gas valve before servicing gas
components.
• Control panel and access panel MUST be
reinstalled after inspection or servicing of
tumbler is completed.
• Use a non-corrosive leak detection fluid to check
all pipe connections for gas leaks. DO NOT USE
AN OPEN FLAME TO CHECK FOR GAS
LEAKS!
• Chain/drive guard MUST be reinstalled after
inspection or servicing of tumbler is completed.
• Belt guard MUST be reinstalled after inspection
or servicing of tumbler is completed.
• Contactor box cover MUST be reinstalled after
inspection or servicing of electric and/or reversing
tumbler is completed.
• Loading door switch MUST be operational before
putting tumbler into service.
• Junction box cover MUST be reinstalled after
inspection or servicing of tumbler is completed.

870410501
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Introduction
How A Tumbler Works
The tumbler uses heat, air and movement to dry
loads of laundry.
When the motor is started, the exhaust fan pulls
fresh air in through the air intake and over the heat
source (burner flame for gas, heating element for
electric, and coil for steam).
The heated air moves into the cylinder, where it is
circulated through the laundry by the tumbling
action of the cylinder.
The air then passes through the lint filter, exhaust
fan, and is vented to the outdoors.
NOTE: In Energy Saver Models, some of the
exhaust air is recirculated. Refer to illustration on
next page.
Fresh Air
Combustion Air
Mixed Air
Exhaust Air T008CE1A
Standard Models

70410501 9
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Introduction
T007CE1A
Fresh Air
Combustion Air
Mixed Air
Recirculating Air
Exhaust Air
Energy Saver Models

10 70410501
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Section 3
Troubleshooting
IMPORTANT: Refer to wiring diagram for aid in
testing tumbler components.
To reduce the risk of electric shock, fire, explosion, serious injury or death:
• Disconnect electric power to the tumbler before servicing.
• Close gas shut-off valve to gas tumbler before servicing.
• Close steam valve to steam tumbler before servicing.
• Never start the tumbler with any guards/panels removed.
• Whenever ground wires are removed during servicing, these ground wires must be
reconnected to ensure that the tumbler is properly grounded.
W002
WARNING

70410501 11
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Troubleshooting
1. Motor Does Not Start
Motor does
not start
Is the
electrical power
off or circuit breaker
fuse blown?
No
Is the
loading door
not closed or switch
inoperative?
Is the
door switch
improperly
adjusted?
No
Check power
supply or replace
fuses.
Yes
Close door or
test switch and
replace if
inoperative.
Yes
Refer to
Installation
Manual
for
door switch
adjustment.
Yes
Is the start circuit
not complete?
Yes
Press
start switch
or test switch
and replace if
inoperative.
Is the motor
inoperative?
Yes Have motor tested
and replace if
inoperative.
Refer to wiring
diagram.
Yes
Are
improper
coins inserted in
accumulator?
Yes Check that proper
coins are inserted.
Is the
motor relay
inoperative?
Yes Test relay and
replace if
inoperative.
Is there
broken, loose, or
incorrect
wiring?
No TMB2131S-a
No
No
No
Is
accumulator knob
improperly set
after coins were
inserted.
Yes Turn knob
clockwise to its full
limit of travel.
Is the
run switch
accumulator
inoperative?
Yes Test run switch
and replace if
inoperative.
No
No
No
continued on
next page
No

12 70410501
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Troubleshooting
1. Motor Does Not Start (continued)
Are
trunnion bearings
binding?
Yes Replace
trunnion
bearings.
TMB2131S-b
Are
idler bearings
binding?
Replace
bearings.
No
Yes
Is timer
improperly
set?
Turn drying timer
clockwise to
desired setting.
No
Yes
Is timer
inoperative?
Test timer and
replace if
inoperative.
No
Yes
Continued from
previous page

70410501 13
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Troubleshooting

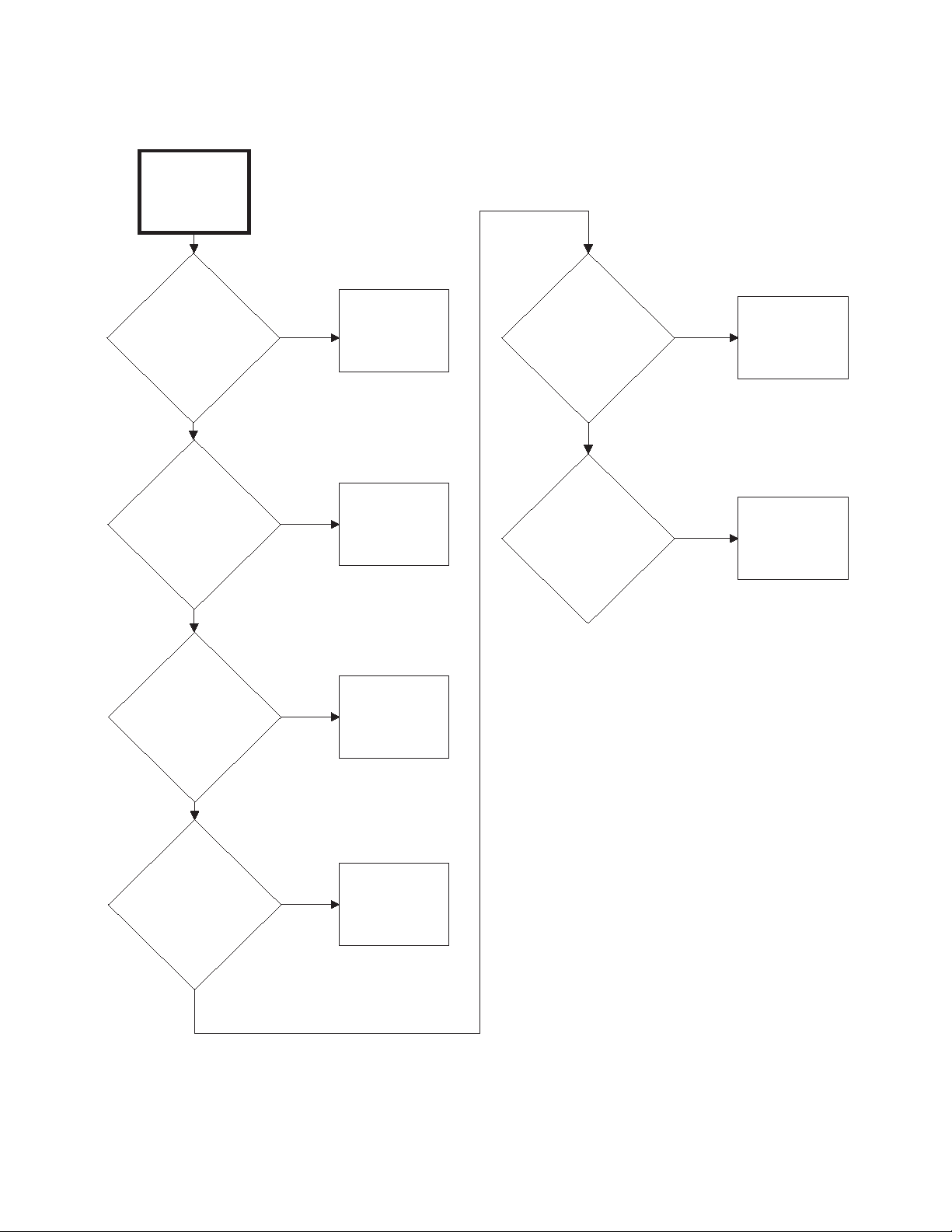

2. Motor Overload Protector Cycles Repeatedly
TMB1904S
Motor Overload
Protector
Cycles
Repeatedly
Is voltage
correct?
Refer to
Installation
Manual
for
electrical
requirements.
Yes
Is clothes
load too
large?
No
Remove part of
load.
Yes
Is clothes
cylinder
binding?
Check cylinder
for binding.
Is wiring
adequate?
No
Yes
No
Check with
local power
company to
ensure that
wiring is
adequate.
Yes
Is make-up
air adequate?
Refer to
Installation
Manual
for
make-up air
requirements.
No
Yes
Is there lint
buildup around
tumbler or poor
maintenance?
Clean lint
accumulation
on and around
the motors.
No
Yes
Is there
broken, loose
or incorrect
wiring?
Refer to wiring
diagram.
No
Yes

14 70410501
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Troubleshooting

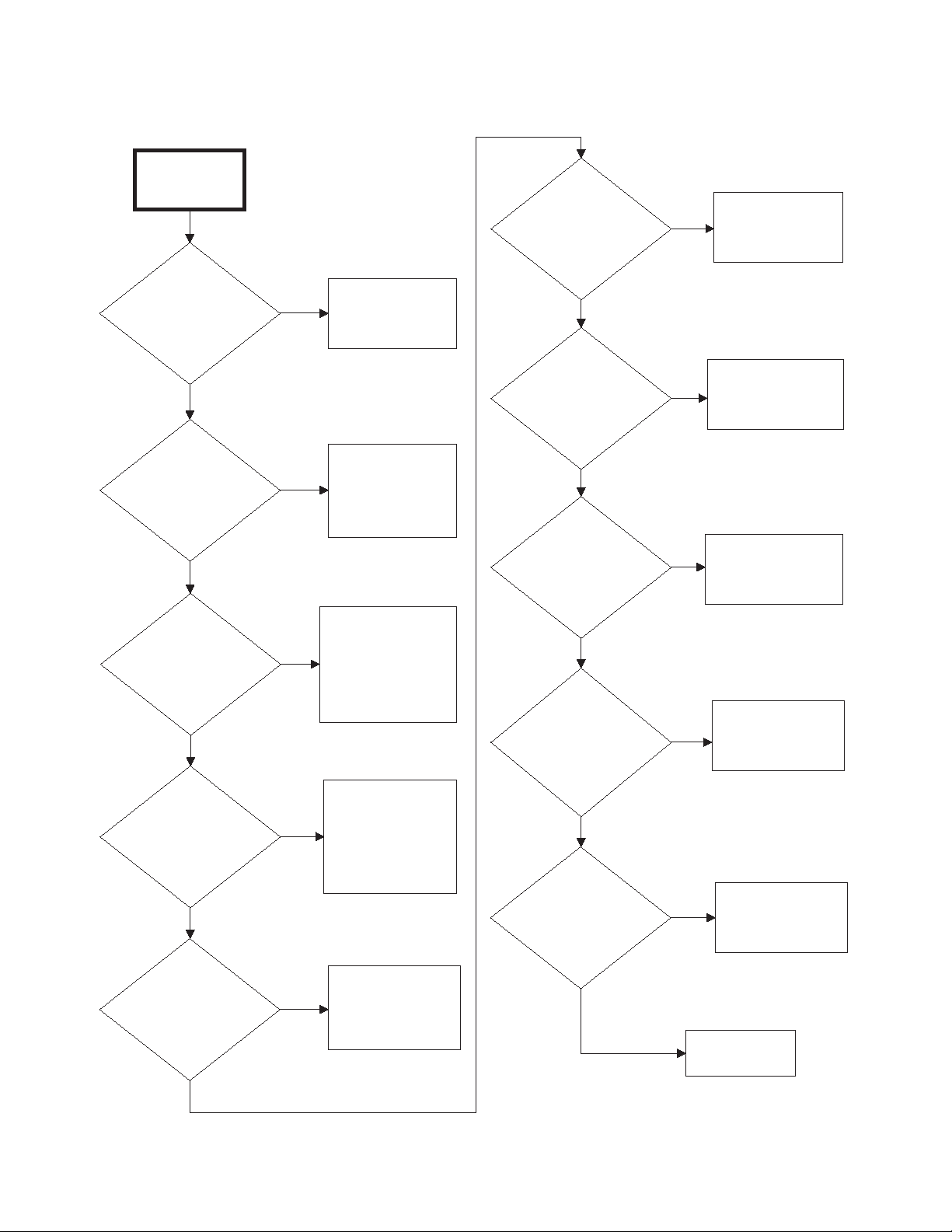

3. Motor Runs But Cylinder Does Not Turn
Motor runs
but cylinder
does not turn
Is cylinder belt
broken or
loose?
Replace or
adjust cylinder
belt.
Is cylinder
binding?
Check cylinder
for binding.
Yes
Yes
TMB2132S
Is motor drive
pulley loose?
Yes Tighten drive
pulley bushing
screws.
No
Is drive belt
broken or
loose?
Replace or
adjust drive
belt.
Yes
Is sheave
loose?
Tighten
setscrews.
Is
drive chain or
sprocket broken
or loose?
Replace or
adjust chain
or sprocket.
No
No
No
No
Yes
No

70410501 15
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Troubleshooting
4. Motor Does Not Stop
Motor does
not stop
Is the door
switch not
working
properly?
Test switch and
replace if inoperative.
Refer to
Installation
Manual
for proper
switch adjustment.
Is wiring
incorrect?
Refer to wiring
diagram.
Is timer
or relay
inoperative?
Test timer
and relay
and replace
if inoperative.
Is
accumulator
inoperative?
Test
accumulator
and replace if
inoperative.
Yes
Yes
No
Yes
No
Yes
TMB2133S
No

16 70410501
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Troubleshooting

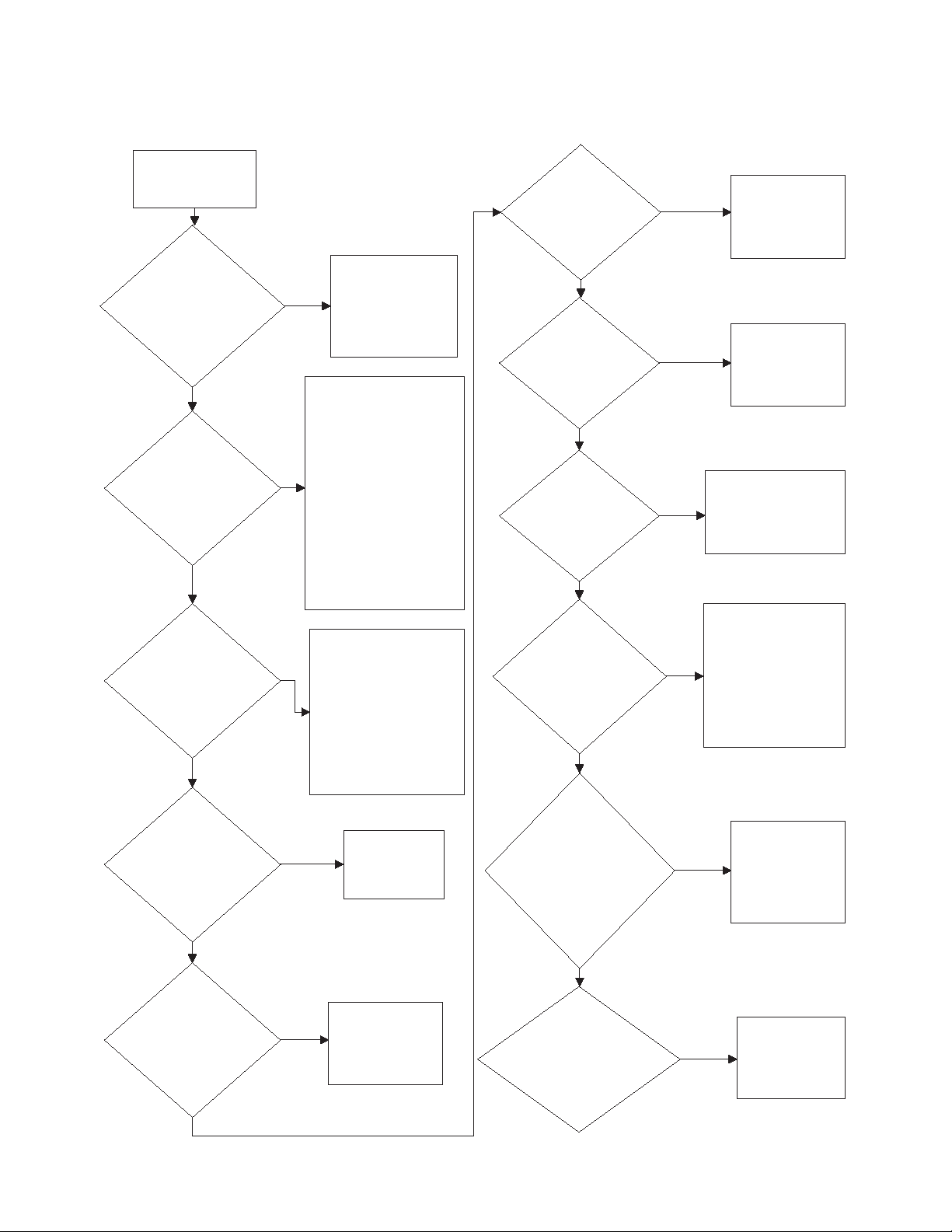

5. Heating Element Does Not Heat Or Burner Does Not Ignite – Gas and
Electric Models
Heating element does
not heat or burner
doesnot ignite
Isthere
an improper or
inadequate exhaust
system?
No
Are there
blown fusesor
tripped circuit breakers
in external electric
supply line?
Is
drying timer
not selected or
inoperative?
No
Refer to
Installation
Manual for
exhaust system
requirements.
Yes
Check fusesor
circuit breaker.
Yes
Set drying timer
or replace if
inoperative.
Yes
Is
thermostat
inoperative?
YesTest thermostat
and replace if
inoperative.
Isthere
inadequate
ductwork and
make-up air?
Clean lint compartment.
Check damper for lint
accumulation. Check
ductwork for lint buildup.
Yes
Refer to Installation
Manual to ensure that
ductwork and make-up
air openingsare sized
accurately.
Yes
Isthere
lint
buildup?
TMB2134S-a
No
Continued on
next page
Isthe
airflow switch
inoperative?
Yes
Test switch and replace if
inoperative.
Check back draft damper
for foreign objects, lint
accumulation or other
causesthat may prevent
damper from opening.
Check exhaust outlet. If a
screen has been
improperly installed on
the outlet, it may be
clogged with lint or frozen
over in winter. NEVER
install ascreen over the
exhaust outlet.
Isairflow
switch out of
adjustment?
No
YesRefer to Installation
Manual for airflow
switch adjustment.
No
No
No
Is
there broken,
loose or
incorrect
wiring?
YesRefer to
wiring diagram.
Isthe lint
door panel
not closed
properly?
Yes
No
Open lint door
panel, place lint
door and panel
back on tumbler
(ensuring atight fit).
No
No

70410501 17
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Troubleshooting
5. Heating Element Does Not Heat Or Burner Does Not Ignite – Gas and
Electric Models (continued)
Continued from
previous page
Gas Models:
Is there an
inoperative
igniter?
Gas Models:
Is the igniter control
inoperative?
Test igniter
and replace if
inoperative.
Yes
Test igniter
control and
replace if
inoperative.
Yes
TMB2134S-b
Gas Models:
Are gas valve coils
inoperative?
Test coils and
replace if
necessary.
Yes
Standing Pilot
Ignition Gas
Models: Is pilot
not lit?
Refer to Installation
Manual
or
instruction plate on
back of tumbler for
lighting and
shutting down
standing pilot.
Yes
Electric
Models: Are
heating elements
or contactors
inoperative?
Check heat
contactors and
elements.
Replace if
necessary.
Gas Models:
Is there an
insufficient gas
supply?
Open partially closed
gas shut-off valve or
correct low gas
pressure. Check
manifold pressure and
adjust to pressure
specified on serial
plate. If pressure
cannot be obtained,
have your local gas
company check main
gas pressure.
Gas Models:
Are the orifices
incorrect?
Tumbler is equipped
for type of gas
specified on serial
plate. If orifices are
different from that
specified on serial
plate, obtain and
install correct orifices.
Standing
Pilot Ignition Gas
Models: Is gas valve
reset assembly or
thermocouple
inoperative?
Check and
replace
thermocouple or
reset assembly
if necessary.
No
Yes
Yes
No
Yes
No
No
Glow Bar
Ignition Gas Models: Is
sensor inoperative?
Test sensor
and replace if
inoperative.
No
No
Yes
No
Yes
Gas Models:
Is main coil
inoperative?
Test main coil
and replace if
inoperative.
Gas Models:
Is redundant coil
inoperative?
Test redundant coil
and replace
complete gas valve
if inoperative.
No
Yes
No
Yes
No

18 70410501
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Troubleshooting
6. Pilot Does Not Ignite – Standing Pilot Ignition Gas Models
Pilot does not
ignite - Standing Pilot
Ignition Gas Models
Is
gas shut-off
valve to
tumbler
closed?
Open valve.
Is air present
in gas line?
Purge air from
gas line.
Is pilot orifice
incorrect?
Tumbler is equipped
for type of gas
specified on serial
plate. If pilot orifice is
different from that
specified on serial
plate, obtain and
install correct orifice.
Is pilot gas
filter clogged?
Replace reset
assembly.
Yes
Yes
No
Yes
No
Yes
TMB2135S
No
Is pilot
gas tube or
pilot orifice
clogged?
Clean or
replace tube
or orifice.
Is
thermocouple
inoperative?
Replace
thermocouple.
Replace pilot
assembly.
Is pilot
assembly
inoperative?
No
Yes
No
Yes
No
Yes
