Key Features
•Provides optional redundant power
•Supplies up to four switches
•Hot swappable modules
•Only 1RU high
•Rack-mountable (kit included)
•Individual manual isolation switches
Ordering Information

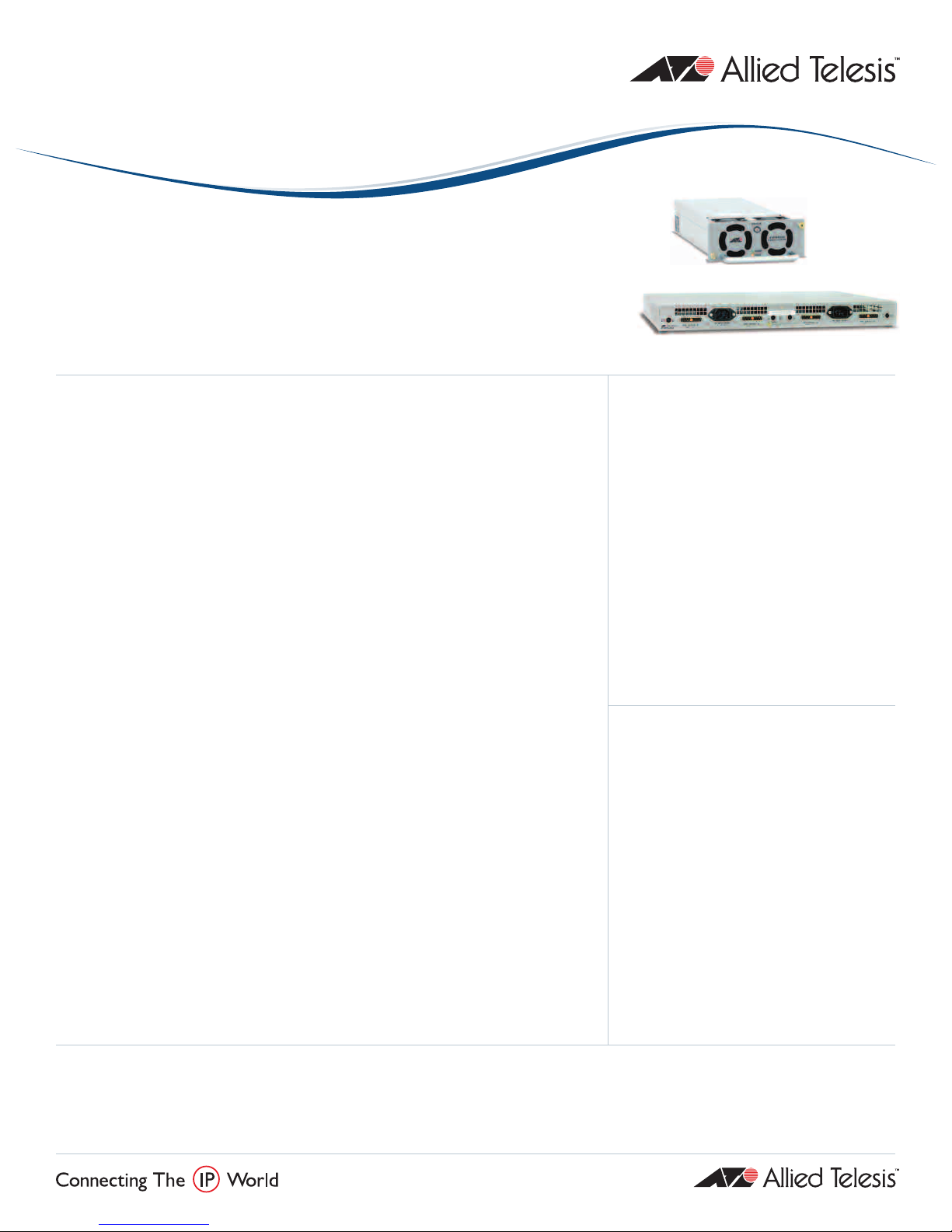

AT-PWR3202
Redundant power supply module (AC supply)
AT-RPS3204-xx
Redundant power supply chassis containing one
AT-PWR3202 power supply
Where xx = 10 for US power cord
30 for UK power cord
40 for Australian power cord
50 for European power cord
AT-RPS3204 & AT-PWR3202
Redundant Power Supply Chassis and Power Module
©2007 Allied Telesis Inc. All rights reserved. Information in this document is subject to change without notice. All company names, logos, and product designs that are trademarks or registered trademarks are the property of their respective owners. 617-000241 Rev.A
USA Headquarters |19800 North Creek Parkway |Suite 200 |Bothell |WA 98011 |USA |T: [phone] |F: [phone]
European Headquarters |Via Motta 24 |6830 Chiasso |Switzerland |T: +41 91 69769.00 |F: +41 91 69769.11
Asia-Pacific Headquarters |11 Tai Seng Link |Singapore |534182 |T: [phone] |F: [phone]
www.alliedtelesis.com
AT-PWR3202
Redundant power supply module (AC supply)
AT-RPS3204
Redundant power supply chassis containing
one AT-PWR3202 power supply
Overview
The Allied Telesis AT-RPS3204 and AT-PWR3202
switch accessories provide optional redundant
power options to a range of Allied Telesis
switches. Installing a redundant power supply
increases networkreliability, as the switch can
continue to operate in the event of a failure of
the switch’s main internal power supply, or that
of the redundant power supply. Failure of either
power supply causes an event to be sent to a
Network Management System (NMS) allowing
anetworkadministrator to take the appropriate
remedial action, thus averting a catastrophic
failure on the network.
The AT-RPS3204 is a 19” rack-mountable
chassis, capable of holding up to four individual
AT-PWR3202 power modules.
Each AT-PWR3202 power module is hot
swappable/removable from the AT-RPS3204
chassis, thus increasing system reliability on
multi-switch installations. Additionally, each
power supply can be individually isolated, to
help in both installation and troubleshooting.
Compatible Switches
AT-9408LC
AT-9424T/SP
AT-9424T/GB
AT-9424Ts
AT-9424Ts/XP
AT-9448T/SP
AT-9448Tx/SP
Technical Specifications
AT-PWR3202
Input voltage 100~240V AC
Power 200W
Dimensions 24.87cm x 10.9cm x 4.11cm
(9.79 x 4.29 x 1.62 in.)
Weight 1.182kgs (2.6 lbs)
AT-RPS3204
Dimensions 44.05cm x 36.06cm x 43.7cm
(17.34 x 14.20 x 1.72 in.)
Weight 5.273kgs (11.6 lbs)
(including 1 x AT-PWR3202)
Environmental Specifications
Operating temperature 0°Cto 40°C
Storage temperature -20°C to 80°C
Relative humidity <85% non-condensing
