Allied AR110C Guide

Thoroughly read and understand the content of this manual before using the Allied Breaker. The safe and efcient
use of the Allied equipment depends upon proper installation, operation, maintenance and training.
Keep this manual in a convenient location so that it is easily accessible for future reference. Contact your Allied
Dealer or the Allied Customer Service Department for replacement manuals. Inquiries regarding the content of this
manual must include effective date shown on inside cover.
SOM576701
AR SeriesAR Series
Hydraulic
Impact
Breaker
Model
AR110C
AR120B
AR130B
AR140B
Safety, Operation and Maintenance

Allied Construction Products, LLC www.alliedcp.com
SOM576701_14jan
i
Contact Information
3900 Kelley Ave
Cleveland, Ohio 44114 Tel: [phone]
E-mail: [email protected] Fax: [phone]
Revision History of Document No. SOM576701
Continuous improvement of our products is an Allied policy. The material in this publication, including figures, captions,
descriptions, remarks and specifications, describe the product at the time of its printing, and may not reflect the product in the
future. When changes become necessary, these will be noted in the table below. Specifications are based on published
information at the time of publication. Allied Construction Products, LLC, reserves the right to change, edit, delete or modify the
content of this document, including descriptions, illustrations and specifications without prior notification. For product or
document updates go to www.alliedcp.com .
Effective Date Page Summary of Change
2014, Jan 16,41 Add Table 7.1, revise Table 14.1.
2013, Jul All Original Issue of 576701. This issue includes the introduction of the model AR110C. Support for models AR120B, AR130B & AR140B was removed
from publication 102706 and reassigned to this issue.

Allied Construction Products, LLC www.alliedcp.com
SOM576701_14jan
ii
Safety Information
Safety Statements and Hazard Alerts
Safety messages appear throughout this manual and
on labels affixed to the Allied equipment. Read and
understand the information communicated in safety
messages before any attempt to install, operate,
service or transport the Allied equipment.
Keep all safety labels clean. Words and illustrations
must be legible. Before operating this equipment,
replace damaged or missing labels.
Purpose of Safety Messages
Information provided in safety messages is important
to your safety. Safety messages communicate the
extent, magnitude and likelihood of injury associated
with unsafe practices such as misuse or improper
handling of the Allied equipment. Safety messages
also explain how injury from potential hazards can be
avoided.
Safety messages presented throughout this manual
communicate the following information:
1. Alert personnel to potential hazards
2. Identify the nature of the hazard
3. Describe the severity of the hazard, if
encountered
4. Instruct how to avoid the hazard
Safety Alert Symbol
Fig. S1
ATTENTION, BECOME ALERT, YOUR SAFETY IS
INVOLVED.
Fig. S1. The exclamation point within an equilateral
triangle is the safety alert symbol. This symbol, either
used alone or with a signal word, is used to draw
attention to the presence of potential hazards.
Signal Words
“DANGER”, “WARNING” and “CAUTION” are signal
words used to express severity of consequences
should a hazard be encountered.
DANGER - Indicates an imminent hazard, which, if
not avoided, will result in death or serious injury.
WARNING - Indicates an imminent hazard, which, if
not avoided, can result in death or serious injury.
CAUTION - Indicates hazards which, if not avoided,
could result in serious injury or damage to the
equipment.
This manual presents safety messages configured in
a uniform manner as shown in Fig. S2.
CAUTION
Burn injury from contact with hot
surface. Some components become hot
during operation. Allow parts and fluids
to cool before handling.
Fig. S2 Safety Message – Typical Presentation
Signal Words Used for Non-Hazard Messages
Other message types that appear in this manual
utilize signal words "IMPORTANT" and "NOTE".
These are used only for the purpose of notifying
personnel to instructions and suggestions but do not
pose a safety hazard to workers.
IMPORTANT – Identify instructions that if not
followed, may diminish performance; interrupt
reliability and production or cause equipment
damage.
NOTE – Highlight suggestions, which will enhance
installation, reliability, or operation.

Allied Construction Products, LLC www.alliedcp.com
SOM576701_14jan
iii
Safety Information – [cont’d]
Safety, Information and Identification Labels
Information labels affixed to the Allied equipment
include safety warnings, identification and
instructions important to operation and service. Refer
to Figure “L-15” for their location on the equipment.
Keep all safety labels clean. Words and illustrations
must be legible. Before operating this equipment,
replace damaged or missing labels. For replacement,
refer to the appropriate Parts Manual for
identification.

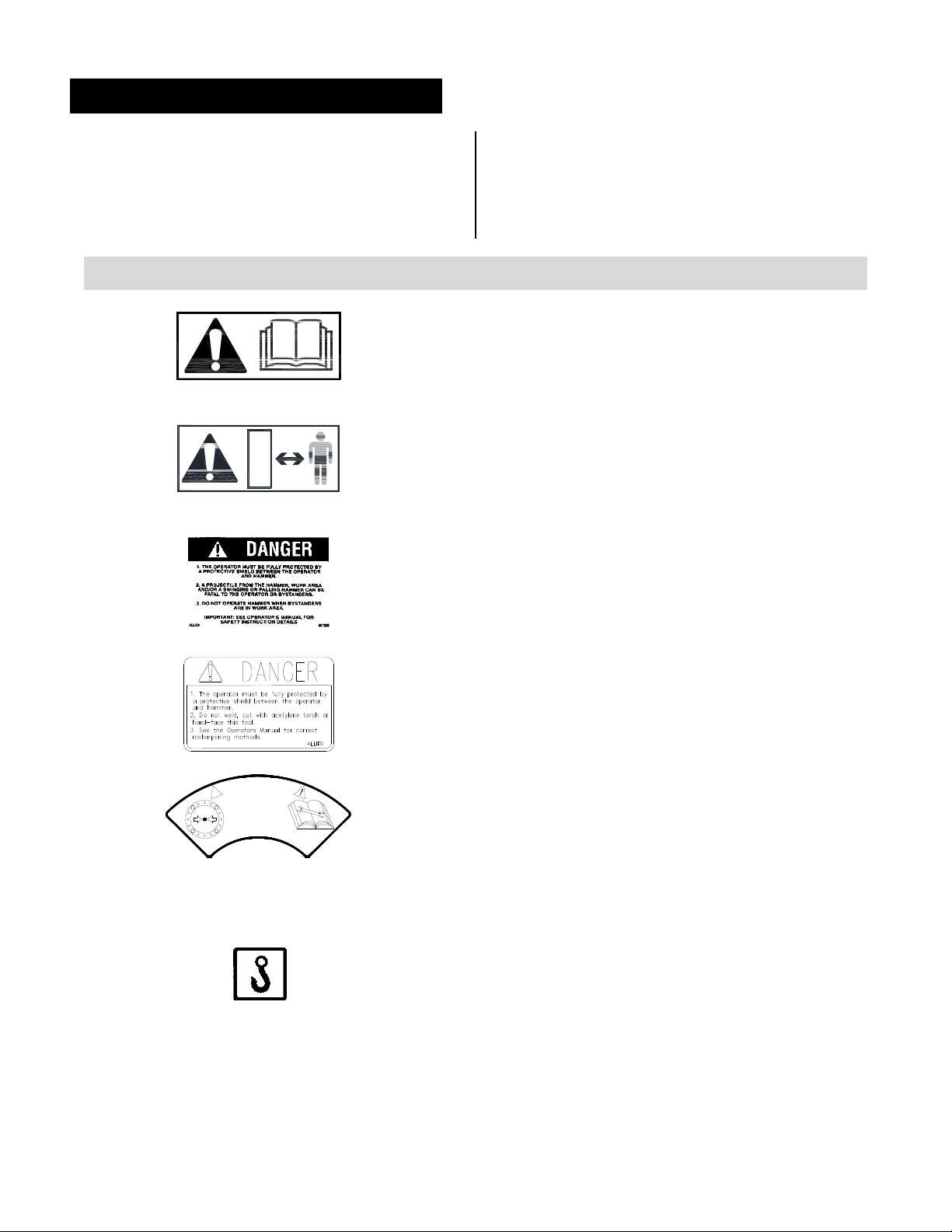

Fig. Label Description
L1
Read The Manual - Safety Alert Symbol with pictogram of open
book. Gives notice of the importance of reading the manual(s) for
information and/or instructions.
L2
Keep Clear - Pictogram displays arrow distancing worker safely from
recognized hazard which is represented by the box. Breakers, or any
other work tool, pose risk of injury to workers if they are not kept at a
safe distance. Never operate the work tool with workers inside the
work zone.
L3
Flying Debris Hazard – Alerts personnel to the hazard of fragments
becoming projectiles. A protective guard to shield the operator must
be installed before operation of the breaker. Personnel are directed to
the Operator’s Manual for safety instructions. NOTE: A smaller sized
version of this decal is to be displayed in a conspicuous location
inside the operator’s cab.
L4
Personal Protection Equipment / Tool Re-sharpening – Alerts
personnel to provide protective shielding between the operator and
breaker. It also warns against welding, cutting, or hard-facing the tool.
Personnel are directed to the Operator’s Manual for approved re-
sharpening methods.
L5
Pressurized Nitrogen Accumulator – Alerts personnel to the
accumulator, warning of nitrogen gas under pressure. Directs
personnel to the Operation and Maintenance Manual for service
instructions.
L6 Discontinued
L7 Lift Point – Pictogram of hook identifies approved lift points.
U
I
A
L
E
S
R
A
E
C
H
F
E
R
E
R
V
F
E
B
O
N
C
I
G
N
A
G
NITROGEN
PRESSURIZED
ACCUMULATOR
T
R
O
R
O
P
E
R
I
G
N
A
W
!
R
M
R
T
O
O
R
'
S
N
A
N
I
G

Allied Construction Products, LLC www.alliedcp.com
SOM576701_14jan
iv
Safety Information – [cont’d]

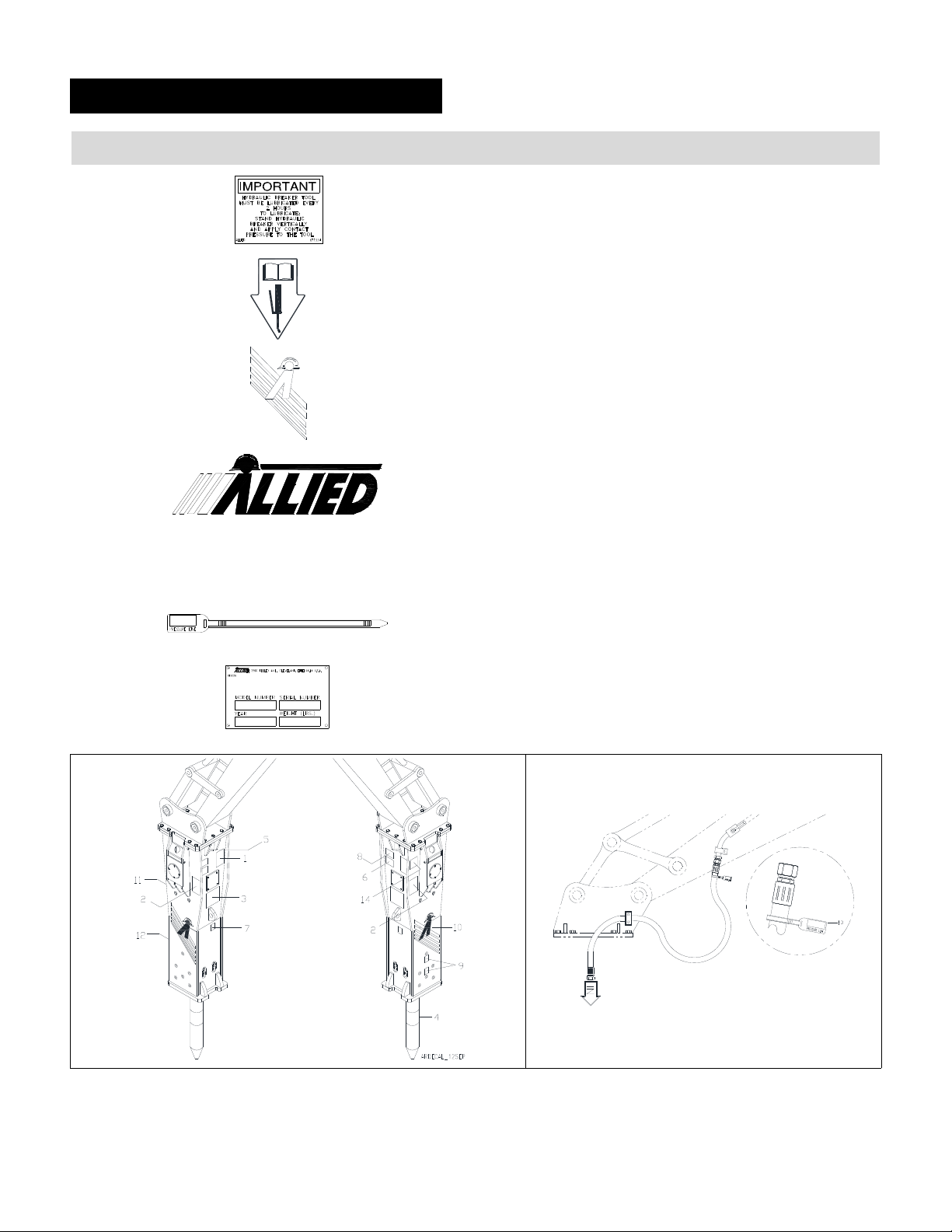

Fig. Label Description
L8
LUBRICATION – Decal provides re-lubrication frequency. Risk of
equipment damage through unapproved methods. Strict attention
to all procedures must be followed. Stand breaker upright with
contact pressure applied at tool. OK to lube.
L9
Lubrication Point – Pictogram of instruction manual and grease
gun is used to identify lubrication points. Read the manual(s) for
application instructions, grease type and re-lubrication schedule.
L10
ALLIED LOGO – This decal is the Allied brand identifier and is a
registered trademark of Allied Construction Products, LLC.
L11
ALLIED LOGO – This decal is the Allied brand identifier and is a
registered trademark of Allied Construction Products, LLC.
L12 AR130B MODEL – Decal identifies the specific model.
L13
PRESSURE I.D. TAG - The hydraulic supply hose is tagged for
ease of identification.
L14
ID PLATE - Contains identifying information about the equipment,
including: Manufacturer’s name, address, product name, model
number, serial number, year of manufacture, and weight.
Fig. L15 Label Positions
AR SERIES

Allied Construction Products, LLC www.alliedcp.com
SOM576701_14jan
v
Safety Information – [cont’d]

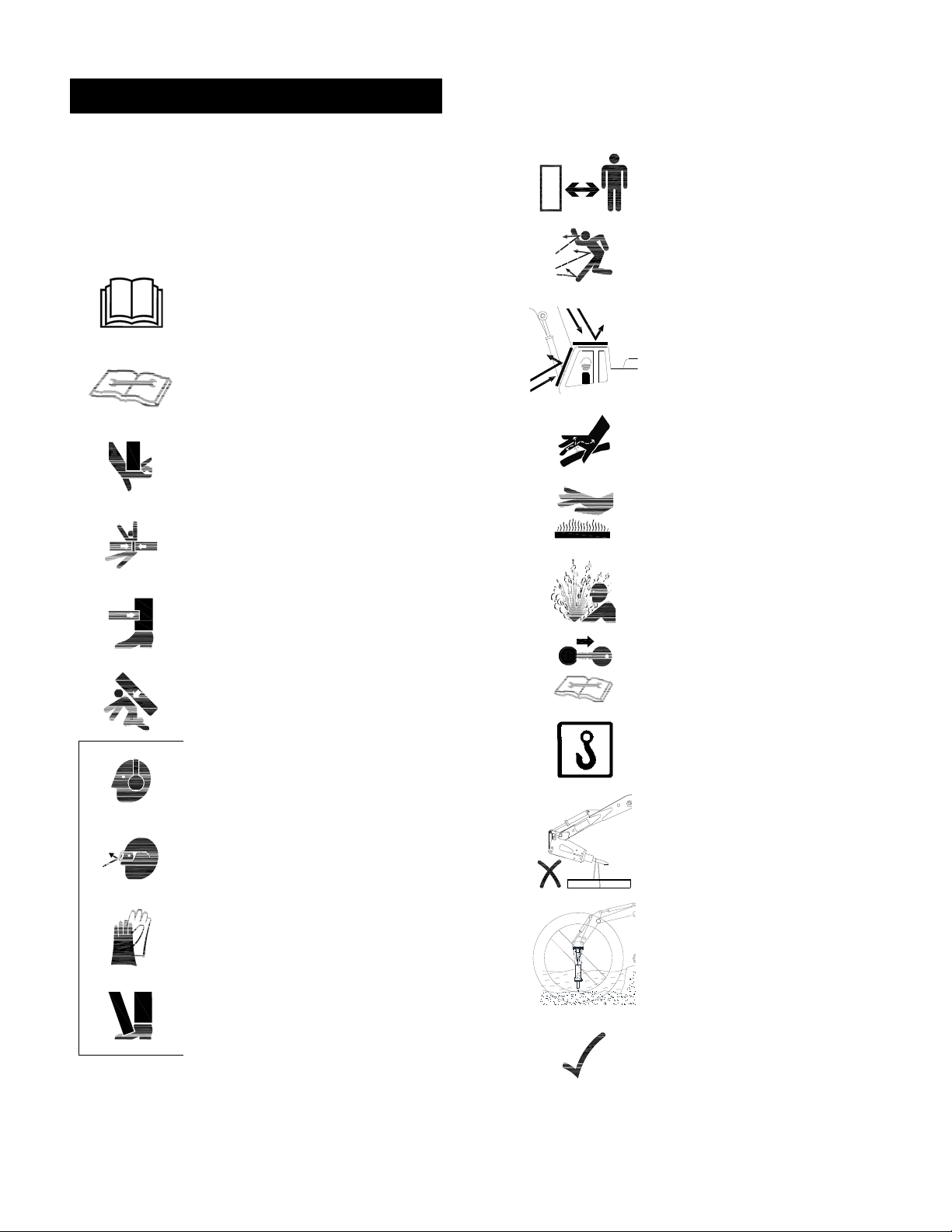

Meaning of Pictograms
Pictograms are used to rapidly communicate
information. For the purposes of this manual and
labels affixed to the Allied equipment, pictograms are
defined as follows:
Read the manual
Refer to the manual for further
details
Procedures are explained in
the manual
Read the Service Manual For
Additional Information
Crush point
Pinch point
Moving part (in direction indicated
by arrow)
Falling object
Unsupported loads
Personal Protection Equipment
Hearing protection
Safety eyewear
Gloves
Safety shoes
Falling part
Personnel maintain a safe
distance from breaker
Fragments / debris
becoming airborne
projectiles
Protective guards required
on cab when operating this
work tool
Leaking fluid under
pressure
Hot surfaces
Gas / Oil under pressure
Shut off carrier & remove
key before servicing
Identifies lift point
Figures marked with an X-
out or circle with a diagonal
slash describe a prohibited
action.
Prohibited actions must be
avoided to prevent injury
and/or equipment damage
The check mark symbol is
used to indicate actions
and methods that are
recommended, correct and
approved

Allied Construction Products, LLC www.alliedcp.com
SOM576701_14jan
vi
Safety Information – [cont’d]
Qualified Person
For the purposes of this manual, a qualified person
is an individual that has successfully demonstrated
or completed the following:
Has read, fully understands and adheres to all
safety statements in this manual.
Is competent to recognize predictable hazardous
conditions and possess the authorization, skills
and knowledge necessary to take prompt
corrective measures to safeguard against
personal injury and/or property damage.
Has completed adequate training in safe and
proper installation, maintenance and operation
of this Allied equipment.
Is authorized to operate, service and transport
the Allied equipment identified in Table 1.1.
Safety Information Overview
It’s important for all personnel working with the Allied
equipment to read this manual in its entirety. It
includes important safety information intended to
help personnel avoid unsafe practices that may lead
to mishaps. Safety information described at the
beginning of this manual is generic in nature. As you
continue reading through later sections of this
manual, instructions and safety information become
tool-specific and operation-specific.
Allied has made every effort to provide information
as complete and accurate as possible for this
document. Allied cannot anticipate every possible
circumstance that might involve a potential hazard.
The warnings in this manual and labels affixed to the
Allied attachment are therefore not all inclusive.
General Construction Safety
Always follow procedures that promote safe
conditions for workers and bystanders. The standard
safety precautions expected and required of those
working in construction shall include, but not limited
to:
Locating existing underground service and utility
lines
Establishing pedestrian barriers
Using personnel protection equipment
appropriate to working conditions, etc.
Federal, State, Local and OSHA Construction
Guidelines and Regulations
Use the Allied equipment in accordance with all
federal, state and local regulations regarding
construction practices and public safety.
Identification of, and compliance to, governing
regulations are the responsibility of the owner and
operator.
In the United States, comply with the
recommendations of the Occupational Safety and
Health Administration standards of the U.S.
Department of Labor. For OSHA construction
guidelines contact your local federal government
office or write:
U.S. Government Printing Office Superintendent of
Documents P.O. Box 371954 Pittsburgh, Pa. 15250-
7954
Website: www.osha.gov
Ask for Construction Industry OSHA Standards
Stock #869-034-00107-6.
Owner’s Responsibilities
Ensure that only qualified personnel operate and
service the Allied equipment.
Ensure personnel protection equipment is available
to personnel and enforce the use of PPE
Ensure equipment is kept in safe operating condition
Ensure safety-related materials such as instructions
and including this manual are kept in a convenient
location so that they are easily accessible to
operators and maintenance personnel.
Attention Read the Manual
Improper installation, operation or maintenance of
the Allied equipment could result in serious injury or
death. Only qualified operators may operate the
Allied equipment. Personnel responsible for the
maintenance of the Allied equipment or its systems,
including inspection, installation or adjustments must
also be qualified. Operators and personnel
responsible for maintenance of this equipment
should read this manual. Other manuals, such as
those published by the machinery used in support of
the Allied equipment, should also be read.

Allied Construction Products, LLC www.alliedcp.com
SOM576701_14jan
vii
Safety Information – [cont’d]
Operational Safety Program
The safe and efficient use of the Allied equipment
depends upon proper installation, operation,
maintenance and repair. Operational safety programs
must encompass all of these elements.
Accident prevention through operational safety
programs are most effective when the equipment
owner further develops the program by taking into
account his own experience in using and maintaining
equipment.
Developing such programs will help minimize
equipment downtime, while maximizing service life
and performance. Most importantly, it will minimize
the risk of personal injuries.
Personal Protective Equipment (PPE)
Personnel operating or nearby the equipment and
exposed to the hazard of falling, flying and splashing
objects, or exposed to harmful dusts, fumes, mists,
vapors, or gases shall use the particular personal
protection equipment (PPE) necessary to protect
them from the hazard. Such PPE may include safety
eyewear, face shield, hearing protection, safety
footwear, gloves, and dust mask. Supervisors shall
review proper PPE selection and ensure PPE is
made available to personnel. Personnel are
responsible for wearing PPE as directed by the
supervisor.
Protective Equipment - Guarding
Allied equipment designed with guards shall have
guards in place when equipment is in use. Guards
are fitted to the equipment to protect against unsafe
situations that could not be eliminated through design
measures. Where it was not possible to prevent an
unsafe situation by means of a guard, safety
messages appear on the equipment, warning
personnel of a hazardous condition.
Guards shall not be removed unless for the purpose
of inspection and service of components. All guards
must be reinstalled after service or adjustments are
completed. Do not operate the Allied equipment
without guards installed.
Additional guarding, not included with the Allied
equipment, is necessary at the operator’s station to
protect the operator and other nearby personnel
against flying debris from material being cut or
demolished. Do not handle, demolish or cut material
overhead without proper guards installed.
To prevent accidental start up, the control switch
shall be located in a protected area that is guarded
and makes it difficult to accidently operate the
equipment.
Unapproved Modifications
In order to provide and maintain efficient production
and reliable service, while ensuring operator safety,
the Allied equipment may not be modified or used for
any other purpose other than, for which it was
intended. Use of the Allied equipment, other than
those specified in this manual, may place personnel
at risk of injury and/or may subject the equipment to
damage. The Allied equipment shall not be modified
or used in unapproved applications unless written
consent is received from the Allied Engineering
Department.

Allied Construction Products, LLC www.alliedcp.com
SOM576701_14jan
viii
Table of Contents
SECTION Pg.
Revision History of Document…………………..… i
Safety Information……………………………………. ii
Safety Statements and Hazard Alerts………………. ii
Purpose of Safety Messages……………………..…. ii
Safety Alert Symbol...…………..……………….……. ii
Signal Words – Type and Application………....……. ii
Safety, Information & Identification Labels……..…. iii
Meaning of Pictograms ..……………………..………. v
Attention Read the Manual………………………..... vi
Qualified Person…………….………………...……… vi
Safety Information Overview………………………… vi
General Construction Safety………………………… vi
Federal, State, Local and OSHA Construction
Guidelines and Regulations……………….…….. vi
Owner’s Responsibilities………………………….…… vi
Operational Safety Program………………….….…. vi
Personal Protective Equipment (PPE)………………. vii
Protective Equipment – Guarding…………………… vii
Unapproved Modifications…………………………….. vii
Table of Contents………….…………………..……... viii
List of Figures………………………....……………… x
1.0 Introduction & Scope………………………….… 1
1.1 Purpose of This Manual………………..….……… 1
1.2 Content Includes………..………………….…….... 1
1.3 How to Order Replacement Publications….……. 1
1.4 Related Publications….………………..…….….... 1
2.0 Equipment Identification………….……..……... 3
2.1 Serial Number Location.………………….…..…. 3
2.2 Equipment Identification Tag………………..….. 3
2.3 Record Equipment Information.………………... 3
3.0 Warranty Protection Summary………..……… 4
3.1 Overview…….……………………………….…….. 4
3.2 Owner’s Responsibilities………….….……...…... 4
3.3 Allied Product Policies……………….…………... 5
SECTION Pg.
4.0 Product Information……………………………... 6
4.1 Description and Typical Applications…………….. 6
4.2 Familiarization of Breaker Components…….…... 6
4.3 Principle of Operation………………………..……. 6
5.0 Sizing the Breaker…………………..…....……… 8
5.1 Selecting the Proper Size Breaker………………. 8
5.2 Auxiliary Circuit & Conversion Kits………………. 8
6.0 Operation……………………..…………...……… 10
6.1 Before the Breaker is Used………………..…….. 10
6.1.1 Pre-Operation Inspection………………..……. 10
6.2 Operating the Breaker………………….………... 10
6.3 Incorrect Operating Methods..……………………. 11
6.3.1 Note Any Change in Pitch / Frequency…….… 11
6.3.2 Do Not Lift or Transport Loads with Breaker… 12
6.3.3 Do Not Drop / Pound Breaker at the Material.. 12
6.3.4 Do Not Pry with Breaker………………………… 12
6.3.5 Do Not Operate With Cylinders At Stroke End.. 13
6.4 Special Applications / Operating Conditions……. 13
6.4.1 Working Underwater………………….……….. 13
6.4.2 Working Underground……………………..…… 13
6.4.3 Working in Hot Temperatures……………..….. 13
6.4.4 Working in Cold Temperatures………………... 13
7.0 Care and Maintenance…………………………... 15
7.1 Maintenance Interval Schedule…………………... 15
7.2 Keeping a Maintenance Log…………………….. 16
7.3 Housing Box Inspection………………………….. 16
7.3.1 Vibration Dampening Components……...……. 16
7.4 Front Head Inspection At Tool Re-lubrication 16
7.4.1 Measure Gap Between Tool and Bushing…… 16
7.4.2 Internal Parts of the Front Head..…………….. 17
7.4.3 Inspection of Front Head's Internal Parts…….. 18
7.4.4 Measure Wear of Tool & Bushings…..……….. 18
7.4.5 Inspect Tool Retainers….………..…………….. 19

Allied Construction Products, LLC www.alliedcp.com
SOM576701_14jan
ix
Table of Contents - [cont’d]
SECTION Pg.
7.4.6 Inspect Piston…………………………..….….. 19
7.5 High-Pressure Accumulator………………….... 19
7.6 Inspect Mounting Pins……………………….…… 19
7.7 Inspect Threaded Fasteners………………..…… 20
7.8 Inspect Hoses…………………..…….…………... 18
7.9 Check Oil & Filter on Carrier…………..….…….. 18
7.10 When to Measure Oil Pressure……………….. 18
7.10.1 Safety Precautions…………………..……… 20
7.10.2 How To Measure Oil Pressure……………… 21
8.0 Lifting, Handling, Transporting & Storage 22
8.1 Transport Breaker Independently of Carrier…… 22
8.2 Transport Breaker Installed on Carrier………… 22
8.3 Breaker Storage – Short Term (< 14 days)…… 22
8.4 Breaker Storage – Long Term (> 14 days)……. 22
9.0 Attach / Remove Breaker To & From Carrier 23
9.1 Carrier Requirements…………..……….……… 23
9.2 Mounting Kits…………………………………….. 23
9.3 Tools Required to Attach the Breaker………… 23
9.4 Attach the Breaker to the Carrier………………. 23
9.5 Connect Supply and Return Lines……...……… 24
9.6 Remove the Breaker from Carrier……………... 25
10.0 Changing the Breaker Tool……………….… 26
10.1.1 Safety Pre-cautions…………………………. 26
10.1.2 Tools Required……………….………………. 26
10.1.3 Overview of Tool Retainer System……..…. 26
10.1.4 Removing the Tool…………………………. 27
10.2 Inspect & Prepare Tool for Installation……….. 27
10.3.1 Installing Tool In Front Head………..…..….. 27
10.3.2 Tools Required………………………………. 28
10.4 Tool Re-Lubrication – Conventional Method 28
10.4.1 Avoid Costly Lubrication Mistakes…….…… 29
10.5 Automatic Lubrication Systems……………….. 30
SECTION Pg.
10.5.1 Carrier Mounted Lube Systems…………… 30
10.5.2 Breaker Mounted Lube Systems………….. 30
10.6 Chisel Paste……………………………………. 30
11.0 Tool Selection – Application Guide….…… 31
11.1 Match the Application………………………….. 31
11.1.1 Penetrative vs. Impact Breaking……… 31
11.2 Working Length of Tool………..……………… 31
11.3 Re-Sharpening Technique………………….. 31
12.0 Accumulator N2 Gas Charge Tool…………. 32
12.1 Accumulator & Charge Tool - General……… 32
12.2 Tools Required to Charge Accumulator……… 33
12.3 How to Connect the Charge Tool…………….. 33
12.4 How to Test / Measure Gas Charge…………. 33
12.5 Charging the Accumulator……………..…….. 33
12.6 Removing the Charge Valve………………….. 34
13.0 Troubleshooting Guide……………………… 35
14.0 Technical Data….………..………………. 39
14.1 Definition of Terms…………………….………. 39
14.2 Testing the Hydraulic Circuit……………..….. 40
14.3 Technical Specifications 41
15.0 Service Records………………….………….. 50

Allied Construction Products, LLC www.alliedcp.com
SOM576701_14jan
x
List of Figures
Figure Pg.
S-1 Safety Alert Symbol………………………………. ii
S-2 Safety Message – Typical Presentation……….. ii
L1-15 Information Labels on Breaker..…….………. iv
2-1 Equipment Identification……………………….... 3
2-2 Equipment Identification Tag……..…………….. 3
4-1 Main Components of Hydraulic Breaker…….… 6
4-2 Cutaway of Breaker Assembly….……………… 6
5-1 Conversion of Auxiliary Hydraulic Circuit……… 9
6-1 Install Protective Guards………………….......... 10
6-2 Operate at 90° to Work Surface………………. 11
6-3 Start at Outer Edge & Work Inward……………. 11
6-4 Do Not Overheat Tool….……………………….. 12
6-5 Do Not Use Breaker to Lift Transport Loads…… 12
6-6 Do Not Pound Breaker at the Material…………. 12
6-7 Do Not Pry with the Breaker…………………….. 12
6-8 Do Not Operate With Cylinders At Stroke End… 13
6-9 Special Applications – Working Underwater
Require Modifications Before Use……………… 13
7-1 Buffers and Wear Plates…….………..…………... 16
7-2 Dust Plugs and Covers…………………………… 16
7-3 Gap Between Bushing & Tool………………..…. 16
7-4 Internal Parts of Front Head…….……………….. 17
7-5 Measure OD of Tool For Wear…………………… 18
7-6 Measure ID of Bushing For Wear.…………..…… 18
7-7 Measure Thrust Ring Wear……………………..... 18
7-8 Rotate Worn Tool Retainer…………………...… 19
7-9 Piston With Damage to Impact Face………..…. 19
7-10 Measuring Oil Pressure……….……..……..…… 20
7-11 Install Protective Guards…….……..………….. 21
8-1 Push Piston to Its Highest Position…………….. 22
8-2 Protect Breaker With Tarp……………....……… 22
9-1 Pin-on Mounting Bracket - Typical ………..…..… 23
9-2 Attach Breaker to Carrier - Typical…………..…. 23
9-3 Hose Tagged “Pressure Line”…………..….….. 24
9-4 Valve Housing Marked IN and OUT………..….. 25
Figure Pg.
9-5 Check Hose Routing……………………………… 25
9-6 Close Supply & Return Line Valves………....…. 25
10-1 Components of the Tool Retainer System……. 26
10-2 thru 10-5 Removing Tool From Breaker…..…. 27
10-6 Pre-Lube the Tool Shank……………….……… 28
10-7 Stand Breaker Upright Before Greasing…….... 29
10-8 Tool Lubrication Points…………………………. 29
10-9 Lubricant Must Be Visible to Operator………... 29
10-10 Tool Lubrication – Incorrect Position………… 30
10-11 Carrier Mounted AutoLube.………………..…. 30
10-13 Breaker Mounted AutoLube…………….……. 30
11-1 Tool Types - Conical, Chisel, Blunt ……..…… 31
11-2 Tool Working Length……………….….………... 31
12-1 N2Gas Charge Kit…..…………..…….….…… 32
14-1 Flow-Pressure Diagram………..………………. 39
14-2 Standard Dimensions – AR110C, AR120B….. 42
14-3 Standard Dimensions – AR130B, AR140B…… 43
14-4 Position of Threaded Fasteners…….……….. 46
14-5 Angle of Rotation & Tightening Sequence….. 47
14-6 Position of Threaded Fasteners……………….. 48
14-7 Angle of Rotation & Tightening Sequence…… 49

Allied Construction Products, LLC www.alliedcp.com
SOM576701_14jan
1
1.0 Introduction and Scope
1.1 Purpose of this Manual
This manual has been prepared in support of the
Allied equipment named in Table 1.1. Material
presented in this manual is intended to assist the
operator and maintenance personnel with the
information necessary for the safe and proper use of
the Allied equipment.
1.2 About This Manual
Material presented in this manual, including figures,
captions and descriptions are intended solely for use
with the product identified in Table 1.1 and may not
be suitable for other models. Figures and
descriptions may show equipment that is optional.
This document is published solely for information
purposes and should not be considered all-inclusive.
If further information is required, contact your local
Allied dealer or the Allied Customer Service
Department.
Prior to use, confirm that the information recorded on
the equipment’s identification label corresponds with
Table 1.1.
Table 1.1 About This Manual
Document ID No. SOM576701
Type Safety, Operation and
Maintenance
Current Status See Inside Cover
Product Name: Hydraulic Impact Breaker
Series AR
Applicable Model[s]: AR110C, AR120B, 130B, 140B
Years of Manufacture: 2003 & above
Material presented in this manual has been reviewed
for accuracy. Allied Construction Products, LLC has
endeavored to deliver the highest degree of accuracy
and every effort has been made to provide
information as complete as possible. However,
continuous improvement of our products is an Allied
policy. The material in this publication, including
figures, captions, descriptions, remarks and
specifications, describe the product at the time of its
printing, and may not reflect the product in the future.
When changes become necessary, these will be
noted on the inside cover.
1.3 How to Order Replacement Publications
This manual is an integral part of this product. Keep it
in a convenient location so that it is easily accessible
for future reference.
Replacement manuals can be ordered by contacting
your Allied dealer service center.
1.4 Related Publications
Allied Construction Products, LLC offers the following
publications for the product identified in Table 1.1.
1.4.1 Parts Manual
Parts Manuals identify each component of the Allied
work tool, including safety and information labels.
1.4.2 Repair Manual
The Repair Manual has been prepared to assist the
Service Technician with the information necessary for
the disassembly & reassembly of the Breaker.
Content includes:
Safety Information
Disassembly & Reassembly
Bolt Torque Specifications
Wear Limits of Parts
N2 Gas Charging Instruction
1.4.3 AEM Safety Manual for Hydraulic Mounted
Breakers
The Association of Equipment Manufacturers offers a
safety manual designed for operators and
maintenance personnel of hydraulic mounted
breakers.
The manual is available in Spanish, French and
English. It is published in an illustrated format of
sensible do's and don'ts, featuring typical daily
situations on the job site.
Content includes safety tips concerning the
workplace and equipment, start up and shut down
guidelines and special operating and maintenance
precautions.This publication is available by
contacting:
Association of Equipment Manufacturers
Toll free 1-866-AEM-0442
E-mail: [email protected]
Website: www.aem.org

Allied Construction Products, LLC www.alliedcp.com
SOM576701_14jan
2
1.0 Introduction and Scope – [cont'd]
Ask for FORM CMHB-1004, Hydraulic Mounted
Breakers.
This publication is also available through Allied under
part number 953076 (English). To order a copy,
contact the Allied Customer Service Department.

Allied Construction Products, LLC www.alliedcp.com
SOM576701_14jan
3
2.0 Equipment Identification
2.1 Serial Number Location

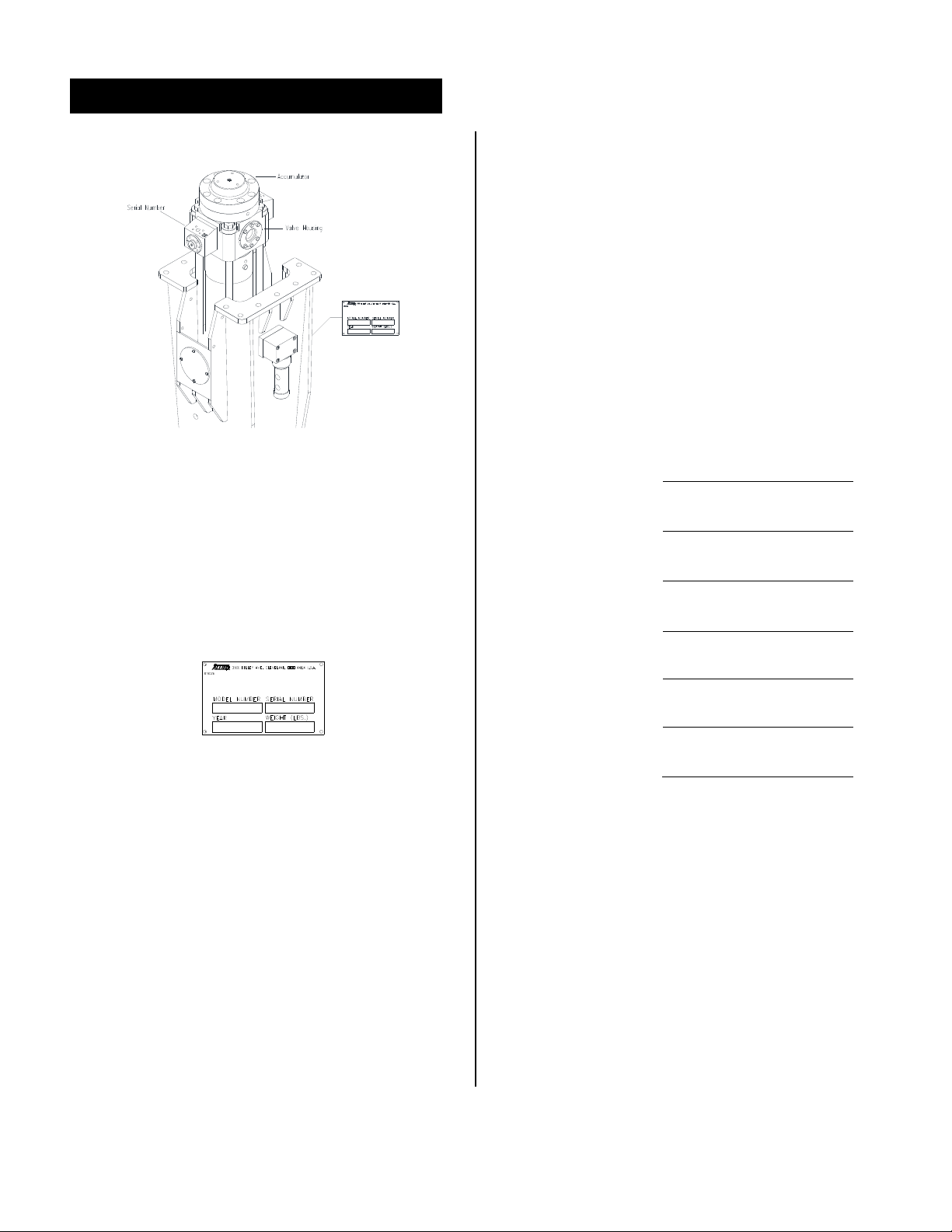

Fig 2-1 Equipment Identification
Refer to Figure 2-1. The Serial Number assigned to
this equipment can be found in the following
locations:
1. Stamped on the Equipment Identification Tag
2. Stamped on valve housing near the IN port.
2.2 Equipment Identification Tag
Fig 2-2 Equipment Identification Tag
The Equipment Identification Tag is affixed to the
housing. It provides the following information:
Manufacturer’s name
Address
Product name
Model number
Serial number
Year of manufacture
Weight
Confirm that the information contained on the Tag
corresponds with the information provided in Section
1, Table 1.1.
2.3 Record Equipment ID Information for Future
Reference
Your local Allied dealer requires complete information
about the equipment to better assist you with
questions regarding parts, warranty, operation,
maintenance, or repair.
Copy the Model and Serial Number from the
Equipment Identification Tag to the space
provided below.
Indicate the date in which the Allied equipment
was placed into service.
Fill out the Warranty Registration form and return
to Allied Construction Products, LLC.
Product Hydraulic Breaker
Series AR
Model
Part Number:
Serial Number:
In Service Date:
Registration Date
AR SERIES
AR SERIES

Allied Construction Products, LLC www.alliedcp.com
SOM576701_14jan
4
3.0 Warranty Protection Summary
3.1 Overview
The Allied attachment is delivered assembled,
lubricated, and factory tested. Upon receipt of the
equipment, inspect for possible shipping damage.
For every new Breaker, Allied requires that a
Warranty Registration form be filled out. The form
provides a section for information about the host
machine that the breaker will be installed on.
Complete all sections of the form and return to Allied.
Use of non-Allied parts, unapproved service
methods, modifications to the Allied equipment, or
installation, operation and maintenance, not in
accordance with the instructions outlined in this
manual may cause equipment failure or personal
injury.
For details regarding warranty terms and conditions,
refer to document A100661.
3.2 Owner’s Responsibilities
When properly installed, operated and maintained by
qualified personnel, the Allied equipment will remain
productive with a minimum of service.
Keep the Allied equipment operating within its
performance limits by familiarizing yourself with the
specifications provided in the technical data and
specifications tables. Improper installation, including
failure to calibrate the carrier correctly may result in
loss of performance or subject the equipment to
conditions beyond their design.
The following outlines general maintenance policies
required for all breaker models. The owner is strongly
encouraged to adopt these general guidelines and
further develop them in order to manage particular
applications and operating environments.
Ensure personnel entrusted with installation,
operation, maintenance and transporting of the Allied
equipment adhere to the following:
Read and thoroughly understand the information
and procedures detailed in this manual.
Understand proper operating techniques for all
recommended applications.
Use the Allied attachment only if it is in sound
operating condition. Take prompt action to rectify
any faults that, if left uncorrected, could lead to
personal injury or further damage.
Use the Allied attachment only for the purpose for
which it is intended.
Understand that particular applications, such as
working underwater, will require modifications to
the standard breaker and additional training for
operation and service.
Appoint Who Does What. Ensure all personnel
understand what their specific responsibilities
include.
1. Establish maintenance responsibilities to be
performed by the OPERATOR.
2. Establish maintenance responsibilities to be
performed by the SERVICE TECHNICIAN.
Recognize problems and know how to take
corrective action as detailed in Troubleshooting
Section 13.
Conduct regular checks and inspections as
scheduled in the Care and Maintenance Section
7.
Allow only qualified operators and Allied trained
service technicians to perform maintenance and
repair as specified in the care and maintenance
schedule.
Use only genuine Allied replacement parts and
recommended lubricants to protect total warranty
coverage.
Maintain written records of equipment
maintenance, service and repair. These records
are helpful if warranty coverage is ever in
question.
Each record shall include at least:
Date of service, maintenance or repair.
Description of the service, maintenance or
repair performed. Include part numbers if
applicable.
Copies of purchase order(s) and invoice(s)
for repair parts and service.
The name and signature of the person
performing the service, maintenance or
repair.

Allied Construction Products, LLC www.alliedcp.com
SOM576701_14jan
5
3.0 Warranty Protection Summary - [cont’d]
3.3 Allied Product Policies
In this manual, Allied recommends breaker
applications, maintenance and service consistent
with industry practices.
Allied assumes no responsibility for the results of
actions not recommended in this manual and
specifically the results of:
Improper Training
Improper Installation
Operation in unapproved applications
Incorrect operation
Improper maintenance
Use of non-genuine Allied replacement parts
Unapproved modifications
These exclusions apply to damage to the Allied
equipment, associated equipment and injury to
personnel.

Allied Construction Products, LLC www.alliedcp.com
SOM576701_14jan
6
4.0 Product Information
4.1 Description and Typical Applications
The Allied Breaker is a hydraulic powered impact
breaker designed for mounting on mobile equipment
with hydraulic booms, such as rubber tired or track-
type construction vehicles.
The breaker is suited for many types of construction
and mining applications including -
Clearance Work: Demolition of buildings, bridges,
reinforced foundations etc.
Trenching: Breaking trenches out of rocky and
frozen ground.
Mining and Quarrying Applications: Demolishing
and leveling quarry rock, breaking oversized
minerals and other rock-like raw materials.
Excavation of rock from trenches, foundations
and tunneling.
Underwater: Demolition and deepening of
shipping channels. (Requires conversion from
standard type before underwater use!)
Recycling: Breakup of "skulls" from the steel
industry.
4.2 Familiarization of Components
Fig 4-1 Main Components of Hydraulic Breaker
4.3 Principle of Operation
Fig 4-2 Cutaway of Breaker Assembly
The Breaker is not self-powered. Performance
relies on a host machine, equipped with a
suitable hydraulic circuit that is capable of
achieving all requirements specified in the
technical data section of this manual.
Within the machine’s hydraulic circuit, an
ON/OFF valve is necessary to provide flow in one
direction to the Breaker. The valve will be
managed with a momentary switch located in the
operator’s cab within easy reach of the operator.
Opening the ON/OFF valve permits oil to flow
from the machine’s pump to the port marked [IN]
on the valve housing.
The breaker's operating valve directs incoming oil
to the lower end of the cylinder. The piston will
rise as the oil becomes pressurized.
The operating valve is open while the piston is
cycled upward. Oil in the upper end of the
cylinder exits the breaker and is returned to the
machine’s hydraulic tank.

Allied Construction Products, LLC www.alliedcp.com
SOM576701_14jan
7
4.0 Product Information –[cont’d]
The breaker is equipped with an accumulator.
The accumulator is a self-contained pressure
vessel with an expansible chamber divided by a
flexible membrane. The gas-side chamber is pre-
charged with nitrogen gas (N2), while the oil-side
chamber is for receiving, storing and discharging
pressurized oil.
As the piston nears the top of its stroke, signal
ports inside the cylinder become pressurized and
shift the operating valve. Oil is blocked from
exiting the upper end of the cylinder. The valve
directs oil to the upper end of the cylinder and the
oil becomes pressurized.
Pressurized oil supplied by the pump and
combined with the discharged oil from the
accumulator drive the piston downward until it
impacts the tool.
The cycle is continuous until the machine
operator releases the momentary switch
controlling the ON/OFF valve.

Allied Construction Products, LLC www.alliedcp.com
SOM576701_14jan
8
5.0 Sizing the Breaker
The process of selecting the right breaker must
consider the type of work to be done, along with any
special needs such as required modifications when
working in underwater applications.
When sizing the breaker, there are generally three
key points to consider –
Production rate (Type of material to be broken)
Lift capacity of machine
Hydraulic capacity of machine
Obtaining optimal production rates requires efficiency
between the breaker and machine. Other factors
include pairing the right size breaker to match the
material’s hardness and the required degree of
material size reduction.
Materials are fractured by two methods – Penetrative
and Impact. In penetrative breaking, blows from the
piston drive the tool into the material and wedge it
apart. With impact breaking, the blows from the
piston generate compressive stress waves that travel
through the tool and then transferred into the
material, causing it to fracture.
Be careful not to undersize the breaker in hard
material. It is important that the entire impact force
(the stress wave) is transferred into the material. If
not, it will be reflected through the tool and back into
the breaker.
Ideally, it should take 3- 5 seconds to fracture the
material. Anything less than 2 seconds puts the
breaker at risk of idle blows. Running the breaker
continuously beyond 15 seconds will generate
unwanted heat at the tip of the tool.
Using an undersized breaker in very hard material
will negatively impact production as well as
component longevity and reliability. In hard rock
applications, undersized breakers are subjected to
longer running cycles. This generates inefficiencies in
both the machine and breaker. In extreme conditions,
monitoring the condition of wear parts, such as
bushings and tools, will need to be more frequent.
The machine’s service intervals will also require extra
attention.
Production is negatively impacted if the host machine
is too light for the breaker. If the machine is
undersized, the operator will need to work slower to
keep the machine stable. An undersized machine
also limits the amount and size of the material that
can be moved by the machine when raking or
repositioning materials.
Provided the carrier can safely lift the weight of the
breaker, hydraulic comparisons are another key
element for successfully matching the right size
breaker with the carrier. The combination of a
suitably matched hydraulic circuit that is in good
service condition will help to ensure heat generation
and power loss in the hydraulic system is minimal.
It’s important to complete several tests and evaluate
the performance of the hydraulic circuit before the
breaker is used. All hydraulic breakers are designed
to provide optimum performance with reliable service
life at a specific oil pressure and flow range. Before
use, it’s important to review and compare operating
specifications of the breaker with those of the carrier.
The breaker must not be used until testing is
completed and the results confirm the hydraulic
circuit is properly calibrated and set in accordance to
the specifications including oil flow, operating
pressure and back pressure.
Flow requirements and other specifications of the
breaker, including weight, are located in the
Technical Data section of this manual. Tools required
for testing the hydraulic circuit include a flow meter
and pressure gages. An overview of the testing
procedure, along with a form to record the results of
the flow test, can be found in the Technical Data
section in this manual.
Other important considerations include knowing how
your machine is equipped and if any modifications
have been made. Factors such as boom and stick
length, undercarriage and tracks, counterweights,
etc., all affect the lifting capacity of the carrier. Also,
remember to take into account any add-ons such as
a quick attach coupler. Consult the manual provided
by the carrier manufacturer for specifications.
5.2 Auxiliary Circuit and Conversion Kits
Hydraulic work tools, such as Breakers, are not self-
powered. Performance relies upon the host
machine’s ability to provide a suitable hydraulic circuit
that will achieve all requirements specified in the
technical data section of this manual.
Most machines will require some level of conversion
to make use of their hydraulic power. A hydraulic
circuit, capable of producing flow and pressure in one
direction is needed to operate a breaker.

Allied Construction Products, LLC www.alliedcp.com
SOM576701_14jan
9
5.0 Sizing the Breaker – [cont’d]
Conversions to machines equipped with a factory or
dealer installed auxiliary circuit may require little more
than minor adjustments to flow and pressure settings.
Follow the machine manufacturer’s instructions for
adjustment procedures.

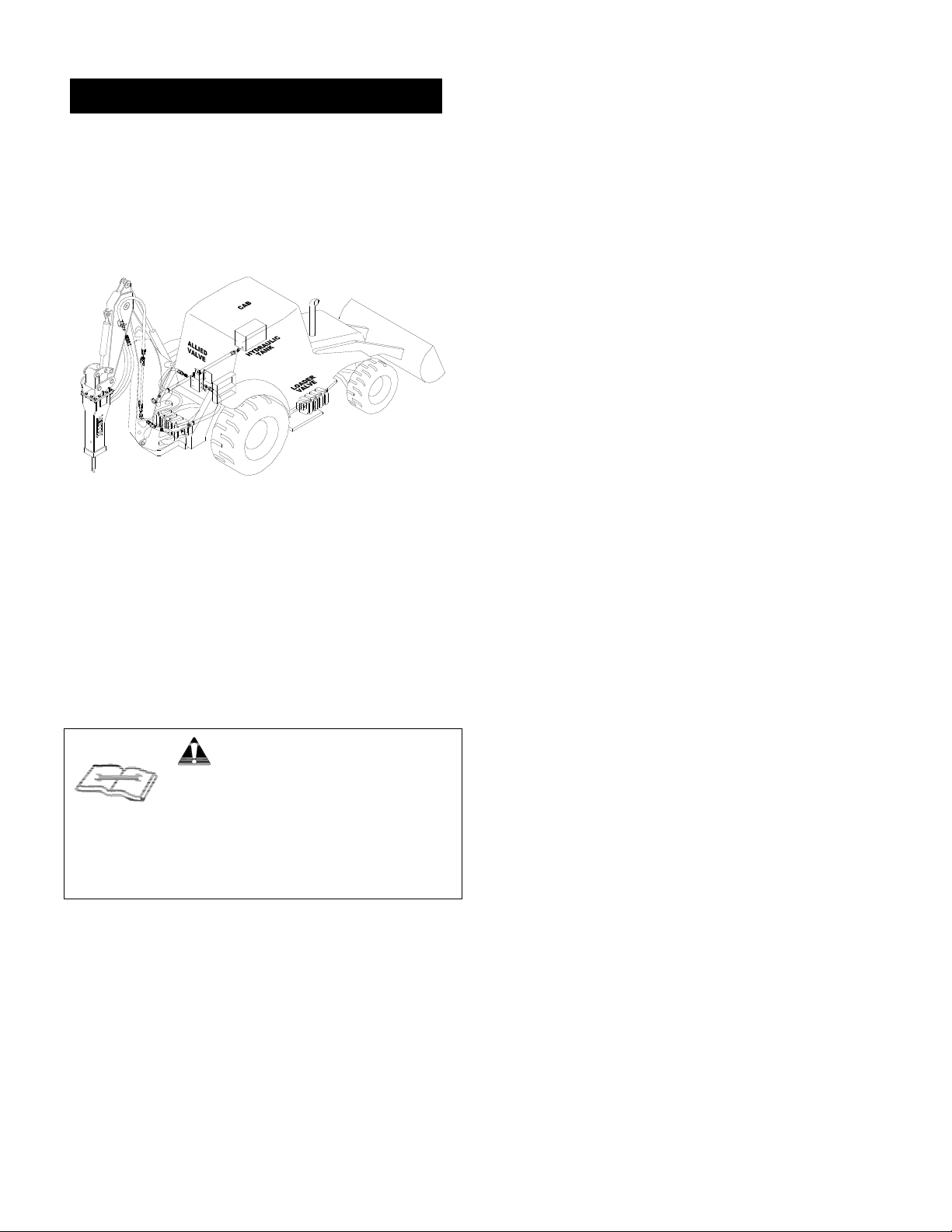

Fig 5-1 Allied Conversion Kit With AC-Series Valve
If the machine is not equipped with a hydraulic circuit,
a conversion kit, from Allied, can be installed. When
necessary, Allied conversion kits include the Allied
"AC" series valves. These are solenoid-operated
valves that control flow and pressure.
Requests for further information or assistance with
breaker selection should be directed to your Allied
dealer or by contacting the Allied Sales or Product /
Technical Support Departments.
CAUTION
Hydraulic circuits differ between
machines. Improper oil flow or pressure
can damage the breaker or carrier.
Only qualified personnel, having knowledge of the
machine’s systems, proper test equipment and tools
should perform conversion set-up and adjustments.
