Thomas&Betts COMFORT CRIMP SHURE STAKE ERG2 User manual

Figure 1
IMPORTANT: Read and understand all of the instructions
and safety information in this manual before operating or
servicing this tool.
COMFORT CRIMP®
ERG2 SHURE STAKE®TOOL
For Installing European Style Ferrule Terminals
In the event the SHURE STAKE®MECHANISM must be released, please see Figure 4.
TA01427 B Page 1 of 2
1. Remove die screws from frame with screwdriver.
2. Insert die set into frame so that larger wire size nests
are closer to the main axle of the frame. The die
screw holes in the die set should align with the die
screw holes in the frame.
3. Install die screws, close handles and tighten screws
with a screwdriver. Make sure the dies are properly
aligned.
Die Set Installation 1.2
Figure 3
Figure 2
1.1
1.0 INSTRUCTIONS FOR USE
For Use With European
Style Ferrule Terminals
1. Open handles fully.
2. Position ferrule and wire subassembly into proper
nest.
3. Close handles until the SHURE STAKE® mechanism
cycle has been completed.
DIE
SCREWS
WARNING
HANDLES ARE NON-INSULATING.
DO NOT CRIMP ON HOT ENERGIZED WIRES.
WARNING
KEEP ALL BODY PARTS AWAY FROM DIE NEST
DURING GAGING OR CRIMPING PROCEDURE.

1.3
1.4

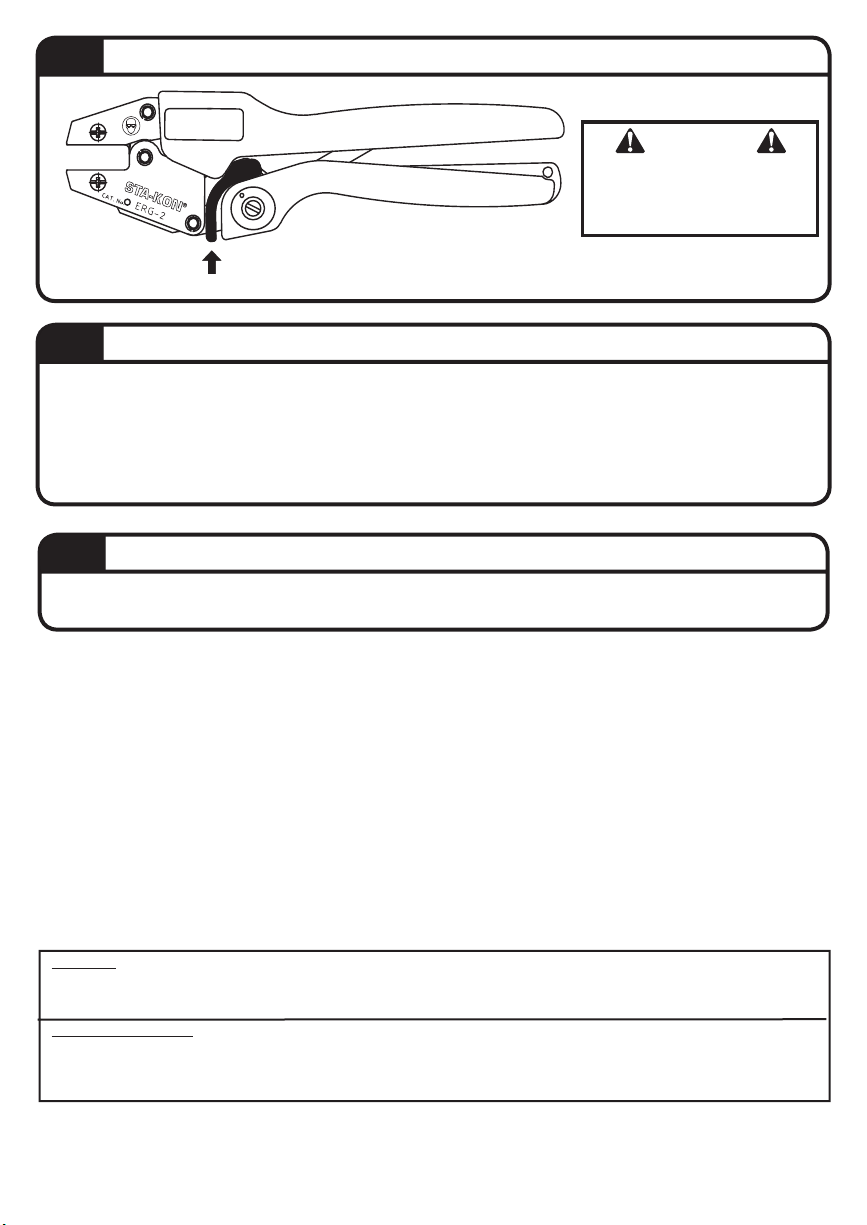

To release the SHURE STAKE®mechanism, push up on the
release bar until the ratchet teeth are disengaged.
SHURE STAKE®Mechanism
1. Remove dust, moisture, and other contaminants with a clean brush or a soft, lint-free cloth.
2. DO NOT use on objects that could damage the tool.
3. Make certain all pins, pivot points, and bearing surfaces are protected with a THIN coat of any good
SAE No. 20 motor oil. DO NOT oil excessively.
4. Keep handles closed when not in use to prevent objects from becoming lodged in the crimping dies.
5. Store tool in a cool, dry area.
Maintenance
Figure 4
TA01427 B Page 2 of 2© 2008 Thomas & Betts. All Rights Reserved.
WARRANTY: Thomas & Betts sells this product with the understanding that the user will perform all necessary tests to determine the suitability of this
product for the user’s intended application. Thomas & Betts warrants that this product will be free from defects in materials and workmanship for the
period stated on the enclosed warranty card. Upon prompt notification of any warranted defect, Thomas & Betts will, at its option, repair or replace the
defective product or refund the purchase price. Proof of purchase is required. Misuse or unauthorized modification of the product voids all warranties.
Limitations and Exclusions: THE ABOVE WARRANTY IS THE SOLE WARRANTY CONCERNING THIS PRODUCT, AND IS IN LIEU OF ALL OTHER
WARRANTIES EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE, WHICH ARE SPECIFICALLY DISCLAIMED. LIABILITY FOR BREACH OF THE ABOVE WARRANTY IS LIMITED TO COST
OF REPAIR OR REPLACEMENT OF THE PRODUCT, AND UNDER NO CIRCUMSTANCES WILL THOMAS & BETTS BE LIABLE FOR ANY INDIRECT,
SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Thomas & Betts Corporation
Memphis, Tennessee
www.tnb.com
For parts, service, repair and
calibration, contact the Thomas & Betts
Tool Service Center at 1-800-284-TOOL (8665).
WARNING
KEEP ALL BODY PARTS AWAY
FROM DIE NEST DURING
GAGING OR CRIMPING
PROCEDURE.
1.5
Tool must be free of cracks, sharp edges and any other obvious imperfections that may affect performance
of the tool. Nest area must be free of burrs, dents or scratches.
Visual Inspection
