Allmatic HYPER 400 User manual

HYPER
Ambidextrous irreversible operator for swing door gates.
6-1624982 - ENGLISH - rev.1 - 20/05/2021

2 / 16 6-1624982 - rev.1 - 20/05/2021
ENG
INDEX
1. GENERAL SAFETY WARNINGS 3
2. DESCRIPTION 3
3. LIST OF PACKAGING, ACCESSORIES AND OVERALL DIMENSIONS 4
4. PRODUCT VIEW AND TECHNICAL CHARACTERISTICS 6
5. PRELIMINARY CHECKS 8
6. INSTALLATION 11
7. DECLARATION OF CONFORMITY 15
8. MAINTENANCE 15
9. PRODUCT DISPOSAL 16
10. WARRANTY 16

3 / 166-1624982 - rev.1 - 20/05/2021 ENG
1. GENERAL SAFETY WARNINGS
WARNING!
Before installing the product it is mandatory to read the document related to the GENERAL SAFETY WARNINGS
accompanying the product. Document 6-1620001. The additional sheet can also be downloaded from www.
allmatic.com.
Ambidextrous irreversible gearmotor for swing gates with doors up to 4.5 m long and up to 300kg.
The irreversibility of this gearmotor means that the gate does not require any type of electric lock for eective closure. The motor is
provided with thermal protection that in case of prolonged use momentarily interrupts the movement.
The HYPER motor provides great flexibility of installation as you can install it with the motor body facing down or up. It is also equip-
ped with internal mechanical stoppers (optional) totally hidden from view and adjustable through the appropriate external screws
that guarantee an elegant design.
2. DESCRIPTION
1
1. HYPER
2. Control unit
3. Key selector
4. Radio antenna
5. Flashing light
6. Photocell of external protection
7. Photocell of internal protection
8. Photocell column
9. Fixed mechanical stopper for opening
10. Fixed mechanical stopper for closing
1
2
3
4
5
6
7
8
8
9
9
10
Description:
6

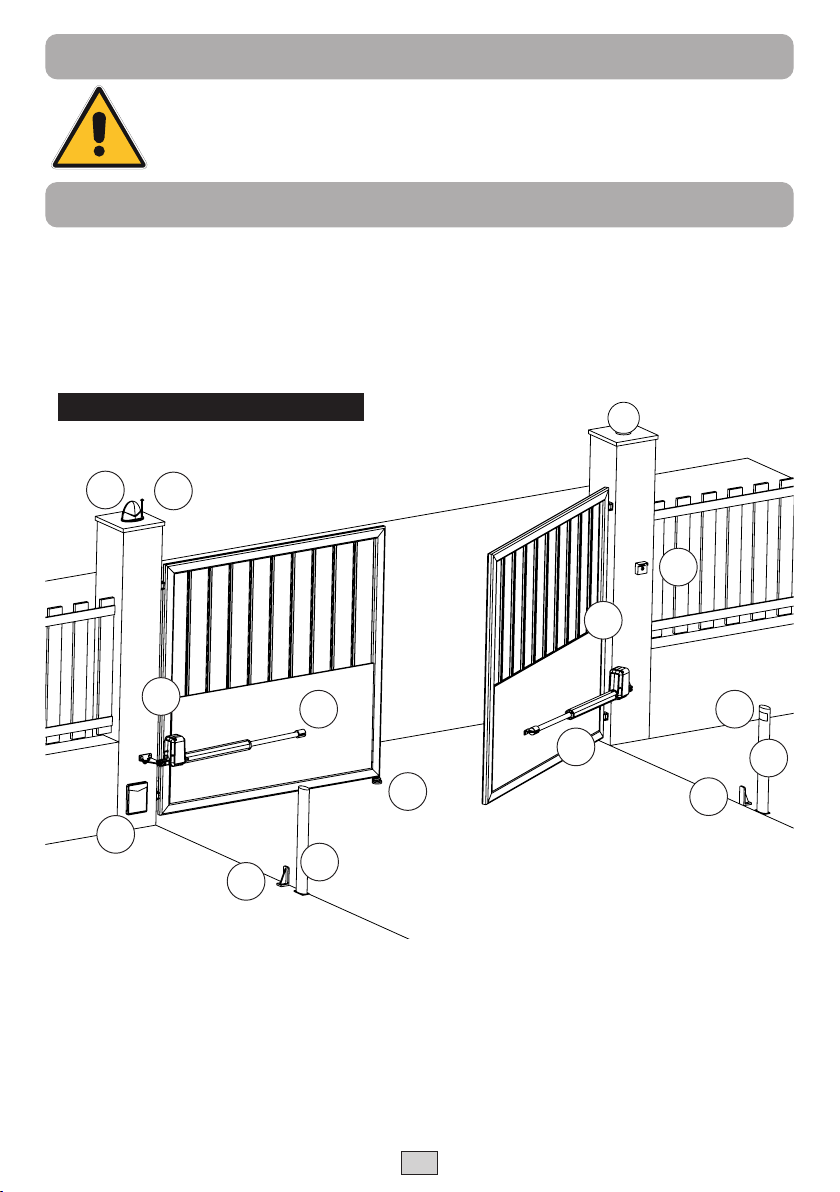

TYPICAL INSTALLATION

4 / 16 6-1624982 - rev.1 - 20/05/2021
ENG
HYPERHYPER

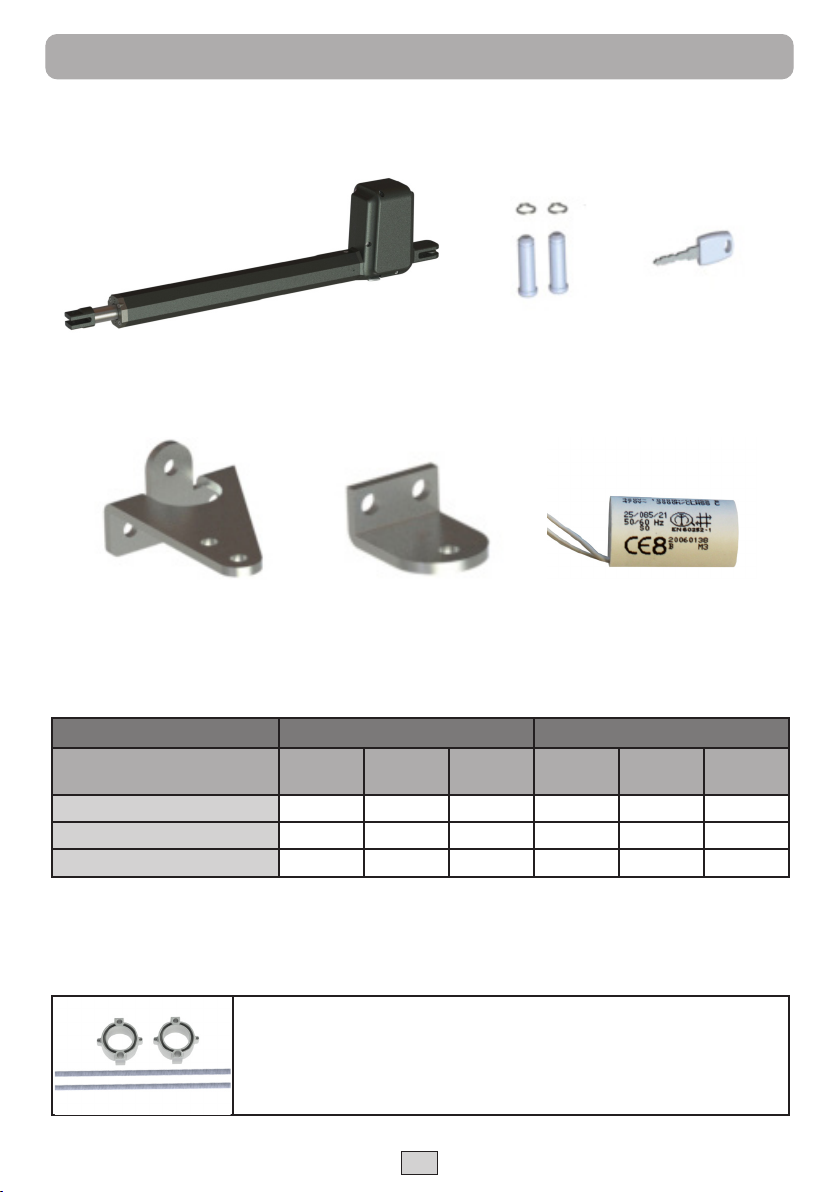

Gearmotor for gates with hinged doors complete with assembly kit consisting of: fixing brackets, capacitor, unlocking key andGearmotor for gates with hinged doors complete with assembly kit consisting of: fixing brackets, capacitor, unlocking key and
hardware fasteners.hardware fasteners.
3. LIST OF PACKAGING, ACCESSORIES AND OVERALL DIMENSIONS
TABLE 1 - HYPER model codesTABLE 1 - HYPER model codes
version 400 600
Number of internal mechanical
stoppers 012012
230Vac 50Hz 12008100 12008101 12008102 12008130 12008131 12008132
120Vac 60Hz 12008110 12008111 12008112 12008140 12008141 12008142
24Vdc 12008120 12008121 12008122 12008150 12008151 12008152
ACCESSORIESACCESSORIES
OPTIONAL INTERNALOPTIONAL INTERNAL MECHANICAL STOPPERSMECHANICAL STOPPERS
Mechanical stoppers internally mounted and adjustable by screw.internally mounted and adjustable by screw.
Motor available in version with singleMotor available in version with single mechanical stopper (only opening) or double(only opening) or double mechanical
stoppers (opening and closing).(opening and closing).
GEARMOTOR PIVOTS AND SEEGER KEY
REAR BRACKET FRONT BRACKET CAPACITOR

5 / 166-1624982 - rev.1 - 20/05/2021 ENG
196
100
790 (HYPER 400)
990 (HYPER 600)
810 (HYPER 400)
1010 (HYPER 600)
WITHOUT INTERNAL MECHANICAL STOPPERS
WITH INTERNAL MECHANICAL STOPPERS (1 or 2)
77
31
15
46
ø 10.5 ø 10.5 ø 10.5
90.5
120.5
25
50
ø 11 ø 11
10
10
40
REAR BRACKET FOR FIXING FRONT BRACKET FOR FIXING

6 / 16 6-1624982 - rev.1 - 20/05/2021
ENG
4. PRODUCT VIEW AND TECHNICAL CHARACTERISTICS
TABLE 2 - HYPER 400 technical characteristics
TECHNICAL CHARACTERISTICS U.M. HYPER 400
Recommended control board BIOS2 24 BIOS2 120 /
ECO
BIOS2 230 /
ECO
Supply voltage and frequency 24 Vdc 120Vac 60Hz 230Vac 50Hz
Motor absorption A 3 1 1
Motor power W 70 120 230
Capacitor μF -- 31,5 8
Motor speed rpm 1700 1750 1450
Average opening time (90°) sec. 17 17 20
Maximum gate size (Weight/Length) 100 kg / 3 m
133 kg / 2,5 m
200 kg / 1,5 m
150 kg / 3 m
183 kg / 2,5 m
250 kg / 1,5 m
200 kg / 3 m
233 kg / 2,5 m
300 kg / 1,5 m
Maximum thrust N 1600 2000 2000
Service % 70 50 50
Recommended daily cycles n° 100 100 100
Weight of the motor kg 6 7 7
Operating temperature °C -20°C ... +55°C
Degree of protection IP 44
Emergency release lever release with key
Internal mechanical stoppers optional

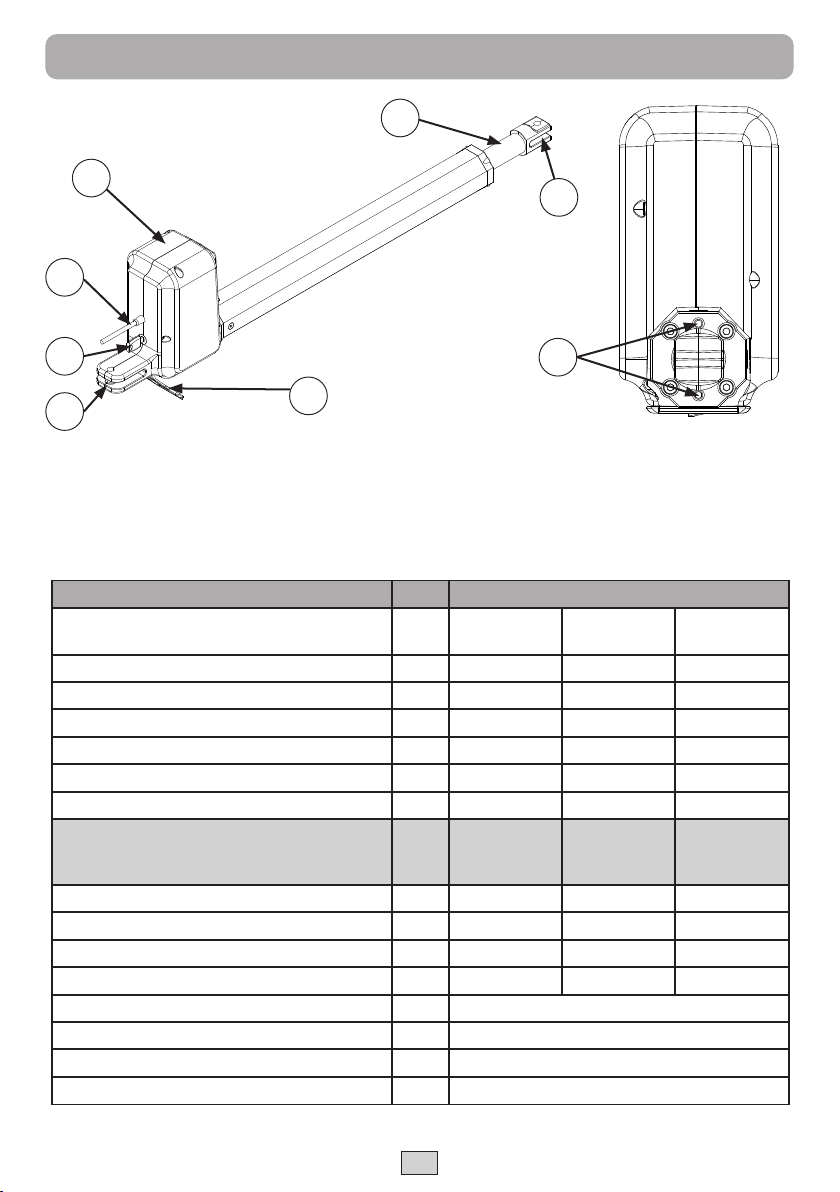

A. Motor body
B. Motor stem
C. Motor supply cable
D. Key to unlock
E. Release lever to unlock
F. Fixing point for rear bracket
G. Fixing point for front bracket
H. Screws for adjusting internal mechanical stoppers (op-
tional)
Description:
A
B
G
H
E
F
C
D

7 / 166-1624982 - rev.1 - 20/05/2021 ENG
TABLE 3 - HYPER 600 technical characteristics
TECHNICAL CHARACTERISTICS U.M. HYPER 600
Recommended control board BIOS2 24 BIOS2 120 /
ECO
BIOS2 230 /
ECO
Supply voltage and frequency 24 Vdc 120Vac 60Hz 230Vac 50Hz
Motor absorption A 3 1 1
Motor power W 70 120 230
Capacitor μF -- 31,5 8
Motor speed rpm 1700 1750 1450
Average opening time (90°) sec. 25 25 30
Maximum gate size (Weight/Length) 100 kg / 4,5 m
140 kg / 3,5 m
200 kg / 2 m
150 kg / 4,5 m
190 kg / 3,5 m
250 kg / 2 m
200 kg / 4,5 m
240 kg / 3,5 m
300 kg / 2 m
Maximum thrust N 1600 2000 2000
Service % 70 50 50
Recommended daily cycles n° 100 100 100
Weight of the motor kg 7 8 8
Operating temperature °C -20°C ... +55°C
Degree of protection IP 44
Emergency release lever release with key
Internal mechanical stoppers optional
TABLE 4 - Stem stroke
AVAILABLE STEM STROKE U.M. HYPER 400 HYPER 600
Without mechanical stoppers mm 415 615
With 1 mechanical stopper (opening) mm 395 595
With 2 mechanical stoppers (opening and closing) mm 375 575
ATTENTION! ONLY FOR 24V MOTORS
IN NO CASE SHALL THE MAXIMUM WEIGHTS AND DIMENSIONS GIVEN IN THESE TABLES BE
EXCEEDED.
ALWAYS USE THE SLOWDOWNS SET BY THE CONTROL UNIT FOR THE MOVEMENT OF THE
GATE.
WARNING!

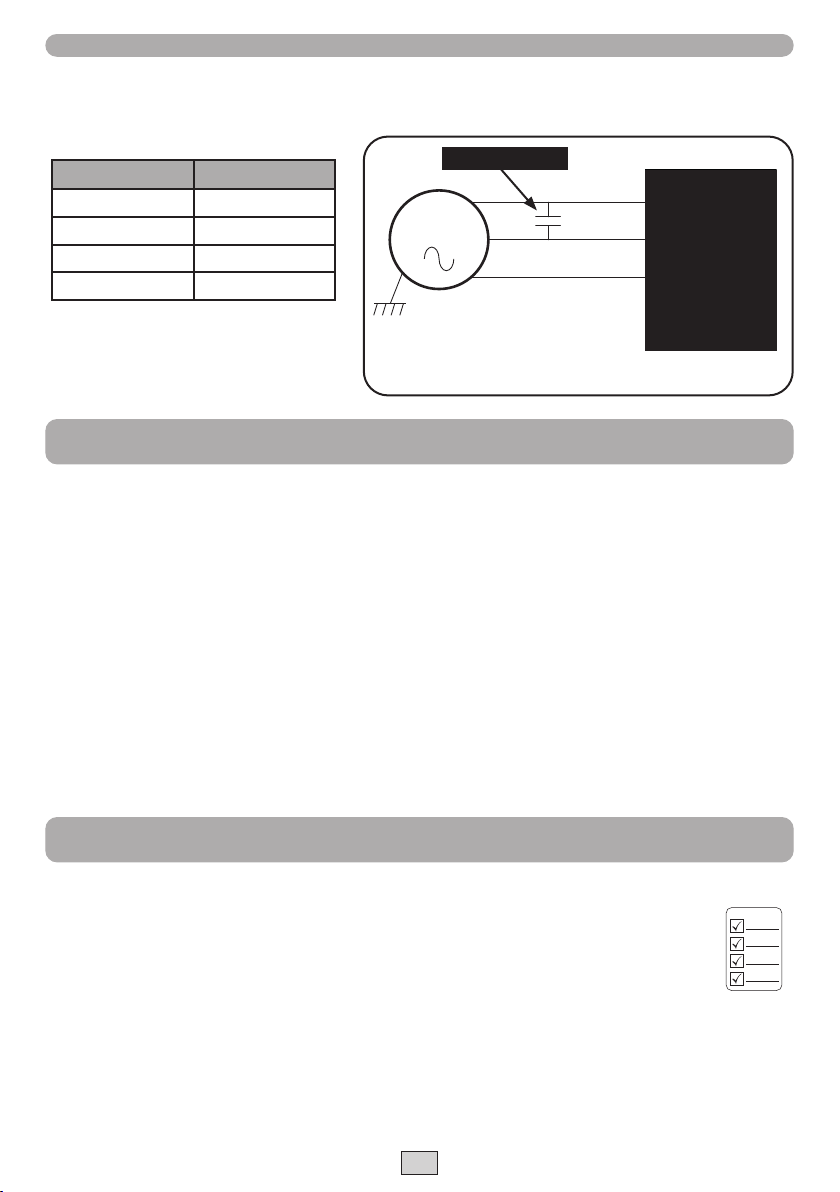

In the graph next to it is reported, as an explanatory example, the
relationship between weight and length of the door for the gearmo-
tor HYPER 400 230vac.
1,5 2,5 3
MT
kg
300
200
100
2
HYPER 400 230Vac

8 / 16 6-1624982 - rev.1 - 20/05/2021
ENG
WARNING! It is mandatory to conform the characteristics of the gate to the rules and laws in force. The door can be automated only
if it is in good condition and complies with EN 12604.
- The door shall not have pedestrian doors. Otherwise, precautions must be taken in accordance with point 5.4.1 of EN12453 (for
example, to prevent the movement of the motor when the door is open, thanks to a micro-switch properly connected in the control
unit).
- There is no need to generate entrapment points (for example, between the open door of the gate and the gate).
- There must be no mechanical stops above the gate because they are not sufficiently safe.
WARNING! The doors shall be firmly attached to the hinges of the columns, shall not flex during movement and shall move without
friction. Before installing the motor it is better to check all the space necessary to be able to install it.
TABLE 5 - Components to be installed according to EN12453
CONTROL TYPE
USE OF CLOSURE
Experienced
people (outside
public area*)
Experienced
people (public
area)
Unlimited use
dead man mode A B not possible
with visible impulses (e.g. sensor) E E E
with not visible impulses
(e.g. remote control)
E E E
automatic E E E
* typical example are the closures that do not access public street
A: Dead man mode (ie maintained action) control button.
B: Key selector with manned operation.
E: Photocells.
5. PRELIMINARY CHECKS
ZONE OF
ENTRAPMENT
ZONE OF
ENTRAPMENT
INTERNAL SIDE OF
THE PROPERTY

9 / 166-1624982 - rev.1 - 20/05/2021 ENG
Before proceeding to the installation of the motor it is recommended to check the following on the gate:
• The gate must be level
• The gate must be in good condition
• The gate must not have protuberances that collide with the ground or other objects
• The gate must not hit or crawl the ground at any point of the race
• The gate must be easily opened and closed for the full width of its run and must be supported only by its hinges
• The gate must meet the weight and size requirements indicated in this manual
5.1 CHECKS ON THE GATE
5.2 PREPARATION OF THE INSTALLATION SITE
Prepare on the installation site the ducts for the passage of motor cables.
The cables for the connection of the various devices in a typical plant are listed in the table below and must be suitable for the type
of installation, for example we recommend a cable type H07RN-F for outdoor installation.
TABLE 6 - Cables to be used
CONNECTION CABLE MAXIMUM LENGTH
Power supply line 3 x 1,5mm² 20 m *
Motor 4 x 1,5mm² 10 m *
Flashing light 2 x 0,5mm² 20 m
Photocell - transmitter 2 x 0,5mm² 20 m
Photocell - receiver 4 x 0,5mm² 20 m
Key selector 4 x 0,5mm² 20 m
* If the cable exceeds 10 m, a cable with a larger section must be used and a safety grounding must be installed near the auto-
mation.
DUCT
A
B
C
D
E
F
G
H
I
J
K
L
M
N
D
F
J
E
G
L
M
N
H
A
B
I
C
K
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
64 121 2 9 13 16 1787 20153 1410 18115 19
Il presente disegno è di proprietà della - Uso, Riproduzione e Trasmissione a terzi, vietati a termine di legge, senza autorizzazione scritta -
DENOMINAZIONE/PART NAME
MATERIALE/material:
TRATTAMENTO/treatment:
Disegnatore:
Data/date:
Grado di precisione:
UNI EN 22768/2 -
Progetto/Project:
Codice/Part N°
Rev.
Scala/
scale
:
Formato Foglio:
Volume:
Smussi non quotati/bevels not quoted
:
Celli Luca
Allmatic
0
1:15
Foglio di
A0
11
Viadell'Artigianato 1
32026 -Borgo Valbelluna (Bl)
tel.[phone] fax [phone]
[email protected]- www.allmatic.com
alternativa/alternative:
Raggi non quotati/unquoted spokes:
Per dimensioni mancanti far
riferimento al modello 3D
For missing dimension refer to 3D file
Peso/weight:
grammi
IRD Data/date Disegnatore/designer Descrizione/description
Firma/sign Data/date
Coeff.impiego
cm
^3

10 / 16 6-1624982 - rev.1 - 20/05/2021
ENG
5.3 ADVICE ON INSTALLATION
WHAT YOU CAN DO:
• Ensure that the motor is installed on level.
• The motor shall be installed at least 50 mm from the lower edge of the gate door.
• The motor can be installed at the top of the gate door.
• The motor can be installed on both left and right.
• The motor can be installed with the body facing downwards or upwards depending on your needs.
WHAT NOT TO DO:
• Do not install on sloping gates.
• Do not unduly bend the motor cable.
• Do not install the bracket in the gate in weak points that may break.
5.4 MOTOR UNLOCK FOR MANUAL MOVEMENT
To move the gate manually proceed as follows:
• Turn the key clockwise to unlock the lever.
• Pull the lever all the way down.
Once the gate is positioned to re-lock the motor:
• Completely put the lever back inside its seat in the motor
body.
• Hold the lever in place with one hand.
• Close the lever lock by turning the key counterclockwise.
=
=
50 mm

11 / 166-1624982 - rev.1 - 20/05/2021 ENG
6. INSTALLATION
6.1 DETERMINE THE INSTALLATION MEASUREMENTS (OPENING INWARDS)
Before fixing the supplied brackets it is necessary to determine the installation dimensions A and B.
Start by putting the gate in position of "CLOSED DOOR".
Choose the sizes of A and B according to your installation and in order to obtain the desired degree of opening "α". This grade shown
in the table refers to the highest possible degree of openness with the corresponding dimensions.
To anchor the piston use the brackets provided.
TABLE 7 - HYPER 400 Recommended installation dimensions
A155 160 165 170 175 180
B W ( α )
150 980 (110°) 982 (110°) 984 (110°) 985 (110°) 973 (104°) 968 (102°)
160 987 (108°) 992 (110°) 983 (105°) 978 (102°) 973 (100°) 968 (98°)
180 991 (100°) 986 (98°) 981 (96°) 976 (94°) 971 (93°) 966 (91°)
200 989 (92°) 984 (90°) 982 (90°) 981 (90°) 976 (88°) 964 (85°)
TABLE 8 - HYPER 600 Recommended installation dimensions
A220 230 240 250 260 270
B W ( α )
220 1269 (110°) 1270 (110°) 1273 (110°) 1278 (110°) 1279 (110°) 1269 (107°)
240 1288 (110°) 1290 (110°) 1292 (110°) 1287 (107°) 1277 (104°) 1267 (101°)
260 1302 (108°) 1310 (110°) 1295 (104°) 1285 (101°) 1275 (99°) 1265 (97°)
280 1313 (105°) 1303 (101°) 1293 (98°) 1283 (96°) 1273 (94°) 1263 (92°)
A
B
W
TOP VIEW
INTERNAL SIDE OF
THE PROPERTY
EXTERNAL SIDE
OF THE PROPERTY
WARNING!
The values given in the following tables are indicative and have been calculated considering the ideal conditions with a
gate of medium size, with a uniformly distributed filling and with both the internal mechanical stoppers installed. Keep
in mind that values may vary slightly and must be checked in advance.

12 / 16 6-1624982 - rev.1 - 20/05/2021
ENG
6.2 DETERMINE THE INSTALLATION MEASUREMENTS (OUTWARD OPENING)
Before fixing the supplied brackets it is necessary to determine the installation dimensions A and B.
Start by putting the gate in position of "OPEN DOOR".
Choose the sizes of A and B from Tables 7 and 8 of the previous paragraph, according to your installation and in order to obtain
the desired degree of opening "α". This grade shown in the table refers to the highest possible degree of openness with the
corresponding dimensions.
For the anchor of the piston it is necessary to use additional supports (not supplied) together with the fixing brackets supplied. These
supports shall be appropriate to the dimension of the door and the pillar.
B
W
A
TOP VIEW
INTERNAL SIDE OF
THE PROPERTY
EXTERNAL SIDE
OF THE PROPERTY
ATTENTION!
With respect to the type of installation described in the previous paragraph, the measurements of A and B are
inverted in position (SEE FIGURE BELOW).
The support drawn in the following figure, to which the rear bracket is connected is only an example for expla-
natory purposes.
With this type of installation, the automations protrude and then reduce the width of the passage.
ADDITIONAL SUPPORT
(NOT PROVIDED)

13 / 166-1624982 - rev.1 - 20/05/2021 ENG
6.3 FASTEN THE REAR BRACKET TO THE COLUMN
6.4 FASTEN THE FRONT BRACKET TO THE GATE
Attach the rear bracket to the column in accordance with the agreed dimensions.
To install the front bracket follow these steps:
1. Unlock the motor.
2. Bring the door of the gate to the position of "CLOSED DOOR". ATTENTION! In case you are installing the motor with opening
to the outside bring the door of the gate in the position of "OPEN DOOR".
3. Attach the front bracket to the motor actuator using the supplied hardware.
4. Stretch the stem completely and bring it back about 1 cm of its run.
5. With the stem in this position, pull the actuator with the bracket already installed to the gate and temporarily fix the bracket
to the gate.
6. Verify that the motor is on level.
7. Carry out some manual opening and closing movements in order to verify that the gate moves smoothly and eortlessly and
that the gear motor does not rub against the gate door.
8. Properly attach the front bracket to the gate and lock the motor.
2
1
2
1
STROKE USED =
(STROKE AVAILABLE) - 1 cm
WARNING!
In determining the height from the ground to which the bracket is fixed on the pillar, take into account that the brackets
for anchoring the piston to the gate shall be fixed at the same level, and that the motor shall be installed at least
50mm away from the lower edge of the gate door.
After properly fixing the bracket to the column, anchor the back of the gearmotor to the bracket using the supplied hardware as
shown in the figure.

14 / 16 6-1624982 - rev.1 - 20/05/2021
ENG
6.5 ADJUSTMENT OF INTERNAL MECHANICAL STOPPERS (OPTIONAL)
+
-
MECHANICAL STOP
OF CLOSING
MECHANICAL STOP
OF OPENING
To adjust the internal mechanical stoppers (optional), proceed as follows:
1. Unlock the motor and manually open the gate to the position of "OPEN DOOR".
2. Approach a magnet (not supplied) or one of the washers provided in the kit on the motor body at the opening mechanical
stopper until you find the point where it remains attached. In this way the magnet is located exactly at the mechanical stopper
position and will be useful to understand which mechanical stopper you are acting by adjusting the screws and in which
direction you are moving it.
3. Act on one of the two adjustment screws to find which of the two moves the magnet.
4. Adjust the correct screw founded so as to carry the magnet, and therefore the mechanical stopper, as far as possible from
the gate hinge.
5. Repeat the operations described above also for the mechanical stopper of closing, bringing the gate first in the position of
"CLOSED DOOR" and then acting on the other adjustment screw so that the magnet positioned on the closing mechanical
stopper is as close as possible to the gate hinge.
6. Lock the motor.
After the adjustment, before connecting the motor to the control unit, make sure that manually moving the gate does not go beyond
the desired limit positions. If so, repeat the procedure described above.
MAGNET
WARNING!
If the motor is installed in such a way that the opening of the gate takes place towards the outside, reverse the refe-
rences of this procedure with respect to the nomenclature of the mechanical stoppers.
In detail, the mechanical stopper that is closest to the motor body will be the MECHANICAL STOP OF CLOSING, while
the farther one will be the MECHANICAL STOP OF OPENING.
MECHANICAL STOP
OF OPENING
MECHANICAL STOP
OF CLOSING

15 / 166-1624982 - rev.1 - 20/05/2021 ENG
6.6 CONNECTION TO THE CONTROL UNIT
Make connections to the control unit only in the absence of power supply.
For the 230Vac and 120Vac gearmotors, install the capacitor supplied between Phase 1 and Phase 2 of the motor.
Please refer to the installation manual of the control unit for the connection diagram.
TABLE 9 - Cable colour for 230Vac motor
COLOUR DESCRIPTION
Black Phase 1
Brown Phase 2
Grey or Blue Neutral
Yellow / Green Ground
M
CONTROL UNIT
PHASE 1
PHASE 2
NEUTRAL
GROUND
CAPACITOR
7. DECLARATION OF CONFORMITY
8. MAINTENANCE
For the correct maintenance of the automation, make sure to perform at least once every 6 months the following steps:
1. Check that all the fixing screws of the brackets are tight.
2. Check that the gate is in good condition and that there are no broken or worn parts.
3. Check the status of the electrical connections and in case of wear of the cables replace them.
4. Unlock the motor and move the gate manually by checking that the movement is fluid. In case it is necessary to
put a layer of lubricating grease on the stem.
Manufacturer: Allmatic srl
Address: Via dell’Artigiano, 1 - 32026 Borgo Valbelluna (BL) Italia
Telephone: [phone]
E-mail: [email protected]
Web site: www.allmatic.com
Declares that the HYPER product complies with the provisions of Community Directives:
2014/35/EU - Low Voltage Directive
2014/30/EU - Electromagnetic Compatibility Directive
This product cannot work independently and is designed to be integrated into a system with other devices. It is complies with Article
6, paragraph 2, of Directive 2006/42/EC (Machinery) and subsequent amendments, therefore the device cannot be put into opera-
tion before it has not been declared compliant in the total context of use in accordance with the provisions of directive.
This statement is given in a shorter form for graphic reasons.
The full version is available by contacting the manufacturer.

ALLMATIC S.r.l
32026 Borgo Valbelluna - Belluno – Italy
Via dell’Artigiano, n°1 – Z.A.
Tel. [phone] – 751163 r.a. Fax [phone]
www.allmatic.com - E-mail: [email protected]
This product is an integral part of automation, and therefore must be disposed of together with it. As with installation operations, even
at the end of the life of this product, dismantling operations must be carried out by qualified personnel. This product consists of various
types of materials: some can be recycled, others must be disposed of. Find out about the recycling or disposal systems required by the
regulations in force in your territory for this category of product.
WARNING! - certain parts of the product may contain pollutants or dangerous substances which, if dispersed in the
environment, could have harmful eects on the environment and human health.
As indicated by the symbol on the side, it is forbidden to throw this product into household waste. Then perform the
“separate collection” for disposal, according to the methods provided by the regulations in force in your territory, or
return the product to the seller when buying a new equivalent product.
WARNING! - the regulations in force at local level may provide for heavy penalties in case of improper disposal of this
product.
9. PRODUCT DISPOSAL
10. WARRANTY
The manufacturer’s warranty is valid from the date stamped on the product and is limited to the repair or replacement free of charge
of the parts recognized by the same as defective due to lack of essential quality in the materials or lack of processing. The warranty
does not cover damage or defects due to external agents, maintenance deficiency, overload, natural wear, choice of incorrect type,
assembly error, or other causes not attributable to the manufacturer. Tampered products will not be guaranteed or repaired. The data
given are purely indicative. No liability may be charged for reductions in scope or malfunctions due to environmental interference.
The liability of the manufacturer for damage caused to anyone by accidents of any nature caused by our defective products, are only
those that derive from the Italian law.
