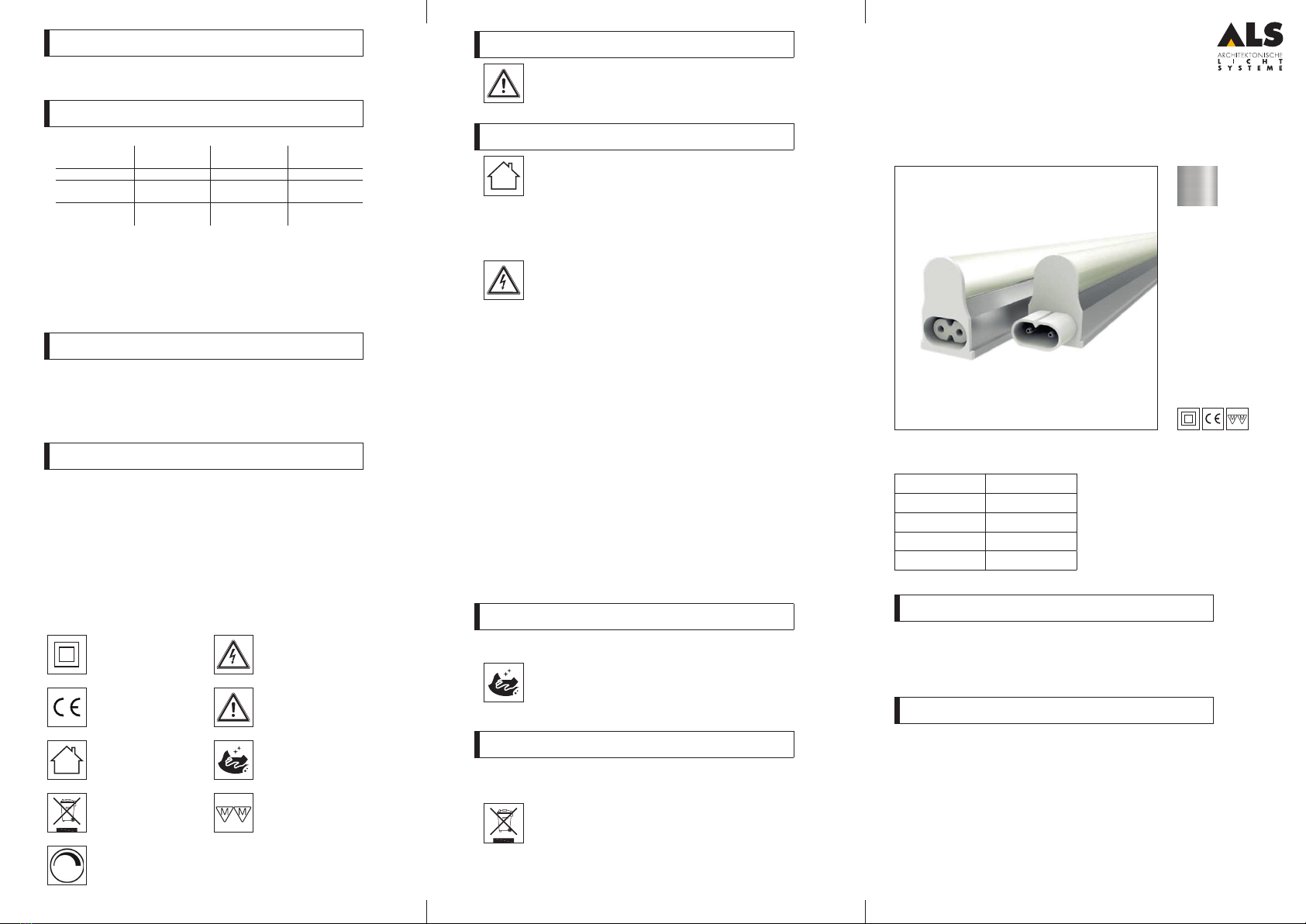

ALS LEST Series User manual

LEST
Version: 2020-10-20 EN
LED wall and ceiling-mounted luminaire
Protection class II Notication of Risks
CE label Safety Instructions
The product is only
for use in interiors.
Cleaning Instructions
The product may not
be disposed of in the
household garbage.
Approved for materi-
als with unknown re
performance
Triac dimmable
INTENDED USAGE
This product will only serve the purpose of illumination.
The light is only suitable for use in interiors, in dry, enclosed rooms.
SCOPE OF DELIVERY
1x LED luminaire
3x mounting clips metal
1x end cap
1 x set of instructions for assembly, operation and safety
SAFETY INFORMATION
• The light is only suitable for use in interiors, in dry,
enclosed rooms.
• The light is not suitable for attaching on uneven
surface.The light may otherwise fall.This can result
in product damage and / or injuries.
• Don’t install under power.
• Follow the instruction manual for installation.
• Installation only by qualied and authorised
persons.
• Do not use the product when it has been damaged
(defective covers) or there are operational faults
such as ickering, smoking, steaming, crackling
noises or the smell of smoke.
• A damaged or defective product must be changed
or repaired by the manufacturer, a service person
or a comparable qualied person.
• Installation only under observance of the valid
guidelines specic to application and country
among others VDE 0.100.
• Never open one of the electrical operating agents
or plug any objects into them. Such procedures
signify a danger to life through electrical shock.
• Absolutely avoid contact between the product
and water or other liquids. For reasons of electrical
safety, the light may not be placed in contact with
water or other liquids or submerged in water.
• The product may not be changed or modied.
SAFETY
READ THE INSTRUCTIONS BEFORE USING THIS PRODUCT.
KEEP THE SAFETY AND OPERATING INSTRUCTIONS FOR
FUTURE USE.
DESCRIPTION OF PARTS
LED luminaire
TECHNICAL DATA
Lamp + LED driver
Total power
consumption
approx. 13 W approx. 18 W approx. 22 W
Quantity of LEDs 72 96 120
Lumen at +25° 1200 lm/
1170 lm
1680 lm/
1620 lm
2024 lm/
1924 lm
CCT 4000 K/
3000 K
4000 K/
3000 K
4000 K/
3000 K
For dimming luminaires LEST-xxxx1D preferably use a phase
section dimmer during installation!
With phase control a slight icker occurs and the lamp cannot be
started in the lower dimming range.
See also Busch-Jaeger LED dimmer, type 6523 UR-103 2-400 W.
LED LIGHT
Total power: approx. 13W / 18 W / 22W
Protection class: II
The LED light agent cannot be replaced.
LED DRIVER
nominal voltage,
primary: 100-240V~ ( 50/60 Hz )
approx. at 13W - 312 mA / 18W- 424mA /
22W- 530mA
DISPOSAL
The packaging consists of environmentally friendly materials.
Dispose of them in the local recycling containers.
Do not dispose of this product in the household gar-
bage when it has reached the end of its lifecycle, but
rather take it to a disposal center.Your local ofcials
will provide you with information about collection
ofces and their business hours.
MAINTENANCE AND CLEANING
The LED light agent cannot be replaced.
• Do not use solvents, such as benzene and similar
agents.The light would be damaged thereby.
• Only use a dry, lint-free cloth for cleaning the
product.
Brand No.
Schneider SBD315RC
Busch 6513 U-102
Busch 6523U
JUNG 225 TDE
Compatible dimmer for:
Adresse | Kontakt
A.L.S. GmbH
Mastorter Str. 31 | 88069 Tettnang (Germany)
Tel.: [phone] | Fax.: [phone]
E-Mail: [email protected] | Web: www.als.de
Anodized
Aluminium
LEST-13NW1D/LEST-13WW1D
LEST-18NW1D/LEST-18WW1D
LEST-22NW1D/LEST-22WW1D

Max. 10 luminaires can be connected together.
For further luminaires a new power supply is necessary ( feed )!
For exible connections remove the end cap. Only the original connecting
cables may be used.
Check plug-in for rm connection!
Please note!
The last light strip has to be covered with the end cap.
For the installation use the enclosed mounting brackets. Only the original connecting cables may be used.
Best Nr:
1800 mm ZUL-LEST1800
Lengths/versions
836 mm = LEST-13xx1
1136 mm = LEST-18xx1
1436 mm = LEST-22xx1
Order no.:
Connection cabel
250 mm Z-LEST2501
500 mm Z-LEST5001
For extension remove the end cap. Firmly connect the light strip with the
plug-in module.
Please note!
The last light strip has to be covered with the end cap.
SAFETY
THE LED LUMINAIRES MAY ONLY BE PLUGGED IN OR REPLACED WITH
ORIGINAL CONNECTING CABLES AND WITHOUT VOLTAGE!
