Altimium TP503P-4K User manual

TP503P-4K
Ultra-thin HDBaseT2.0 Extender Set
All Rights Reserved
Version: TP503P-4K_2015V1.0
User Manual

Ultra-thin HDBaseT2.0 Extender Set
Altimium www.altimium.com
Preface
Read this user manual carefully before using this product. Pictures shown in this manual
is for reference only, different model and specifications are subject to real product.
This manual is only for operation instruction only, not for any maintenance usage. The
functions described in this version are updated till November 2016. In the constant effort
to improve our product, we reserve the right to make functions or parameters changes
without notice or obligation. Please refer to the dealers for the latest details.
All product function is valid till 2016-11-28.
Trademarks
Product model and logo are trademarks. Any other trademarks mentioned in this manual
are acknowledged as the properties of the trademark owner. No part of this publication
may be copied or reproduced without the prior written consent.
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. It has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a commercial
installation.
Operation of this equipment in a residential area is likely to cause interference, in which
case the user at their own expense will be required to take whatever measures may be
necessary to correct the interference.
Any changes or modifications not expressly approved by the manufacture would void
the user’s authority to operate the equipment.

Ultra-thin HDBaseT2.0 Extender Set
Altimium www.altimium.com
SAFETY PRECAUTIONS
To insure the best from the product, please read all instructions carefully before using
the device. Save this manual for further reference.
Unpack the equipment carefully and save the original box and packing material for
possible future shipment
Follow basic safety precautions to reduce the risk of fire, electrical shock and injury
to persons.
Do not dismantle the housing or modify the module. It may result in electrical shock
or burn.
Using supplies or parts not meeting the products’ specifications may cause damage,
deterioration or malfunction.
Refer all servicing to qualified service personnel.
To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this
product near water.
Do not put any heavy items on the extension cable in case of extrusion.
Do not remove the housing of the device as opening or removing housing may
expose you to dangerous voltage or other hazards.
Install the device in a place with fine ventilation to avoid damage caused by
overheat.
Keep the module away from liquids.
Spillage into the housing may result in fire, electrical shock, or equipment damage. If
an object or liquid falls or spills on to the housing, unplug the module immediately.
Do not twist or pull by force ends of the optical cable. It can cause malfunction.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to
the device before cleaning.
Unplug the power cord when left unused for a long period of time.
Information on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as normal electrical wastes.

Ultra-thin HDBaseT2.0 Extender Set
Altimium www.altimium.com
Contents
1. Introduction.................................................................................................................1
1.1 Brief Introduction ...............................................................................................1
1.2 Features ............................................................................................................1
1.3 Package List......................................................................................................1
2. Panel Description........................................................................................................2
2.1 Transmitter.........................................................................................................2
2.2 Receiver ............................................................................................................4
3. System Connection.....................................................................................................6
3.1 Usage Precautions............................................................................................6
3.2 System Diagram................................................................................................6
3.3 Connection Procedure.......................................................................................6
3.4 PoH Solution......................................................................................................7
3.5 ARC Solution.....................................................................................................8
3.6 Application.........................................................................................................9
4. Specification .............................................................................................................10
4.1 Supported Resolution......................................................................................11
5. Panel Drawing ..........................................................................................................12
6. Troubleshooting & Maintenance ...............................................................................13
7. After-sales Service....................................................................................................15

Ultra-thin HDBaseT2.0 Extender Set
Altimium 1 www.altimium.com
1. Introduction
1.1 Brief Introduction
This product is an HDBT2.0 Extender set which contains a transmitter and a receiver.
Compliant with HDMI1.4.0& HDCP2.2, it is capable to transmit high-definition signal up
to 4Kx2K@60Hz. The HDBT ports support HDBT2.0, which enable 100m (max) 4K
transmission and 150m 1080p transmission as well as bi-directional IR/ RS232 signal
travel via single Cat5e/Cat6 cable. Transmission mode is selectable via front panel
switcher.
The set boasts 4 Ethernet ports to work as Ethernet Switch, with any one connecting to
LAN, other ports access Ethernet. The unit is controllable via front panel switcher,
bi-directional IR& RS232. Furthermore, it also supports ARC function, making it more
flexible.
1.2 Features
Support HDMI 1.4 & HDCP2.2 and is backwards compatible with all previous HDMI
standards
The highest resolution is up to 4Kx2K@60Hz, and support 1080p 3D
Support HDBT2.0, transmit 4Kx2K signal up to 100m and 1080p signal up to 150m
via single CAT5e/CAT6 cable
Intuitive front panel switcher control: Transmission Mode (100m/150m), ARC (ON/
OFF)
Support CEC and ARC
Bi-directional IR & RS232 control
Support bi-directional PoH
Work as Ethernet Switch
Status LEDs for power, link& HDCP on front panel
1.3 Package List
1 x Transmitter
1 x Receiver
1 x Power Adapter (DC12V 2A)
4 x Mounting Ears
8 x Screws
8 x Rubber Feet
1 x User manual
Confirm if the product and the accessories are all included, if not, please contact
with the dealers

Ultra-thin HDBaseT2.0 Extender Set
Altimium 2 www.altimium.com
2. Panel Description
2.1 Transmitter

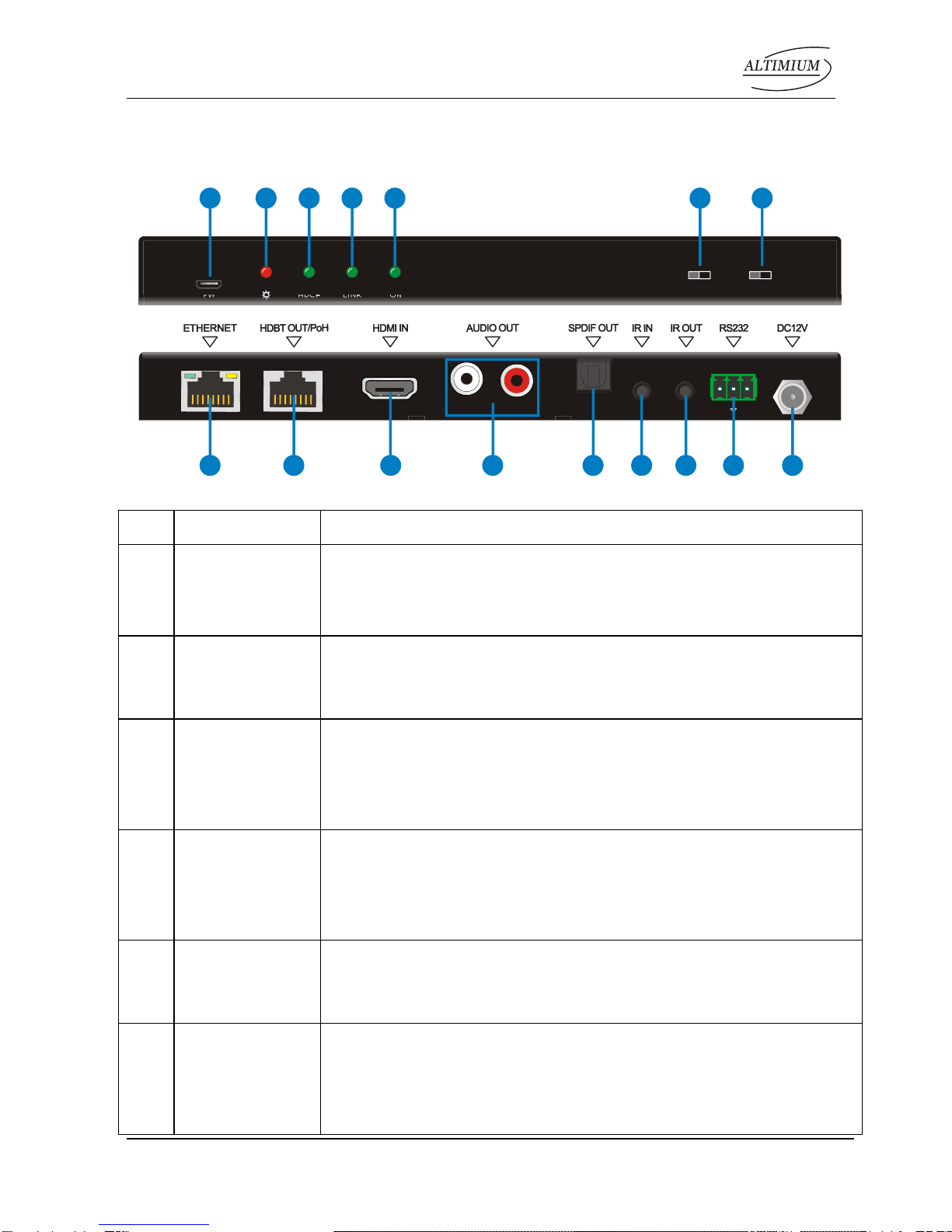

Figure 2-1 Panel Description of Transmitter
No.
Name
Description
①
FW
Micro USB port, used for firmware update.
Firmware updated need auxiliary equipment, please contact
with our after-sales department for more details.
②
Power
Power indicator:
OFF: No power
RED: DC power present
③
HDCP
HDCP compliance indicator:
OFF: No HDMI traffic(no picture)
GREEN: Traffic with HDCP
Blinking GREEN: Traffic without HDCP
④
LINK
HDBT Link status indicator:
OFF: No Link
GREEN: Link successful
Blinking GREEN: Link problem
⑤
ON
Working status indicator:
OFF: Not operational
Blinking GREEN: Normal operation
⑥
Transmission
Mode Switcher
Activate 100m/ 150m transmission mode.
100m mode: 4Kx2K@60Hz and 1080P signals can be
transmitted up to 100m
150m mode: 1080P signal can be transmitted up to 150m,
FW HDCP LINK ON
ON / OFF100m / 150m
ARCMODE
1 2 3 4 5 6 7
Tx Rx
R
L
8 9 10 11 12 13 14 15 16

Ultra-thin HDBaseT2.0 Extender Set
Altimium 3 www.altimium.com
but do not support 4K signal.
Note: After setting switch position, the mode will not take effect
until units are restarted. Please set both ends identical.
⑦
ARC Switcher
ON: Enable ARC function
OFF: Disable ARC function
⑧
ETHERNET
Ethenet port, work as Ethernet Switch together with three
Ethenet ports on rear panel of Receiver. Connect any one with
a router, the other 3 ports are able to access LAN.
⑨
HDBT
OUT/PoH
Connect to the HDBT IN/PoH port on rear panel of the
Receiver via CAT5e/ CAT6a cable, compliant with HDBT2.0
and support bi-directional PoH.
⑩
HDMI IN
Connect with HDMI source
⑪
AUDIO OUT
Analog audio output port, connect with an AV amplifier to play
analog audio which its format is PCM.
⑫
SPDIF OUT
Digital audio output port, connect with an AV amplifier to play
digital audio.
⑬
IR IN
Connect with 5V IR receiver to collect infrared signal, work with
far-end IR OUT port
⑭
IR OUT
Connect with IR Emitter to send infrared signal, work with
far-end IR IN port
⑮
RS232
Serial port, connects with control device or device to be
controlled, supports bi-directional RS232 control
⑯
DC 12V
Connect with a DC12V 2A power adapter.
Pictures for reference only, subject to our existing products.

Ultra-thin HDBaseT2.0 Extender Set
Altimium 4 www.altimium.com
2.2 Receiver
Figure 2-2 Panel Description of Receiver
No.
Name
Description
①
FW
Micro USB port, used for firmware update.
Firmware updated need auxiliary equipment, please contact
with our after-sales department for more details.
②
Power
Power indicator:
OFF：No power
RED：DC power present
③
HDCP
HDCP compliance indicator:
OFF: No HDMI traffic(no picture)
GREEN: Traffic with HDCP
Blinking GREEN: Traffic without HDCP
④
LINK
HDBT Link status indicator:
OFF: No Link
GREEN: Link successful
Blinking GREEN: Link problem
⑤
ON
Working status indicator:
OFF: Not operational
Blinking GREEN: Normal operation
⑥
Transmission
Mode Switcher
Activate 100m/ 150m transmission mode.
100m mode: 4Kx2K@60Hz and 1080P signals can be
transmitted up to 100m
150m mode: 1080P signal can be transmitted up to 150m,
but do not support 4K signal.
FW HDCP LINK ON
ON / OFF100m / 150m
ARCMODE
1 2 3 4 56 7
Tx Rx
8 9 10 11 12 13 14 15

Ultra-thin HDBaseT2.0 Extender Set
Altimium 5 www.altimium.com
Note: After setting switch position, the mode will not take effect
until units are restarted. Please set both ends identical.
⑦
ARC Switcher
ON: Enable ARC function
OFF: Disable ARC function
⑧
ETHERNET
Three Ethenet ports, work as Ethernet Switch together with
the ETHERNET port on rear panel of Transmitter.Connect any
one with a router, the other 3 ports are able to access LAN.
⑨
HDBT IN/ PoH
Connect to the HDBT OUT/PoH port on the Transmitter via
CAT5e/ CAT6a cable, compliant with HDBT2.0 and support
bi-directional PoH
⑩
HDMI OUT
Connect with HDMI display
⑪
SPDIF IN
Digital audio input ports, work with SPDIF OUT on Transmitter.
Note: This port only can be used under ARC OFF mode.
⑫
IR IN
Connect with 5V IR receiver to collect infrared signal, work with
far-end IR OUT port
⑬
IR OUT
Connect with IR Emitter to send infrared signal, work with
far-end IR IN port
⑭
RS232
Serial port, connects with control device or device to be
controlled, supports bi-directional RS232 control
⑮
DC 12V
Connect with a DC12V 2A power adapter.
Pictures for reference only, subject to our existing products.

Ultra-thin HDBaseT2.0 Extender Set
Altimium 6 www.altimium.com
3. System Connection
3.1 Usage Precautions
1) System should be installed in a clean environment and has a prop temperature and
humidity.
2) All of the power switches, plugs, sockets and power cords should be insulated and
safety.
3) All devices should be connected before power on.

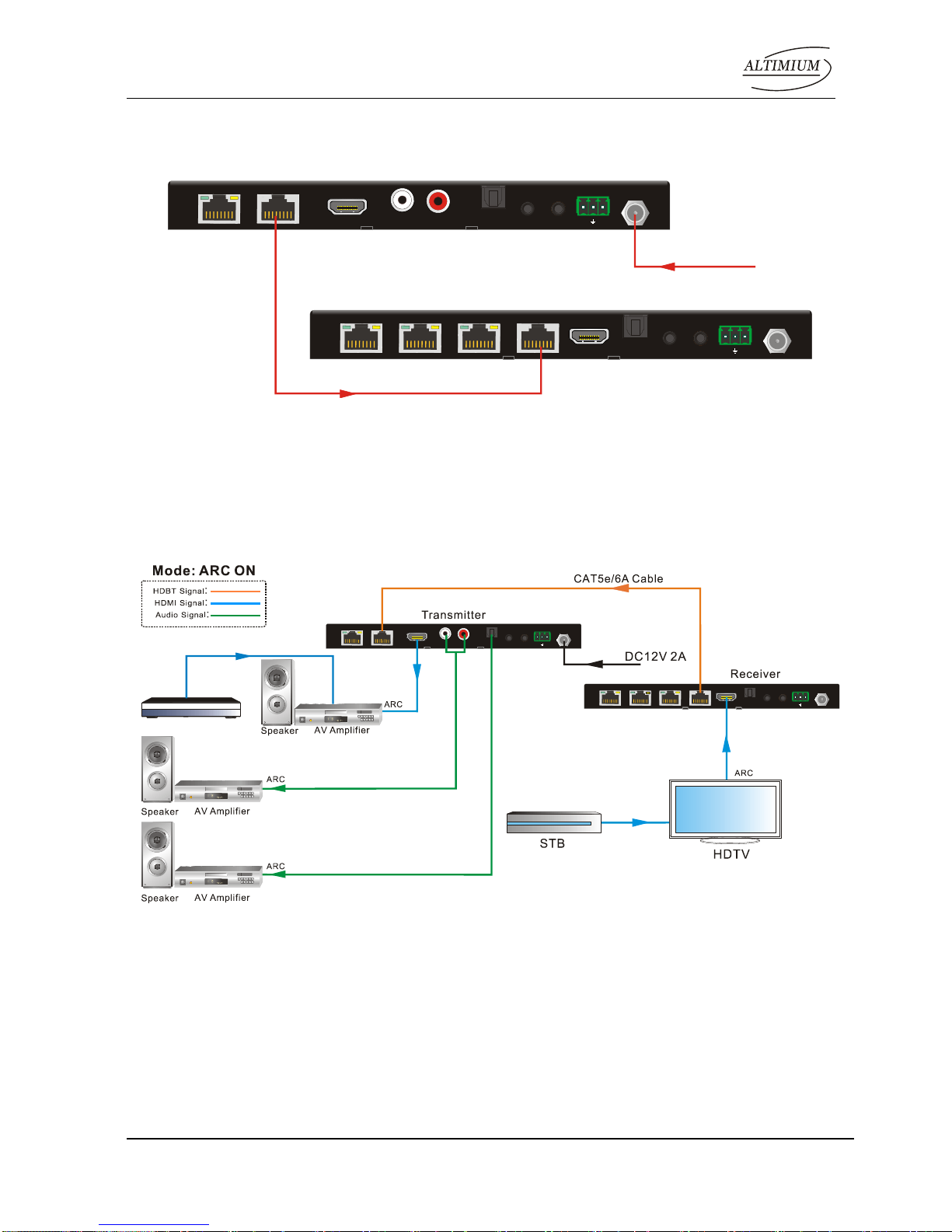

3.2 System Diagram
Figure 3-1 System Diagram
3.3 Connection Procedure
Step1.Connect HDMI source (such as Blue-ray DVD) to HDMI IN port of the transmitter
with an HDMI cable.
Step2.Connect HDBT OUT/PoH port of the transmitter to HDBT IN/PoH port of the
receiver through a straight-thru CAT5e/CAT6a cable.
Step3.Connect a HDMI displayer (such as HDTV) to HDMI OUT and SPDIF IN port of
the receiver with HDMI cable and digital audio cable.
Step4.Connect an AV amplifier to AUDIO OUT or SPDIF OUT of Transmitter.
Step5.Connect speakers to AV amplifier.
Ethernet
PC
Tx Rx
R
L
Tx Rx
Standby

Ultra-thin HDBaseT2.0 Extender Set
Altimium 7 www.altimium.com
Step6.When using the bi-directional IR control, do the following:
a) Connect the IR emitter at either end to the IR OUT port on either the
transmitter or the receiver.
b) When using a powered IR receiver, connect via a 3.5 mm stereo plug to the
IR IN on either the receiver or the transmitter.
Step7.When using the bi-directional RS232 control, do the following:
a) Connect PC to the RS232 port at either the transmitter or the receiver.
b) Connect a third-party device (such as projector) need to be controlled to the
RS232 port at the other end.
c) Send RS232 commands to control the third-party device. For more details
about RS232 commands, please refer to the user manual for the third-party
device.
Step8.Connect an Ethernet Router to any one of the 4 Ethernet ports to access
Ethernet.
In this case, PCs connected to the other 3 Ethernet ports should set to static IP.
Step9.Connect with power adaptor to DC 12V port of either Transmitter or Receiver, the
other end will be energized synchronously with PoH solution.

1) System Diagram shown in this manual are for reference only, more specific
schemes depend on real devices.
2) Connect HDBT ports via straight-thru CAT5e/6 cable with TIA/EIAT568B standard
terminations at both ends.
3) RS232 communication protocol: Baud Rate: 9600; data bit: 8; stop bit: 1; parity:
none. This product receives RS232 control from devices with various baud rate
(2400, 4800, 9600, 19200, 38400, 57600, 115200).
4) HDBT ports can work with our company’s HDBT devices that has same power
supply solution.
5) Make sure the switchers on front panel are in the necessary status.
6) Reboot the device if the switcher status has changed.
3.4 PoH Solution
This product boasts HDBT port which support PoH. Besides carrying uncompressed
1080p or 4K video signals, high-resolution lossless audio, Ethernet, and two-way IR or
RS-232 control signals over a single Cat 5e/Cat 6 cable, it transfers DC power over a
single network cable to a distance up to 150 meters (m) bi-directionally.
Connect the DC adapter to either the transmitter or the receiver, the other end is able to

Ultra-thin HDBaseT2.0 Extender Set
Altimium 8 www.altimium.com
be energized synchronously (see in the following figure):
Figure 3-2 PoH Solution Diagram
3.5 ARC Solution
This product boast ARC (Audio Return Channel) function, which enables a display via a
single audio/ HDMI cable, to send (upstream) audio to amplifiers/ speakers, increasing
user flexibility. Connect the devices abiding by the following figure:
Figure 3-3 ARC Solution Diagram

1) When using ARC feature, please connect the amplifier via HDMI cable.
2) All utilized devices including the HDMI cable should support ARC.
3) Make sure the ARC switcher is switched to ON when using ARC function.
Tx Rx
R
L
Tx Rx
Receiver
Transmitter
DC12V 2A
Tx Rx
R
L
Tx Rx
Blu-ray DVD

Ultra-thin HDBaseT2.0 Extender Set
Altimium 9 www.altimium.com
3.6 Application
Compliant with HDBT2.0, this product has a good application in occasions where
high-definition AV distribution, long-distance transmission, Ethernet Switch are needed,
such as computer realm, monitoring, big screen displaying, meeting room, education
and bank & securities institution etc.

Ultra-thin HDBaseT2.0 Extender Set
Altimium 10 www.altimium.com
4. Specification
Model
Spec
Transmitter
Receiver
Audio& Video
Input
1 x HDMI (19 pin Type-A male)
1 x HDBT (RJ45 female)
1 x Digital audio (SPDIF)
Output
1 x HDBT (RJ45 female)
1 xAnalog audio (RCA)
1 x Digital audio (SPDIF)
1 x HDMI (19 pin Type-A
male)
Signal Standard
HDMI1.4& HDCP2.2
HDMI1.4& HDCP2.2
Transmission Mode
HDBaseT
Audio Format
HDMI Embedded audio: PCM/Dolby Digital/DTS/DTS-HD
Analog Audio: PCM
Digital Audio: PCM/Dobly Digital/DTS/DTS-HD
Control
Input
1 x IR IN (3.5mm mini jack)
1 x IR IN (3.5mm mini jack)
Output
1 x IR OUT (3.5mm mini jack)
1 x IR OUT (3.5mm mini
jack)
Other
1 x Ethernet (RJ45 female)
1 x RS232 (3-pin pluggable
terminal block)
3 x Ethernet (RJ45 female)
1 x RS232 (3-pin pluggable
terminal block)
General
Transmission
Distance
1080p≤150m;
4Kx2K≤100m
Temperature
0~ 50℃
Reference Humidity
10% ~ 90%
Power Supply
Input:100V~240V AC
Output: DC 12V 2A
Power Consumption
6w
8w
Dimension (W*H*D)
196*19*100
196*19*100

Ultra-thin HDBaseT2.0 Extender Set
Altimium 11 www.altimium.com
(mm)
Weight (g)
294
335
All nominal levels are at ±10%.
4.1 Supported Resolution
4Kx2K
4096x2160@30Hz, 3840x2160 (30Hz/24Hz/25Hz/50Hz/60Hz)
16:9
1080P 3D, 1920x1080@60Hz, 1600x900@60Hz, 1366x768@60Hz,
1280x720@60Hz, 1024x576@60Hz
16:10
1920x1200@60Hz, 1680x1050@60Hz, 1440x900@60Hz,
1360x768@60Hz, 1280x800@60Hz
4:3
1600x1200@60Hz, 1400x1050@60Hz, 1280x1204@60Hz,
1024x768@60Hz, 800x600@60Hz, 640x480@60Hz
This product supports 4k&1080p 3D HDMI signal, please adopt high-quality HDMI
cables compliant with HDMI1.4 for optimum range and performance.

Ultra-thin HDBaseT2.0 Extender Set
Altimium 12 www.altimium.com
5. Panel Drawing
Figure 5-1 Transmitter
Figure 5-2 Receiver
DC 12V IR IN IR OUT RS232
FW HDCP LINK ON
ETHERNET HDMI IN SPDIF OUT AUDIO OUT HDBT OUT/PoH
TP503PT-4K
Tx Rx
R
L
FW HDCP LINK ON
ON / OFF100m / 150m
ARCMODE
100mm
196 mm
19mm
DC 12V IR IN IR OUT RS232
FW HDCP LINK ON
SPDIF IN HDMI OUT HDBT IN/PoH ETHERNET
TP503PR-4K
Tx Rx
FW HDCP LINK ON
ON / OFF100m / 150m
ARCMODE
196 mm
100mm
19 mm

Ultra-thin HDBaseT2.0 Extender Set
Altimium 13 www.altimium.com
6. Troubleshooting & Maintenance
Problems
Causes
Solutions
No reaction to any
operation, power
indicator is off
Haven’t been powered on.
Insert power adapter to
either end.
The poor quality of network
cable.
Should the replacement
CAT5e/CAT6a cable of
high quality.
Abnormal indication
of the status LEDs
Wrong specification of the power
adapter.
Change for DC 12V 2A
power adapter.
Color lose or poor
picture quality
Signal loss caused by long
transmission distance beyond
effective value.
Switch the transmission
mode switcher to 150m,
make sure the connecting
cable is within 150m and of
good quality.
Bad quality of the HDMI cable.
Ensure the HDMI cables
used at source, transmitter,
receiver and display are
properly connected and are
of good quality.
HDMI cables are too long to
transmit 4K HDMI signal
successfully.
The longest HDMI cable is 8m
for 4K input signal, and 20m for
4K output signal.
Shorten the length of HDMI
cables.
No video output
Communication cables has no
connection or bad connection.
Recheck all cables and
ports.
The display that you use is
incompatible with this device.
It is recommended that you
use mainstream display.
No digital audio
output
Input source and output device
are connected to the wrong
ports.
Check again and make
sure input source and
output device are
connected correctly.
Audio Output device don’t
support the audio format.
Change for other output
devices that support the
audio formats listed in

Ultra-thin HDBaseT2.0 Extender Set
Altimium 14 www.altimium.com
Specifications.
No analog audio
output
Audio OUT port (RCA connector)
only support PCM format.
Change for other audio
input device that support
PCM format.
Cannot use ARC
function
ARC switcher is dialed to OFF
Dial the switcher to ON.
Devices or cables utilized don’t
support ARC
Change for devices/ cables
that support ARC
Cannot work as an
Ethernet Switch. PCs
cannot connect to the
internet.
The DHCP switch of Router is
turned on, but the IP address of
PCs are static.
Recheck all PCs and set
these Pcs to use dynamic
IP mode.
The DHCP switch of Router is
turned off, but the IP address of
PCs are dynamic.
Recheck all PCs and set
these Pcs to use static IP
mode and make sure the
difference of IP addresses
to avoid IP address conflict.
Network or server failure.
Please contact to your
Internet Service Provider.
Cannot use the
device
the device is broken
Send it to authorized
dealer for repairing.
If your problem persists after following the above troubleshooting steps, seek further
help from authorized dealer or our technical support.

Ultra-thin HDBaseT2.0 Extender Set
Altimium 15 www.altimium.com
7. After-sales Service
If there appear some problems when running the device, please check and deal with the
problems reference to this user manual.
1) Product Limited Warranty: We warrants that its products will be free from defects
in materials and workmanship for three years, which starts from the first day the
product leaves warehouse (check the SN mark on the product).
Proof of purchase in the form of a bill of sale or receipted invoice must be presented
to obtain warranty service.
2) What the warranty does not cover:
Warranty expiration.
Factory applied serial number has been altered or removed from the product.
Damage, deterioration or malfunction caused by:
Normal wear and tear
Use of supplies or parts not meeting our specifications
No certificate or invoice as the proof of warranty.
The product model showed on the warranty card does not match with the
model of the product for repairing or had been altered.
Damage caused by force majeure.
Servicing not authorized.
Other causes which does not relate to a product defect.
Delivery, installation or labor charges for installation or setup of the product.
3) Technical Support: Email to our after-sales department or make a call, please
inform us the following information about your cases.
Product version and name.
Detailed failure situations.
The formation of the cases.
Remarks: For any questions or problems, please try to get help from your local
distributor.

ALTIMIUM
587 Avenue Blaise Pascal
77550 MOISSY-CRAMAYEL
Tél : [phone]
Fax: [phone]
Mail: [e-mail]
Web: www.altimium.com
