Altimium TP70L User manual

TP70L
HDBaseT Extender
All Rights Reserved
Version: TP70L2016V1.1
User Manual

HDBaseT Extender
Altimium www.altimium.com
Preface
Read this user manual carefully before using this product. Pictures shown in this manual
is for reference only, different model and specifications are subject to real product.
This manual is only for operation instruction only, not for any maintenance usage. The
functions described in this version are updated till December 2016. Any changes of
functions and parameters since then will be informed separately. Please refer to the
dealers for the latest details.
All product function is valid till 2016-12-2.
Trademarks
Product model and logo are trademarks. Any other trademarks mentioned in this manual
are acknowledged as the properties of the trademark owner. No part of this publication
may be copied or reproduced without prior written consent.
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. It has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a commercial
installation.
Operation of this equipment in a residential area is likely to cause interference, in which
case the user at their own expense will be required to take whatever measures may be
necessary to correct the interference
Any changes or modifications not expressly approved by the manufacture would void
the user’s authority to operate the equipment.

HDBaseT Extender
Altimium www.altimium.com
SAFETY PRECAUTIONS
To insure the best from the product, please read all instructions carefully before using
the device. Save this manual for further reference.
Unpack the equipment carefully and save the original box and packing material for
possible future shipment
Follow basic safety precautions to reduce the risk of fire, electrical shock and injury
to persons.
Do not dismantle the housing or modify the module. It may result in electrical shock
or burn.
Using supplies or parts not meeting the products’ specifications may cause damage,
deterioration or malfunction.
Refer all servicing to qualified service personnel.
To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this
product near water.
Do not put any heavy items on the extension cable in case of extrusion.
Do not remove the housing of the device as opening or removing housing may
expose you to dangerous voltage or other hazards.
Install the device in a place with fine ventilation to avoid damage caused by
overheat.
Keep the module away from liquids.
Spillage into the housing may result in fire, electrical shock, or equipment damage. If
an object or liquid falls or spills on to the housing, unplug the module immediately.
Do not twist or pull by force ends of the optical cable. It can cause malfunction.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to
the device before cleaning.
Unplug the power cord when left unused for a long period of time.
Information on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as normal electrical wastes.

HDBaseT Extender
Altimium www.altimium.com
Contents
1. Introduction.................................................................................................................1
1.1 Introduction to TP70L ......................................................................................1
1.2 Features ............................................................................................................1
1.3 Package List......................................................................................................1
2. Panel Description........................................................................................................2
2.1 Transmitter.........................................................................................................2
2.2 Receiver ............................................................................................................3
3. System Connection.....................................................................................................4
3.1 Usage Precautions............................................................................................4
3.2 System Diagram................................................................................................4
3.3 Connection Procedures.....................................................................................4
3.4 Application.........................................................................................................5
4. Specification ...............................................................................................................6
5. Panel Drawing ............................................................................................................7
6. Troubleshooting & Maintenance .................................................................................8
7. After-sales Service......................................................................................................9

HDBaseT Extender
Altimium 1 www.altimium.com
1. Introduction
1.1 Introduction to TP70L
Low-cost TP70L is a mini-size extender set consists of a Transmitter and a Receiver.
HDMI signals are input into the transmitter and HDBaseT technology is used to
transmit high-resolution 1080p/ 4k signal to the receiver up to 70/40m via a Cat5e/
Cat6A cable. The receiver then outputs the HDMI signal.
Unidirectional IR and PoC power is also transmitted across the Cat5e/Cat6A cable.
1.2 Features
Low-cost & ultrathin design.
Support HDMI1.4 & HDCP1.4, capable to transmit 4Kx2K@30Hz & 1080p
Transmit 4Kx2K signal for 8m via HDMI port, 40m via HDBT port.
Transmit 1080P signal for 15m via HDMI port, 70m via HDBT port.
The Receiver are powered by the transmitter 12VDC by PoC technology.
Support unidirectional IR control
Support HDMI LOOP output
High Bandwidth: 10.2Gbps.
Easy installation with rack-mounting design.
1.3 Package List
1 x TP70Lincluding Transmitter & Receiver)
4 x Mounting Brackets
8 x Screws
8 x Rubber Feet
1 x Power Adapters (DC 12V 2A)
1 x IR Emitter
1 x IR Receiver
1 x User Manual
Please confirm if the product and the accessories are all included, if not, please
contact with the dealers.

HDBaseT Extender
Altimium 2 www.altimium.com
2. Panel Description
2.1 Transmitter (TP70LT)
Figure 2- 1 Transmitter
No.
Name
Description
①
Power
Illuminates red when powered on
②
IR OUT
Connect with IR Emitter to send infrared signal, work with the IR IN
port of Receiver.
③
HDBT OUT
RJ45 connector with green & yellow indicators. Connect to the
HDBT IN socket on the Receiver via CAT5e/ CAT6A cable, support
unidirectional PoC.
HDCP compliant indicator
OFF: No HDMI traffic (no picture)
GREEN: Traffic with HDCP.
Blinking GREEN: Traffic without HDCP
HDBT Link status indicator:
OFF: No Link
YELLOW: Link Successful
Blinking YELLOW: Link abnormal
④
HDMI
LOOP
Connect with HDMI display.
⑤
HDMI IN
Connect with HDMI source
⑥
DC 12V
Insert a DC 12V 2A power adapter here.
TX
LINK
HDCP
HDMILOOP
HDBT OUT
IROUTHDMIINDC12V
2
13456

HDBaseT Extender
Altimium 3 www.altimium.com
2.2 Receiver (TP70LR)
Figure 2- 2 Receiver
No.
Name
Description
①
Power
indicator
Illuminates red when powered on
②
IR IN
Connect with IR receiver to collect infrared signal, work with the
IR OUT port of Transmitter.
③
HDBT IN
Connect to the HDBT OUT socket on the Transmitter via CAT5e/
CAT6A cable.
④
HDMI OUT
Connect with HDMI display.
Pictures shown in this manual are only for reference.
RX
LINK
HDCP
1234
HDMIOUT
HDBT IN
IRIN

HDBaseT Extender
Altimium 4 www.altimium.com
3. System Connection
3.1 Usage Precautions
1) System should be installed in a clean environment and has a prop temperature and
humidity.
2) All of the power switches, plugs, sockets and power cords should be insulated and
safety.
3) All devices should be connected before power on.
4) Use shielded straight-thru Cat5e/Cat6A cable with TIA/EIA T568B terminations for
good transmission effect.

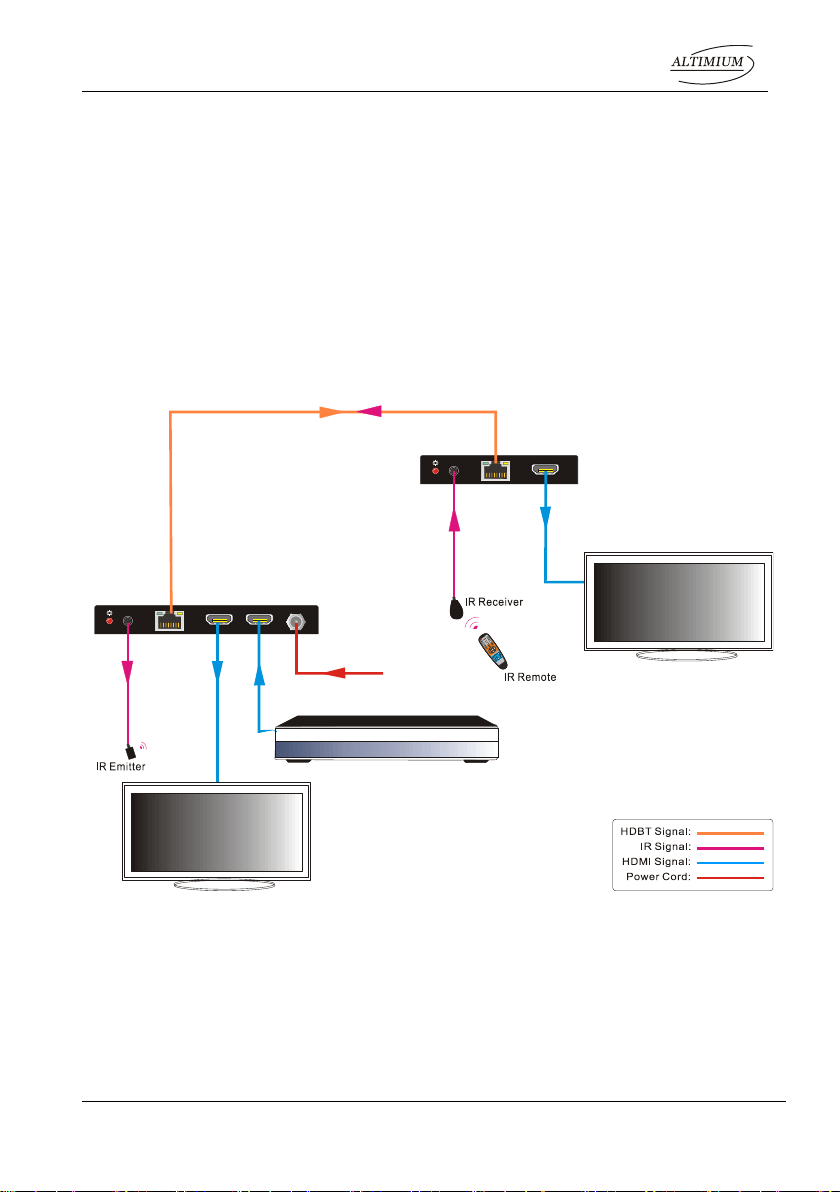

3.2 System Diagram
Figure 3- 1 System Connection
3.3 Connection Procedures
Step1.Connect HDMI source (such as Blue-ray DVD) to HDMI IN port of the Transmitter
with an HDMI cable.
Step2.Connect HDBT OUT port of the Transmitter to HDBT IN port of the Receiver
through a CAT5e/CAT6A cable.
LINK
HDCP
LINK
HDCP
Transmitter
Receiver
HDTV
Blu-ray DVD
CAT5e/ 6 Cable
HDMI Cable
DC 12V
HDMI Cable
Standby
HDTV

HDBaseT Extender
Altimium 5 www.altimium.com
Step3.Connect a HDMI displays (such as HDTVs) to HDMI OUT port of the Transmitter
and Receiver with HDMI cables.
Step4.When using IR control, do the following.
a) Connect an IR receiver to the IR IN port of Receiver.
b) Connect an IR Emitter to the IR OUT port of Transmitter.
Step5.Connect a DC 12V power adaptor to the power port of the transmitter; the
receiver will be energized synchronously.
3.4 Application
TP70L has a good application in various occasions, such as computer realm,
monitoring, big screen displaying, meeting room, education and bank & securities
institution etc.

HDBaseT Extender
Altimium 6 www.altimium.com
4. Specification
Model
Spec
Transmitter (TP70LT)
Receiver (TP70LR)
Input
Signal
1 x HDMI IN
1 x IR IN,
1 x HDBT IN
Connector
1 x 19-pin Type-A female HDMI
1 x 3.5mm mini jack
1 x RJ-45
Output
Output
1 x HDMI OUT;
1 x IR OUT;
1 x HDBT OUT
1 x HDMI OUT
Connector
1 x 19-pin Type-A female HDMI
1 x 3.5mm mini jack;
1 x RJ-45
1 x 19-pin Type-A female HDMI
General
Resolution
Range
Up to 4K×2K@30Hz
Transmission
Mode
HDBaseT
Transmission
Distance
1080P@60Hz ≤70m
4Kx2K@30Hz ≤40m
Bandwidth
10.2Gbps
HDMI
Standard
HDMI1.4 and HDCP1.4
Temperature
0~ 50℃
Reference
Humidity
10% ~ 90%
Power Supply
DC 12V, 2A
Power
Consumption
11W(Max)
Dimension
(W*H*D)
128 x 16x 84 mm
90 x 16x 84 mm
Weight
157g
116g
All nominal levels are at ±10%.

HDBaseT Extender
Altimium 7 www.altimium.com

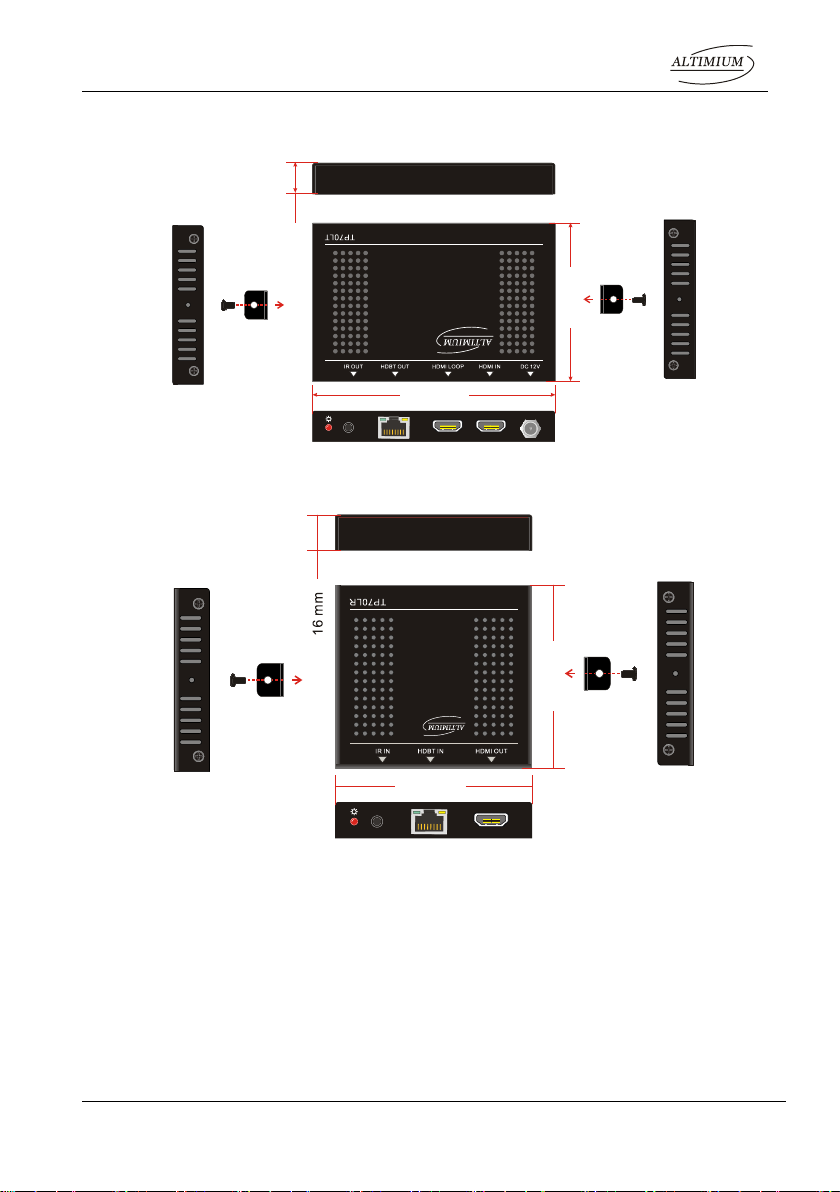

5. Panel Drawing
5-1 Transmitter (TP70LT)
5-2 Receiver (TP70LR)
TX
LINK
HDCP
128 mm
84 mm
16 mm
RX
LINK
HDCP
HDMIOUT
HDBT IN
IRIN
90 mm
84 mm

HDBaseT Extender
Altimium 8 www.altimium.com
6. Troubleshooting & Maintenance
No image on display:
Ensure that the display device has been set to the correct input.
Ensure that the HDMI cables used for both the Source/Transmitter and the
Receiver/Display are properly connected and are working. Test the HDMI cables
directly from a source to display and ensure their operation.
Ensure that the Cat5e/Cat6a cable has not been damaged and that it has been
terminated correctly with T568B on both ends. A temporary length of Cat5e/Cat6
can be used for testing to ensure that the devices are all compatible and working
properly.
Ensure proper grounding of the power supply.
Known issues with HDMI 1.2 source devices:
Older compatibility (HDMI 1.2) may result in HDBaseT transmission issues.
Please contact our Technical Support for a solution to these issues.
Color lose or poor picture quality:
Ensure that the HDMI cables used for both the source and Transmitter and the
Receiver and display are properly connected and are of good quality. Test the
HDMI cables directly from a source to display and ensure their picture quality.
Ensure proper grounding of the power supply.
If the static becomes stronger or picture quality becomes worse when connecting
the video connectors, this may be due to improper grounding.
Check the grounding and make sure all the components are properly grounded
to a common ground. Improper grounding may cause damage to the Receiver.
If your problem persists after following the above troubleshooting steps, seek further
help from authorized dealer or our technical support.

HDBaseT Extender
Altimium 9 www.altimium.com
7. After-sales Service
If there appear some problems when running the device, please check and deal with
the problems reference to this user manual. Any transport costs are borne by the users
during the warranty.
1) Product Limited Warranty: We warrants that its products will be free from
defects in materials and workmanship for three years, which starts from the first
day the product leaves warehouse (check the SN mark on the product).
Proof of purchase in the form of a bill of sale or receipted invoice must be
presented to obtain warranty service.
2) What the warranty does not cover:
Warranty expiration.
Factory applied serial number has been altered or removed from the product.
Damage, deterioration or malfunction caused by:
Normal wear and tear
Use of supplies or parts not meeting our specifications
No certificate or invoice as the proof of warranty.
The product model showed on the warranty card does not match with the
model of the product for repairing or had been altered.
Damage caused by force majeure.
Servicing not authorized
Any other causes which does not relate to a product defect
Delivery, installation or labor charges for installation or setup of the product
3) Technical Support: Email to our after-sales department or make a call, please
inform us the following information about your cases.
Product version and name.
Detailed failure situations.
The formation of the cases.
Remarks: For any questions or problems, please try to get help from your local
distributor.

ALTIMIUM
587 Avenue Blaise Pascal
77550 MOISSY-CRAMAYEL
Tél : [phone]
Fax: [phone]
Mail: [email protected]
Web: www.altimium.com
