Altimium WFH130 User manual

WFH130
Wireless HDMI Extender
All Rights Reserved
Version: WFH130_2019V1.0
User Manual

Wireless HDMI Extender
Altimium www.altimium.com
Preface
Read this user manual carefully before using the product. Pictures shown in this manual
are for reference only. Different models and specifications are subject to real product.
This manual is only for operation instruction, please contact the local distributor for
maintenance assistance. The functions described in this version were updated till
September, 2019. In the constant effort to improve the product, we reserve the right to
make functions or parameters changes without notice or obligation. Please refer to the
dealers for the latest details.
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. It has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a commercial
installation.
Operation of this equipment in a residential area is likely to cause interference, in which
case the user at their own expense will be required to take whatever measures may be
necessary to correct the interference.
Any changes or modifications not expressly approved by the manufacture would void
the user’s authority to operate the equipment.

Wireless HDMI Extender
Altimium www.altimium.com
SAFETY PRECAUTIONS
To ensure the best performance from the product, please read all instructions carefully
before using the device. Save this manual for further reference.
Unpack the equipment carefully and save the original box and packing material for
possible future shipment.
Follow basic safety precautions to reduce the risk of fire, electrical shock and injury
to persons.
Do not dismantle the housing or modify the module. It may result in electrical shock
or burn.
Using supplies or parts not meeting the products’ specifications may cause damage,
deterioration or malfunction.
Refer all servicing to qualified service personnel.
To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this
product near water.
Do not put any heavy items on the extension cable in case of extrusion.
Do not remove the housing of the device as opening or removing housing may
expose you to dangerous voltage or other hazards.
Install the device in a place with fine ventilation to avoid damage caused by
overheat.
Keep the module away from liquids.
Spillage into the housing may result in fire, electrical shock, or equipment damage. If
an object or liquid falls or spills on to the housing, unplug the module immediately.
Do not twist or pull by force ends of the optical cable. It can cause malfunction.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to
the device before cleaning.
Unplug the power cord when left unused for a long period of time.
Information on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as normal electrical wastes.

Wireless HDMI Extender
Altimium www.altimium.com
Table of Contents
1. Product Introduction....................................................................................................1
1.1 Features ............................................................................................................1
1.2 Package List......................................................................................................1
2. Specification ...............................................................................................................2
3. Panel Description........................................................................................................4
3.1 Transmitter (Tx) .................................................................................................4
3.2 Receiver (Rx).....................................................................................................4
4. System Connection.....................................................................................................5
5. Default System Configuration.....................................................................................6
6. System Configuration..................................................................................................7
6.1 Preparation to connect to Web Server...............................................................7
6.2 Configuration Rx..............................................................................................12
6.3 Configuration Tx ..............................................................................................15
7. Troubleshooting & Maintenance ...............................................................................16
8. Customer Service .....................................................................................................17

Wireless HDMI Extender
Altimium 1 www.altimium.com
1. Product Introduction
The WFH130 is a wireless HDMI extension solution kit, it transmits full HD video up to
130m with low latency of 60~100ms as well as low power consumption.
It can be used at home theater, conference center, auditorium etc.
1.1 Features
Video resolution up to 1920x1080.
Supports 44.1/48 KHz, 16/24 bit audio signal transmission.
The transmission distance is up to 426ft/130m.
HDCP compliant.
Wide bandwidth: 12~25Mbps at 720P, 15~36Mbps at 1080P.
Allows multiple point to point transmission established in the same area.
Channel spectrum width: 20/40MHz.
No more than 3W power consumption for Tx or Rx.
1.2 Package List
Components
QTY
Specification
Transmitter (Tx)
1
64.0mm(L) x 87.0mm(W) x 24.5mm(H)
Receiver (Rx)
1
64.0mm(L) x 87.0mm(W) x 24.5mm(H)
Power Adapter
2
5V DC 1A
User Manual
1
Note: Please contact your distributor immediately if any damage or defect in the
components is found.

Wireless HDMI Extender
Altimium 2 www.altimium.com
2. Specification
Transmitter (Tx)
Video Input
(1) HDMI
Video Input Connector
(1) Type-A female HDMI
Power Input
(1) DCJACK, (1) DC5V
Power Input Connector
(1) DC Jack, (1) Micro-USB
Receiver (Rx)
Video Output
(1) HDMI
Video Output Connector
(1) Type-A female HDMI
Power Input
(1) DCJACK, (1) DC5V
Power Input Connector
(1) DC Jack, (1) Micro-USB
General
Video Standard
H.264
Resolution Support
All, 640x480~1920x1080
Interline CCD Method
Progressive Scanning
HDCP
Available
Factory Reset
Available
Audio Support
44.1KHz, 48KHZ, 16/24bit
Ethernet
1:1, unicast
Bandwidth
Still: 6~8Mbps
Video: 12~25Mbps at 720P, 15~36Mbps at 1080P
Ethernet Speed
10/100 (IEEE 802.11n)
Latency
720P, 1080P: 60~100ms
Network
LAN
User Configuration
Through Web-GUI, possible change IP
H/W Spec.
802.11n, 5GHz, 2T2R
Booting Time
38~40s
Speed of Change
Resolution
8s
Transmission Distance
up to 426ft/130m at 1080P
External Power Supply
100V~240V AC, 50/60Hz or 5VDC 1A
Power Consumption
Tx: 5V 580mA=2.9W
Rx: 5V 540mA=2.7W
Product Temperature
Rx: 37℃, Tx:49℃

Wireless HDMI Extender
Altimium 3 www.altimium.com
Operation Temperature
-10℃~ +55℃
Storage Temperature
-25℃~ +70℃
Relative Humidity
10% ~ 90%
Dimension (W*H*D)
87.0mm(W) x 24.5mm(H) x 64.0mm(D)
Net Weight
Tx/Rx: 225g

Wireless HDMI Extender
Altimium 4 www.altimium.com
3. Panel Description
3.1 Transmitter (Tx)
①IN: Type-A HDMI port to connect HDMI source
device.
②DCJACK: DC jack for external AC power supply
110V ~ 220V,50/60HZ
③DC5V: Micro-USB port for external 5V DC power
supply
④Power LED: The LED illuminates red when
power is applied.
⑤LINK LED: The LED blinks green when the
transmitter is successfully connected to the
receiver.
3.2 Receiver (Rx)
①OUT: Type-A HDMI port to connect HDMI display
device.
②DCJACK: DC jack for external AC power supply
110V ~ 220V,50/60HZ
③DC5V: Micro-USB port for external 5V DC power
supply
④Power LED: The LED illuminates red when
power is applied.
⑤LINK LED: The LED blinks green when the
receiver is successfully connected to the
transmitter.

Wireless HDMI Extender
Altimium 5 www.altimium.com
4. System Connection
Usage Precautions
Make sure all components and accessories included before installation.
System should be installed in a clean environment with proper temperature and
humidity.
All of the power switches, plugs, sockets, and power cords should be insulated and
safe.
All devices should be connected before power on.
The following diagram illustrates typical input and output connection that can be utilized
with the extender:
< Network Environment>
The extender is connected by wireless LAN as < Network Environment>.
The main process of the connection between the Tx and Rx is as follows:
1) Please connect the Tx (Transmitter) to the HDMI output of video source such as PC,
Set Top Box and etc.
2) Please connect the Rx (Receiver) to HDMI monitor or TV.
3) The Tx and the Rx are directly connected through the wireless network.
4) The red power LED of the device is on, if the power is set to the device.
5) The green link LED is blinking after the connection is established.

Wireless HDMI Extender
Altimium 6 www.altimium.com
<Table 1 Hardware Ports>
Hardware Ports
Transmitter (Tx)
Receiver (Rx)
HDMI connector
Input
Output
Video / Audio Data
WIFI (Antenna)
2T2R
2T2R
IEEE 802.11 abgn
Micro-B type USB
(OTG USB)
Power Charge
Power Charge
Only for power
charge, not for
KBD/Mouse/Storage
DC Jack
5V 1A
5V 1A
Tx –2.95W (typical)
Rx –2.40W (typical)
5. Default System Configuration
The extender has the default system configuration value by the Factory Reset.
<Table 2 Default Configuration Value>
Contents
Transmitter (Tx)
Receiver (Rx)
QIM Mode
Tx
Rx
Start Mode
AP
Station(Client)
Local IP Address
20.20.20.1
Station(Client)
Local Net Mask
255.255.255.0
255.255.255.0
SSID
QDM-3000
QDM-3000
Radio Channel
44ch (5.22GHz)
44ch (5.22GHz)

Wireless HDMI Extender
Altimium 7 www.altimium.com
6. System Configuration
6.1 Preparation to connect to Web Server

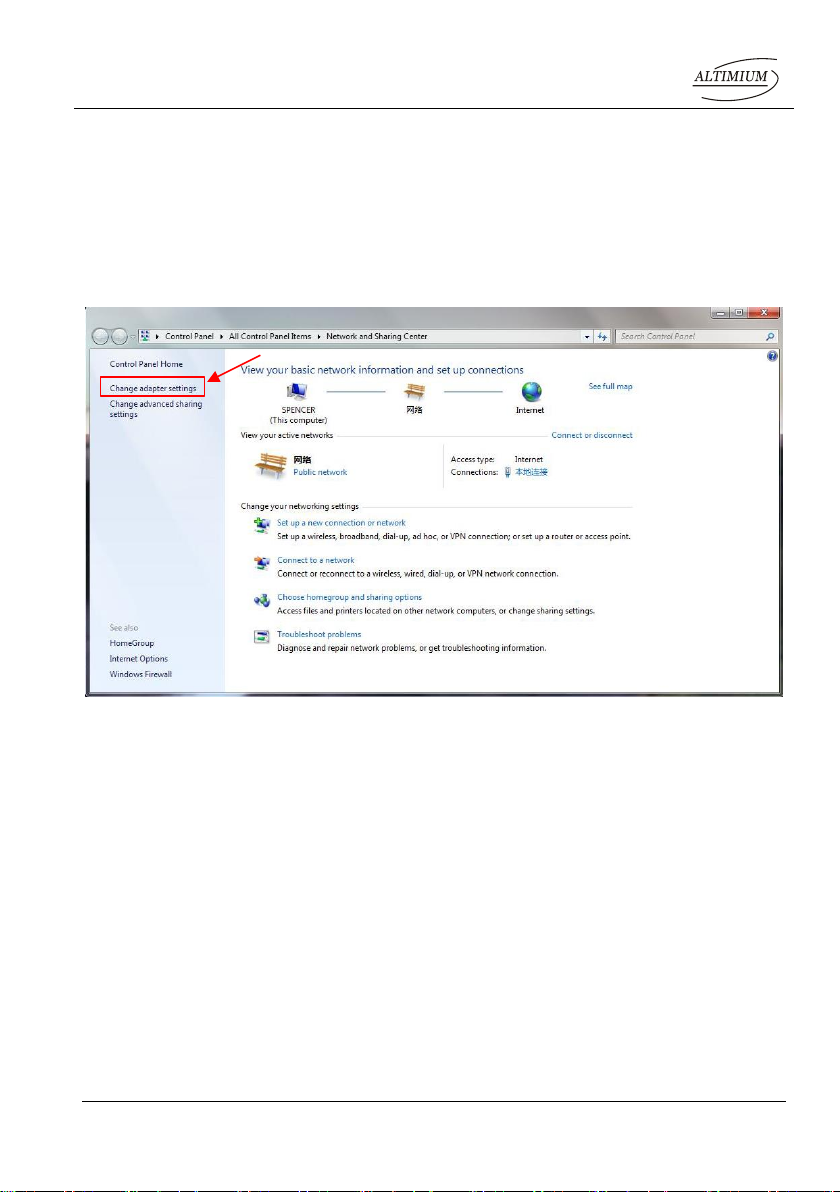

Step 1. In order to configure the Tx and Rx, use a PC with wireless LAN function.
Please use PC static IP to connect the web server. Go to “Control Panel -> All Control
Panel Items -> Network and Sharing Center -> Change adapter settings” (Microsoft
Windows version) to set the Static IP of the PC.

Wireless HDMI Extender
Altimium 8 www.altimium.com

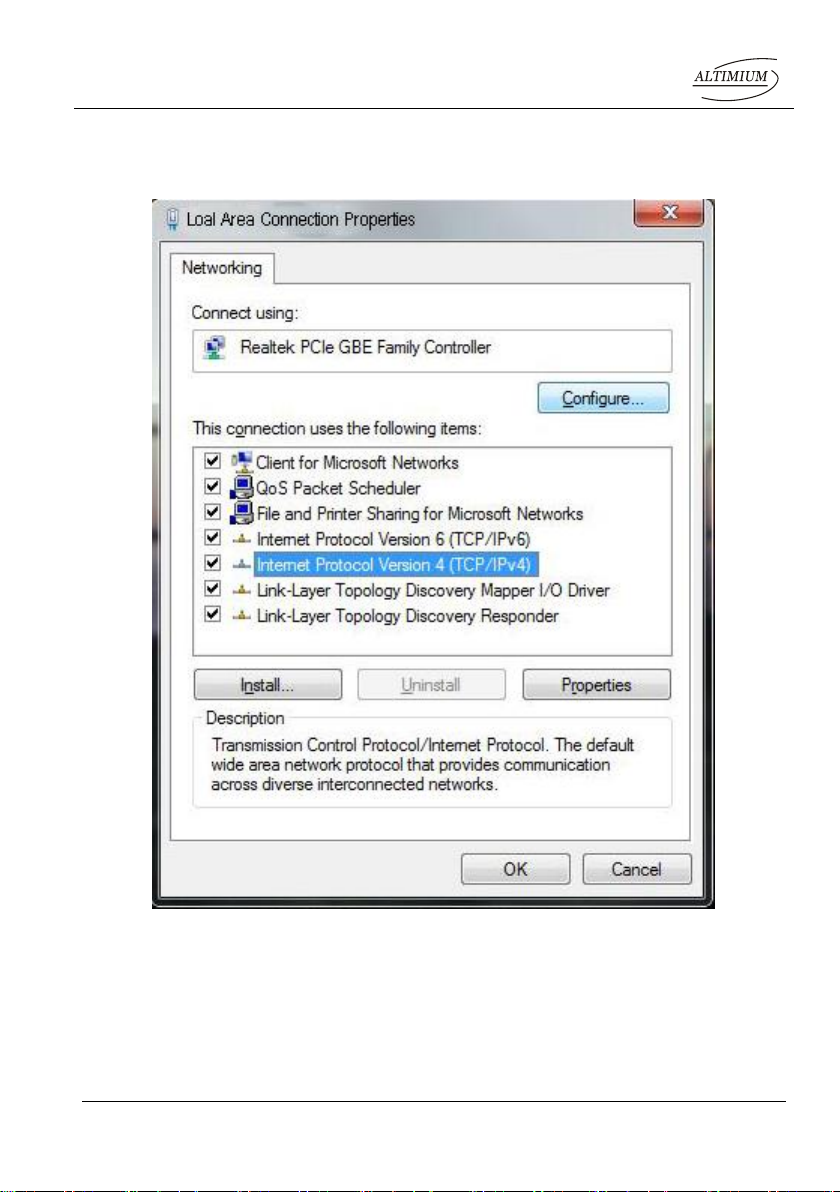

And then, click the properties of the Wireless Network in the “Network Connection‟ page.
Open “Internet Protocol Version 4 (TCP/IPv4)” on the tap of the Networking, and then
click the “Properties‟.

Wireless HDMI Extender
Altimium 9 www.altimium.com
Set the IP address and Subnet mask as the following figure.
Please check if the wireless network is connected to Tx SSID, “QDM-3000”.

Wireless HDMI Extender
Altimium 10 www.altimium.com

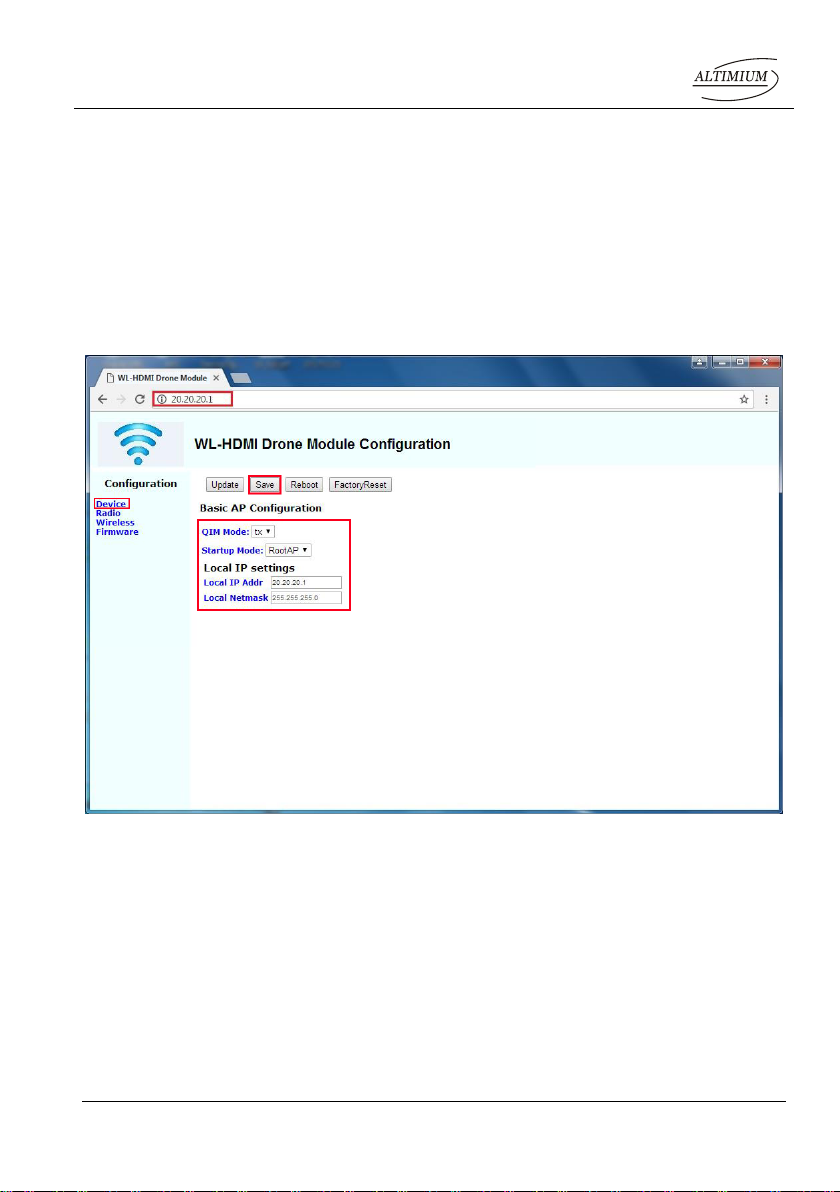

After the network setting of the PC, please power on the Tx and Rx. After pairing the
both of the devices, please type “20.20.20.1” in the web browser to configure the web
servers to configure Tx.

Wireless HDMI Extender
Altimium 11 www.altimium.com
Please type “20.20.20.2” in the web browser to configure the web servers to configure
Rx.
※ Attention: The basic connection of the web server is through the RootAP. To
connect the client web server with a browser, the RootAP should be alive and paired
with the client. They show that Startup Mode are RootAP and Client. If you change the
SSID in the RootAP, the PC has to connect to the SSID’s AP that has changed, not the
QDM-3000’s AP.

Wireless HDMI Extender
Altimium 12 www.altimium.com
6.2 Configuration Rx
1) The Tx and Rx should be connected properly. On the “20.20.20.2” page, please
select the “Device tap” on the left, and configure as below:
A. QIM Mode : rx
B. Startup Mode : Client
C. Local IP Addr : 20.20.20.2 (for example)
D. Local Netmask : 255.255.255.0
Click the “Save‟ button after all configuration.

Wireless HDMI Extender
Altimium 13 www.altimium.com

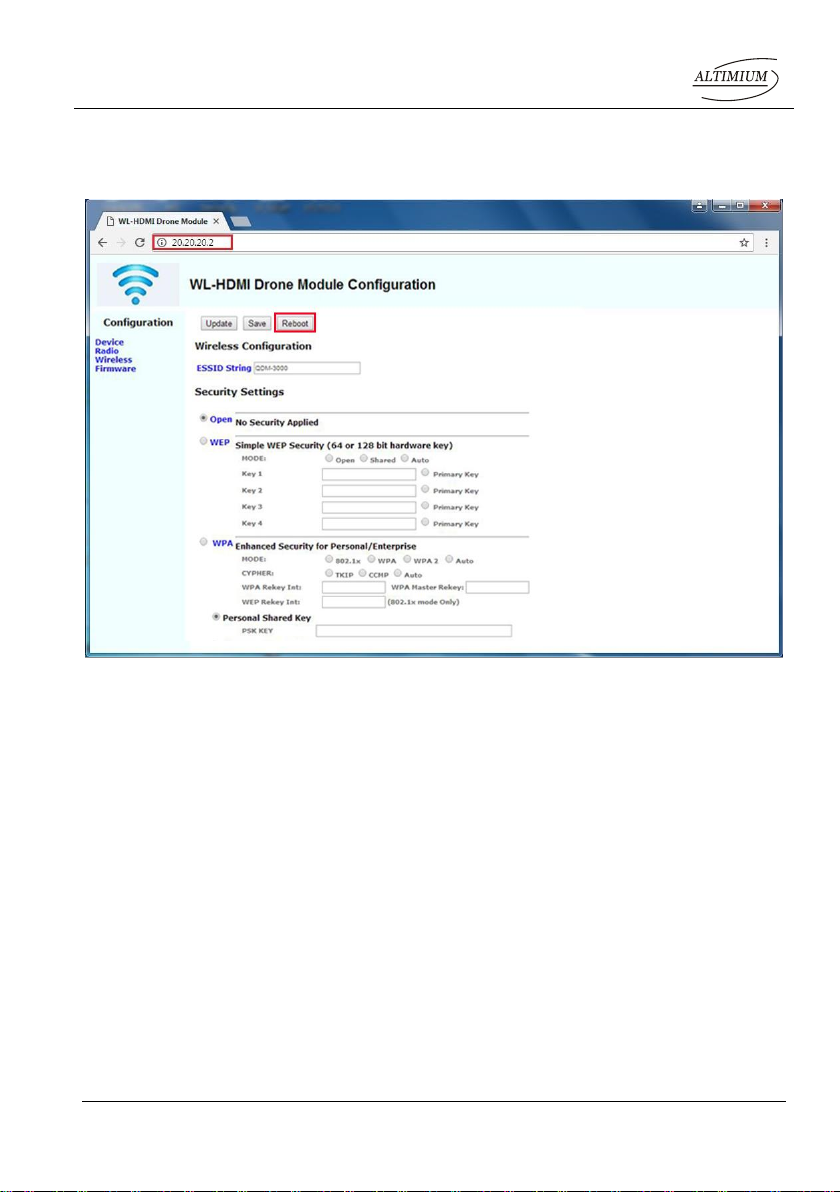

2) Please select “Wireless” tap on the left to configure SSID name. To be aware of both
of the Tx and Rx should connect to the same SSID.

Wireless HDMI Extender
Altimium 14 www.altimium.com
3) Please click the “Save‟ button after the configuration of the wireless part.
Subsequently, click the “Reboot‟ button to restart the Tx and Rx, and they will be
automatically paired and connected automatically.

Wireless HDMI Extender
Altimium 15 www.altimium.com
6.3 Configuration Tx
1) The Tx and Rx should be connected properly. On the “20.20.20.1” page, please
select the “Device tap” on the left, and configure as below:
A. QIM Mode : tx
B. Startup Mode : RootAP
C. Local IP Addr : 20.20.20.1 (for example)
D. Local Netmask : 255.255.255.0
2) To configure SSID, select “Wireless‟ tap, and then set a SSID, for example,
“QDM-3000”. The Tx and Rx are connected through this SSID network. The pair of
the devices should be the same SSID network. After the configuration, click the
“Save” button and click the “Reboot‟ button to restart the extender as the settings of
Rx.

Wireless HDMI Extender
Altimium 16 www.altimium.com
7. Troubleshooting & Maintenance
Problems
Potential Causes
Solutions
Color losing or no video
signal output on the HDMI
display.
The cables may be not
connected correctly or
maybe is broken.
Check the cables are
properly connected and
in the working condition.
No HDMI signal output in
the device while local HDMI
input is in normal working
status.
Output image with white
noise.
POWER indicator doesn’t
work or no respond to any
operation.
Loose or failed power cord
connection.
Double check the power
cord connection.
Note: If your problem still remaining after following the above troubleshooting steps,
please contact your local dealer or distributor for further assistance.
