Altman AFS-500 Instruction Manual

AFS-500 LED Follow Spot
Installation & User’s Manual

1
AFS-500 LED Follow Spot INSTALLATION INSTRUCTIONS / INSTRUCTIONS D’INSTALLATION
PREFACE
About These Instructions
The document provides basic information on installation and operational instructions for a qualified,
trained installer.These instructions provide information for the following product:
• AFS-500 LED Follow Spot
Note: Additional product information can be found on our web site at www.altmanlighting.com or
by scanning the QR code to the right.
Please read all instructions before installing or using this product. Retain these instructions for
future reference.
Have a question regarding these instructions?
The material in this document is for information purposes only and is subject to change without
notice. Altman Lighting assumes no responsibility for any errors or omissions which may appear in
this document. Should you find an error, have a suggestion or question regarding your Altman Lighting product, we would love to hear
from you.
You can reach us at:
Altman Lighting
57 Alexander Street
Yonkers, New York 10701
1.914.476.7987 (Main)
1.914.963.7304 (Fax)
www.altmanlighting.com
[email protected]
Note: Information contained in this document may not be duplicated in full or in part by any person without prior written approval of
Altman Lighting. Its sole purpose is to provide the user with conceptual information on the equipment mentioned. The use of this
document for all other purposes is specifically prohibited.
Our Commitment
Altman Lighting continually engages in research related to product improvement. New materials, production methods and design
refinements are introduced into existing products without notice as a routine expression of the philosophy. For this reason any current
Altman Lighting product may differ in some respect from its published description, but will always equal or exceed the original design
specifications unless otherwise noted.
Version as of: 28 September 2019
AFS-500 LED Follow Spot INSTALLATION INSTRUCTIONS / INSTRUCTIONS D’INSTALLATION
©2019 Altman Lighting. All rights reserved.
CLEANING AND CARE
WARNING! All cleaning should be performed with power completely removed from the luminaire. Never remove protective covers
when luminaire is powered. Wear appropriate protective eye wear and gloves when cleaning the fixture. All service and maintenance,
other than described herein, should be performed by a qualified technician or Authorized Service Center. AT NO TIME SHOULD THE
LED BE TOUCHED. The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a
similar qualified person.
WARNING! Under no circumstances should ammonia-based cleaners, acetone, or other harsh solvents be used on or near the AFS-
500 LED Follow Spot. These types of cleaners or solvents can permanently damage the optics or housings of the fixture.
For all other service and maintenance issues, please contact your local Altman Lighting office or an Authorized Service Center.
WARNING! Disassembly (other than as described herein), alterations, unauthorized service, etc. will void the product warranty.
Contact your local Altman Lighting office or an Authorized Service Center for technical support and service.
Scan QR code to go to the
AFS-500 LED Follow Spot
web page.

INSTALLATION INSTRUCTIONS / INSTRUCTIONS D’INSTALLATION AFS-500 LED Follow Spot
2Important Information
IMPORTANT INFORMATION
Product Safety Notices
Warnings
FCC NOTICE
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
When using electrical equipment, basic safety precautions should always be followed including the following:
a. READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
b. Do not use outdoors unless the product is specified to operate in outdoor environments.
c. Do not mount near gas or electric heaters.
d. Equipment should be mounted in locations and at heights where it will not readily be subjected to tampering by
unauthorized personnel.
e. The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition.
f. Do not use this equipment for other than intended use.
g. Refer service to qualified personnel.
SAVE THIS DOCUMENT FOR FUTURE REFERENCE.
WARNING: RISK OF ELECTRICAL SHOCK! You must have access to a main circuit breaker or other power
disconnect device before installing any wiring. Be sure that power is disconnected by removing fuses or
turning the main circuit breaker off before installation. Installing the device with power on may expose you
to dangerous voltages and damage the device. It is always recommended that a “lock out tag” device is
installed on the appropriate circuit disconnect prior to beginning electrical work of any kind. A qualified
electrician must perform this installation.
WARNING: Insulation between low-voltage supply and control conductors is provided by basic insulation.
WARNING: Refer to National Electrical Code® and local codes for cable specifications. Failure to use
proper cable can result in damage to equipment or danger to personnel.
WARNING: This equipment is intended for installation in accordance with the National Electric Code® and
local regulations. It is also intended for installation in indoor applications only. Before any electrical work
is performed, disconnect power at the circuit breaker or remove the fuse to avoid shock or damage to the
control. It is recommended that a qualified electrician perform this installation.
WARNING: This Lighting Fixture IS NOT for residential installation or use.
WARNING: The structure where fixture(s) is to be mounted must be capable of supporting the weight of
the fixture and its accessories. This fixture is for temporary, portable mounting only.
WARNING: The light source contained in this luminaire shall only be replaced by the manufacturer or his
service agent or a similar qualified person.
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE
BY:
A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE
HAZARDS INVOLVED.
CE PRODUIT DOIT ÊTRE INSTALLÉ SELON LE CODE D'INSTALLATION PERTINENT, PAR UNE
PERSONNE.
CONSULT A QUALIFIED ELECTRICIAN TO ENSURE CORRECT BRANCH CIRCUIT CONDUCTOR.
CONSULTER UN ÉLECTRICIEN QUALIFIÉ POUR VOUS ASSURER QUE LES CONDUCTEURS DE LA
DÉRIVATION SONT ADÉQUATS.

Altman Lighting Product Warranty 3
AFS-500 LED Follow Spot INSTALLATION INSTRUCTIONS / INSTRUCTIONS D’INSTALLATION
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to
correct the interference at his own expense.
Altman Lighting Product Warranty
Warranty Term
Altman Lighting, Inc., a subsidiary of Altman Stage Lighting Company, Inc., herein referred to as Altman, warrants each new product
(except for spare parts or products Altman does not manufacture) for a period of TWO (2) years from date of shipment to correct by
repair or replacement any part defect due to faulty material or workmanship. Under these same terms products with an LED light
source shall be warranted for a period of THREE (3) years.
Altman warrants for NINETY (90) days any spare part it manufactures. On spare parts or products Altman does not manufacture,
including, but not limited to, lamps, sockets, lenses, roundels, electronics, ignitors, ballasts, etc.; Altman will grant the same warranty
given Altman by its vendors.
Altman assumes no responsibility for damage or faulty performance caused by misuse, improper installation, careless handling or
where repairs have been attempted by others.
This warranty is in lieu of all warranties or guarantees expressed or implied and no representative or person is authorized to assume
Altman any other liability with the sale of Altman’s products.
For complete warranty terms and conditions, please refer to our web site at www.altmanlighting.com.
Warranty Service
In order to request warranty service, you must receive a Return Material Authorization (RMA) number prior to return.
Return shipments must be visibly marked with the RMA number; the product must be returned (shipping prepaid) to the factory at:
Altman Lighting Inc.
Attention: RMA # ___________
57 Alexander Street
Yonkers, NY 10701
The return must be within THIRTY (30) days of receiving the RMA from Altman.
INSTALLATION AND SET UP
Overview
The AFS-500 LED Follow Spot is designed for indoor use only and is to be mounted on its provided tripod stand.
AFS-500 LED Follow Spot Main Components
Figure 1: AFS-500 LED Follow Spot Overview
Tilt Lock - for locking tilt position
(one on each side of the tripod
mounting bracket).
Control Panel - for controlling
follow spot operation (see
"AFS-500 LED Follow
Spot Control Panel" on
page 5).
Vents / Dust Filters - for releasing heat from
inside the fixture and preventing dust from
entering. The fixture should always be
operated with vents in the upwards position for
proper cooling.
Back Panel - contains menu system for fixture set up, DMX / power connections, and
on/off switch (see "AFS-500 LED Follow Spot Back Panel" on page 5).
Note: Tripod stand not shown.
Focus Knob (manual) - for
adjusting the sharpness or
softness of the beam depending
upon zoom position.
Zoom Knob (manual) - for
adjusting the beam angle
from 7° to 13°

INSTALLATION INSTRUCTIONS / INSTRUCTIONS D’INSTALLATION AFS-500 LED Follow Spot
4Installation and Set Up
AFS-500 LED Follow Spot Tripod / Fixture Movement
The AFS-500 LED Follow Spot is supplied with a foldable metal tripod and mounting hardware. When in use you must place the
tripod on a solid, steady surface that is capable of supporting the weight of the tripod (approximately 12 lbs / 5.5 kg), fixture 25.5 lbs /
11.5 kg), cabling, accessories, as well as the operator.
•You must follow and adhere to all local and national safety requirements, regulations, and codes when using this fixture.
• When selecting an installation location, consider ease-of-access to the fixture for operation public access, programming
adjustments, and rou-tine maintenance.
• Never mount or use the AFS-500 LED Follow Spot where it will be exposed to moisture (rain, high humidity, etc.), extreme tem-
perature changes, hazardous conditions, or restricted ventilation.
• It is a good practice to add sand bag weights (by others) over each leg of the tripod to steady the fixture when moved.
Figure 2: AFS-500 LED Follow Spot Tripod / Fixture Movement
The fixture simply secures to the tripod via the tripod mounting bracket with the provided hardware.
Step 1. Place tripod in a suitable location following the information above.
Step 2. Set tripod to desired height.
Step 3. Using two people, lift AFS-500 LED Follow Spot and position the tripod mounting bracket’s hole over stud on tripod.
Step 4. Hand-tighten provided knob securing fixture to tripod.
54.3 in. /
137.9 cm
27.1 in. /
68.9 cm
27.2 in. /
69.0 cm
42.9 in. /
109.0 cm *
* Legs fully extended.
WARNING! Unless legs are weighted
down or secured to the floor, do not
operate the tripod stand without the
legs fully extended.
Ø 2'-9"
AFS-500
30°
30°
BALANCING POINT
40°
43.8 in. /
111.2 cm
5.7 in. /
14.4 cm
Pan Lock location:
(manual) for locking pan
movement of the follow
spot.

Overview 5
AFS-500 LED Follow Spot INSTALLATION INSTRUCTIONS / INSTRUCTIONS D’INSTALLATION
AFS-500 LED Follow Spot Back Panel
Figure 3: AFS-500 LED Follow Spot Back Panel
AFS-500 LED Follow Spot Control Panel
Figure 4: AFS-500 LED Follow Spot Control Panel
ESC ENT. DN UP
DMX512
IN OUT
ON/OFF
AC IN
100-240
VAC
50/60
Hz
FUSE
USE
TYPE
T5AL
250V.
GROUND
WHITE RED GREEN AMBER LT. AMBBLUE
CTO IRIS DIMMER STROBE
LAMP
ON/OFF
DMX Input - 5-pin connector
for DMX512A input signal.
DMX Output - 5-pin connector
for DMX512A output / through
signal.
Power Switch - for turning fixture
on and off.
Fuse Compartment -
replaceable fuse. Replace
with fuse indicated on fixture.
AC Input - for supplying power
to unit. See "Power and Data
Connections" on page 6 for
details.
DMX Address (ADR) Screen - for setting
and displaying the DMX address. See
"LCD Display Overview" on page 8.
DMX Address is set using the buttons on the
back panel.
- ESC (Escape) Button
- Enter Button
- DN (Down) Button
- UP Button
Control Panel - See "AFS-500
LED Follow Spot Control
Panel" for details.
WHITE RED GREEN AMBER LT. AMB.BLUE
CTO IRIS DIMMER STROBE
LAMP
ON/OFF
Dimmer Slider - for controlling intensity.
Lamp On/Off - turns
on and off the LED
source only. Note:
does not affect any
other operation of the
fixture.
Color Filter Buttons - for selecting color filters. Note: selecting two
adjacent color selection buttons will result in a split or half-tone color
except for White and Orange. White and Orange cannot produce a
split or half-tone color with each other.
Strobe Slider - for controlling
strobe rate. See Table 1,
“Strobe Operation (via
control panel),” on page 6
CTO Slider - for controlling color temperature of
the light output. Rotates CTO wheel for 7400K,
6000K, and 4200K.
White Button - White light
output (no color filter).
Iris Slider - for opening and closing fixture’s iris.
Note: Only control panel shown for clarity.

INSTALLATION INSTRUCTIONS / INSTRUCTIONS D’INSTALLATION AFS-500 LED Follow Spot
6Power and Data Connections
Table 1: Strobe Operation (via control panel)
POWER AND DATA CONNECTIONS
Power Connection Warnings
Before performing any field wiring, refer to and read the warnings contained in "Important Information" on page 2.
WARNING! The AFS-500 LED Follow Spot should be connected to a constant circuit or a relay device. It should never be connected
to a dimmer or circuit controlled by a dimmer. Read "Connecting Power" on page 6 carefully on how to properly connect your
fixture.
WARNING! The maximum allowable input current is 20 Amps. Do not overload circuits! Luminaires must be supplied by a branch
circuit protected by a maximum 20 Amp circuit protector. Doit être alimenté par un circuit de dérivation protégé par un maximum de
20 ampères circuit protecteur. Ne surchargez pas les circuits!
WARNING! If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by a special cord or cord exclusively
available from the manufacturer or his service agent.
Connecting Power
Units are powered via an AC input cable from 100 to 240VAC, 50/60Hz and draw approximately 490 Watts of power. Table 2,
outlines the wire colors and their purpose.
Table 2: AC Input Wiring
Note: See Figure 5 for wiring connections.
IMPORTANT! The AFS-500 LED Follow Spot must be connected to and properly grounded to an viable earth ground.
Figure 5: PowerCON (Blue AC Input) Connector Wiring
Slider Position Strobe Operation
0 to 50% Slower to Fast Strobe
50 to 75% Strobe Pulse Effect (Slower to Faster)
76 to 100% Random Strobe Effect
Wire Color Purpose
Brown or Black Main / (L)ine
Blue or White (N)eutral
Green/Yellow or Green Ground / Earth
Note: The supply cord and connecting
cord should be minimum 14AWG, extra-
hard-usage types such as Type G, S, SE,
SEO, SO, ST, STO, or W.

Connecting to the DMX512 Network 7
AFS-500 LED Follow Spot INSTALLATION INSTRUCTIONS / INSTRUCTIONS D’INSTALLATION
Connecting to the DMX512 Network
The AFS-500 LED Follow Spot offers two DMX512 connections. One for DMX Input (from a DMX source) and one DMX throughput
(out). Basic DMX512 installation consists of connecting multiple DMX controlled AFS-500 LED Follow Spots together (up to 32 Total
devices per DMX string) in “daisy-chain” fashion. A cable runs from the DMX512 control source to the DMX INPUT connection on the
first luminaire. From the DMX OUTPUT of the luminaire another cable runs to the DMX IN connector on the next luminaire (or
DMX512 device to be controlled). Please note that the AFS-500 is not an RDM luminaire.
IMPORTANT! At the end of each DMX Daisy chain, it is highly recommended that a DMX TERMINATOR (Altman Lighting part
number DMX-5-TERM) is installed on the last luminaire (or device) in the chain.
IMPORTANT! When the AFS-500 LED Follow Spot is connected to a DMX network, the White LED indicator as well as the LED
indicator lamp will flash and the local buttons and fader controls will stop responding until DMX is removed from the fixture.
For more information on installing DMX512 control systems, the following publication is available for purchase from the United States
Institute for Theatre Technology (USITT), “Recommended Practice for DMX512: A Guide for Users and Installers, 2nd edition” (ISBN:
9780955703522). USITT Contact Information: www.usitt.org
DMX - XLR Connectors
Table 3 shows the pin outs and corresponding DMX signals for a 5-pin XLR connectors.
Note: * Only those pins shown are used. Remaining pins are not used.
DMX Map
Table 4 is the DMX map for the AFS-500 LED Follow Spot.
Table 3: DMX RJ45 & XLR Connector Wiring
DMX XLR Connectors Pin Out
DMX Signal Pin
Common (Drain) Pin 1
DMX - Pin 2
DMX + Pin 3
Table 4: AFS-500 LED Follow Spot DMX Map
Channel Controls DMX Value Comments
1 Color Presets
000 - 015 White (no color filter)
016 - 040 White + Red (split half tone color)
041 - 063 Flame Red
064 - 087 Red + Green (split half tone color)
088 - 111 Moss Green
112 - 136 Green + Amber (split half tone color)
137 - 159 Soft Golden Amber
160 - 183 Amber + Blue (split half tone color)
184 - 207 Booster Blue
208 - 231 Blue + Light Amber (split half tone color)
232 - 255 Light Amber - Bastard Amber
2Color Temperature
(CTO)
000 - 063 Native White CCT
064 - 127 7400K
128 - 191 6000K
192 - 255 4200K
3 Iris 000 - 255
Closed to open. (Note, when in closed
position [255], the iris is slightly open to
allow light to pass through).
4 Dimmer (intensity) 000 - 255 0% to 100% dimming

INSTALLATION INSTRUCTIONS / INSTRUCTIONS D’INSTALLATION AFS-500 LED Follow Spot
8LCD Display
Controlling with Control Panel
The AFS-500 LED Follow Spot’s functions can be controlled by either DMX or the AFS-500 LED Follow Spot control panel (refer to
"AFS-500 LED Follow Spot Control Panel" on page 5).
IMPORTANT! When the AFS-500 LED Follow Spot is connected to a DMX network, the White LED indicator as well as the LED
indicator lamp will flash and the local buttons and fader controls will stop responding until DMX is removed from the fixture.
LCD DISPLAY
LCD Display Overview
The AFS-500 LED Follow Spot has an on-board LCD display. This display is for setting the fixture’s DMX address and displays DMX
information. Refer to "AFS-500 LED Follow Spot Back Panel" on page 5 LCD display location.
There are no other user-selectable settings.
On startup (approximately 60 seconds), the LCD display on the rear of the AFS-500 LED Follow Spot will display the set DMX
address as “AXXX”.
Note: During startup (or calibration period) the AFS-500 LED Follow Spot will make consecutive knocking sounds. These sounds are
normal during the calibration period. Startup is the time frame where power is initially applied to the follow spot and each automated
function is tested through all of its operating sequences.
Setting DMX Address
To set the DMX address:
Step 1. Unit must be powered.
Step 2. Press Enter button on rear of unit. The “A” will change to a “r”.
Step 3. Using the DN (down) and UP buttons, select desired DMX address (setting between 001 - 512).
Step 4. Once DMX address is set, press the ESC (escape) key to confirm setting.
Step 5. LCD display will show DMX address as “AXXX” (address setting between 001 - 512).
IMPORTANT! Note the number of slots that the luminaire is using in order to avoid a DMX address overrun or DMX overlap with
other luminaires in the chain.
5 Strobe
000 Open (no strobe)
001 - 127 Strobe with increasing speed
128 - 159 Pulse - opening - increasing speed
160 - 191 Pulse - closing - increasing speed
192 - 255 Random strobing
6 Reset 128 - 255 Resets fixture to factory settings
Table 4: AFS-500 LED Follow Spot DMX Map
Channel Controls DMX Value Comments

AFS-500 LED Follow Spot Product Specifications 9
AFS-500 LED Follow Spot INSTALLATION INSTRUCTIONS / INSTRUCTIONS D’INSTALLATION

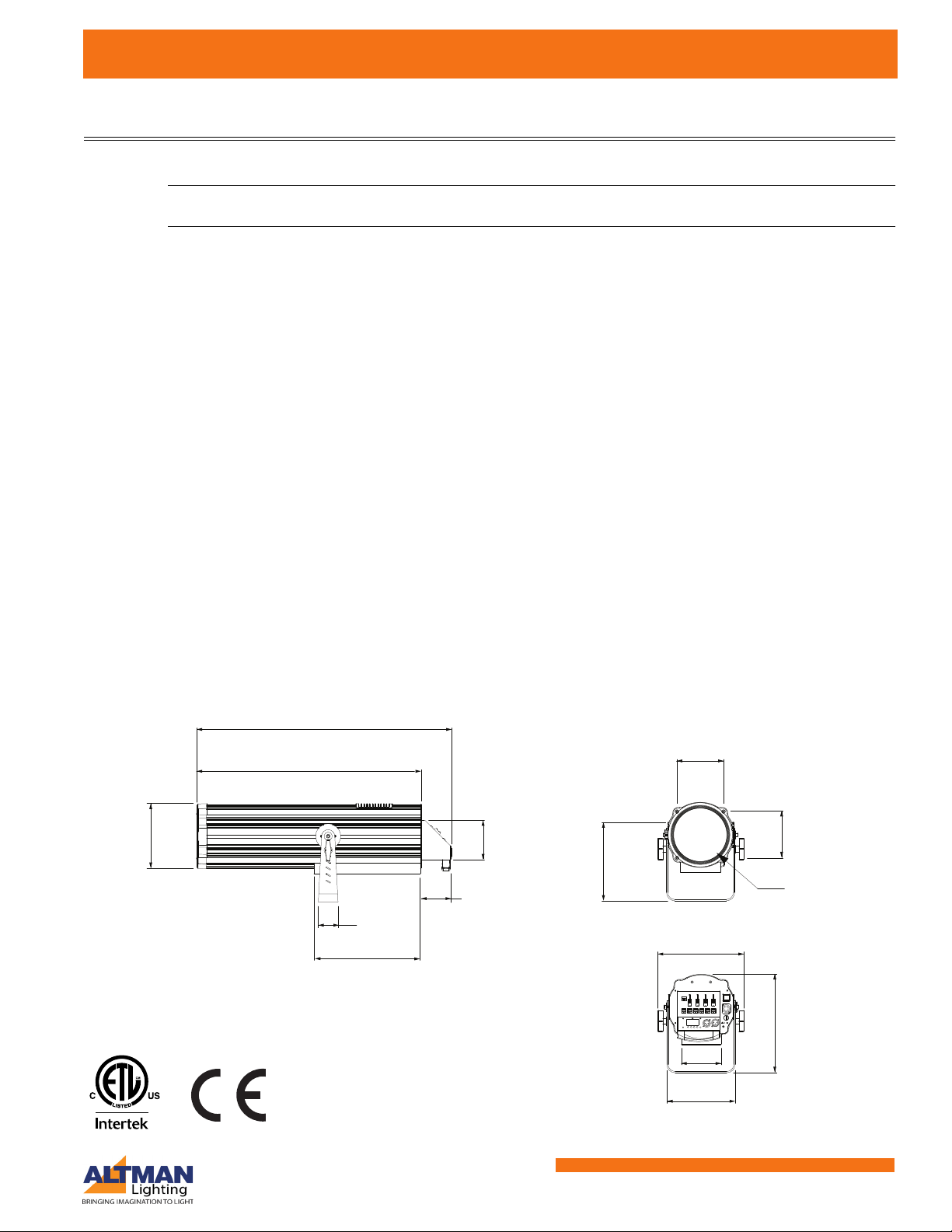

TECHNICAL SPECIFICATIONS
AFS-500 LED Follow Spot Product Specifications
Note: Information contained herein subject to change without notice. For latest product specifications, features, and accessories,
refer to the product specification sheet or visit the Altman Lighting web site at www.altmanlighting.com.
Materials:
Control:
Light Engine:
Beam Lumens:
Beam angle:
LED Rated Life:
Input Voltage:
Current Draw:
Quiescent Load:
Environment:
Weight:
Body Color:
Tripod Color:
Compliance:
Fuse:
DMX Channels:
Strobe Flash rate:
Corrosion-resistant materials and hardware
DMX512A network or local control via AFS-500 Controller
490 Watt Cool White Array (11800K)
See product specification sheet for details
7° - 13°
LED arrays are rated for >50,000 hours of operation
100 to 240 VAC 50/60 Hz
4.08A at 120VAC / 2.13A at 230VAC
Fans on Lamp Off - 0.39A @120VAC (46.8 Watts)
0 to 45 degrees C (32 to 113 degrees F) with humidity of 5%-95% (non-condensing)
Fixture only: 25.5 lbs (11.5 kg) / Tripod only: 12 lbs (5.5 kg)
Black
Silver
cETLus listed and CE marked for indoor use
T5A, 250V
6
1 to 20 Hz
11.75 in. /
298.5 mm
10.38 in. /
263.7 mm
10.38 in. /
263.7 mm
4.75 in. /
120.7 mm
7.75 in. /
196.9 mm
12.75 in. /
323.9 mm
2.38 in. /
60.5 mm
3.63 in. /
92.2 mm
4.75 in. /
120.7 mm
30.50 in. /
774.7 mm
26.88 in. /
682.8 mm
Ø
6.38 in. /
162.1 mm
5.63 in. /
143.0 mm
5.63 in. /
143.0 mm
9.38 in. /
238.3 mm
Side View
Front View
Rear View

INSTALLATION INSTRUCTIONS / INSTRUCTIONS D’INSTALLATION AFS-500 LED Follow Spot
10 Luminaire Care
CLEANING AND CARE
WARNING! All cleaning should be performed with power completely removed from the luminaire. Never
remove protective covers when luminaire is powered. Wear appropriate protective eye wear and gloves
when cleaning the fixture. All service and maintenance, other than described herein, should be performed
by a qualified technician or Authorized Service Center. AT NO TIME SHOULD THE LED BE TOUCHED.
Special Cleaning and Care Instructions
Being a solid-state fixture, and unlike most fixtures, the AFS-500 LED Follow spot Luminaire requires
very little routine maintenance by the user.
The AFS-500 LED Follow spot Luminaire requires special care when it comes to cleaning front lens
assembly. Additional care needs to be taken with the plastic components because they are much easier to
scratch or damage than glass.
The following is a list of cleaning materials required to care for your AFS-500 LED Follow spot :
• Lint free lens tissue
• Lint or powder free gloves
• Reagent grade isopropyl alcohol*
• A mild soap solution.
If the lens is still dirty after using isopropyl alcohol, for instance if fingerprints or oil is just redistributed and
not cleaned off the optic, then a mild soap and water solution can be used to gently wash the lens. Repeat
the cleaning with isopropyl alcohol to eliminate streaks and soap residue.
WARNING! Under no circumstances should ammonia-based cleaners, acetone, or other harsh solvents
be used on or near the AFS-500 LED Follow spot Luminaire. These types of cleaners or solvents can
permanently damage the optics or housings of the fixture.
If you have any questions regarding the use or care of your AFS-500 LED Follow spot Luminaire,
please contact Altman Lighting technical support or your local Authorized Dealer.
Front Lens Cleaning
To clean each lens:
Step 1. Turn off luminaire and allow to cool completely.
Step 2. Remove the front Plastic cowling and slide the lower panel forward to allow lens cleaning access to
both sides of each lens.
Step 3. Apply a small amount of reagent grade isopropyl alcohol to lint-free lens tissue.
Step 4. Wipe all debris, dirt, fingerprints, etc. from lens.
Step 5. Using a second lint-free lens tissue, wipe off any alcohol residue.
Filter Cleaning
AS the AFS-500 is a fan cooled luminaire each of the fan filters will require routine cleaning to
ensure fixture longevity and reliability. Failure to carry out this routine maintainence will void the
fixtures warranty.
Using a Philips head screw driver remove the fan filter on the top of the unit. Clean via dry low velocity
compressed air from the underside of the filter.

INSTALLATION INSTRUCTIONS / INSTRUCTIONS D’INSTALLATION AFS-500 LED Follow Spot
TROUBLESHOOTING
Troubleshooting Guide
The chart below provides possible causes and remedies for various error messages and/or symptoms. If
this chart is unable to address your issue, please contact your authorized dealer or Altman customer
service at 1.914.476.7987 or [email protected] for assistance.
WARNING! Any service and maintenance (including troubleshooting), other than described herein should
be performed by an Authorized Altman Lighting Dealer or Service Center.
Description Symptom Possible Cause/Remedy
No light output.
Fixture will not produce or
output light and connected to
power. Display is active.
Manual Mode....Fader is set at 0% intensity...
DMX Mode....console is set at 0% intensity...
Lamp On/Off is not selected. or fixture calibration is not complete.
Low light output.
Fixture produces low light
output and connected to
power.
Iris is closed
Fixture is Zoomed out and out of Focus
Dimmer is set to low setting
No power at luminaire. Luminaire does not power up
Circuit not energized...verify circuit breaker is turned on.
Not plugged in...ensure A/C cable is connected to power source.
Power cable wired incorrectly...verify power cable and connector are wired
correctly.
DMX Data Control. Fixture will not respond to
DMX commands.
Not detecting DMX data...
Unit is not set to proper DMX address - check settings. See "Setting DMX
Address from the Home Screen" for more information.
Unit is not set to DMX mode. See "DMX Menu" for more information.
Disconnect and reconnect DMX input cable.
Check all DMX connections (at control source and luminaire).
DMX data cable not wired correctly or has a broken conductor... check DMX data
cable for proper wiring.
See "Connecting to the DMX512 Network" on page 22 for more information.
Color Wheel does not rotate
to full color frame
When Color button is
pressed the color wheel
does not rotate to full color
Reset power to the fixture and allow for full calibration of each of the internal
motors. (approx. 90 seconds)
Fixtures are running hot Filters are Dirty.Using a Philips head screw driver remove the fan filter on the top of the unit.
remove the filter. Clean via dry low velocity compressed air from the underside
of the filter.
Service and Maintenance
For all other service and maintenance issues, please contact your local Altman Lighting office or an
Authorized Service Center.
WARNING! Disassembly, alterations, unauthorized service, etc. will void the product warranty. Contact
your local Altman Lighting office or an Authorized Service Center for technical support and service.
WARNING! Under no circumstances should the AFS-500 LED Follow Spot be operated with out its fan
filters in place.
If you have any questions regarding the use or care of your AFS-500 LED Follow spot Luminaire,
please contact Altman Lighting technical support or your local Authorized Dealer.
AFS-500 LED Follow Spot Product Specifications 11

Altman Lighting
57 Alexander Street
Yonkers, New York 10701
1.914.476.7987 (Main)
1.914.966.9180 (Fax)
www.altmanlighting.com
© 2019Altman Stage Lighting, Inc.
