Altman PHX Series User manual

USER’S MANUAL
PHX_LED_USERS_MANUAL_20220512
PHX LED SERIES LUMINAIRES
INSTALLATION & USER’S MANUAL

Page 2
PHX LED Series Installation & Users Manual
Have a question regarding this manual?
Product Luminaire Installation & User’s Manual
© Altman Lighting 2022. All rights reserved.
Document Number: 49-0221
Version as of: 2022 May 12
The material in this manual is for information purposes only and is subject to change without notice. Altman Lighting assumes no
responsibility for any errors or omissions which may appear in this manual. For comments and suggestions regarding corrections
and/or updates to this manual, please visit the Altman Lighting web site at www.altmanlighting.com or contact your nearest Altman
Lighting Regional Manager.
El contenido de este manual es solamente para información y está sujeto a cambios sin previo aviso. Altman Lighting no asume
responsabilidad por errores o omisiones que puedan aparecer. Cualquier comentario, sugerencia o corrección con respecto a este
manual, favor de dirijirlo a la oficina de Altman Lighting más cercana.
Der Inhalt dieses Handbuches ist nur für Informationszwecke gedacht, Aenderungen sind vorbehalten. Altman Lighting uebernimmt
keine Verantwortung für Fehler oder Irrtuemer, die in diesem Handbuch auftreten. FürBemerkungen und Verbesserungsvorschlaege
oder Vorschlaege in Bezug auf Korrekturen und/oder Aktualisierungen in diesem Handbuch, moechten wir Sie bitten, Kontakt mit der
naechsten Altman Lighting Niederlassung aufzunehmen.
Should you have a suggestion or question regarding your Altman Lighting product, we would love to hear from you.
You can reach us at:
Altman Lighting
1400 East 66th Ave.
Denver, CO. 80229
[phone]
www.altmanlighting.com
[email protected]
[email protected]
[email protected]
Note: Information contained in this document may not be duplicated in full or in part by any person without prior written approval
of Altman Lighting Its sole purpose is to provide the user with conceptual information on the equipment mentioned. The use of this
document for all other purposes is specifically prohibited.
Altman Lighting continually engages in research related to product improvement. New materials, production methods and design
refinements are introduced into existing products without notice as a routine expression of the philosophy. For this reason any current
Altman Lighting product may differ in some respect from its published description, but will always equal or exceed the original design
specifications unless otherwise noted.
Our Commitment
Preface
The document provides basic information on installation and operational instructions for a quali-
fied, trained installer. These instructions provide information for the following product:
PHX LED Series
Additional product information can be found on our web site at
www.altmanlighting.com or by scanning the QR code to the right.

Page 3
PHX LED Series Installation & Users Manual
When using electrical equipment, basic safety precautions should always be followed including the following:
1. READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
2. Do not mount near gas or electric heaters.
3. Equipment should be mounted in locations and at heights where it will not readily be subjected to tampering by
unauthorized personnel.
4. Operate only in approved environments. Do not operate outside unless product is designed to do so.
5. The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition.
6. Do not use this equipment for other than intended use.
7. Refer service to qualified personnel.
SAVE THESE INSTRUCTIONS.
WARNING: You must have access to a main circuit breaker or other power disconnect device before installing
any wiring. Be sure that power is disconnected by removing fuses or turning the main circuit breaker off before
installation. Installing the device with power on may expose you to dangerous voltages and damage the device. A
qualified electrician must perform this installation.
WARNING: Refer to National Electrical Code® and local codes for cable specifications. Failure to use proper
cable can result in damage to equipment or danger to personnel.
WARNING: This equipment is intended for installation in accordance with the National Electric Code® and
local regulations. Before any electrical work is performed, disconnect power at the circuit breaker or remove the fuse
to avoid shock or damage to the control. It is recommended that a qualified electrician perform this installation.
WARNING: This Lighting Fixture IS NOT for residential installation or use.
WARNING: The structure where fixture(s) is to be mounted must be capable of supporting the weight of
the fixture and its accessories. This fixture is for temporary, portable mounting only.
WARNING: The light source contained in this luminaire shall only be replaced by the manufacturer or his
service agent or a similar qualified person.
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE
BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE
HAZARDS INVOLVED.
CE PRODUIT DOIT ÊTRE INSTALLÉ SELON LE CODE D’INSTALLATION PERTINENT, PAR UNE
PERSONNE.
CONSULT A QUALIFIED ELECTRICIAN TO ENSURE CORRECT BRANCH CIRCUIT CONDUCTOR.
CONSULTER UN ÉLECTRICIEN QUALIFIÉ POUR VOUS ASSURER QUE LES CONDUCTEURS DE LA
DÉRIVATION SONT ADÉQUATS.
Product Safety Notices
Warnings
Important Information

Page 4
PHX LED Series Installation & Users Manual
FCC Notice
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to cor-
rect the interference at his own expense.
Altman Lighting Product Warranty
Altman Lighting, Inc., a subsidiary of Altman Stage Lighting Company, Inc., herein referred to as Altman, warrants each new product
(except for spare parts or products Altman does not manufacture) for a period of FIVE (5) years and ONE (1) day from date of shipment
to correct by repair or replacement any part defect due to faulty material or workmanship.
Altman warrants for NINETY (90) days any spare part it manufactures. On spare parts or products Altman does not manufacture,
including, but not limited to, lamps, sockets, lenses, roundels, electronics, ignitors, ballasts, etc.; Altman will grant the same war-
ranty given Altman by its vendors. Altman assumes no responsibility for damage or faulty performance caused by misuse, improper
installation, careless handling or where repairs have been attempted by others. This warranty is in lieu of all warranties or guarantees
expressed or implied and no representative or person is authorized to assume Altman any other liability with the sale of Altman’s
products.
Altman assumes no responsibility for damage or faulty performance caused by misuse, improper
installation, careless handling or where repairs have been attempted by others.
This warranty is in lieu of all warranties or guarantees expressed or implied and no representative or person is authorized to assume
Altman any other liability with the sale of Altman’s products.
Warranty Terms
The customer must receive a Return Material Authorization (RMA) number prior to return, return shipment must be visibly marked with the RMA
number and the product must be returned (shipping prepaid) to the factory at:
1400 East. 66th Avenue
Denver, CO 80229 USA
[phone]
[email protected]
The return must be within THIRTY (30) days of receiving the RMA from Altman. Altman warrants for NINETY (90) days any spare part it manufac-
tures. On spare parts or products Altman does not manufacture, such as lamps, sockets, lenses, roundels, electronics, ignitors, ballasts, etc. Altman
will grant the same warranty given Altman by its vendors.
Warranty Service

Page 5
PHX LED Series Installation & Users Manual
Table Of Contents
Important Information 3
About this Manual 6
Product Descriptions 6
Accessories 7
PHX LED Series LED Overview 9
PHX LED Series Luminaires Components 9
Installation And Setup 10
Power Requirements 10
Connecting Power 10
Connecting DMX 11
DMX - XLR Connectors 11
C-Clamp Installation 12
Safety Cable Installation 12
Installing Fixture Accessories 13
Focus Adjustment (Fixed Focus Models) 13
Focus and Zoom Adjustment (Zoomable Models)13
Setting Zoom (Beam Angle) 13
Setting Focus 13
Rotating Shutter Assembly (All Models) 14
Shutter Movement 14
Accessory Holder 15
Drop In Iris Slot (All Models) 16
Gobo / Soft Focus Lens Adapter Slot 16
Yoke Assembly 17
Menu System 18
Setting DMX Address 18
Setting DMX Mode 19
Setting Master Channel 19
Setting Smoothing 19
DMX Loss 20
Dimming Curve 20
Player / Programming Cues 21
Menu Options and Settings 22
DMX Maps 24
DMX Channel Map Overview 24
Fixed White DMX Maps (3000K and 5600K) 24
Tunable White DMX Maps (3000K to 5600K) 25
Color DMX Maps (RGBW, RGBA, and RGBL LEDs) 26
RDM Control and Tables 28
PHX1 / PHX 1.5 150W Fixtures 28
PHX2 250W and PHX3 / PHX3.5 340W Fixtures 29
Cleaning And Care 30
Lens Cleaning 31
Troubleshooting 32
Troubleshooting Guide 32
Technical Specifications 33
PHX LED Series Luminaires Specifications 33

Page 6
PHX LED Series Installation & Users Manual
About this Manual
The document provides installation and operation instructions for the following products:
• PHX LED Series Luminaires
Please read all instructions before installing or using this product. Retain this manual for future reference.
Product Descriptions
This manual covers the all PHX LED LED Luminaires models. Because these fixtures are configured at the time of ordering, please refer
to the current product specification sheet for the model numbers and descriptions.
Part Number Description LED Array(s) Available Lenses Body Color/Finish
PHX 1 150 Watts
RGBA
Fixed Lenses:
5°, 10°, 19°, 26°, 36°, 50°
Zoom Lenses:
15° to 35° (15Z) and 30°
to 55° (30Z)
Black (B)
or
White (W)
RGBW
3K (White)
5K (White)
3K5K (Tunable White)
PHX 1.5 150 Watts RGBL
PHX 2
(*Obsolete*) 250 Watts
RGBA
RGBW
3K (White)
5K (White)
3K5K (Tunable White)
PHX 3 340 Watts RGBL
PHX 3.5 340 Watts RGBL
Note: Model numbers are as follows: PHX[Number]-[LED Array]-[Lens]-[Body Color]. Example: PHX2-RGBW-19-B, PHX
ellipsoidal, 250W, RGBW LEDs, 19 degree lens, fixture/lens body color is black.
IMPORTANT! This manual covers the all PHX Series LED Luminaire models. Because these fixtures are configured at the
time of ordering, please refer to the current product specification sheet for the model numbers and descriptions.
Please read all instructions before installing or using this product. Retain this manual for future reference.

Page 7
PHX LED Series Installation & Users Manual
Accessories
Contact your Authorized Altman Lighting Dealer for price and availability of all accessories for PHX LED LED Luminairess. Additional
information can be found on the Altman Lighting web site at www.altmanlighting.com.
Included Accessories - Fixed Focus Models
Part Number Description
6-CF* Color frame, 7-1/2 inch x 7-1/2 inch
510 Malleable iron pipe clamp
SC-36-BK 36-inch black safety cable with spring clamp
PHXZ-SFLGSB PHX soft focus lens with B-size pattern holder
PCL-PBG-12-* 5-foot, 20A PowerCON connector with parallel blade U ground (Edison)
Part Number Description
4.5-CF* Color frame, 6-1/4 inch x 6-1/4 inch (included with 19°, 26°, 36°, 50° models)
10-CFB Black color frame, 12 inch x 12 inch (included with 10° models)
12-CFB Color frame, 14 inch x 14 inch (included with 5° models)
510 Malleable iron pipe clamp
SC-36-BK 36-inch black safety cable with spring clamp
PHX-SFLGSA PHX soft focus lens with A-size pattern holder
PCL-PBG-12-* 5-foot, 20A PowerCON connector with parallel blade U ground (Edison)
Included Accessories - Zoomable Focus Models
* Specify color at time of ordering by adding the following code for color: B = Black or W = White.
* Specify color at time of ordering by adding the following code for color: B = Black or W = White.
Part Number Description
PHX-PHGSA A Size Steel Pattern Holder (100mm OD/75mm IA
PHX-PHGSB B Size Steel Pattern Holder (86mm OD/64.5mm IA)
PHX-PHGSB-GLS B Size Glass Pattern Holder (82mm OD/64.5mm IA)
PHX-PHGS86-GLS B Size Glass Pattern Holder (86mm OD/ 64.5mm IA)
PHX-PHISB B Size Steel Pattern Holder (86mm OD/64.5mm IA)
PHX-PHISA-GLS A Size Glass Pattern Holder (100mm OD/75mm IA) for Iris Slot
PHX-PHISB-GLS B Size Glass Pattern Holder (82mm OD/ 64.5mm IA) for Iris Slot
PHX-PHIS86-GLS B Size Glass Pattern Holder (86mm OD/ 64.5mm IA) for Iris Slot
Available Accessories - Fixed Focus Pattern Holders

Page 8
PHX LED Series Installation & Users Manual
Part Number Description
PHXZ-PHGSB B Size Steel Pattern Holder (86mm OD/ 64.5mm IA)
PHXZ-PHGSB-3T B Size Steel Pattern Holder (86mm OD/ 64.5mm IA) 3 Tab Style
PHX-PHISB B Size Steel Pattern Holder (86mm OD/ 64.5mm IA) for Iris Slot
PHX-PHISA-GLS A Size Glass Pattern Holder (100mm OD/75mm IA) for Iris Slot
PHX-PHISB-GLS B Size Glass Pattern Holder (82mm OD/ 64.5mm IA) for Iris Slot
PHX-PHIS86-GLS B Size Glass Pattern Holder (86mm OD/ 64.5mm IA) for Iris Slot
Available Accessories - Zoomable Focus Pattern Holders
Accessories
Part Number Description
PCL-2P&G-12-5-* 5-foot, 20A PowerCON with 2P&G stage pin connector, male
PCL-TLG-12-5-* 5-foot, 20A PowerCON with L5-20P twist locking ground connector, male
PCL-BARE-12-5-* 5-foot, 20A PowerCON with bare end lead (no connector)
510-HD Heavy Duty Malleable Iron Pipe Clamp
6-DN "7-1/2 inch x 7-1/2 inch with 3 inch hole donut, black (For 19°, 26°, 36°, 50° and zoom
models)"
PCTJ-12-5 5-Foot (1.5m), 20 Amp, PowerCON In to PowerCON Out feed-through jumper Cable
PCTJ-12-10 10-Foot (3.0m), 20 Amp, PowerCON In to PowerCON Out feed-through jumper Cable
PCTJ-12-15 15-Foot (4.5m), 20 Amp, PowerCON In to PowerCON Out feed-through jumper Cable
PCTJ-12-25 25-Foot (7.62m), 20 Amp, PowerCON In to PowerCON Out feed-through jumper Cable
PCTJ-COUPLER PowerCON coupler (PowerCON In to PowerCON Out to link cables)
Other Available Accessories

Page 9
PHX LED Series Installation & Users Manual
PHX LED Series LED Luminaires Overview
PHX LED Series Luminaires Components
Fixed Focus Models

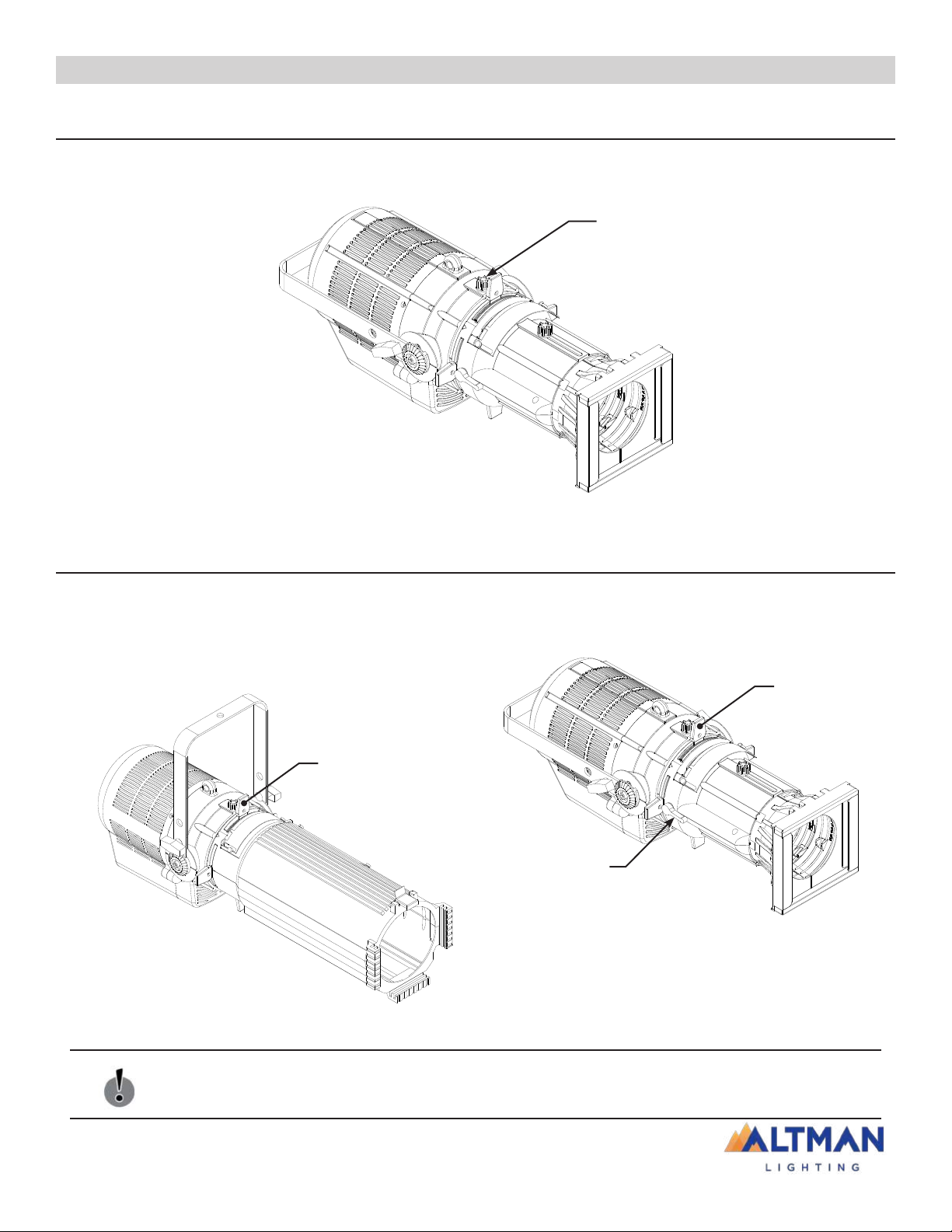

Figure 1 shows the basic features of Fixed Models.
Zoomable Focus Model
Figure 2 shows the basic features of Zoomable Focus Models.
Safety Cable Attachment Point
Shutter Assembly (4 Shutters)
Gobo / Pattern Holder Slot
Iris / Accessories Slot
Lens Focus Knob
Color Frame Holder
Lens Barrel Assembly
Yoke Tilt Locking Knob
(One on Each Site)
Yoke Assembly
LED Engine Housing
Safety Cable Attachment Point
Shutter Assembly (4 Shutters)
Gobo / Pattern Holder Slot
Iris / Accessories Slot
Zoom / Lens Barrel Assembly
(Zoom and Focus Knobs are located
at the bottom of the Assembly.)
Yoke Tilt Locking Knob
(One on Each Site)
Yoke Assembly
LED Engine Housing
Figure 1: Fixed Focus Model Features
Figure 2: Zoomable Focus Model Features

Page 10
PHX LED Series Installation & Users Manual
Installation And Setup

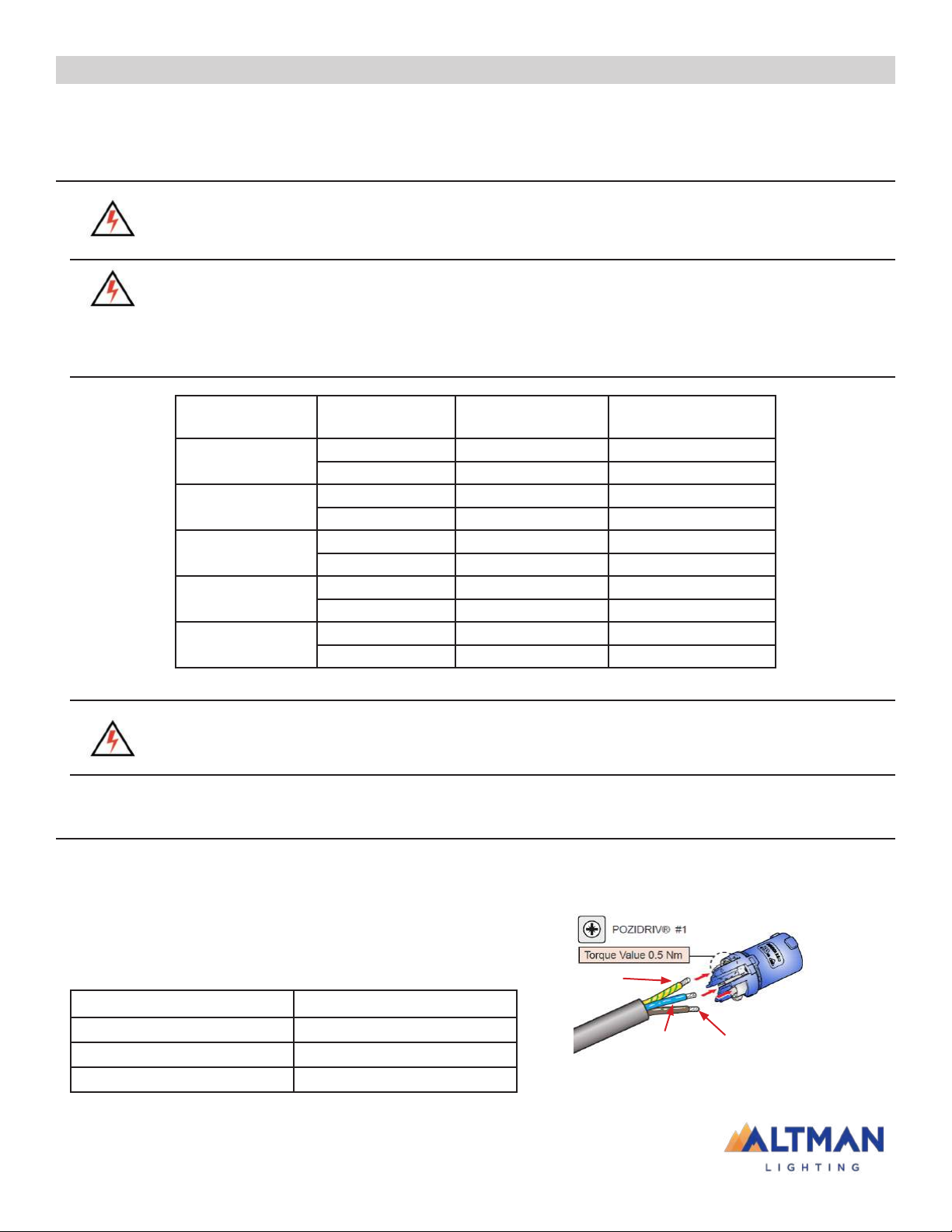

Power Requirements
WARNING! PHX Series LED Luminaires should be connected to a constant circuit or a relay device. They should
never be connected to a dimmer or circuit controlled by a dimmer. Read this section carefully on how to properly
connect your fixture.
WARNING! When using the daisy-chain connection method, only connect your PHX LED Luminaire to AC output
connection of other PHX LED Luminaires. DO NOT CONNECT OTHER TYPES OF LUMINAIRES OR DEVICES! The
maximum allowable of number of PHX LED Luminaires that can be daisy-chained on one power feed should not
exceed the first fixture’s 16 Amp output power rating. Refer to Table 1 for maximum number of PHX LED Luminaires
on one daisy chain power feed.
Connecting Power
The PHX Series LED Luminaires are powered via an AC input cable from 100 to 240VAC, 50/60Hz and draw approximately:
• PHX1 / PHX 1.5 LED Luminaires: 150 Watts
• PHX2 LED Luminaires: 250 Watts
• PHX3 / PHX 3.5 LED Luminaires: 340 Watts
The table below outlines the wire colors and their purpose.
WIRE COLOR PURPOSE
Brown or Black Main / (L)ine
Blue or White (N)eutral
Green/Yellow or Green Ground / Earth
Table 2: AC Input Wiring
Neutral
Earth/Ground
Live
Neutrik PowerCon Wiring
Model Voltage Number of Units
(maximum)
Total Amperage
PHX1 LED
Luminaires
120VAC 10 12.5 Amps
230VAC 20 13.0 Amps
PHX1.5 LED
Luminaires
120VAC 10 12.5 Amps
230VAC 20 13.0 Amps
PHX2 LED
Luminaires
120VAC 6 14.0 Amps
230VAC 12 13.0 Amps
PHX3 LED
Luminaires
120VAC 5 14.6 Amps
230VAC 10 14.7 Amps
PHX3.5 LED
Luminaires
120VAC 5 14.6 Amps
230VAC 10 14.7 Amps
Table 1: Daisy Chain Limits of PHX Series LED Luminaires
WARNING! The wiring information in Table Note: is shown for field wiring information and must be performed by
a qualified and licensed electrician. Before performing any field wiring, refer to and read the warnings contained in
“Important Information” on page 1.

Page 11
PHX LED Series Installation & Users Manual
Connecting DMX
The PHX LED Series Luminaires offers two DMX512 connections. One for DMX Input (from a DMX source) and one DMX through-
put (out). Basic DMX512 installation consists of connecting multiple DMX controlled PHX LED Series Luminaires together (up to 32
Total devices per DMX string) in “daisy-chain” fashion. A cable runs from the DMX512 control source to the DMX INPUT connection
on the first luminaire. From the DMX OUTPUT of the luminaire another cable runs to the DMX IN connector on the next luminaire (or
DMX512 device to be controlled).
At the end of each DMX Daisy chain, it is highly recommended that a DMX TERMINATOR (Altman
Lighting part number DMX-5-TERM) is installed on the last luminaire (or device) in the chain.
For more information on installing DMX512 control systems, the following publication is available for purchase from the United
States Institute for Theatre Technology (USITT), “Recommended Practice for DMX512: A Guide for Users and Installers, 2nd edition”
(ISBN: 9780955703522).
USITT Contact Information: www.usitt.org
DMX - XLR Connectors
The table to the right shows the pin-out and corre-
sponding DMX signals for a 5-pin XLR connector.
DMX Signal XLR Connector*
Common (Drain) Pin 1
DMX - Pin 2
DMX + Pin 3
Not Used Pin 4
Not Used Pin 5
Table 3: DMX 5-PIN XLR Connector Wiring
Note: * Only those pins shown are used. Remaining pins on connectors are not used.

Page 12
PHX LED Series Installation & Users Manual
C-Clamp Installation

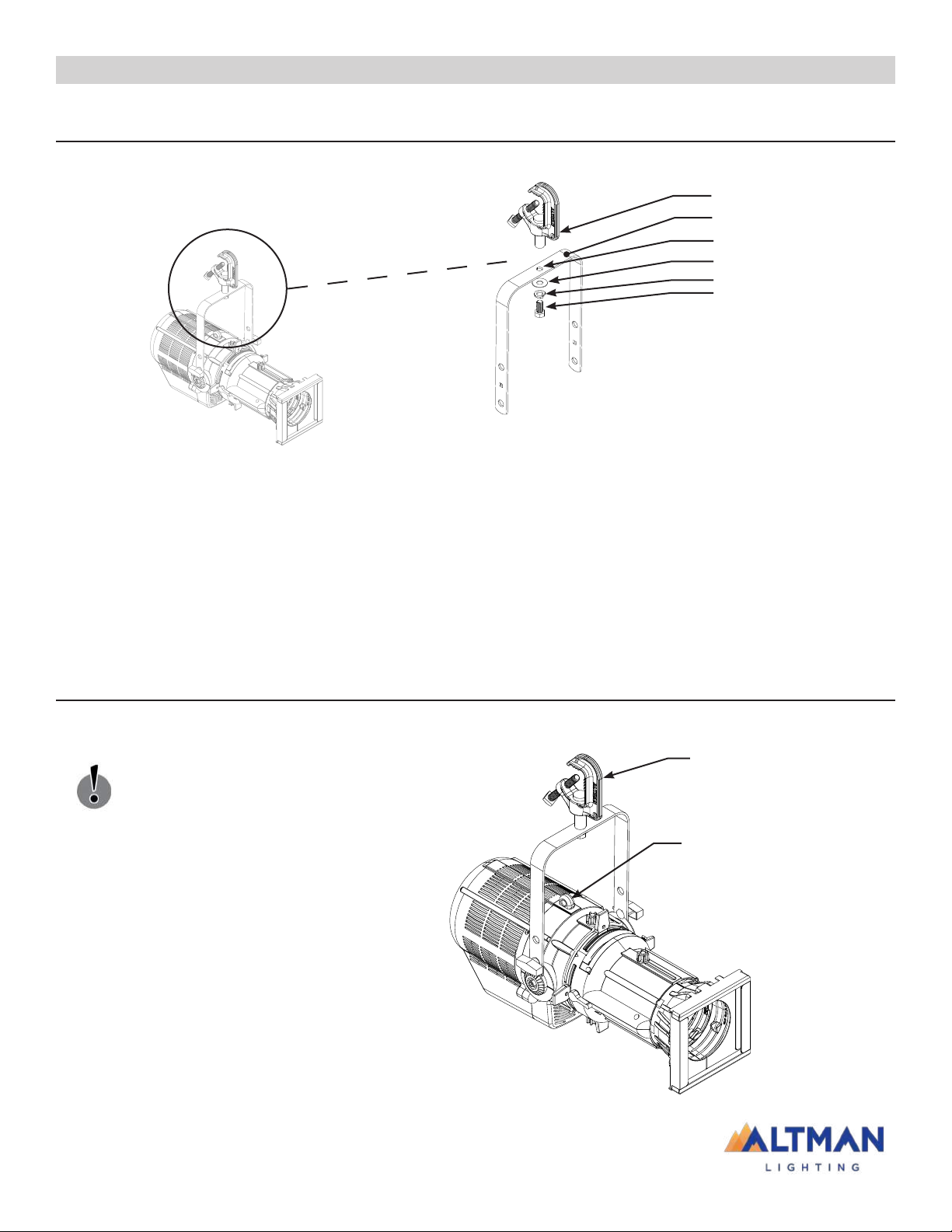

The provided c-clamp should be installed as shown in Figure 2. Only use the hardware supplied with the c-clamp.
To Install the C-clamp:
1. With luminaire on a flat, sturdy surface, position yoke assembly for easy access as illustrated in Figure 2.
2. Place on 1/2-13 hex bolt, in this order, the 1/2-inch lock washer and then the 1/2-inch flat washer.
3. Insert bolt into hole on yoke assembly.
4. Position c-clamp over bolt and thread bolt into c-clamp.
5. Tighten bolt.
C-Clamp
PHX LED Yoke
1/2-inch (13mm) Mounting Hole
1/2-inch Flat Washer
1/2-inch Lock Washer
1/2-13 Hex Bolt
Figure 3: C-Clamp Installation
Safety Cable Installation
The provided safety cable should be installed in accordance to local and national codes.
NOTE: The safety cable (supplied with unit)
should be used and may be required by local
and/or national codes when hanging this
luminaire. The mounting structure must be
capable of supporting the weight of the fixture,
lens, cabling, any accessories, etc.
C-Clamp
Safety Cable Anchor Point
Figure 4: Safety Cable Installation

Page 13
PHX LED Series Installation & Users Manual
Installing Fixture Features and Accessories
PHX Series LED Luminaires accept a variety of accessories and has several on-board features. This section will describes what ac-
cessories can be used, how to install them and how to use the variousfeatures of the fixture.
CAUTION: When installing accessories, it is best practice to do so with the fixture on a flat and stable work surface.
If this is not possible, when installing accessories when the fixture is mounted above, be sure to install the acces-
sory with no one below the fixture in the event the accessory is dropped.
NOTE: There are many aftermarket accessories for Altman Lighting products available through third-party
suppliers. When considering these aftermarket accessories, we suggest that you consult with your Altman Regional
Sales Manager beforehand regarding capability and effects on product performance.
Focus Adjustment (Fixed Focus Models)
Focusing PHX Series LED Luminaires is straight forward. Position the fixture as needed, loosen, but do not remove, the lens focus
knob (refer to Figure 1 on page 7) and slide lens forwards or backwards until desired focus is achieved. Once focus is set, hand-
tighten lens focus knob.
Focus and Zoom Adjustment (Zoomable Focus Models)
Zoomable models offer users the ability to zoom the lens to various beam angles (refer to the model purchased for available beam
angles).
Setting Zoom (Beam Angle)
Position the fixture as needed, loosen, but do not remove, the lens zoom knob (refer to Figure 6). Slide lens forwards or backwards
until desired zoom is achieved. After zoom is set as desired, hand-tighten the zoom knob. Once beam angel is set, hand-tighten lens
zoom knob. Proceed to adjust focus (if required).
Setting Focus
To set the beam focus on zoomable models, loosen, but do not remove, the lens focus knob (refer to Figure 6) and slide lens for-
wards or backwards until desired focus is achieved. Once focus is set, handtighten lens focus knob.
Lens Zoom Knob
Lens Focus Knob
Figure 5: Safety Cable Installation

Page 14
PHX LED Series Installation & Users Manual
Rotating Shutter Assembly (All Models)
If rotating the shutter assembly is required, loosen, but do not remove, shutter rotation lock knob (see Figure 6) on fixture. Using
both hands, rotate the shutter assembly (in either direction) until in the desired position. Hand-tighten shutter rotation lock knob.
Shutter Rotation Knbo
Figure 6: Shutter Rotation Knob
Shutter Movement
Each PHX LED Luminaire offers four (4) shutter blades that can me moved in or out of the fixture’s light beam. To set the shutters,
first set the beam as needed (refer to “Focus Adjustment (Fixed Focus Models)” on page 13 or “Focus and Zoom Adjustment (Zoom-
able Focus Models)” on page 13 as applicable), disengage the shutter lock, move shutters as desired.
NOTE: PHX fixed model shown. Shutter
rotation same for all models.
Shutter (4 Each)
Shutter Lock Handle
(Fixed Focus Models Only)
Shutter (4 Each)
Figure 7: Shutter Rotation Knob
Zoomable Focus Models
Fixed Focus Models
NOTE: On fixed focus units, the shutters can be locked into position by engaging the shutter lock (see Figure 7)
on side of the luminaire. Users will know when the shutter lock is engaged when the shutter, when grabbed by the
hand, does not easily move.

Page 15
PHX LED Series Installation & Users Manual
Accessory Holder
Each PHX Series LED Luminaire is equipped with an end of lens accessory holder to hold the supplied color frame. Please note
which model you have. The accessory holder for fixed focus and zoomable models are different and are operated differently
Accessory Holder (Fixed Focus Models)
On fixed focus models, the accessory holder latch is opened by sliding the cover to the side, lift up on the cover, insert accessory,
and close the cover. Make sure the retaining cover locks back in place
Accessory Holder Latching Cover
NOTE: Do not force open the latch. You must
first slide it to the side before lifting up.
Figure 8: Accessory Holder Latching Cover (Fixed Focus Models)
Accessory Holder (Zoomable Focus Models)
On zoomable focus models, the accessory holder has a small latch that is released by sliding it to the side, lift up on the latch, insert
accessory, and close the latch make sure the retaining latch locks back in place.
Accessory Holder Latch
NOTE: Do not force open the latch. You must
first slide it to the side before lifting up.
Figure 9: Accessory Holder Latch (Zoomable Models)

Page 16
PHX LED Series Installation & Users Manual
Drop In Iris Slot (All Models)
Each PHX LED Luminaire’s lens has a large opening for a drop in iris or motorized pattern device / gobo rotator (by others). This slot
has a retractable cover in order to prevent light leak when not in use and should be closed as far as possible when in use.
NOTE: To avoid damage to the fixture, insert the flat side of the accessory towards the shutters
Drop In Iris Slot
NOTE: PHX fixed model shown. Drop in iris slot same for all
models.
Figure 10: Drop In Iris Slot
Gobo / Soft Focus Lens Adapter Slot (All Models)
Each PHX LED Luminaire’s lens has an opening for a gobo
holder (templates and gobos by others or for the soft focus lens
adapter (supplied with unit).
You must follow the gobo manufacturer’s instructions on how
to handle and use a gobo in your fixture. Always place the most
reflective side towards the light source.
The unit is also supplied with a soft focus lens. The soft focus
lens is a pattern holder with s special lens material that allows
the LED fixture to appear like a conventional ellipsoidal. The
matte side of the material should face the LED light source -
shiny side towards the front of the lens.
Figure 11: Gobo / Soft Focus Lens Adapter Slot
Gobo / Soft Focus Lens Adapter Slot
Note: PHX fixed focus model shown. Gobo/soft focus lens
adapter slot same for all models.
Notes:
• Recommended practice when using metal gobos - depending upon the complexity of the pattern - it may be possible to view an
afterimage of the gobo if shutters are used in conjunction with the gobo. If an after image is seen, it is recommended to black
out the steel pattern using high temperature black spray paint or request this process from the gobo manufacturer.
• If the image requires extremely sharp-focused edges it is always recommended that a Donut is installed to help with image
quality.
• For fixed focus units 19, 26, 36, and 50 degree models, use part number 4.5-DN
• For zoomable focus models, use part number 6-DN
• For 10 degree models, use part number 10-DN
• For 5 degree models, use part number 12-DN

Page 17
PHX LED Series Installation & Users Manual
Yoke Assembly
The PHX LED Luminaire can have its tilt adjusted via the two lock off handles on each side of the luminaire . Simple loosen (but DO
NOT REMOVE) each handle so the unit is able to swing up and down. Set tilt as desired and re-tighten the two lock off handles so
the unit does not move from the set position.
Yoke Tilt Locking Knob
(one on each side)
Figure 12: Yoke Assembly
Short Yoke Position
The yoke assembly has two sets of mounting holes to decrease the distance of the hanging position. To set the unit to a short yoke
position, you will need a 1/4-inch hex head (Allen) wrench (by others).
To reposition the yoke assembly to short yoke position:
At yoke tilt lock knobs, remove both tilt lock knobs and associated hardware. Set aside for reinstallation.
As shown in Figure 13, using a 1/4-inch hex head wrench (by others), remove yoke bolts, cup washers,and pivot covers.
Please note order of hardware for reinstallation. Set hardware aside.
Position yoke assembly so secondary mounting holes are aligned with fixture yoke mounting position.
Reinstall yoke bolts, cup washers, and pivot covers in order removed in Step 3.
Reinstall tilt lock knobs and associated hardware in order removed in Step 2. Washer is positioned between handle and yoke
assembly.
Yoke Bolts / Hardware
(one set on each side)
Figure 13: Yoke Hardware
Yoke Tilt Locking Knob
(one on each side)
Secondary Mounting Hole
(for short yoke mounting)
Step 2.
Step 3.
Step 4.
Step 5.
Step 6.
Place fixture on a flat, sturdy work surface. Remove power from fixtureStep 1.

Page 18
PHX LED Series Installation & Users Manual
Menu System
Button Label Control / Function
Menu Move to previous menu and cancel current action
Enter Select / enter into an option, accept a current action
Up Scroll up through options and selections
Down Scroll down through options and selections
Table 4: PHX Series LED LuminaireMenu Buttons
Setting DMX Address
To set the fixture’s DMX address: (Note: Default is 001)
Press ENTER button. When “DMX Control” appears, press ENTER button.
As illustrated in Figure 15, LCD display will show “DMXAdr” (with a number underneath),
press ENTER button.
Using UP and DOWN buttons, scroll and select desired DMX address.
Once desired DMX address appears, either:
Once DMX address is set, the unit is ready to connect to DMX network for control. For DMX connections and connecting to a DMX
network, refer to “Connecting to the DMX512 Network” on page 11.
Step 2.
Step 3.
Step 4.
Step 5.
Power fixture on and wait until the fixture booting is completed. When complete, LCD
display will go blank.
Step 1.
Press ENTER to confirm DMX address. OR,a.
Press MENU to back out of DMX address setting.b.
All PHX Series LED Luminaires have an onboard menu system that allow users to control a variety of
luminaire features or setup the luminaire for standalone operation or control via DMX. This section covers
the onboard menu system and DMX mapping for all models.
The unit has a LCD display that users can use to see and set various parameters for luminaire operation.
This section will review how to access these settings.
Note: An up/down arrow will appear next to the number letting you know the unit is in DMX
address setting mode.
Figure 14: PHX LED LCD Screen
DMX Adr
1
Figure 15: DMX Mode

Page 19
PHX LED Series Installation & Users Manual
Setting DMX Mode
To set the fixture’s DMX Mode: (Note: Default is 8bit)
Press ENTER button. When “DMX Control” appears, press ENTER button.
Press Down Button. When “DMX Res” appears, press ENTER button
Using UP and DOWN buttons, scroll and select desired DMX Mode.
Once desired DMX Mode appears, either:
Step 2.
Step 3.
Step 4.
Step 5.
Power fixture on and wait until the fixture booting is completed. When complete, LCD
display will go blank.
Step 1.
Press ENTER to confirm DMX Mode. OR,a.
Press MENU to back out of DMX Mode setting.b.
DMX Res
8 Bit
Figure 16: DMX Mode
Note: The PHX LED Series is capable of operating in 4 DMX modes or personalities. The Modes menu allows users to select which
DMX map the luminaire will operate. For further information on modes of operation and mapping, refer to “DMX Mapping and
Control” on page 24.
Setting Master Channel
To set the fixture’s DMX Master Channel: (Note: Default is Off)
Press ENTER button. When “DMX Control” appears, press ENTER button.
Press Down Button twice. When “Master” appears, press ENTER button
Using UP and DOWN buttons, scroll and select to turn off or on the Master Channel
Step 2.
Step 3.
Step 4.
Power fixture on and wait until the fixture booting is completed. When complete, LCD
display will go blank.
Step 1.
Figure 17: Master
Note: Master Channel is selectable as ON or OFF and provides a Master Fade channel that dims all four (4) colors proportionally at
the same time in order to maintain the color. This adds an intensity channel at the end of the DMX string, refer to “DMX Mapping
and Control” on page 24.
Setting Smoothing
To set the fixture’s Smoothing: (Note: Default is Off)
Press ENTER button. When “DMX Control” appears, press ENTER button.
Press Down Button Three times. When “Smoothing” appears, press ENTER button
Using UP and DOWN buttons, scroll and select to turn off or on Smoothing
Step 2.
Step 3.
Step 4.
Power fixture and wait until fixture booting is completed. When complete, LCD display
will go blank.
Step 1.
Note: Smoothing is selectable as ON or OFF and provides a smooth transition ramp from one level to another, this is similar to
how an incandescent lamp behaves. This helps to eliminate the “Digital Linear Dimming” at the bottom end of the dimming curve.
Master
Off
Figure 18: Smoothing
Smoothing
Off

Page 20
PHX LED Series Installation & Users Manual
DMX Loss
To set the fixture’s DMX Loss: (Note: Default is LED Off)
Press ENTER button. When “DMX Control” appears, press ENTER button.
Press Down Button four times. When “DMXLoss” appears, press ENTER button
Using UP and DOWN buttons, scroll and select one of three options for DMX Loss
• LED Off - Fixture will go off when the fixture sees no DMX
• Hold - Fixture will hold its last DMX setting
• Scene-1 - Fixture will output the setting of the Player Mode Cue 1 setting
Step 2.
Step 3.
Step 4.
Power fixture on and wait until the fixture booting is completed. When complete, LCD
display will go blank.
Step 1.
Figure 19: DMX Loss
DMXLoss
Off
Once desired DMX Loss Setting appears, either:Step 5.
Press ENTER to confirm DMX Loss setting. OR,a.
Press MENU to back out of DMX Loss setting.b.
Dimming Curve
To set the fixture’s Dimming Curve: (Note: Default is Square)
Press UP or DOWN buttons until “Set” appears, press ENTER button.
Press Down Button twice. When “DIM Curve” appears, press ENTER button
Using UP and DOWN buttons, scroll and select desired Dimming Curve.
Step 2.
Step 3.
Step 4.
Power fixture on and wait until the fixture booting is completed. When complete, LCD
display will go blank.
Step 1.
Figure 19: DMX Loss
DIMCurv
Log
Linear - When set to Linear, the dimming curve is in direct
relationship to the DMX value. For example, if the DMX value
of the DMX slider is at 25% of its range, then the signal to the
luminaire (and its output) will also be at 25%.
Linear
Log: When set to Log, the dimming curve, (also called a
logarithmic curve by some manufacturers), sets the luminaire
to mimic a dimming effect that is perceived as linear (natu-
rally following an incandescent lamp fade).
Incandescent
Square: When set to Square, the dimming curve (also
called Standard by some manufacturers) results in a
dimming effect that follows a slow or soft bottom-end
response and follows a linear line at the top end. (Default)
Square
Note: See Player / Programming Cues on page 21 to set the Cue 1 setting
Once desired DMX Curve Setting appears, either:Step 5.
Press ENTER to confirm DMX Curve setting. OR,a.
Press MENU to back out of DMX Curve setting.b.
