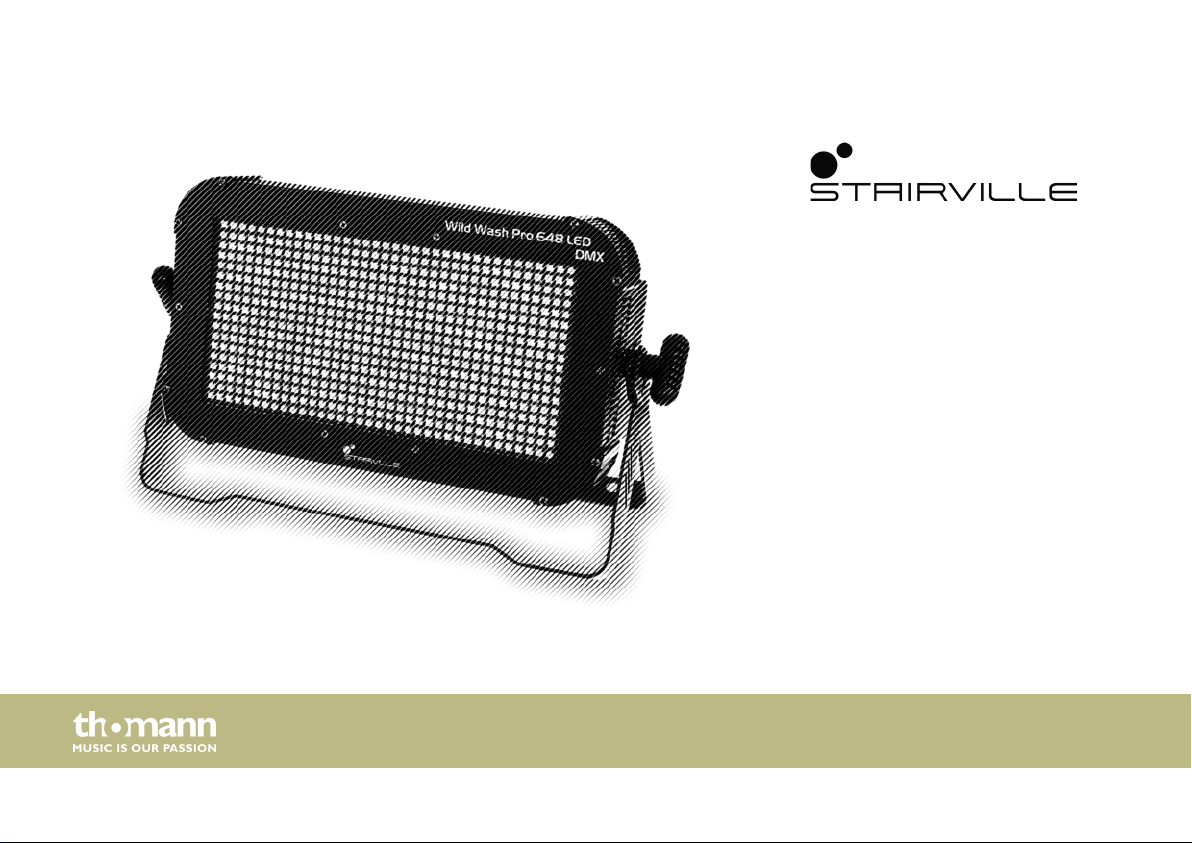

thomann Stairville Wild Wash Pro 648 LED White DMX User manual

Wild Wash
Pro 648 LED RGB DMX,
Wild Wash
Pro 648 LED White DMX,
Wild Wash
Pro 648 WW DMX
LED spotlight
user manual

Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de
17.01.2020, ID: 432585, 432586 (V3)

Table of contents
1 General information................................................................................................................................. 5
1.1 Further information........................................................................................................................... 6
1.2 Notational conventions.................................................................................................................... 7
1.3 Symbols and signal words............................................................................................................... 8
2 Safety instructions.................................................................................................................................. 10
3 Features....................................................................................................................................................... 18
4 Installation.................................................................................................................................................. 20
5 Starting up.................................................................................................................................................. 23
6 Connections and controls................................................................................................................... 26
7 Operating.................................................................................................................................................... 29
7.1 Starting the device........................................................................................................................... 29
7.2 Main menu.......................................................................................................................................... 30
7.3 Menu overview................................................................................................................................. 40
7.4 Functions in DMX mode 1ch........................................................................................................ 41
7.5 Functions in DMX mode 2Ch (model version with white LEDs)..................................... 42
Table of contents
Wild Wash Pro 648 LED RGB DMX, Wild Wash Pro 648 LED White DMX,
Wild Wash Pro 648 WW DMX
3

7.6 Functions in DMX mode 2Ch1 (model version with RGB LEDs)...................................... 43
7.7 Functions in DMX mode 2Ch2..................................................................................................... 45
7.8 Functions in DMX mode 3Ch1 .................................................................................................... 46
7.9 Functions in DMX mode 3Ch2 (model version with RGB LEDs)...................................... 47
7.10 Functions in DMX mode 3Ch2 (model version with white LEDs)................................ 50
7.11 Functions in DMX mode 3Ch3 (model version with RGB LEDs)................................... 51
7.12 Functions in DMX mode 4Ch (model version with RGB LEDs)...................................... 52
7.13 Functions in DMX mode 5Ch (model version with white LEDs)................................... 55
7.14 Functions in DMX mode 6Ch (model version with RGB LEDs)...................................... 57
7.15 Functions in DMX mode 7Ch (model version with 648 white LEDs).......................... 59
8 Technical specications....................................................................................................................... 61
9 Plug and connection assignment.................................................................................................... 70
10 Troubleshooting...................................................................................................................................... 72
11 Cleaning....................................................................................................................................................... 74
12 Protecting the environment.............................................................................................................. 75
Table of contents
LED spotlight
4

1 General information
This user manual contains important information on the safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to another user, be sure
that they also receive this manual.
Our products and user manuals are subject to a process of continuous development. We there‐
fore reserve the right to make changes without notice. Please refer to the latest version of the
user manual which is ready for download under www.thomann.de.
General information
Wild Wash Pro 648 LED RGB DMX, Wild Wash Pro 648 LED White DMX,
Wild Wash Pro 648 WW DMX
5

1.1 Further information
On our website (www.thomann.de) you will nd lots of further information and details on the
following points:
Download This manual is also available as PDF le for you to download.
Keyword search Use the search function in the electronic version to nd the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the customer service will
gladly assist you.
General information
LED spotlight
6

1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
Texts and values displayed on the device are marked by quotation marks and italics.
Examples: ‘24ch’ , ‘OFF’ .
References to other locations in this manual are identied by an arrow and the specied page
number. In the electronic version of the manual, you can click the cross-reference to jump to
the specied location.
Example: See Ä ‘Cross-references’ on page 7.
Letterings
Displays
Cross-references
General information
Wild Wash Pro 648 LED RGB DMX, Wild Wash Pro 648 LED White DMX,
Wild Wash Pro 648 WW DMX
7

1.3 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this manual.
Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
WARNING! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in death or serious
injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
General information
LED spotlight
8

Warning signs Type of danger
Warning – high-voltage.
Warning – dangerous optical radiation.
Warning – suspended load.
Warning – danger zone.
General information
Wild Wash Pro 648 LED RGB DMX, Wild Wash Pro 648 LED White DMX,
Wild Wash Pro 648 WW DMX
9

2 Safety instructions
This device is intended for use as an electronic lighting eect by means of LED technology. The
device is designed for professional use and is not suitable for use in households. Use the
device only as described in this user manual. Any other use or use under other operating con‐
ditions is considered to be improper and may result in personal injury or property damage. No
liability will be assumed for damages resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Extend the life of the device by regular breaks in operation and avoid switching it on and o
frequently. This device is not suitable for continuous use.
Intended use
Safety instructions
LED spotlight
10

DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never
remove any covers.
There are no user-serviceable parts inside.
Do not use the device if covers, protectors or optical components are missing or
damaged.
Safety
Safety instructions
Wild Wash Pro 648 LED RGB DMX, Wild Wash Pro 648 LED White DMX,
Wild Wash Pro 648 WW DMX
11

DANGER!
Electric shock caused by short-circuit
Always use proper ready-made insulated mains cabling (power cord) with a pro‐
tective contact plug. Do not modify the mains cable or the plug. Failure to do so
could result in electric shock/death or re. If in doubt, seek advice from a regis‐
tered electrician.
WARNING!
Eye damage caused by high light intensity
Never look directly into the light source.
WARNING!
Risk of epileptic shock
Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons
should avoid looking at strobe lights.
Safety instructions
LED spotlight
12

NOTICE!
Risk of re
Do not block areas of ventilation. Do not install the device near any direct heat
source. Keep the device away from naked ames.
Safety instructions
Wild Wash Pro 648 LED RGB DMX, Wild Wash Pro 648 LED White DMX,
Wild Wash Pro 648 WW DMX
13

NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never
expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and
strong vibrations.
Only operate the device within the ambient conditions specied in the chapter
‘Technical specications’ of this user manual. Avoid heavy temperature uctua‐
tions and do not switch the device on immediately after it was exposed to tem‐
perature uctuations (for example after transport at low outside temperatures).
Dust and dirt inside can damage the unit. When operated in harmful ambient
conditions (dust, smoke, nicotine, fog, etc.), the unit should be maintained by
qualied service personnel at regular intervals to prevent overheating and other
malfunction.
Safety instructions
LED spotlight
14

NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches
the voltage rating of the device and that the AC outlet is protected by a residual
current circuit breaker. Failure to do so could result in damage to the device and
possibly injure the user.
Unplug the device before electrical storms occur and when it is unused for long
periods of time to reduce the risk of electric shock or re.
NOTICE!
Possible damage due to installation of a wrong fuse
The use of dierent types of fuses can cause serious damage to the unit. Fire
hazard!
Only fuses of the same type may be used.
Safety instructions
Wild Wash Pro 648 LED RGB DMX, Wild Wash Pro 648 LED White DMX,
Wild Wash Pro 648 WW DMX
15

NOTICE!
Possible staining
The plasticiser contained in the rubber feet of this product may possibly react
with the coating of your parquet, linoleum, laminate or PVC oor and after some
time cause permanent dark stains.
In case of doubt, do not put the rubber feet directly on the oor, but use felt-pad
oor protectors or a carpet.
NOTICE!
Risk of overheating
The distance between light output and the illuminated surface must be more
than 1.5 m (19.7in).
Provide sucient ventilation.
The ambient temperature must always be below 40 °C (104 °F).
Safety instructions
LED spotlight
16

NOTICE!
Brandgefahr durch Überschreiten des Maximalstroms
The device can power other devices via a lockable Power Twist output socket. The
current consumption of all serially connected other devices must not exceed 16
A, otherwise you risk injuries and irreparable damages of the device.
Connect just so many devices to the output socket that the maximum current
consumption is not exceeded.
Ensure the correct dimensioning (wire cross section) of the used power cords of
all serially connected devices.
Safety instructions
Wild Wash Pro 648 LED RGB DMX, Wild Wash Pro 648 LED White DMX,
Wild Wash Pro 648 WW DMX
17

3 Features
The LED spotlight is particularly suitable for lighting applications in clubs, night clubs, on rock
stages, in theatres and musicals. It can also be used for eect lighting of stage backgrounds
and as blinder.
Special features of the device:
nEquipped with SMD LEDs with 0.2 W power consumption each, depending on the model
version:
– Stairville Wild Wash Pro 648 LED RGB DMX (item no. 432585): 648 tricolour LEDs (RGB)
– Stairville Wild Wash Pro 648 LED White DMX (item no. 432586): 648 cold white LEDs
– Stairville Wild Wash Pro 648 WW DMX (item no. 481229): 648 warm white LEDs
nControl via DMX (dierent modes depending on the model version) and via buttons and
display on the unit
nBuilt-in automatic show programmes
nSound control
nMaster / Slave mode
nRobust metal housing with compact design
nVersatile installation and mounting options with the included two-piece mounting bracket
Features
LED spotlight
18

For technological reasons, the light output of LEDs decreases over their lifetime. This eect
increases with higher operating temperature. You can extend the service life of the illuminants
by providing adequate ventilation and operating the LEDs with the lowest possible brightness.
Features
Wild Wash Pro 648 LED RGB DMX, Wild Wash Pro 648 LED White DMX,
Wild Wash Pro 648 WW DMX
19

4 Installation
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
You can install the device standing or hanging. When in use, the device must be mounted at a
solid surface or clamped to an approved truss.
Work from a stable platform whenever you install or move the device or when you perform
any kind of maintenance. Block access under the work area.
WARNING!
Risk of injury caused by falling objects
Make sure that the installation complies with the standards and rules that apply
in your country. Always secure the device with a secondary safety attachment,
such as a safety cable or a safety chain.
Installation
LED spotlight
20
