I N STALLATION

General Information
Delivery / Unpacking . . . . . . . . . . . . . . . . . .1.
Safety Procedures and Precautions . . . . . . . . .2.
Specifications
Options ...........................3.
6•10esG...........................4.
10•10esG ..........................5.
7•14esG...........................6.
10•20esG ..........................7.
12•18esG ..........................8.
20•20esG ..........................9.
Installation Requirements
Installation Codes & Standards . . . . . . . . . . .10.
Ventilation General Requirements . . . . . . . . .11.
Positioning on Site . . . . . . . . . . . . . . . . . . .11.
inimum Clearance Requirements . . . . . . . .11.
Positioning Requirements . . . . . . . . . . . . . .12.
Ventilation Specific Requirements . . . . . . . . .13.
Electrical Requirements . . . . . . . . . . . . . . . .14.
Drip Tray Installation . . . . . . . . . . . . . . . . .15.
obile Equipment Restraint . . . . . . . . . . . . .15.
Gas Supply Specifications . . . . . . . . . . . . . .16.
GasPressures ......................16.
GasConnection .....................17.
Gas Leak Testing . . . . . . . . . . . . . . . . . . . .19.
GasExhaust .......................19.
Water Quality Requirements . . . . . . . . . . . . .20.
Water Connection . . . . . . . . . . . . . . . . . . .21.
Water Filtration System . . . . . . . . . . . . . . . .22.
WaterDrainage .....................23.
Installation C ecklist .................24.
Error Codes
ControlReset ......................25.
ErrorCodes .......................25.
Emergency Operation . . . . . . . . . . . . . . . . .28.
Equipment Limited Warranty ...........29.
Transportation Damage and Claims ......30.

D E L I V E R Y
This Alto-Shaa appliance has been
thoroughly tested and inspected to insure only the
highest quality unit is provided. Upon receipt,
check for any possible shipping da age and report
it at once to the delivering carrier. See
Transportation Damage and Claims section
located in this manual.
This appliance, co plete with unattached
ite s and accessories, ay have been delivered in
one or ore packages. Check to ensure that all
standard ite s and options have been received
with each odel as ordered.
Save all the infor ation and instructions
packed with the appliance. Co plete and return
the warranty card to the factory as soon as
possible to assure pro pt service in the event of a
warranty parts and labor clai .
This anual ust be read and understood by
all people using or installing the equip ent
odel. Contact the Alto-Shaa service
depart ent if you have any questions concerning
installation, operation, or aintenance.
NOTE: All clai s for warranty ust include the
full odel nu ber and serial nu ber of
the unit.
UNPACKING
1. Carefully re ove the
appliance fro the
carton or crate.
NOTE: Do not discard the
carton and other
packaging aterial
until you have
inspected the unit
for hidden da age
and tested it for
proper operation.
2. Read all instructions in this anual carefully
before initiating the installation of this appliance.
DO NOT DISCARD THIS MANUAL.
This anual is considered to be part of the
appliance and is to be provided to the owner or
anager of the business or to the person
responsible for training operators. Additional
manuals are available from the Alto-Shaam
service department.
3. Re ove all protective plastic fil , packaging
aterials, and accessories fro the appliance
before connecting electrical power. Store any
accessories in a convenient place for future use.
®
®
®
GAS COMBITHERM —I N S TA L L A T I O N M A N U A L #MN 28898
PG.1
THE INFORMATION CONTAINED IN THIS
MANUAL IS IMPORTANT FOR THE PROPER
INSTALLATION OF THIS OVEN.PLEASE
READ CAREFULLY AND RETAIN FOR
FUTURE REFERENCE.
IMPROPER CONNECTION OF THIS APPLIANCE
WILL NULLIFY ALL WARRANTIES.
LES INFORMATIONS CONTENUES DANS CE
MANUEL SONT IMPORTANTES POUR
L’INSTALLATION L’UTILISATION ET
L’ENTRETIEND DE CE FOUR.S’IL VOUS
PLAIT LISEZ-LE TRES ATTENTIVEMENT ET
CONSERVEZ-LE.
LA NO N-APPLICATION DE CES CONSIGNES
ANNULE TOUTES GARANTIES.

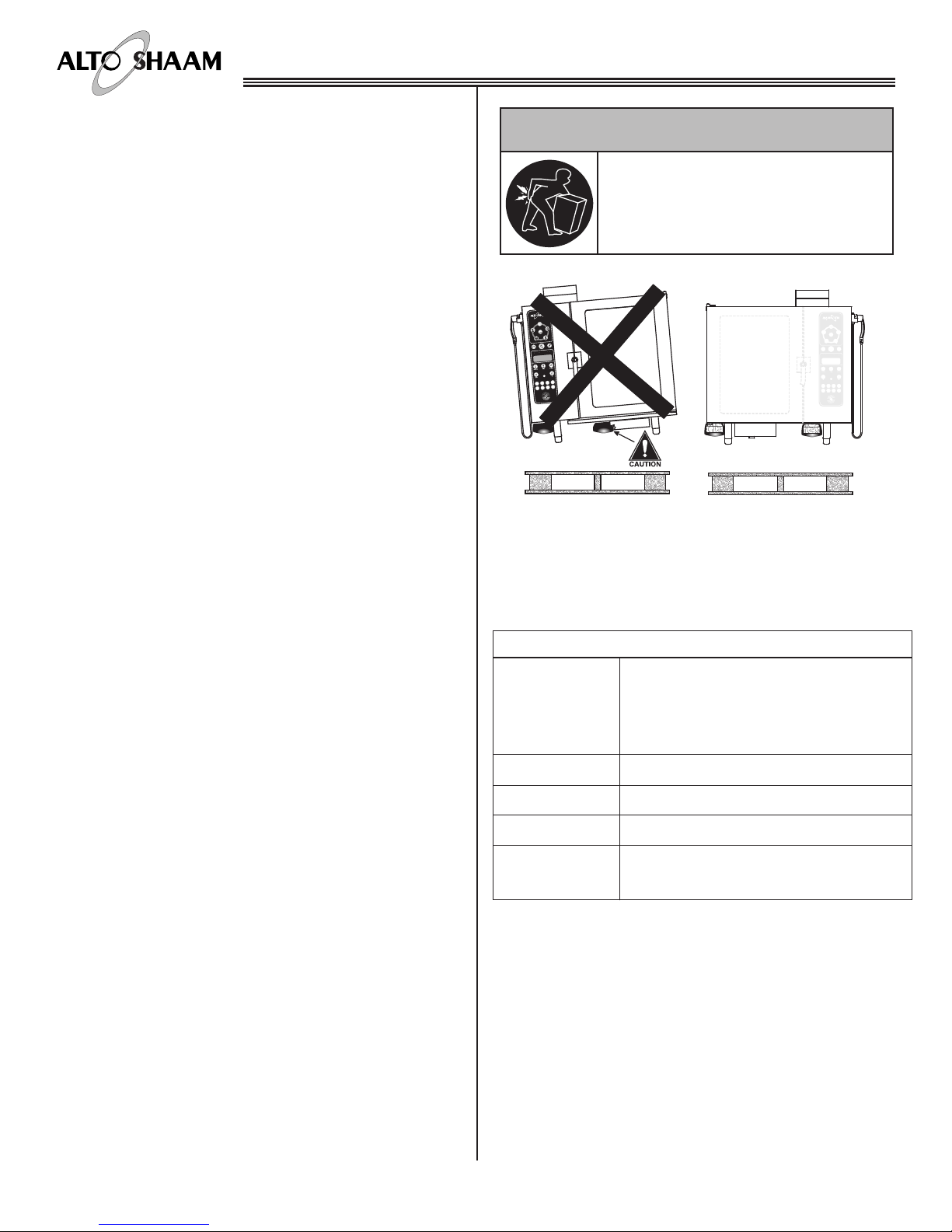

C A U T I O N
TO PREVENT PERSONAL INJURY,
USE CAUTION WHEN MOVING OR
LEVELING THIS APPLIANCE.

GAS COMBITHERM —I N S TA L L A T I O N M A N U A L #MN 28898
PG.2
1. This appliance is intended to cook, hold or
process foods for the purpose of human
consumption. No other use for this appliance is
authorized or recommended.
2. This appliance is intended for use in commercial
establishments where all operators are familiar
with the purpose, limitations, and associated
hazards of this appliance. Operating
instructions and warnings must be read and
understood by all operators and users.
3. Any troubleshooting guides, component views,
and parts lists included in this manual are for
general reference only and are intended for use
by ualified technical personnel.
4. This manual should be considered a permanent
part of this appliance. This manual and all
supplied instructions, diagrams, schematics,
parts lists, notices, and labels must remain with
the appliance if the item is sold or moved to
another location.
N O T E : Used to notify personnel of
installation, operation, or
maintenance information that is
important but not hazard related.
C A U T I O N
Used to indicate the presence of a hazard that can
or will cause minor personal injur , propert
damage, or a potential unsafe practice if the
warning included with this s mbol is ignored.
C A U T I O N
Used to indicate the presence of a
hazard that can or will cause minor or
moderate personal injur or propert
damage if the warning included with
this s mbol is ignored.
D A N G E R
Used to indicate the presence of a
hazard that WILL cause severe
personal injur , death, or substantial
propert damage if the warning
included with this s mbol is ignored.
W A R N I N G
Used to indicate the presence of a
hazard that CAN cause personal injur ,
possible death, or major propert
damage if the warning included with
this s mbol is ignored.
SAFETY PROCEDURES
AND PRECAUTIONS
Knowledge of proper procedures is essential to the
safe operation of electrically and/or gas energized
e uipment. In accordance with generally accepted
product safety labeling guidelines for potential
hazards, the following signal words and symbols
may be used throughout this manual.
C A U T I O N
WHEN WELDING ANY STAINLESS
STEEL COMPONENTS ON THIS
APPLIANCE, THE ELECTRONIC
CONTROL BOARDS MUST BE
ISOLATED FROM THE APPLIANCE.

GAS COMBITHERM —I N S TA L L A T I O N M A N U A L #MN 28898
PG.3
®
COMBITHERM
COMMON SPECIFICATIONS
■■COMBIGUARD™ TRIP E-GUARD WATER
FI TRATION SYSTEM
(INCLUDES 1 CARTRIDGE) I-23014
■■COMBIGUARD™REP ACEMENT FI TER I-26356
■■FRY BASKET, 12" X20" (325mm x 530mm) BS-26730
■■GRI ING GRATE,
12" X20" (325mm x 530mm) SH-26731
■■COMBITHERM C EANING IQUID — CE-24750
SPECIALLY ORMULATED OR COMBITHERM OVENS
➥TWELVE (12) CONTAINERS/CASE, 1 QUART (C. 1 LITER) EACH
■■COMBITHERM C EANING TABS — CE-28892
SPECIALLY ORMULATED OR COMBITHERM OVENS
➥TWO (2) CONTAINERS/BOX, 90 PACKETS EACH CONTAINER
■■QUICK DISCONNECT KIT CR-33543
■■SCA E FREE™CE-27889
(CITRUS BASED, NON-CORROSIVE DELIMING PRODUCT)
CASE = OUR 4-LB BOTTLES; 4-LB BOTTLE MAKES 10 GALLONS
■■SERVICE START-UP CHECK SPECI Y AS REQUIRED
AVAI AB E THROUGH AN A TO-SHAAM FASTEAM CENTER
■■ Computer Software Options 5005676
Not available on S-Control Mod els.
RE ER TO HACCP SPECI ICATION SHEET #9015
OR APPLICABLE PART NUMBERS
■■ HACCP Documentation
■■ HACCP Documentation with Kitchen Management
■■ Wireless HACCP Documentation with
Kitchen Management
IEEE 802.11b STANDARDS
Six (6) Chicken Roasting Rack
(PAN NOT INCLUDED)SH-23000
ry Basket BS-26730
Grilling Grate SH-26731
Ten (10) Chicken Roasting Rack
SH-22634

GAS COMBITHERM — I N S TA L L A T I O N M A N U A L #MN 28898
PG.4
®

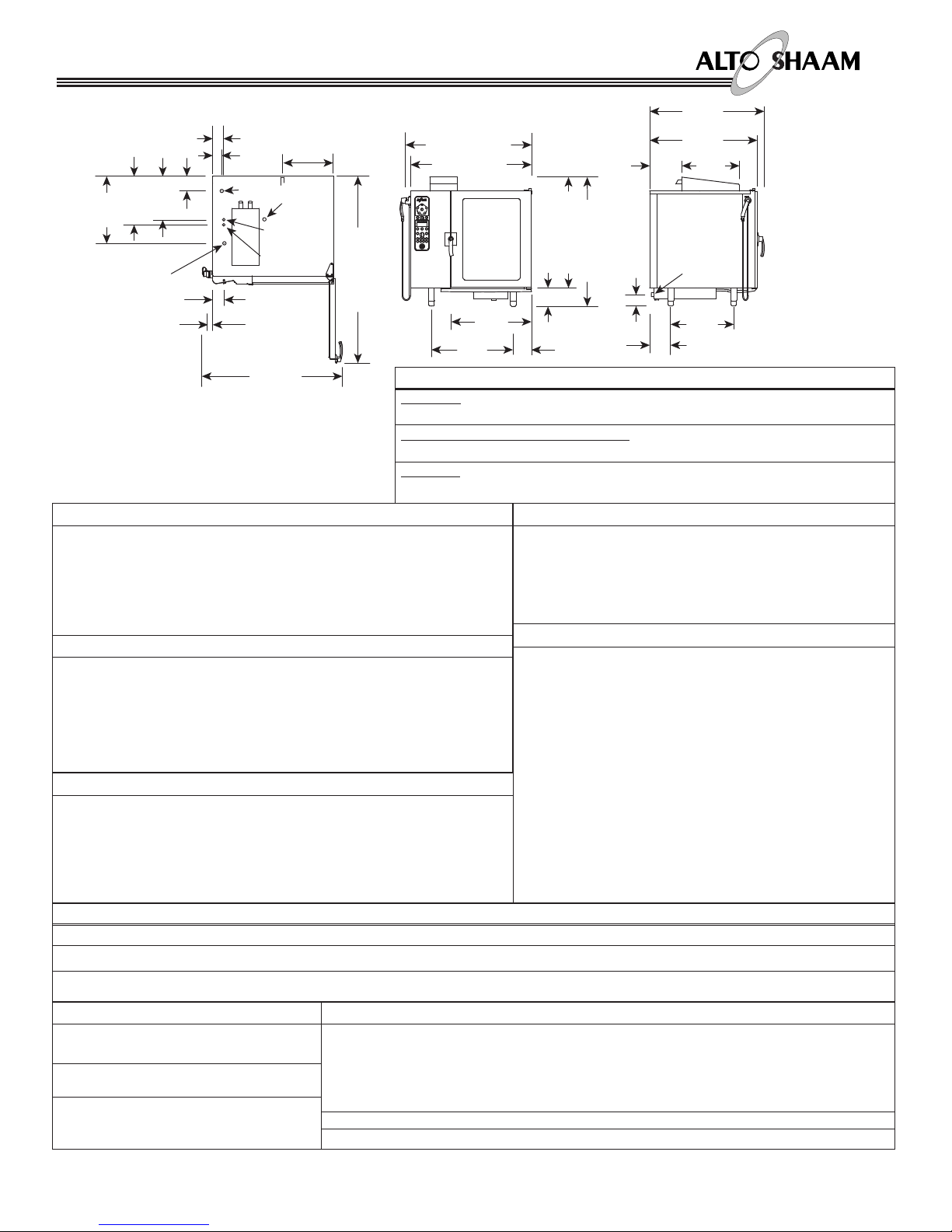

COMBITHERM

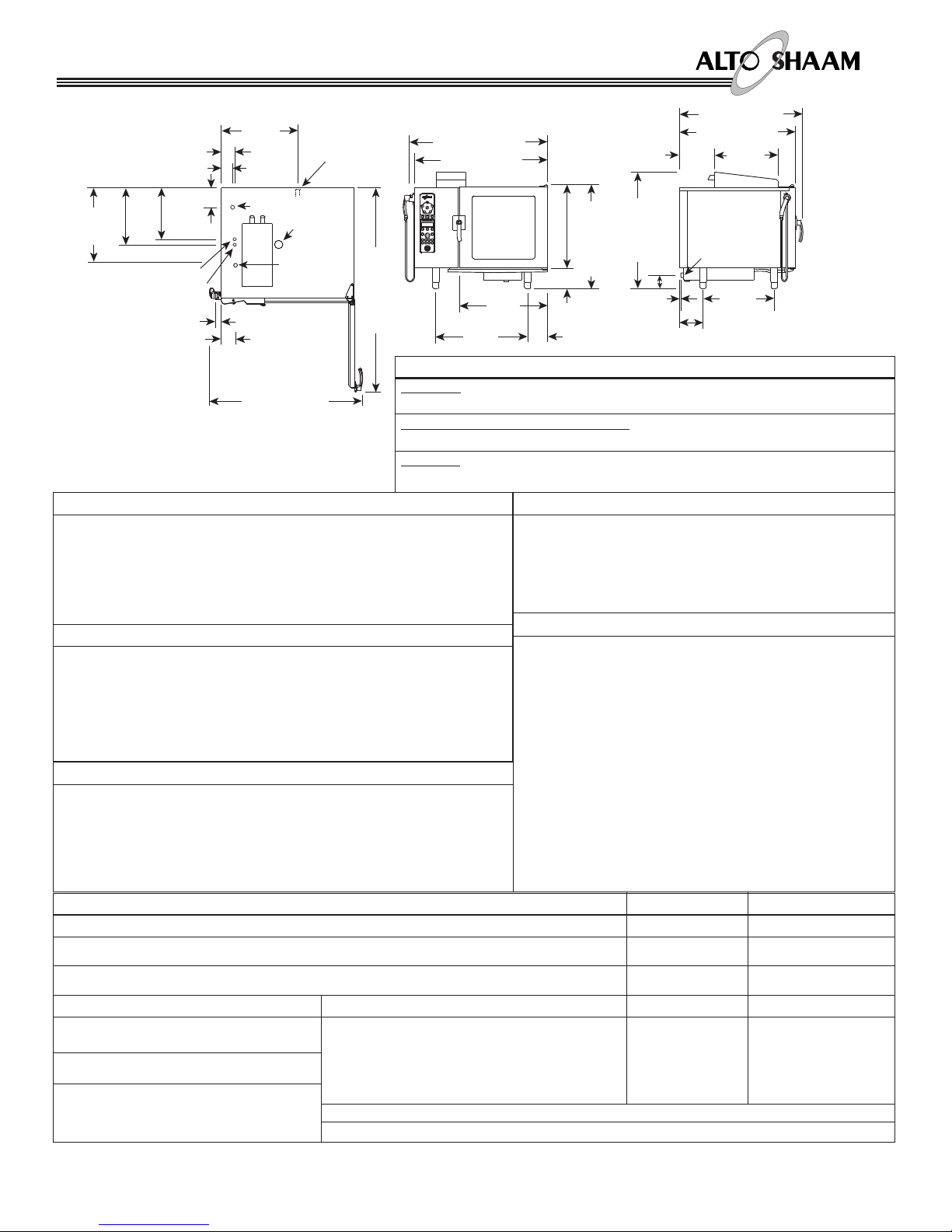

6•10ESG SPECIFICATIONS
C A PA C I T Y
ULL-SIZE PANS: 20" x 12" x 2-1/2" Six (6) our (4)
GN 1/1: 530 x 325 x 65mm Six (6) our (4)
HAL -SIZE SHEET PANS:* 18" x 13" x 1" Six (6) ive (5)
ON WIRE SHE VES ON Y
72 lb (33 kg) MAXIMUM
VOLUME MAXIMUM: 45 QUARTS (57 LITERS)
CLEARANCE REQUIREMENTS
EFT: 6" (152mm) PLUS SERVIC E ACC ESS: 18" (457mm) RECOMMENDED
20" (508mm) F R O M H E AT P R O D U C I N G E Q U I P M E N T
RIGHT: 4" (102mm) TOP: 20" (508mm) OR AIR MOVEMENT
BACK: 4" (102mm) BOTTOM: 5-1/8" (130mm) OR LEGS
COUNTER-TOP INSTALLATIONS MUST MAINTAIN 4" (102mm)
MINIMUM CLEARANCE ROM THE COUNTER SUR ACE.
G A S R E Q U I R E M E N T S
CONNECTED ENERGY OAD:45,000 Btu/hr
HOOK-UP:3/4" NPT
MINIMUM CONNECTED PRESSURE:5.5" W.C. (Natural Gas)
9" W.C. (Propane)
MAXIMUM CONNECTED PRESSURE:14" W.C.
GAS TYPE MUST BE SPECIFIED ON ORDER.
WEIGHT
NET 377 lb EST. (171 kg) EST.
SHIP 442 lb EST. (200 kg) EST.
CRATE 40" X45" X40" EST.
DIMENSIONS:(1016 x 1143 x 1016mm)
E L E C T R I C A L 6 • 1 0 E S G 6 • 1 0 E S G / s k
VO TAGE PHASE CYC E/HZ AWG AMPS kW AMPS kW
110 - 120 1 50/60 2 Wire plus ground, AWG 12 5.7 0.68 9.5 1.14
OTHER VOLTAGES AVAILABLE: Range 200 — 415V — 1 or 3 ph, 50 or 60 Hz
WAT E R R E Q U I R E M E N T S
TWO (2) CO D WATER IN ETS - DRINKING QUA ITY
ONE (1) TREATED WATER IN ET:3/4" NPT*
ONE (1) UNTREATED WATER IN ET:3/4" NPT*
INE PRESSURE:30 to 90 psi 2.8 to 6.2 bar
WATER DRAIN: 1-1/2" CONNECTION WITH AIR GAP
* Can manifold off of one 3/4" line.
INSTALLATION REQUIREMENTS
Oven must be installed level. Hood installation. Water supply
shut-off valve and back-flow preventer. Alternate burner orifice
is required for installation sites at elevations of 3,000 feet (914m)
above sea level.
5-1/2" (140mm)
Steam
Vent
(Top)
Untreated Water Intake (Bottom)
Treated Water Intake (Bottom)
Electrical
Connection (Bottom)
Gas Connection
(Bottom)
2" (50mm)
47-5/16" (1201mm)
42-1/16" (1068mm)
40-1/8"
(1018mm)
37" (939mm)
34-5/16"
(871mm)
Water Drain
(Bottom)
21-11/16"
(550mm)
5-1/2"
(140mm)
25"
(635mm)
7-1/2"
(191mm)
58-3/16" (1478mm)
6-1/4" (159mm)
5" (125mm)
3-1/16"
(76mm)
27-3/4"
(704mm)
34" (863mm)
2-3/8" (60mm)
10-5/8
"
(270mm)
19-3/8"
(492mm)
11-1/2" (292mm)
3-5/8"
(92mm)
15-5/8"
(396mm)
Water Drain
(Side Back)
D I M E N S I O N S : H x W x D
EXTERIOR:
34" x 42-1/16" x 37" (863mm x 1068mm x 939mm)
EXTERIOR WITH RETRACTAB E DOOR:
34" x 46-1/16" x 37" (863mm x 1170mm x 939mm)
INTERIOR:
17-3/4" x 17-3/8" x 26-13/16" (450mm x 440mm x 680mm)
WAT E R Q U A L I T Y M I N I M U M S TA N D A R D S
USING A WATER SUPPLY NOT MEETING ALTO-SHAAM'S
MINIMUM WATER QUALITY STANDARDS WILL VOID THIS
WARRANTY. It is the responsibility of the purchaser to ensure
that incoming water supply is compliant with the specifications
listed through adequate treatment measures. Installation of the
CombiGuard™ Water iltration System is recommended, but this
system may not address all water quality issues present.
Contaminant Inlet Water Requirements (untreated water)
ree Chlorine Less than 0.1 ppm (mg/L)
Hardness Less than 3 gpg (52 ppm)
Chloride Less than 30 ppm (mg/L)
pH 7.0 to 8.5
Alkalinity Less than 50 ppm (mg/L)
Silica Less than 12 ppm (mg/L)
Total Dissolved
Solids (tds) Less than 60 ppm

GAS COMBITHERM — I N S TA L L A T I O N M A N U A L #MN 28898
PG.5
®
COMBITHERM
10•10ESG SPECIFICATIONS
C A PA C I T Y
ULL-SIZE PANS: 20" x 12" x 2-1/2" Ten (10) Eight (8)
GN 1/1: 530 x 325 x 65mm Ten (10) Eight (8)
HAL -SIZE SHEET PANS:* 18" x 13" x 1" Ten (10) Nine (9)
ON WIRE SHE VES ON Y
120 lb (54 kg) MAXIMUM
VOLUME MAXIMUM: 75 QUARTS (95 LITERS)
WEIGHT
NET 490 lb EST. (222 kg) EST.
SHIP 530 lb EST. (240 kg) EST.
CRATE 50" X45" X40" EST.
DIMENSIONS:(1270 x 1143 x 1016mm)
E L E C T R I C A L 1 0 • 1 0 E S G 1 0 • 1 0 E S G / s k
VO TAGE PHASE CYC E/HZ AWG AMPS kW AMPS kW
110 - 120 1 50/60 2 Wire plus ground, AWG 12 5.7 .68 9.5 1.14
OTHER VOLTAGES AVAILABLE: Range 200 — 415V — 1 or 3 ph, 50 or 60 Hz
21-11/16"
(550mm)
5-1/2"
(140mm)
42-1/16" (1068mm)
40-1/8"
(1018mm)
37" (939mm)
34-5/16"
(871mm)
Water Drain
(Bottom)
5" (125mm)
3-1/16"
(76mm)
37-3/8" (949mm)
43-5/8" (1108mm)
Steam
Vent
(Top)
Untreated Water
Intake (Bottom)
Electrical
Connection (Bottom)
Gas Connection
(Bottom)
2" (50mm)
47-5/16" (1201mm)
58-3/16" (1478mm)
2-3/8" (60mm)
10-5/8
"
(270mm)
19-3/8"
(492mm)
15-5/8"
(396mm)
Water Drain
(Side Back)
25"
(635mm)
7-1/2"
(191mm)
6-1/4" (159mm)
5-1/2" (140mm)
Treated Water Intake (Bottom)
11-1/2" (292mm)
3-5/8"
(92mm)
D I M E N S I O N S : H x W x D
EXTERIOR:
43-5/8" x 42-1/16" x 37" (1108mm x 1068mm x 939mm)
EXTERIOR WITH RETRACTAB E DOOR:
43-5/8" x 46-1/16" x 37" (1108mm x 1170mm x 939mm)
INTERIOR:
27-3/8" x 17-3/8" x 26-13/16" (695mm x 440mm x 680mm)
*ADDITIONAL WIRE SHELVES REQUIRED OR MAXIMUM CAPACITY
C L E A R A N C E R E Q U I R E M E N T S
EFT: 6" (152mm) PLUS SERVICE ACCESS: 18" (457mm) RECOMMENDED
20" (508mm) FR O M H E AT P R O D U C I N G E Q U I P M E N T
RIGHT: 4" (102mm) TOP: 20" (508mm) OR AIR MOVEMENT
BACK: 4" (102mm) BOTTOM: 5-1/8" (130mm) OR LEGS
COUNTER-TOP INSTALLATIONS MUST MAINTAIN 4" (102mm)
MINIMUM CLEARANCE ROM THE COUNTER SUR ACE.
G A S R E Q U I R E M E N T S
CONNECTED ENERGY OAD:68,000 Btu/hr
HOOK-UP:3/4" NPT
MINIMUM CONNECTED PRESSURE:5.5" W.C. (Natural Gas)
9" W.C. (Propane)
MAXIMUM CONNECTED PRESSURE:14" W.C.
GAS TYPE MUST BE SPECIFIED ON ORDER.
WAT E R R E Q U I R E M E N T S
TWO (2) CO D WATER IN ETS - DRINKING QUA ITY
ONE (1) TREATED WATER IN ET:3/4" NPT*
ONE (1) UNTREATED WATER IN ET:3/4" NPT*
INE PRESSURE:30 to 90 psi 2.8 to 6.2 bar
WATER DRAIN: 1-1/2" CONNECTION WITH AIR GAP
* Can manifold off of one 3/4" line.
INSTALLATION REQUIREMENTS
Oven must be installed level. Hood installation. Water supply
shut-off valve and back-flow preventer. Alternate burner orifice
is required for installation sites at elevations of 3,000 feet (914m)
above sea level.
WAT E R Q U A L I T Y M I N I M U M S TA N D A R D S
USING A WATER SUPPLY NOT MEETING ALTO-SHAAM'S
MINIMUM WATER QUALITY STANDARDS WILL VOID THIS
WARRANTY. It is the responsibility of the purchaser to ensure
that incoming water supply is compliant with the specifications
listed through adequate treatment measures. Installation of the
CombiGuard™ Water iltration System is recommended, but this
system may not address all water quality issues present.
Contaminant Inlet Water Requirements (untreated water)
ree Chlorine Less than 0.1 ppm (mg/L)
Hardness Less than 3 gpg (52 ppm)
Chloride Less than 30 ppm (mg/L)
pH 7.0 to 8.5
Alkalinity Less than 50 ppm (mg/L)
Silica Less than 12 ppm (mg/L)
Total Dissolved
Solids (tds) Less than 60 ppm

GAS COMBITHERM — I N S TA L L A T I O N M A N U A L #MN 28898
PG.6
®
COMBITHERM
7•14ESG SPECIFICATIONS
C A PA C I T Y
ULL-SIZE PANS: 20" x 12" x 2-1/2" ourteen (14) Twelve (12)
GN 1/1: 530 x 325 x 65mm ourteen (14) Twelve (12)
GN 2/1: 650 x 530 x 65mm Seven (7) ive (5)
ULL-SIZE SHEET PANS:* 18" x 26" x 1" Seven (7) Six (6)
ON WIRE SHE VES ON Y
168 lb (76 kg) MAXIMUM
VOLUME MAXIMUM: 105 QUARTS (133 LITERS)
WEIGHT
NET NOT YET AVAILABLE
SHIP NOT YET AVAILABLE
CRATE 48" X56" X50" EST.
DIMENSIONS:(1219 x 1422 x 1473mm)
E L E C T R I C A L 7 • 1 4 E S G 7 • 1 4 E S G / s k
VO TAGE PHASE CYC E/HZ AWG AMPS kW AMPS kW
110 - 120 1 50/60 2 Wire plus ground, AWG 12 5.7 0.68 9.5 1.14
OTHER VOLTAGES AVAILABLE: Range 200 — 415V — 1 or 3 ph, 50 or 60 Hz
Water Drain
(Bottom)
25-5/8"
(650mm)
9/16"
(13mm) 8-1/2" (216mm)
42" (1066mm)
4-13/16"
(121mm)
31-3/4"
(805mm)
33-1/8"
(840mm)
7-3/16"
(181mm)
73-7/16" (1865mm)
37-5/8” (954mm)
30-1/16"
(763mm)
4-5/8" (116mm)
2" (50mm)
47-7/8" (1215mm) 22-11/16"
(575mm)
49-13/16" (1265mm) 41-3/4" (1060mm)
44-7/16" (1128mm)
55-1/16" (1398mm)
Water Drain
(Side Back)
27-9/16"
(700mm)
3-9/16"
(89mm)
4-3/8" (110mm)
6”
(151mm)
17-3/8"
(441mm)
19-3/8"
(491mm)
26-3/4"
(678mm)
Steam Vent (Top)
Gas Connection
(Bottom)
Treated Water Intake (Bottom)
Untreated Water Intake (Bottom)
Electrical
Connection (Bottom)
7-9/16"
12-13/16"
(325mm)
(192mm)
D I M E N S I O N S : H x W x D
EXTERIOR:
42" x 49-13/16" x 44-7/16" (1066mm x 1265mm x 1128mm)
EXTERIOR WITH RETRACTAB E DOOR:
42" x 53-13/16" x 44-7/16" (1066mm x 1367mm x 1128mm)
INTERIOR:
23-5/8" x 25-1/4" x 33-7/8" (600mm x 640mm x 860mm)
*ADDITIONAL WIRE SHELVES REQUIRED OR MAXIMUM CAPACITY
CLEARANCE REQUIREMENTS
EFT: 6" (152mm) PLUS SERVICE ACCESS: 18" (457mm) RECOMMENDED
20" (508mm) F R O M H E AT P R O D U C I N G E Q U I P M E N T
RIGHT: 4" (102mm) TOP: 20" (508mm) OR AIR MOVEMENT
BACK: 4" (102mm) BOTTOM: 5-1/8" (130mm) OR LEGS
COUNTER-TOP INSTALLATIONS MUST MAINTAIN 4" (102mm)
MINIMUM CLEARANCE ROM THE COUNTER SUR ACE.
G A S R E Q U I R E M E N T S
CONNECTED ENERGY OAD:91,000 Btu/hr
HOOK-UP:3/4" NPT
MINIMUM CONNECTED PRESSURE:5.5" W.C. (Natural Gas)
9" W.C. (Propane)
MAXIMUM CONNECTED PRESSURE:14" W.C.
GAS TYPE MUST BE SPECIFIED ON ORDER.
WAT E R R E Q U I R E M E N T S
TWO (2) CO D WATER IN ETS - DRINKING QUA ITY
ONE (1) TREATED WATER IN ET:3/4" NPT*
ONE (1) UNTREATED WATER IN ET:3/4" NPT*
INE PRESSURE:30 to 90 psi 2.8 to 6.2 bar
WATER DRAIN: 1-1/2" CONNECTION WITH AIR GAP
* Can manifold off of one 3/4" line.
INSTALLATION REQUIREMENTS
Oven must be installed level. Hood installation. Water supply
shut-off valve and back-flow preventer. Alternate burner orifice
is required for installation sites at elevations of 3,000 feet (914m)
above sea level.
WAT E R Q U A L I T Y M I N I M U M S TA N D A R D S
USING A WATER SUPPLY NOT MEETING ALTO-SHAAM'S
MINIMUM WATER QUALITY STANDARDS WILL VOID THIS
WARRANTY. It is the responsibility of the purchaser to ensure
that incoming water supply is compliant with the specifications
listed through adequate treatment measures. Installation of the
CombiGuard™ Water iltration System is recommended, but this
system may not address all water quality issues present.
Contaminant Inlet Water Requirements (untreated water)
ree Chlorine Less than 0.1 ppm (mg/L)
Hardness Less than 3 gpg (52 ppm)
Chloride Less than 30 ppm (mg/L)
pH 7.0 to 8.5
Alkalinity Less than 50 ppm (mg/L)
Silica Less than 12 ppm (mg/L)
Total Dissolved
Solids (tds) Less than 60 ppm

GAS COMBITHERM — I N S TA L L A T I O N M A N U A L #MN 28898
PG.7
10•20ESG SPECIFICATIONS
®
COMBITHERM
C A PA C I T Y
ULL-SIZE PANS: 20" x 12" x 2-1/2" Twenty (20)
GN 1/1: 530 x 325 x 65mm Twenty (20)
GN 2/1: 650 x 530 x 65mm Ten (10)
ULL-SIZE SHEET PANS:* 18" x 26" x 1" Ten (10)
ON WIRE SHELVES ONLY
240 lb (109 kg) MAXIMUM
VOLUME MAXIMUM: 150 QUARTS (190 LITERS)
WEIGHT
NET 573 lb EST. (260 kg) EST.
SHIP 875 lb EST. (397 kg) EST.
CRATE 59" X55" X48" EST.
DIMENSIONS:(1499 x 1397 x 1219mm)
E L E C T R I C A L
VO TAGE PHASE CYC E/HZ AWG AMPS kW
110 - 120 1 50/60 2 Wire plus ground, AWG 12 7.8 .936
OTHER VOLTAGES AVAILABLE: Range 200 — 415V — 1 or 3 ph, 50 or 60 Hz
45-3/16"
(1148mm)
42-9/16"
(1080mm)
22-11/16"
(575mm)
12-13/16"
(325mm)
Water Drain
(Bottom)
2-3/16" (56mm)
30-1/2"
(775mm)
44" (1118mm) 2" (50mm)
31-3/4"
(805mm)
52-11/16" (1337mm)
43-13/16" (1111mm)
8-15/16" (226mm)
6-1/4" (157mm)
49-13/16" (1265mm)
47-7/8" (1215mm)
4-3/8" (110mm)
3-9/16"
(89mm) Water Drain
(Side Back)
Steam Vent
(Top)
Electrical Connection (Bottom)
Treated Water
Intake (Bottom)
Untreated Water
Intake (Bottom)
Gas Connection
(Bottom)
4-5/8" (116mm)
2" (50mm)
55-7/16"
(1407mm)
73-13/16" (1875mm)
6" (151mm)
17-3/8"
(441mm)
19-3/8"
(491mm)
26-3/4"
(678mm)
20-5/16"
(515mm)
D I M E N S I O N S : H x W x D
EXTERIOR:
52-11/16" x 49-13/16" x 45-3/16" (1337mm x 1265mm x 1148mm)
EXTERIOR WITH RETRACTAB E DOOR:
52-11/16" x 53-13/16" x 45-3/16" (1337mm x 1367mm x 1148mm)
INTERIOR:
33-7/8" x 25-1/4" x 33-7/8" (860mm x 640mm x 860mm)
*ADDITIONAL WIRE SHELVES REQUIRED OR MAXIMUM CAPACITY
C L E A R A N C E R E Q U I R E M E N T S
EFT: 6" (152mm) PLUS SERVICE ACC ESS: 18" (457mm) RECOMMENDED
20" (508mm) F R O M H E AT P R O D U C I N G E Q U I P M E N T
RIGHT: 4" (102mm) TOP: 20" (508mm) OR AIR MOVEMENT
BACK: 4" (102mm) BOTTOM: 5-1/8" (130mm) OR LEGS
G A S R E Q U I R E M E N T S
CONNECTED ENERGY OAD:105,000 Btu/hr
HOOK-UP:3/4" NPT
MINIMUM CONNECTED PRESSURE:5.5" W.C. (Natural Gas)
9" W.C. (Propane)
MAXIMUM CONNECTED PRESSURE:14" W.C.
GAS TYPE MUST BE SPECIFIED ON ORDER.
WAT E R R E Q U I R E M E N T S
TWO (2) CO D WATER IN ETS - DRINKING QUA ITY
ONE (1) TREATED WATER IN ET:3/4" NPT*
ONE (1) UNTREATED WATER IN ET:3/4" NPT*
INE PRESSURE:30 to 90 psi 2.8 to 6.2 bar
WATER DRAIN: 1-1/2" CONNECTION WITH AIR GAP
* Can manifold off of one 3/4" line.
INSTALLATION REQUIREMENTS
Oven must be installed level. Hood installation. Water supply
shut-off valve and back-flow preventer. Alternate burner orifice
is required for installation sites at elevations of 3,000 feet (914m)
above sea level.
WAT E R Q U A L I T Y M I N I M U M S TA N D A R D S
USING A WATER SUPPLY NOT MEETING ALTO-SHAAM'S
MINIMUM WATER QUALITY STANDARDS WILL VOID THIS
WARRANTY. It is the responsibility of the purchaser to ensure
that incoming water supply is compliant with the specifications
listed through adequate treatment measures. Installation of the
CombiGuard™ Water iltration System is recommended, but this
system may not address all water quality issues present.
Contaminant Inlet Water Requirements (untreated water)
ree Chlorine Less than 0.1 ppm (mg/L)
Hardness Less than 3 gpg (52 ppm)
Chloride Less than 30 ppm (mg/L)
pH 7.0 to 8.5
Alkalinity Less than 50 ppm (mg/L)
Silica Less than 12 ppm (mg/L)
Total Dissolved
Solids (tds) Less than 60 ppm

GAS COMBITHERM — I N S TA L L A T I O N M A N U A L #MN 28898
PG.8
®
COMBITHERM
12•18ESG SPECIFICATIONS
WEIGHT
NET 666 lb EST. (302 kg) EST.
SHIP 865 lb EST. (392 kg) EST.
CRATE 56" X55" X50" EST.
DIMENSIONS:(1422 x 1397 x 1270mm)
25-5/8"
(650mm)
33-1/8"
(840mm)
45-3/16"
(1148mm)
42-9/16"
(1080mm)
22-11/16"
(575mm)
12-13/16"
(325mm)
Water Drain
(Bottom)
8-1/2" (216mm)
31-3/4"
(805mm)
51-1/16" (1296mm)
43-13/16" (1111mm)
7-5/16" (184mm)
4-1/2" (114mm)
49-13/16" (1265mm)
47-7/8" (1215mm)
4-3/8" (110mm)
3-9/16"
(89mm) Water Drain
(Side Back)
Steam Vent
(Top)
Electrical Connection (Bottom)
Treated Water
Intake (Bottom)
Untreated Water
Intake (Bottom)
Gas Connection
(Bottom)
4-5/8" (116mm)
2" (50mm)
55-7/16"
(1407mm)
73-13/16" (1875mm)
6" (151mm)
17-3/8"
(441mm)
19-3/8"
(491mm)
26-3/4"
(678mm)
20-5/16"
(515mm)
7-3/16"
(181mm)
D I M E N S I O N S : H x W x D
EXTERIOR:
51-1/16" x 49-13/16" x 45-3/16" (1296mm x 1265mm x 1148mm)
EXTERIOR WITH RETRACTAB E DOOR:
51-1/16" x 53-13/16" x 45-3/16" (1296mm x 1367mm x 1148mm)
INTERIOR:
33-7/8" x 25-1/4" x 33-7/8" (860mm x 640mm x 860mm)
*ADDITIONAL WIRE SHELVES REQUIRED OR MAXIMUM CAPACITY
C A PA C I T Y
ULL-SIZE PANS: 20" x 12" x 2-1/2" Twenty-four (24)
GN 1/1: 530 x 325 x 65mm Twenty-four (24)
GN 2/1: 650 x 530 x 65mm Twelve (12)
ULL-SIZE SHEET PANS:* 18" x 26" x 1" Twelve (12)
ON WIRE SHELVES ONLY
288 lb (131 kg) MAXIMUM
VOLUME MAXIMUM: 180 QUARTS (228 LITERS)
E L E C T R I C A L
VO TAGE PHASE CYC E/HZ AWG AMPS kW
110 - 120 1 50/60 2 Wire plus ground, AWG 12 7.8 .936
OTHER VOLTAGES AVAILABLE: Range 200 — 415V — 1 or 3 ph, 50 or 60 Hz
C L E A R A N C E R E Q U I R E M E N T S
EFT: 6" (152mm) PLUS SERVICE ACCESS: 18" (457mm) RECOMMENDED
20" (508mm) F R O M H E AT P R O D U C I N G E Q U I P M E N T
RIGHT: 4" (102mm) TOP: 20" (508mm) OR AIR MOVEMENT
BACK: 4" (102mm) BOTTOM: 5-1/8" (130mm) OR LEGS
G A S R E Q U I R E M E N T S
CONNECTED ENERGY OAD:105,000 Btu/hr
HOOK-UP:3/4" NPT
MINIMUM CONNECTED PRESSURE:5.5" W.C. (Natural Gas)
9" W.C. (Propane)
MAXIMUM CONNECTED PRESSURE:14" W.C.
GAS TYPE MUST BE SPECIFIED ON ORDER.
WAT E R R E Q U I R E M E N T S
TWO (2) CO D WATER IN ETS - DRINKING QUA ITY
ONE (1) TREATED WATER IN ET:3/4" NPT*
ONE (1) UNTREATED WATER IN ET:3/4" NPT*
INE PRESSURE:30 to 90 psi 2.8 to 6.2 bar
WATER DRAIN: 1-1/2" CONNECTION WITH AIR GAP
* Can manifold off of one 3/4" line.
INSTALLATION REQUIREMENTS
Oven must be installed level. Hood installation. Water supply
shut-off valve and back-flow preventer. Alternate burner orifice
is required for installation sites at elevations of 3,000 feet (914m)
above sea level.
WAT E R Q U A L I T Y M I N I M U M S TA N D A R D S
USING A WATER SUPPLY NOT MEETING ALTO-SHAAM'S
MINIMUM WATER QUALITY STANDARDS WILL VOID THIS
WARRANTY. It is the responsibility of the purchaser to ensure
that incoming water supply is compliant with the specifications
listed through adequate treatment measures. Installation of the
CombiGuard™ Water iltration System is recommended, but this
system may not address all water quality issues present.
Contaminant Inlet Water Requirements (untreated water)
ree Chlorine Less than 0.1 ppm (mg/L)
Hardness Less than 3 gpg (52 ppm)
Chloride Less than 30 ppm (mg/L)
pH 7.0 to 8.5
Alkalinity Less than 50 ppm (mg/L)
Silica Less than 12 ppm (mg/L)
Total Dissolved
Solids (tds) Less than 60 ppm

GAS COMBITHERM — I N S TA L L A T I O N M A N U A L #MN 28898
PG.9
20•20ESG SPECIFICATIONS
®
COMBITHERM
C A PA C I T Y
ULL-SIZE PANS: 20" x 12" x 2-1/2" orty (40)
GN 1/1: 530 x 325 x 65mm orty (40)
GN 2/1: 650 x 530 x 65mm Twenty (20)
ULL-SIZE SHEET PANS:* 18" x 26" x 1" Twenty (20)
ON WIRE SHE VES ON Y
480 lb (218 kg) MAXIMUM
VOLUME MAXIMUM: 300 QUARTS (380 LITERS)
WEIGHT
NET 838 lb EST. (380 kg) EST.
SHIP 1325 lb EST. (601 kg) EST.
CRATE 82" X56" X50" EST.
DIMENSIONS:(2083 x 1422 x 1270mm)
E L E C T R I C A L
VO TAGE PHASE CYC E/HZ AWG AMPS kW
110 - 120 1 50/60 2 Wire plus ground, AWG 10 22.0 2.64
OTHER VOLTAGES AVAILABLE: Range 200 — 415V — 1 or 3 ph, 50 or 60 Hz
49-13/16" (1264mm)
47-13/16" (1214mm)
45-3/16" (1148mm)
42-9/16" (1080mm)
30-1/2"
(775mm)
44" (1118mm) 2" (49mm)
2-3/16"
(56mm)
8-15/16" (226mm)
76-5/8" (1946mm)
75-1/4" (1911mm)
Water Drain
(Bottom)
7-11/16" (195mm)
4-3/8" (110mm)
3-9/16"
(89mm) Water Drain
(Side Back)
Gas Exhaust (Top)
Electrical Connection
(Bottom)
Treated Water
Intake (Bottom)
Untreated Water
Intake (Bottom)
Gas Connection
(Bottom)
4-5/8" (116mm)
2" (50mm)
55-7/16"
(1407mm)
73-13/16" (1874mm)
6" (151mm)
17-3/8"
(441mm)
19-3/8"
(491mm)
26-3/4"
(678mm)
20-1/4"
(514mm)
Steam
Vents
(Top)
D I M E N S I O N S : H x W x D
EXTERIOR:
76-5/8" x 49-13/16" x 45-3/16" (1946mm x 1264mm x 1148mm)
EXTERIOR WITH RETRACTAB E DOOR:
76-5/8" x 53-13/16" x 45-3/16" (1337mm x 1366mm x 1148mm)
INTERIOR:
54-15/16" x 25-1/4" x 33-7/8" (1395mm x 640mm x 860mm)
*ADDITIONAL WIRE SHELVES REQUIRED OR MAXIMUM CAPACITY
C L E A R A N C E R E Q U I R E M E N T S
EFT: 6" (152mm) PLUS SERVICE ACCESS: 18" (457mm) RECOMMENDED
20" (508mm) FR O M H E AT P R O D U C I N G E Q U I P M E N T
RIGHT: 4" (102mm) TOP: 20" (508mm) OR AIR MOVEMENT
BACK: 4" (102mm) BOTTOM: 5-1/8" (130mm) OR LEGS
G A S R E Q U I R E M E N T S
CONNECTED ENERGY OAD:190,000 Btu/hr
HOOK-UP:3/4" NPT
MINIMUM CONNECTED PRESSURE:5.5" W.C. (Natural Gas)
9" W.C. (Propane)
MAXIMUM CONNECTED PRESSURE:14" W.C.
GAS TYPE MUST BE SPECIFIED ON ORDER.
WAT E R R E Q U I R E M E N T S
TWO (2) CO D WATER IN ETS - DRINKING QUA ITY
ONE (1) TREATED WATER IN ET:3/4" NPT*
ONE (1) UNTREATED WATER IN ET:3/4" NPT*
INE PRESSURE:30 to 90 psi 2.8 to 6.2 bar
WATER DRAIN: 1-1/2" CONNECTION WITH AIR GAP
* Can manifold off of one 3/4" line.
INSTALLATION REQUIREMENTS
Oven must be installed level. Hood installation. Water supply
shut-off valve and back-flow preventer. Alternate burner orifice
is required for installation sites at elevations of 3,000 feet (914m)
above sea level.
WAT E R Q U A L I T Y M I N I M U M S TA N D A R D S
USING A WATER SUPPLY NOT MEETING ALTO-SHAAM'S
MINIMUM WATER QUALITY STANDARDS WILL VOID THIS
WARRANTY. It is the responsibility of the purchaser to ensure
that incoming water supply is compliant with the specifications
listed through adequate treatment measures. Installation of the
CombiGuard™ Water iltration System is recommended, but this
system may not address all water quality issues present.
Contaminant Inlet Water Requirements (untreated water)
ree Chlorine Less than 0.1 ppm (mg/L)
Hardness Less than 3 gpg (52 ppm)
Chloride Less than 30 ppm (mg/L)
pH 7.0 to 8.5
Alkalinity Less than 50 ppm (mg/L)
Silica Less than 12 ppm (mg/L)
Total Dissolved
Solids (tds) Less than 60 ppm

GAS COMBITHERM — I N S TA L L A T I O N M A N U A L #MN 28898
PG. 10
®
COMBITHERM
LOCATION SITE & INSTALLATION REQUIREMENTS
THE OVEN MUST REMAIN ON
THE PALLET WHILE BEING
MOVED TO THE INSTALLATION
SITE BY FORK LIFT OR
PALLET LIFT TRUCK.
NOTE: Note dimensions required for doorways
and aisles for access of the oven and pallet
to the installation site. Transport the oven
in an upright and level position only. Do
not tilt the oven.
®
INSTALLATION CODES & STANDARDS
The following codes and standards are required for installation of this oven:
AIR SUPP Y, E ECTRICA CONNECTIONS, WATER CONNECTIONS, GAS
CONNECTIONS, GAS EXHAUST, AND WASTE WATER DISCHARGE.
Installation must comply with local codes required for gas appliances. In the
absence of local codes, installation must comply with the National uel Gas Code,
ANSI Z223.1 (latest edition). In Canada, the appropriate code is the Natural Gas
Installation Code, CAN/CGA-B149.1 or the Propane Installation Code, CAN/CGA-B.
Adherence to code by a qualified installer is essential for the following: Gas
Plumbing, Gas Appliance Installation, Commercial Cooking Ventilation, Water and
Plumbing, and OSHA Regulations.
D A N G E R
IMPROPER INSTALLATION,
ALTERATION, ADJUSTMENT,
SERVICE, OR MAINTENANCE COULD
RESULT IN SEVERE INJURY, DEATH
OR CAUSE PROPERTY DAMAGE.
READ THE INSTALLATION,
OPERATING AND MAINTENANCE
INSTRUCTIONS THOROUGHLY
BEFORE INSTALLING OR SERVICING
THIS EQUIPMENT.
D A N G E R
AVERTISSEMENT : UNE INSTALLATION,
UN AJUSTEMENT, UNE ALTÉRATION,
UN SERVICE OU UN ENTRETIEN NON
CONFORME AUX NORMES PEUT CAUSER
DES DOMMAGES À LA PROPRIÉTÉ, DES
BLESSURES OU LA MORT.
LIRE ATTENTIVEMENT LES DIRECTIVES
D’OPÉRATION ET D’ENTRETIEN AVANT
DE FAIRE L’INSTALLATION, OU
L’ENTRETIEN DE CET ÉQUIPEMENT.

GAS COMBITHERM — I N S TA L L A T I O N M A N U A L #MN 28898
PG. 11
®
COMBITHERM
VENTILATION REQUIREMENTS
A steam ventilation hood is mandatory for the
operation of the oven. The ventilation hood must
be installed in accordance with local building
codes for the steam exhaust and must protrude
12-inches to 20-inches (300 to 500mm) over the
front side of the oven. A grease filter must be
located in the protruding area of the hood.
Grease filters should be thoroughly cleaned on a
regular basis following manufacturer's
instruction. Ventilation hoods must ensure an
adequate amount of incoming air during
operation and must be operated whenever the
combination oven/steamer is used in order to
avoid the accumulation of condensation in the
hood area. See the section titled Gas Exhaust.
POSITIONING ON SITE
Lift the oven from the pallet with a fork lift or
pallet lift truck positioned at the front of the oven.
or damage protection, the use of two wooden
boards, placed between the bottom of the oven
and the lifting forks, is strongly recommended.
To avoid damage, position the lift forks to the left
of the condenser and right of the right leg as
indicated in the diagram at right.
Stand the oven in a level position. Use the
adjustable feet to overcome an uneven floor and
ensure that the unit is level.
It is strongly recommended that table top models
be mounted on a factory supplied stand or a stand
that is stable, open, level, and non-combustible.
Recommended height is 23-inches (584mm).
Adjust the height of floor models for smooth
access of the trolley or cart. When positioning the
oven, observe the minimum space allocation
requirements shown.
To insure proper operation, the installation of this
oven must be completed by qualified technicians
in accordance with the instructions provided in
this manual. ailure to follow the instructions
provided may result in damage to the oven,
building, or cause personal injury to personnel.
LOCATION SITE & INSTALLATION REQUIREMENTS
NOTE: To avoid equipment damage, observe
attention label on oven for area to avoid
with lifting fork.
MINIMUM CLEARANCE REQUIREMENTS
LEFT SIDE 6" (152mm) MINIM UM
18" (457mm) SERVICE ACCESS RECOMMEN DED
20" (508mm) FROM HEAT PRODUCING EQUIPMENT
RIGHT SIDE 4" (102mm)
BACK 4" (102mm)
TOP 20" (508mm) FOR AIR MOVEMENT
BOTTOM 20" (508mm) FOR AIR MOVEMENT
NOTE: Additional clearance is needed for service
access. A minimum distance of 18-inches is
strongly recommended. If adequate service
clearance is not provided, it will be necessary to
disconnect the gas, water, and drain to move the
oven with a fork lift for service access. Charges
in connection with inadequate service access is
not covered under warranty.
C A U T I O N
TO PREVENT PERSONAL INJURY,
USE CAUTION WHEN MOVING OR
LEVELING THIS APPLIANCE.

®
COMBITHERM
LOCATION SITE & INSTALLATION REQUIREMENTS
POSITIONING REQUIREMENTS
❑ In order to ensure proper ventilation, a
minimum distance of at least 6-inches (152mm)
must be kept from the control panels side (left)
of the oven and any adjoining surfaces.
NOTE: Additional clearance is needed for
service access. A minimum distance of 18-
inches is strongly recommended. If adequate
service clearance is not provided, it will be
necessary to disconnect the gas, water, and drain
to move the oven with a fork lift for service
access. Charges in connection with inadequate
service access is not covered under warranty.
❑ Allow a minimum of 4-inches (102mm) from
the right side of the oven to allow the door to
open to at least a 90° angle. ully opened, the
door will extend up to a 225° angle If the
oven is furnished with the retractable door
option, allow a minimum clearance of
6-1/2 inches (165mm).
❑ Allow a minimum clearance of 4-inches
(102mm) from the back of the oven for
plumbing connections.
❑ Allow a 20-inch (500mm) clearance at the top
of the oven for free air movement and for the
steam vent(s) located at the top.
❑ Do not install the oven adjacent to heat
producing equipment such as fryers, broilers,
etc. Heat from such appliances may cause
damage to the controls of the Combitherm.
Minimum clearance recommended:
20-inches (500mm)
Place the Combitherm oven on a stable, non-
combustible level horizontal surface. or
countertop models, the oven
stand must be
level. In
addition, the
overall height of the oven should be positioned so
the operating controls and shelves may be
conveniently reached from the front. Level the
oven front-to-back and side-to-side by means of
the adjustable legs.
GAS COMBITHERM — I N S TA L L A T I O N M A N U A L #MN 28898
PG. 12

GAS COMBITHERM — I N S TA L L A T I O N M A N U A L #MN 28898
PG. 13
®
COMBITHERM
VENTILATION & INSTALLATION REQUIREMENTS
1. A single gas Combitherm oven requires a
minimum of 28 C M make-up air for natural and
propane gas. Kitchen ventilation must include a
provision for an adequate flow of fresh air for
gas combustion and to prevent a negative-
pressure condition. The bottom of the oven
provides air supply access for gas combustion
and must be kept clear at all times.
DO NOT obstruct or restrict ventilation nor the
air flow required to support combustion.
2. DO NOT obstruct the flow of the exhaust flue at
the top rear of the oven. It is especially critical
that gas supply piping and electrical support
cord and/or receptacle be routed away from the
path of the hot combustion fumes.
3. Make certain the oven installation maintains
adequate air ventilation to provide cooling for
electrical and gas components. The area around
the oven should be clear of any obstructions
which might retard the flow of cooling air.
ailure to observe this caution may result in
damage to the components and will void the
warranty.
4. This oven cannot be direct vented.
5. Install the oven under a ventilation hood meeting
all applicable code requirements. Combustion
fumes must be vented in accordance with local,
state, or national codes.
Ventilating hoods and exhaust systems shall be
permitted to be used to vent appliances installed in
commercial applications.
Where automatically operated appliances are vented
through a ventilating hood or exhaust system equipped
with a damper or with a power means of exhaust,
provisions shall be made to allow the flow of gas to the
main burners only when the damper is open to a position
to properly vent the appliance and when the power means
of exhaust is in operation. IN ACCORDANCE WITH NFPA 54
COMMONWEA TH OF MASSACHUSETTS ON Y.
An adequate ventilation system is required for
commercial cooking equipment. Information may be
obtained by writing to the National ire Protection
Association, Batterymarch Park, Quincy, MA 02269.
When writing refer to N PA No. 96.
D A N G E R
Installation, air adjustment and/or
service work must be in accordance
with all local codes and must be
performed by a certified service
technician qualified to work on
gas appliances.
D A N G E R
FAILURE TO VENT THIS APPLIANCE
PROPERLY MAY BE HAZARDOUS TO
THE HEALTH OF THE OPERATOR.
Equ pment damage, operat onal
problems and unsat sfactory bak ng
performance may also be the
consequence of mproper vent ng.
Any damage susta ned by a fa lure to
properly vent th s oven are not
covered under warranty.
C A U T I O N
DO NOT USE CIRCULATING FANS
ON THE FLOOR. FLOOR FANS WILL
AFFECT BURNER OPERATION.
CAUTION
To prevent malfunction or cause
negative back draft, DO NOT obstruct
exhaust flues or attach any flue
extension that will impede proper
burner operation.
W A R N I N G
Inadequate ventilation, or failure to
ensure an adequate supply of fresh
air will result in a high ambient
temperature at the rear of the
appliance. An excessive ambient
temperature can cause the thermal-
overload protection device on the
blower motor to trip resulting in severe
damage to the blower motor.

An electrical wiring diagram is located behind the
control panel on the left side of the oven. This
appliance must be branch circuit protected with proper
ampacities, in accordance with the wiring diagram
located in the electrical compartment of the oven.
Wire size for the main incoming power to the unit
must match the minimum size listed in the
specifications applicable to the specific oven model.
or supply connections, locate the wire size posted on
the label located on the electrical control box cover,
behind the service panel.
Before operating the oven, check all cable connections
in the electrical connection area for tightness since
connections can loosen during transport.
NOTE: After both water and electrical connections
have been completed, operate the oven in
any cooking mode for a period of 15 minutes
and recheck the main power connections at
the terminal block to make certain they
remain tight.
GAS COMBITHERM — I N S TA L L A T I O N M A N U A L #MN 28898
PG. 14
®
COMBITHERM
ELECTRICAL & INSTALLATION REQUIREMENTS
MODE VO TAGE PHASE CYC E/HZ AMPS KW CIRCUIT AWG
6•10esG 110-120 1 50/60 5.7 .68 20 A 2 WIRE
PLUS GROUND
6•10esG/SK 110-120 1 50/60 9.5 1.14 20 A AWG 12
7•14esG 110-120 1 50/60 5.7 .68 20 A 2 WIRE
PLUS GROUND
7•14esG/SK 110-120 1 50/60 9.5 1.14 20 A AWG 12
10•10esG 110-120 1 50/60 5.7 .68 20 A 2 WIRE
PLUS GROUND
10•10esG/SK 110-120 1 50/60 9.5 1.14 20 A AWG 12
10•20esG 110-120 1 50/60 7.8 .936 20 A 2 WIRE
PLUS GROUND
AWG 12
12•18esG 110-120 1 50/60 7.8 .936 20 A 2 WIRE
PLUS GROUND
AWG 12
20•20esG 110-120 1 50/60 22.0 2.64 30 A 2 WIRE
PLUS GROUND
AWG 10
OTHER VOLTAGES AVAILABLE: Range 200 — 415V, 1 or 3 ph, 50 or 60 Hz
380-41 V:
To prevent an electrical shock hazard
between the appliance and other appliances
or metal parts in close vicinity, an
equalization-bonding stud is provided.
An equalization bonding lead must be
connected to this stud and the other
appliances / metal parts to provide
sufficient protection against potential
difference. The terminal is marked with
the following symbol.
D A N G E R
ELECTRICAL GROUNDING
INSTRUCTIONS:
This appliance is equipped with a
three-pronged (grounding) plug for
your protection against shock hazard
and should be plugged directly into a
properly grounded three-prong
receptacle. Do not cut or remove the
grounding prong from this plug.
D A N G E R
AVERTISSEMENT: Directives
pour la prise de courant électrique Cet
appareil est muni d'une fiche à trios
branches (prise de Courant) afin de
vous proéger des chocs et doit tre
branché Directemet dans un receptacle
adequate de prise do courant À trios
branches. II ne faut pas couper ou
enlever une banche De cette fiche.
D A N G E R
To avoid electrical shock, this
applia ce MUST be adequately
grou ded i accorda ce with local
electrical codes or, i the abse ce of
local codes, with the curre t editio
of the Natio al Electrical Code
ANSI/NFPA No. 70. I Ca ada, all
electrical co ectio s are to be
made i accordi g with CSA C22.1,
Ca adia Electrical Code Part 1 or
local codes.

GAS COMBITHERM — I N S TA L L A T I O N M A N U A L #MN 28898
PG. 15
INSTALLATION REQUIREMENTS
®
COMBITHERM
The gas Combitherm must use a connector that
complies with The Standard for Connectors for
Movable Gas Appliances, ANSI Z21.69 CSA 6.16
and addenda Z21.69a-1989. A quick disconnect
devise must be installed to comply with The
Standard for Quick Disconnect Devices for Use
with Gas Fuel, ANSI Z21 CSA 6.9.
Adequate means must be provided to limit the
movement of this appliance. Limitation of
movement must be made without depending on
the connector, the quick disconnect device, nor the
associated piping designed to limit appliance
movement. If it becomes necessary to disconnect
the restraint, it must be reconnected immediately
following the return of the appliance to its
original position.
1. Install a manual gas shut-off valve along with an
approved disconnect device.
2. Install an A.G.A. certified, heavy-duty connector
that complies with ANSI Z 21.69 or CAN 1-6.10m88
along with a quick-disconnect device in compliance
with ANSI Z21.41 or CAN 1-6.9m70. Connectors
must be installed with a cable restraint to prevent
excessive tension from being placed on the
connector.
MOBILE EQUIPMENT RESTRAINT
DRIP TRAY INSTALLATION
The appliance is shipped without the drip tray
installed. This must be installed before equipment
operation begins.
Remove screws from bottom of oven (see illustration
shown at right).
Position drip tray assembly beneath oven. Secure with
lock washer and phillips screws supplied.
Cut drip tray hose to length and attach to drip tray
assembly. Secure with 20mm clamp. Secure other end
of drip tray hose to drain fitting connection with clamp.
ITEM
NO.PART NO.PART DESCRIPTION
1 — CREW
2 — DRIP TRAY
3 HO-2957 DRIP TRAY HO E



W A R N I N G
FAILURE TO PROPERLY INSTALL THE
DRIP TRAY CAN OR WILL CAUSE
MAJOR EQUIPMENT DAMAGE AND
WILL RESULT IN A LEAKAGE
HAZARD THAT CAN CAUSE
PERSONAL INJURY.
W A R N I N G
RISK OF ELECTRIC SHOCK.
Appliance must be secured
to building structure.
BOTTOM VIEW

GAS COMBITHERM — I N S TA L L A T I O N M A N U A L #MN 28898
PG. 16
®
COMBITHERM
The Alto-Shaam gas Combitherm has been set to
operate with either natural gas or propane as indicated
on the identification name plate. Make certain the gas
supply matches the nameplate information. Should
conversion to the opposite fuel be desired, conversion
parts must be ordered from the factory. Conversion must
be completed by a qualified service person only. Always
remember to reflect the conversion on the oven's
nameplate. Residential gas connections and hard-piped
gas connections DO NOT meet NS certifications.
GAS SUPPLY & INSTALLATION REQUIREMENTS
GA S PRE S SUR E CHA RT
The oven has been factory adjusted according
to the gas type specified on the identification
name plate.
TECHNICA SPECIFICATIONS
N a t u r a l G a s
Min. Connected Pressure 5.5" W.C. 1.12 kPa
Max. Connected Pressure 14.0" W.C. 3.5 kPa
Propane Gas
Min. Connected Pressure 9.0" W.C. 1.99 kPa
Max. Connected Pressure 14.0" W.C. 3.5 kPa
I N S TA L L AT I O N R E Q U I R E M E N T S
GAS CONNECTION:3/4" NPT
CHECK P UMBING CODES FOR PROPER SUPP Y INE SIZING TO
ATTAIN MINIMUM BURNER MANIFO D PRESSURE SHOWN:
NATURAL GAS: 3.4" W.C.
PROPANE GAS: 5.6" W.C.
On 20•20esG models, the bottom valve should be set all
the way open and the the upper valve should be set to
the appropriate manifold pressure.
MAXIMUM IN ET PRESSURE: 14" W.C.
NOTE: If a flexible gas line is used, it must be AGA
approved, commercial type and at least 3/4" I.D.
HOOD INSTA ATION IS REQUIRED
GAS VA VE MAY REQUIRE FIE D ADJUSTMENT ABOVE 3,250' (991m)
AND IS NOT ADJUSTED AT THE FACTORY.
G A S S P E C I F I C AT I O N S
■■NATURA GAS ■■PROPANE GAS
6•10esG 45,000 Btu/hr.45,000 Btu/hr.
10•10esG 68,000 Btu/hr.68,000 Btu/hr.
7•14esG 91,000 Btu/hr.91,000 Btu/hr.
10•20esG 105,000 Btu/hr.105,000 Btu/hr.
12•18esG 105,000 Btu/hr.105,000 Btu/hr.
20•20esG 190,000 Btu/hr.190,000 Btu/hr.
SPECIFICATIONS
D A N G E R
CONNECTING TO THE WRONG GAS
SUPPLY COULD RESULT IN FIRE OR
AN EXPLOSION CAUSING SEVERE
INJURY AND PROPERTY DAMAGE.
W A R N I N G
TO AVOID SERIOUS PERSONAL
INJURY, installation of this appliance
must conform to local, state, and
national codes; the current edition of
the American National Standard
Z223.1, National Fuel Gas Code, and
all local municipal uilding codes. In
Canada, installation must e in
accordance with Standard CAN/CSA
B 149.1 and Installation Codes - Gas
Burning Appliances, and local codes.

GAS COMBITHERM — I N S TA L L A T I O N M A N U A L #MN 28898
PG. 17
®
COMBITHERM
GAS SUPPLY & INSTALLATION REQUIREMENTS
Remove any tape or
compound residue
on all external
thread connections
before proceeding.
Use an approved gas
pipe sealant at all
external threaded
connections, Gas
piping used on gas
connections must avoid sharp bends that may restrict
the flow of gas to the appliance. If the connected
pressure exceeds 14.0" W.C. (3.5 kPa), a step-down
regulator is required to be supplied by the
owner/operator.
Close the individual manual shut-off valve to
isolate th e ap p lian ce from the gas supply piping
system during any pressure testing at test pressures
equal to or less than 1/2psig. (3,4 kPa). The
appliance and individual shut-off valve m u st be
d isc on n e cte d from the gas supply piping system
during any pressure testing at pressures in excess of
1/2" psig. (3,4 kPa).
In the U.S.A., installation must conform to local
codes or, in the absence of local codes, with the
current edition of the National Fu el Gas Cod e,
N PA-54 and ANSI Z83.11a CSA 1.8a 2004 (or
latest edition). In Canada, installation must be in
accordance with local codes, CAN/CGA-B149.1,
Installation for N atural Gas Burning Appliances
and Equip ment (latest edition) or CAN/CGA-
B149.2 Installation for Prop ane Burning A ppliances
and Equip ment (latest edition).
The inlet supply line must be properly sized to
accommodate all individual appliances
simultaneously used on the same line but must
never be smaller than 3/4"NPT.
INCORRECT CORRECT
A
B
C
D
E
F
G
H
GAS INTAKE
A-G Inst ll tion elbow
B W ll V lve
C-D Three-piece union fitting
(minimum 1 per inst ll tion)
E-F End connector for the flexible tube
H M rking line
CONNECTION
D A N G E R
Installation, air adjustment and/or
service work must be in accordance
with all local codes and must be
performed by a certified service
technician qualified to work on
gas appliances.
D A N G E R
DO NOT store or use gasoline or other
flammable vapors or liquids in the
vicinity of this or any other appliance.
D A N G E R
DO NOT store or use gasoline or other
flammable vapors or liquids in the
vicinity of this or any other appliance.

GAS COMBITHERM — I N S TA L L A T I O N M A N U A L #MN 28898
PG. 18
GAS SUPPLY & INSTALLATION REQUIREMENTS
®
COMBITHERM
The minimum size requirement for gas piping or a
flexible connector is 3 /
4- inch (19mm). or long runs
of gas piping, the pipe diameter must conform to the
tables in the National uel Gas Code, ANSI/N PA
Z223.1.
A listed gas shut-off valve must be installed
upstream of the appliance to shut off the gas supply
during servicing. The shut-off valve should be
accessible with the appliance in the normal
installation position.
If the oven or the oven stand is supplied with
casters, gas connection must be made with a flexible
connector that complies with the Standard for
Connectors for Movable Gas Appliances, ANSI
Z21.69; or in Canada, Connectors for Movable Gas
Appliances, CAN/CGA-6.16-M87. When using a
flexible connector, a quick disconnect device must
be used to comply with the Standard for Quick-
Disconnect Devices for Gas uels, ANSI Z21.41; or
in Canada, Quick Disconnect Devices for Use with
Gas uels, CAN1-6.9.
When a quick disconnect device and flexible
connector are used, a restraining device must be
installed to limit the movement of the appliance and
prevent damage to the connector or quick
disconnect. An example of a restraining device
would consist of a 2000 pound test, stainless steel
cable, attached to a structural member of the kitchen
wall behind the oven. The means of attachment
should consist of a q u i c k c o n n e c t sn a p s o t h a t
t h e o v e n c a n b e disconnected when the appliance
must be moved away from the wall.
The other end of the cable should be permanently
attached to the rear frame of the oven. The cable
should be of sufficient length so that no strain is
ever placed on the flexible gas connector in the
event of accidental movement of the oven without
properly disconnecting the gas connector. The
flexible connector should be routed to form a
downward "U" loop between the building gas
supply and the permanent attachment at the rear of
the oven.
The routing of the flexible connector must not be
made under the oven. Oven temperatures achieved
during operation are too hot for safe operation. Gas
piping should be installed from the point of gas
connection at the bottom, front of the oven to the
back of the oven where the flexible connector may
be safely used. See the illustration for the
recommended placement.
W A R N I N G
GAS PIPING MUST NEVER
BE INSTALLED TO RUN
UNDER THE BURNER.
