Alto-Shaam CT EXPRESS 4 10ESi User manual

MN-29805 • 08/12
printed i n u.s.a.
Combitherm®
Combination
Oven / Steamer
CT EXPRESS™
4•10esi
4•10esiVH
  •InstallatIon
W164 N9221 Water Street • P.O. Box 450 • Menomonee Falls, Wisconsin 53052-0450 USA
PHONE: [phone] • 800.558.8744 usa/caNada FaX: [phone] • 800.329.8744 u.s.a. ONly
www.altO-sHaaM.cOM
Shown with ExpressTouch control
and optional hand sprayer

i
Delivery ..................................1
Unpacking ................................1
Safety Procedures and Precautions .............2
Installation
Site Installation ..........................3
Ventilation Requirements...................3
Positioning on Site........................4
Lifting Instructions ........................5
Leveling................................6
Stand Installation.........................6
Accessories .............................7
Stacking Dimensions ......................7
 ....................8
 ..................9
 .....................
 ................12

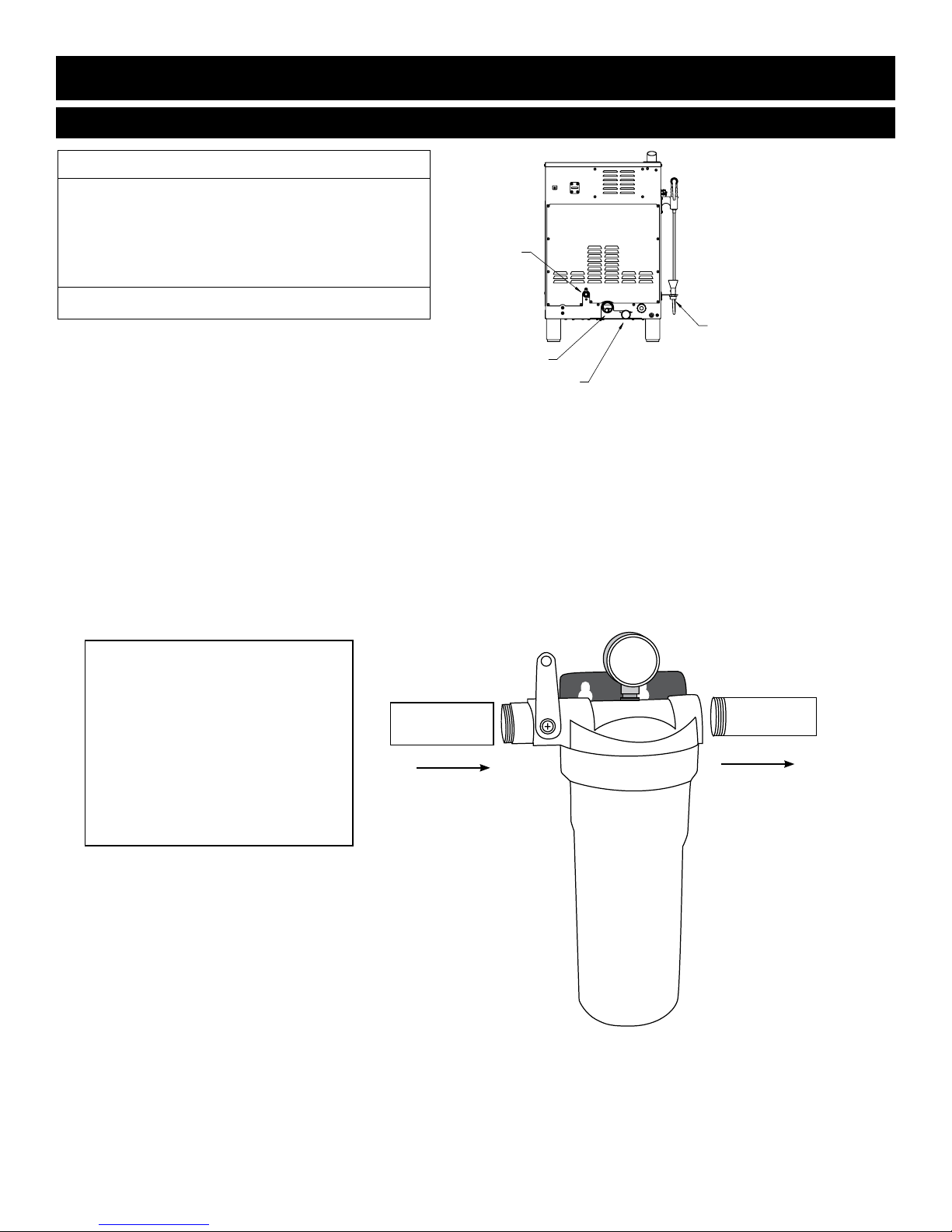

Water Quality Requirement ................13
 ......................14
 ...................15

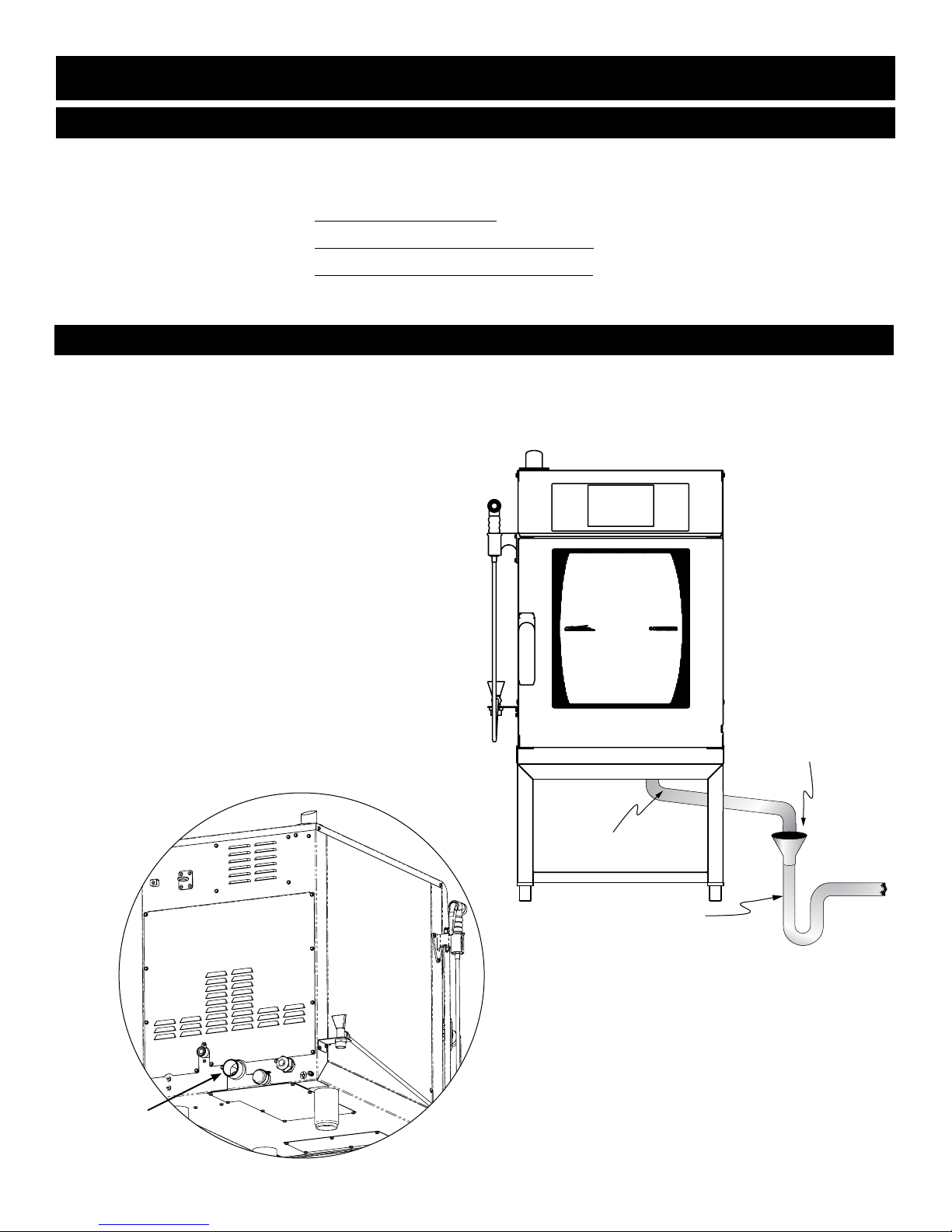

Water Drainage .........................16
.................17
. . . . . . . . . . . . . . . . . . . . . 18
 .....................19
 ............................
Wire Diagrams

for most current version.
Warranty
.........25
..........26

INSTALLATION MANUAL • 1.
DELIVERY
This Alto-Shaam appliance has been
thoroughly tested and inspected to ensure only
the highest quality unit is provided. Upon
receipt, check for any possible shipping damage
and report it at once to the delivering carrier.
See Transportation Damage and Claims section
located in this manual.
This appliance, complete with unattached
items and accessories, may have been delivered
in one or more packages. Check to ensure that all
standard items and options have been received
with each model as ordered.
Save all the information and instructions
packed with the appliance. Complete and return
the warranty card to the factory as soon as
possible to ensure prompt service in the event of a
warranty parts and labor claim.
This manual must be read and understood
by all people using or installing the equipment
model. Contact the Alto-Shaam Tech Team Service
Department if you have any questions concerning
installation, operation, or maintenance.
NOTE: All claims for warranty must include the
full model number and serial number of
the unit.
UNPACKING
1. Carefully remove the
appliance from the
carton or crate.
NOTE: Do not discard the
carton and other
packaging material
until you have
inspected the unit
for hidden damage
and tested it for
proper operation.
2. Read all instructions in this manual carefully
before initiating the installation of this appliance.
DO NOT DISCARD THIS MANUAL.
This manual is considered to be part of the
appliance and is to be provided to the owner
or manager of the business or to the person
responsible for training operators. Additional
manuals are available from the Alto-Shaam
Tech Team Service Department.
3. Remove all protective plastic film, packaging
materials, and accessories from the appliance
before connecting electrical power. Store any
accessories in a convenient place for future use.
®
®
LES INFORMATIONS CONTENUES DANS
CE MANUEL SONT IMPORTANTES POUR
L’INSTALLATION L’UTILISATION ET
L’ENTRETIEND DE CE FOUR. S’IL VOUS
PLAIT LISEZ-LE TRES ATTENTIVEMENT ET
CONSERVEZ-LE.
LA NON-APPLICATION DE CES CONSIGNES
ANNULE TOUTES GARANTIES.
THE INFORMATION CONTAINED IN THIS
MANUAL IS IMPORTANT FOR THE PROPER
INSTALLATION OF THIS OVEN. PLEASE
READ CAREFULLY AND RETAIN FOR
FUTURE REFERENCE.
IMPROPER CONNECTION OF THIS
APPLIANCE WILL NULLIFY ALL
WARRANTIES.
CAUTION
TO PREVENT PERSONAL INJURY,
USE CAUTION WHEN MOVING OR
LEVELING THIS APPLIANCE.

INSTALLATION MANUAL • 2.
CAUTION
Used to indicate the presence of a hazard that
can or will cause minor personal injury, property
damage, or a potential unsafe practice if the
warning included with this symbol is ignored.
CAUTION
Used to indicate the presence of a
hazard that can or will cause minor or
moderate personal injury or property
damage if the warning included with
this symbol is ignored.
DANGER
Used to indicate the presence of
a hazard that WILL cause severe
personal injury, death, or substantial
property damage if the warning
included with this symbol is ignored.
WARNING
Used to indicate the presence of
a hazard that CAN cause personal
injury, possible death, or major
property damage if the warning
included with this symbol is ignored.
1. This appliance is intended to cook, hold
or process foods for the purpose of human
consumption. No other use for this appliance is
authorized or recommended.
2. This appliance is intended for use in commercial
establishments where all operators are
familiar with the purpose, limitations, and
associated hazards of this appliance. Operating
instructions and warnings must be read and
understood by all operators and users.
3. Any troubleshooting guides, component views,
and parts lists included in this manual are for
general reference only and are intended for use
by qualified technical personnel.
4. This manual should be considered a permanent
part of this appliance. This manual and all
supplied instructions, diagrams, schematics,
parts lists, notices, and labels must remain with
the appliance if the item is sold or moved to
another location.
NOTE: Used to notify personnel of
installation, operation, or
maintenance information that is
important but not hazard related.
SAFETY PROCEDURES
AND PRECAUTIONS
Knowledge of proper procedures is essential to the
safe operation of electrically and/or gas energized
equipment. In accordance with generally accepted
product safety labeling guidelines for potential
hazards, the following signal words and symbols
may be used throughout this manual.
NOTE
For equipment delivered for use
in any location regulated by the
following directive:
DO NOT DISPOSE OF ELECTRICAL
OR ELECTRONIC EQUIPMENT WITH
OTHER MUNICIPAL WASTE.
CAUTION
WHEN WELDING ANY STAINLESS
STEEL COMPONENTS ON THIS
APPLIANCE, THE ELECTRONIC
CONTROL BOARDS MUST BE
ISOLATED FROM THE APPLIANCE.

INSTALLATION MANUAL • 3.
SITE INSTALLATION
INSTALLATION
DANGER
IMPROPER INSTALLATION,
ALTERATION, ADJUSTMENT,
SERVICE, OR MAINTENANCE COULD
RESULT IN SEVERE INJURY, DEATH,
OR CAUSE PROPERTY DAMAGE.
READ THE INSTALLATION,
OPERATING AND MAINTENANCE
INSTRUCTIONS THOROUGHLY
BEFORE INSTALLING OR SERVICING
THIS EQUIPMENT.
DANGER
AVERTISSEMENT : UNE INSTALLATION,
UN AJUSTEMENT, UNE ALTÉRATION,
UN SERVICE OU UN ENTRETIEN NON
CONFORME AUX NORMES PEUT CAUSER
DES DOMMAGES À LA PROPRIÉTÉ, DES
BLESSURES OU LA MORT.
LIRE ATTENTIVEMENT LES DIRECTIVES
D’OPÉRATION ET D’ENTRETIEN
AVANT DE FAIRE L’INSTALLATION, OU
L’ENTRETIEN DE CET ÉQUIPEMENT.
INSTALLATION CODES
& STANDARDS
The following codes and standards are required
for installation of this oven: AIR SUPPLY,
ELECTRICAL CONNECTIONS, WATER
CONNECTIONS, AND WASTE WATER
DISCHARGE.
NOTE:
Where automatically operated appliances are
vented through a ventilating hood or exhaust
system equipped with a damper or with a power
means of exhaust, provisions shall be made to
allow the equipment to operate only when the
damper is open to a position to properly vent the
appliance and when the power means of exhaust
is in operation.
IN ACCORDANCE WITH NFPA 54
COMMONWEALTH OF MASSACHUSETTS ONLY.
VENTILATION REQUIREMENTS
A steam ventilation hood is mandatory for the
operation of the oven. The ventilation hood must
be installed in accordance with local building codes
for the steam exhaust and must protrude 12-inches
to 20-inches (300 to 500mm) over the front side of
the oven. A grease filter must be located in the
protruding area of the hood. Grease filters should
be thoroughly cleaned on a regular basis following
manufacturer's instruction. Ventilation hoods must
ensure an adequate amount of incoming air during
operation and must be operated whenever the
combination oven/steamer is used in order to avoid
the accumulation of condensation in the hood area.
Microphone Position
Sound Pressure Level dBA
With Hood
System
Operating
Without
Hood System
Operating
Front 70 59
Right Side 69 58
Left Side 70 60
Rear 69 60
SOUND PRESSURE MEASUREMENT

INSTALLATION MANUAL • 4.
NOTE: Note dimensions required for doorways
and aisles for access of the oven and
pallet to the installation site. Transport
the oven in an upright and level position
only. Do not tilt the oven.
®
SITE INSTALLATION
INSTALLATION
POSITIONING ON SITE
Stand the oven in a level position. Use the
adjustable feet to overcome an uneven floor and
ensure that the unit is level.
It is strongly recommended that table top models be
mounted on a factory supplied stand or a stand that
is stable, open, and level. Recommended height is
32-inches (813mm). Air supply vents are located
at the bottom of the oven and must not be
blocked when mounted on a stand.
To insure proper operation, the installation of this
oven must be completed by qualified technicians in
accordance with the instructions provided in this
manual. Failure to follow the instructions provided
may result in damage to the oven, building, or cause
personal injury to personnel.
MINIMUM CLEARANCE REQUIREMENTS
left side 4" (152mm) minimum
18" (457mm) service access recommended
20" (508mm) from heat producing equipment
right side 4" (102mm)
back 4" (102mm) for plumbing
bottom 4" (102mm) for air movement
top 20" (508mm) for air movement
NOTE: Additional clearance is needed for
service access. A minimum distance of 18-inches
is strongly recommended. If adequate service
clearance is not provided, it will be necessary to
disconnect the water and drain to move the oven
with a fork lift for service access. Charges in
connection with inadequate service access is not
covered under warranty.
NOTE: To avoid equipment damage, observe
attention label on oven for area to avoid
with lifting fork.
CAUTION
THE APPLIANCE MUST REMAIN ON
THE PALLET WHILE BEING MOVED
TO THE INSTALLATION SITE BY FORK
LIFT OR PALLET LIFT TRUCK.
DANGER
DO NOT store or use gasoline or other
flammable vapors or liquids in the
vicinity of this or any other appliance.
CAUTION
TO PREVENT PERSONAL INJURY,
USE CAUTION WHEN MOVING OR
LEVELING THIS APPLIANCE.

INSTALLATION MANUAL • 5.
LIFTING INSTRUCTIONS
INSTALLATION
Remove banding before lifting.
Lift the unit from either side of
the unit, never from the
front or back.
Adjust the forks so that they
do not damage any of the
components under the unit.
Air intake vents are
located in front of the legs
and must not be damaged.
The left and right fork should be
located between the front and
back legs and located as close to
the legs as possible.
Lift the unit high enough to
remove the wooden pallet. Have
a second person hold the unit to
prevent unit from shifting.
When moving the unit, drive
slowly, keep it low to the
ground, and use extreme caution.
CAUTION
TO PREVENT PERSONAL INJURY,
USE CAUTION WHEN MOVING OR
LEVELING THIS APPLIANCE.

INSTALLATION MANUAL • 6.
SITE INSTALLATION
INSTALLATION
EXHAUST VENT
18"
(46cm)
4"
(102mm)
4" (102mm)
20"
(50cm)
MINIMUM
20"
(50cm)
POSITIONING REQUIREMENTS
q In order to ensure proper ventilation, a minimum
distance of at least 4-inches (101mm) must be kept from
the sides of the oven and any adjoining surfaces.
NOTE: Additional clearance is needed for service
access. A minimum distance of 18-inches is strongly
recommended. If adequate service clearance is not
provided, it will be necessary to disconnect the water,
and drain to move the oven with a fork lift for service
access. Charges in connection with inadequate service
access is not covered under warranty.
q Allow a minimum of 4-inches (102mm) from the right
side of the oven to allow the door to open to at least a
90° angle. Fully opened, the door will extend up to a
225° angle.
q Allow a minimum clearance of 4-inches (102mm) from
the back of the oven for plumbing connections.
q Allow a 20-inch (500mm) clearance at the top of the
oven for free air movement and for the steam vent(s)
located at the top.
q Do not install the oven adjacent to heat producing
equipment such as fryers, broilers, etc. Heat from such
appliances may cause damage to the controls of the
Combitherm. Minimum clearance recommended:
20-inches (500mm)
Place the Combitherm oven on a stable, non-combustible
level horizontal surface. For countertop models, the
oven stand must be level. Level from front-to-back and
side-to-side by means of the adjustable legs. In addition,
the overall height of the oven
should be positioned so the
operating controls and shelves
may be conveniently reached
from the front.
Stand Installation
When placing the CT Express on a factory supplied oven
stand, remove the oven legs, attach oven to stand with 4
M-12 bolts with lockwasher. The leg stand has adjustable
legs for leveling purposes. Stand legs must be bolted to
the floor. Air supply vents are located at the bottom
of the oven and must not be blocked when mounted
on a stand.

INSTALLATION MANUAL • 7.
ACCESSORIES
CombiClean®Tablets — CE-28892
sPEcially FOrMulatEd FOr cOMbitHErM OvENs
➥ twO (2) cONtaiNErs/bOX, 90 PackEts EacH cONtaiNEr
Combitherm Cleaning Liquid — CE-24750
sPEcially FOrMulatEd FOr cOMbitHErM OvENs
➥ twElvE (12) cONtaiNErs/casE, 1 quart (c. 1 litEr) EacH
CombiGuard™ BWS Blended Water System
(iNcludEs 50 gallON taNk, 1 MEMbraNE & 3 FiltErs)FI-28727
CombiGuard™ BWS Replacement Filter
Cartridge AMS-QT FI-29316
CombiGuard™ BWS Replacement Filter
Cartridge SCLX2-Q FI-29317
CombiGuard™ BWS Replacement Prefilter
Filter Cartridge CTO-Q FI-29318
CombiGuard™ 20 Triple-Guard Water Filtration System
(FOr EacH OvEN, iNcludEs 1 cartridgE)FI-28728
CombiGuard™ 20 Triple-Guard Replacement Filter
(FOr EacH OvEN) FI-28744
Fry Basket, 12" X 20" (325mm x 530mm) BS-26730
Grilling Grate, 12" X 20" (325mm x 530mm) SH-26731
Poultry Roasting Rack:
6 POultry caPacity — Fits iN Full-sizE PaN SH-23000
Scale Free™ cE-27889
(citrus basEd, NON-cOrrOsivE dEliMiNg PrOduct)
casE = FOur 4-lb bOttlEs; 4-lb bOttlE MakEs 10 gallONs
Service Start-Up Check sPEciFy as rEquirEd
availablE tHrOugH tHE altO-sHaaM tEcH tEaM sErvicE dEPartMENt
Shelf, Stainless Steel Wire SH-2903
Stand
statiONary witH siNglE sHElF, HEigHt 14-5/8" (371mm) 5014737
MObilE witH siNglE sHElF, HEigHt 18-5/16" (464mm) 5014738
statiONary witH dOublE sHElF, HEigHt 35-5/8" (904mm) 5014985
Fry Basket BS-26730
Grilling Grate SH-26731
INSTALLATION
Six (6) Poultry Roasting Rack
(Fits iN Full-sizE PaN) SH-23000
22.3 565
17.3 438
6.4
162
15.0
381
75.9
1928
31.6 802
6.0
152
26.6 675
26.6
676
58.1
1476
Optional Stacking Dimension

INSTALLATION MANUAL • 8.
WATER REQUIREMENTS WATER QUALITY MINIMUM STANDARDS
ONE (1) COLD WATER INLETS - DRINKING QUALITY
ONE (1) WATER INLET: 3/4" G*
LINE PRESSURE: 30 to 90 psi
2.8 to 6.2 bar
WATER DRAIN: 1-1/2" CONNECTION WITH A 2" MINIMUM AIR GAP
INSTALLED AS CLOSE TO THE OVEN AS POSSIBLE
USING A WATER SUPPLY NOT MEETING ALTO-SHAAM’S MINIMUM
WATER QUALITY STANDARDS WILL VOID THIS WARRANTY.
It is the responsibility of the purchaser to ensure that incoming water supply is
compliant with the speci cations listed through adequate treatment measures.
Installation of the CombiGuardTM Water Filtration System is recommended, but
this system may not address all water quality issues present.
CLEARANCE REQUIREMENTS Contaminant
Free Chlorine
Hardness
Chloride
pH
Alkalinity
Silica
Total Dissolved Solids (tds)
Inlet Water Requirements (untreated water)
Less than 0.1 ppm (mg/L)
Less than 3 gpg (52 ppm)
Less than 30 ppm (mg/L)
7.0 to 8.5
Less than 50 ppm (mg/L)
Less than 12 ppm (mg/L)
Less than 60 ppm
LEFT: 4" (152mm) RECOMMENDED SERVICE access: 18" (457mm)
20" (508mm) FROM HEAT PRODUCING EQUIPMENT
RIGHT: 4" (102mm) TOP: 20" (508mm) FOR AIR MOVEMENT
BACK: 4" (102mm) BOTTOM: 4" (102mm) FOR AIR MOVEMENT
* An additional water supply
is required for the optional
hand held spray hose.

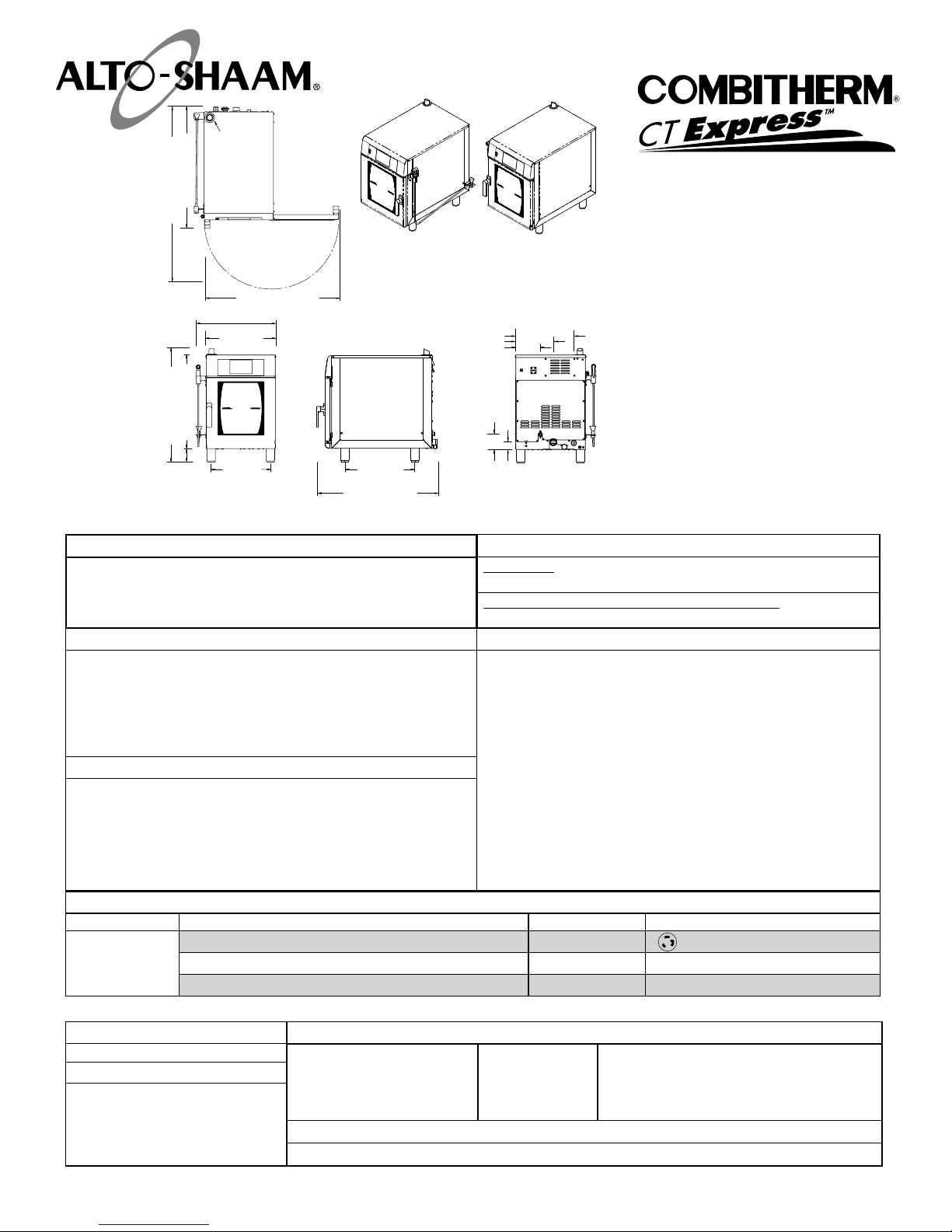

DIMENSIONS: H x W x D
EXTERIOR:
33-1/2" x 20-7/16" x 35-3/4" (850mm x 517mm x 906mm)
EXTERIOR WITH OPTIONAL HAND SPRAYER:
33-1/2" x 23-7/16" x 35-3/4" (850mm x 593mm x 906mm)
4•10esi
INSTALLATION REQUIREMENTS
•Oven must be installed level.
• Hood installation is required.
• Water supply shut off valve and back ow preventer when
required by local code.
WEIGHT CAPACITY
NET 180 lbs (82 kg) FULL-SIZE PANS: 20" x 12" x 2-1/2" Four (4)
SHIP 310 lbs (141 kg) GN 1/1: 530 x 325 x 65mm Four (4)
CRATE DIMENSIONS: (L x W x H)
37" x 42" x 45"
(940mm x 1067mm x 1143mm)
HALF-SIZE SHEET PANS: 18" x 13" x 1" Eight (8)
GN 1/2: 265 x 325 x 65mm Eight (8)
48 lb (22 kg) MAXIMUM
VOLUME MAXIMUM: 30 quarts (38 liters)
ELECTRICAL (DEDICATED CIRCUIT REQUIRED)
MODEL VOLTAGE PH HZ AMPS kW AWG CORD & PLUG
4•10
ES i208 160 22.5 4.68 — NEMA L6-30P - US
ONLY
208 – 240 360 15.0 – 18.0 5.4 – 7.48 10 NO CORD OR PLUG
380 – 415 350/60 9.0 – 10.0 6.0 – 7.18 10 NO CORD OR PLUG
2
"
(50mm)
4-5/16"(109mm)
7-1/4"(182mm)
10-15/16"(278mm)
16-15/16"(430mm)
EXHAUST VENT
A=WATER INLET
B=DRAIN
C=ELECTRICAL
Cord Length
120V - 8 ft. (2438mm)
35-3/4"(906mm)
35-3/4"(906mm)
20-13/16"
(527mm)
39-1/2"(1003mm)
20-7/16"
(517mm)
17-7/16"
(442mm)
23-7/16"(593mm)
33-1/2"(850mm)
27-1/2"(697mm)
4"
(102mm)
52-3/16"(1325mm)
ABC
RH DOOR
LH DOOR

INSTALLATION MANUAL • 9.
WATER REQUIREMENTS WATER QUALITY MINIMUM STANDARDS
ONE (1) COLD WATER INLETS - DRINKING QUALITY
ONE (1) WATER INLET: 3/4" G*
LINE PRESSURE: 30 to 90 psi
2.8 to 6.2 bar
WATER DRAIN: 1-1/2" CONNECTION WITH A 2" MINIMUM AIR GAP
INSTALLED AS CLOSE TO THE OVEN AS POSSIBLE
USING A WATER SUPPLY NOT MEETING ALTO-SHAAM’S MINIMUM
WATER QUALITY STANDARDS WILL VOID THIS WARRANTY.
It is the responsibility of the purchaser to ensure that incoming water supply is
compliant with the speci cations listed through adequate treatment measures.
Installation of the CombiGuardTM Water Filtration System is recommended, but
this system may not address all water quality issues present.
CLEARANCE REQUIREMENTS Contaminant
Free Chlorine
Hardness
Chloride
pH
Alkalinity
Silica
Total Dissolved Solids (tds)
Inlet Water Requirements (untreated water)
Less than 0.1 ppm (mg/L)
Less than 3 gpg (52 ppm)
Less than 30 ppm (mg/L)
7.0 to 8.5
Less than 50 ppm (mg/L)
Less than 12 ppm (mg/L)
Less than 60 ppm
LEFT: 16-1/4" (413mm) FOR HOOD FILTER SERVICE
20" (508mm) FROM HEAT PRODUCING EQUIPMENT
RIGHT: 4" (102mm) TOP: 20" (508mm) FOR AIR MOVEMENT
BACK: 4" (102mm) BOTTOM: 4" (102mm) FOR AIR MOVEMENT
* An additional water supply
is required for the optional
hand held spray hose.
DIMENSIONS: H x W x D
EXTERIOR:
45-1/2" x 20-3/4" x 37-13/16" (1156mm x 527mm x 960mm)
EXTERIOR WITH OPTIONAL HAND HELD SPRAY HOSE:
45-1/2" x 23-3/4" x 37-13/16" (1156mm x 603mm x 960mm)
4•10esiVH
INSTALLATION REQUIREMENTS
•Oven must be installed level.
•Oven hood condensate drain outlet is 3/4" NPT.
• Oven water supply shut off valve and back ow preventer
when required by local code.
ELECTRICAL (DEDICATED CIRCUIT REQUIRED)
MODEL VOLTAGE PH HZ AMPS kW AWG CORD & PLUG
4•10
ES iVH 208 160 23.4 4.87 — NEMA L6-30P - US
ONLY
208 – 240 360 15.9 – 18.77 5.59 – 7.67 10 NO CORD OR PLUG
380 – 415 350/60 9.8 – 10.8 6.19 – 7.37 10 NO CORD OR PLUG
WEIGHT CAPACITY
NET 180 lbs (82 kg)FULL-SIZE PANS: 20" x 12" x 2-1/2" Four (4)
SHIP 255 lbs (116 kg) GN 1/1: 530 x 325 x 65mm Four (4)
CRATE DIMENSIONS: (L x W x H)
44-3/4" x 33" x 42"
(1137mm x 838mm x 1067mm)
GN 1/1: 530 x 325 x 20mm Eight (8)
HALF-SIZE SHEET PANS: 18" x 13" x 1" Eight (8)
48 lb (22 kg) MAXIMUM
VOLUME MAXIMUM: 30 quarts (38 liters)
20-3/4"
(527mm)
23-3/4"
(603mm)
37-13/16"(960mm)

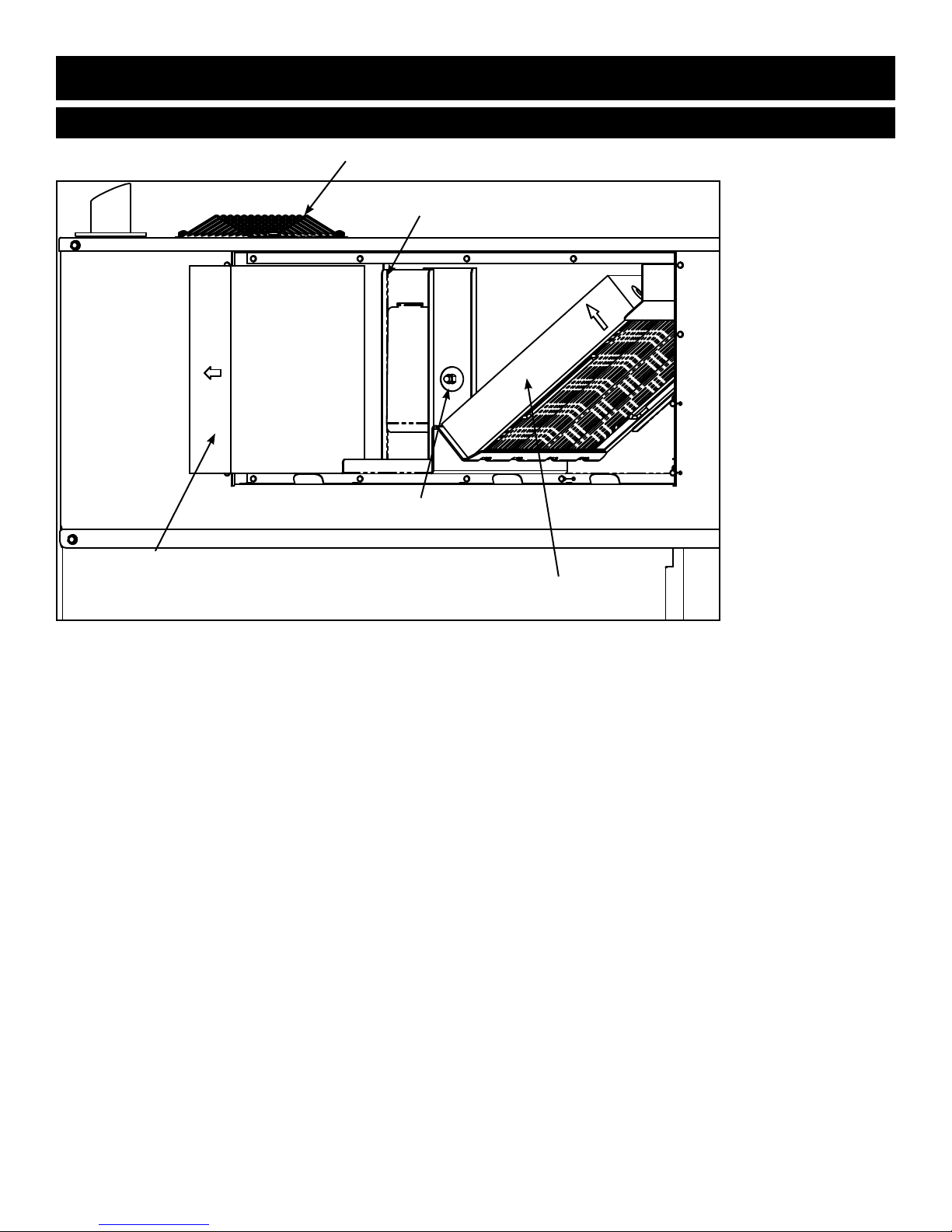

Filter access panel
Condensate Drain
41-1/2"(1054mm)
EXHAUST
VENT
39-1/2"(1003mm)
52-3/16"(1325mm)
20-13/16"
(527mm)
17-7/16"
(442mm) 4"
(102mm)
37-13/16"(960mm)
12-7/8"
(326mm)

INSTALLATION MANUAL • 
ELECTRICAL CONNECTION
INSTALLATION
DANGER
ENSURE POWER SOURCE
MATCHES VOLTAGE IDENTIFIED
ON APPLIANCE RATING TAG.
DANGER
To avoid electrical shock, this
appliance MUST be adequately
grounded in accordance with local
electrical codes or, in the absence of
local codes, with the current edition
of the National Electrical Code ANSI/
NFPA No. 70. In Canada, all electrical
connections are to be made in
accordance with CSA C22.1, Canadian
Electrical Code Part 1 or local codes.
DANGER
IMPROPER INSTALLATION,
ALTERATION, ADJUSTMENT,
SERVICE, OR MAINTENANCE COULD
RESULT IN SEVERE INJURY, DEATH,
OR CAUSE PROPERTY DAMAGE.
READ THE INSTALLATION,
OPERATING AND MAINTENANCE
INSTRUCTIONS THOROUGHLY
BEFORE INSTALLING OR SERVICING
THIS EQUIPMENT.
DANGER
APPLIANCES WITH NO CORD
PROVIDED BY FACTORY MUST
BE EQUIPPED WITH A CORD OF
SUFFICIENT LENGTH TO PERMIT
THE APPLIANCE TO BE MOVED
FOR CLEANING.
ELECTRICAL CONNECTIONS MUST
BE MADE BY A QUALIFIED SERVICE
TECHNICIAN IN ACCORDANCE WITH
APPLICABLE ELECTRICAL CODES.
Hard wired models:
Hard wired models must be equipped with a
country certified external allpole disconnection
switch with sufficient contact separation.
If a power cord is used for the connection of the
product an oil resistant cord like H05RN or H07RN
or equivalent must be used.

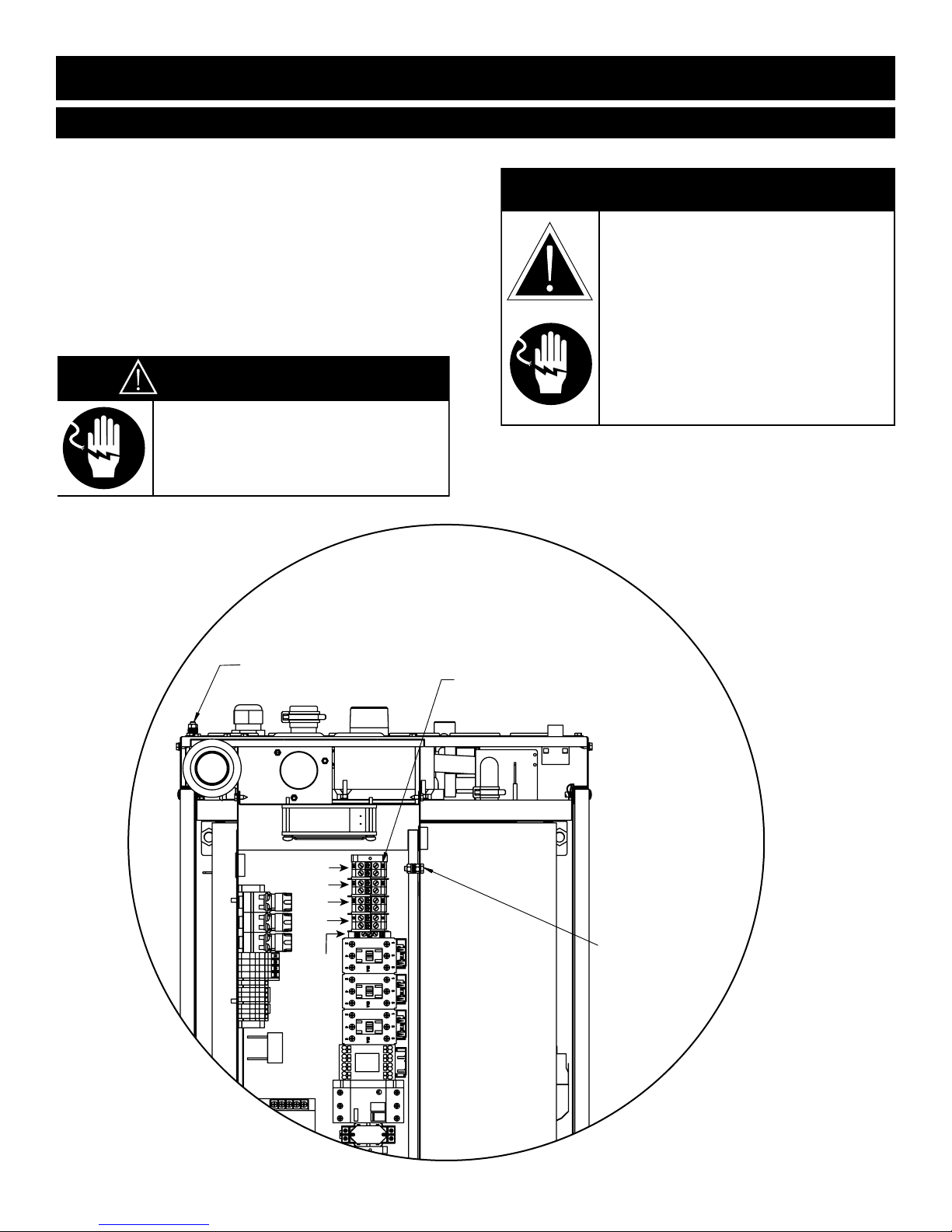

1. An electrical wiring diagram is located behind
the control panel on the left side of the oven. 3
Phase units must be branch circuit protected with
proper ampacities, in accordance with the wiring
diagram. A dedicated 30 Amp breaker is required.
2. Wire size for the main incoming power to the
unit must match the minimum size listed in the
specifications. For supply connections, locate
the wire size posted on the label located on the
electrical control box cover, behind the service
panel.
3. When connecting to a Delta-B (wild leg) on a
3-phase system, the wild leg must be connected
to line 3. Install wiring with a strain relief.
4. Before operating the oven, check all cable
connections in the electrical connection area
for tightness since connections can loosen
during transport.
NOTE: After both water and electrical connections
have been completed, operate the oven
in any cooking mode for a period of 15
minutes and recheck the main power
connections at the terminal block to make
certain they remain tight.
380-415V:
For CE approved units: To prevent an electrical
shock hazard between the appliance and other
appliances or metal parts in close vicinity, an
equalization-bonding stud is provided. An
equalization bonding lead must be connected to
this stud and the other appliances / metal parts
to provide sufficient protection against potential
difference. The terminal is marked
with the following symbol.

INSTALLATION MANUAL • 11.
ELECTRICAL CONNECTION
INSTALLATION
DANGER
ELECTRICAL CONNECTIONS MUST
BE MADE BY A QUALIFIED SERVICE
TECHNICIAN IN ACCORDANCE WITH
APPLICABLE ELECTRICAL CODES.
INTERNAL
GROUND STUD
CUSTOMER MUST SUPPLY CORD
INCOMING ELECTRICAL TERMINALS
APPLIES TO 208-240V & 380-415V UNITS
L1
L2
L3
N
Ground
EQUIPOTENTIAL
GROUND SCREW
380-415V ONLY
DANGER
To avoid electrical shock, this
appliance MUST be adequately
grounded in accordance with local
electrical codes or, in the absence of
local codes, with the current edition
of the National Electrical Code ANSI/
NFPA No. 70. In Canada, all electrical
connections are to be made in
accordance with CSA C22.1, Canadian
Electrical Code Part 1 or local codes.
Top/Back of unit
NOTE: Where local codes and CE regulatory
requirements apply, appliances must be
connected to an electrical circuit that is
protected by an external GFCI outlet.
When required, recommended ground
fault for Combitherm ovens is an
appropriately sized breaker with
built-in 30mA ground fault protection.

INSTALLATION MANUAL • 12.

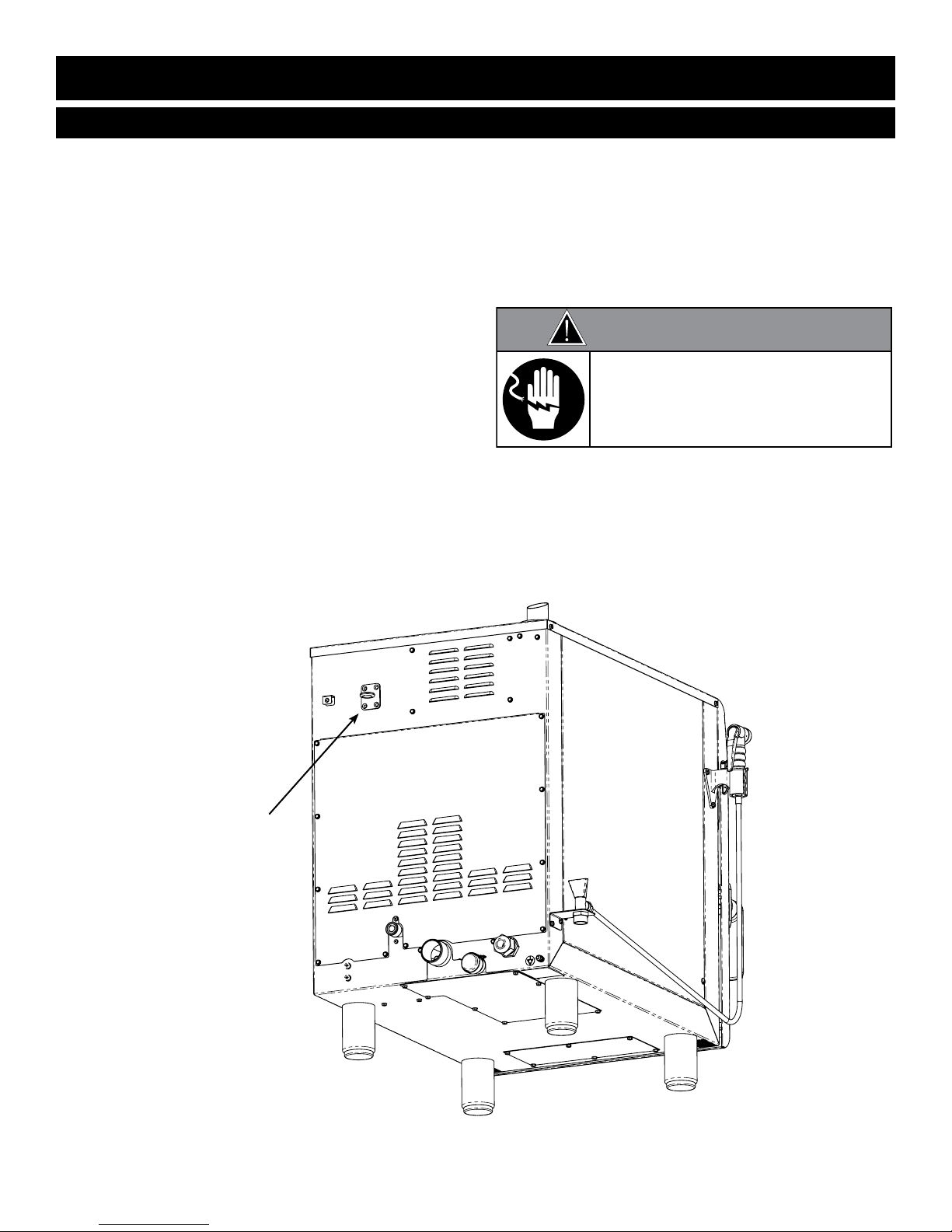

MOBILE EQUIPMENT RESTRAINT
INSTALLATION
Any appliance that is not furnished with a
power supply cord but includes a set of casters,
stand with casters, or a stacked configuration
must be installed with a tether. Adequate means
must be provided to limit the movement of this
appliance without depending on or transmitting
stress to the electrical conduit. The following
requirements apply:
1. Casters must be a maximum height of 6" (152mm).
2. Two of the casters must be the locking type.
3. Such appliances must be installed with the use
of a flexible connector secured to the
building structure.
4. Each of the stacked appliances must be
installed with the use of a flexible connector
secured to the building structure. A single wall
anchor may be used.
A mounting connector for a restraining device is
located on the top right back panel of the appliance
chassis or on an oven stand, approximately
18" (457mm) from the floor. A flexible connector is
not supplied by nor is it available from the factory.
WARNING
RISK OF ELECTRIC SHOCK.
Appliance must be secured
to building structure.
Mounting connector for
restraining device

INSTALLATION MANUAL • 13.
INSTALLATION
WATER QUALITY REQUIREMENT
WARNING
TO PREVENT WATER PIPES FROM
BURSTING, INCOMING WATER
SUPPLY SHOULD BE TURNED OFF
WHEN THE APPLIANCE IS NOT IN USE.
WARNING
WATER SUPPLY MUST BE OPEN WHEN
CLEANING PROGRAM IS ACTIVATED.
VERIFY WATER SUPPLY BEFORE STARTING
CLEANING PROGRAM.
USE A DRINKING QUALITY, COLD WATER SUPPLY ONLY
Water quality is of critical importance when
installing steam producing equipment of any kind,
particularly high temperature steam producing
equipment. Water that is perfectly safe to drink is
composed of chemical characteristics that directly
affect the metal surfaces of steam producing
equipment. These chemical characteristics differ
greatly from region to region throughout the U.S. and
the world. Varying combinations of pH; alkalinity;
hardness; chlorides; total dissolved solids; and other
chemical characteristics, when subjected to high
temperatures, will cause water to have a tendency to
either scale or corrode.
Alto-Shaam has consulted with people who
understand the properties of water in order to
provide water quality standards that meet the
broadest possible range of acceptable water quality
requirements to help protect your investment.
We strongly urge water testing to ascertain the water
quality on site prior to the installation of any steam
producing equipment. Since water quality is an
important issue, Alto-Shaam is committed to provide
as much information as possible to help protect the
investment made in this equipment.
A CombiGuard™ Water Filtration System can
be purchased as an option for installation on the
Combitherm oven. This filter, when properly
installed, maintained, and combined with the
required levels of steam generating equipment
maintenance, will help lessen the affect water has
on metal surfaces. It will not, however, provide
complete protection against all water damage from
region to region.
Due to the complexity of water chemistry, it
is important to understand that water quality
plays a significant role in the longevity of steam
producing equipment. Water quality and required
maintenance of steam generating equipment is the
direct responsibility of the owner/operator. Damage
incurred as a direct result of poor water quality
and/or surfaces affected by water quality is also the
responsibility of the owner/operator. Damage due
to water quality that does not meet the minimum
standards shown below is not covered under the
Alto-Shaam Combitherm warranty.
Alto-Shaam will continue our efforts to provide
viable solutions to ease the impact of water quality as
it relates to steam generating equipment.
CONTAMINANT INLET WATER REQUIREMENTS (UNTREATED WATER)
Free Chlorine Less than 0.1 ppm (mg\L)
Hardness Less than 3 gpg (52 ppm)
Chloride Less than 30 ppm (mg\L)
pH 7.0 to 8.5
Alkalinity Less than 50 ppm (mg\L)
Silica Less than 12 ppm (mg\L)
Total Dissolved Solids (tds) Less than 60 ppm
ALTO-SHAAM COMBITHERM WATER QUALITY MINIMUM STANDARDS
USE A DRINKING QUALITY, COLD WATER SUPPLY ONLY
WATER QUALITY REQUIREMENTS

INSTALLATION MANUAL • 14.
INSTALLATION
WATER CONNECTIONS
WATER SUPPLY & INSTALLATION
WATER REQUIREMENTS
ONE (1) COLD WATER INLET - DRINKING QUALITY
ONE (1) TREATED WATER INLET: 3/4" G
LINE PRESSURE: 30 to 90 psi
2.8 to 6.2 bar
REFER TO PUBLISHED SPECIFIC WATER REQUIREMENTS
WATER DRAIN: 1-1/2" CONNECTION WITH AIR GAP
Flush the water line at the installation site.
Install water intake filters (provided) [see Figure 1]
before connecting the oven to the water supply.
Backflow Prevention — The equipment must be
installed with adequate backflow protection to
comply with applicable federal, state, and local
codes.
PIPE SEALING TAPE (TEFLON®) MUST BE USED
AT ALL CONNECTION POINTS. The use of a pipe
sealing compound is not recommended.
HAND SPRAYER VALVE
REQUIRES ADDITIONAL
WATER SUPPLY
3/4" G
1-1/2" DRAIN
WATER INLET
CLEAN-OUT
TANK
Incoming cold water
connection to filter or
treatment system
Treated cold water
to backflow preventer
to treated connection
on oven
Water Filter
Install water
intake filter
Figure 1
ONE SUGGESTED
METHOD OF INSTALLATION
NOTE:
UNIONS OR FLEXIBLE LINES
SHOULD BE USED TO ALLOW FOR
OVEN MOVEMENT WHEN BEING
SERVICED OR CLEANING
IS NEEDED.
REFER TO FIGURE 1 ABOVE FOR
PROPER INTAKE LOCATIONS.
CombiGuard™
FI-23014 shown
Alto-Shaam now offers an improved water filtration
system for Combitherm®. The CombiGuard™ triple-guard water filtration
system filters dirt, sediment, and other debris as small as 1/2 micron.
This system also significantly reduces chlorine content to protect against
corrosive chorine compounds. CombiGuard improves equipment efficiency,
reduces service requirements and extends the life of the Combi oven. After
installation, confirm that water quality standards specified in this manual
are being met. Filtration systems include one filter cartridge. Additional
cartridges can be purchased separately. Refer to page 7 for additional
ordering information.
The CombiGuard™ BWS Blended Water System utilizes reverse osmosis to
remove more than 97% of the total dissolved solids from water which can be
precisely blended with filtered and treated water.

INSTALLATION MANUAL • 15.
INSTALLATION

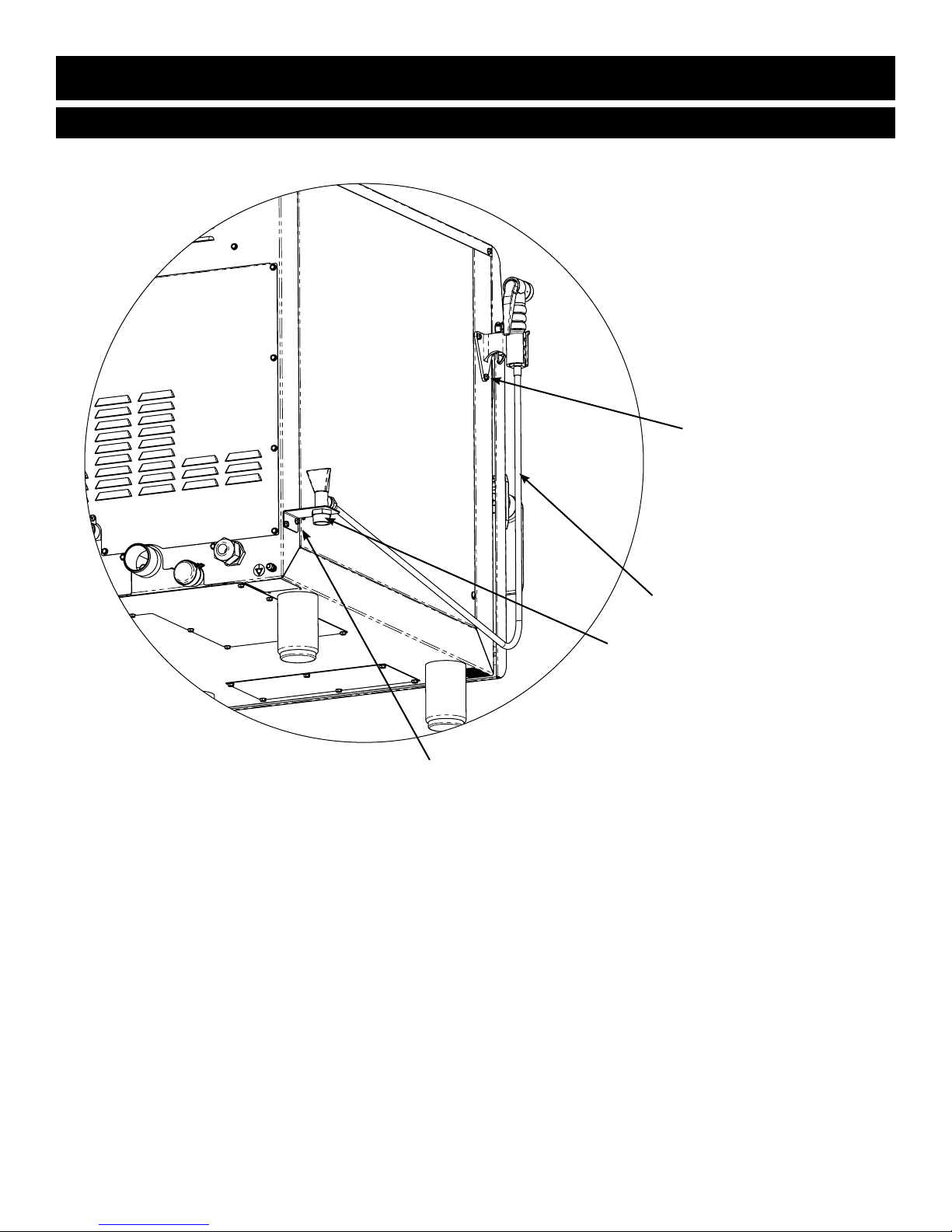

OPTIONAL HAND HELD SPRAY HOSE
Valve bracket
INSTALLATION
1Using the valve bracket as a template for placement, and a #28
drill bit (0.14" diameter), drill two holes at the lower rear side
of the unit (same side as door opening). Fasten the valve bracket
using the 2 self drilling screws.
2Using the sprayer hanger as a template for placement, and a #28
drill bit (0.14" diameter), drill three holes at the upper front side of
unit (same side as door opening). Fasten the sprayer hanger using the 3
self drilling screws.
3Connect the sprayer hose to the valve and place the sprayer in the hanger.
4Continue to connect an incoming water supply line to the valve.
Sprayer hanger
Sprayer hose
Valve

INSTALLATION MANUAL • 16.
INSTALLATION
WATER VALVE
WATER DRAINAGE
NOTE:
THE SHUT-OFF VALVE
MUST BE IN THE OPEN POSITION
WHEN THE OVEN IS BEING USED.
The oven must discharge through an indirect waste pipe by means of an air gap. The drain fitting is
supplied with a 1-1/2-inch (38mm) NPT thread.
A union is required. Install a 1-1/2-inch (38mm)
diameter connection, drain line and clamp into
place. The drain line must always be a positive
gradient away from the Combitherm oven and not
more than 12-inches (305mm) before an air gap.
NOTE: In the U.S.A., this equipment is to be
installed to comply with the Basic Plumbing
Code of the Building Officials and Code
Administrators International, Inc. [BOCA],
and the Food Service Sanitation Manual of
the Food & Drug Administration [FDA].
If several units are to be connected to one drain
pipe, the dimensions of the pipe must be sufficient
to allow an unobstructed water drain system.
1-1/2" (38mm) diameter NPT
at back of oven
WASTE PIPE
1-1/2" to 2" minimum diameter
(c. 38mm to 51mm)
2" (51mm)
Air Gap
1-1/2" (38mm)
diameter connection
required for drain

INSTALLATION MANUAL • 17.
INDICATOR LIGHT
If the indicator light does not
illuminate, the filters may be
missing or not properly aligned.
Check them for proper positioning.
Ventless hood and oven will not
operate unless the hood is closed
properly.
INSTALLATION
VENTLESS HOOD MODEL
The Ventless Hood option is factory installed
directly on the top of the Alto-Shaam Combitherm
oven. The hood is designed to vent clean air back
into the kitchen, filtering vapors and grease. A
high-power fan draws steam and fumes into the
hood intake and out the top surface exhaust vent.
Fumes and vapors are circulated through filters.
An activated charcoal filter cleans the air before
venting it out the top of the hood.
FILTER DOOR LATCH
Using a coin or screwdriver,
turn to open; reverse procedure
to close and latch.
Hood and oven will not operate
unless this is closed properly.
OPERATION
1Turn the ventless hood power knob “ON”.
2Indicator light will illuminate.
3Wait ve seconds, then press the Combitherm
oven power “ON”.
2
1
Timed Latching Mechanism: In
order to evacuate steam and grease-
laden air from the oven interior, this
mechanism prevents the operator
from fully opening the oven door for
20 seconds. Longer wait times can
be programmed into the control. The
mechanism automatically disengages
at the end of a pre-set time allowing
full door extension.
Emergency Latch Release: This
release is to be used ONLY if
the timed latch mechanism is
not working or in the event of a
power outage. Repeated use of the
emergency release may damage
the switching mechanism. Latch is
located on the right side of the oven,
toward the back.
3

INSTALLATION MANUAL • 18.
INSTALLATION
VENTLESS HOOD MODEL
TOP EXHAUST VENT
1Charcoal Filter: The charcoal filter should be
inspected for contaminant's on a regular basis.
Replacement must be made at a minimum of
three month intervals — more often if heavy
contaminant's are visible or if the filter no
longer controls odors.
To remove the charcoal filter, pull and slide out.
When replacing the filter, ensure that the filter
clip is in place at rear of the filter. Make certain
the air flow arrow(s) point toward the hood fan
(back of unit), and that the filter is replaced
using the filter track in the metal back plate
provided with the hood.
FI-24114
2Grease Filter: Cleaning frequency should be
based on oven usage with a maximum of two
weeks between cleaning if the oven is used for
non-grease laden products or steam applications
only. Grease laden products require cleaning
frequency of at least once a week.
Remove the grease filter by pulling it straight
out of the housing. Place the filter in the
dishwasher or wash separately by placing in
hot, soapy water until all grease and particles
have been removed. Rinse thoroughly. Allow
the filter to air dry before reinstalling.
To replace the grease filter, the metal handles
on the filter casing should be facing toward the
front of the unit.
FI-24113
2
1
FILTER TRACK
FILTER SWITCH
