Alto SR500SA User manual

Service Manual
ALTO
REV.2
Model: SR500SA

CONTENTS
1.Specifications
2.Block Diagram
3.Schematic Diagram

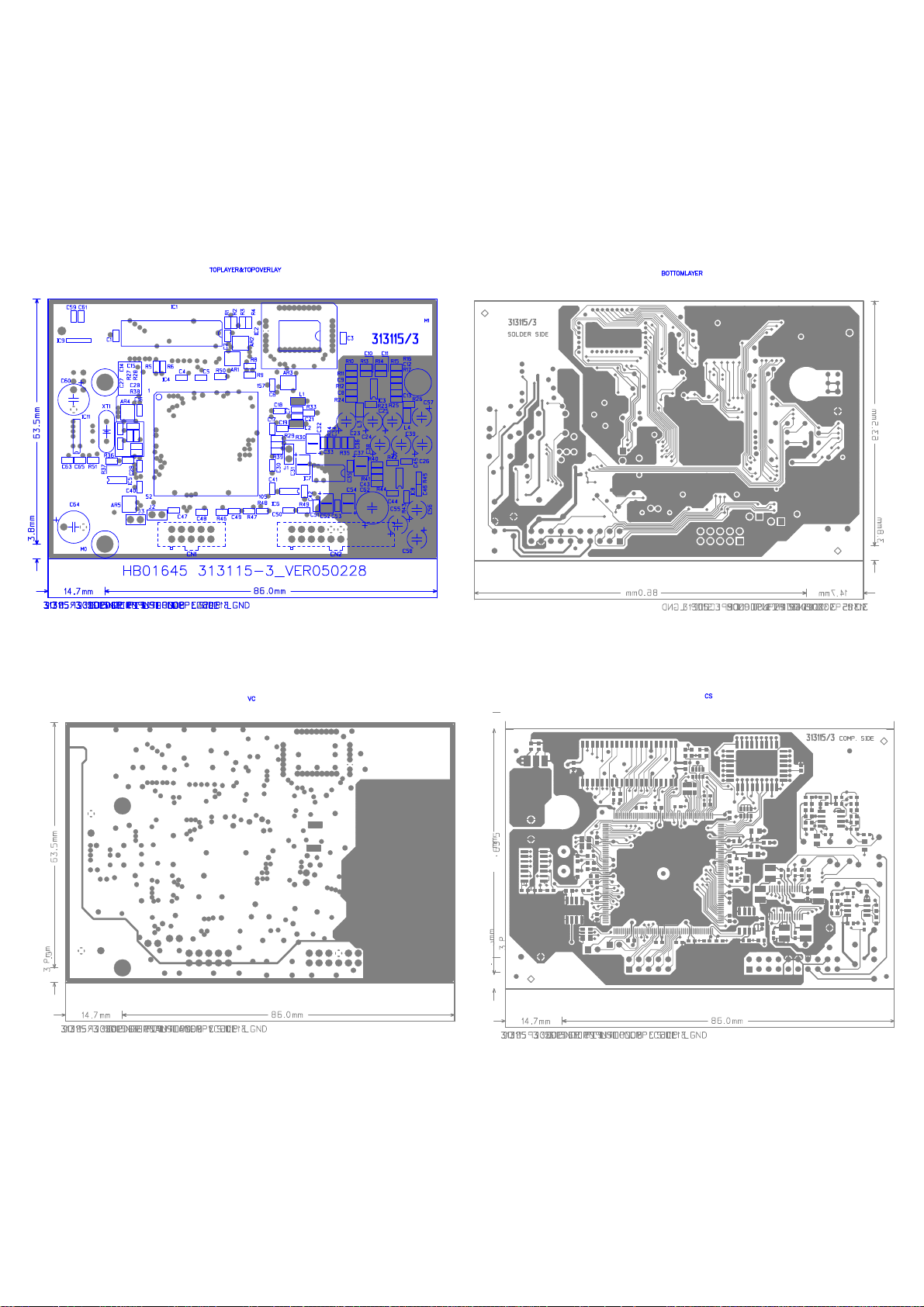

4.Printed Circuit Board
5.Test Procedures
6.Structural Drawing
7.Exploded View & Mechanical Parts List
8.Electrical Parts List

Test Result
Model No: SR 500SA Test Date: 20041004 Tester: mo guo zhu
Test Item Test Conditions Spec Test Result Remark
1Power Source AC: 230V；50 Hz
2Idle CurrentAC 230V No-Load3 ±0.5mV mV
3Power
Consumption Rated Output. Aux At 50Hz
A
WFLAT
4Rated Output Low Load :4Ω40---41 V THD:1.2%↓V
Hi Load:8Ω_______V
Load 16ΩV_______V
Load ____Ω（25V ）VV
Load____Ω（50V ）VV
Load____Ω（70V ）VV
Load____Ω（100V ）VV
Aux At 100Hz FLAT.
Rated W
5Maximum at
Output 10% THD Aux 1KHz dB Load ΩWW FLAT
7Hum or Noise VR Max （Low ）10↓mV mV
VR Max（Hi ）mV mV
8100HZ: dB 100HZ: dBTone control
Response Input From Aux Output At 1W 10KHZ: dB 10KHZ: dB
9Puncture Voltage 5mA ，5Sec 3750V V
10 MONITOR Aux 1KHz dB Load ΩFLAT
11 MONITOR NO: AUX,TAPE,TUNER,CD,MIC1,MIC2
12 CD PLAYER 1KHz 0dB
13 TUNER AM/FM
14 PRIORITY MIC1
15 TEL.PAGING 1KHz____dB
Load____Ω_______V G-T___dB；G-R___dB。G-T___dB；G- R___dB。FLAT
16 ZONE PAGING 100V ALL/ Z1，Z2，Z3，Z4
17 CLIP 動作點測
試Input: 1kHz Output : 8 ohm OK
18 PTC TEST Up to Output
Decreace
19 Burn in Input: 0dB Pink noise
Output :
01-1
across R26&R24

Test Result
Model No：SR500SA Test Date: 20041004 Tester：mo guo zhu
Test Item 1. Input
Sensitivity 2. Signal/Noise 3. Distortion at 1W 4. Distortion at Rated 5. Frequency Response
Test Conditions
Test Result
FLAT Rated
Output 40V
Load4Ω
FLAT Rated
Output 40V
Load 4Ω
FLAT Output
at 2V Load 4ΩFLAT Rated Output 40V
Load 4Ω
FLAT Output at
2VLoad4Ω
Low OUT 3.5±0.3 dBV70 ↑dB 0.3↓% 1.2↓%
Hi OUT dBVdB % %
TUNER dB dB % %
LINE
CD dB dB % %
AUX dB dB % %
TAPE dB dB % %
TUNER dB dB % %
AUX2
CD dB dB % %
AUX dB dB % %
TAPE dB dB % %
TUNER dB dB % %
AUX3
CD dB dB % %
MIC dB dB % %
LINE dB dB % %
24V dB dB % %
MIC1
UNBAL dB dB % %
MIC dB dB % %
LINE dB dB % %
24V dB dB % %
MIC-2
UNBAL dB dB % %
MIC dB dB % %
LINE dB dB % %
24V dB dB % %
MIC-3
UNBAL dB dB % %
MIC dB dB % %
LINE dB dB % %
24V dB dB % %
MIC-4
UNBAL dB dB % %
Remark
1.Test is done with instrument ATS-2.
2.Load connection: connect LOW output with 4Ohm load.
3.Short circuit DSP terminals.
4.Frequency response test: After function test is done, scan with test instrument AUDIO PRECISION the
Authorization by：Check by：
01-2
frequency response for the unit. refer to the attached figure.

1234
A B C D
4321
D C B A
POWER SWITCH
MIX AMP PRE AMP LOW PRE LOW POWER
AMPAMP
LOW
V+ & V- V+ & V-
HI
POWER SUPPLY SWITCH
LOW SPEAKER
LOW V+
LOW V-
HI V- HI V+
AC INPUT
238096
DSP MODULE
LPF
Title Size:
A3
Number
Date: File: Sheet of:
Drawn By:
Revision
SR500SA
SR500SA BLOCK DIAGRAM
2004/04/16 T5SA 1/1
Lian Ming Tan
VER1.0
1
第 版
SR500SA BLOCK DIAGRAM
SIGNAL INPUT
VOLUME
130 deg SW
T8A
T8A
T8A T8A
LEFT
RIGHT
PRESETS
1
5
9
13
234
6
7
810
11
12
14
1516
02-1

12345678
A B C D
87654321
D C B A
R38
390E
R44
1K
R49 68K
R50
4K7
R51 12K
R42
470E
R34
820E R35
68E
R33
12K
R32 8K2
R63 8K2
R62
47E
R64 47K
R65 2K2
R66
1K
R43 12K
R29 470E
R31 12K
R22 560E
R23 1K5
R67 8K2
R69
47E
R77
8K2
R76
12K
R39 68E
R36 820E
R55 68K
R40
12K R56
4K7
R53 390E
R27 470E
R54 2K2
R68
47K
C24
0.0047U
C31
470P
C28
470P
C33
0.0018U
C22 100P
C13
0.001U
C32 0.0018U
C21
100P
TR11
NJE350
TR15
MJE350
TR10
MJE340
TR7
MJE340
TR12 2N5401
TR12
2N5551
D16
1N4002
TR1
MJE802
R45
12K 2W
D15
10 1W
D19
10V 1W
C25
220U/25V
D18
1N4002
D29
1N4002
D30
1N4002
D17
1N4002
VR1 500E
C14
10/50V
TR25
MJE340
TR19
NJE15031 TR9
TIP36C
TR6
MJE15030
TR4
2SC5200
R29 10E
R30
4E7
D28
1N4002 D7
1N4002
D8 6A2
C23
0.1U
TR23
MJE350
TR8
MJE15031
TR24 MJE15030
TR5
2SA1943
TR18
TIP35C
D13
1N4002
D9 6A2
R70 47K
R74
4K7
R73
10K
R21
47K
D14
1N4148
TR21 BC847
TR26 BC847
TR20
BC847
TR27
BC857
TR22 BC857
TR13 BC32725
TR17 BC857
C34
1000U/6V3
C30
220U/50V
R59 330E
R46 10K
R60 33K
R58 10K
R71 10K R72 10K
R48 470E
R47 10K
R57
150K
C29
1U/50V C26
0.1U
C20
0.0047U
R52
12K2W
C27
220U 25V
R26
0E2 5W
R24
0E2 5W
C17
0.0047U
D12
1N4148
D10
1N4148
R25
10E
R37
4E7
C35 0.0047U
7
6 5+
_IC7B
MC33078
1
2 3
48
+ _
IC7A
MC33078
R94 10K
R93 22K
R98
1K R92 1K
R90 100K
DL2 100P
C40 100P
D33 4148 D32
4148
+VCC1 -VCC1
+VCC2
-VCC2
Vin
1
GND
2
Vout 3
IC5 7815 C43
10/25V C42
10/25V
C15
10000/80V
C16
10000/80V
Vin
1
GND
2
Vout 3
IC3 7805
C37
1000U 6.3V
R79
47E/5W C38
2200U/63V
+VCC1 -VCC1
+VCC2 -VCC2
-15V
+5VA
+15V
-15V
+15V
-15V
-15V
R78 100E PTC
+15V
or NJL21184
or SIMILAR
or MJL21193
+15V
C45
10U NP
12 34 56 78 910 1112 1314
CN1 CN-7PX2-F
+15V
RL1 OZ-SS-124LM1 DC 24V 16A
+5VA
-15V
S10
LOW OUT+
S9
GND
LOW SPEAKER
Title
Size:
A3
Number
Date: File: Sheet of:
Drawn By:
Revision
SR500SA
P-313122-SR500SA
2004/04/15 T5SA 1/1
VER1.1
FROM 313127 INPUT PCB
SOFT START
OFFSET PROTECTION
-8.3V
14.8V
11.1V
14.2V
11.6V
10.97V
0.1V
-0.56V
0.58V
27.5V
9.6V
32.1V
-32.4V-27.7V
-7.6V
-0.33V
-1.4V
+1.4V
F1
T8A
F1 T8A F2 T8A
F2 T8A
D1
KBPC25
D5
KBU806
D3 1N4002
C11
0.01uF400V
C1
400V/10N
S5
S1 S3 S2
S4
BP25-06PWS
TR1
2SC5200
R19
0E2 5W
or NJL21184
TR2
2SA1943
or MJL21193
R20
0E2 5W
C18
10000U/50V
C19
10000U/50V
D4 4002
GND 1
Vin
2Vout 3
IC4 7905
Lian Ming Tan
03-1

12345678
A
B C
D
87654321
D
C B
A
ZD4
12V1W
ZD3
12V1W
ZD8
12V1W
ZD2
12V1W
R10
15K
R12
15K
R11
15K
R8
15K
R7 47K
14
13 12 +
_
IC2D
33079
11 4
IC2E
33079
7
6 5+
_
IC2B
33079
8
9
10 +
_
IC2C
33079
C16
22P
C15
22P
C12
22P
C18
0.01uF/400V
R18
10E
4 5 6
P
SW2B
SW PS-22E85L
1 2 3
SW2A
SW PS-22E85L
1
2
3VR1
B50K
R6
4K7 R5
680E
R8
47K
1 2 3 4 5 6 7 8 910 11 12 13 14 15 16 17 18 19 20
CN2 CN-10PX2-180
12 34 56 78 910 11 12 13 14
CN1 CN-7PX2-F
1 3
2
DL1 SIGN/LIMIT
R3
1K2
+15V
-15V
+5VD
+15V -15V
NC 1
OUT 2
NC 3
GND
4GND
5
NC 6
V+ 7
NC 8
NC 9
FB
10
FC
11
GND
12 GND
13
OSC
14
SS
15
NC 16
IC1 L4962
C2
220u/50V
C4
330P
C7
0.0022u
R2
3K9
R1
15K
C3
0.033u
C8
2u2 50V
4 3
2 1
5
L1
TP-SEV1924-03
C14
470u/25V SLL
+5VD
D1
BYV27
11 22 33 44 55
6
6
7
7
SW1
VR-SW
R4
680E
1
2 3
+ _IC2A
33079
C10
47u/50V
C5
47u/50V
C9
0.1u
C6
0.1u
R17
5K6
+15V -15V
DL2
POWER ON
CLIP SIGNAL
R G
+5VA
FROM INPUT E DSP BOARD
INPUT +4dBu L2
22uH
L4
22uH
2 1 3 4
S4 CN-BAL-MALE
2 1 3 4
S3 CN-BAL-MALE
L3
22uH
L5
22uH
ZD6
12V1W
ZD7
12V1W ZD5
12V1W
ZD9
12V1W
R10
15K
R14
15K
R13
15K
R15 15K
C18
22P
C17 22P
INPUT +4dBu
LEFT
RIGHT
VOLUME
110073

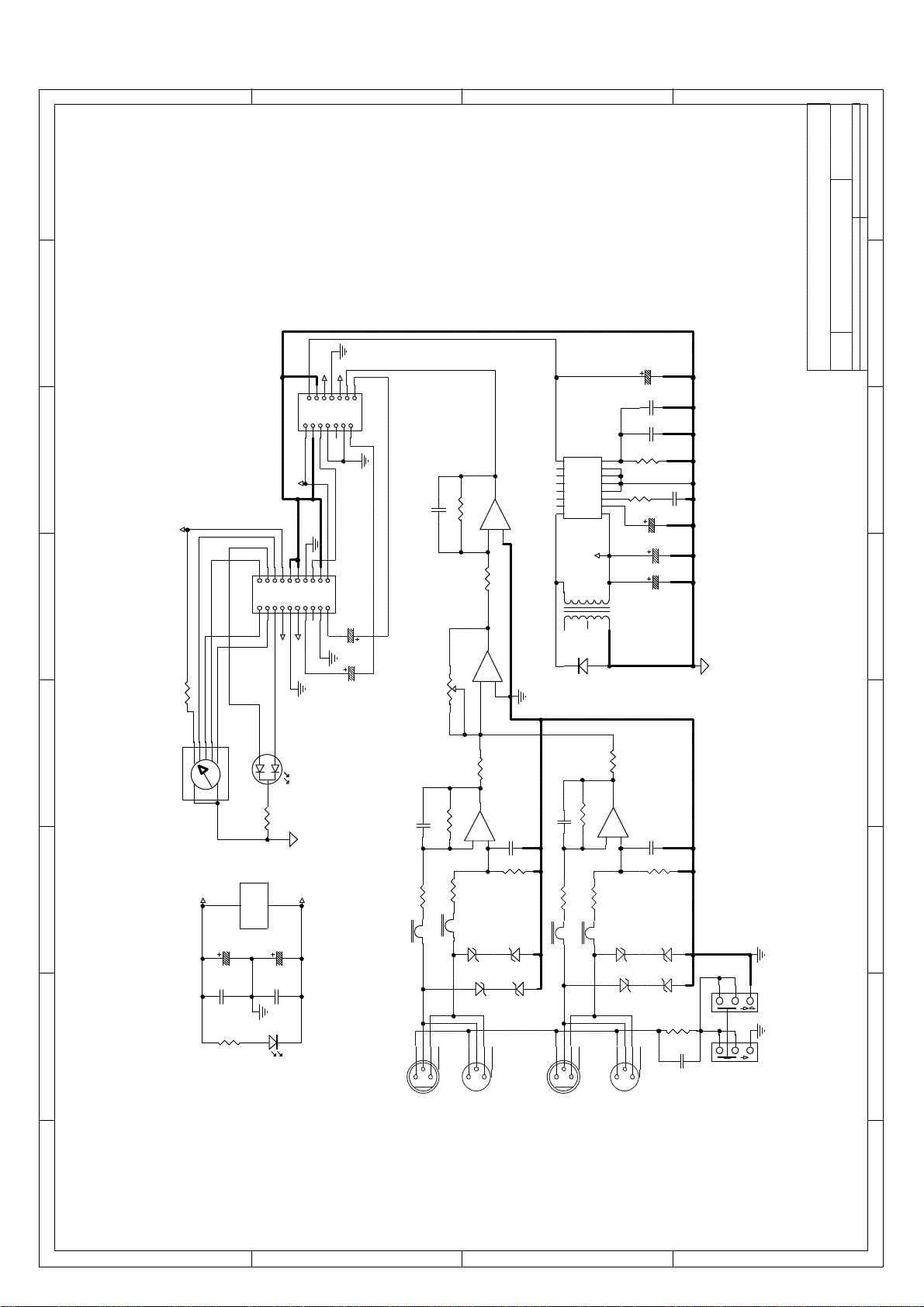

SR500SA
2 1 3 4
S1
CN-BAL-FEMALE
2 1 3 4
S2 CN-BAL-FEMALE
C13
1000u/6V3
C1
47u/63V
C11
47u/63V
Title
Size:
A3
Number
Date: File: Sheet of:
Drawn By:
Revision
2004/04/15 T5SA 1/1
VER1.1
Lian Ming Tan
03-2

04-1

04-2

04-3

Instruments required:
1) Sinusoidal signal generator, 4) Variac 0-250Vac,
2) Dual trace scope, with probe, 5) Resistive load 4 Ω 800W,
3) Digital multimeter, 6) Pink noise from the GM “AUDIO CD”.
P.S: Isolate the oscilloscope from earth and adjust the two traces on center of screen in GND
position.
Par. 1: visual check
-Make a visual check if the amplifier is perfectly done and especially verify:
a) the right value of fuses 8A 250V *4PCS
b) the right earth main connection on rear surface of front panel.
c) the insulation between the heat-sink and the case of TR1-24, IC3-5-then,
-Set the VOLUME control full clockwise.
Par. 2: connections
-Switch off the amplifier module,
-Set the ENCODER pot. on preset “NORMAL”.
-Connect the mains of amplifier module to VARIAC and set it at zero AC voltage.
-Connect the signal generator to Line Input (XLR socket) and set it at 100Hz /0dBu,.
-Connect the scope CH1 probe to amplifier low output and CH2 probe to amplifier high output-
Par. 3: Initial test
-Increase slowly the VARIAC voltage up to the nominal value (230Vac).
-Check the transformer sec. voltages with multimeter, (without signal on input):
F1-F2: 54V ±1.5Vac
F3-F4: 106V ±2Vac
-Check the +/-15Vdc supply on relative voltage regulator outputs (IC3 & IC4 devices).
-Switch ON the signal generator and verify that the output signals must be symmetrical referring
to GND, without detectable distortion and oscillation.
-Check that the low amplifier power output signal is39.5V~41V;
--Check of SIGNAL led function, moving the volume potentiometer of amplifier;
when the output signal is <0.5Vpeak the led must be OFF,
when the output signal is > 0.5Vpeak, the led mustbe GREEN lighted.
-Then, rotate the volume potentiometer knob full clockwise
Par. 4: BOOSTER check of LOW Amplifier
-Connect alternatively the CH2 probe tip of scope on D2 cathode and D3 anode and
verify the following conditions:
when the output signal is <18Vrms the ±VCC1 voltage must remain linear at 36V,
when the output signal is > 18Vrms the ±VCC1 voltage must follow the output signal wave with

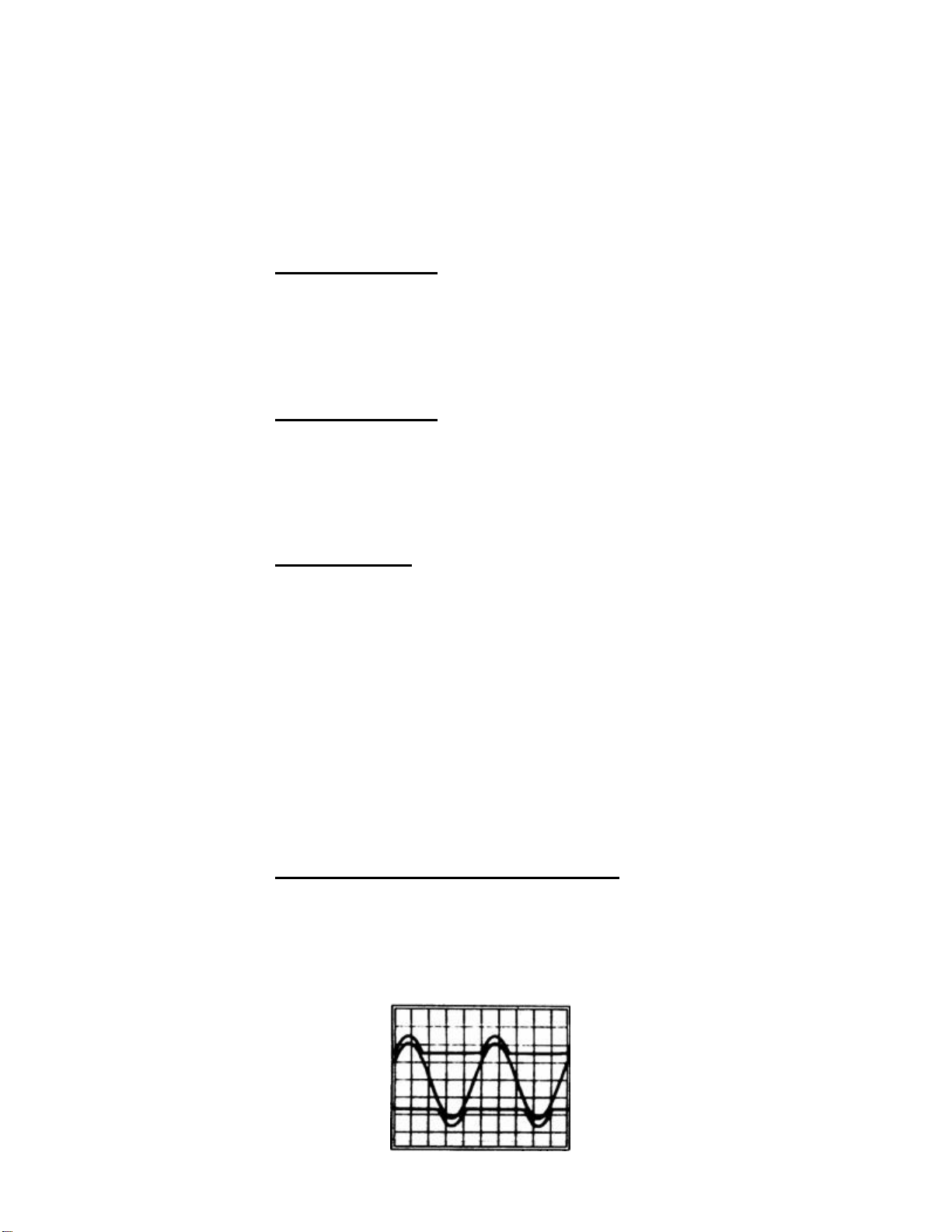

6Vdc offset, as shown in the following picture

TESTING PROCEDURE
-Switch ON the LOW amplifier output to 4Ωload resistor and repeat the above booster check
verifying more or less the same ± VCC1 conditions and verify that the signal must be
symmetrical refer to GND, without detectable distortion and oscillation.
Increase the VOLUME pot. until a signal clipping.
Switch OFF the LOW amplifier out. to 4Ω load resistor
Par. 5: COMPRESSOR check of LOW amplifier
-Increase the input signal of 10 dB and check the out. signal to remain constant at 45Vpeak and
if the Signal/Comp. led has changed the lighted colour, from GREEN to RED.
Par. 6: PTC function check on Heatsink
-Heat the PTC temperature sensor with a welder heated tip, in touch with its body, to verify this
protection works properly reducing the amplifier out. signal to few volts on time.
P.S. The check must be done with PTC, placed into heat-sink hole and silicon grease on.
Par. 7: Idle current setting of LOW amplifier
-Decrease to zero the signal generator, then, adjust VR1 trimmer to have a 3mV ±0,5mVdc
voltage drop across R24& R26power resistors.
-
Part .8: Burn-in test
1. Connect the pink noisesignal from CD player with the line input of speaker module.
2. Connect 4ohm 500W load resistor with the bass output.
3. Put band switch to the position 1, and then turn on the power switch of speaker module.
4. Adjust the pink noise level from CD playeruntilSIGNAL/LIMIT indicators (red, green) sparkle.
5. Put the speakermodule vertical and take the burn-in test for 3hours.
Part .9: Final inspection
1. Check the electronic performance of the tested unit completely.

05-3

06-1

06-2

06-3

07-1

NO PART NO ITEM DESCRIPTION SPECIFICATION PCS
1MG00349 black screw-T headψ6 M3*16 8
2ND00537 ZC-grille-black SR 500A-SUB_V1.0 black 1
3MG00530 black screw-T headψ10 M3*30mm 8
4HG00129 speaker _bass 15吋 4Ω SR500SA(Z008288_LP385.75) 1
5ND00394 EV sponge-one side adhesive 2.0t*115*115 dark black V1.0 2
6ND00395 EV sponge-one side adhesive 100*30*1 dark black_V1.0 4
7ND00399 EV sponge-one side adhesive SR500A-SUB 100*30*1 dark black_V1.0 4
8MG00338 black screw-T head ψ8 M4*30mm 8
9NI03152 handle-ABS 85.6*207*7 black_V1.0 2
10 MG00361 black screw-pill M4*20mm 12
11 NI031151 SR 400A black_V1.0 handle -ABS 2
12 MG00353 black screw-semicircle pan head M6*30mm 4
13 MH00801 rack hat-black SKC004 1
14 MG00351 black screw-pill M4*16mm 14
15 HK04508 K-front panel combination SR500SA-ALTO-230V 1
16 ME00082 grey screw-T head- nut M5*9mm 8
17 ME00083 grey screw-T head- nut M6*11mm 4
18 ME00085 grey screw-T head- nut M4*7mm 8
19 NI02426 foot pad -black ψ37*15mm 4
20 MG00360 black screw-pan head M4*25mm 4
21 ND00416 EVA sponge-one side adhesive 100*110*2t dark black _V1.0 2
22 ND00398
EVA sponge-sponge-one side adhesive
SR500A-SUB 1205.5*15*2 black_V1.0 1
MECHANICAL PART LIST
MODEL NO SR500SA_ALTO_230V
07-2

PC00298 SR500SA SR500SA_ALTO_230V REVISED: 2006/5/30
PART NO
DESCRIPTION SPECIFICATION QTY REFERENCE
├0001---------------------------------
MG00349 screw M3*16 8
├0002---------------------------------
NC00222 box SR500A-SUB 600*598*500_V1.1 1
│├0001-------------------------------
NI03152 handle 85.6*207*7 black_V1.0 2
│├0002-------------------------------
NI03151 handle cover SR400A;SR500SA black_V1.0 2
│└0003-------------------------------
NC00230 box SR500A-SUB_V1.0 1
│ ├0001------------------------------
ME00085 nut M4 8
│ ├0002------------------------------
ME00082 nut M5 8
│ ├0003------------------------------
ME00083 nut M6 4
│ ├0004------------------------------
MG00353 screw M6*30 4
│ ├0005------------------------------
MH01704 handle ELVIS φ110*96_V1.0 1
│ │└0001----------------------------
MH00801 bracket φ110*96_V1.1 1
│ ├0006------------------------------
NI02426 foot cushion φ37*15.5mm 4
│ ├0007------------------------------
MG00360 screw M4*25mm 4
│ ├0008------------------------------
MG00338 screw M4*30mm 8
│ └0009------------------------------
MG00361 screw M4*20mm 12
├0003---------------------------------
MG00351 screw M4*16 14
├0004---------------------------------
ND00394 EV foam 100*110*2_V1.0 2
├0005---------------------------------
ND00398 EV foam SR500A-SUB 1205.5*15*2_V1.0 1
├0006---------------------------------
ND00399 EV foam SR500A-SUB 490*15*2t_V1.1 2
├0007---------------------------------
HK05278 speaker 15inch 300W 4Ω SR500SA(Z008288_LP385.75 1
│├0001-------------------------------
HG00177 voice coil-RS A09090A_BK 75-55-335/22*4P-3_V1.0 1
│├0002-------------------------------
NH00345 cone B08250A_U-SONIC CP312/32-SC348A/6-F_V1.0 1
│├0003-------------------------------
NH00237 cushion C0910A_GR 385/6+2 1
│├0004-------------------------------
ND00485 spider D09140A_CT 75-165/12 C3 CONEX_V1.0 1
│├0005-------------------------------
ND00525 dust-proof shade E06600A_CP 115/C 1
│├0006-------------------------------
MH01983 T type middle pillar H08400A_PN 75/1800.10 F30_V1.2 1
│├0007-------------------------------
MH01984 washer I08420A_PS 75/1800.10 SW F4_V1.1 1
│├0008-------------------------------
MH01986 magnet-RS G04550A_D180*95*20 Y30_V1.0 1
│├0009-------------------------------
MI02745 holder L08120B_CR 385/F4 N_V1.0 1
│├0010-------------------------------
HC00426 terminal M0021B_PT2.1 1
││├0001-----------------------------
HC00496 connect terminal 0.8*13*16.3mm 1
││├0002-----------------------------
HC00495 connect terminal 0.8*13*16.3mm 1
││└0003-----------------------------
NI02583 terminal block 3.5*24.5*3t 1
│├0011-------------------------------
MH01110 rivet M0500A_OU-30 2
│├0012-------------------------------
MD00642 iron net SR500SA 0.5t*φ42.5*4H_V1.0 1
││└0001-----------------------------
MD00712 iron net SR500SA 0.5t*φ42.5*4H_V1.0 1
││ └0001----------------------------
MD00643 iron net 0.5t*70*70 SR500SA_V1.0 1
│├0013-------------------------------
HA02494 strand TA4X4YKA42W*120mm 2
││└0001-----------------------------
HA02079 strand TA4X4YKA42W*1M 120
│├0014-------------------------------
MG00599 screw M5*9.6*0.8PH_V1.0 6
│└0015-------------------------------
NE16120 lable HK05278_V1.0 1
│ ├0001------------------------------
NI00014 membrane 0.035*1M 1
│ └0002------------------------------
NH00012 bond paper 0.04*1M 1
├0008---------------------------------
MG00350 screw M5*30 8
├0009---------------------------------
HK04508 faceplate SR500SA-ALTO-230V 1
│├0001-------------------------------
MA00113 panel SR500SA ALTO_V1.1 1
││└0001-----------------------------
MA04834 panel SR500SA 1
││ └0001----------------------------
MA04835 panel SR500SA 1.5t*202*41*487_V1.1 1
││ ├0001---------------------------
MJ00088 single light board 1.5*2135*1220 30.67kg 1
││ ├0002---------------------------
ME00106 iron pillar M3*24*0.5PH_V1.1 2
││ └0003---------------------------
MI00318 connect terminal PFM-15SA 1
││ └0001--------------------------
MI00316 connect terminal PFM-15SA 1
││ └0001-------------------------
MJ00747 single light board 0.8t*21.6mm*100M 22.5kg 1
│├0002-------------------------------
MI02033 heat sink 307.5*162*40mm SR500SA_V1.0 1
│├0003-------------------------------
TD00162 transformer 238096 1
│├0004-------------------------------
HI00022 power switch-RS 4p black frame red key 1
│├0005-------------------------------
HC00005 AC socket-RS AC-008 1
│├0006-------------------------------
NI01862 key 5.5*5.5*14.5_V1.1 1
│├0007-------------------------------
NI01863 key-RS φ5.5*W10*7.5 1
│├0008-------------------------------
NI02386 konb φ14*13mm 1
│├0009-------------------------------
NI02672 knob φ21*16mm 1
│├0010-------------------------------
NI00437 rubber coil φ20*φ120*2tB 1
│├0011-------------------------------
MG00404 screw M6*70*1.0PH 1
│├0012-------------------------------
ME00014 color nut 6*1.0 1
│├0013-------------------------------
MF00130 MIC jack φ6.3*φ19*1t_v1.0 1
││└0001-----------------------------
MF00051 washer φ6.3*φ19*1t_V1.0 1
││ └0001----------------------------
MJ00058 single light board 1*2135*1220 20.45kg 1
│├0014-------------------------------
MF00040 washer φ6*φ10*1.5t 1
LEVEL
08-1

PC00298 SR500SA SR500SA_ALTO_230V REVISED: 2006/5/30
PART NO
DESCRIPTION SPECIFICATION QTY REFERENCELEVEL
│├0015-------------------------------
SA00012 bridge rectifier 25A/600V BP25-06PWS 1
│├0016-------------------------------
RH00007 thermistor 330Ω (PTH9L04BD222TS2F330) 1 R78
│├0017-------------------------------
SD00074 integrated circuit L7805CV(TO-220)(ST) 1 IC3
│├0018-------------------------------
SD00077 integrated circuit L7815CV(TO-220)(ST)(MOROCCO) 1 IC5
│├0019-------------------------------
SD00079 integrated circuit L7915CV(TO-220)(ST) 1 IC4
│├0020-------------------------------
SB00057 transistor TIP35C 1 TR18
│├0021-------------------------------
SB00058 transistor TIP36C 1 TR9
│├0022-------------------------------
SB00040 transistor MJE15030 2 TR6,TR7
│├0023-------------------------------
SB00041 transistor MJE15031 2 TR8,TR19
│├0024-------------------------------
SB00086 transistor MJE802P 1 TR3
│├0025-------------------------------
SB00021 power transistor 2SC5200 2 TR1,TR4
│├0026-------------------------------
SB00023 power transistor 2SA1943-O 2 TR2,TR5
│├0027-------------------------------
HA01253 signle terminal wiring 150mm UL1015 18AWG white 2
│├0028-------------------------------
HA01252 wire 80 green/yellow 1
│├0029-------------------------------
MG00284 copper pillar M3*8*0.5PH 6
│├0030-------------------------------
MG00304 copper pillar M3*14*0.5PH 1
│├0031-------------------------------
MG00363 copper pillar M3*14*0.5PH 2
│├0032-------------------------------
MG00024 screw M3*7 0.5PH 16
│├0033-------------------------------
MG00027 screw M3*12 14
│├0034-------------------------------
MG00042 screw M3*10 2
│├0035-------------------------------
MG00327 screw M3*10*0.5PH 8
│├0036-------------------------------
MG00069 screw M4*16 1
│├0037-------------------------------
MF00014 washer φ3*φ6.5*0.5t 16
│├0038-------------------------------
MF00136 washer φ3*φ5.5*0.7t_V1.0 14
││└0001-----------------------------
MF00034 washer φ3*φ5.5*0.7t_V1.0 1
││ └0001----------------------------
MJ00060 single light board 0.7*2135*1220 14.31kg 1
│├0039-------------------------------
MF00037 washer φ3.2*φ5.5*1t 14
│├0040-------------------------------
MF00038 washer φ4*φ7*1t 1
│├0041-------------------------------
NC00128 washer 1.6*φ6.8*φ3.5 red 10
││└0001-----------------------------
NC00172 insulation board 1.6t*65mm(-0.2mm)*100M 1
│├0042-------------------------------
NC00005 mica SB-9500DSP 18*13*0.1t_V1.0 8
│├0043-------------------------------
NC00127 mica 22*28 6
│├0044-------------------------------
NI00863 plastic washer TO220B 9
│├0045-------------------------------
NI00218 cable tie ALT-102SB 6
│├0046-------------------------------
HA02571 wire 14P-14P PH1.27 75mm 1
│├0047-------------------------------
HK04509 PC board P-110073-SR500SA 1
││├0001-----------------------------
HB01355 PCB 110073_VER031027 1
││├0002-----------------------------
RA00637 fixed resistor 1/8W 680Ω M type 2 R13,R14
││├0003-----------------------------
RA00640 fixed resistor 1/8W 1.2KΩ M type 1 R15
││├0004-----------------------------
RA00646 fixed resistor 1/8W 3.9KΩ M type 1 R17
││├0005-----------------------------
RA00647 fixed resistor 1/8W 4.7KΩ M type 1 R12
││├0006-----------------------------
RA00653 fixed resistor 1/8W 15KΩ M type 9 R2,R3,R4,R5,R7,R8,R9,
R10,R18
││├0007-----------------------------
RA00659 fixed resistor 1/8W 47KΩ M type 2 R6,R11
││├0008-----------------------------
RA00159 fixed resistor 1/4W 10Ω Mr type 1 R1
││├0009-----------------------------
RC00217 potentiometer B50KΩ R0911NOB-V1B503FN00-00 1 VR1
││├0010-----------------------------
CA00009 ceramic capacitor 22PF/50V NPO 5 C2,C3,C4,C5,C6
││├0011-----------------------------
CA00032 ceramic capacitor 330PF Y5E 1 C14
││├0012-----------------------------
CF00005 metal-film capacitor MSC 0.0022uF/63V 5% CASE01 1 C15
││├0013-----------------------------
CF00014 metal-film capacitor MEC 0.01uF/400V 10% 1 C1
││├0014-----------------------------
CF00023 metal-film capacitor MSC 0.033uF/63V 5% CASE01 1 C16
││├0015-----------------------------
CH00017 laminated capacitor 0.1uF/50V Y5V PH5 2 C10,C12
││├0016-----------------------------
CB00141 electrolytic capacitor 2.2uF/63V φ5*11mm 1 C17
││├0017-----------------------------
CB00066 electrolytic capacitor 470uF/25V 105℃ φ10*16mm 1 C19
││├0018-----------------------------
CB00253 electrolytic capacitor 1000uF/16V φ10*16mm 5mm 1 C18
││├0019-----------------------------
SA00004 high speed diode 2A/100V BYV27-200,113 1 D1
││├0020-----------------------------
SA00105 zener diode 1W 12V 1N4742 8 ZD1,ZD2,ZD3,ZD4,ZD5,
ZD6,ZD7,ZD8
││├0021-----------------------------
SA00051 L.E.D φ3 orange,green BOG303b 1 DL1
││├0022-----------------------------
SA00052 L.E.D φ3 round(green)long foot 26 1 DL2
││├0023-----------------------------
SD00135 integrated circuit MC33079N 1 IC1
││├0024-----------------------------
SD00047 integrated circuit L4962/A 1 IC2
││├0025-----------------------------
HC00154 connector 2.54 180°2*10P(gold-plated) 6/11.6mm 1 CN2
││├0026-----------------------------
HC00050 row-wire header 14PIN A28b-14B.T.6 1 CN1
││├0027-----------------------------
HI00205 rotary switch SDB161PVB25FS-1-4-16-16PC 1 SW1
││├0028-----------------------------
HI00162 push-button switch 2 paragraphs 6p PS-22E8552L 1 SW2
││├0029-----------------------------
HC00392 balance MIC jack-RS JY-5030-030G 180° 2 S3,S4
││├0030-----------------------------
HC00126 balance MIC jack-RS JY-5042-030G female plug 180° 2 S1,S2
08-2
