ALTRO Altro Smart Lock User manual

Transforming smart to Smartest
Installation Manual

1.
Remove your existing lock from your door, insert the provided
latch, and secure it in place, ensuring the‘’Up’’sign is pointing
upwards.
2.
What you’ll need to install your Altro Smart Lock:
To install your Altro Smart Lock you’ll need only a Philips
screwdriver.
To view door compatibility guide and for preparing your door for
installing Altro Smart Lock, please visit-
https://www.altrosmart.com/install/

3.
Adhere the outer unit and inner mounting plate in parallel and
secure them in place with the provided screws, as shown.
4.
Rotate the latch to the locked position, as shown in the above
image.

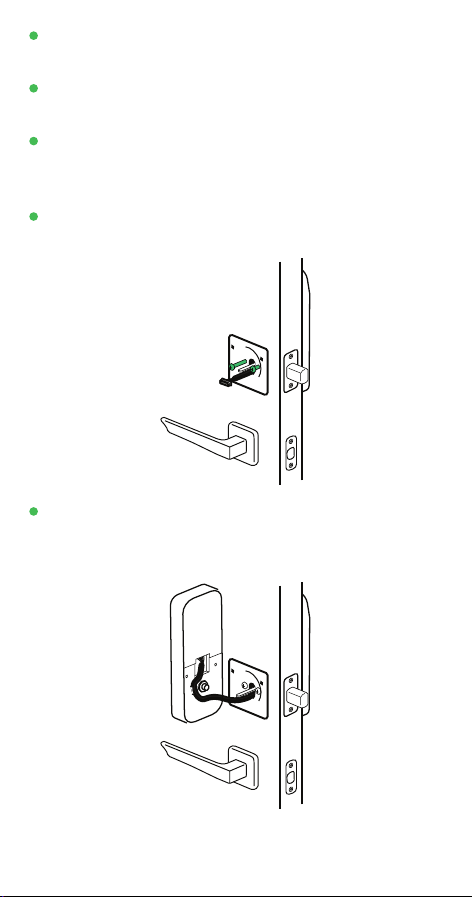

Place the outer unit on the exterior of your door and pass the
connector cable, from below the latch, through the hole.
Rotate the lock cylinder tailpiece clockwise (for a left-hand door)
counterclockwise (for a right-hand door) till it stops and can not
be turned any further.
Insert the lock cylinder tailpiece through the center of the latch.

Connect the free end of the connector cable to the cable
connector present on the back of the inner unit.
Rotate the knob clockwise (for left-hand door) counterclockwise
(for right-hand door) till it stops and can not be turned any
further.
Insert lock cylinder tailpiece in the knob cavity at the back of the
inner unit.
Place the inner unit on to the mounting plate.
5.
Secure inner unit to the mounting plate, using provided screws
as shown.
Rotate the knob and test the movement of the latch.
6.

Insert the battery pack into the inner unit’s battery compart-
ment, as shown. The ribbon will pass over the top of the battery
pack.
7.
Use the battery cover to close the battery compartment and your
Altro Smart Lock is ready to use!

Support
To watch Installation video and online support, please visit
www.altrosmart.com support section.
To reach an expert, write to us at [email protected]
