Overview:
ALTV244 CCTV power supply is designed to power CCTV Cameras and accessories. It will provide 24VAC distributed
via four (4) fuse protected outputs with a total of 4 amp continuous supply current.
Specifications:
Input:
•Input 115VAC 50/60 Hz, .9 amp.
Output:
• 24VAC outputs.
• Four (4) individual fused outputs.
•4amp (100VA) supply current.
•Surge protection.
Fuse Ratings:
•Output fuses are rated at 3.5 amp / 250VAC (Fig. 1).
•Main fuse is rated at 5 amp / 250VAC (Fig. 1).
Visual Indicators:
•AC power LED indicator.
Additional Features:
•Power ON/OFF switch.
•Spare fuses included.
• Unit maintains camera synchronization.
• Ease of installation saves time and eliminates costly labor.
Enclosure Dimensions:
8.5"H x 7.5"W x 3.5"D
Optional available with 220VAC input order model # ALTV244/220.
Installation Instructions:
1. Mount ALTV244 in desired location.
2. Slide switch SW1 (Fig. 1) to OFF position.
3. Connect the AC (115VAC 50/60 Hz) to the black and
white flying leads of the transformer (Fig. 1).
4. Connect each camera to terminal pairs 1 to 4, marked
[1P-1N thru 4P - 4N] (Fig. 1).
Note: It is important to measure output voltage before
connecting devices. This helps avoid potential damage.
All terminals with common suffix P 1P, 2P...” are same
polarity.
5. Slide switch SW1 (Fig. 1) to ON position.
6. Green LED will illuminate when AC power is present.
7. Upon completion of wiring, secure enclosure door
with screws (supplied).
WARNING: To reduce the risk of fire or electric
shock, do not expose the unit to rain or moisture.
This installation should be made by qualified service
personnel and should conform to all local codes and
in accordance with the National Electrical Codes.

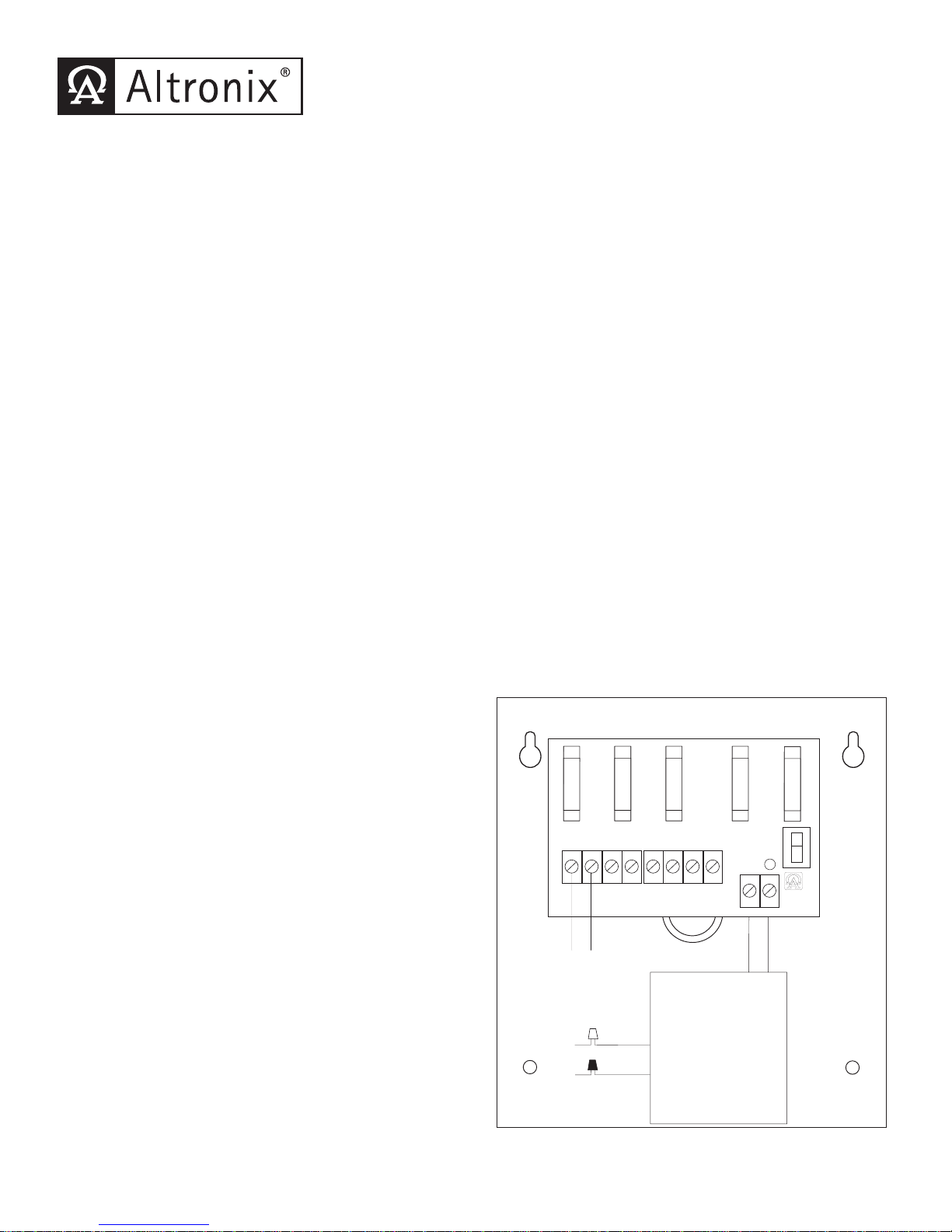

ALTV244
CCTV Camera & Accessory Power Supply
XFMR
24 VAC fused output 1
(Follow same procedure
using terminals 2P & N 
thru 4P & N fused
outputs 2 thru 4)
115 VAC input
50/60 Hz,
.9 amps
White Lead
Black Lead
F1 F2 F3 F4
ON
INPUT
OFF
JMP1
1P 1N 2P 2N 3P 3N 4P 4N
LED
SW1
MAIN FUSE
NP
PD4A
POWER DISTRIBUTING UNIT
ALTRONIX CORP.
BROOKLYN, NY 11220
MADE IN USA
1P, 2P, 3P, 4P = FUSED OUTPUTS
1N, 2N, 3N, 4N = COMMON OUTPUTS
Fig. 1
2"
3.625"
1.25"
3.5"
0
1.25" 0
0
1.13"
7"
.625" 6.75"
4"
03.5"
TOP ONLY
1.25"
3.5" 0
8"
BACKLEFT RIGHT
Enclosure Dimensions:
8.5"H x 7.5"W x 3.5"D
Altronix is not responsible for any typographical errors. Product specifications are subject to change without notice.
140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056
website: www.altronix.com, e-mail: [email protected], Lifetime Warranty, Made in U.S.A.
IIALTV244 - Rev. 110801 G03B
