Altronix Trove T3MK7716S User manual

T3MK7716S
16 Door Kit with Fused Outputs
Fully assembled kit includes:
- Trove3 enclosure with TM3 Altronix/Mercury backplane
- (2) AL1024ULXB2 - Power Supply/Chargers
- (2) ACM8 - Fused Access Power Controllers
- (2) PDS8 - Dual Input Fused Power Distribution Modules
- (1) VR6 - Voltage Regulator
- (1) RSB2 - Rocker Switch Bracket with Two (2) Rocker Switches
T3MK7716SD
16 Door Kit with PTC Outputs
Fully assembled kit includes:
- Trove3 enclosure with TM3 Altronix/Mercury backplane
- (2) AL1024ULXB2 - Power Supply/Chargers
- (2) ACM8CB - PTC Access Power Controllers
- (2) PDS8CB - Dual Input PTC Power Distribution Modules
- (1) VR6 - Voltage Regulator
- (1) RSB2 - Rocker Switch Bracket with Two (2) Rocker Switches
Access & Power Integration
Altronix/Mercury Kits
Models Include:
Rev. 091522
Installing Company: _________________________ Service Rep. Name: __________________________________________
Address: _________________________________________________________ Phone #: _________________________
All registered trademarks are property of their respective owners. More than just power.™
Installation Guide
All components of these Trove kits are UL Listed sub-assemblies.
Please refer to the included corresponding Sub-Assembly Installation Guides for further information.

- 2 - T3MK7716S(D) Installation Guide
Overview:
Altronix Trove Mercury kits are pre-assembled and consist of Trove3M3 enclosure/backplane with factory installed Altronix power supply/charger
and sub-assemblies. These kits also accommodate various combinations of Mercury boards for up to sixteen (16) doors in a single enclosure.
Configuration Chart:
Altronix
Model
Number 115VAC 60Hz Input Current (A) Power Supply Board Input Fuse Rating Power Supply Board Battery Fuse Rating
Nominal DC
Output Voltage Maximum Supply
Current for Main
and Aux. Outputs
on Power Supply
board and ACM8(CB)
Access Power
Controller’s outputs Fail-Safe/Fail-Secure or Dry Form “C” Outputs Current Per ACM8(CB) Output (A) ACM8(CB) Board Input Fuse Rating ACM8 Board Output Fuse Rating ACM8CB Board Output PTC Rating PDS8 Board Input Fuse Rating PDS8 Board Output Fuse Rating PDS8 Board Input Fuse Rating PDS8 Board Output Fuse Rating
Power
Supply
1
Power
Supply
2
Output
Range
(VDC)
Output
Range
(VDC)
T3MK7716S 95A/
250V
15A/
32V
20.17-
26.4
20.17-
26.4 24VDC @ 9.2A 16 2.5 10A/ 250V
2.5A/
250V –10A/ 32V
3A/
32V – –
T3MK7716SD 95A/
250V
15A/
32V
20.17-
26.4
20.17-
26.4 24VDC @ 9.2A 16 2.5 10A/ 250V – 2A – – 9A 2.5A
Installation Instructions:
Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI and with all local codes and authorities having jurisdiction.
Product is intended for indoor use only.
1. Remove backplane from enclosure. Do not discard hardware.
2. Mark and predrill holes in the wall to line up with the top three keyholes in the enclosure. Install three upper fasteners and screws
in the wall with the screw heads protruding. Place the enclosure’s upper keyholes over the three upper screws, level and secure.
Mark the position of the lower three holes. Remove the enclosure. Drill the lower holes and install the three fasteners.
Place the enclosure’s upper keyholes over the three upper screws. Install the three lower screws and
make sure to tighten all screws.
3. Mount included UL Listed tamper switch (Altronix Model TS112 or equivalent) in desired location,
opposite hinge. Slide the tamper switch bracket onto the edge of the enclosure approximately
2” from the right side (Fig. 1, pg. 2).
Connect tamper switch wiring to the Access Control Panel input or the appropriate UL Listed
reporting device. To activate alarm signal open the door of the enclosure.
4. Mount Mercury boards to backplane, refer to page 3.
5. Refer to the ULXB Power Supply/Charger Installation Guide for AL1024ULXB2 and
Sub-Assembly Installation Guide for ACM8(CB), PDS8(CB) and VR6 for
further installation instructions.
Hardware:

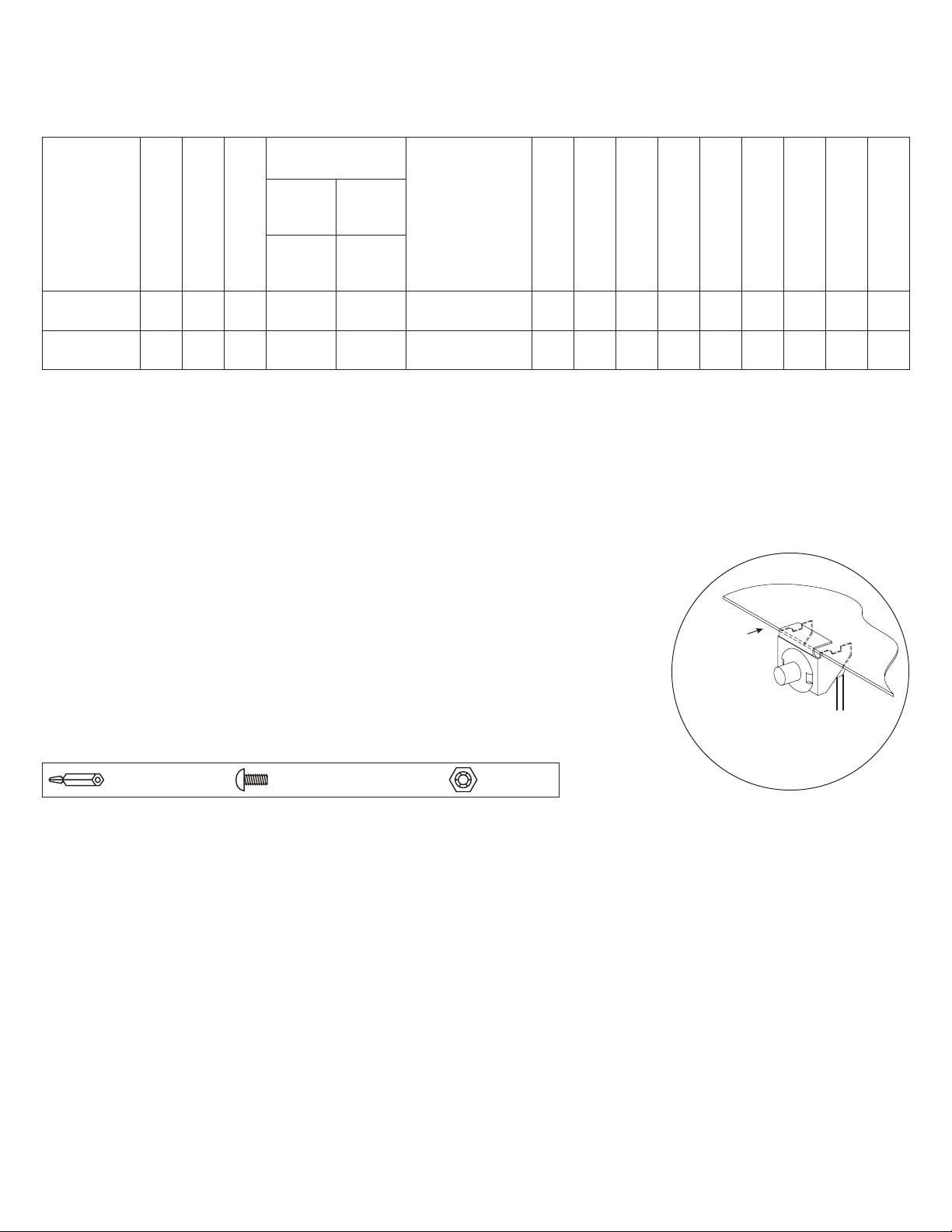

Fig. 1
Tamper Switch
(included)
To Access Control Panel or
UL Listed Reporting Device
Edge of
Enclosure
Enclosure
Snap On Spacer | 5/16” Pan Head Screw | Lock Nut

T3MK7716S(D) Installation Guide - 3 -
T3MK7716S and T3MK7716SD: Configuration of Mercury Boards:
1. Fasten snap on spacers onto metal pems configuration (A) (B) of backplane depending on the access controller (Fig. 2, pg. 3).
2. Position access controller module over corresponding spacers and depress onto snap on spacers (Fig. 2a, pg. 3).
3. Mount backplane to enclosure with hardware.
Access Controller Position Chart for the Following Models:
Mercury Access Controller Pem Mounting
EP1502, MR52, MR16IN, MR16OUT A
EP2500, MUX8 B
EP1501, MR51e C
MR52 D
Fig. 2
D
B
B
A
A
A
A
A
A
A
A
C
RSB2
OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4 OUTPUT 5 OUTPUT 6 OUTPUT 7 OUTPUT 8
NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM
IN GND IN GND IN GND IN GNDIN GND IN GND IN GND IN GND
1 2 3 4 5 6 7 8
INPUT
TRIGGER
10A 250V
+INP- T + RET-
NO C NC
FACP INTERFACE
Power Control
- + - +
MAIN
TRG
FACP
1 2 3 4
1 2 3 4
ON
ON
1 2 3 4
1 2 3 4
ON
ON
Altronix ACM8(CB)
OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4 OUTPUT 5 OUTPUT 6 OUTPUT 7 OUTPUT 8
NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM
IN GND IN GND IN GND IN GNDIN GND IN GND IN GND IN GND
1 2 3 4 5 6 7 8
INPUT
TRIGGER
10A 250V
+INP- T + RET-
NO C NC
FACP INTERFACE
Power Control
- + - +
MAIN
TRG
FACP
1 2 3 4
1 2 3 4
ON
ON
1 2 3 4
1 2 3 4
ON
ON
Altronix ACM8(CB)
L
G
N
BAT FAIL
AC FAIL
NC
C
NO NC
C
NO
AC
DC
- BAT + + DC -
AC DELAY
Altronix AL1024ULXB2
L
G
N
BAT FAIL
AC FAIL
NC
C
NO NC
C
NO
AC
DC
- BAT + + DC -
AC DELAY
Altronix AL1024ULXB2
Altronix VR6 is mounted under PDS8
Altronix PDS8(CB)
+ INP1 --
PWR1 +OFF
IN1
IN2
PWR1 +
PWR2 +
PWR2 +
COM (---)
COM (--- )
+ INP2 --
Common Power Outputs (NEG)
N
P
OUT1 OUT2 OUT3 OUT4 OUT5 OUT6 OUT7 OUT8
1 2 3 4 5 6 7 8
Altronix PDS8(CB)
+ INP1 --
PWR1 +OFF
IN1
IN2
PWR1 +
PWR2 +
PWR2 +
COM (---)
COM (--- )
+ INP2 --
Common Power Outputs (NEG)
N
P
OUT1 OUT2 OUT3 OUT4 OUT5 OUT6 OUT7 OUT8
1 2 3 4 5 6 7 8
Snap On
Spacer
Mercury Board
Backplane
Pem
Fig. 2a

- 4 - T3MK7716S(D) Installation Guide
Altronix is not responsible for any typographical errors.
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
140 58th Street, Brooklyn, New York 11220 USA | phone: [phone] | fax: [phone]
web site: www.altronix.com | e-mail: [email protected] | Lifetime Warranty
IIT3MK7716S(D) I15V
MEMBER
Enclosure Dimensions (H x W x D approximate):
36.12” x 30.125” x 7.06” (917.5mm x 768.1mm x 179.3mm)
G
G
2”
(50.8mm)
8.75” (222.3mm) 8.75” (222.3mm)
8.62” (219mm)
7.06” (179.3mm)
1.25” (31.8mm)
1.25” (31.8mm)
2.00” (50.8mm) 7.12” (222.3mm) 9.5” (241.3mm) 9.5” (241.3mm)
30.12” (768.1mm)
14.01” (355.9mm) 14.01” (355.9mm)
1.25” (31.8mm) 1.55” (39.4mm)
1.78” (45.2mm)
1.25” (31.8mm)
1.07”
(27.2mm)
1.10” (27.9mm)
2” (50.8mm)
10.75” (273.1mm)10.75” (273.1mm) 10.62” (269.8mm)
2.00” (50.8mm)10.75” (273.1mm)10.75” (273.1mm) 10.62” (269.8mm)
36.12” (917.5mm) 33.63” (854.2mm)
3/4” Conduit
1” Conduit
1.75” Conduit
1.5” Conduit
1.75” Conduit
1.5” Conduit
3/4” Conduit
1” Conduit
3/4” Conduit
1” Conduit
3/4” Conduit
1” Conduit
3/4” Conduit
1” Conduit
2” Conduit
