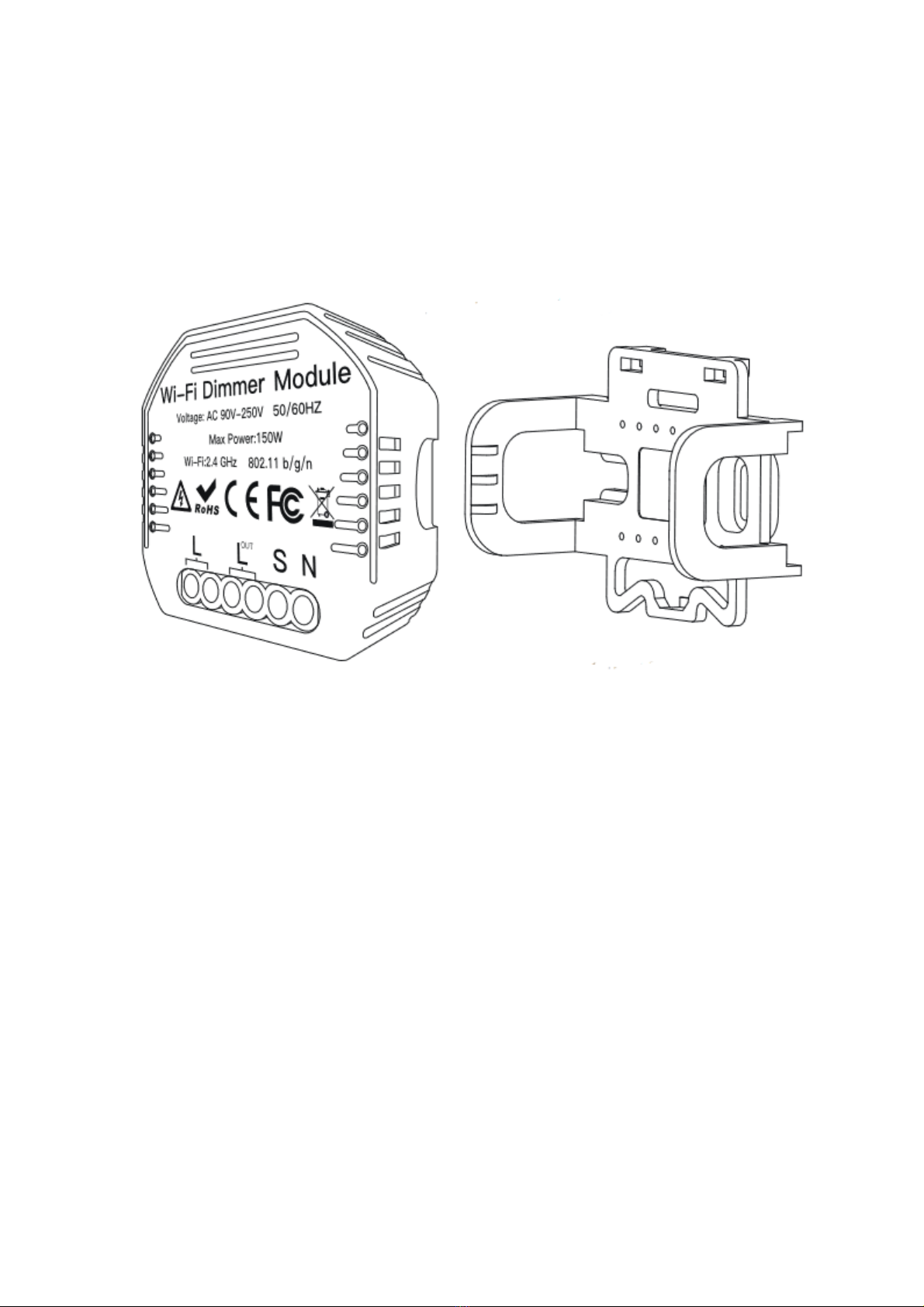

ALZA MS-105 User manual

MS-105
User Manual • Uživatelský manuál

2
Dear customer,
Thank you for purchasing our product. Please read the following
instructions carefully before first use and keep this user manual for
future reference. Pay particular attention to the safety instructions. If
you have any questions or comments about the device, please
contact the customer line.
✉www.alza.co.uk/kontakt
✆[phone]
Importer Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Praha
7, www.alza.cz

3
Global international controls. Whenever & Wherever you are. All-in-
one mobile App
App
Router
Voice
control
Push switches
Inhouse local operation
Anywhere
Schedule
timer
Voice control-
working with
Google Home
Voice control-
working with
Amazon Alexa
Device Sharing

4
Installation
Warnings:
●Installation must be carried out by a qualified electrician in
accordance with local regulations.
●Keep the device out of the reach of children.
●Keep the device away from water, damp, or hot environment.
●Install the device away from strong signal sources such as
microwave oven that may cause signal interruption resulting in
abnormal operating of the device.
●Obstruction by concrete wall or metallic materials may reduce
the effective operating range of the device and should be
avoided.
●Do NOT attempt to disassemble, repair or modify the device.

5
Technical Specifications
Product type
Wi-Fi Dimmer Module
Voltage
90-250 V AC
Max Power
150 W
Wi-Fi frequency
2.4 GHz Wi-Fi
Operation temp.
-10 °C - +40 °C
Case temp.
Tc: +80 °C (Max.)
Operation rage
≤200 m
Dims (W×D×H)
52×47×18 mm
IP rating
IP20

6

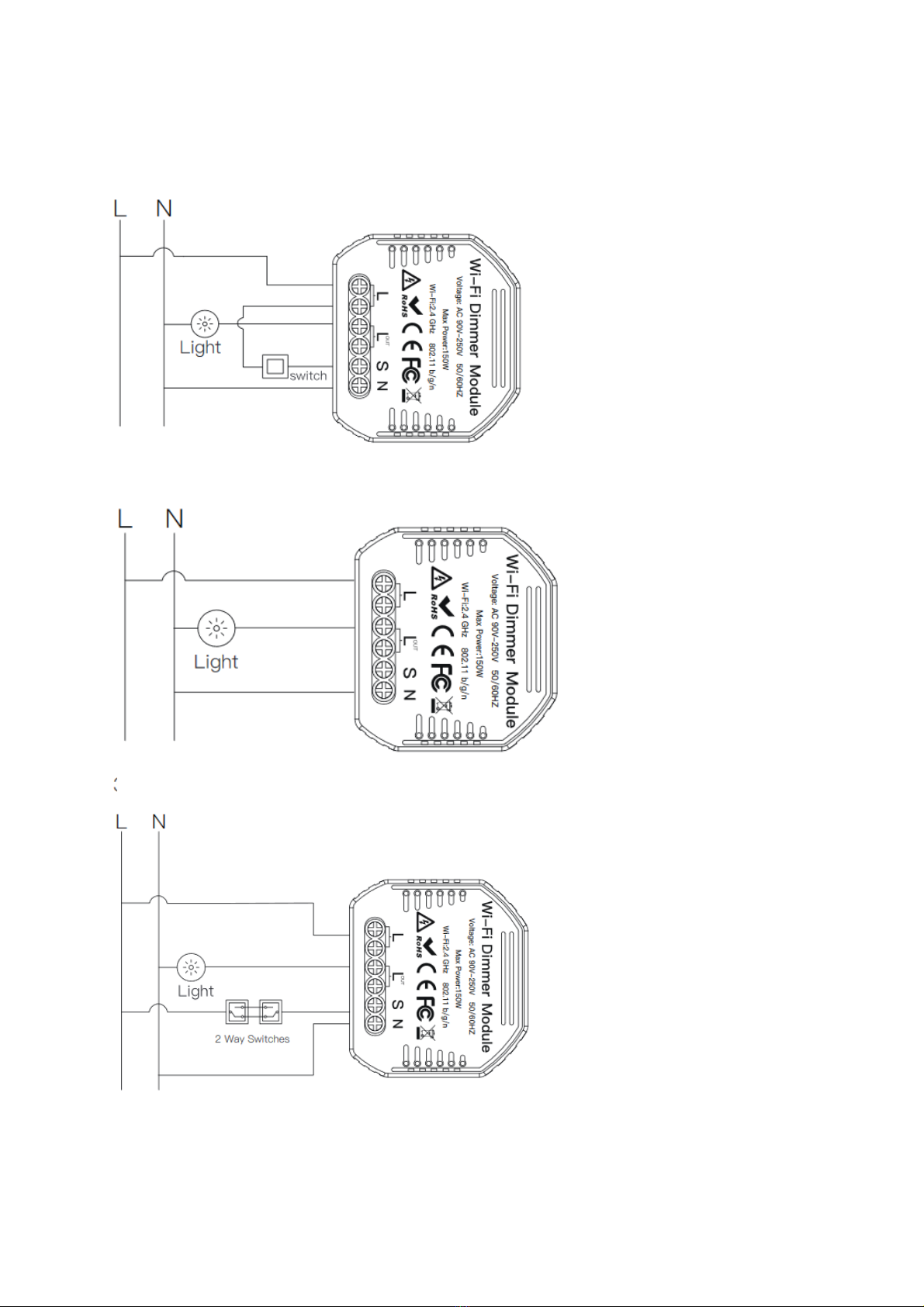

Wiring Diagram
1. With one
2. Without switch
3. With 2 Way

7
Wiring Instructions and Diagrams
1. Turn off the power supply before carrying out any electrical
installation work.
2. Connect wires according to the wiring diagram.

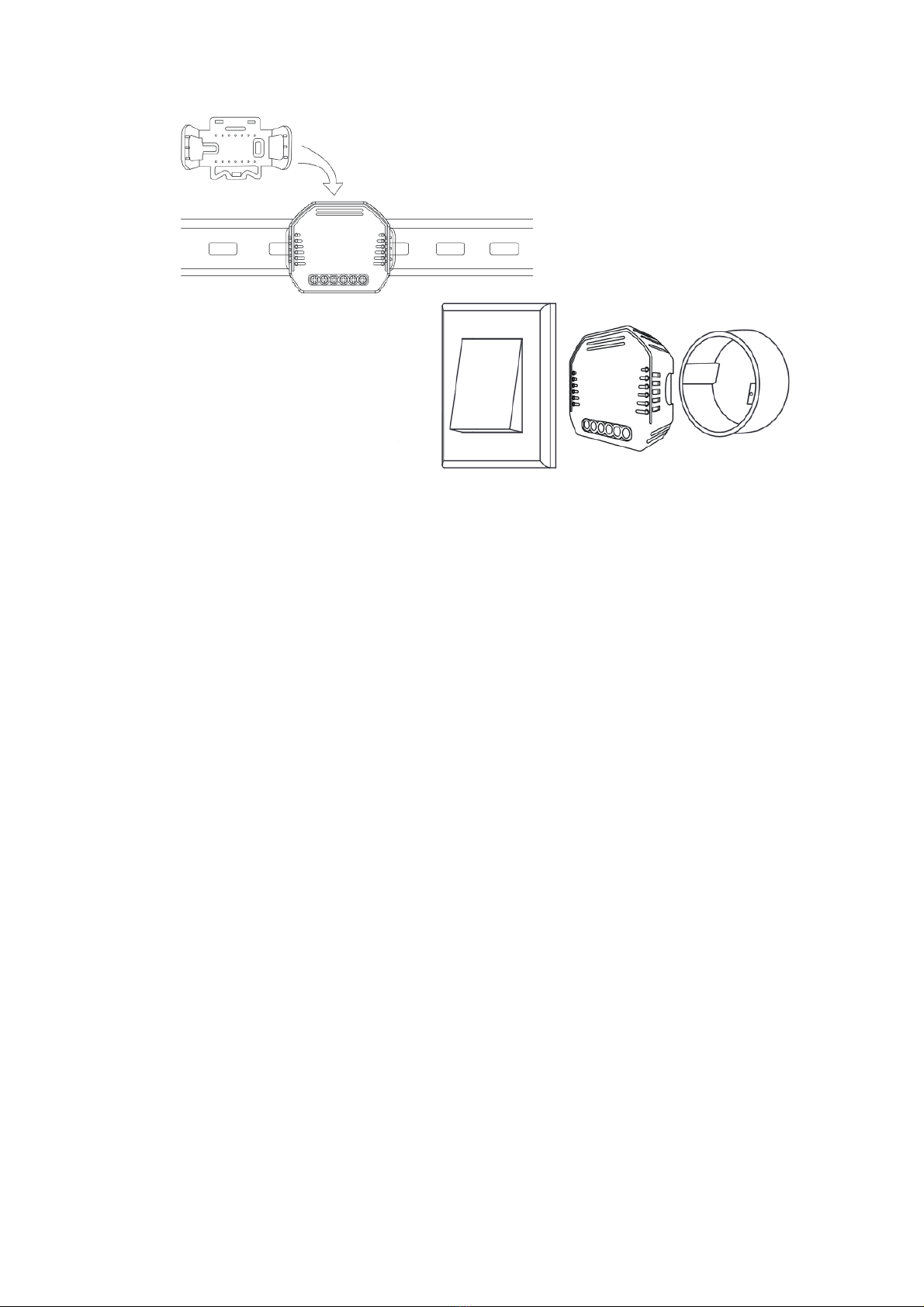

3. Insert the module into the junction box.
4. Connect the power supply and follow switch module configuration
instructions.
Notes: Put your smartphone close to the switch module when you
are configuring it and make sure you have min. 50 % Wi-Fi signal.
FAQ
Q1: What should I do if I cannot configure the switch module?
a. Please check whether device is powered on.
b. Make sure your mobile and switch module are under the same 2.4
GHz Wi-Fi network.
c. Whether it is in good internet conditions.
d. Make sure the password entered in App is correct.
Q2: What device can be connected to this Wi-Fi switch module?
Most of your household electrical appliances can be, such as lamps,
laundry machine, coffee maker, etc.
Q3: What happens if the Wi-Fi goes off?
You can still control the device connected to the switch module with
your traditional switch and once the Wi-Fi is active again the device
will automatically connect to it.
Q4: What should I do if I change the Wi-Fi network or change the
password?

8
You must re-connect our Wi-Fi switch module to the new Wi-Fi
network according to the App User Manual.
Q5: How do I reset the device?
Power on/off device 10 times until the beeper on the module sounds
continuously.
Manual Override
The switch module terminal reserves the access of manual override
function for the end-user to switch on/off.
Switch on/off for permanent on/off function.
Notes:
1) Both the adjustment on App and switch can be reset, the last
adjustment remains in memory.
2) The App control is synchronized with the manual switch.

9
App user manual
iOS / Android App
1. Scan the QR code to download Smart Life App. You can also search
for keyword “Smart Life” on AppStore or Google Play to download
the App.

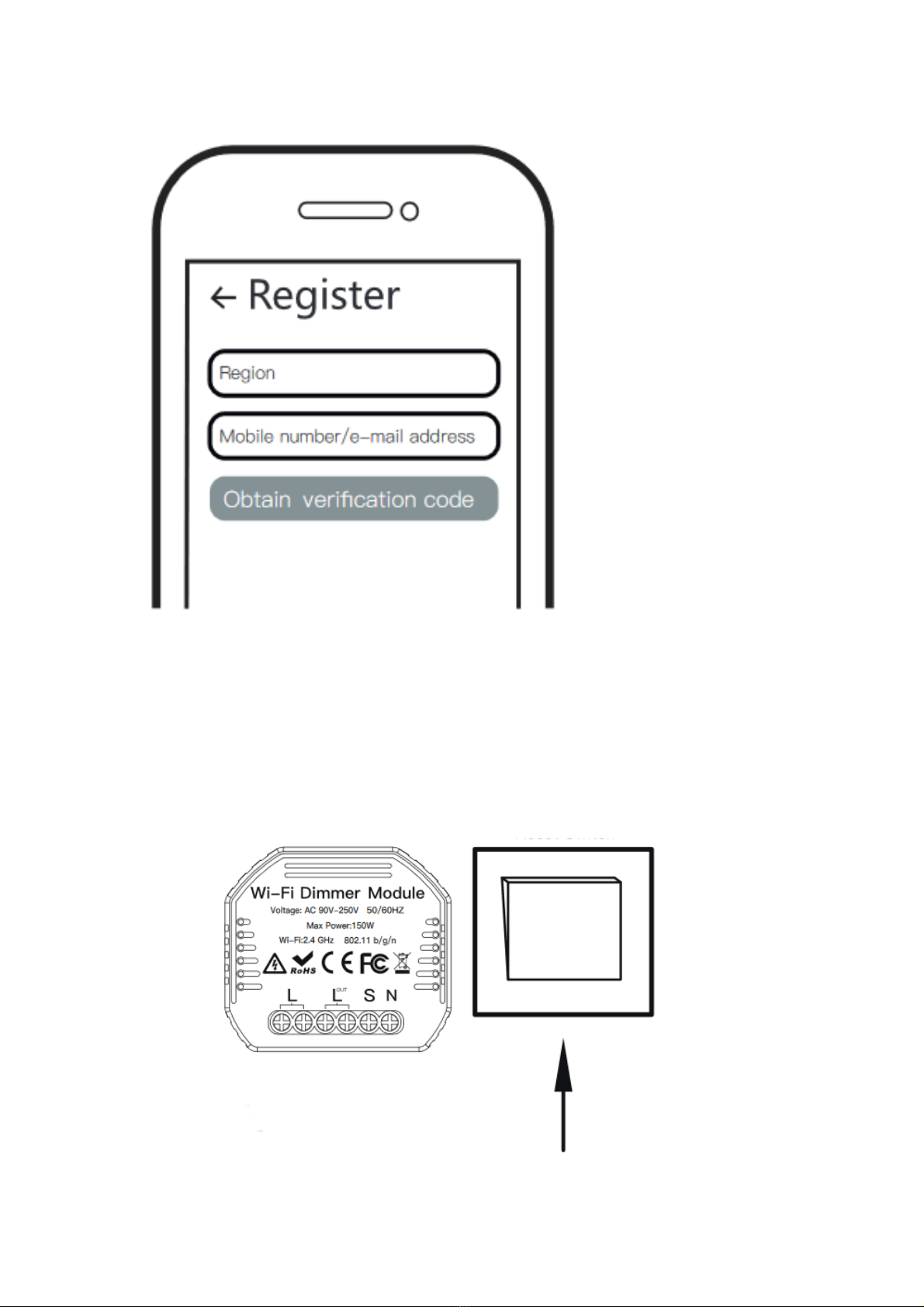

2. Log in or register your account with your mobile number or e-mail
address. Type in the verification code sent to your mobile phone
or e-mail, then set your login password. Click “Create Family” to
enter the app.

10
3. Note: This smart switch module can only be used with reset
switch.
After the wiring of switch module is done, press the return button
switch 10 times (keep time interval not too short) until the beep
sounds continuously and rapidly as Di-Di-Di... for pairing mode.
Reset switch
