AM MANUFACTURING R900T Use and care manual

A.M. Manufacturing Company MODEL:
© 2015 R900T
R900T © COPYRIGHT 2015 1 of 25
Original Release 2015
THE AM MANUFACTURING
MODEL: R900T
OPERATIONS & SAFETY MANUAL
INCLUDING PARTS CATALOG AND MAINTENANCE INSTRUCTIONS
PROJECT NUMBER: PRJ365
SHIP DATE: May 2008
AM Assembly #: __________
SERIAL #: ___________
CAUTION:
DO NOT OPERATE, CLEAN, OR SERVICE THIS MACHINE BEFORE YOU READ THIS MANUAL AND
ARE FAMILIAR WITH THE SAFETY INSTRUCTIONS IN THIS MANUAL AND THOSE ON THE LABELS
ON THE MACHINE. KEEP THIS MANUAL AND OTHER MATERIALS DELIVERED WITH THE MACHINE,
ACCESSIBLE TO THE OPERATORS FOR EASY REFERENCE DURING USE.
MANUFACTURING COMPANY
DIVISION OF THE ATWOOD CORPORATION
9200 CALUMET AVE. SUITE NW 07 MUNSTER, IN 46321
[phone] [phone] FAX: [phone] www.ammfg.com
IF YOU SHOULD HAVE ANY (?)
QUESTIONS ABOUT GUARDS OR
PLACEMENT CALL [phone].
THE ENTIRE CONTENTS OF THIS
PUBLICATION ARE COPYWRITTEN
AND ALL RIGHTS ARE RESERVED.
REPRODUCTION IN WHOLE OR IN
PART IS PROHIBITED WITHOUT
WRITTEN NOTICE PERMISSION OF
A.M. MFG. INC.

A.M. Manufacturing Company MODEL:
© 2015 R900T
R900T © COPYRIGHT 2015 2 of 25
Original Release 2015
OWNERS RESPONSIBILITY
NOTE:
THE PARTS AND EQUIPMENT DESCRIBED IN THIS MANUAL MAY BE COVERED BY ONE OR MORE
U.S. AND FOREIGN PENDING PATENTS.
TO MAINTAIN MACHINE AND USER SAFETY, THE RESPONSIBILITY OF THE OWNER
IS TO READ AND FOLLOW THESE INSTRUCTIONS AND TO ENSURE THAT ALL
OPERATORS UNDERSTAND AND FOLLOW THESE AND OTHER SAFETY
INSTRUCTIONS IN THIS MANUAL.
FOLLOW ALL INSTALLATION INSTRUCTIONS.
MAKE SURE INSTALLATION CONFORMS TO ALL APPLICABLE LOCAL, STATE, AND
FEDERAL CODES, RULES AND REGULATIONS SUCH AS STATE AND FEDERAL
OSHA REGULATIONS AND ELECTRICAL CODES.
CAREFULLY CHECK THE UNIT FOR CORRECT INITIAL FUNCTION.
READ AND FOLLOW THE SAFETY INSTRUCTIONS. KEEP THEM READILY AVAILABLE
FOR MACHINE OPERATORS.
MAKE CERTAIN ALL OPERATORS ARE PROPERLY TRAINED AND THAT THEY KNOW
HOW TO SAFELY AND CORRECTLY OPERATE THE UNIT AND ARE PROPERLY
SUPERVISED.
ALLOW UNIT OPERATION ONLY WITH ALL PARTS INCLUDING SAFETY EQUIPMENT,
IN PLACE AND OPERATING SAFELY.
CAREFULLY INSPECT THE UNIT ON A REGULAR BASIS AND PERFORM ALL
MAINTENANCE AS REQUIRED.
SERVICE AND MAINTAIN THE UNIT ONLY WITH AUTHORIZED OR APPROVED
REPLACEMENT PARTS.
KEEP ALL INSTRUCTIONS PERMANENTLY WITH THE UNIT ALONG WITH ALL
DECALS AND WARNING LABELS ON THE UNIT CLEAN AND VISIBLE.
!

A.M. Manufacturing Company MODEL:
© 2015 R900T
R900T © COPYRIGHT 2015 3 of 25
Original Release 2015
TABLE OF CONTENTS
CONTENTS
PAGE #
TRANSFER CONVEYOR LINE COVER PAGE…………………………………………………
1
OWNERS RESPONSIBILITIES………………………………………………….………………..
2
TABLE OF CONTENTS………………..………………………………………….……………….
3
OPERATIONS AND SAFETY & INTRODUCTION & SPECIFICATIONS…………………….
4
SAFETY SIGNAL WORDS…………………………………………………………………………
5
WARNING LABELS…………………………………………………………………………………
6
SAFTY RULES………………………………………………………………………………………
7
OPERATING INSTRUCTIONS…………………………………………………………………….
8
CLEANING INSTRUCTIONS………………………………………………………………………
9
GENERAL MAINTENANCE………………………………………………………………………..
10
BLANK PAGE………………………………………………………………………………………..
11
CABINET ASSEMBLY…….………………………………………………………………………..
12-13
ROUNDER ASSEMBLY……………………………………………………………………………
14-15

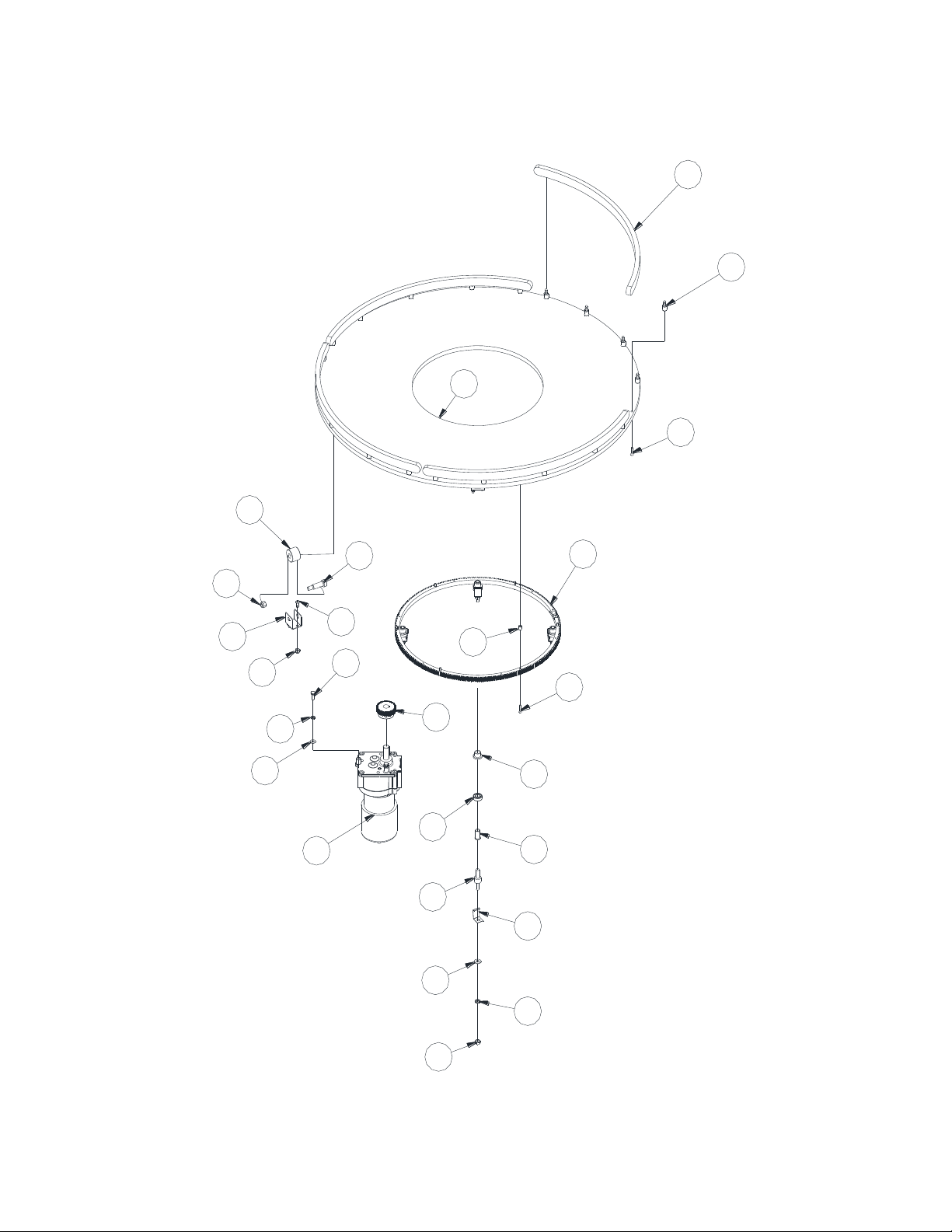

TABLE ASSEMBLY…………………………………………………………………………………
16-17

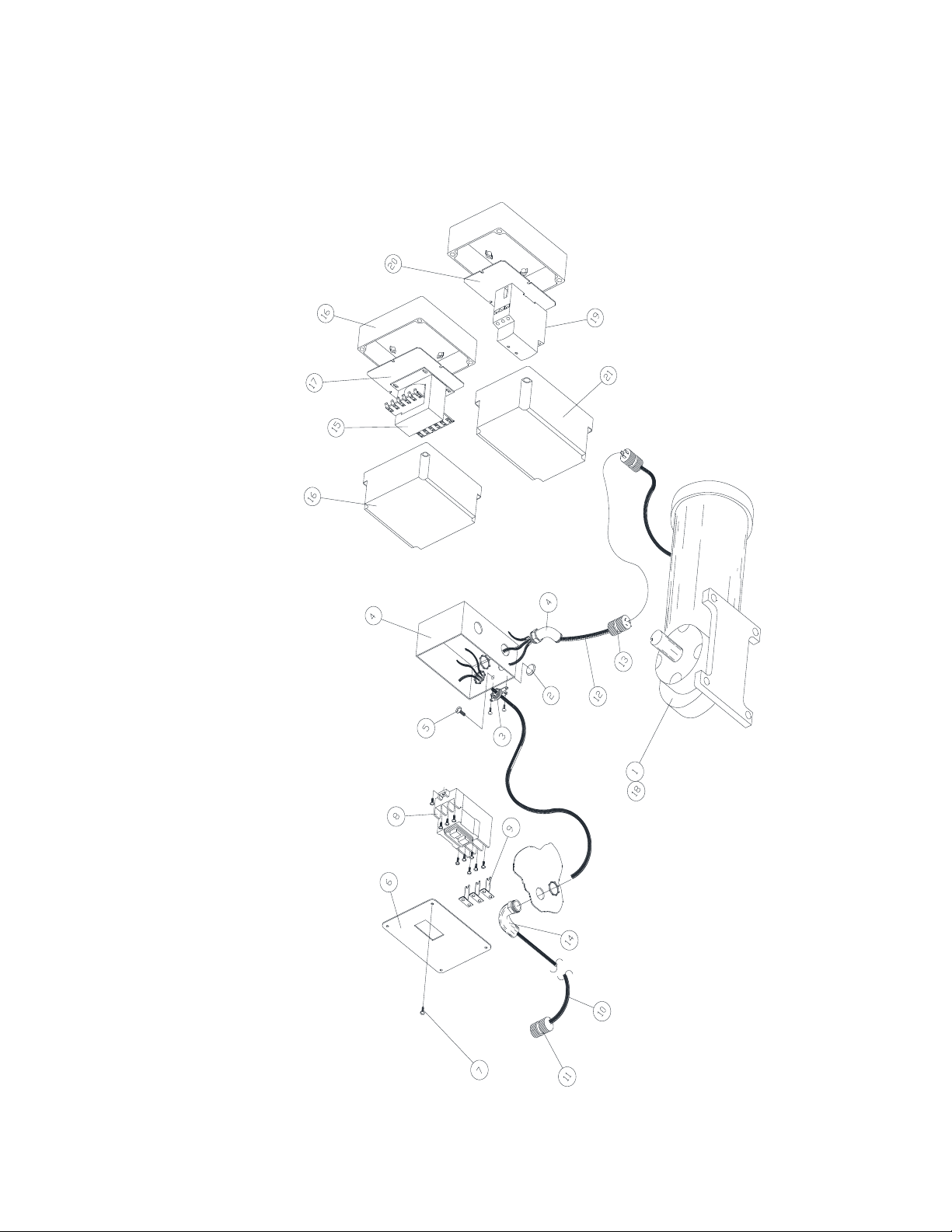

ELECTRICAL COMPONENTS (SINGLE PHASE)………………………………………………
18-19
ELECTRICAL COMPONENTS (THREE PHASE)………………………………………………
20-21
ELECTRICAL SCHEMATIC………………………..………………………………………………
22-24
ORDERING REPLACEMENT PARTS……………………………………………………………
25
NOTES……………………………………………………………………………………………….
26
IMPORTANT:
AMMANUFACTURING Co. RESERVES THE RIGHT TO MAKE CHANGES IN DESIGN,
SPECIFICATIONS OR MANUFACTURING. TO IMPROVE THEIR PRODUCTS WITHOUT NOTICE
AND WITHOUT OBLIGATION TO CHANGE OR IMPROVE PREVIOUSLY BUILT PRODUCTS,
INCLUDING MANUALS AND CATALOGS.
ONLY USE FACTORY SUPPLIED REPLACEMENT PARTS TO MAINTAIN MACHINE SAFETY,
PERFORMANCE AND SANITARY CONDITIONS. USE OF NON-APPROVED PARTS MAY VOID
MANUFACTURERS WARRANTY.
KNOW YOUR UNIT. COMPARE DIAGRAMS IN THIS MANUAL WITH THE UNIT BEFORE
STARTING SERVICE, TO OBTAIN MAXIMUM SAFETY AND PERFORMANCE.
TO ORDER REPLACEMENT PARTS:
TURN TO PAGE 25 OF THIS MANUAL.
WARNING:
THIS MANUAL CONTAINS CRITICAL SAFETY INSTRUCTIONS. READ AND FOLLOW THEM
CAREFULLY. FAILURE TO FOLLOW WARNING AND INSTRUCTIONS MAY LEAD TO SERIOUS
PERSONAL INJURY. THE OWNER IS RESPONSIBLE FOR MAINTAINING THE UNIT, ITS
INSTRUCTIONS AND DECALS FOR OPERATION REFERENCE. FOR ADDITIONAL COPIES CONTACT
AMMANUFACTURING: [phone]

A.M. Manufacturing Company MODEL:
© 2015 R900T
R900T © COPYRIGHT 2015 4 of 25
Original Release 2015
OPERATIONS AND SAFETY MANUAL
INCLUDING PARTS CATALOG
READ AND FAMILIARIZE YOURSELF WITH THIS MANUAL BEFORE OPERATING THIS MACHINE
FOLLOW INSTRUCTIONS DURING USE
INTRODUCTION
YOUR R900T DOUGH ROUNDER HAS BEEN BUILT WITH THE BUSY BAKER IN MIND. IT’S VERSATILITY AND
SIMPLICITY ARE UNMATCHED IN THE INDUSTRY. PRODUCTION DEPENDS ON THE DESIRED DOUGH BALL
SIZE AND HOW FAST THE DIVIDED DOUGH PIECES ARE DROPPED INTO THE FUNNEL. SMALL PIECES CAN
BE FED APPROXIMATELY TWO PER SECOND, WHEREAS LARGER DOUGH PIECES (UP TO 2 lbs.) MUST BE
FEED AT A LESSER RATE. GETTING THE FEEL OF THE MACHINE WILL BEST DETERMINE JUST WHAT THE
FEED RATE SHOULD BE FOR ANY CERTAIN DOUGH BALL SIZE. NO ADJUSTMENTS ARE NECESSARY WHEN
CHANGING THE SIZE OF YOUR DOUGH PIECE, IT WILL AUTOMATICALLY BE ROUNDED INTO A TIGHT,
SMOOTH BALL, WITH NO MORE EFFORT THAN IT TAKES TO DROP THEM INTO THE FUNNEL.
CAUTION:
ALL OPERATORS MUST BE FULLY TRAINED AND INSTRUCTED IN SAFETY PROCEDURES
BEFORE BEGINNING PRODUCTION.
SPECIFICATIONS
INSTALLATION INSTRUCTIONS
LOCATION
SELECT LOCATION CAREFULLY. THE AREA SHOULD PROVIDE THE OPERATOR WITH ENOUGH SPACE TO
USE THE EQUIPMENT IN A SAFE MANNER. THE FLOOR AREA SELECTED SHOULD BE A FLAT SURFACE
AND EASY TO CLEAN AND SHOULD BE FREE OF OIL, GREASE, ECT. AVOID AREAS WHERE BYSTANDERS
AND CUSTOMERS MAY BE PRESENT.
CAUTION:
PROPER UNIT INSTALLATION IS NECESSARY FOR SAFE AND EFFICIENT OPERATION. PROPER
INSTALLATION ALSO HELPS PROTECT THE UNIT FROM DAMAGE AND MAKES SERVICE EASIER.
R900-C
CONVEYOR LENGTH 18 1/2” FROM FRONT OF MACHINE.
(23” OVERALL LENGTH)
CONVEYOR BELT 2 PLY PVC
OVERALL HEIGHT 42 1/2”
MACHINE WIDTH 24”
HEIGHT UNDER CONVEYOR 32 3/4”
VOLTAGE (STANDARD) 115 VOLT SINGLE PHASE
VOLTAGE (OPTIONAL) 208/220 (3) PHASE
AMPERAGE 15 AMPS.
PRODUCTION RANGE 1 oz. TO 2 1/2 lbs.
PRODUCTION RATE UP TO 7200 PIECES PER HOUR
SHIPPING WEIGHT 350 lbs.
R900-T
TABLE DIAMETER 35 1/2”
MACHINE WIDTH 24”
OVERALL HEIGHT 42 1/2”
HEIGHT UNDER TABLE 36 1/4”
VOLTAGE (STANDARD) 115 VOLT SINGLE PHASE
VOLTAGE (OPTIONAL) 208/220 (3) PHASE
AMPERAGE 15 AMPS.
PRODUCTION RANGE 1 oz. TO 2 1/2 lbs.
PRODUCTION RATE UP TO 7200 PIECES PER HOUR
SHIPPING WEIGHT 350 lbs.

A.M. Manufacturing Company MODEL:
© 2015 R900T
R900T © COPYRIGHT 2015 5 of 25
Original Release 2015
SAFETY SIGNAL WORDS
THIS MACHINE IS DESIGNED TO PROVIDE FOR SAFE OPERATION IF NORMAL
OPERATING PROCEDURES AND SAFETY MESSAGES LOCATED ON THE MACHINE
AND IN THIS MANUAL ARE FOLLOWED.
THIS IS A SAFETY ALERT SYMBOL. YOU WILL FIND IT ON
VARIOUS SAFETY LABELS ON THE MACHINE AND IT WILL
ALSO APPEAR IN THIS MANUAL WHEREVER SAFETY
MESSAGES ARE GIVEN.
GET FAMILIAR WITH SIGNAL WORDS:
CAUTION, WARNING & DANGER
CAUTION:
INDICATES A POTENTIALLY HAZARDOUS SITUATION WHICH, IF NOT AVOIDED, MAY
RESULT IN MINOR OR MODERATE INJURY. IT MAY ALSO BE USED TO ALERT AGAINST
UNSAFE PRACTICES.
WARNING:
INDICATES A POTENTIALLY HAZARDOUS SITUATION WHICH, IF NOT AVOIDED, COULD
RESULT IN DEATH OR SERIOUS INJURY.
DANGER:
INDICATES AN IMMINENTLY HAZARDOUS SITUATION WHICH, IF NOT AVOIDED, WILL
RESULT IN DEATH OR SERIOUS INJURY. THIS SIGNAL WORD IS TO BE LIMITED TO THE
MOST EXTREME SITUATIONS.
NOTE:
A NOTE PROVIDES KEY INFORMATION TO MAKE PROCEDURES EASIER AND CLEARER.

A.M. Manufacturing Company MODEL:
© 2015 R900T
R900T © COPYRIGHT 2015 6 of 25
Original Release 2015
WARNING LABELS TYPICALLY
FOUND ON THE R900T
1
2
3
4
5
1 AMTAG160SF: TOP OF CABINET
2 TAG21M: BELOW ELECTRICAL
SWITCH PLATE
3 TAG5M: UPPER RIGHT
CORNER CABINET
4 AMTAG10AMF: UPPER RIGHT
CORNER CABINET
AMTAG10ASF: INSIDE CABINET ON
ELECTRICAL BOX
5 AMTAG24SF: INSIDE CABINET
NEAR CHAIN
NOTE:
MACHINE DESIGN AND SPECIFICATIONS MAY
VARY. ACTUAL LABEL DESIGN AND
PLACEMENT SUBJECT TO CHANGE WITHOUT
NOTICE AND MAY VARY FROM THIS
ILLUSTRATION.
CAUTION:
IF ANY SAFETY LABELS ARE MISSING
THEY MUST BE REPLACED!
CONTACT YOUR DEALER OR A.M.
MFG. FOR REPLACEMENT.

A.M. Manufacturing Company MODEL:
© 2015 R900T
R900T © COPYRIGHT 2015 7 of 25
Original Release 2015
SAFETY RULES
IMPORTANT:
READ AND FOLLOW THESE SAFETY RULES. THEY ARE FOR YOUR PROTECTION AND
THE PROTECTION OF THOSE WORKING WITH YOU.
DO NOT OPERATE THIS MACHINE BEFORE YOU HAVE READ AND UNDERSTOOD THE
OPERATIONS AND SAFETY MANUAL.
FOLLOW ALL INSTRUCTIONS DURING USE OF THIS MACHINE.
LEAVE ALL GUARDS IN PLACE. INSTALL ALL GUARDS IF THEY WERE REMOVED FOR
CLEANING, MAINTENANCE, REPAIR OR OTHER REASONS.
NEVER OPERATE THE MACHINE IF YOU HAVE NOT BEEN TRAINED TO OPERATE THE
MACHINE PROPERLY.
NEVER OPERATE THE MACHINE IF YOU ARE TIRED, ILL, ON MEDICATION, OR UNDER
THE INFLUENCE OF ALCOHOL OR DRUGS.
WEAR TIGHT FITTING CLOTHES. MAKE SURE THAT LONG HAIR, JEWELRY, OR LOOSE
PERSONAL ITEMS ARE SECURED SO THEY CANNOT GET CAUGHT IN THE MACHINE.
THIS CAN LEAD TO SERIOUS INJURIES.
MAKE SURE YOU CAN EASILY REACH ALL CONTROLS. IF NOT, A STABLE AND SAFE
ELEVATED PLATFORM OR OTHER WORK-AID MUST BE PROVIDED.
ALWAYS DISCONNECT THE MAIN ELECTRICAL POWER SOURCE AND TURN MACHINE
SWITCH TO THE OFF POSITION BEFORE CLEANING, IF MAINTENANCE OR SERVICE IS
PERFORMED, OR IF THE MACHINE IS OUT OF SERVICE.
NEVER LEAVE THIS MACHINE RUNNING UNATTENDED.
IMPORTANT:
IF YOU HAVE ANY QUESTIONS ABOUT THESE SAFETY RULES, SEE YOUR SUPERVISOR
OR CALL AM MANUFACTURING Co. TOLL FREE: [phone]

A.M. Manufacturing Company MODEL:
© 2015 R900T
R900T © COPYRIGHT 2015 8 of 25
Original Release 2015
OPERATING INSTRUCTIONS
WARNING:
UNIT MUST BE PROPERLY OPERATED AND MAINTAINED TO PREVENT MACHINE DAMAGE
OR PERSONAL INJURY. REVIEW INSTRUCTIONS WITH ALL EMPLOYEES BEFORE USE.
I. PRELIMINARY START - UP PROCEDURE
A. BE SURE DRUM, TABLE AND CONVEYOR ARE CLEAR OF PACKING, PACKING SLIPS,
DOCUMENTS AND OTHER OBSTRUCTIONS.
B. MAKE SURE THE MACHINE SWITCH IS IN THE IS IN THE OFF POSITION.
C. LOWER DISCHARGE CONVEYOR (FOR R900C MODELS ONLY) TO OPERATIONG
POSITION.
D. PLUG POWER CORD INTO PROPER RECEPTACLE.
E. SWITCH MACHINE TO THE “ON” POSITION.
F. THE ROUNDING DRUM SHOULD BE TURNING IN A COUNTER CLOCK-WISE
ROTATION.
G. THE ROUNDER TABLE SHOULD BE TURNING IN A COUNTER CLOCK-WISE
ROTATION, / THE DISCHARGE CONVEYOR SHOULD BE RUNNING FORWARD OUT
FROM MACHINE. ALL THIS DEPENDING ON THE MODEL OF ROUND - O - MATIC YOU
HAVE PURCHASED. (NOTE) NEVER OPERATE THE MACHINE WITH THE DISCHARGE
CONVEYOR IN THE UPRIGHT POSITION.
NOTE:
IF THE MACHINE YOU HAVE PURCHASED IS A (3) PHASE MACHINE AND THE ROTATION OF THE
ROUNDING DRUM IS NOT CORRECT, CONSULT A PROPERLY TRAINED ELECTRICIAN
.
II. OPERATING THE R900T
A. THE R900T TABLE OR CONVEYOR MODEL IS READY TO ROUND AFTER:
B. POSITION R900T IN THE DESIRED LOCATION AND SET THE TWO (2) LOCKING
CASTERS.
C. PLUG THE POWER CORD INTO PROPER RECEPTACLE.
D. CHECK FOR PROPER ROTATION OF ROUNDING DRUM, REFER TO PRELIMINARY
START - UP PROCEDURE.
E. TO ROUND SIMPLY DROP DOUGH PIECES (1oz. TO 2 lbs.) INTO FUNNEL. THE
DOUGH WILL AUTOMATICALLY BE ROUNDED AND THEN DEPOSITED ONTO THE
TABLE OR CONVEYOR FOR PANNING.
CAUTION:
DO NOT ATTEMPT TO OPERATE THIS MACHINE WITHOUT READING THE MANUAL. ALWAYS HAVE
THE TABLE OR TOP COVER IN PLACE!

A.M. Manufacturing Company MODEL:
© 2015 R900T
R900T © COPYRIGHT 2015 9 of 25
Original Release 2015
CLEANING INSTRUCTIONS
ALL AM MANUFACTURING MACHINES ARE TESTED WITH DOUGH DURING THE IN - HOUSE, RUN - IN AND
QUALITY AUDIT PROCEDURE. ALTHOUGH THE MACHINE HAS BEEN CLEANED, SOME EVIDENCE OF
DOUGH ON AND IN THE MACHINE MAY BE DETECTED, THIS IS NORMAL.
ALL PARTS IN CONTACT WITH DOUGH SHOULD BE WASHED THOROUGHLY AFTER USE, USING A MILD
SOAP AND WATER SOLUTION. DISASSEMBLY OF THIS MACHINE FOR CLEANING IS OUTLINED AND
ILLUSTRATED FOR YOUR CONVENIENCE.
INSTRUCTIONS IN THIS MANUAL INDICATE THE NEED FOR REGULAR INSPECTION AND CLEANING TO
PREVENT INFESTATION.
A. CAUTION: SHUT OFF ALL ELECTRICAL POWER, AND UNPLUG POWER CORD.
B. REMOVE ROUNDER TABLE (PART NO. R211TA) BY LIFTING STRAIGHT UP (IF APPLICABLE).
C. REMOVE FUNNEL. (PART NO. R116RA).
D. REMOVE ROUNDER SCREW, USING TWO PEOPLE TO LIFT ROUNDER SCREW (PART NO. R122RA).
E. REMOVE DRUM (PART NO. R117RA).
F. REMOVE PLASTIC SEAL RING (PART NO. R141RA).
G. REMOVE EXCESS DOUGH FROM ROUNDER BASE.
H. REASSEMBLE IS IN REVERSE OS DISASSEMBLE OF STEP 1 THRU 8.
I. MAKE SURE TO REPLACE PLASTIC SEAL RING.
J. SLIP THE DRUM OVER THE ROUNDER BASE SO THAT THE DRIVE SLOTS ARE LOCKED OVER THE
DRIVE PINS IN THE ROUNDER BASE.
K. CARE SHOULD BE TAKEN TO SEE THAT THE EXIT RAMP ON THE SCREW IS APPROXIMATELY
OPPOSITE THE ON / OFF SWITCH AFTER THE SCREW HAS DROPPED INTO PLACE.
L. ON TABLE MODELS, BE SURE THAT THE RING GEAR (MOUNTED ON THE UNDER SIDE OF THE
TABLE) IS ENGAGED OVER ALL FOUR (4) BEARINGS AND MESHED WITH THE DRIVE GEAR. WHEN
PROPERLY ENGAGED, THE TABLE WILL SIT FIRM AND LEVEL AROUND THE DRUM. KEEP FINGERS
AWAY FROM UNDERNEATH ROTATING TABLE DURING OPERATION.
NOTE:
PARTS SUCH AS THE ROUNDER SCREW AND DRUM SHOULD BE HANDLED WITH EXTREME CARE;
WHEN CLEANING THE ROUNDER DRUM THE WATER TEMPERATURE MUST NOT EXCEED 190º.
IF UNABLE TO REMOVE ROUNDER SCREW: NEVER PUT HANDS OR ARMS INTO ROUNDER SCREW.
A. PLUG MACHINE IN. TURN MACHINE ON.
B. ADD A SMALL AMOUNT OF WARM WATER TO CONTACT AREA BETWEEN SCREW AND DRUM.
C. AFTER DOUGH SOFTENS, TURN OFF ROUNDER
D. UNPLUG MACHINE.
E. REMOVE ROUNDER SCREW. USING TWO PEOPLE TO LIFT ROUNDER SCREW.
PRACTICE SAFETY FIRST
ALWAYS DISCONNECT ELECTRICAL SERVICE AND TURN MACHINE SWITCH TO THE OFF POSITION
BEFORE CLEANING OR MAINTAINING THIS MACHINE, THUS AVOIDING CHANCE OF SERIOUS INJURIES.
MACHINES ARE NOT DANGEROUS IF COMMON SENSE IS APPLIED AND THE INSTRUCTIONS ARE
FOLLOWED. THINK AND PRACTICE SAFETY FIRST.

A.M. Manufacturing Company MODEL:
© 2015 R900T
R900T © COPYRIGHT 2015 10 of 25
Original Release 2015
GUIDE TO GENERAL MAINTENANCE
READ AND FOLLOW MAINTENANCE INSTRUCTIONS BELOW TO HELP KEEP THE UNIT IN GOOD
OPERATING CONDITION. REFER TO OTHER MATERIALS RECEIVED WITH THE UNIT AND TO SERVICE
BULLETINS FROM THE MANUFACTURER FOR ADDITIONAL INSTRUCTIONS FOR PROPER MAINTENANCE
AND SERVICE. REGULAR INSPECTIONS AND PROPER MAINTENANCE ARE ESSENTIAL TO HELP PREVENT
ACCIDENTS AND INJURIES.
PRACTICE SAFETY FIRST:
ALWAYS DISCONNECT ELECTRICAL SERVICE AND TURN MACHINE SWITCH TO THE OFF POSITION BEFORE
CLEANING OR MAINTAINING THIS MACHINE, THUS AVOIDING CHANCE OF SERIOUS INJURIES. MACHINES ARE
NOT DANGEROUS IF COMMON SENSE IS APPLIED AND THE INSTRUCTIONS ARE CAREFULLY FOLLOWED. THINK
AND PRACTICE SAFETY FIRST...
GREASE POINT
WARNING:
BEFORE MAKING ANY INSPECTION, ADJUSTMENT OR REPAIR, BE CERTAIN POWER SOURCE IS
DISCONNECTED AND THE MACHINE SWITCH IS IN THE OFF POSITION WITH ALL MOVING PARTS BEING
BLOCKED OUT TO PREVENT INJURY. WEAR PROTECTIVE CLOTHING.
A. THE TABLE TOP AND OTHER WORKING SURFACES SHOULD BE CLEANED REGULARLY.
B. MAKE SURE THAT ALL FASTENERS ARE TIGHTENED SECURELY.
C. MAKE CERTAIN THAT ALL GUARDS AND COVERS ARE IN PLACE.
D. CHECK FOR WORN, DAMAGED OR MISSING PARTS INCLUDING BELTS, SAFETY GUARDS
AND PROTECTIVE COVERS.
E. ON A DAILY BASIS, INSPECT THE UNIT AND CHECK TO BE CERTAIN THAT ALL SYSTEMS
ARE OPERATING NORMALLY. DETAILED INSPECTION AND TESTING PROCEDURES ARE
SPECIFIED FOR VARIOUS COMPONENTS AT REGULAR INTERVALS. SET UP A CHART AND
ASSIGN RESPONSIBILITY FOR THESE ITEMS.
CAUTION:
REPLACE ANY DAMAGED OR MISSING SAFETY LABELS. THEY ARE AVAILABLE FROM THE
MANUFACTURER.
MAINTENANCE FOR THE R900T ALWAYS BEGINS WITH KEEPING THE MACHINE CLEAN. PROPER
CLEANING PROCEDURES CAN BE FOUND ON PAGE (6) OF THIS MANUAL. STANDARD LONG TERM
MAINTENANCE CONSISTS OF LUBRICATING MAIN WEAR POINTS.
ALL RECOMMENDATIONS FOR MAINTENANCE ARE BASED ON A 7 DAY, 8 HOUR PER DAY WORK
SCHEDULE.
THE R900T HAS A SINGLE DRIVE CHAIN (PART NO. R105RA). THIS
PART MUST BE OILED REGULARLY WITH A LIGHT MACHINE OIL
TO PROLONG LIFE OF THE SPROCKETS, AS WELL AS THE CHAIN.
AGAIN, CHAIN CONDITION AND TENSION SHOULD BE CHECKED
EVERY 60 DAYS OR MORE FREQUENTLY IF EXCESS NOISE OR
VIBRATION IS NOTED.

A.M. Manufacturing Company MODEL:
© 2015 R900T
R900T © COPYRIGHT 2015 11 of 25
Original Release 2015
CABINET ASSEMBLY
84
9
10
11
7
2
1
3
13 3
6
5
12

A.M. Manufacturing Company MODEL:
© 2015 R900T
R900T © COPYRIGHT 2015 12 of 25
Original Release 2015
CABINET ASSEMBLY
BILL OF MATERIAL
ITEM
PART NO
DESCRIPTION
QTY
1
F0402HHCS
HEX HEAD CAP SCREW, 1/4-20 X 1/2" L
21
2
F0400FW
FLAT WASHER, 1/4"
25
3
F0400LW
LOCK WASHER, 1/4"
29
4
F9725PHS
PAN HEAD, SLOTTED, 8-32 UNC x 0.375
4
5
F0402BH
BUTTON HEAD 1/4-20 X 1/2" LG.
4
6
R418CA
COVER PLATE
1
7
R416CA
CABINET ASSEMBLY
1
8
SS115
SINGLE SWITCH COVER PLATE, S.S.
1
9
R406CA
LOCKING ATTACHMENT, SWITCH
1
10
SS212
MANUAL MOTOR STARTER SINGLE SWITCH (STANDARD 120/220Vac MACHINE
ONLY - SEE ELECTRICAL PORTION OF MANUAL FOR 3PHASE MACHINES)
1
11
SS210
OVERLOAD (USED WITH 110-120Vac MACHINES)
1
EL-1189
OVERLOAD (USED WITH 208-240Vac MACHINES)
12
R422CA
SWITCH PLATE (SINGLE PHASE MACHNINE)
1
17799
SWITCH PLATE (220Vac THREE PHASE MACHINES ONLY)
13
F0400NLN
NUT, NYLOCK 1/4"
12
14
F0404SH
SCREW, SOCKET HEAD 1/4-20 X 1"LG
4

A.M. Manufacturing Company MODEL:
© 2015 R900T
R900T © COPYRIGHT 2015 13 of 25
Original Release 2015
ROUNDER ASSEMBLY
33
2
17 18
19
322
27
26
1
13
14
12
9
10
14
12
13
23
5
23
6
4
31
8
37
29
11
35
36
7
30
13
14
12
32
20
34
28
27
24
25
21
16
15
39
38
40 41
OLD STYLE DRUM ONLY

A.M. Manufacturing Company MODEL:
© 2015 R900T
R900T © COPYRIGHT 2015 14 of 25
Original Release 2015
ROUNDER ASSEMBLY
BILL OF MATERIAL
ITEM
PART NO
DESCRIPTION
QTY
1
R130RA2
OUTSIDE FRAME
4
2
N/A
WELDED TO ITEM #1 SHOWN APART FOR CLEARTY
1
3
R144RA
MOTOR ADJUSTING BRACKET
1
4
R141RA
PLASTIC SEAL RING
1
5
R109RA
ROUNDER BASE SPROCKET
1
6
R134RA
PLASTIC WASHER w/ O'RING
1
7
R142RA
WASHER
1
8
R108RA-B
ROUNDER BASE (FOR ASSEMBLY, SEE NOTE BELOW)
1
9
621CA1
CASTER, SWIVEL (LOCKING)
2
10
621CA2
CASTER, SWIVEL (NON-LOCKING)
2
11
AR122RA
ROUNDING SCREW (INCLUDES ITEM #'S 7, 12, 13, 14 & 32)
1
12
F0402HHCS
HEX HEAD CAP SCREW, 1/4-20 X 1/2" L
17
13
F0400FW
FLAT WASHER, 1/4"
17
14
F0400LW
LOCK WASHER, 1/4"
17
15
F0504HHCS
HEX HEAD CAP SCREW 5/16-18 X 1" LG.
4
16
F0500LW
LOCK WASHER, 5/16"
4
17
F0600FW
FLAT WASHER 3/8"
4
18
F0600LW
LOCK WASHER 3/8"
4
19
F0600NC
NUT COURSE, 3/8
4
20
R103RA
SPROCKET,(MOTOR) (INCLUDES ITEM #'S 38 & 39)
1
21
R105RA
DRIVE CHAIN - 31 LINKS
1
22
R106RA
MASTER CHAIN LINK
1
23
R135RA
BEARING, (ROUNDER BASE)
2
24
F0607RP
ROLL PIN, 3/8" DIA X 1-3/4" LONG
2
25
F0612RP
ROLL PIN - 3/8" DIA X 3" LONG
1
26
F0800LW
LOCK WASHER 1/2"
1
27
F0800NC
NUT COURSE, 1/2-13 NORMAL
4
28
F0824SD
STUD, 1/2-13 X 6" LG (S.S.)
1
29
R116RA
ROUNDER FUNNEL
1
30
R143RA
"O" RING
1
31
R145RA
SNAP RING
1
32
R121RA
EXIT RAMP (INCLUDES ITEM #'S 12, 13, & 14)
1
33
F0607HHCS
HEX HEAD CAP SCREW 3/8-16 X 1-3/4"
4
34
SS255
GEARMOTOR (3/4 H.P. / 120/230VAC / SINGLE PHASE)
1
SS256
GEARMOTOR (1H.P. / 230/460VAC / THREE PHASE /60Hz)
EL-1448
GEARMOTOR (2H.P. / 230/460VAC / THREE PHASE / 60Hz)
35
19900
PLASTIC ROUNDER DRUM
1
36
F0816SH
1/2-13 SOCKET HEAD BOLT 4" LONG
1
37
R108RA-S
ROUNDER SPINDLE (INCLUDES ITEM #'S 25 & 31)
1
38
F0503SS
SET SCREW, 5/16-18 X 3/4" LG, S.S.
1
39
F0404KY
1/4" KEY X 1" LONG, S.S.
1
40
R133RA
BREATHER
1
41
R115RA
ROUNDER DRUM RING (OLD STYLE DRUM ONLY)
1
PART # R108RA ROUNDER BASE ASSEMBLY INCLUDES ITEM #'S 5, 6, 8, 15, 16, 23, 24, 25, 31 & 37.

A.M. Manufacturing Company MODEL:
© 2015 R900T
R900T © COPYRIGHT 2015 15 of 25
Original Release 2015
TABLE ASSEMBLY
20
19
21
22
18
7
8
15
6
25
26 17
2
1
16
5
12
11
9
3
13
10
4
14
24
23

A.M. Manufacturing Company MODEL:
© 2015 R900T
R900T © COPYRIGHT 2015 16 of 25
Original Release 2015
TABLE ASSEMBLY
BILL OF MATERIAL
ITEM
PART NO
DESCRIPTION
QTY
1
F0400FW
FLAT WASHER, 1/4"
25
2
F0400LW
LOCK WASHER, 1/4"
29
3
F0500LW
LOCK WASHER, 5/16"
8
4
F0500FW
FLAT WASHER, 5/16"
8
5
SS252
OUTFEED CONVEYOR MOTOR, 1/15 HP, 115~230V, 70 RPM
1
6
11942
TABLE ROLLER GUIDE BRACKET
4
7
11943
TABLE GUIDE ROLLER
4
8
F0600NLN
NUT-NYLOCK 3/8"
4
9
R218TA
BEARING RETAINER
4
10
R217TA
TABLE SUPPORT BAR
4
11
R216TA
BRONZE BUSHING
4
12
R214TA
PLASTIC BEARING
4
13
R215TA
THRUST BEARING
4
14
F0500NC
NUT COURSE, 5/16-18
4
15
F0805SHSB
SOCKET HEAD SHOULDER BOLT, 1/2"DIA SHOULDER X 1-1/4" LONG, 3/8-16
THREADS
4
16
R206TA
DRIVE GEAR - MODIFIED
1
17
F0403HHCS
HEX HEAD CAP SCREW 1/4-20 X 3/4"
3
18
F9703.5SFH
8-32 x 7/8" LONG SLOTTED FLAT HEAD
6
19
17889
TABLE RING MOUNT STAND-OFF
20
20
17903
TABLE RING
4
21
17934
TABLE TOP
1
22
R213TA
RING GEAR ASSEMBLY
1
23
21442
TABLE THREADED INSERT
6
24
F9903.5SFH
10-32 x 7/8" LONG SLOTTED FLAT HEAD
20
25
F0402.5SB
BUTTON HEAD, SOCKET 1/4-20 X 5/8" LG, S.S.
8
26
F0400NLN
NUT, NYLOCK 1/4"
12
27
AMTAG160SF
ROUNDER SCREW CAUTION STICKER (ENGLISH & CANADIAN FRENCH)
1

A.M. Manufacturing Company MODEL:
© 2015 R900T
R900T © COPYRIGHT 2015 17 of 25
Original Release 2015
ELECTRICAL COMPONENTS
SINGLE PHASE

A.M. Manufacturing Company MODEL:
© 2015 R900T
R900T © COPYRIGHT 2015 18 of 25
Original Release 2015
ELECTRICAL COMPONENTS
SINGLE PHASE BOM
ITEM
PART NO
DESCRIPTION
QTY
1
SS255-115
GEAR MOTOR ASSEMBLY (110-120Vac MACHINE)
1
W/ SS255 - GEAR MOTOR
1
SS255-115
SS220 - 14/3 CAROLPRENE CORD
18"
SS100 –CORD CONNECTOR
1
SS153 - PLUG (110-120Vac)
1
GEAR MOTOR ASSEMBLY (208-240Vac MACHINE)
1
W/ SS255 - GEAR MOTOR
1
SS255-220
SS220 - 14/3 CAROLPRENE CORD
18"
SS100 –CORD CONNECTOR
1
SS155 - PLUG (208-240Vac)
1
2
EL-1321
HOLE PLUG (S.S.)
2
3
SS100
CORD CONNECTOR
1
4
SS103
90º ELBOW
1
6
F9702TH
SCREW (8-32 X ½” LONG TRUSS HEAD)
2
6
SS115
SWITCH COVER PLATE
1
7
F9701.5TH
SCREW (8-32 X 3/8” LONG TRUSS HEAD)
4
8
SS212
MANUAL MOTOR STARTER
1
9
SS210
OVERLOAD (USED WITH 110-120Vac MACHINES)
1
EL-1189
OVERLOAD (USED WITH 208-240Vac MACHINES)
10
SS220
POWER CORD (14/3)
12'
11
SS148
PLUG (110-120Vac MACHINES)
1
SS155
PLUG (208-240Vac MACHINES)
12
SS220
MOTOR DROP CORD(14/3)
16-1/2"
13
SS154
MOTOR CONNECTOR (USED WITH 110-120Vac MACHINES)
1
SS156
MOTOR CONNECTOR (USED WITH 208-240Vac MACHINES)
14
R422CA
SWITCH PLATE
1
15
R406CA
LOCKING ATTACHMENT
1
16
EL-1406
90 DEGREE CORD GRIP
1

A.M. Manufacturing Company MODEL:
© 2015 R900T
R900T © COPYRIGHT 2015 19 of 25
Original Release 2015
ELECTRICAL COMPONENTS
THREE PHASE

A.M. Manufacturing Company MODEL:
© 2015 R900T
R900T © COPYRIGHT 2015 20 of 25
Original Release 2015
ELECTRICAL COMPONENTS
THREE PHASE BOM
ITEM
PART NO
DESCRIPTION
QTY
1
GEAR MOTOR ASSEMBLY (208-240Vac MACHINE)
1
W/ SS256 - 1HP GEAR MOTOR
1
SS256-220
SS225 - 16/4 CAROLPRENE CORD
18"
SS100 –CORD CONNECTOR
1
SS159 - PLUG (208-240Vac)
1
GEAR MOTOR ASSEMBLY (440-480Vac MACHINE)
1
W/ SS256 - 1HP GEAR MOTOR
1
SS256-480
SS225 - 16/4 CAROLPRENE CORD
18"
SS100 –CORD CONNECTOR
1
SS161 - PLUG (480Vac)
1
2
EL-1321
HOLE PLUG (S.S.)
2
3
SS100
CORD CONNECTOR
1
4
SS103
90º ELBOW
1
5
F9702TH
SCREW (8-32 X ½” LONG TRUSS HEAD)
2
6
17799
SWITCH COVER PLATE
1
7
F9701.5TH
SCREW (8-32 X 3/8” LONG TRUSS HEAD)
4
8
EL-1202
MANUAL MOTOR STARTER
1
9
EL-1416
OVERLOAD (USED WITH 208-240Vac MACHINES w/ 1HP MOTOR
3
EL-1580
OVERLOAD (USED WITH 440-480Vac MACHINES w/ 1HP MOTOR)
EL-1579
OVERLOAD (USED WITH 208-240Vac MACHINES w/ 2HP MOTOR
EL-1373
OVERLOAD (USED WITH 440-480Vac MACHINES w/ 2HP MOTOR)
10
SS219
POWER CORD (14/4)
12'
11
SS159
PLUG (208-240Vac MACHINES)
1
SS161
PLUG (440-480Vac MACHINES)
12
SS219
MOTOR DROP CORD(14/4)
16-1/2"
13
SS160
MOTOR CONNECTOR (USED WITH 208-240Vac MACHINES)
1
SS162
MOTOR CONNECTOR (USED WITH 440-480Vac MACHINES)
14
SS277
90 DEGREE CORD GRIP
1
15
EL-0220
TRANSFORMER (440-480Vac MACHINES
1
16
SS381
ELECTRICAL ENCLOSURE
1
17
SS380
ELECTRICAL ENCLOSURE PANEL
1
18
GEAR MOTOR ASSEMBLY (208-240Vac MACHINE)
1
W/ EL-1448 - 2HP GEAR MOTOR
1
EL-1448-220
SS225 - 16/4 CAROLPRENE CORD
18"
SS100 –CORD CONNECTOR
1
SS159 - PLUG (208-240Vac)
1
GEAR MOTOR ASSEMBLY (440-480Vac MACHINE)
1
W/ EL-1448 - 2HP GEAR MOTOR
1
EL-1448-480
SS225 - 16/4 CAROLPRENE CORD
18"
SS100 –CORD CONNECTOR
1
SS161 - PLUG (480Vac)
1
19
SS384
SMART MOTOR CONTROLLER
1
20
SS387
ELECTRICAL ENCLOSURE
1
21
SS388
ELECTRICAL ENCLOSURE PANEL
1
22
SS105
LIQUIDTIGHT FITTING (NOT SHOWN)
2
