AMADAS
VER 1.0
AMADAS Smart Door Lock
User and Reference Guide
ADSL - 1001

1
AMADAS Smart Door Lock
AMADAS Smart Door Lock
User and Reference Guide
This product can be included and operated in any Z-Wave network with Other Z-Wave certified devices from other
manufacturers and / or other applications. All non-battery Operated nodes within the network will act as repeaters
regardless of vendor to increase reliability the network.
This product is a security enabled Z-Wave Plus product and security enabled Z-Wave controller must be used in
order to fully utilize this product.

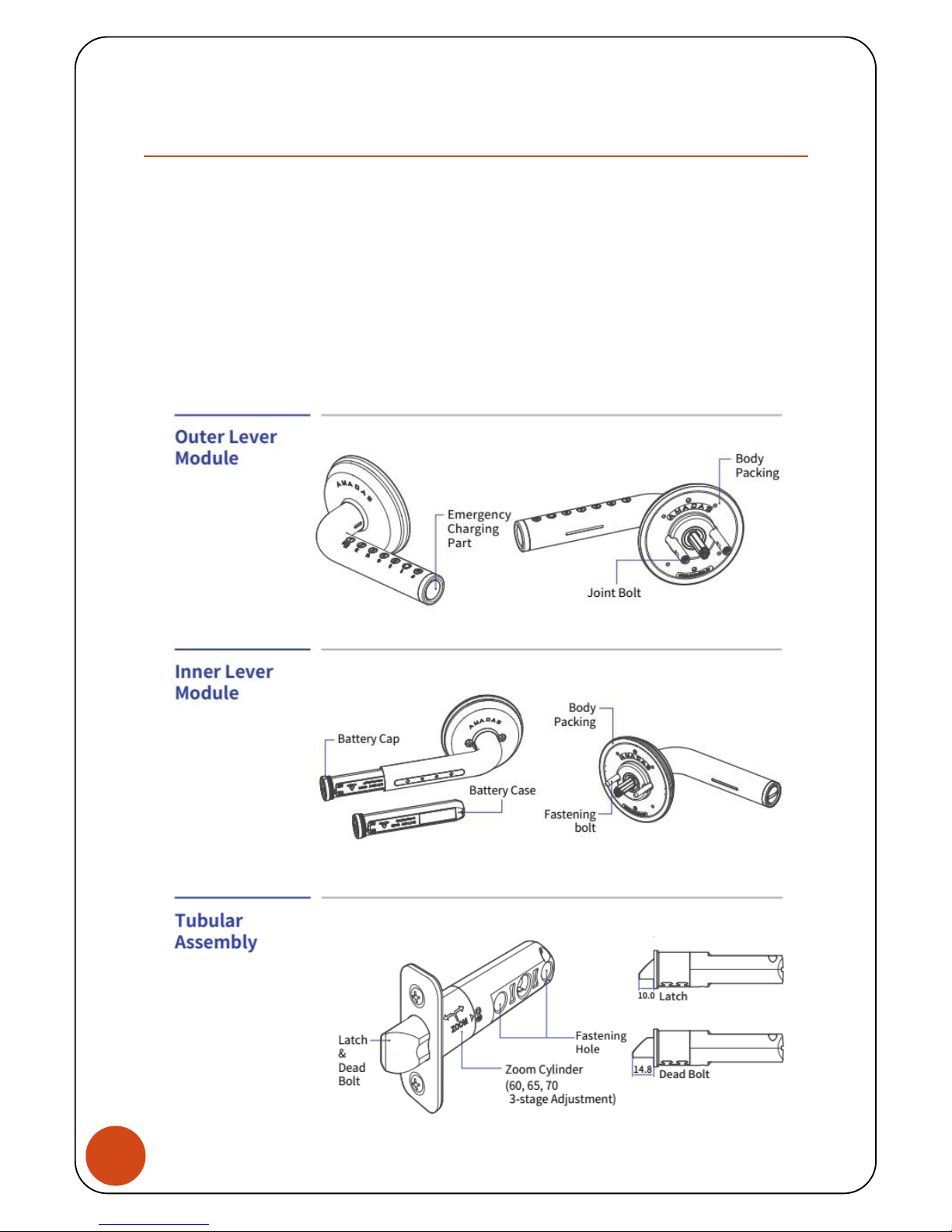

1. Product Part Information

2
AMADAS Smart Door Lock
2. Product Specifications
Item
Specification
Exterior Unit Size
D(17.5cm), W(12.5cm), H(9cm), Weight(0.47kg)
Interior Unit Size
D(17.8cm), W(12.5cm), H(9cm), Weight(0.47kg)
Power
2 LR06 AA Alkaline 1.5V Batteries
Emergency Power
Solar Charge DC 3.0V
Door Thickness Range
30~80mm
Installation Hole Size
45~80mm
Exterior Material
Full Stainless Steel & Pipe

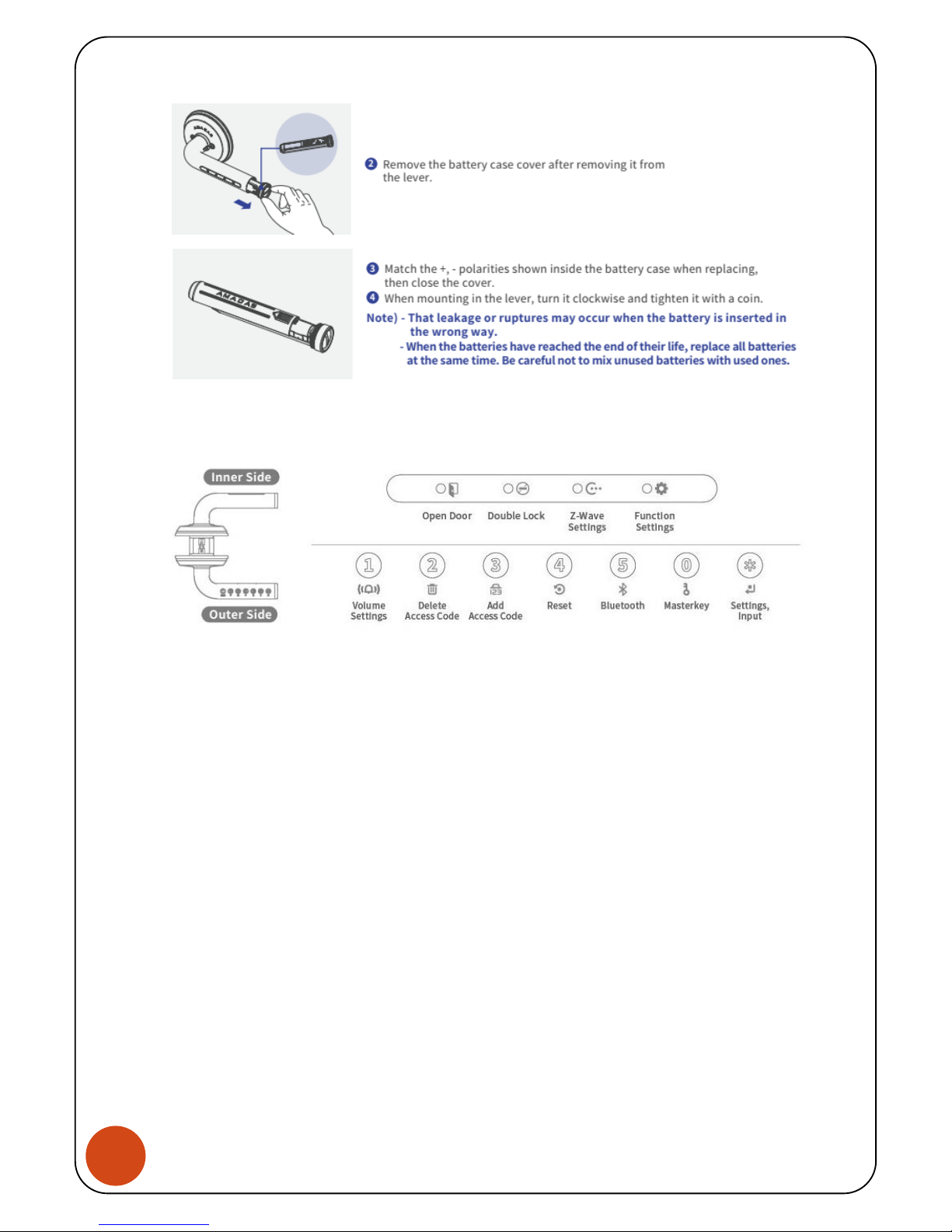

3. How to Change Batteries

3
AMADAS Smart Door Lock
4. Button Functions
A. Inner Side Button
i. Open Door : Set (or Reset) unlock permission (long push for 3secs, toggle status)
ii. Double Lock : Set (or Reset) unlock prohibition (long push for 3secs, toggle status)
iii. Z-Wave Settings
Inclusion / Exclusion : Set inclusion or exclusion (long push for 3secs, toggle status)
Z-Wave reset : Z-Wave locally reset (push 3 times fast)
iv. Function Settings : Enter (or Exit) menu mode (long push for 3secs, toggle status)
B. Outer Side Button
i. Volume Settings : Set buzzer volume up and down
ii. Delete Access Code : Delete master password
iii. Add Access Code : Add or fix master password
iv. Reset : Set factory default reset
v. Bluetooth : Connect to Bluetooth in Smart phone application
vi. Master Key : Use the stick key to open the door (Optional key)
vii. Settings, Input : Use it to set all outer button functions
5. How to Set Functions

4
AMADAS Smart Door Lock

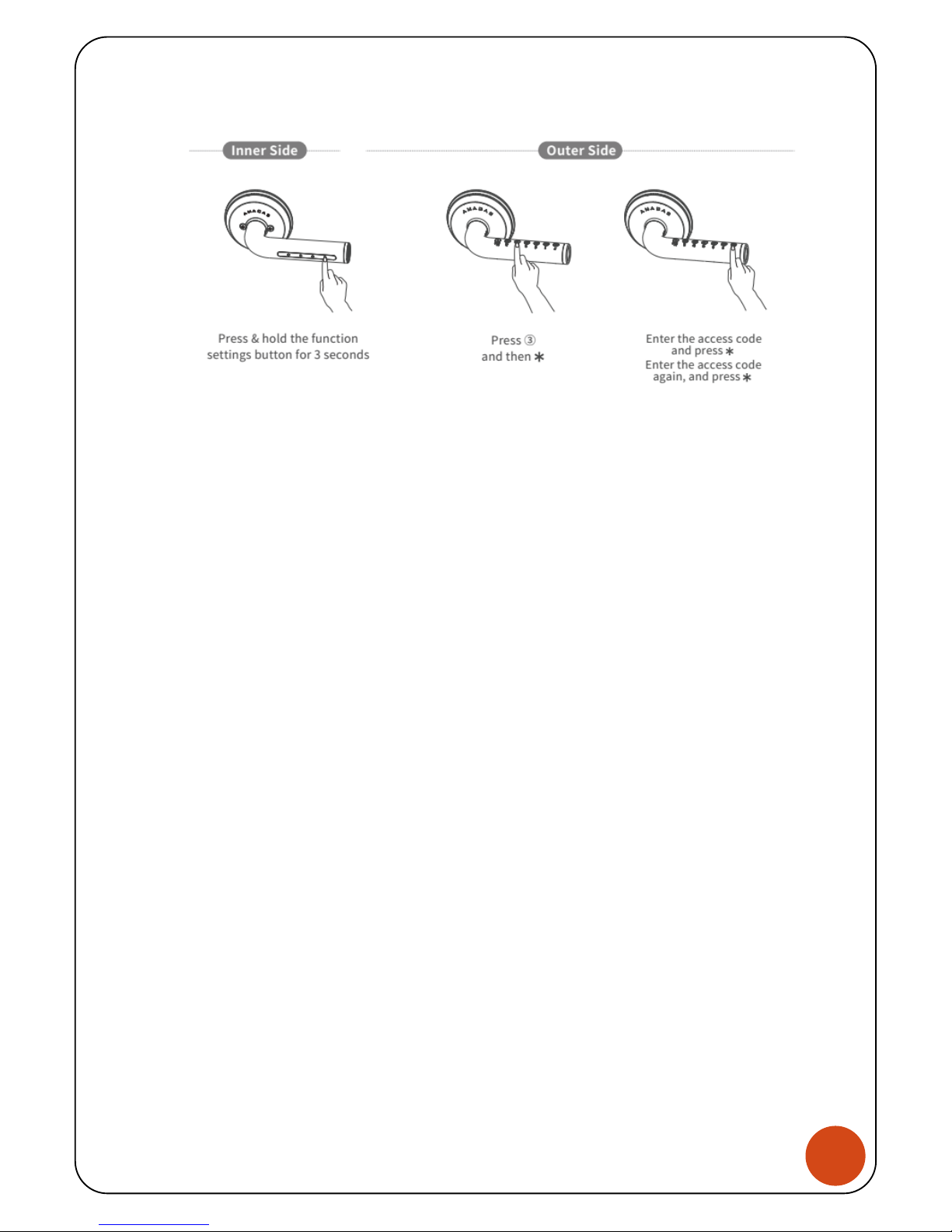

A. Adding access codes
i. Press “Settings, Input” button in the inner side for 3 seconds.
ii. Press “③- Add Access Code” button in the outer side.
iii. Enter master password (6~12 digits) and press the “*” button.
iv. Re-Enter master password and press the “*” button.
* The master password is only manually added.
* Initial master password is ‘123450’. And this password cannot be registered. Please
register with a different number.
B. Deleting access codes
i. Press “Settings, Input” button in the inner side for 3 seconds.
ii. Press “②- Delete Access Code” button in the outer side.
iii. Enter current master password and press the “*” button.
* The master password is only manually deleted.
C. Factory default setting
i. Press “Settings, Input” button in the inner side for 3 seconds.
ii. Press “④- Reset” button in the outer side.
iii. Enter “1004” and press the “*” button.
* All door lock setting information is initialized.
D. Volume settings
i. Press “Settings, Input” button in the inner side for 3 seconds.
ii. Press “①- Volume Settings” button in the outer side.
iii. Press up (button ④) or down (button ⑤) and press the “*” button.
E. Activating (or deactivating) the open door settings
i. Press “Open Door” button in the inner side for 3 seconds. (toggle status)

5
AMADAS Smart Door Lock
F. Activating (or deactivating) the double lock
i. Press “double Lock” button in the inner side for 3 seconds. (toggle status)
G. Z-Wave inclusion
i. Press “Z-Wave Settings” button in the inner side for 3 seconds. (toggle status)
ii. Then “Blue LED” will turn on.
iii. When the inclusion is complete, the led is turned off and the beep sounds. Please wait.
* Beep : Success (Beep), Fail (Beep~)
* The inclusion results can be found in the controller or in your app.
H. Z-Wave exclusion
i. Press “Z-Wave Settings” button in the inner side for 3 seconds. (toggle status)
ii. Then “Blue LED” will turn on.
iii. When the exclusion is completed, the led is turned off and the beep sounds. Please wait.
* Beep : Success (Beep Beep), Fail (Beep~)
* The exclusion results can be found in the controller or in your app.
I. Z-Wave device reset locally
i. Press “Z-Wave Settings” button in the inner side 3 times within 1.5 seconds.
ii. Then “White LED” will turn on.
iii. When the “network reset locally” is complete, the led is turned off. Please wait.
* Beep : Success (Ring), Fail (Beep~)
* Z-Wave network information is initialized.
* Please use this procedure only when the network primary controller is missing or otherwise
inoperable.
J. Enable (or disable) bluetooth (optionally)
i. Press “Settings, Input” button in the inner side for 3 seconds.
ii. Press “⑤- Bluetooth” button in the outer side.
iii. Press enable (button ⑤) or disable (button ④) and press the “*” button.
* Bluetooth (linked with App) function can be enabled/disabled in door lock.
* Initially, the Bluetooth function is disabled. After enabling it, the smartphone’s app
functions can be used.
6. Z-Wave Specifications
A. Command Class Support
i. Mandatory CC Support
Z-Wave plus info (V2)

6
AMADAS Smart Door Lock
Manufacturer specific (V2)
Security (V1)
Device reset Locally (V1)
Battery (V1)
Power level (V1)
Version(V2)
Door Lock (V2)
User Code (V1)
Association (V2)
Association Group Info (V1)
ii. Recommended CC Support
Notification (V4)
Firmware update meta data (V2)
7. Details of Support Command Class
A. Z-Wave plus info (V2)
i. Z-Wave Plus Version : 02
ii. Role Type : Listening Sleeping Slave (LSS)
iii. Node Type : Z-Wave Plus Node
B. Manufacturer Specific (V2)
i. Manufacturer ID : 029F
ii. Product Type ID : 0x0003
iii. Product ID : 0x0001
C. Version (V2)
i. Z-Wave Library Type : 0x03
ii. Z-Wave Protocol Version : 0x04
iii. Z-Wave Protocol Sub Version : 0x36
iv. Firmware 0 Version : 0x01
v. Firmware 0 Sub Version : 0x12
vi. Hardware Version : 0x01
vii. Number of firmware targets : 0x01
Firmware Version : 0x01
Firmware Sub Version : 0x02
D. Door Lock (V2)

7
AMADAS Smart Door Lock
i. Only support “Unsecure(0x00)” : After 5 seconds after unlock, auto lock is always done.
E. User Code (V1)
i. Doorlock will accept maximum 8 pin codes that 4~10 digits in length.
Supported users : 8
User Type : Pin code
ID Range : 0x02~0x08 (0x01 is Master Password)
F. Association (V2) & Association Group Information (V1)
i. Lifeline between controller and amadas smart door lock
ii. Supported command classes
Battery report
Doorlock operation report
Notification report
User code report
Device reset locally notification
iii. Maximum supported node is 1EA
G. Notification (V4) : Described in below.
8. Detail of Notifications
A. Replacement battery notification : Notify if battery is less than 10%.
i. NOTIFICATION_REPORT
Notification Status (1byte) : Unsolicited messages(0xFF)
Notification Type (1bytes) : Power Management(0x08)
Event (1byte) : Replace battery now(0x0B)
B. Door open/close status notification : Notify if you are using a Mortise assembly
i. NOTIFICATION_REPORT
Notification Status (1byte) : Unsolicited messages(0xFF)
Notification Type (1bytes) : Access Control(0x06)
Event (1byte) : Open(0x16), Closed(0x17)
C. User Access code exceeds code limit notification (If the password entry error occurs five times)
i. NOTIFICATION_REPORT
Notification Status (1byte) : Unsolicited messages(0xFF)
Notification Type (1bytes) : Access Control(0x06)
Event (1byte) : Manually Enter user Access code exceeds code limit (0x13)
D. Manual(or Internal) door open notification

8
AMADAS Smart Door Lock
i. NOTIFICATION_REPORT
Notification Status (1byte) : Unsolicited messages(0xFF)
Notification Type (1bytes) : Access Control(0x06)
Event (1byte) : Closed(0x17), Manual Unlock Operation(0x02)
E. RF Unlock operation notification
i. NOTIFICATION_REPORT
Notification Status (1byte) : Unsolicited messages(0xFF)
Notification Type (1bytes) : Access Control(0x06)
Event (1byte) : Auto Lock Locked Operation(0x09), RF Unlock Operation(0x04)
F. Keypad(Pin code) Unlock operation notification
i. NOTIFICATION_REPORT
Notification Status (1byte) : Unsolicited messages(0xFF)
Notification Type (1bytes) : Access Control(0x06)
Event (1byte) : Auto Lock Locked Operation(0x09), Keypad Unlock Operation(0x06)
Event Parameter 1 (1byte) :Master Password(0x01), Family Password(0x02~0x05),
Temporary Password(0x06~0x08), Un-Known(0x0A)
G. User code delete notification
i. NOTIFICATION_REPORT
Notification Status (1byte) : Unsolicited messages(0xFF)
Notification Type (1bytes) : Access Control(0x06)
Event (1byte) : All user codes deleted(0x0C), Single user code deleted(0x0D), New user
code added(0x0E)
H. Door auto lock jammed notification
i. NOTIFICATION_REPORT
Notification Status (1byte) : Unsolicited messages(0xFF)
Notification Type (1bytes) : Access Control(0x06)
Event (1byte) : Lock Jammed(0x0B)
9. Door lock operation & status report
A. Door lock status report
* To see the door lock status report below, you need to run the DOOR_LOCK_OPERATION_GET
command.
i. DOOR_LOCK_OPERATION_GET
ii. DOOR_LOCK_OPERATION_REPORT
Door Lock Mode (1byte) : DOOR_MODE_UNSEC(0x00), DOOR_MODE_SECURED(0xFF)

9
AMADAS Smart Door Lock
Door Handles Mode (1byte) : Outside(Active:0x10, Inactive:0x00), Inside(Active:0x01)
Door Condition (1byte) : Bit(0)-Door Open(0x00), Door Closed(0x01)
: Bit(1)-Bolt Locked(0x00), Bolt Unlocked(0x02)
: Bit(2)-Latch Open(0x00), Latch Closed(0x04)
: Bit(3~7)-Reserved
Lock Timeout Minutes : No unlocked period(0xFE)
Lock Timeout Seconds : No unlocked period(0xFE)
B. Unlock RF(Z-Wave) operation
i. DOOR_LOCK_OPERATION_SET
Door Lock Mode (1byte) : DOOR_MODE_UNSEC(0x00)
* AMADAS Lever lock is not support “DOOR_MODE_SECURED(0xFF)”
ii. NOTIFICATION_REPORT
Notification Status (1byte) : Unsolicited messages(0xFF)
Notification Type (1bytes) : Access Control(0x06)
Event (1byte) : Auto Lock Locked Operation(0x09), RF Unlock Operation(0x04)
C. Add/delete Family password and Temporary password
i. USER_CODE_SET
User Identifier (1byte) : Family Id Only (0x02~05:Family Id), Temporary
Password(0x06~0x08)
User ID Status (1byte) : USER_ID_AVAILBLE(0x00), USER_ID_OCCUPIED(0x01),
USER_ID_RESERVED(0x02), USER_ID_NO_STATUS (0xFE)
User Code (Max 10bytes) : 4~10 digits (Available number –‘0’, ‘1’, ‘2’, ‘3’, ‘4’, ‘5’)
* Master Id(0x01) can not be controlled.
ii. NOTIFICATION_REPORT
Notification Status (1byte) : Unsolicited messages(0xFF)
Notification Type (1byte) : Access Control(0x06)
Event (1byte) : Single user code deleted(0x0D), New user code added(0x0E)
