Amadas ADSL-1001 User manual

AMADAS
VER 1.3
AMADAS Lever Lock
User and Reference Guide
ADSL - 1001

1
AMADAS Lever Lock
AMADAS Lever Lock
User and Reference Guide

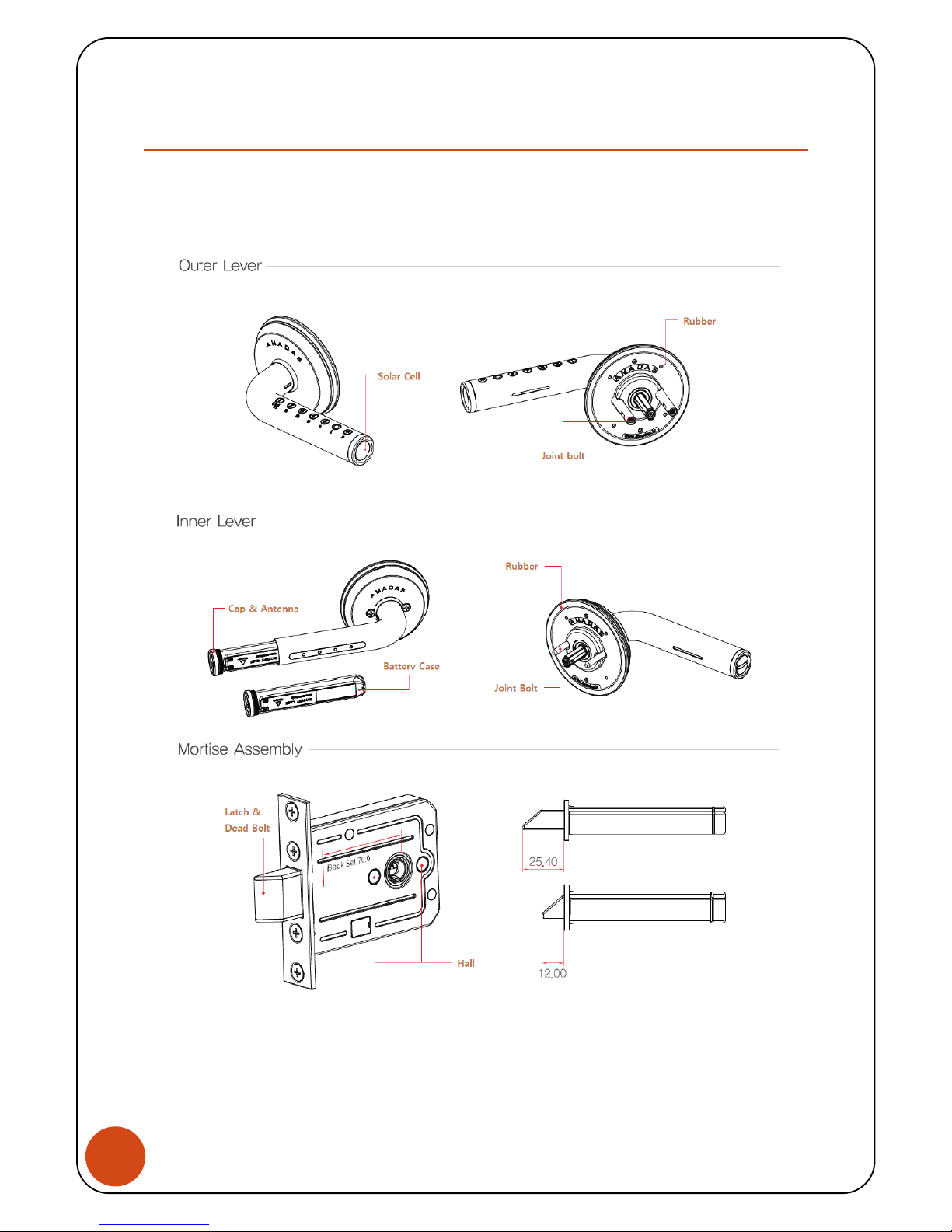

1. Product composition

2
AMADAS Lever Lock
2. Product Specifications
Item
Specification
Exterior Unit Size
D(18.0cm), W(12.5cm), H(9cm), Weight(0.47kg)
Interior Unit Size
D(18.4cm), W(12.5cm), H(9cm), Weight(0.47kg)
Power
2 LR06 AA Alkaline 1.5V Batteries
Emergency Power
Solar Charge 2.7V
Door Thickness Range
30~90mm
Door Knob Hole
Diameter Range
45~70mm
Exterior Material
Full Stainless Steel & Pipe
3. Battery Change

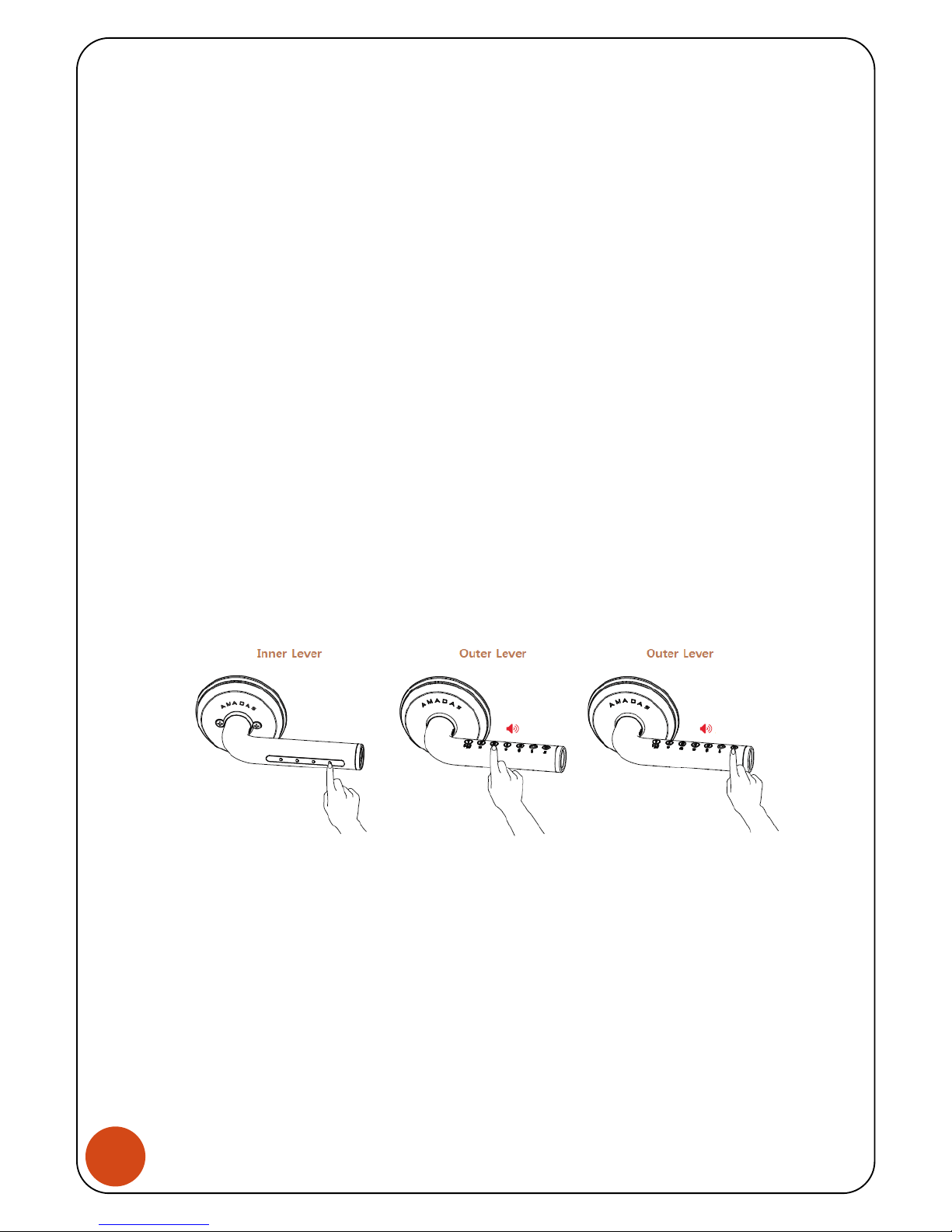

4. Button Functionality

3
AMADAS Lever Lock
A. Inner Lever Button
i. Unlock permission : Set (or Reset) unlock permission (long push for 3secs, toggle status)
ii. Unlock prohibition : Set (or Reset) unlock prohibition (long push for 3secs, toggle status)
iii. Inclusion / Exclusion / Z-Wave Reset
Inclusion / Exclusion : Set inclusion or exclusion (long push for 3secs, toggle status)
Z-Wave reset : Z-Wave locally reset (push 3 times fast)
B. Outer Button
i. Volume : Set buzzer volume up and down
ii. Delete : Delete master password
iii. Add : Add or fix master password
iv. Reset : Set factory default reset
v. BLE : Connect to BLE in Smart phone application
vi. Key : Use the stick key to open the door (Optional master key)
vii. Mode : Use it to set all outer button functions
5. How to set function
A. Set up master password
i. Press “Mode”button in the inner lever for 3 seconds.
ii. Press “Add” button in the outer lever.
iii. Enter master password (6~12 digits) and press the “*” button.
iv. Re-Enter master password and press the “*” button.
* The master key is only manually added.
* Default master key is ‘123450’
B. Delete master password
i. Press “Mode”button in the inner lever for 3 seconds.

4
AMADAS Lever Lock
ii. Press “Delete” button in the outer lever.
iii. Enter your master password and press the “*” button.
* The master key is only manually deleted.
C. Factory default setting
i. Press “Mode”button in the inner lever for 3 seconds.
ii. Press “Reset” button in the outer lever.
iii. Enter “1004” and press the “*” button.
D. Buzzer volume
i. Press “Mode”button in the inner lever for 3 seconds.
ii. Press “Volume” button in the outer lever.
iii. Press up (button No.4) or down (button No.5) and press the “*” button.
E. Set(or Reset) unlock prohibition
i. Press “Unlock prohibit” button in the inner lever for 3 seconds. (toggle status)
F. Set(or Reset) unlock permission
i. Press “Unlock permit” button in the inner lever for 3 seconds. (toggle status)
G. Z-Wave inclusion
i. Press “In/Exclusion”button in the inner lever for 3 seconds. (toggle status)
ii. Then “Blue LED”will turn on.
iii. When the inclusion is complete, the led is turned off and the beep sounds. Please wait.
* Beep Success : PiRiRiRi~, Beep Fail : Piriri Priri
* The inclusion results can be found in the controller or in your app.
H. Z-Wave exclusion
i. Press “In/Exclusion”button in the inner lever for 3 seconds. (toggle status)
ii. Then “Blue LED”will turn on.
iii. When the exclusion is completed, the led is turned off and the beep sounds. Please wait.
* Beep Success : PiPi, Beep Fail : Piriri Priri
* The exclusion results can be found in the controller or in your app.
I. Z-Wave device reset locally
i. Press “In/Exclusion”button in the inner lever 3 times within 1.5 seconds.
ii. Then “White LED”will turn on.
iii. When the inclusion is complete, the led is turned off. Please wait.

5
AMADAS Lever Lock
* Please use this procedure only when the network primary controller is missing or otherwise
inoperable.
6. Z-Wave Specifications
A. Command Class Support
i. Mandatory CC Support
Z-Wave plus info (V2)
Manufacturer specific (V2)
Security (V1)
Device reset Locally (V1)
Battery (V1)
Power level (V1)
Version(V2)
Door Lock (V2)
User Code (V1)
Association (V2)
Association Group Info (V1)
ii. Recommended CC Support
Notification (V4)
Configuration (V1)
Firmware update meta data (V2)
7. Details of Support Command Class
A. Z-Wave plus info (V2)
i. Z-Wave Plus Version : 02
ii. Role Type : Listening Sleeping Slave (LSS)
iii. Node Type : Z-Wave Plus Node
B. Manufacturer Specific (V2)
i. Manufacturer ID : 029F
ii. Product Type ID : 0x0003
iii. Product ID : 0x0001
C. Version (V2)
i. Z-Wave Library Type : 0x03
ii. Z-Wave Protocol Version : 0x04

6
AMADAS Lever Lock
iii. Z-Wave Protocol Sub Version : 0x26
iv. Firmware 0 Version : 0x01
v. Firmware 0 Sub Version : 0x0C
vi. Hardware Version : 0x01
D. Door Lock (V2)
i. Only support “Unsecure(0x00)” : After 5 seconds after unlock, auto lock is always done.
E. User Code (V1)
i. Lock will accept maximum 8 pin codes that art 4~10 digits in length.
Supported users : 8
User Type : Pin code, Ble, Stick Key
Ble, Stick Key : Can not be registered through Z-Wave
ID Range
Pin code : 0x02~0x08 (0x01 is Master Password)
Stick Key : 0x00
Ble : 0x11 ~ 0x15
F. Association (V2) & Association Group Information (V1)
i. Lifeline between controller and amadas smart lever lock
ii. Supported command classes
Battery report
Doorlock operation report
Notification report
User code report
Device reset locally notification
iii. Maximum supported node is 1EA
G. Configuration (V1)
i. It is used to enable / disable the Notification function related to Door Open.
Parameter Number (1byte) : 0x01
Default (1bit) : 0x00
Reserved (4bit) : 0x00
Size (3bit) : 8bit(0x01)
Configuration Value 1 (1byte) : Door open notification On(0x01), Door open notification Off (0xFE)

7
AMADAS Lever Lock
H. Notification (V4) : Described in below.
8. Details of Notifications
A. Battery replacement notice : Notify if battery is less than 10%.
i. NOTIFICATION_REPORT
Notification Status (1byte) : Unsolicited messages(0xFF)
Notification Type (1bytes) : Power Management(0x08)
Event (1byte) : Replace battery now(0x0B)
B. User Access code exceeds code limit notification (If the password entry error occurs four times)
i. NOTIFICATION_REPORT
Notification Status (1byte) : Unsolicited messages(0xFF)
Notification Type (1bytes) : Access Control(0x06)
Event (1byte) : Manually Enter user Access code exceeds code limit (0x13)
C. RF Unlock operation notification
i. NOTIFICATION_REPORT
Notification Status (1byte) : Unsolicited messages(0xFF)
Notification Type (1bytes) : Access Control(0x06)
Event (1byte) : Auto Lock Locked Operation(0x09), RF Unlock Operation(0x04)
D. Pin code Unlock operation notification
i. NOTIFICATION_REPORT
Notification Status (1byte) : Unsolicited messages(0xFF)
Notification Type (1bytes) : Access Control(0x06)
Event (1byte) : Auto Lock Locked Operation(0x09), Keypad Unlock Operation(0x06)
Event Parameter 1 (1byte) : Stick key(0x00), Master Password(0x01), Family Password(0x02~0x05),
Temporary Password(0x06~0x08), Un-Known(0x09)
E. Internal door open notification
i. NOTIFICATION_REPORT
Notification Status (1byte) : Unsolicited messages(0xFF)
Notification Type (1bytes) : Access Control(0x06)
Event (1byte) : Closed(0x17), Manual Unlock Operation(0x02)
F. Door status notification
i. NOTIFICATION_REPORT
Notification Status (1byte) : Unsolicited messages(0xFF)

8
AMADAS Lever Lock
Notification Type (1bytes) : Access Control(0x06)
Event (1byte) : Open(0x16), Closed(0x17)
9. Door lock operation & status report
A. Door lock status report
i. DOOR_LOCK_OPERATION_REPORT
Door Lock Mode (1byte) : DOOR_MODE_UNSEC(0x00), DOOR_MODE_SECURED(0xFF)
Door Handles Mode (1byte) : Outside(Active:0x10, Inactive:0x00), Inside(Active:0x01)
Door Condition (1byte) : Bit(0)-Door Open(0x00), Door Closed(0x01)
Bit(1)-Bolt Locked(0x00), Bolt Unlocked(0x02)
Bit(2)-Latch Open(0x00), Latch Closed(0x04)
Bit(3~7)-Reserved
Lock Timeout Minutes : No unlocked period(0xFE)
Lock Timeout Seconds : No unlocked period(0xFE)
ii. BATTERY_REPORT
Battery Level(1byte) : FULL(0x64), HIGH(0x10), LOW(0x00), DEAD(0xFF)
B. Unlock RF(Z-Wave) operation
i. DOOR_LOCK_OPERATION_SET
Door Lock Mode (1byte) : DOOR_MODE_UNSEC(0x00)
* AMADAS Lever lock is not support “DOOR_MODE_SECURED(0xFF)”
ii. NOTIFICATION_REPORT
Notification Status (1byte) : Unsolicited messages(0xFF)
Notification Type (1bytes) : Access Control(0x06)
Event (1byte) : Auto Lock Locked Operation(0x09), RF Unlock Operation(0x04)
C. Add/delete Family password and Temporary password
i. USER_CODE_SET
User Identifier (1byte) : Family Id Only (0x02~05:Family Id)
User ID Status (1byte) : USER_ID_AVAILBLE(0x00), USER_ID_OCCUPIED(0x01),
USER_ID_RESERVED(0x02), USER_ID_NO_STATUS (0xFE)
User Code (12bytes) : 4 ~10 digits (Available number –‘0’, ‘1’, ‘2’, ‘3’, ‘4’, ‘5’)
* Master Id(0x01) can not be controlled.
ii. NOTIFICATION_REPORT
Notification Status (1byte) : Unsolicited messages(0xFF)

9
AMADAS Lever Lock
Notification Type (1byte) : Access Control(0x06)
Event (1byte) : Single user code deleted(0x0D), New user code added(0x0E)
