Amana AGP200VDW0 User manual

20" (50,8 CM) GAS
RANGE -STANDING
PILOTIGNITION
v:gLo_d!@
For questions about features, operation/perlormance,
parts, accessodes or service, call: 1-800-843-0304
or visit our website at...
www.amana.com
ESTUFAA GAS DE
20"(50,8 CM)-
ENCENDIDODE
PILOTO
Para consultas respecto de caracteristicas, funcionamiento,
rendimiento, piezas, accesorios o servicio t6cnico
Ilame al: 1-800-843-0304
o visite nuestro sitio de internet en:
www.amana.com
Table of Contents/{ndice ...................................... 2
W10320693A

TABLEOF CONTENTS
RANGE SAFETY ............................................................................. 2
The Anti-Tip Bracket .................................................................... 4
COOKTOP USE .............................................................................. 5
Cooktop/Oven Temperature Controls ......................................... 5
Pilot Lights .................................................................................... 6
Surface Burners ........................................................................... 6
Surface Pilots ............................................................................... 7
Home Canning ............................................................................. 7
Cookware ..................................................................................... 7
OVEN USE ....................................................................................... 8
Aluminum Foil............................................................................... 8
Positioning Racks and Bakeware ................................................ 8
Bakeware ...................................................................................... 8
Oven Vent ..................................................................................... 9
Baking and Roasting .................................................................... 9
Broiling .......................................................................................... 9
RANGE CARE ............................................................................... 10
Removing the Oven Bottom ...................................................... 10
General Cleaning ........................................................................ 10
Oven Door .................................................................................. 11
TROUBLESHOOTING .................................................................. 11
ASSISTANCE OR SERVICE ......................................................... 13
In the U.S.A................................................................................ 13
WAR RANTY .................................................................................. 14
[NDICE
SEGURIDAD DE LA ESTUFA ....................................................... 15
El soporte antivuelco .................................................................. 16
USO DE LA SUPERFICIE DE COCCION .................................... 18
Controles de temperatura de la superficie de
coccion y del horno .................................................................... 18
Luces piloto ................................................................................ 18
Quemadores de superficie ......................................................... 19

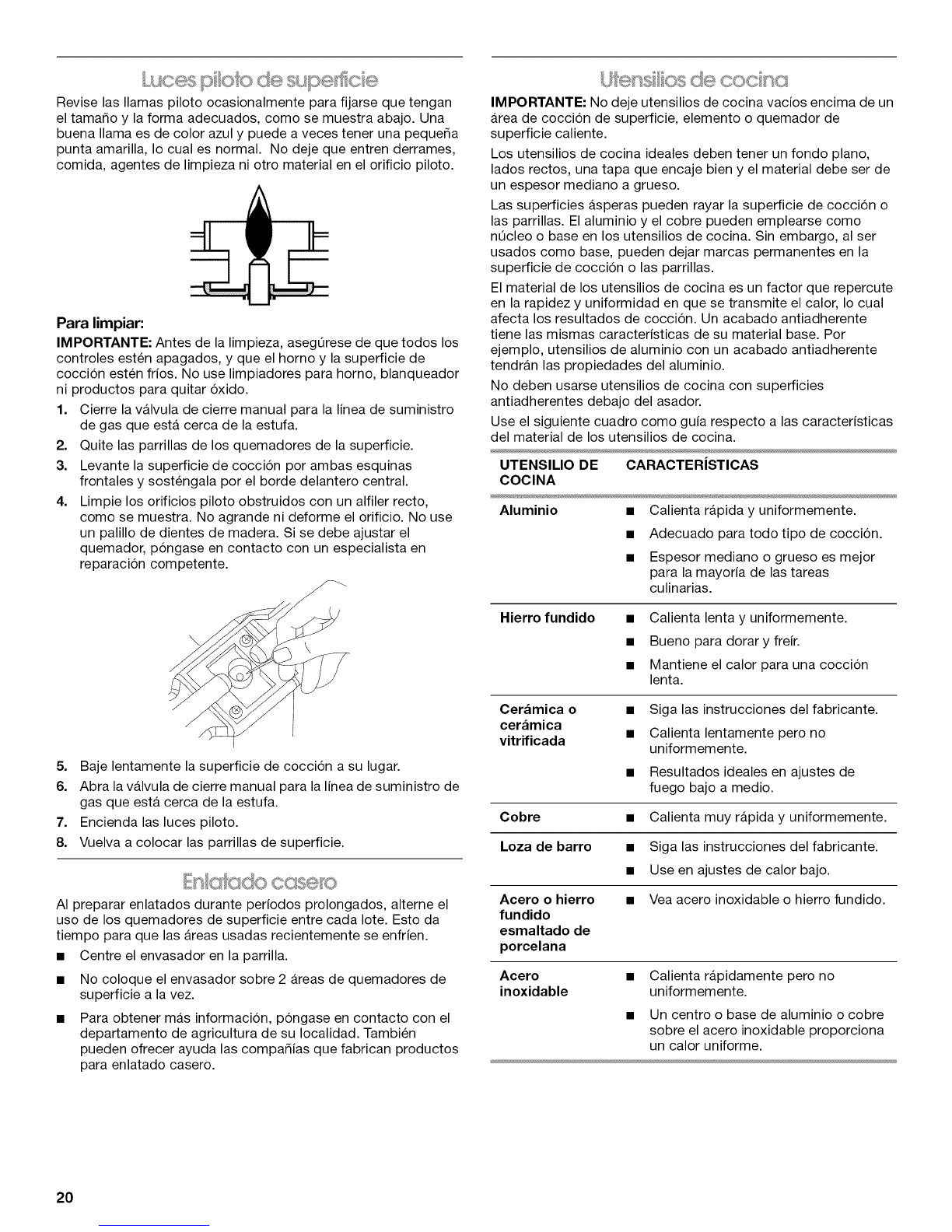

Luces piloto de superficie .......................................................... 20
Enlatado casero .......................................................................... 20
Utensilios de cocina ................................................................... 20
USO DEL HORNO ......................................................................... 21
Papel de aluminio ....................................................................... 21
Posicion de las parrillas y los utensilios para hornear ............... 21
Utensilios para hornear .............................................................. 21
Ducto de escape del horno ........................................................ 22
Como hornear y asar.................................................................. 22
Como asar a la parrilla ............................................................... 22
CUIDADO DE LA ESTUFA ........................................................... 23
Como quitar el fondo del horno ................................................. 23
Limpieza general ........................................................................ 23
Puerta del horno ......................................................................... 24
SOLUCION DE PROBLEMAS ...................................................... 25
AYUDA O SERVICIO TI_CNICO ................................................... 26
En los EE.UU.............................................................................. 26
GARANTIA ..................................................................................... 27
RANGESAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously injured if you don't immediately
follow instructions.
You can be killed or seriously injured if you don't follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
2

WARNING: If the information in this manual is not followed exactly, a fire or explosion
may result causing property damage, personal injury or death.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance.
- WHAT TO DO IF YOU SMELL GAS:
•Do not try to light any appliance.
•Do not touch any electrical switch.
•Do not use any phone in your building.
•Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
•If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency or
the gas supplier,
WARNING: Gas leaks cannot always be detected by smell.
Gas suppliers recommend that you use a gas detector approved by UL or CSA.
For more information, contact your gas supplier.
If a gas leak is detected, follow the "What to do if you smell gas" instructions.
State of California Proposition 65 Warnings:
WARNING: This product contains a chemical known to the State of California to cause cancer.
WARNING: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm.

Therangewillnottipduringnormaluse.However,therangecantipifyouapplytoomuchforceorweighttotheopendoorwithoutthe
anti-tipbracketfasteneddownproperly.
Anti-Tip Bracket
\
Range Foot
Tip Over Hazard
A child or adult can tip the range and be killed.
Connect anti-tip bracket to rear range foot.
Reconnect the anti-tip bracket, if the range is moved.
See the installation instructions for details.
Failure to follow these instructions can result in death or serious burns to children and adults.
Making sure the anti-tip bracket is installed:
• Slide range forward.
•Look for the anti-tip bracket securely attached to floor.
•Slide range back so rear range foot is under anti-tip bracket.
iMPORTANT SAFETY iNSTRUCTiONS
WARNING: To reduce the risk of fire, electrical shock,
injury to persons, or damage when using the range, follow
basic precautions, including the following:
[] WARNING: TO REDUCE THE RISK OF TIPPING OF
THE RANGE, THE RANGE MUST BE SECURED BY
PROPERLY INSTALLED ANTI-TIP DEVICES. TO CHECK
IF THE DEVICES ARE INSTALLED PROPERLY, SLIDE
RANGE FORWARD, LOOK FOR ANTI-TIP BRACKET
SECURELY ATTACHED TO FLOOR, AND SLIDE RANGE
BACK SO REAR RANGE FOOT IS UNDER ANTI-TIP
BRACKET.
[] WARNING: NEVER use this appliance as a space
heater to heat or warm the room. Doing so may result in
carbon monoxide poisoning and overheating of the oven.
[] WARNING: NEVER cover any slots, holes or passages
in the oven bottom or cover an entire rack with materials
such as aluminum foil. Doing so blocks air flow through the
oven and may cause carbon monoxide poisoning.
Aluminum foil linings may also trap heat, causing a fire
hazard.
[] CAUTION: Do not store items of interest to children in
cabinets above a range or on the backguard of a range -
children climbing on the range to reach items could be
seriously injured.
SAVE THESE
[] Proper Installation - The range, when installed, must be
electrically grounded in accordance with local codes or, in
the absence of local codes, with the National Electrical
Code, ANSl/NFPA 70. Be sure the range is properly
installed and grounded by a qualified technician.
[] This range is equipped with a three-prong grounding plug
for your protection against shock hazard and should be
plugged directly into a properly grounded receptacle. Do
not cut or remove the grounding prong from this plug.
[] Disconnect power before servicing.
[] Injuries may result from the misuse of appliance doors or
drawers such as stepping, leaning, or sitting on the doors
or drawers.
[] Maintenance - Keep range area clear and free from
combustible materials, gasoline, and other flammable
vapors and liquids.
[] Storage in or on the Range - Flammable materials should
not be stored in an oven or near surface units.
[] Top burner flame size should be adjusted so it does not
extend beyond the edge of the cooking utensil.
For self=cleaning ranges -
[] Before Self-Cleaning the Oven - Remove broiler pan and
other utensils. Wipe off all excessive spillage before
initiating the cleaning cycle.
iNSTRUCTiONS

COOKTOP USE
This manual covers several different models. The range you have purchased may have some or all of the items listed. The locations and
appearances of the features shown here may not match those of your model.
F
_rl_ana
oo
o@
E.Right rear burner control
F. Right front burner control
A. Surface burner Iocator
B.Left rear burner control C. Left front burner control
D. Oven temperature control knob
Fire Hazard
Do not let the burner flame extend beyond the edge of
the pan.
Turn off all controls when not cooking.
Failure to follow these instructions can result in death
or fire.
Before setting a control knob, place filled cookware on the grate.
Do not operate a burner using empty cookware or without
cookware on the grate.
To Set Burner Temperature:
1. Push in and turn knob counterclockwise to LITE.
2. Turn knob to anywhere between HIGH and LOW. Use the
following chart as a guide when setting heat levels.
3. To turn off surface burners, turn knobs clockwise to the "Off"
position.
SETTING RECOMMENDED USE
HIGH
6 (Medium)
• Start food cooking.
• Bring liquid to a boil.
• Hold arapid boil.
• Quickly brown or sear food.
• Fry or saute foods.
• Cook soups, sauces and gravies.
• Stew or steam foods.
LOW • Keep food warm.
• Simmer.
To Set Oven Temperature:
Push in and turn oven control knob to desired temperature
setting.

To Light Standing Pilot Lights:
Before using the range, the standing pilots must be lit. They will
stay lit after turning off the burners.
1. Make sure all controls are off and the oven and cooktop are
cool.
2. Remove surface grates from the cooktop.
3. Lift the cooktop by both front corners.
4. Using a match, light both burner pilot lights.
5. Slowly lower the cooktop until it snaps into place.
6. Push in and turn each surface burner control knob to the "HI"
position. The flame should light within 4 seconds.
7. If surface burners do not ignite, repeat steps 3 to 6.
8. Replace cooktop grates.
To Light Oven Pilot Light:
1. Make sure all controls are off and the oven is cool.
2. Open the oven door to remove oven racks and the oven
bottom tray.
3. Remove the fasteners holding the flame spreader. Lift and
pull out the flame spreader.
A. Oven bottom tray
B. Fasteners
C. Flame spreader
4. Locate the pilot light on the left-hand side of the oven burner.
5. Push in oven control knob and hold, then ignite the oven pilot
light with a match.
6. Hold the oven control knob in for 10 seconds to make sure
the pilot will remain lit.
7. If the oven pilot light turns off after releasing the knob, repeat
steps 5 and 6.
8. Replace the flame spreader, oven bottom tray, and racks.
NOTE: The pilot light will stay lit after turning off the oven. The
oven burner should turn on the next time a temperature is
selected on the oven control knob. If the oven burner does not
turn on, repeat previous steps for lighting oven pilot light.
IMPORTANT: Do not obstruct the flow of combustion and
ventilation air around the burner grate edges.
Burner ports: Check burner flames occasionally for proper size
and shape as shown below. A good flame is blue in color, not
yellow. Keep this area free of soil and do not allow spills, food,
cleaning agents or any other material to enter the burner ports.
_)
0 01 oU
i/
B
A. 1-1V2" (25-38 mm)
B. Burner ports
To Clean:
IMPORTANT: Before cleaning, make sure all controls are off and
the oven and cooktop are cool. Do not use oven cleaners, bleach
or rust removers.
1. Close the gas manual shutoff valve near the range.
2. Remove the surface burner grates.
3. Lift the cooktop by both front corners and hold it by the front
center edge.
4. Clean clogged burner ports with a straight pin as shown. Do
not enlarge or distort the port. Do not use a wooden
toothpick. If the burner needs to be adjusted, contact a
trained repair specialist.
6

5. Slowly lower the cooktop into place.
6. Open the gas manual shutoff valve near the range.
7. Ignite pilot lights.
8. Replace surface grates.
Check for pilot flames occasionally, for proper size and shape as
shown below. A good flame is blue in color, but sometimes can
have a slight yellow tip, which is normal. Do not allow spills, food,
cleaning agents or any other material to enter the pilot hole.
To Clean:
IMPORTANT: Before cleaning, make sure all controls are off and
the oven and cooktop are cool. Do not use oven cleaners, bleach
or rust removers.
1. Close the gas manual shutoff valve near the range.
2. Remove the surface burner grates.
3. Lift the cooktop by both front corners and hold it by the front
center edge.
4. Clean clogged pilot holes with a straight pin as shown. Do not
enlarge or distort the port. Do not use a wooden toothpick. If
the burner needs to be adjusted, contact a trained repair
specialist.
5. Slowly lower the cooktop into place.
6. Open the gas manual shutoff valve near the range.
7. Ignite pilot lights.
8. Replace surface grates.
When canning for long periods, alternate the use of surface
burners between batches. This allows time for the most recently
used areas to cool.
• Center the canner on the grate.
• Do not place canner on 2 surface burners at the same time.
• For more information, contact your local agricultural
department. Companies that manufacture home canning
products can also offer assistance.
IMPORTANT: Do not leave empty cookware on a hot surface
cooking area, element or surface burner.
Ideal cookware should have a flat bottom, straight sides and a
well-fitting lid, and the material should be of medium-to-heavy
thickness.
Rough finishes may scratch the cooktop or grates. Aluminum and
copper may be used as a core or base in cookware. However,
when used as a base they can leave permanent marks on the
cooktop or grates.
Cookware material is a factor in how quickly and evenly heat is
transferred, which affects cooking results. A nonstick finish has
the same characteristics as its base material. For example,
aluminum cookware with a nonstick finish will take on the
properties of aluminum.
Cookware with nonstick surfaces should not be used under the
broiler.
Use the following chart as a guide for cookware material
characteristics.
COOKWARE CHARACTERISTICS
Aluminum • Heats quickly and evenly.
• Suitable for all types of cooking.
• Medium or heavy thickness is best for
most cooking tasks.
Cast iron
Ceramic or
Ceramic glass
• Heats slowly and evenly.
• Good for browning and frying.
• Maintains heat for slow cooking.
• Follow manufacturer's instructions.
• Heats slowly, but unevenly.
• Ideal results on low to medium heat
settings.
Copper • Heats very quickly and evenly.
Earthenware • Follow manufacturer's instructions.
• Use on low heat settings.
Porcelain • See stainless steel or cast iron.
enamel-on-
steel or cast
iron
Stainless steel • Heats quickly, but unevenly.
• A core or base of aluminum or copper
on stainless steel provides even
heating.

OVEN USE
Odors and smoke are normal when the oven is used the first few
times, or when it is heavily soiled.
IMPORTANT: The health of some birds is extremely sensitive to
the fumes given off. Exposure to the fumes may result in death to
certain birds. Always move birds to another closed and well-
ventilated room.
IMPORTANT: To avoid permanent damage to the oven bottom
finish, do not line the oven bottom with any type of foil or liner.
• On those models with bottom vents, do not block or cover
the oven bottom vents.
• For best cooking results, do not cover entire rack with foil
because air must be able to move freely.
• To catch spills, place foil on rack below dish. Make sure foil is
at least 1/2"(1.3 cm) larger than the dish and that it is turned
up at the edges.
IMPORTANT: To avoid permanent damage to the porcelain
finish, do not place food or bakeware directly on the oven door or
bottom.
RACKS
• Position racks before turning on the oven.
• Do not move racks with bakeware on them.
• Make sure racks are level.
For best performance, cook on one rack. Place the rack so the
top of food will be centered in the oven. To move a rack, pull it
out to the stop position, raise the front edge, then lift out.
FOOD RACK POSITION
Large roasts, turkeys, angel food, bundt 1 or 2
and tube cakes, quick breads, pies
Yeast breads, casseroles, meat and 2
poultry
Cookies, biscuits, muffins, cakes 2 or 3
BAKEWARE
To cook food evenly, hot air must be able to circulate. Allow
2" (5 cm) of space around bakeware and oven walls. Use the
following chart as a guide.
NUMBER OF POSITION ON RACK
PAN(S)
1 Center of rack.
2 Side by side or slightly staggered.
The bakeware material affects cooking results. Follow
manufacturer's recommendations and use the bakeware size
recommended in the recipe. Use the following chart as a guide.
BAKEWARE/ RECOMMENDATIONS
RESULTS
Light colored • Use temperature and time
aluminum recommended in recipe.
• Light golden crusts
• Even browning
Dark aluminum and • May need to reduce baking
other bakeware with temperatures slightly.
dark, dull and/or
nonstick finish • Use suggested baking time.
• Brown, crisp • For pies, breads and casseroles,
crusts use temperature recommended in
recipe.
• Place rack in center of oven.
Insulated cookie
sheets or baking
pans
• Little or no bottom
browning
Stainless steel
• Light, golden
crusts
• Uneven browning
Stoneware/Baking
stone
• Crisp crusts
Ovenproof
glassware, ceramic
glass or ceramic
• Brown, crisp
crusts
• Place in the bottom third of oven.
• May need to increase baking time.
• May need to increase baking time.
• Follow manufacturer's instructions.
• May need to reduce baking
temperatures slightly.
3 or 4 Opposite corners on each rack. Make sure
that no bakeware piece is directly over
another.
8

A
A. Oven vent
The oven vent releases hot air and moisture from the oven, and
should not be blocked or covered. Blocking or covering the oven
vent will cause poor air circulation, affecting cooking and
cleaning results. Do not set plastics, paper or other items that
could melt or burn near the oven vent.
IMPORTANT: To avoid damage to the interior finish, do not place
food or cookware directly on the oven door or the oven bottom.
Before baking and roasting, position the racks according to the
"Positioning Racks and Bakeware" section. When roasting, it is
not necessary to wait for the oven to preheat before putting food
in, unless recommended in the recipe.
To Bake or Roast:
1. Push in and turn the oven control knob to the desired
temperature setting.
2. Place food in oven.
The oven burner will cycle on and off to keep the oven
temperature at the setting.
3. Check food for doneness at minimum time in recipe. Cook
longer if necessary.
4. Push in and turn oven control knob to OFF when finished.
BROILER
The broiler is located below the oven door. The broiler pan and
grid slide out for easy access. Always broil with the broiler and
oven doors closed.
• To avoid damage to the broiler, do not step on or apply
weight to the broiler door while it is open.
• Do not preheat broiler before use. Completely close broiler
door during broiling.
• It is possible to broil longer cooking foods such as chicken
pieces at a lower temperature to avoid overbrowning. Turn
the knob to 400°F or 450°F, rather than Broil, for low
temperature broiling.
• Do not use broiler cavity for storage.
• Use only the broiler pan and grid provided with the range. It is
designed to drain juices and help avert spatter and smoke.
• For proper draining, do not cover the grid with foil. The
bottom of the pan may be lined with aluminum foil for easier
cleaning.
• Trim excess fat to reduce spattering. Slit the remaining fat on
the edges to avert curling.
• Pull out oven rack to stop position before turning or removing
food. Use tongs to turn food to avoid the loss of juices. Very
thin cuts of fish, poultry or meat may not need to be turned.
• After broiling, remove the pan from the oven when removing
the food. Drippings will bake on the pan if left in the heated
oven, making cleaning more difficult.
To Broil:
1. Open the broiler door and take out the broiler pan and grid.
2. Place food on the grid so grease can drain down into the
lower part of the broiler pan.
3. Place the pan on the broiler rack and close the broiler door.
4. Push in and turn the oven control knob to broiler position. The
temperature can be lowered at any time during the broiling by
turning the oven control knob to the desired temperature.
5. Push in and turn oven control knob to OFF position when
finished.
BROILING CHART
For best results, place food 3" (7.0 cm) or more from the broil
element. Times are guidelines only and may need to be adjusted
for individual foods and tastes.
COOK TIME
(in minutes)
FOOD SIDE 1SIDE 2
Chicken
bone-in pieces, 15-17 15-17
boneless breasts 11-13 11-13
Fish Fillets
1/2-3/4"(1.25-1.8 cm) thick 7-8 3-4
Frankfurters 5-6 2-3
Ground meat patties*
3/4"(1.8 cm) thick, well-done* 11-13 6-7
Ham slice, precooked
V2"(1.25 cm) thick 6-8 3-4
Lamb chops
1" (2.5 cm) thick 14-17 8-9
Pork chops
1" (2.5 cm) thick 19-21 9-10
5-6
6-7
8-9
Steak
1" (2.5 cm) thick, medium rare, 10-12
medium 12-14
well-done 16-17
*Place up to 12 patties, equally spaced, on broiler grid.

RANGECARE
The oven bottom can be removed for standard cleaning of the
oven.
Before cleaning, make sure the oven is completely cool.
To Remove:
1. Remove the oven racks.
2. Place fingers in the slots in the bottom panel.
A. Lip
3. Lift the rear of the panel up and back.
The lip at the front of the panel should clear the front frame of
the oven cavity.
4. Lift the bottom up and out.
To Replace:
Reversethe steps above.
IMPORTANT: Before cleaning, make sure all controls are off and
the oven and cooktop are cool. Always follow label instructions
on cleaning products. Do not wipe down any of the inside
surfaces until the oven has completely cooled down. To avoid
breaking the glass, do not apply a cool damp cloth to the inner
door glass before it has completely cooled.
Soap, water and asoft cloth or sponge are suggested first unless
otherwise noted.
EXTERIOR PORCELAIN ENAMEL SURFACES
(on some models)
Food spills containing acids, such as vinegar and tomato, should
be cleaned as soon as the entire range is cool. These spills may
affect the finish.
Cleaning Method:
• Glass cleaner, mild liquid cleaner or nonabrasive scrubbing
pad:
Gently clean around the model and serial number plate
because scrubbing may remove numbers.
• All-Purpose Appliance Cleaner Part Number 31682 (not
included):
See "Assistance or Service" section to order.
CONTROL PANEL
To avoid damage to the control panel, do not use steel wool,
abrasive cleansers or oven cleaner.
To avoid damage, do not soak knobs.
When replacing knobs, make sure knobs are in the Off position.
On some models, do not remove seals under knobs.
Cleaning Method:
• Warm, soapy water:
Pull knobs straight away from control panel to remove.
PORCELAIN-COATED GRATES AND CAPS
Food spills containing acids, such as vinegar and tomato, should
be cleaned as soon as the cooktop, grates and caps are cool.
These spills may affect the finish.
To avoid chipping, do not bang grates and caps against each
other or hard surfaces such as cast iron cookware.
Do not reassemble caps on burners while they are wet.
Cleaning Method:
• Nonabrasive plastic scrubbing pad and mildly abrasive
cleanser:
Clean as soon as cooktop, grates and caps are cool.
• Dishwasher (grates only, not caps):
Use the most aggressive cycle. Cooked-on soils should be
soaked or scrubbed before going into a dishwasher.
• Gas Grate and Drip Pan Cleaner Part Number 31617:
See "Assistance or Service" section to order.
SURFACE BURNERS
See "Surface Burners" section.
OVEN DOOR EXTERIOR
Cleaning Method:
• Glass cleaner and a soft cloth or sponge:
Apply glass cleaner to soft cloth or sponge, not directly on
panel.
• All-Purpose Appliance Cleaner Part Number 31682 (not
included):
See "Assistance or Service" section to order.
OVEN CAVITY
Food spills should be cleaned when oven cools. At high
temperatures, foods react with porcelain and staining, etching,
pitting or faint white spots can result.
On some models, the oven door can be removed. See "Oven
Door" first.
Cleaning Method:
• Steel-wool pad
OVEN RACKS
Cleaning Method:
• Steel-wool pad
10
