Amantii SYM-50-XT-LUMINA Operating instructions

BS1910050-1
SYM-50-XT-LUMINA
BS19100650-1
SYM-60-XT-LUMINA
BS1910074-1
SYM-74-XT-LUMINA
BS1910088-1
SYM-88-XT-LUMINA
BS1910100-1
SYM-100-XT-LUMINA
www.amantii.com
WARNING: This product can expose you to chemicals including
lead in the wiring, which is [are] known to the State of California
to cause birth defects or other reproductive harm. For more
information visit: www.p65warnings.ca.gov
SAFETY INFORMATION
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other.
If the information in these instructions
are not followed exactly, a fire or
explosion may result causing property
damage, personal injury or loss of life.
WARNING
Version:202309
CONSUMER: RETAIN THIS MANUAL FOR
FUTURE REFERENCE.
INSTALLER: LEAVE THIS MANUAL WITH
THE APPLIANCE.
SYMMETRY XT
LUMINA MODEL SKU:
01.INSTALLATION /
OWNERS MANUAL
ELECTRIC FIREPLACES
ELECTRIC FIREPLACES
01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24

TABLE OF CONTENTS
Please read and carefully follow all of the instruction found in this manual. The instructions
included here will assure that you have many years of dependable and enjoyable service from
your Amantii Electric Fireplace.
IMPORTANT INSTRUCTIONS
CAUTIONS
FCC CAUTIONS
UNPACKING AND TESTING APPLIANCE
GROUNDING APPLIANCE
LOCATING THE FIREPLACE
PRODUCT SPECIFICATION
OUTDOOR INSTALLATIONS
INSTALLATION- BUILT-IN
HARDWIRE INSTALLATION
DECORATIVE MEDIA INSTALLATION
MANUAL OPERATION
REMOTE CONTROL OPERATION
EXPLODED VIEW
ELECTRIC FIREPLACE WARRANTY
3
4
5
6
6
6
8
10
11
14
16
18
17
TROUBLE SHOOTING 21
WIRING DIAGRAM 21
22
23
01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24

SAVE THESE INSTRUCTIONS
1. Read all instructions before installing or using this heater.
2. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surface. If provid-
ed, use handles when moving this heater. Keep combustible materials, such as furniture, pillows,
bedding, papers, clothes and curtains at least 3 feet from the front, sides and rear of the heater.
3. Always unplug heater when not in use.
4. Do not operate the fireplace if it has a damaged cord or plug, after it has malfunctioned, or if the
unit has been dropped or damaged in any way.
5. Do not run the cord under carpeting. Do not cover the cord with throw rugs, runners or anything
else. Arrange the cord away from traffic areas where it could not be tripped over.
6. To disconnect the heater, turn the controls to "OFF" before removing the plug from the outlet.
7. Do not insert or allow foreign objects to enter any ventilation or exhaust opening, as this may
cause an electric shock, fire or damage to the heater.
8. To prevent a possible fire, do not block air intakes in any manner. Do not use on soft surfaces,
like a bed, where openings may become blocked.
9. A heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline,
paint or flammable liquids are used or stored.
10. Use this heater only as described in this manual. Any other use not recommended by the
manufacturer may cause fire, electric shock or injury.
11. Avoid the use of an extension cord, the extension cord will overheat and cause a fire. This
heater is not to be used with an extension cord.
12. Always use properly grounded fused and polarized outlets.
13. Always use ground fault protection where it is required by electrical codes.
14. Always disconnect the power before performing any cleaning, maintenance or relocation of the
heater.
15. To prevent a possible fire, do not burn wood or other materials in this heater.
16. To prevent electric shock or fire, always use a certified electrician, should new circuits or
outlets be required.
17. When transporting or storing the heater, keep it in a dry place, free from excessive vibration.
18. This appliance should not be modified under any circumstances.
19. Packaging material should be kept away from children and be disposed of in a safe manner.
Plastic bags are not toys and should be kept away from children and infants.
20. Do not use this heater in small rooms when they are occupied by persons not capable of
leaving the room on their own, unless constant supervision is provided.
21. If the glass is damaged, do not use the heater in order to avoid a hazard.
22. Extreme caution is necessary when any heater is used by or near children or invalids and
whenever the heater is left operating and unattended.
23.If heater may include an audible or visual alarm to warn that parts of the heater are getting
excessively hot. If the alarm sounds (or illuminates), immediately turn the heater off and inspect
for any objects on or adjacent to the heater that may have blocked the airflow or otherwise caused
high temperatures to have occurred. DO NOT OPERATE THE HEATER WITH THE ALARM
SOUNDING (OR ILLUMINATING).
24. Do not operate any heater after it malfunctions. Disconnect power at service panel and have
heater inspected by a reputable electrician before reusing.
01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24

CAUTIONS
Always install the heater in accordance with this guide. If in doubt obtain
expert advice.
Always make sure the electrical socket is accessible and located adjacent
to, but not above the heater.
Always disconnect the heater from the electrical supply before moving it, or
carrying out cleaning, maintenance.
Always make sure the heater is firmly secured to prevent it from being
tipped over.
Always use a fireguard when young children and infirm persons can come
into contact with the heater.
Never leave children unsupervised in a room where the heater is ON and
unguarded.
Never obstruct or cover the fan outlet or force items into heater openings.
Never use aerosols or steam cleaners on or around the heater.
Never route the main supply cable under carpet etc.
Never install the heater close to curtains or combustible materials.
Never use the heater to dry clothes etc.
Never sit or stand on the heater.
Do’s
Don’ts
01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24

FCC CAUTIONS
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:(1)This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Any Changes or modifcations not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Note:This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference wil not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on,the user is encouraged to try to correct the interference by one or more of
the following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an cxperienced radio/TV technician for help.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and opeated with minimum distance 20cm
between the radiator & your body.
01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24

UNPACKING AND TESTING APPLIANCE
GROUNDING APPLIANCE
LOCATING THE FIREPLACE
Carefully remove the appliance from the box.
Prior to installing the appliance, test to make sure the appliance operates properly by plugging the
power supply cord into a 120 Volt grounded outlet.
Test all aspects of its operation (manual switches, remote and heater) to make sure all
components are operating correctly.
As with most electronic devices, your new electric fireplace has been designed to operate at
temperatures between 5 ℃(41℉） and 35℃(95℉). During the cold winter months, allow the
fireplace to reach room temperature before turning it on.
NOTE: There may be trace of odor during the first few minutes of initial use. This is
harmless, normal and will never occur again.

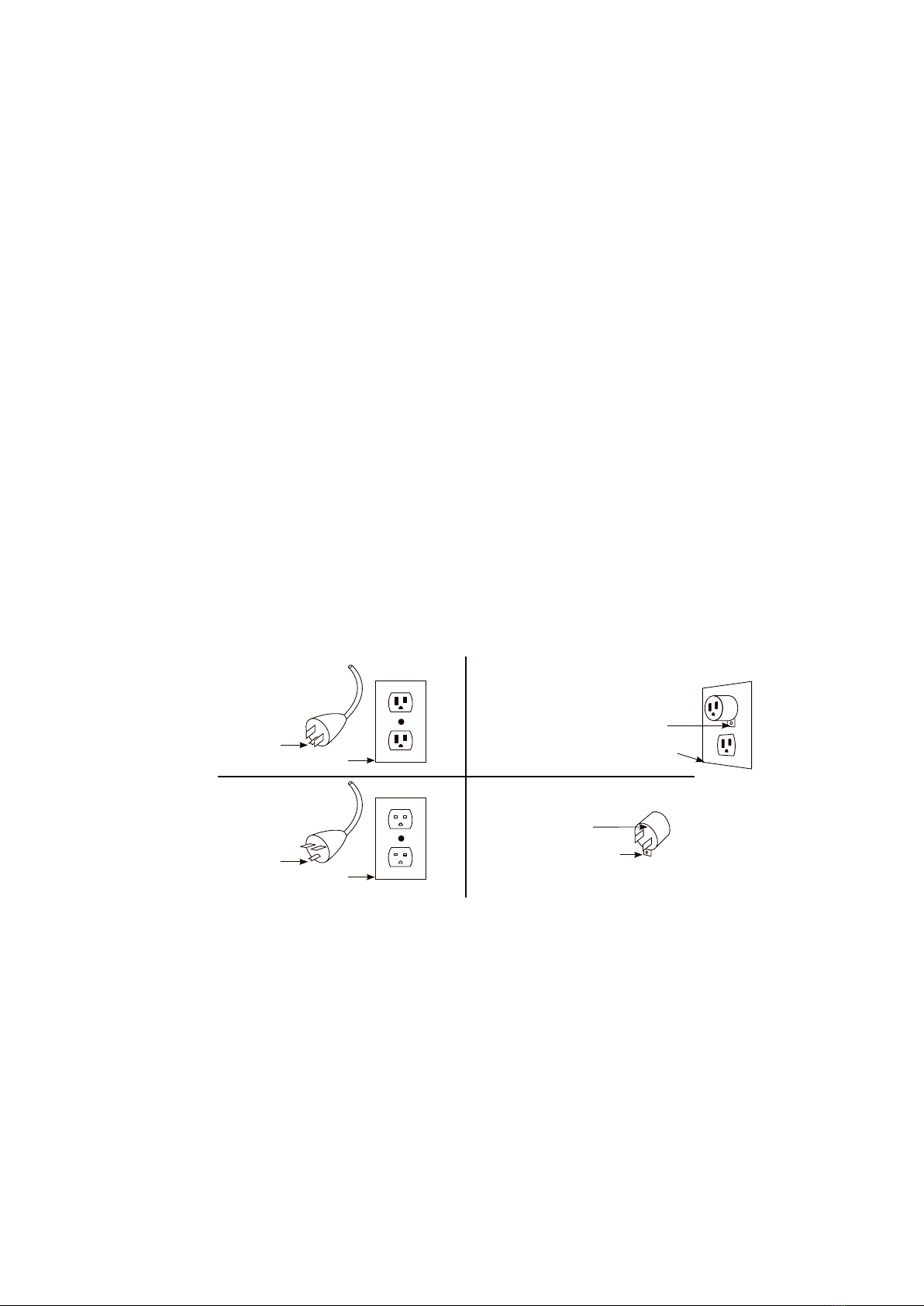

This appliance is for use on 120 Volts. The cord has a plug as shown in (A). An adapter as
shown in (C) is available for connecting three-blade grounding type plugs to two-slot. The green
grounding lug extending from the adapter must be connected to a permanent ground such as a
properly grounded outlet box. The adapter should not be used if a three-slot grounded receptacle
is available.
To disconnect appliance, turn controls to off, then remove plug from outlet.
Plan where to locate and frame the fireplace. This will save time and money later when you install
the fireplace. Before installation consider the following:
1. Where the fireplace is located must allow for wall and ceiling clearances.
2. Consider a location where the fireplace screen will not be exposed to direct sunlight from
windows or doors.
3. A 15 ampere, 120 Volt, 60 Hz branch circuit with proper ground must be available at the
location. Preferably a dedicated branch circuit should be provided to avoid circuit breakers to trip
of fuses to blow.
Adapter
Grounding Lug
Cover of Grounded Outlet Box
Grounding Pin
Cover of Grounded Outlet Box
Grounding Pin
Cover of Grounded Outlet Box
Metal Screw
A B
CD
NOTE: Adaptors are NOT for use in Canada.
01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24

Do not share a socket with other appliances
when using electric fireplaces, please use a
dedicated socket.
Never use with an extension cord or
relocatable power tap (outlet / power strip).
√×
×
×
01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24

W3
H3
D3

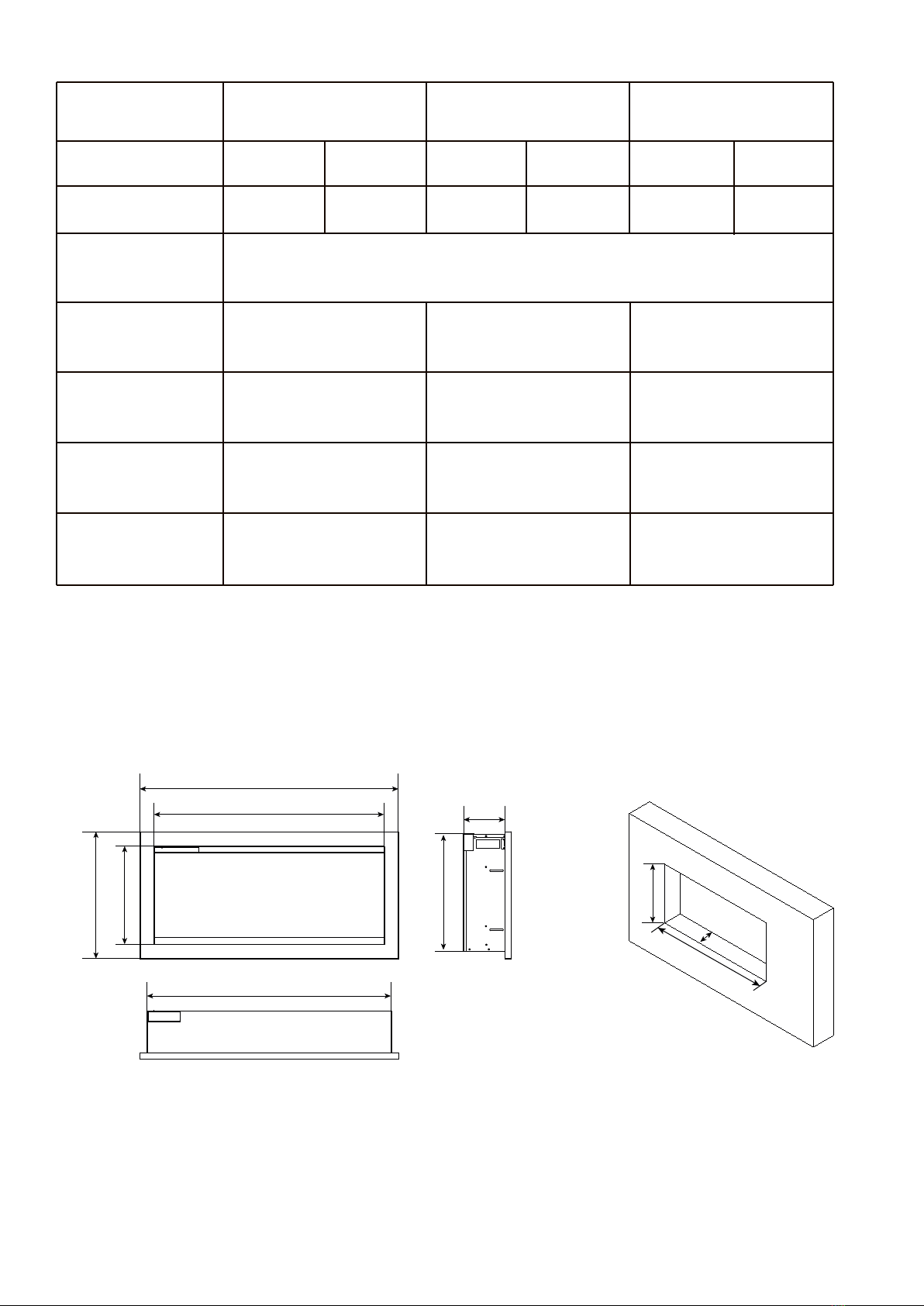

PRODUCT SPECIFICATION
This appliance has been tested in accordance with the UL Standard 2021 for fixed and location
dedicated electric room appliances in the United States and Canada. If you need assistance
during installation, please contact your local dealer.
NOTE: This appliance must be electrically wired and grounded in accordance with local
codes. In the absence of local codes, use the current CSA C22.1 Canadian Electrical Code
in Canada or the ANSI/NFPA 70 National Electrical Code in the United States.
product model
Voltage
1500W 3000W
120V AC 60Hz 240V AC 60Hz
1500W
120V AC 60Hz 240V AC 60Hz
Watts
Appliance size
(W x H x D)
Cord Length
Frame size
(W2 x H2 )
Wall Opening Size
(W3 x H3 x D3 )
Glass Viewing
(W1 x H1 )
SYM-50-XT-LUMINA
BS1910050-1
SYM-60-XT-LUMINA
BS1910060-1
W2
D
H2 H1 H
W1
W
L =70.9”
L =180 cm
50 1/4”x 20 1/8” x 12”
127.6 x 51 x 30.6 cm
60 1/4”x 20 1/8” x 12”
153 x 51 x 30.6 cm
48 3/8” x 17 5/8”
123.1 x 44.6 cm
58 3/8” x 17 5/8”
148.4 x 44.6 cm
51 1/4” x 20 1/4” x 12 1/2”
130.1 x 51.4 x 31.6 cm
61 1/4” x 20 1/4” x 12 1/2”
155.5 x 51.4 x 31.6 cm
52 1/4” x 21 3/8”
132.7 x 54.4 cm
62 1/4” x 21 3/8”
158.2 x 54.4 cm
3000W
NOTE: The wall opening size is suitable for fireplace without adjustable leveling feet.
01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24

product model
Voltage 120V AC 60Hz 120V AC 60Hz 120V AC 60Hz240V AC 60Hz
1500W
Watts
Appliance size
(W x H x D)
Cord Length
Frame size
(W2 x H2 )
Wall Opening Size
(W3 x H3 x D3)
Glass Viewing
(W1 x H1 )
W3
H3
D3
W2
D
H2 H1 H
W1
W
L =70.9”
L =180 cm
74 1/4” x 20 1/8” x 12”
188.5 x 51 x 30.6 cm
72 3/8” x 17 5/8”
184 x 44.6 cm
76 1/4” x 21 3/8”
193.7 x 54.4 cm
86 3/8” x 17 5/8”
219.5 x 44.6 cm
90 1/4” x 21 3/8”
229.3 x 54.4 cm
75 1/4” x 20 1/4” x 12 1/2”
191 x 51.4 x 31.6 cm
89 1/4” x 20 1/4” x 12 1/2”
226.6 x 51.4 x 31.6 cm
101 1/4” x 20 1/4” x 12 1/2”
257.1 x 51.4 x 31.6 cm
88 1/4” x 20 1/8” x 12”
224.1 x 51 x
30.6 cm
100 1/4” x 20 1/8” x 12”
254.6 x 51 x 30.6 cm
98 3/8” x 17 5/8”
250 x 44.6 cm
102 1/4” x 21 3/8”
259.7 x 54.4 cm
3000W
240V AC 60Hz
3000W
240V AC 60Hz
3000W1500W 1500W
NOTE: The wall opening size is suitable for fireplace without adjustable leveling feet.
SYM-74-XT-LUMINA
BS1910074-1
SYM-88-XT-LUMINA
BS1910088-1
SYM-100-XT-LUMINA
BS1910100-1
01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24

OUTDOOR INSTALLATIONS
The Symmetry Bespoke Series electric fireplaces are suitable for installation in outdoor areas
protected from direct water impingement. In addition to maintaining the listed mantel and
combustibles clearances, a rain protection overhang factor of 1/2 shall be constructed to the front
and to each side of the installed appliance. See illustration below. All wiring connections to line
power shall be in accordance with local building code requirements. Inquires about local codes
and regulations must be done prior to installation.

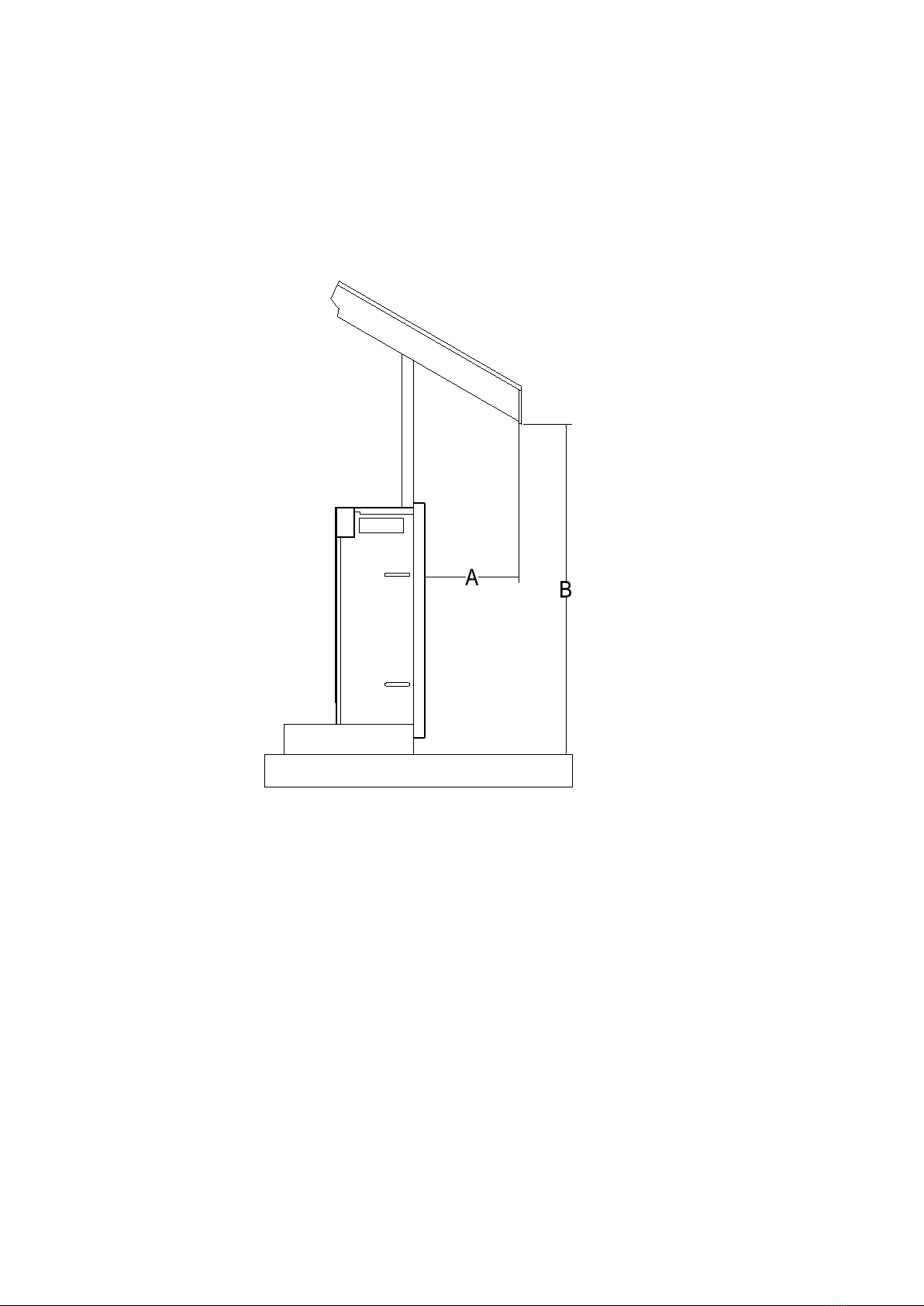

The overhang(A) must extend at least 1/2 the roof-line height. Height is measured from the base
of the fireplace.
For example: if the roof-line(B) is 8” above the base of the fireplace, the overhang(A) must be at
least 4”.
01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24

INSTALLATION- BUILT-IN
NOTE: Due to the many different materials used to build walls, it is highly recommended that you
consult your local builder before you install this appliance on a wall.
PREPARATION
Select a location that is not prone to moisture and is located at least 0.91m or 3 feet away from
combustible materials such as curtains, drapes, furniture, bedding, paper, etc.
2. Mark the desired location on the floor and store the appliance in a safe, dry and dust free place.
3. Prepare a wall with a framed opening to accommodate the size of your unit. Leave at least 1/4”
(6mm) around the edge of the appliance. Any new wiring must be done in compliance with local
and national codes and other applicable regulations.
Prior to installing, test the appliance to make sure the appliance is fully operational by plugging the
power supply cord into a 120 Volt grounded outlet.
THE ROUGH WALL OPENING SIZE OF THE FIREPLACE PLEASE REFER TO THE PRODUCT
SPECIFICATION SHEET.
INSTALLATION
1. Unscrew 4 screws on the top, 4 magnets are at the bottom（The quantity varies depending on
the size of the unit）and take off the trim. (NOTE: Keep hold of the front glass as it may fall down
automatically when the trim is removed.)
Magnetic Stones located here
Screws Located Here
01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24

2. Carefully remove the front glass panel once the trim has been removed. Use caution as the
glass is now loose.
3. Unscrew the 2 screws located on each side and take off the inner side steel panels.
4. Put the trim back onto the appliance and fasten with screws.(NOTE: This step is to make sure
that the fireplace fits the wall opening well and there is no gap between the trim and the wall after
installation)
01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24

5. Put the fireplace into the wall opening and fix it to the wall by screwing 2 screws each side.
6. Remove the trim following STEP 1. Screw back the inner side steel panels.
7. Insert the front glass panel back in place after the media installation has been completed.
01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24

HARDWIRE INSTALLATION
Turn off the appliance completely and let cool before servicing. Only a qualified service person
should service and repair this electric appliance.
If it is necessary to hardwire this appliance, a qualified electrician must remove the cord
connection, and wire the appliance directly to the house hold wiring.
This appliance must be electrically connected and grounded in accordance with local codes, if
hardwired. In the absence of local codes, use the current CSA C22.1 CANADIAN ELECTRICAL
CODE in Canada or the current ANSI/NFPA 70 NATIONAL ELECTRICAL CODE in the United
States.
1. Test the unit before removing the cord.

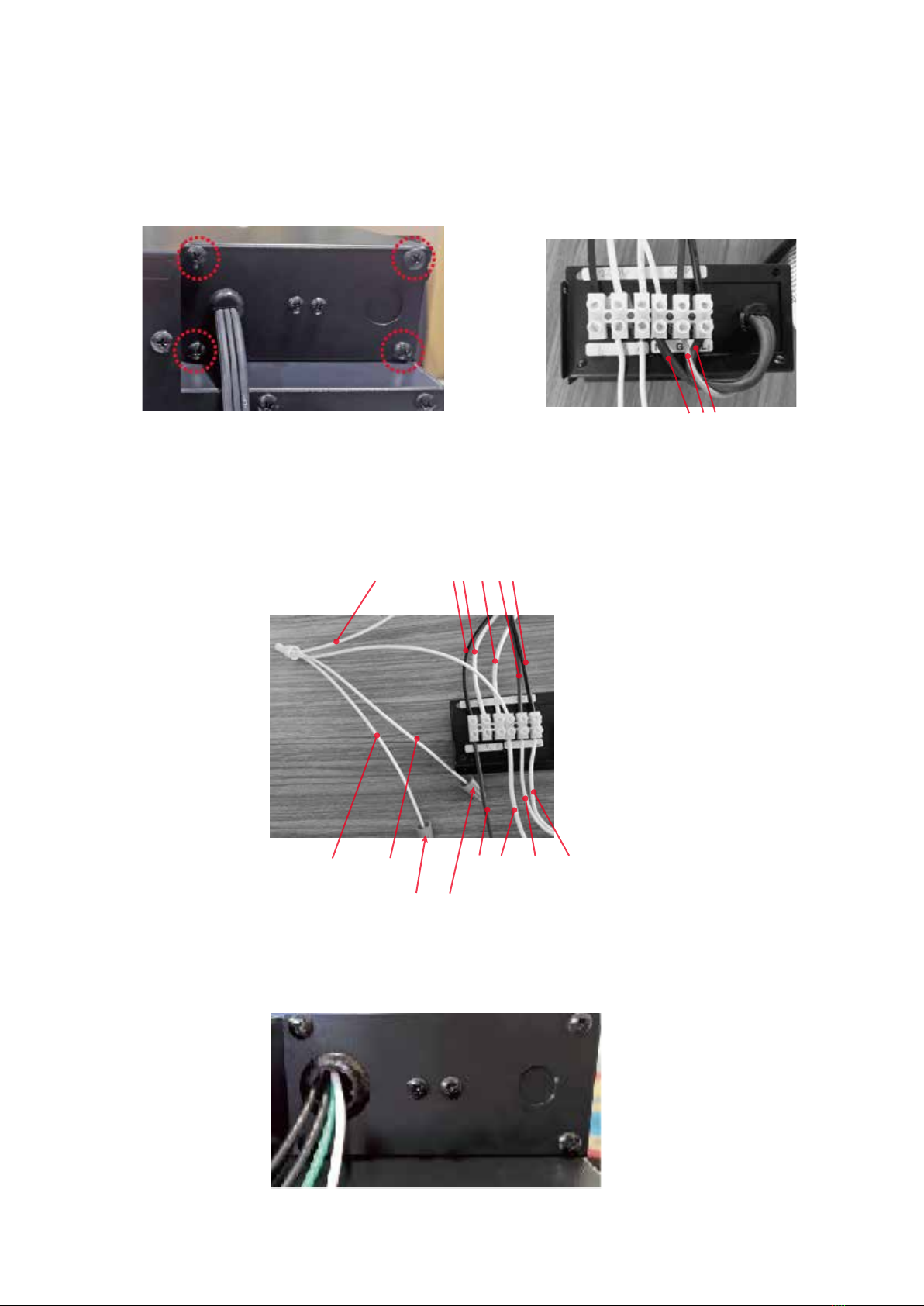

Remove the cover plate from the back top right corner of the appliance by removing the four
screws, as shown below. Unscrew and remove power cord.
2. Attach the wiring to the junction block. Please make sure the live wire goes into the “L1”, the
neutral wire into “N” and the ground wire into “G”.
3. Return the cover plate to the back top right corner and screw the four screws back in to fasten the plate.
Connect to the fireplace
N G L1
Disconnect the N G L
This appliance has two types of hardwired. Connect to 120V or 240V.
Connect to 120V
01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24

1. Test the unit before removing the cord.

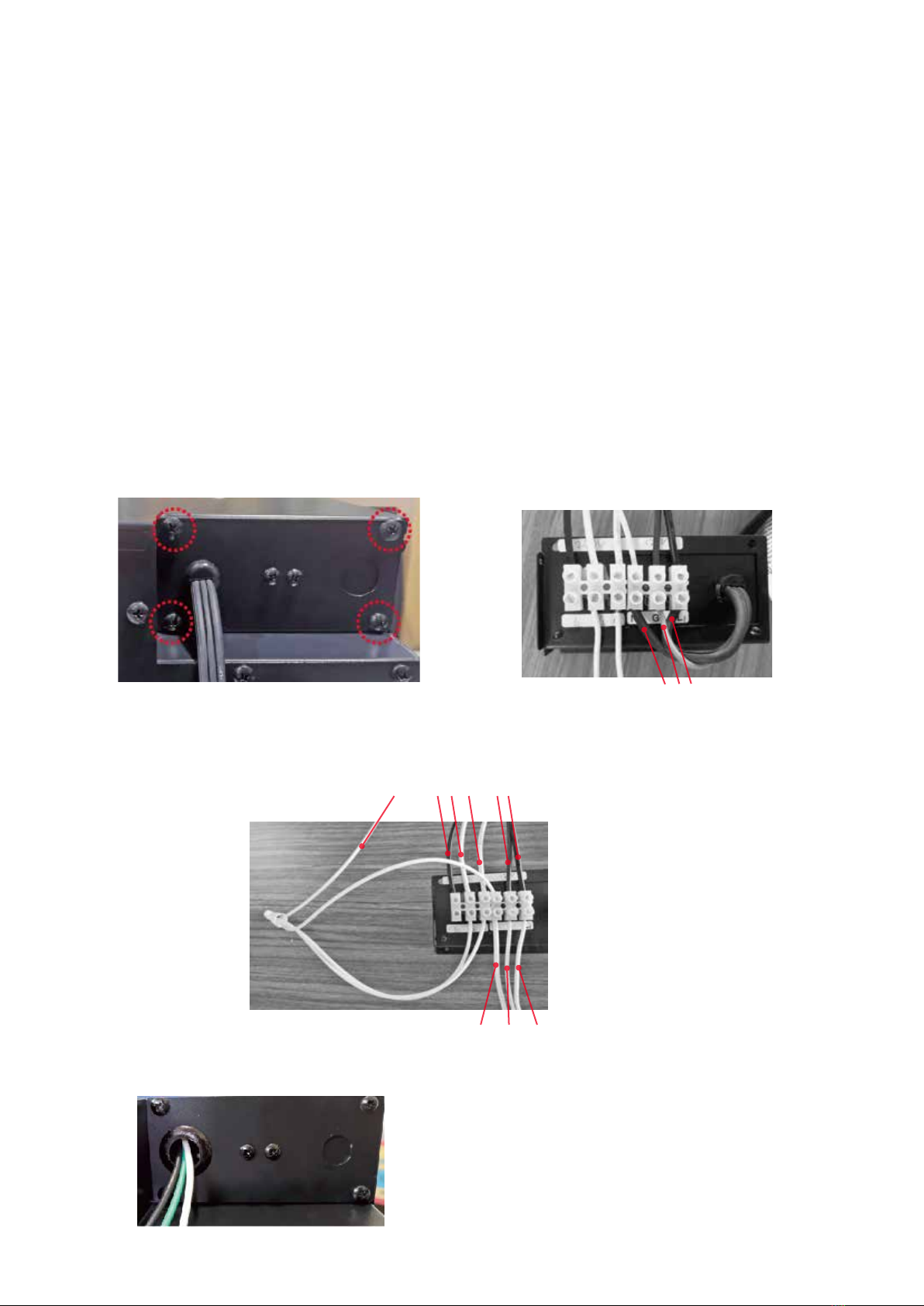

Remove the cover plate from the back top right corner of the appliance by removing the four
screws, as shown below. Unscrew and remove power cord.
2. Attach the wiring to the junction block. Please make sure the live wire goes into the “L1” and
“L2” (as shown below), the neutral wire into “N” and the ground wire into “G”. Tighten the N1
and N2 with two screw caps.
3. Return the cover plate to the back top right corner and screw the four screws back in to fasten
the plate.
N
L2N2
screw caps
N1 G L1
Connect to the fireplace
Disconnect the N G L
Connect to 240V
01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24

DECORATIVE MEDIA INSTALLATION
1. Unscrew 4 screws the quantity varies depending on the size of the unit and take off the trim.
(NOTE: Keep hold of the front glass as it may fall down automatically when the trim is removed.)
Magnetic Stones located here
Screws Located Here
2. Carefully remove the front glass panel once the trim has been removed. Use caution as the
glass is now loose.
3. Pour the media into the tray. Feel free to use any combination of the fire glass media that you
find most appealing. Insert the front glass panel back in place after the media installation has
been completed.
Consumers may purchase optional decorative media if they choose. See dealer for more details.
01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24

MANUAL OPERATION

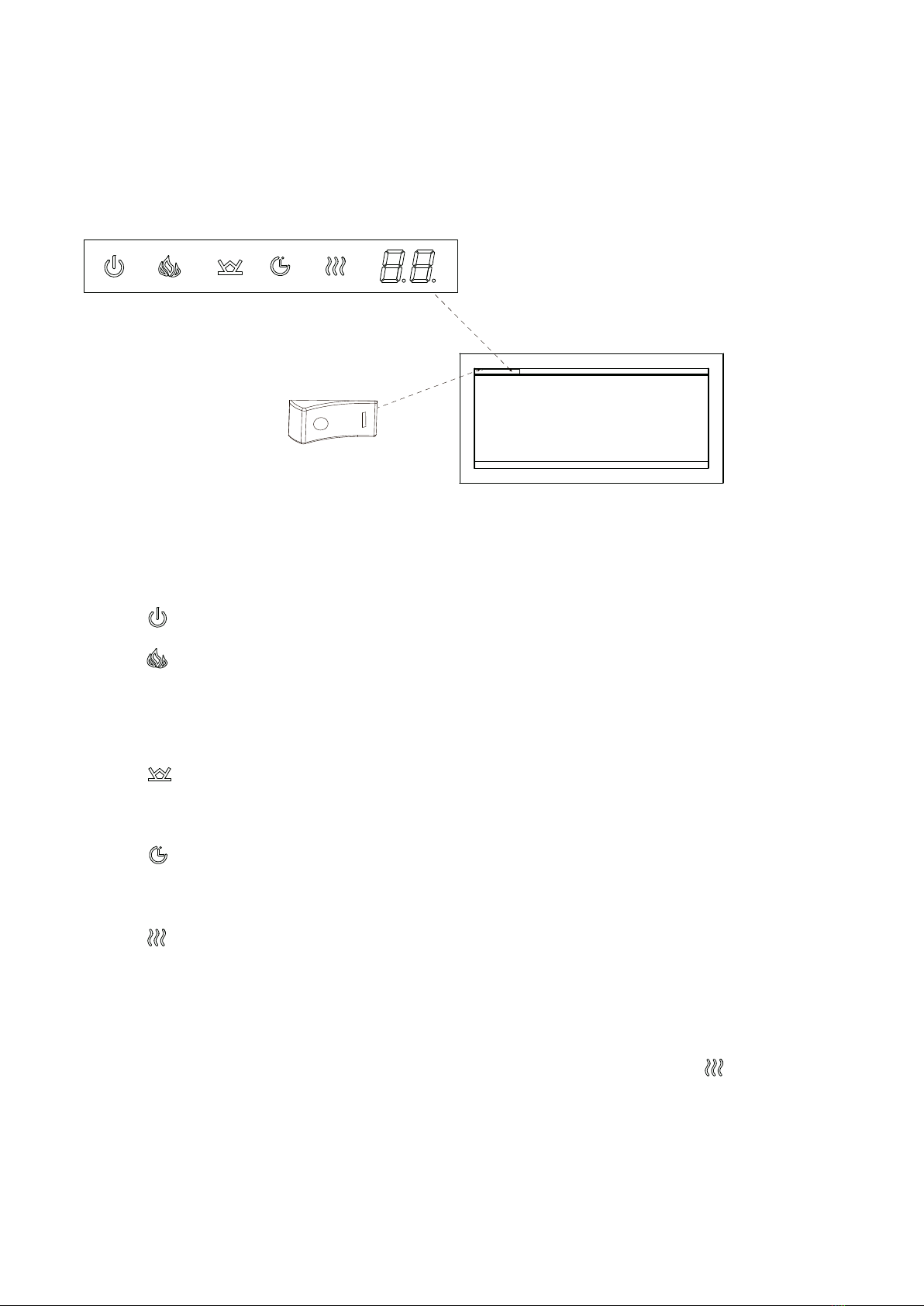

The fireplace operates either by the touch panel located on the left front top side of the fireplace or
by supplied remote control.
1. Press “ ” to turn on and off the fireplace.
2. Press “ ” to adjust the flame brightness. There are 6 brightness levels（L6-L1）and an
off(OF) position. Each time the flame button is pressed, the brightness of the flame decrease.
Press the flame button more than 5 seconds, the timer indicator light on and will rapidly blinks, at
this time, you can use the TuyaSmart APP to connect to the fireplace.
3. Press “ ” to adjust the ember bed brightness. There are 7 brightness levels (d8-d2), dynam-
ic condition(d1) ,and the OFF(OF) setting you can cycle through. Each time the ember bed button
is pressed, the brightness of the ember bed decrease.
4. Press “ ” for the first time to display the current timing，press the button again to clear the
current timing. If the timing in off position, the second press will show 30. Multiple times to set
operating duration to OF, 30 min, 1h, 2h, 3h, 4h, 5h, 6h, 7h, 8h.
5. Press “ ” for the first time to display the current setting temperature，press the button again
to clear the current temperature. If the heater in off position, the second press will show22℃(72℉).
Multiple times to set ambient temperatures at 22℃(72℉), 23℃(74℉),24℃(76℉), 25℃(78℉), 26
℃(80℉), 27℃(82℉), 28℃(83℉),15℃(59℉), 16℃(60℉), 17℃(62℉),18℃(64℉), 19℃(66℉), 20
℃(68℉), 21℃(70℉).
Temperature unit convert function: When the heater is on, press and hold the“ ” Button for 5
seconds, current temperature unit display will convert to another temperature unit.
NOTE:The heater is turned on by switching on the fan first, then after 5 seconds the heating coil.
The heater is turned off by switching off the heating coil first, then after 30 seconds the fan.
Ensure that the ON / OFF Power Switch on the fireplace is in the ON position.
Touch the control panel once to “wakes up” the controls. This will cause the controls to light up. At
this time, you can press the power button to turn on fireplace
01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24

REMOTE CONTROL OPERATION
You must press the key to open the remote control and press the key to enter the setting
current time state. When one of the “Sun”“ Mon”“Tue”“Wed”“Thu”“Fri”“Sat” date is flashing, you
can press the or key to select the current day of the week, and press the key to con-
firm and enter hour setting. When the digital tube of time hour flashes, press the or key to
set the current time and press the key to confirm and enter minute setting. When the digital
tube of time minute flashes, press the or key to set the current time and press the
key to confirm.
This Power Button turns the fireplace on and off. It has a
memory function, press the power button once to turn
power on. Pressing the power button again will turn the
power off.
The Timer Button has adjustable setting at range from 30
minutes to 8 hours. As shown the following: 0:30- 1:00-
1:30- 2:00- 2:30- 3:00- 3:30- 4:00- 4:30- 5:00- 5:30- 6:00-
6:30- 7:00-7 :30- 8:00. Once you have set the timer, The
icon will be displayed on the LCD screen of the remote
control. Press this button again, cancel the timing setting,
and the icon disappears.
When the timer is up, it will close all the functions and
enter standby mode. In this mode, you should touch the
power icon to restart the appliance.
Each time the Heater Button is pressed, the power of the
heater will change. As shown the following: H1- H2-
AUTO(22℃)- OFF(no display).
H1 means the fireplace on Low Heat.
H2 means the fireplace on High Heat.
AUTO means fireplace can automatically adjust to the
temperature you set. When in AUTO, you can set the
desired temperature with or keys. You can
switch temperature unit between Celsius and Fahrenheit
with or keys.
Setting the current time of the remote control
For the remote to function make sure the fireplace is plugged in and the ON / OFF Power Switch
on the fireplace is in the ON position and the remote has batteries.
Important: When operating the remote make sure you point the remote to the center of the
fireplace. Each time you press the button, there will be a beep tone emitted.
01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24

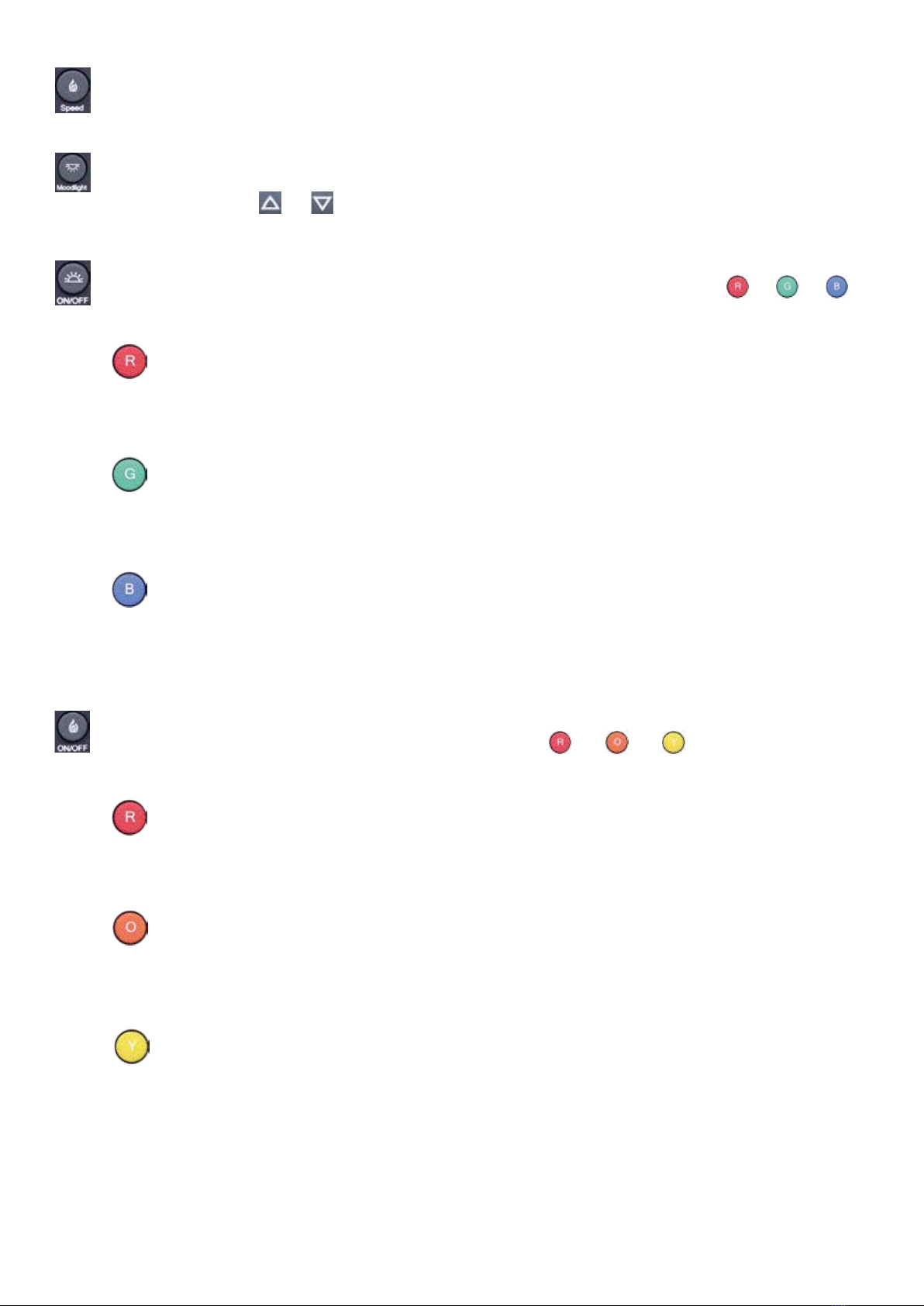

The Moodlight Button turns the moodlight on and off. When in on position, the display
screen of the remote control shows AD 1, when the number “1” flash, you can set the color
of moodlight with or keys. There are 10 different moodlight colors(AD1-10) and
dynamic condition(AD11) to choose from.
The Ember Bed Button turns the Ember bed light on and off. When in on position, the
display screen of the remote control default shows 1 0 0. You can press or or
keys to change the corresponding color.
Each time Speed Button is pressed, the speed of the flame will change. Three options are
available: Medium- High- Low.
Each time the Red Button is pressed the brightness of the red color decrease. There
are 7 brightness levels (8-2), dynamic level(1) and OFF ( no display) settings that can
be cycled through. When no number is displayed on the remote control LCD screen
then the ember bed color is off.
Each time the Green Button is pressed the brightness of the green color decrease.
There are 7 brightness levels (8-2), dynamic level(1) and OFF ( no display) settings
that can be cycled through. When no number is displayed on the remote control LCD
screen then the ember bed color is off.
Each time the Blue Button is pressed the brightness of the blue color decrease. There
are 7 brightness levels (8-2), dynamic level(1) and OFF ( no display) settings that can
be cycled through. When no number is displayed on the remote control LCD screen
then the ember bed color is off.
The Flame Button turns the Flame on and off. When in on position, the LCD screen of the
remote control default shows 0 1 6. You can press or or key to change the
corresponding color.
Each time the Red Button is pressed the brightness of the red color decrease. There
are 6 brightness levels (6-1) and OFF ( no display) settings that can be cycled
through. When no number is displayed on the remote control LCD screen then the
flame color is off.
Each time the Yellow Button is pressed the brightness of the yellow color decrease.
There are 6 brightness levels (6-1) and OFF ( no display) settings that can be cycled
through. When no number is displayed on the remote control LCD screen then the
flame color is off.
Each time the Orange Button is pressed the brightness of the orange color decrease.
There are 6 brightness levels (6-1) and OFF ( no display) settings that can be cycled
through. When no number is displayed on the remote control LCD screen then the
flame color is off.
01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24

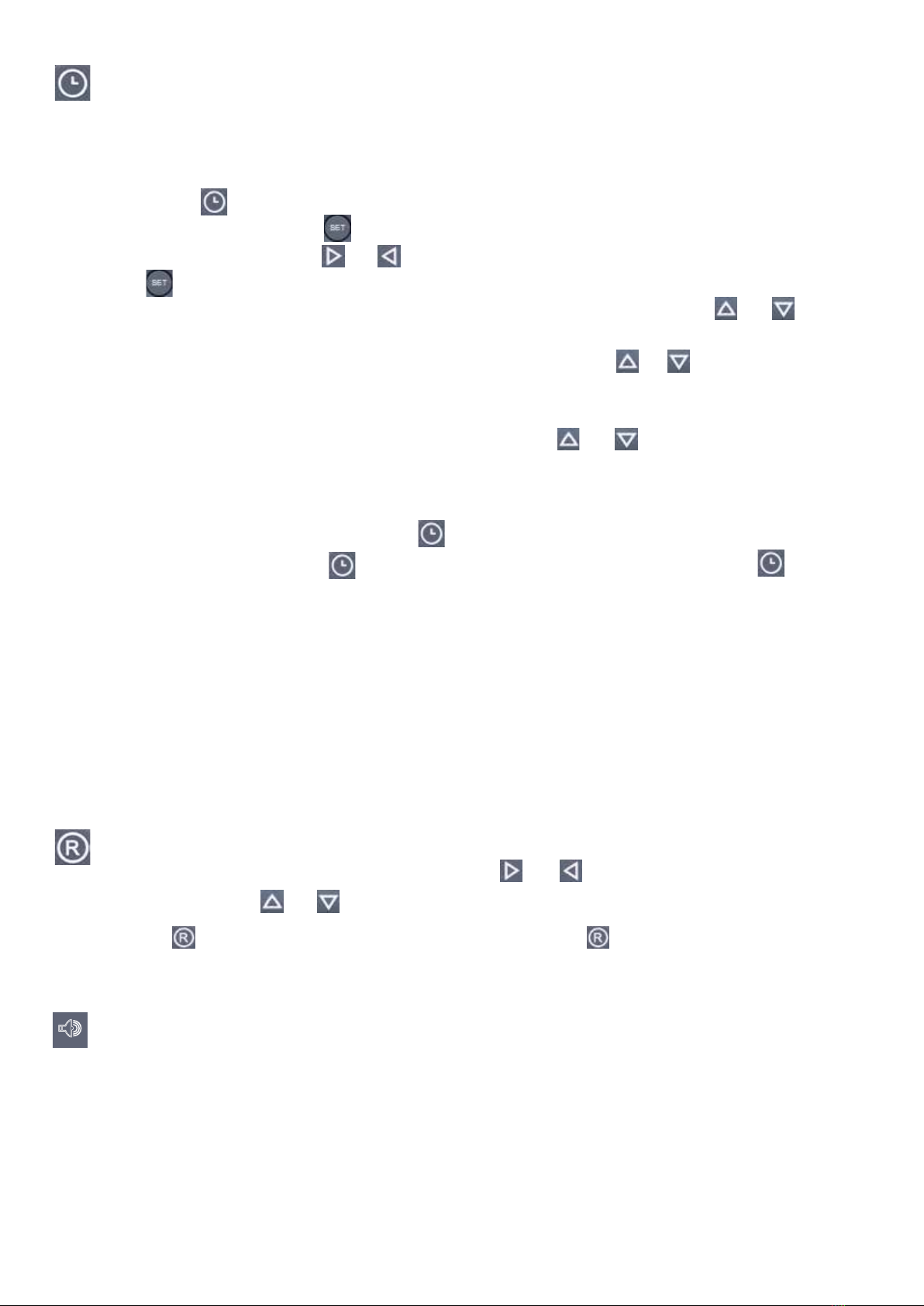

The Refer Button queries the 7-day timer setting. This will not turn on the timer function but
will only show the previous setting. Press the or key to query the day of the
week. Press the or key to query the start up and shutdown time.
Press key once to enter the query mode, press the key again to exit query mode.
Press the key once, 7 days from Monday to Sunday will display on the LCD screen of
the remote control, press key within 5 seconds to enter 7 day timer function . When
“Sun” is flashing use the or key to select the day that you want to set，pressing
the key to confirm. Then “ON” will be displayed on the LCD screen of the remote
control, at the same time, the hour on the digital clock flashes, press the or key
to set the hour and then the minute you want the fireplace to turn on. After setting the start
up time, “OFF” will be displayed on the LCD screen. Use the or key to set the shut-
down time the same as setting the start up time. After setting the shutdown time, “AUTO”
will be displayed on the LCD screen of the remote control. The digital temperature flashes,
at this time you can set the desired temperature with or keys. The fireplace will
beep to acknowledge the settings. Now, the 7 day function has been set, the fireplace will
save the setting and run automatically.
When the 7 day timer is set, the icon will be displayed on the LCD screen of the
remote control. Press the key again to cancel the 7 day timer function, the will
disappear.
7 day timer function
NOTE: Ensure that the current time setting accurate, otherwise the effective time of the 7
day timer function will be different from what you set.
NOTE: If the 7 day timing and general timing exist at the same time, the shutdown time shall be
the earlier time. For example, it is now 6 am on Tuesday, turning on the heaters general timer for 4
hours, will have the shutdown time of 10 am. The previous 7 day shutdown time is 8 am on Tues-
day, so today's heater shutdown time is 8 am instead of 10 am.
This button is disable for Lumina series.
01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
