INSTALLATIONANDOPERATIONINSTRUCTIONSFOR
WALL-MOUNTAND BUILT-INUNITS
WM-FM-26-3623-BG
WM-FM-34-4423-BG
WM-FM-48-5823-BG
WM-FM-60-7023-BG
WM-FM-72-8123-BG
WM-FM-88-10023-BG
SAFETYINFORMATION
WARNING
Iftheinformationinthese
instructionsarenotfollowedexactly,
afireorexplosionmayresultcausing
propertydamage, personal injuryor
loss oflife.
Do not storeorusegasoline orotherflammable
vaporsand liquidsinthe vicinityofthisoranyother
appliance.
INSTALLER:LEAVE THISMANUALWITHTHEAPPLIANCE.
CONSUMER:RETAINTHISMANUALFORFUTUREREFERENCE.

TABLE OFCONTENTS
Pleasereadandcarefullyfollowall ofthe instructionfound inthismanual. Pleasepayspecial
attention tothe safetyinstructionsprovided inthismanual. Theinstructionsincluded herewill
assurethatyou havemanyyearsofdependableandenjoyableservicefromyourAmantii
product.
IMPORTANTINSTRUCTIONS..................................................................................................................................3
HANDLING AND UNPACKING................................................................................................................................4
WM-FM-34-4423-BG...................................................................................................................................................6
WM-FM-48-5823-BG...................................................................................................................................................7
WM-FM-60-7023-BG...................................................................................................................................................8
WM-FM-72-8123-BG...................................................................................................................................................9
WM-FM-88-10023-BG...............................................................................................................................................10
REMOVING FRONTGLASS....................................................................................................................................11
INSTALLATION-WALLMOUNT.............................................................................................................................12
INSTALLATION-BUILT-IN......................................................................................................................................13
MEDIAOPTIONS......................................................................................................................................................14
DECORATIVEMEDIAINSTALLATION.................................................................................................................14
OPERATION..............................................................................................................................................................15
MANUALOPERATION............................................................................................................................................15
REMOTECONTROLOPERATION.........................................................................................................................16
REPLACEMENTPARTS...........................................................................................................................................17

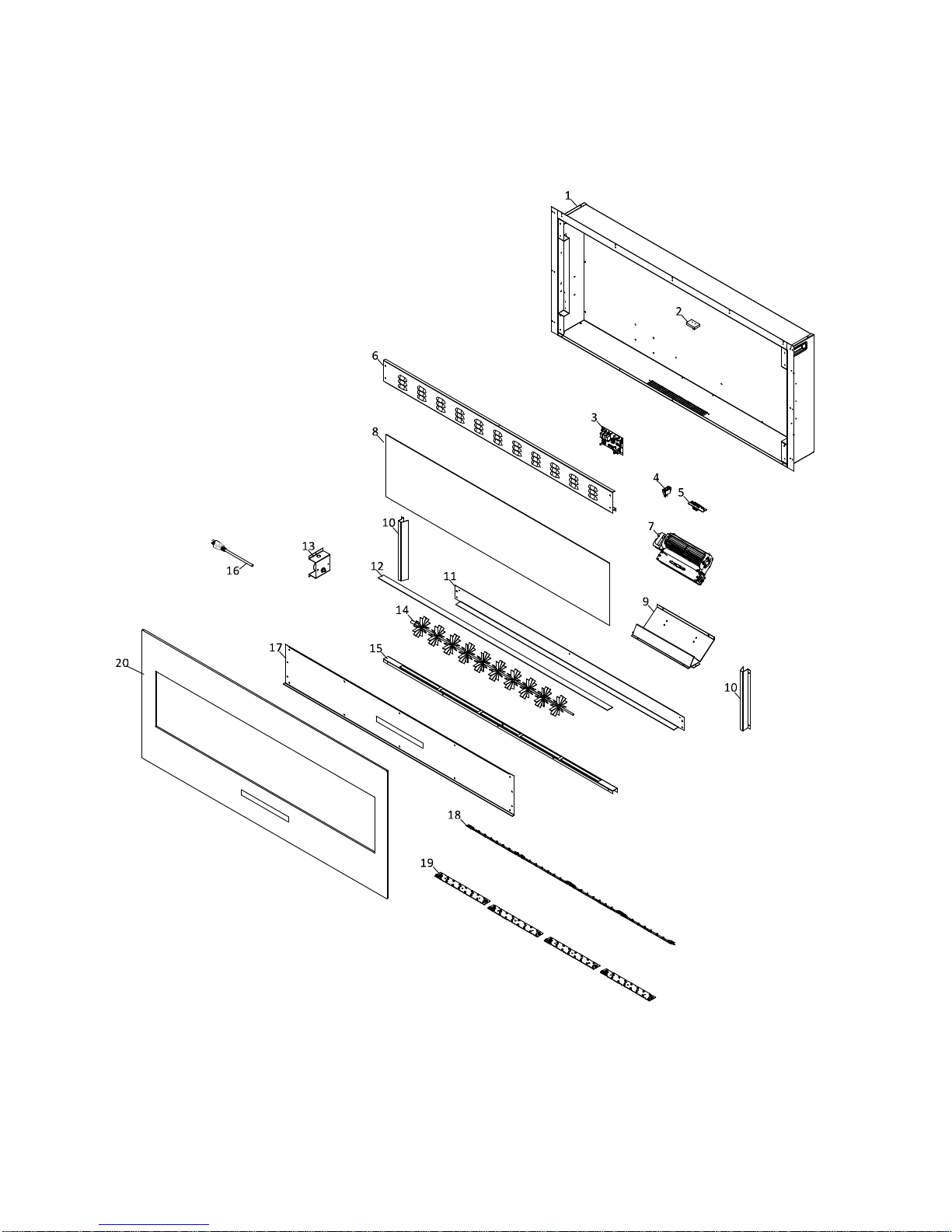

EXPLODEDVIEW....................................................................................................................................................18
TRUBLESHOOTING................................................................................................................................................19
CORRECTDISPOSALOFTHISPRODUCT...........................................................................................................19
SERVICEHISTORY..................................................................................................................................................20
WARRANTY..............................................................................................................................................................21
2

3
IMPORTANTINSTRUCTIONS
PLEASE READ THEFOLLOWING INSTRUCTIONSCAREFULLYBEFOREUSING THE
APPLIANCE.
Whenusing electricalappliances,basicprecautionsshouldbe followed toreducetherisk of
fire, electricshock, and injurytopersons,includingthe following:
1.If the applianceisdamaged,checkimmediatelywiththesupplierbeforeinstallationand
operation.
2.Donot useoutdoors.
3.Donotcoverorobstructinanywaythe heatoutletgrillelocated underneaththe heater.
Overheatingwillresultifthe heaterisaccidentallycovered.
4.Inthe event of afault unplug theheater.
5.Unplugthe heaterwhen not requiredforlong periods.
6.Althoughthisheatercomplieswithsafetystandards,wedo notrecommend itsuseon
deep pilecarpetsoronlong hairtype of rugs.
7.The appliancemust be positionedsothatthe plugisaccessible.
8.Donot placeheavy objectsorsit /standon theheater
9.Neverinstalltheheaterclosetocurtainsorcombustiblematerials
10.Neverusethe heatertodryclothesetc
11.Neveruseaerosolsorsteamcleanersonoraround the heater
12.If the supplycordisdamaged itmustbe replaced bythe manufacturerorserviceagent
orsimilarlyqualified person inordertoavoidahazard.
13. Warning: The heatermust not be used ifthe glass panelsaredamaged.
14.Thisappliancecan be usedbychildren aged from8yearsand aboveandpersonswith
reduced physical,sensoryormentalcapabilitiesorlack ofexperienceandknowledge if
theyhavebeen given supervision orinstructionconcerning useoftheapplianceinasafe
wayand understandthehazardsinvolved.Children shallnotplaywiththe appliance.
Cleaningand usermaintenanceshallnot bemade bychildren without supervision.
15.Children oflessthan3yearsshouldbekeptawayunlesscontinuouslysupervised.
Children agedfrom3yearsand less than8yearsshallonlyswitchon/off the appliance
provided thatithasbeen placedorinstalled initsintended normaloperating positionand
theyhavebeen given supervision orinstructionconcerning useoftheapplianceinasafe
wayand understandthe hazardsinvolved.Children aged from3yearsand less than 8
yearsshallnot plug in, regulateand clean the applianceorperformusermaintenance.
16. CAUTION -Somepartsofthisproductcan becomeveryhotandcauseburns. Particular
attention hastobegiven wherechildren and vulnerablepeoplearepresent.
17.If the supplycordisdamaged, itmust be replaced bythemanufacturer,itsserviceagent
orsimilarlyqualified personsinordertoavoidahazard.
18.The heatermust not be located immediatelybelowasocket-outlet.
19.Donot usethisheaterinthe immediatesurroundingsof abath, ashoweroraswimming
pool.
20.WARNING: Inordertoavoidoverheating, donot coverthe heater.
21.Donotusethisheaterwithaprogrammer,timer,separateremote-controlsystemorany
otherdevicethat switchesthe heateronautomatically,sinceafirerisk existsifthe heater
iscovered orpositioned incorrectly.
22. CAUTION: Inordertoavoidahazarddue toinadvertentresetting ofthe thermalcutout,
thisappliancemustnotbe supplied throughan externalswitching device,suchasa
timer, orconnected toacircuitthatisregularlyswitched on and off bythe utility.

4
23.Regarding the information forinstallation, pleaserefertotherelevant paragraph.
Note: Whentheheateristurnedonforthefirsttime,itmayrelease aslight,harmless
odourorsmoke.Thisodourorsmoke isanormaloccurrence causedbytheinitial
heatingoftheinternal heatingelementsandshouldnotoccuragain.
HANDLINGAND UNPACKING
Beforecontinuing anyfurtherwiththe installation of thisheaterpleaseread the following:
Oneperson shouldbe sufficienttolift the heater.If foranyreasonitisconsidered too heavy
then obtainassistance.
When liftingalways keep yourback straight. Bend yourlegsand not yourback.
Avoidtwisting atthe waist. It isbettertoreposition yourfeet.
Avoidupperbody/top heavy bending.Always bend fromthe kneesratherthanthe waist.
Donotlean forwardorsideways whilst handling the heater.
Always gripwiththe palmof the hand. Donot usethe tipsof fingersforsupport.
Always keep the heaterasclosetothe bodyaspossible.Thiswill minimizethe cantilever
action.
Useglovestoprovide additionalgrip.
Always useassistanceif required.
Unpack thepackageand lift the productgentlyoutofthebox,putiton flatfloorwiththe
hand gripstothetop of the unit.
Carefullyremovethe appliancefromthe box.Priortoinstalling theappliance,testtomake
surethe applianceoperatesproperlybyplugging the powersupplycordintoaconveniently
located 240Voltgrounded outlet.
Screw
There are two screws on each side to fix the front glass.
Please see the figure right side.
TAKE OUT THIS SCREW ON EACH SIDE
before you take off the front glass.

5
WM-FM-26-3623-BG
Description Built-inorWallMountAppliance
Voltage 240VAC50Hz
Watts 1500WMax
NO HEATER 25W
MOTORHEATER 19W
ApplianceWidth 25 1/2”or64.9cm
ApplianceHeight 19 7/8”or50.6cm
ApplianceDepth 61/8”or15.5cm
Gross Weight 52.8lbsor24 kg
Plug Location Left side
CordLength 70 7/8”or180 cm
Rough WallOpening
Size 27”20 1/2“or 68.60 cm 52 cm

6
WM-FM-34-4423-BG
Description Built-inorWallMountAppliance
Voltage 240VAC50Hz
Watts 1900WMax
NO HEATER 25W
MOTORHEATER 19W
ApplianceWidth 33 1/2”or85.2cm
ApplianceHeight 19 7/8”or50.6cm
ApplianceDepth 61/8”or15.5cm
Gross Weight 63.1lbsor28.7kg
Plug Location Left side
CordLength 70 7/8”or180 cm
Rough WallOpening
Size 35”20 1/2“or 88.9cm 52 cm

7
WM-FM-48-5823-BG
Description Built-inorWall Mount
Appliance
Voltage 240VAC60Hz
Watts 1900WMax
NO HEATER 25W
MOTORHEATER 19W
ApplianceWidth 47 1/2”or120.6cm
ApplianceHeight 19 7/8”or50.6cm
ApplianceDepth 61/8”or15.5cm
Gross Weight 81 lbsor36.7kg
Plug Location Left side
CordLength 70 7/8”or180 cm
Rough Wall
Opening Size 49”20 1/2“or 124.5cm 52 cm
.

8
WM-FM-60-7023-BG
Description Built-inorWall Mount
Appliance
Voltage 240VAC60Hz
Watts 1900WMax
NO HEATER 25W
MOTORHEATER 19W
ApplianceWidth 59 1/4”or150.6cm
ApplianceHeight 19 7/8”or50.6cm
ApplianceDepth 61/8”or15.5cm
Gross Weight 97.2lbsor44.2kg
Plug Location Left side
CordLength 70 7/8”or180 cm
Rough Wall
Opening Size 60 5/8”20 1/2“or 154 cm 52cm

9
WM-FM-72-8123-BG
Description Built-inorWall Mount
Appliance
Voltage 240VAC60Hz
Watts 1900WMax
NO HEATER 25W
MOTORHEATER 19W
ApplianceWidth 71”or180.4cm
ApplianceHeight 19 7/8”or50.6cm
ApplianceDepth 61/8”or15.5cm
Gross Weight 113.3lbsor51.5kg
Plug Location Left side
CordLength 70 7/8”or180 cm
Rough Wall
Opening Size 72 1/2”20 1/2“or 184 cm 52 cm

10
WM-FM-88-10023-BG
Description Built-inorWallMountAppliance
Voltage 240VAC60Hz
Watts 1900WMax
NO HEATER 25W
MOTOR
HEATER 19W
ApplianceWidth 88”or223.6cm
ApplianceHeight 19 7/8”or50.6cm
ApplianceDepth 61/8”or15.5cm
Gross Weight 138.6lbsor63kg
Plug Location Left side
CordLength 70 7/8”or180 cm
Rough Wall
Opening Size 89 1/2”20 1/2“or 227.3cm 52 cm

11

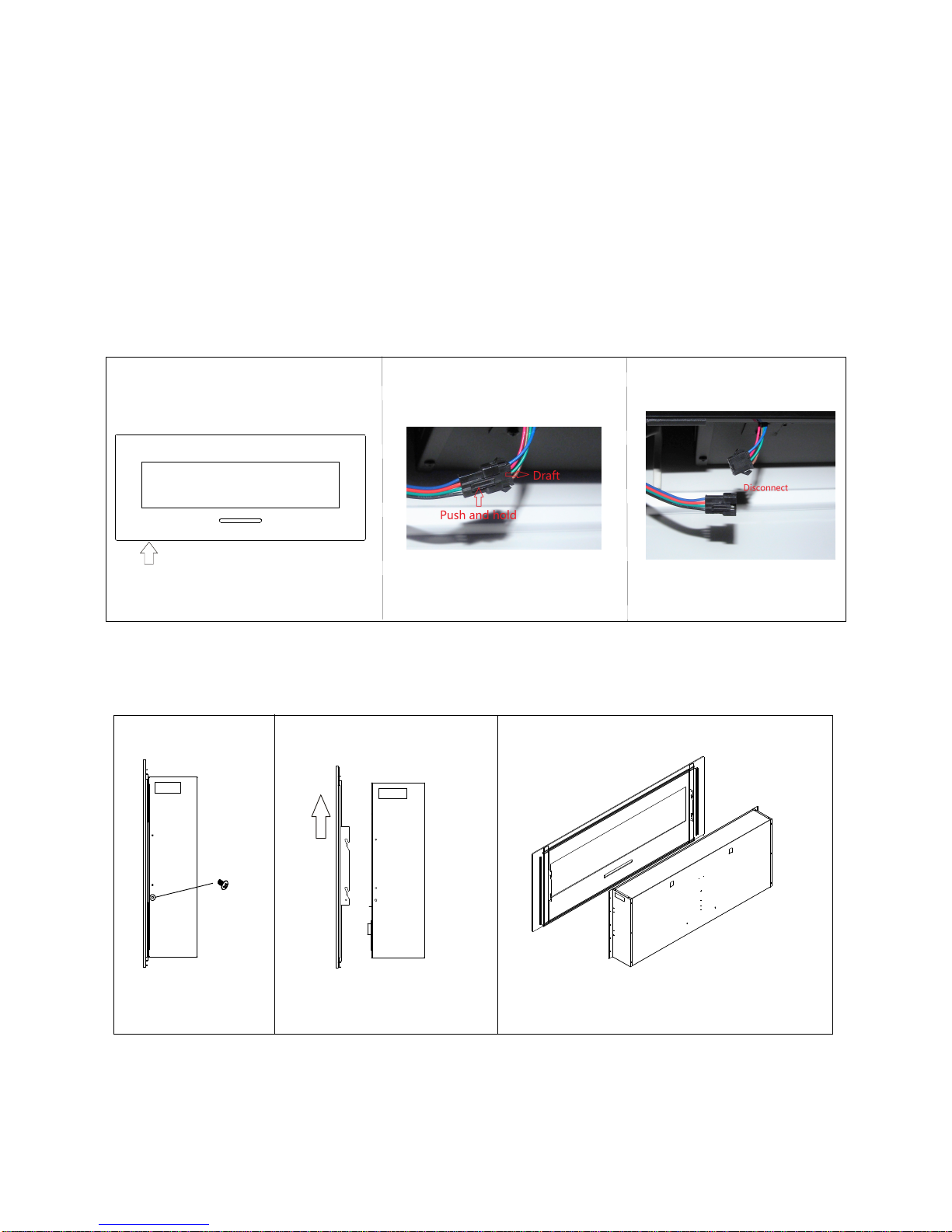

REMOVING FRONTGLASS
The modelsWM-FM-26-3623-BG /WM-FM-36-4423-BG /WM-FM-48-5823-BG /
WM-FM-60-7023-BGhave2screwsforkeepingthefrontglass inplace.Themodels
WM-FM-72-8123-BG and WM-FM-88-10023-BG havefourscrewsforkeeping the frontglass
inplace.
It isrecommended that twopeopletoinstallthefireplace.
1.Thereisamoodlightonthe frontglass ofthosemodels.Beforeyou takeoffthe frontglass
you shouldunplug themoodlightfromthe unit.The plug isattheleftbottombehind the front
glass.
2.Unscrewthe twoorthe fourscrewsand you can liftoffthe frontglass fromthe fourshoulder
screwson the sidesofthe unit .

12
INSTALLATION-WALLMOUNT
1. Selectalocation thatisnotprone to
moistureandislocated atleast0.91 m
or3feetawayfromcombustible
materialssuchascurtainsordrapes,
furniture, bedding ,paper, etc.
2.Referring toFig.1belowselecta
suitablepositioninwhichtomountthe
heaterhorizontally –useaspiritlevelto
achievethis.
3.Check the wall toensurethereisno
wiring,pipe wiresetcintheareatobe
drilled.Drill8ormoreholes(8mm
diameter&40mm depth)using a
suitablesizedrillandputthewallplugs
intothe holes.
4.Takeoutthe hangerfromthe fireplace
byunscrewthe screw.Referring to
Fig.2.
5. Referring toFig. 3，fixthe hangertothe
wall.
6. ReferringtoFig.4，avoidfireplaceto
move, usescrewfixfireplacetowall.
Warning!
Besurethattheboltshavebeenfixed
firmlyenoughtowithstandthe
weight
Fig. 1
Fig. 2
Fig.3
Fig. 4
For wall mount install,please remove the wall mount plate from the back of the appliance.

13
INSTALLATION-BUILT-IN
1.Selectalocation thatisnotprone to
moistureand islocated atleast0.91mor
3feetawayfromcombustiblematerials
suchascurtainsordrapes,furniture,
bedding, paper, etc.
2.Markthe desired location on the floor
and storeapplianceinasafe,dryand
dust freelocation.
3.Prepareawallwithaframed opening to
accommodatethe sizeofyourunit.
Leaveatleast1/4”(6mm)around the
edge ofthe appliance.Anynewwiring
mustbe done incompliancewithlocal
and nationalcodesand otherapplicable
regulations.
Note:Fireplacemuststick outofthewalla
minimumof 1/2”or1.5cm.
Priortoinstallingtheappliance,testto
make suretheappliance operates
properlybypluggingthepowersupply
cordintoaconvenientlylocated240 Volt
groundedoutlet.
The rough wallopening sizeof thefireplace.
W(“) D(“) H(“)
WM-FM-26-3623-BG 27 6 1/2 20 1/2
WM-FM-34-4423-BG 35 6 1/2 20 1/2
WM-FM-48-5823-BG 49 6 1/2 20 1/2
WM-FM-60-7023-BG 60 5/8 6 1/2 20 1/2
WM-FM-72-8123-BG 72 1/2 6 1/2 20 1/2
WM-FM-88-10023-BG 89 1/2 6 1/2 20 1/2
1. Takethefrontglass off fromtheunit.Putthe
bracketson thebothsidesandtopofthefireplace
asshownblew.
2.Lift fireplaceand insertintoopening.
3.Makesurethatthe powersupplyportis
not behindthe wall.
4.Levelthe fireplace.
5.Drivemounting screwsintothe
mounting bracketson theunitand the
wall studs.

14
MEDIAOPTIONS
The fireplaceshipped withanemberlog set
thatispre-installed.Consumershavetheir
choiceof decorativemediashouldtheywish
toinstallit. Consumerschoosefrom
“EMBER”or “ICE:”decorativemedia.
Log set
HZ-12-EMBER
Fi-109-Diamond
DECORATIVE MEDIAINSTALLATION
Removingthelog
Unplugtheunitfromwallandmakesure
controlsareswitchedoff.
Unscrewtwoscrewsbothhand sidetotake
offthe frontglass.The logisshipped in
place.Thelog hastabson eachside that
holditsecure.Therearetwoscrewstofix
the sidepanel.Unscrewthescrewsto
removethe side panels.Removebothside
panelstoremovethe log setandthe LED
strip.
Screwback the sidepanelsafterremovethe
log set.
Installingthedecorative media
Pourthe fireglass mediaintothe tray.Feel
free touseanycombination offireglass
mediathatyou find mostappealing.Put
back the frontglassafteryoufinishinstall
the fireglass.

15
OPERATION
The fireplacecan be operated eitherbythe switcheslocatedontheleftbottomofthe fireplace
unitorbysupplied remotecontrol.
Plug thefireplaceintoa15 Ampwall socket.
MANUALOPERATION
1. The mainpowerON/OFFswitchinposition O,the fireplaceisOFF.
2.WhenmainpowerON/OFF switchisat positionI, the fireplaceisreadytouse.
3.Press the button repeatedlytosetthe heatertodesired heatsetting.The heater
indicatorLEDwillglowwhichshowsthe current heatersettings.
a)RED1900WHEATOUTPUT
b)BLUE950WHEATOUTPUT
c)PURPLEAUTO MODE
AUTOMODE
Underthismode the heaterwillautomaticallyturnONat high heat setting 1900Wheat output
when the roomtemperaturedropsbelow22.When the roomtemperatureisbetween℃
22-25the heateroutputwillswitchtolowheatsetting℃950W.Whenthe roomtemperature
goesabove25the heaterwillbe turned off and the cyclewillcontinue℃.The LEDindicator
willbe PURPLEincolourunderthismode.
4.Flameeffect: Press the button marked toadjustthe flamebrightness.The flame
brightness willcyclethrough –Low-Medium-High -OFF.
5.Mood lighteffect: Press the button marked tochange the mood light colour.
NOTE: If operated atthe Lowheatsetting,thefireplacewillnotprovide asmuchheatoutput
asinthe Highheatsetting,howeverthelowsetting willnotrequireasmuchelectricalpower
tooperate.Toavoidoverloadingacircuit,do notplugthe fireplaceintoacircuitthatalready
hasotherappliancesworking.When the fireplaceisnotinuseswitchoffand unplug.
SAFETYCUT-OFF
lThisapplianceisfitted withasafetycut-offwhichwill operateifthe fireplaceoverheats
(eg.Due toblocked airvents).Forsafetyreasons,the fireplacewillNOTautomatically
reset.
lToresettheappliance,disconnectthe appliancefromthe mainssupplyforatleast10
minutes. Reconnect the supplytothemainsand switchon the appliance.

16
REMOTECONTROLOPERATION
Forremotetofunctionmakesuretheheaterispluggedinandmainspowerswitchlocatedon
the bottomleft hand side isat positionI.
When operating theremotemakesureyou point the remotetothe centreof the fireplaceand
makesureeachtimeyou press the button.Thebuzzerinside theunit willbeep once. It takes
sometimeforthe receivertorespond tothe transmitter.Donot PRESS the buttonsmorethan
oncewithintwosecondsforcorrectoperation.
Poweron button:Thepower-on button attop leftcorneroftheremoteisthe mains
ON/OFF powerbutton.Thiswillturnoffallthefunctionsandthe fireplacewillbe instandby
mode.
DISPLAYON/OFF button:Switching thefireplaceflameand traylightON/OFF.It has
functionsof setting memory.
DISPLAYBLUEbutton:Adjust the blue colorbrightness of flameand tray.
DISPLAYYELLOWbutton:Adjust the yellowcolorbrightness of flameand tray.
DISPLAYORANGEbutton:Adjust the orangecolorbrightnessof flameand tray.
MOODLIGHTON/OFFbutton: Switching themood lightON/OFF.
ADJUSTbutton: Switching thecolorof the mood light.
FLASHbutton: Switching the flashwayof themood light.
HEATERON/OFFbutton: Switching the heaterON/OFF.It hasfunctionsof settingmemory.
HIGHTbutton: Press the high button toswitchthe heatertohigh heat setting 1900W.
LOWbutton: Press the lowbutton toswitchthe heatertolowheat setting 950W.
TEMP. button: Press theTEMP. buttontoswitchthe heatertoAUTO mode. Underthismode
the heaterwilloperateinsimilarwayasexplained aboveforthe manualoperation.

17
REPLACEMENTPARTS
PART NUMBERNO
WM-FM-26-
3623-BG
WM-FM-34-
4423-BG
WM-FM-48-
5823-BG
WM-FM-60-
7023-BG
WM-FM-72-
8123-BG
WM-FM-88-
10023-BG
DESCRIPTION
QTY
.
1 FIREPLACEBOX 1
2 301506 REMOTERECEIVER 1
3 601092C CIRCUIT BOARD 1
4 10104010 SWITCH 1
5 601036 CONTROLPANEL 1
6 TOPPANEL 1
7 602082B BLOWERAND HEATER
ASSEMBLY
1
8 1070117 1070117 1070117 1070117 BACK BLACKPLASTICGLASS 1
9 3117505 BLOWERMOUNT 1
10 GLASS BRACKET 2
11 LEDBRACKET 1
12 10702143 10702144 10702145 10702164 10702146 10702165 BOTTOMGLASS 1
13 10101225B FLAMEMOTOR 1
14 3093502 3094502 3095502 3120502 3096502 3122502 FLICKERASSEMBLY 1
15 BOTTOM GLASS
HOLDER
1
16 10103007 POWERCORD 1
17 BOTTOMPANEL 1
18 601136B 601136B+6
01137B
601136B 601136B+6
01137B
601137B 601136B+6
01137B
FLAMELEDSTRIP
19 601136B 601137B 601136B 601136B+6
01137B
601137B 601136B+6
01137B
TRAY LEDSTRIP
10701203 10701204 10701205 10701206 10701207 10701208 FRONT
GLASS(CLEAR)
21 10105063 REMOTE

18
EXPLODEDVIEW

19
TRUBLESHOOTING
PROBLEMPOSSIBLECAUSE SOLUTION
Dimorno flame FlameLED’sareburnt out InspecttheLED’sand replace
themif necessary.
Emberbedisnot
glowingordimming EmberLED’sareburntout Inspectthe emberbed LED’sand replacethemif necessary.
Appliancehasoverheated
and safetydevicehascaused
the thermalswitchto
disconnect
Turnoffthe mainswitch,allow
appliancetocoolfor10 minutes,
then turnit on.
Housecircuitbreakerhas
tripped Reset housecircuit breaker.
Applianceturnsoff
and willnot turnon
Appliance’sfusehasblown Replacethe fuse.
Applianceisnotplugged into
an electricaloutlet Check plug andplug in.
Appliancehasoverheated
and safetydevicehascaused
the thermalswitchto
disconnect
Turnoffthe mainswitch,allow
appliancetocoolfor10 minutes,
then turnit on.
Appliancewillnot
comeon when switch
isflippedtoON
Circuitboardisburnt out Inspectthe circuitboardand
replaceitifnecessary.
Nowarmaircoming
out of appliance Heaterisburnt out Inspectthe burnerand heater assemblyand replaceitif
necessary.
Flamesputters
Flamemotorisdefective. Callaqualified servicetechnician and replaceflamemotor.
RemoteControldoes
not work. Lowbatteries. Unit switchin “O”position. ReplaceAAAbatteriesinremote control.
Turntheswitchin “I”position.
Flameisfixed. Wiringmaybe looseorthe
flamemotormaybe defective.
CORRECTDISPOSALOFTHISPRODUCT
Thismarking indicatesthatthisproduct shouldnot be disposed withother
householdwastethroughout theEU.Toprevent possibleharmtothe
environment orhuman healthfromuncontrolledwastedisposal, recycleit
responsiblytopromotethe sustainablereuseof materialresources.To
returnyourused device, pleaseusethereturnand collectionsystems
available.

20
SERVICEHISTORY
Thisheatermust be serviced annuallydepending on usage.
DateDealer
Name Service technician Name Service Performed Special Concerns
NOTES:
