Amantii BI-X190030-1 Operating instructions

INSTALLER: LEAVE OWNER’S MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN OWNER’S MANUAL FOR FUTURE REFERENCE.
SAFETY INFORMATION
WARNING
For yo r safety, always comply with all
warnings and safety instr ctions
contained in this man al to prevent
personal inj ry or property damage.
Do not store or use gasoline or other flammable vapors
and li uids in the vicinity of this appliance.
INSTALLATION /OWNER’S MANUAL
BI-30-XTRASLIM (BI-X190030-1)
BI-40-XTRASLIM (BI-X190040-1)
BI-50-XTRASLIM (BI-X190050-1)
BI-60-XTRASLIM (BI-X190060-1)
Version:202210

TABLE OF CONTENTS
Please read and carefully follow all of the instruction found in this manual. The instructions
included here will assure that you have many years of dependable and enjoyable service
from your Amantii product.
IMPORTANT INSTRUCTIONS ......................................................................................................................................... 3
FCC CAUTIONS .................................................................................................................................................................. 4
UNPACKING AND TESTING THE APPLIANCE .......................................................................................................... 5
GROUNDING THE APPLIANCE ...................................................................................................................................... 5
LOCATING THE FIREPLACE ........................................................................................................................................... 5
BI-30-XTRASLIM (BI-X190030-1 ................................................................................................................................. 6
BI-40-XTRASLIM (BI-X190040-1 ................................................................................................................................. 7
BI-50-XTRASLIM (BI-X190050-1 ................................................................................................................................. 8
BI-60-XTRASLIM (BI-X190030-1 ................................................................................................................................. 9
SAFETY DRILL SCREW AREA ..................................................................................................................................... 10
OUTDOOR INSTALLATION ........................................................................................................................................... 10
MANTEL CLEARANCE ................................................................................................................................................... 11
FOR BATHROOM USE .................................................................................................................................................... 11
HARDWARE INSTALLATION ....................................................................................................................................... 12
INSTALLATION ................................................................................................................................................................ 13
MEDIA OPTIONS .............................................................................................................................................................. 22
DECORATIVE MEDIA INSTALLATION ...................................................................................................................... 22
OPERATION ....................................................................................................................................................................... 23
MANUAL OPERATION ................................................................................................................................................... 23
REMOTE CONTROL OPERATION ................................................................................................................................ 24
WIFI OPERATION ............................................................................................................................................................. 26
REPLACEMENT PARTS .................................................................................................................................................. 29
EXPLODED VIEW ............................................................................................................................................................ 31
TROUBLE SHOOTING ..................................................................................................................................................... 32
SERVICE HISTORY .......................................................................................................................................................... 33
WARRANTY ...................................................................................................................................................................... 34

IMPORTANT INSTRUCTIONS
PLEASE RETA N TH S USER GU DE FOR FUTURE REFERENCE
When using electrical appliances, basic precautions should always be followed to reduce the
risk of fire, electric shock, and injury to persons, including the following:
1) Read all instructions before using this fireplace
2) The fireplace is hot when in use. To avoid burns, do not let bare skin touch hot surfaces.
Keep combustible material such as furniture, cushions, bedding, paper, clothes, curtains
at least 3 feet from the front of the unit
3) Extreme caution is necessary when any heater is used near children and whenever the
unit is left operating and unattended.
4) Do not operate a fireplace with a damaged cord or plug, or if the heater has
malfunctioned, the fireplace has drooped or damaged in any manner
5) Not all fireplaces are suitable for use in bathrooms or laundry facilities. Please consult
with individual product literature to confirm suitability
6) Do not run the cord under carpeting. Do not cover cord with throw rugs, runners or the
like. Arrange the cord away from traffic area and where it will not be tripped over
7) Do not modify this fireplace. Use it as described in the manual. Any other use not
recommended by the manufacture may cause fire, shock or injury to persons
8) Do not use this heater with programmer, timer, separate remote-control system or any
other device that switches the heater on automatically, since a fire risk exists if the heater
is covered or positioned incorrectly
9) Disconnect all power supply before cleaning, maintenance or relocation of the fireplace
10) Keep the heater clean. Do not allow any objects to enter any ventilation or exhaust
opening as this may cause electric shock, fire or damage to the heater
11) Do not immerse the cord, plug or any part of the appliance in water or any other liquid
12) n order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this
appliance must not be supplied through an external switching device
3
CAUTION: Procedures and techniques, which, if not carefully followed, will result in damage to
the equipment.
WARNIN : Procedures and techniques, which, if not carefully followed, will expose the user to
the risk of fire, serious injury, illness or death.
Consult with professional electrician and adhere to all code requirements for
installations in bathrooms
SAVE THESE INSTRUCTIONS

FCC CAUTIONS
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: 1) This device may not cause harmful interference, and 2) this device must
accept any interference received, including interference that may cause undesired
operation.
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
4

UNPACKINGAND TESTINGAPPLIANCE

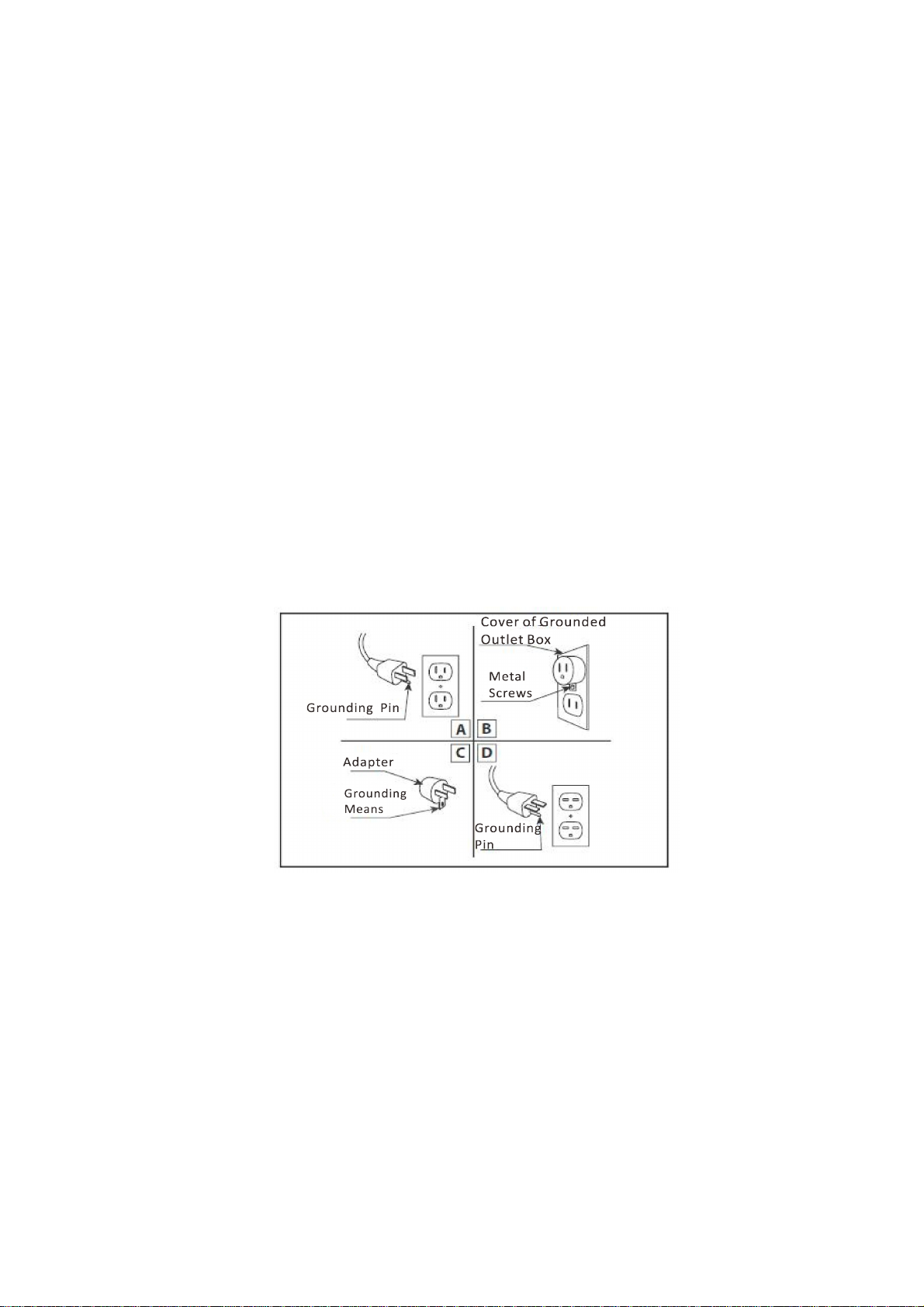

GROUNDINGAPPLIANCE
Thisapplianceisforuseon 120Volts.Thecordhasaplugasshownin(A).Anadapteras
shownin(C)isavailableforconnectingthree-bladegroundingtypeplugstotwo-slot
receptacles.The greengrounding lug extending fromthe adaptermustbe connected toa
permanentgroundsuchasaproperlygroundedoutletbox.The adaptershouldnot be used if
athree-slot grounded receptacleisavailable.
Todisconnectappliance, turncontrolstooff, then remove plug from outlet.
LOCATINGTHEFIREPLACE
Plan wheretolocateand framethe fireplace.Thiswillsavetimeand moneylaterwhen you
installthefireplace. Beforeinstallation considerthe following:
1.Wherethe fireplaceislocatedmust allowforwall andceiling clearances
2.Consideralocation wherethefireplacescreenwill notbeexposed todirectsunlightfrom
windowsordoors.
Carefully remove the appliance from the box.
Prior to installing the appliance, test to make sure the appliance operates properly by
plugging the power supply cord into a 120 Volt grounded outlet.
Test all aspects of its operation (manual switches, remote and heater) to make sure all
components are operating correctly.
NOTE: There may be trace f d r during the first few minutes f initial use. This is
harmless, n rmal and will never ccur again.
As with most electronic devices, your new electric fireplace has been designed to operate at
temperatures between 5 ℃ (41℉) and 35 ℃ (95℉). During the cold winter months, allow the
fireplace to reach room temperature before turning it on.
3. A15 ampere,120 Volt, 60 Hzbranchcircuitwithproperground mustbe availableatthe
location.Preferablyadedicated branchcircuitshouldbe provided toavoidcircuit
breakerstotripof fusestoblow.
5
Note : Adaptor are NOT for use in Canada

Description BI-30-XTRASLIM
Voltage 120V AC60Hz
Watts 1500WMax
NOHEATER 25W
MOTOR HEATER 19W
ApplianceWidth 29 1/8”or74.1cm
ApplianceHeight 19 7/8”or50.4cm
ApplianceDepth 4 or 10.25cm
Gross Weight 50.7lbsor23kg
PlugLocation Left side
Cord Length 707/8”or180 cm

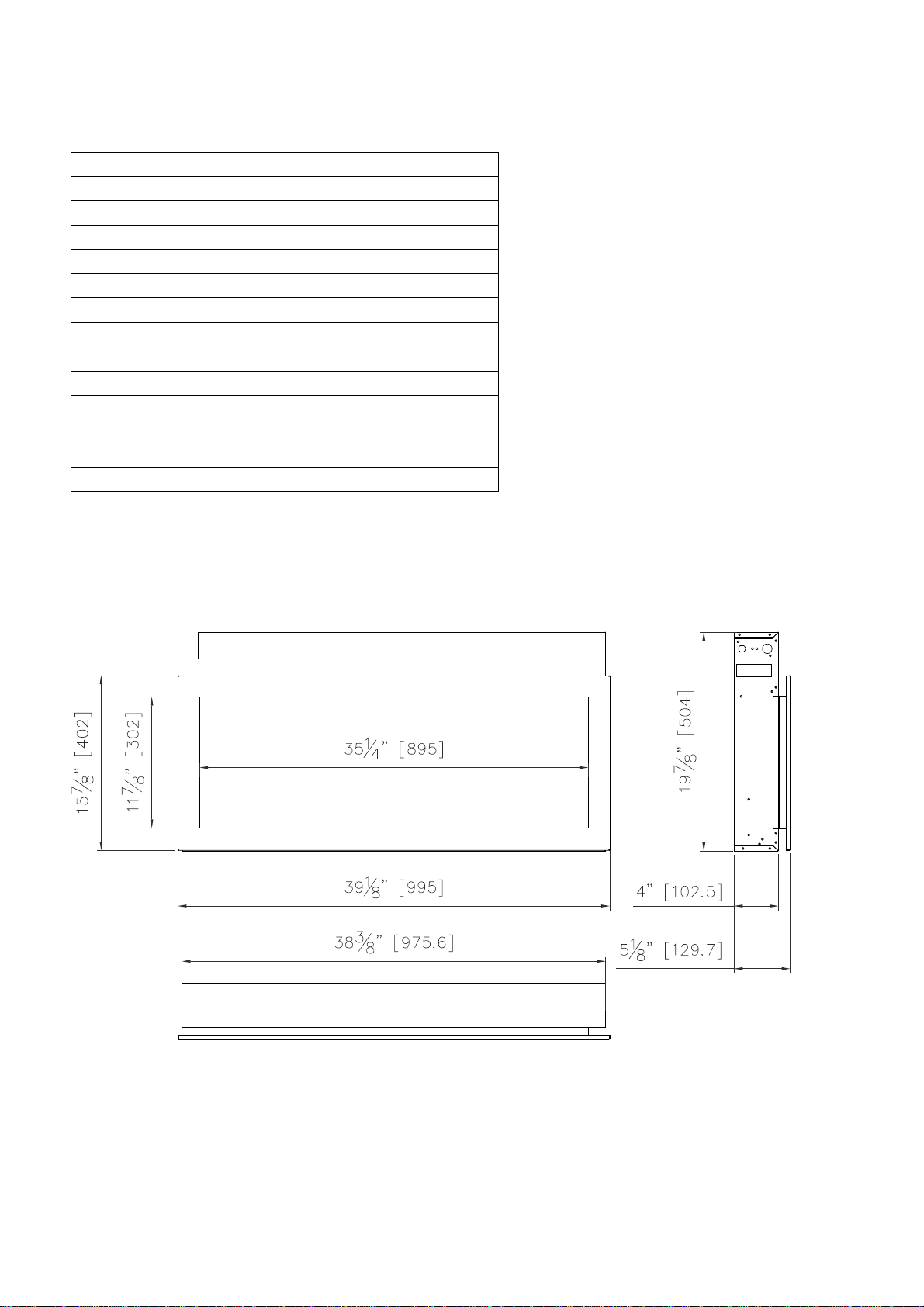

RoughWall OpeningSize 29" X 20 3/8" or
73.66 cm X 52 cm
BTU 5118
This appliancehasbeentestedin
accordancewiththeULStandard2021
forfixedandlocationdedicated
electricroomappliancesintheUnited
Statesand Canada.Ifyouneed
assistanceduringinstallation,please
contactyourlocal dealer.
NOTE:Thisappliancemustbe
electricallywiredandgroundedin
accordancewithlocalcodes.Inthe
absenceoflocalcodes,usethe
currentCSAC22.1CanadianElectrical
Codein CanadaortheANSI/NFPA70
NationalElectricalCodein theUnited
States
”
BI-30-XTRASLIM (BI-X190030-1)
6

Description BI-40-XTRASLIM
Voltage 120V AC60Hz
Watts 1500WMax
NOHEATER 25W
MOTOR HEATER 19W
ApplianceWidth 39 1/8”or99.5cm
ApplianceHeight 19 7/8”or50.4cm
ApplianceDepth 4 or 10.25cm
Gross Weight 56lbs or 25.5kg
PlugLocation Left side
Cord Length 707/8”or180 cm
RoughWall OpeningSize 39" X 20 3/8" or
99.1 cm X 52 cm
BTU 5118
This appliancehasbeentestedin
accordancewiththeULStandard2021
forfixedandlocationdedicated
electricroomappliancesintheUnited
Statesand Canada.Ifyouneed
assistanceduringinstallation,please
contactyourlocal dealer.
NOTE:Thisappliancemustbe
electricallywiredandgroundedin
accordancewithlocalcodes.Inthe
absenceoflocalcodes,usethe
currentCSAC22.1CanadianElectrical
Codein CanadaortheANSI/NFPA70
NationalElectricalCodein theUnited
States
”
BI-40-XTRASLIM (BI-X190040-1)
7

BI-50-XTRASLIM
Voltage 120V AC60Hz
Watts 1500WMax
NOHEATER 25W
MOTOR HEATER 19W
ApplianceWidth 49 1/8”or124.9cm
ApplianceHeight 19 7/8”or50.4 cm
ApplianceDepth 4”or10.25 cm
Gross Weight 66.9 lbs or 30.4kg
PlugLocation Left side
Cord Length 707/8”or180 cm
RoughWall OpeningSize 49" X 20 3/8" or
125cm X 52 cm
BTU 5118
This appliancehasbeentestedin
accordancewith theULStandard2021
forfixedandlocationdedicatedelectric
roomappliancesintheUnitedStatesand
Canada.Ifyouneedassistanceduring
installation,pleasecontactyourlocal
dealer.
NOTE:Thisappliancemustbe
electricallywiredandgroundedin
accordancewith localcodes.Inthe
absenceoflocalcodes,usethecurrent
CSAC22.1 CanadianElectricalCodein
CanadaortheANSI/NFPA70National
Electrical CodeintheUnitedStates.
Description
BI-50-XTRASLIM (BI-X190050-1)

Description BI-60-XTRASLIM
Voltage 120V AC60Hz
Watts 1500WMax
NOHEATER 25W
MOTOR HEATER 19W
ApplianceWidth 59 1/8”or150.3.cm
ApplianceHeight 19 7/8”or50.4 cm
ApplianceDepth 4”or10.25 cm
Gross Weight 77.07lbs or 35kg
PlugLocation Left side
Cord Length 707/8”or180 cm

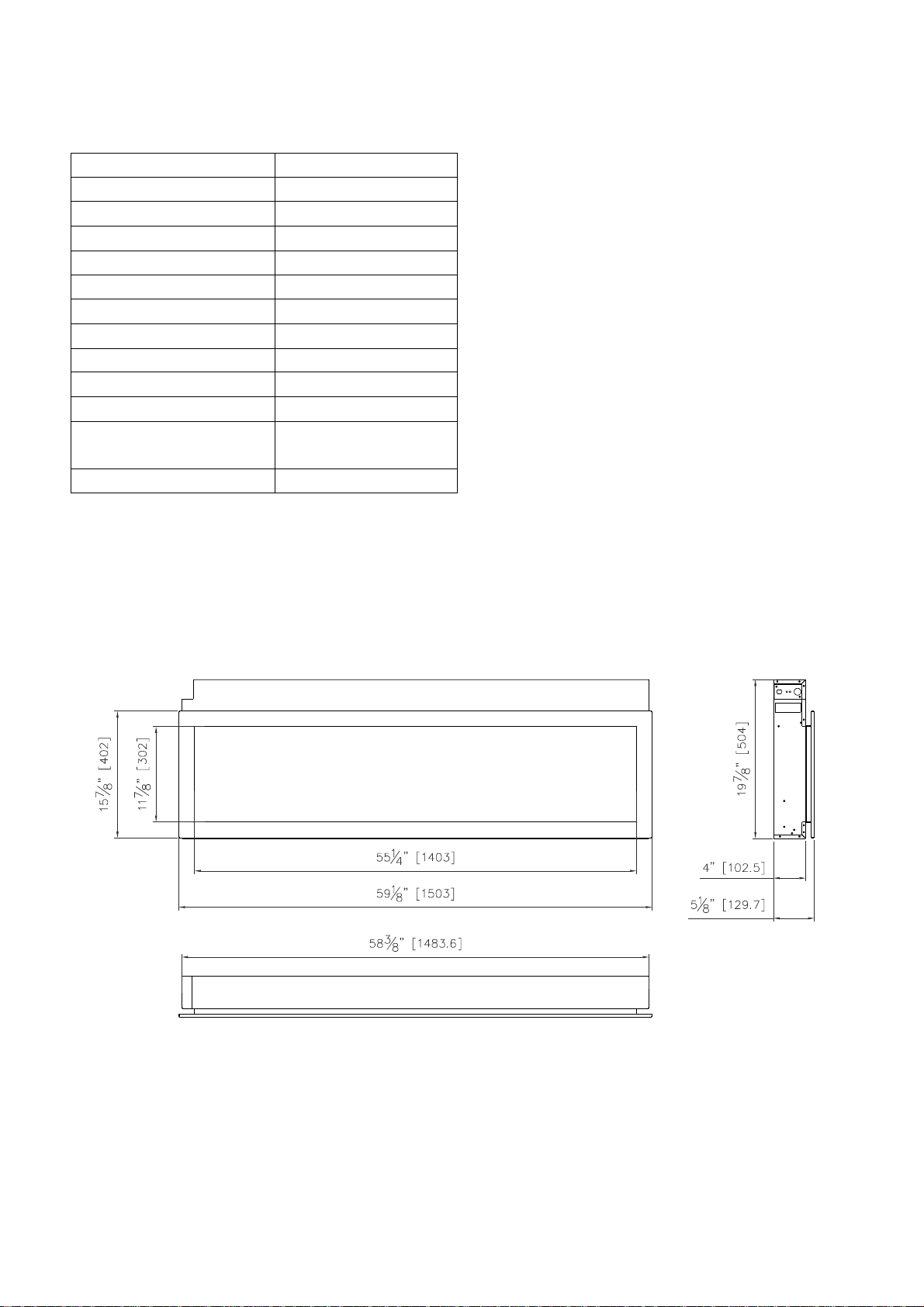

RoughWall OpeningSize 59" X 20 3/8" or
150 cm X 52 cm
BTU 5118
This appliancehasbeentestedinaccordance
with theULStandard2021forfixedand
locationdedicatedelectricroomappliances
intheUnitedStatesandCanada.Ifyouneed
assistanceduringinstallation,pleasecontact
yourlocaldealer.
NOTE:Thisappliancemustbeelectrically
wiredandgroundedinaccordancewith
localcodes.Intheabsenceoflocalcodes,
usethecurrent CSAC22.1Canadian
ElectricalCodeinCanadaortheANSI/NFPA
70 NationalElectricalCodeintheUnited
States.
BI-60-XTRASLIM (BI-X190060-1)
9

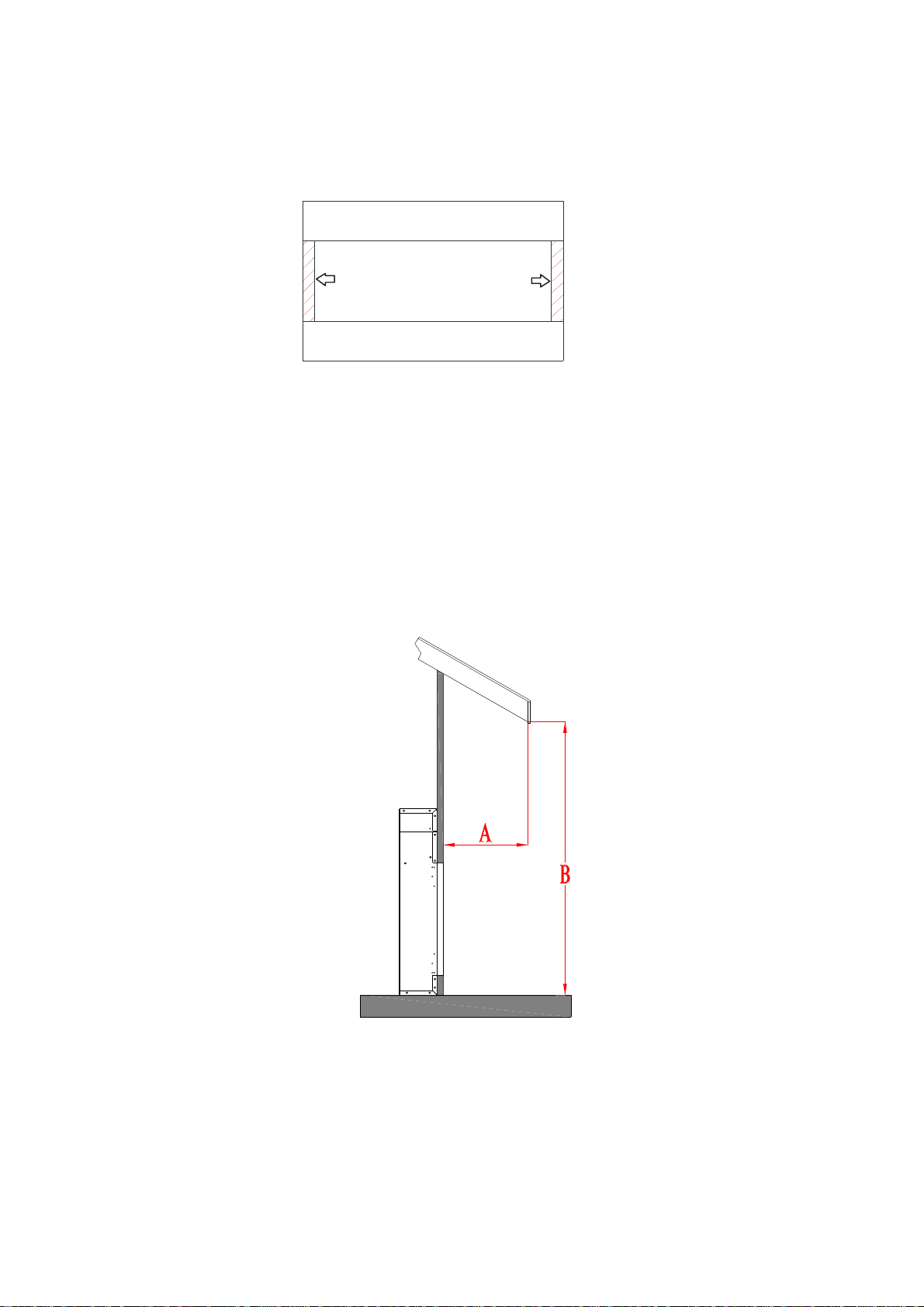

Safetydrill screwarea
(Darkarea)
OUTDOOR INSTALLATION
This electric fireplace is suitable for installation in outdoor areas protected from direct water
impingement. In addition to maintaining the listed mantel and combustibles clearances, a
rain protection overhang factor of 1/2 shall be constructed to the front and to each side of the
installed appliance. ee illustration below. All wiring connections to line power shall be in
accordance with local building code requirements. Inquires about local codes and
regulations must be done prior to installation.
SAFETY DRILL SCREW AREA
There is a safety drill screw area as show below.
Please make sure that the fix screws are in this area.


 !"#$% &&'(
)&&$*$+, -(
, .&$$% &'&/0**$+, -1
* 0(
* When installed in outdoor applications, it is recommended that the BI-XTRASLIM models use
the protective PAN-COVER.
10

Consult with professional electrician and adhere to all code requirements for
installations in bathrooms
FOR BATHROOM USE
If this unit is installed in a bathroom it must be protected by a GIF receptacle or circuit. If
receptacle is used it must be readily accessible.
To prevent electric shock, please be aware that this unit is an electrical appliance that is
NOT watertight and must be installed as to prevent water from entering unit. This must be
installed away from shows, tubs, etc. Never locate fireplace where it may fall into a bathtub
or other water container.
All wiring connections to line power shall be in accordance with local building code
requirements. Inquires about local codes and regulations must be done prior to installation.
MANTEL CLEARANCE
If this unit is installed in a bathroom it must be
11
The clearance to the mantel should be 4” minimum when a mantel is applied (Measurement
is taken from the trim).
4"
Fireplace Mantel
Wall (Combustible facing allowed)
Floor
Fireplace

1.
Remove the cover plate from the left side of the appliance by removing the two screws
as shown below. Unscrew and remove power cord.
2. Attach the wiring to the
junction block. Please make sure the live wire goes into the “L”, the
neutral wire into “N” and the ground wire into “G”.
3.
Return the cover plate to the left side and screw the two screws back in to fasten the
Remove the cover plate from the left side of the appliance by removing the two screws
as shown below. Unscrew and remove power cord.
junction block. Please make sure the live wire goes into the “L”, the
neutral wire into “N” and the ground wire into “G”.
Return the cover plate to the left side and screw the two screws back in to fasten the
Remove the cover plate from the left side of the appliance by removing the two screws
junction block. Please make sure the live wire goes
into the “L”, the
Return the cover plate to the left side and screw the two screws back in to fasten the
plate.
HARD IRE INSTALLATION
Turn off the appliance completely and let cool before servicing. Only a qualified
person should service and repair this electric appliance.
Turn off the appliance completely and let cool before servicing. Only a qualified
person should service and repair this electric appl
iance.
Turn off the appliance completely and let cool before servicing. Only a qualified
service
If it is necessary to hardwire this appliance, a qualified electrician must remove the cord
connection, and wire the appliance directly to the house hold wiring.
This appliance must be electrically connected and grounded in accordance with local codes,
if hardwired. In the absence of local codes, use the current C A C22.1 CANADIAN
ELECTRICAL CODE in Canada or the current AN /NFPA 70 NATIONAL ELECTRICAL
CODE in the United tates.
12

1. Carefully remove the unit from the packaging. Plug in and test the fireplace prior to installation.
Built-in Installation Instructions
NOTE: Due to the many different materials used to build walls, it is highly recommended that
you consult your local builder before you install this appliance on a wall.
The models are designed to be built-in. These units allow for the finishing material (drywall,
stone, tile, etc) to be built right down to the glass edge. However, that application is not
always desirable or available so the surround could be used as an alternate finish option.
Important note: The optional surround is secured with two screws. Unscrew and lift to
remove. It is recommended that two people remove the surround.

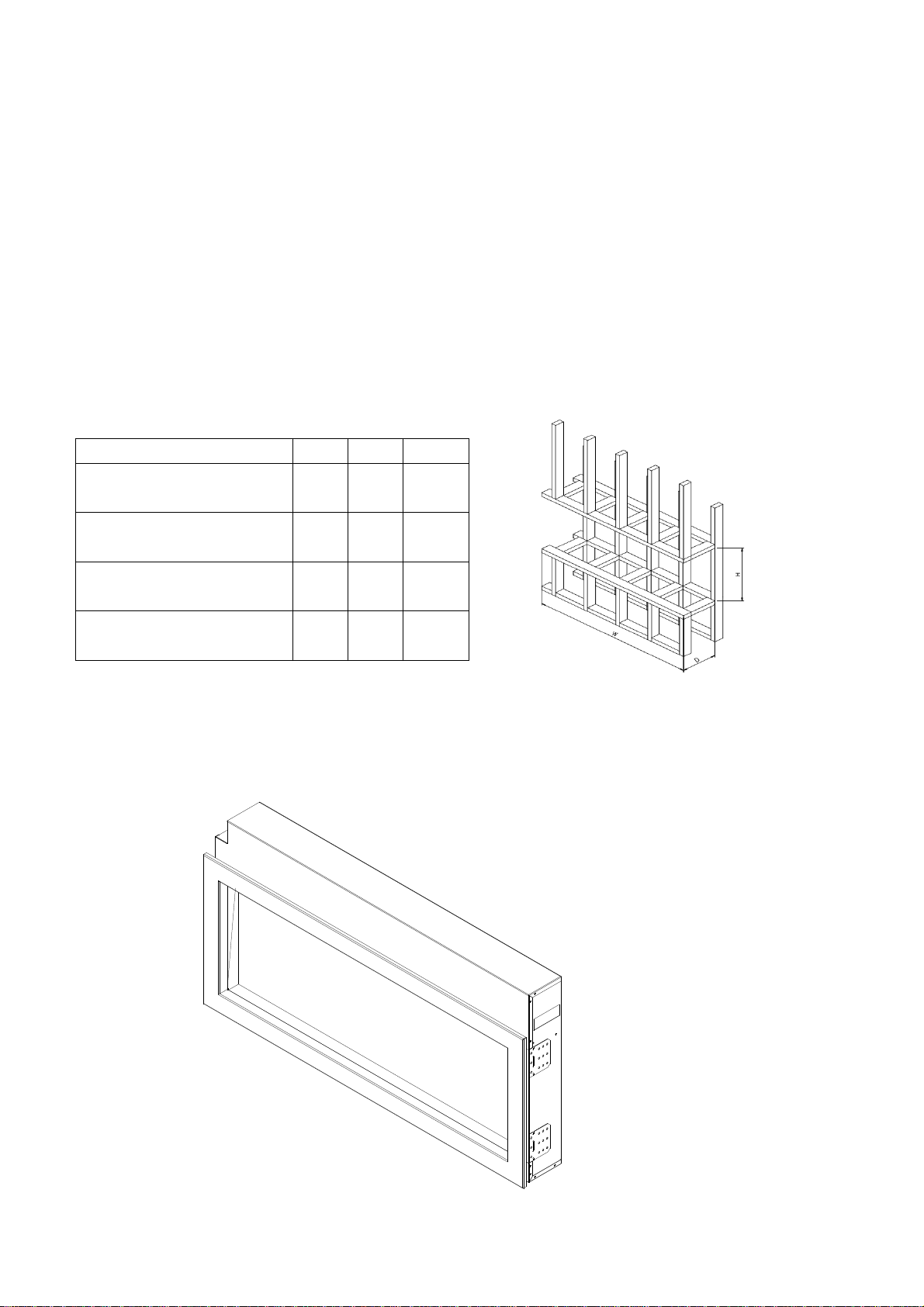

The rough wall opening size of the fireplace :
INSTALLATION
W(“) D(“) H(“)
BI-30-XTRA LIM
(BI-X190030-1) 29 4 1/2
20 3/8
BI-40-XTRA LIM
(BI-X190040-1) 39 4 1/2
20 3/8
BI-50-XTRA LIM
(BI-X190050-1) 49 4 1/2
20 3/8
BI-60-XTRA LIM
(BI-X190060-1) 59 4 1/2
20 3/8
W
D
H
W
D
H
13

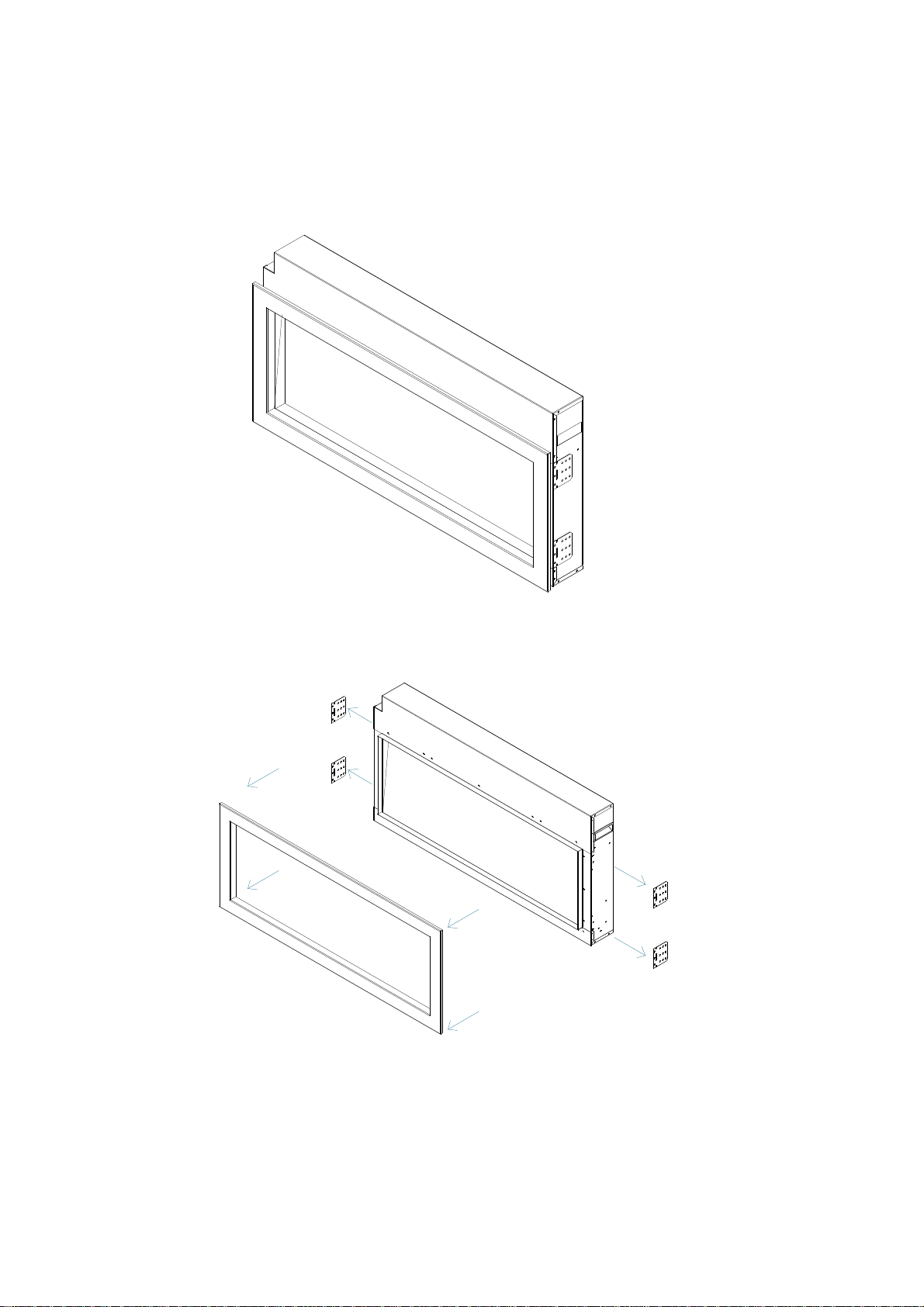

2. Remove the optional trim from the unit as illustrated below. Remove the wall framing plates from
the unit.
3. Re-attach the framing plates to the unit as shown below.
14

4. Bend the framing plates as shown.
5. Lift the unit into the wall opening.
Note: Two people are required
15

6. Drive the mounting screws threw the framing plates securing the unit into the wall studs.
7. Using desired materials, finish to the glass for a clean face installation OR re-attach the steel
surround that was removed in STEP 1.
16

Wall-mount installation instructions
1. Take out the unit from the box. Please do the pre-test before you install the fireplace.
2. Pull out the optional trim from the unit as shows below. Remove the framing plates from the unit.
Note: The mantel is available for Optional Purchase only and does not come with the unit.
17

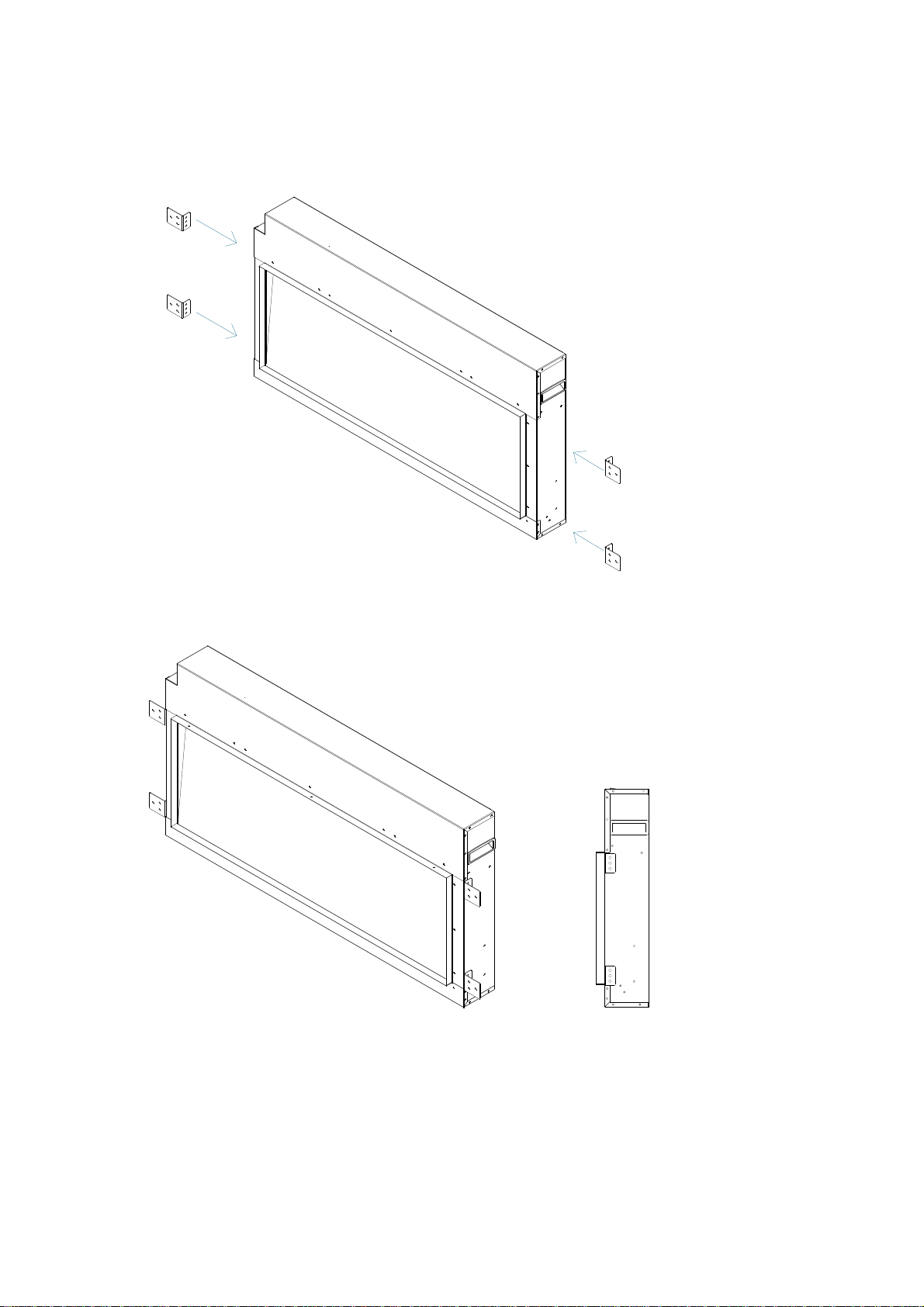

3. Fix the brackets as the picture shows below. You can find the brackets in the plastic bag with the
manual.
4. Make sure the brackets are fixed the right way as the picture shows below.
1

5. Put the fireplace into the back of the wooden frame.

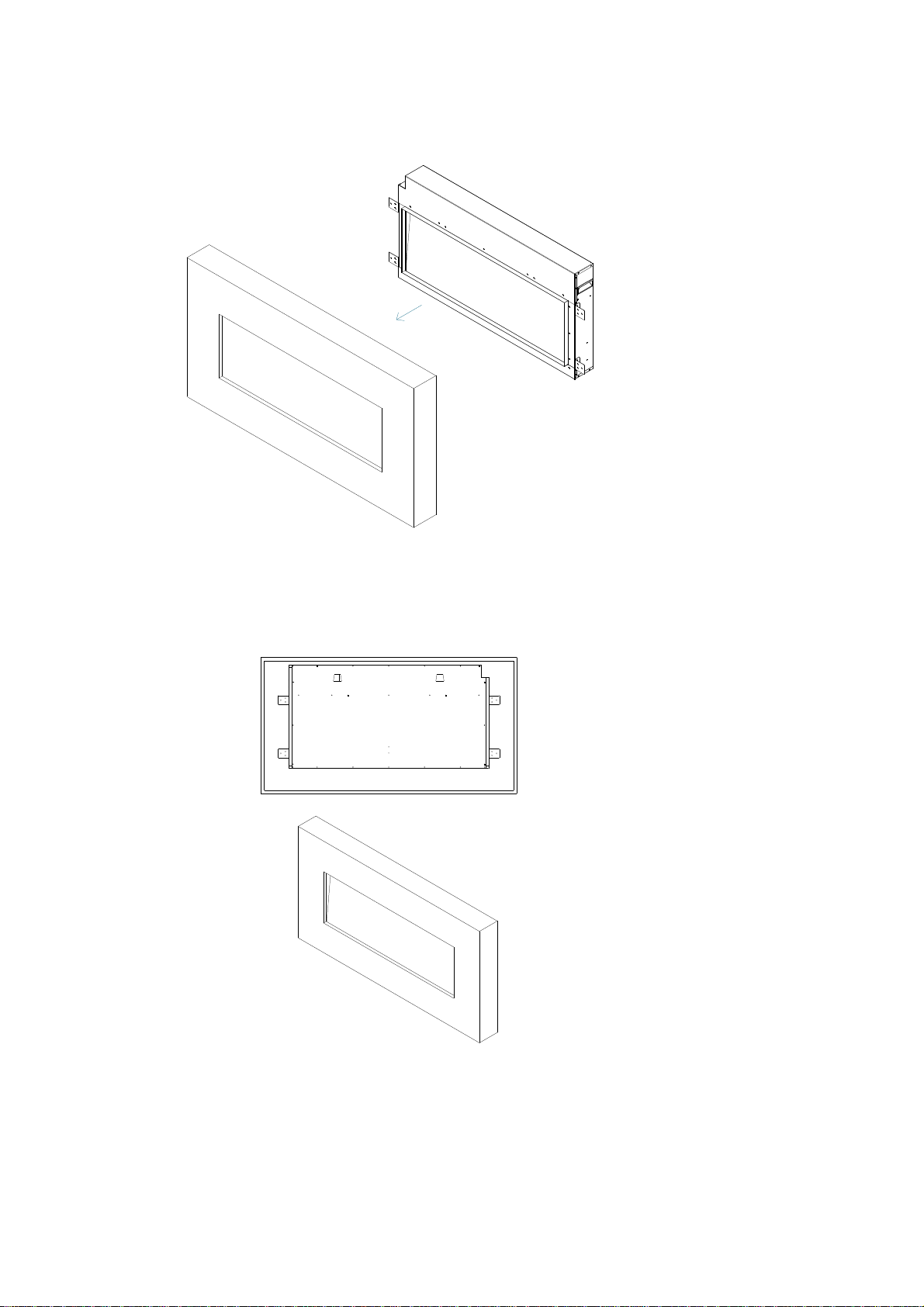

6. Screw the brackets with the wooden frame and make sure the fireplace and the wooden frame are
firmly fixed.
19

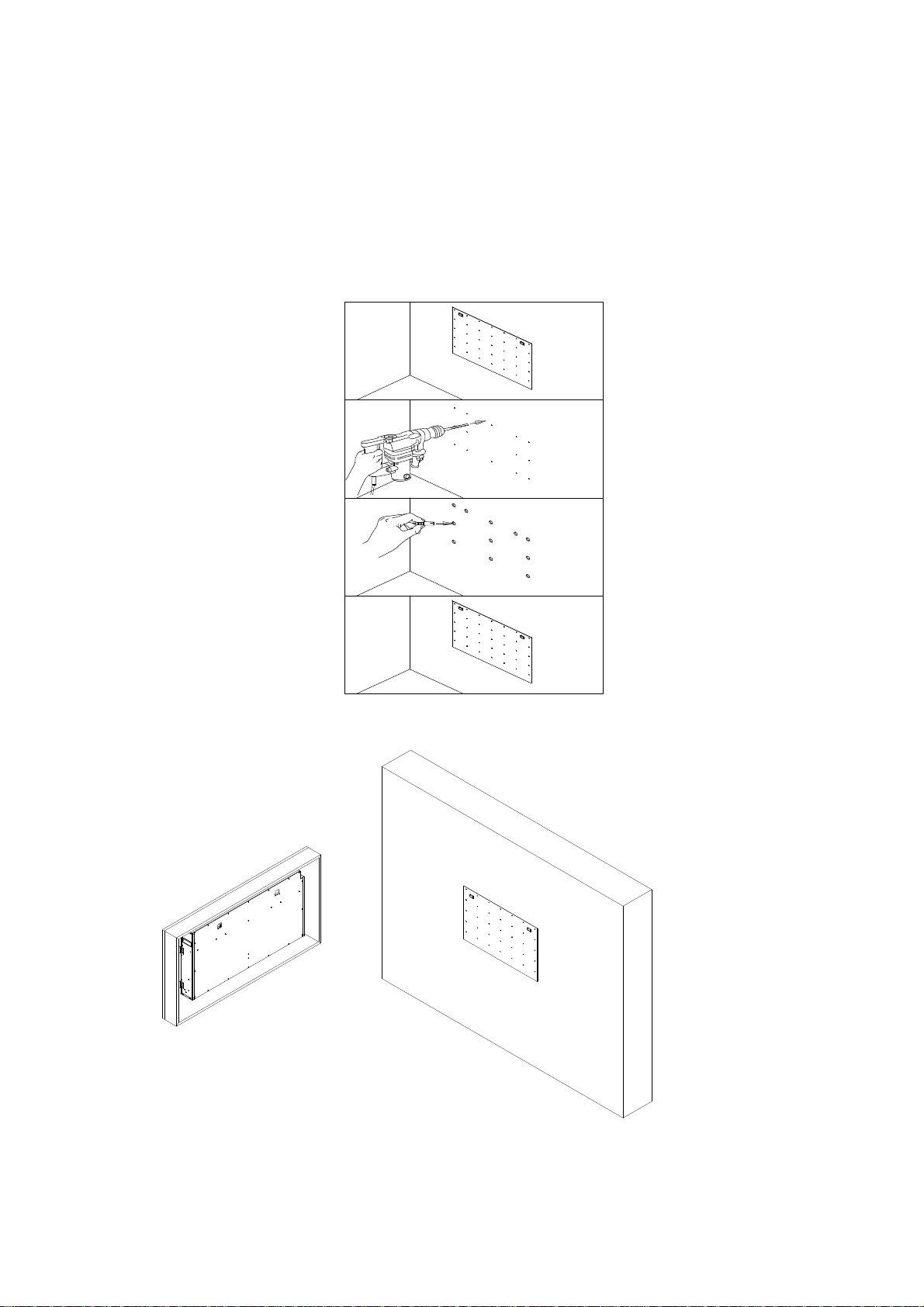

7. Take the hanger from the back of the fireplace by removing screws. Select a location for the
hanger to be fixed that is not prone to moisture and is located at least 0.91 m or 3 feet away from
combustible materials such as curtains, drapes, furniture, bedding, paper, etc. Before drill, check
the wall to ensure there is no wiring, pipe wires etc in the area. Drill 8 or more holes ( 8mm
diameter & 40mm depth) using a suitable size drill and put the wall plugs into the hole.
8. Fix the hanger onto the wall and put the fireplace on.
20
