INSTALLATION AND OPERATION INSTRUCTIONS FOR
ELECTRIC FIREPLACE
SYM-34 BESPOKE
SYM-42 BESPOKE
SYM-50 BESPOKE
SYM-60 BESPOKE
SYM-74 BESPOKE
SYM-88 BESPOKE
SYM-100 BESPOKE
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
WARNING: This product can expose you to chemicals including
lead in the wiring, which is [are] known to the State of California
to cause birth defects of other reproductive harm. For more
information visit: www.p65warnings.ca.gov
SAFETY INFORMATION
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other.
if the information in these instructions
are not followed exactly, a fire or
explosion may result causing property
damage, personal injury or loss of life.
WARNING
www.amantii.com
BS1900034-1/EU4
BS1900042-1/EU4
BS1900050-1/EU4
BS1900060-1/EU4
BS1900074-1/EU4
BS1900088-1/EU4
BS1900100-1/EU4

01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17
18 19 20 21 22 23 24
Please read and carefully follow all of the instruction found in this manual. Please pay special attention to the safety
instructions provided in this manual. The instructions included here will assure that you have many years of depend-
able and enjoyable service from your Amantii Electric Fireplace.
IMPORTANT INSTRUCTIONS.......................................................................................................................................03
CAUTIONS.....................................................................................................................................................................04
PLUG INSTALLATION....................................................................................................................................................05
UNPACKING AND TESTING APPLIANCE.....................................................................................................................05
LOCATING THE FIREPLACE.........................................................................................................................................05
PRODUCT SPECIFICATION..........................................................................................................................................05
INSTALLATION-WALL MOUNT.......................................................................................................................................07
INSTALLATION- BUILT-IN...............................................................................................................................................08
INSTALLING THE DECORATIVE MEDIA.......................................................................................................................10
HARDWIRE INSTALLATION..........................................................................................................................................11
MANUAL OPERATION...................................................................................................................................................12
REMOTE CONTROL OPERATION................................................................................................................................13
ENERGY SAVING FUNCTION.......................................................................................................................................15
TROUBLE SHOOTING...................................................................................................................................................16
MAINTENANCE INSTRUCTIONS..................................................................................................................................16
ENVIRONMENT..............................................................................................................................................................16
REPLACEMENT PARTS.................................................................................................................................................17
EXPLODED VIEW...........................................................................................................................................................18
ELECTRIC FIREPLACE WARRANTY.............................................................................................................................19

01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17
18 19 20 21 22 23 24
IMPORTANT INSTRUCTIONS
Please read the following instructions carefully before using the appliance.
Caution - Fire, electric shock, physical injury and material damage hazards:
To use the appliance, always follow the instructions for assembly, use and maintenance as well as usage cautions:
1. Carefully read and retain these instructions.
2. Before connecting the appliance, be sure that the mains voltage available matches that specified on the rating plate.
3. Do not use the appliance for other than its intended use. For domestic indoor use only.
4. There may be trace of odour during the first few minutes of initial use. This is normal and will quickly disappear.
5. The heater is hot when in use. To avoid burns, do not let bare skin touch any hot surface.
6. Keep combustible material such as furniture, cushions, bedding, paper, clothes, curtains etc. at least 1m away from
the heater.
7. Do not use the heater in areas where flammable liquids are stored or where flammable fumes may be present.
8. Do not cover or obstruct any of the heat outlet grilles or the air intake openings of the heater.
9. Do not use the heater in the rooms with explosive gas or while using inflammable solvents, varnish or glue.
10. Keep the heater clean. Do not allow any objects to enter any ventilation or exhaust opening as this may cause
electric shock, or fire or damage to the heater.
11. Always unplug or disconnect the appliance from the mains power supply when not in use or when moving or
cleaning it. Do not pull the cord to unplug the heater.
12. Do not immerse the cord, plug or any part of the appliance in water or any other liquid.
13. Do not attempt to repair, disassemble or modify the appliance. There are no user-serviceable parts inside.
14. The heater must not be located immediately below a socket-outlet.
15. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
16. CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be
supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on
and off by the utility.
17. Do not use this heater with a programmer, timer, separate remote-control system or any other device that switches
the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.
18. WARNING: In order to avoid overheating, do not cover the heater.
19. WARNING! – DO NOT COVER THIS APPLIANCE WITH ITEMS SUCH AS CLOTHING, BLANKETS OR PLACE
NEXT TO CURTAINS OR NET/BLINDS.
20. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
21. Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their
own, unless constant supervision is provided.
22. If the glass is damaged, do not use the heater in order to avoid a hazard.
23. Children of less than 3 years should be kept away from unless continuously supervised.
24. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been
placed or installed in its intended normal operating position and they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards involved, Children aged from 3 years and
less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
25. CAUTION Some parts of this product can become very hot and cause burns. Particular attention has to be given
where children and vulnerable people are present.
26. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory
or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concern-
ing use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
27. The heater may emit a slight, harmless odour and smoke when first used. This odour and smoke is normal and it is
caused by the initial heating of internal heater parts and will not occur again.
28. DO NOT plug into an extension lead/cable or plug adaptor.
29. DO NOT cut off the plug and hardwire directly into the mains or via a fused fixed spur.
30. For details about installing the fireplace, please refer to “Installation” section.

01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17
18 19 20 21 22 23 24
Always install the heater in accordance with this guide. If in doubt obtain expert advice.
Always make sure the electrical socket is accessible and located adjacent
to, but not above the heater.
Always disconnect the heater from the electrical supply before moving it, or carrying out
cleaning, maintenance.
Always make sure the heater is firmly secured to prevent it from being tipped over.
Always use a fireguard when young children and infirm persons can come into contact with
the heater.
Never leave children unsupervised in a room where the heater is ON and unguarded.
Never obstruct or cover the fan outlet or force items into heater openings.
Never use aerosols or steam cleaners on or around the heater.
Never route the main supply cable under carpet etc.
Never install the heater close to curtains or combustible materials.
Never use the heater to dry clothes etc.
Never sit or stand on the heater.
Do’s
Don’ts
CAUTIONS

01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17
18 19 20 21 22 23 24
PLUG INSTALLATION
UNPACKING AND TESTING APPLIANCE
LOCATING THE FIREPLACE
PRODUCT SPECIFICATION
Hold the male plug and insert it into the female receptacle. The receptacle is locate on the left side if the fireplace.
Please make sure the plugs are firmly connected.
Carefully remove the appliance from the box.
Prior to installing the appliance, test to make sure the appliance operates properly by plugging the power supply cord
into a 240 Volt grounded outlet.
Test all aspects of its operation (manual switches, remote and heater) to make sure all components are operating
correctly.
NOTE: There may be trace of odor during the first few minutes of initial use. This is harmless, normal and will
never occur again.
Plan where to locate and frame the fireplace. This will save time and money later when you install the fireplace. Before
installation consider the following:
1. Where the fireplace is located must allow for wall and ceiling clearances。
2. Consider a location where the fireplace screen will not be exposed to direct sunlight from windows or doors.
3. A 15 ampere, 240 Volt, 50-60 Hz branch circuit with proper ground must be available at the location. Preferably a
dedicated branch circuit should be provided to avoid circuit breakers to trip of fuses to blow.
W3
H3
D3
W2
D
H2 H1 H
W1
W

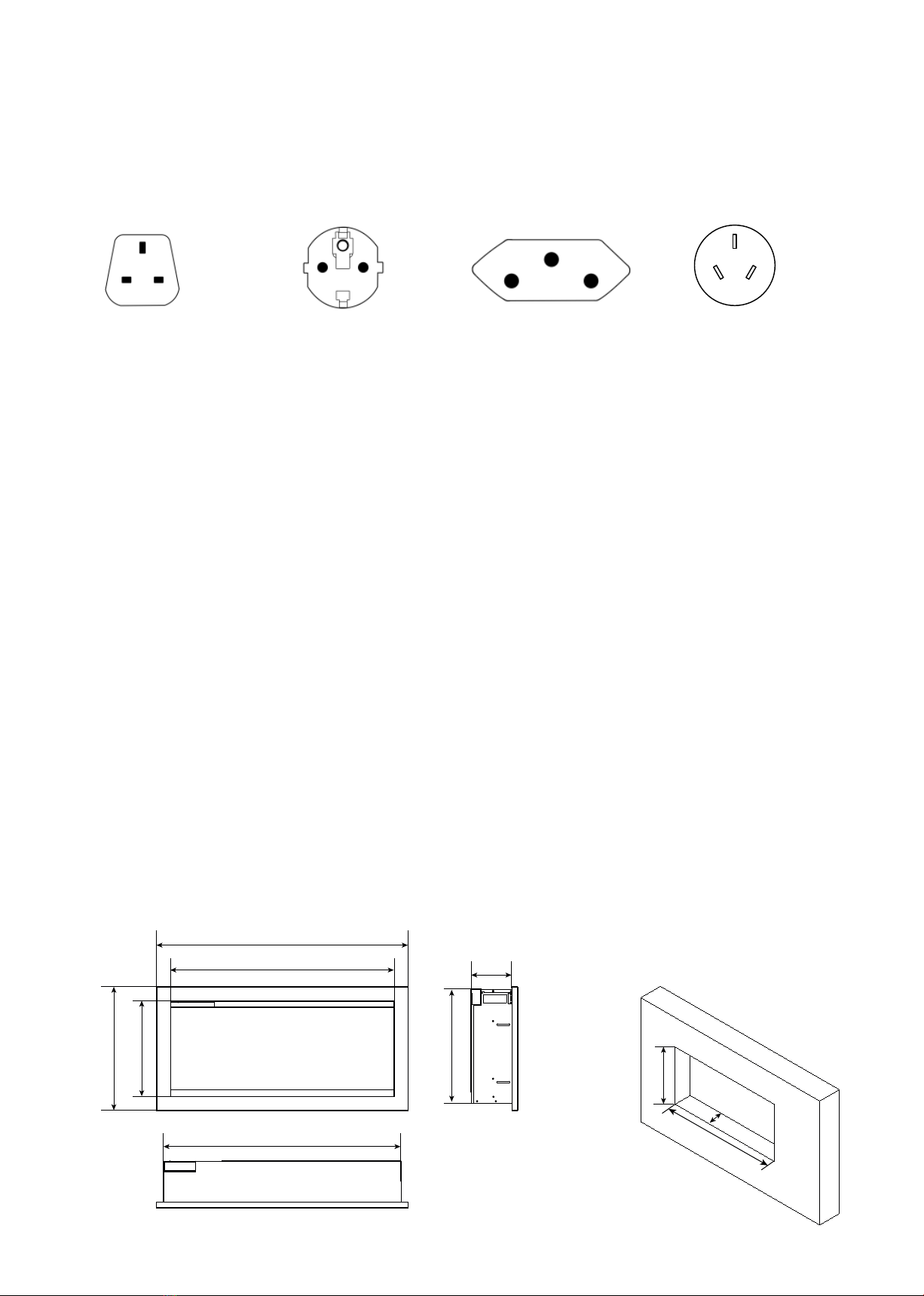

Your power cord will come separate from the unit, please locate it when unpacking your fireplace. The plug contained
inside the box is predetermined at the factory and according to orders placed by authorized dealers.
Available are UK, European, Swiss & Australian plugs. Should you require any of these options please contact your
dealer for purchase. You will be required to give them the correct part number as listed below.
European plug
10103030E
Swiss plug
10103109E
UK plug
10103060E
Australian plug
10103087F

01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17
18 19 20 21 22 23 24
product model
Voltage
1700-2000W
5802-6826
1700-2000W
5802-6826
220-240V AC 50Hz
Watts
BTU
Appliance size
(W x H x D)
Cord Length
Frame size
(W2 x H2 )
Wall Opening Size
(W3 x H3 x D3 )
Glass Viewing
(W1 x H1 )
(SYM-34 BESPOKE)
BS1900034-1/EU4
(SYM-42 BESPOKE)
BS1900042-1/EU4
(SYM-50 BESPOKE)
BS1900050-1/EU4
(SYM-60 BESPOKE)
BS1900060-1/EU4
L=70.9”
L=180 cm
product model
Voltage
Watts
BTU
Appliance size
(W x H x D)
Cord Length
Frame size
(W2 x H2 )
Wall Opening Size
(W3 xH3 x D3 )
Glass Viewing
(W1 x H1 )
(SYM-74 BESPOKE)
BS1900074-1/EU4
(SYM-88 BESPOKE)
BS1900088-1/EU4
(SYM-100 BESPOKE)
BS1900100-1/EU4
74 1/4” x 15 5/8” x 5 1/2”
188.5 x 39.6 x 14 cm
72 3/8” x 13 1/8”
184 x 33.2 cm
76 1/4” x 16 7/8”
193.7 x 43 cm
86 3/8” x 13 1/8”
219.5 x 33.2 cm
90 1/4” x 16 7/8”
229.3 x 43 cm
32 3/8”x 15 5/8” x 5 1/2”
82.3 x 39.6 x 14 cm
42 1/4”x 15 5/8” x 5 1/2”
107.2 x 39.6 x 14 cm
50 1/4”x 15 5/8” x 5 1/2”
127.6 x 39.6 x 14 cm
60 1/4”x 15 5/8” x 5 1/2”
153 x 39.6 x 14 cm
30 5/8” x 13 1/8”
77.7 x 33.2 cm
40 3/8” x 13 1/8”
102.7 x 33.2 cm
48 3/8” x 13 1/8”
123.1 x 33.2 cm
58 3/8” x 13 1/8”
148.4 x 33.2 cm
34 1/2” x 16 7/8”
87.5 x 43 cm
32 7/8” x 16” x 6”
83.5 x 40.6 x 15.2 cm
74 3/4” x 16” x 6”
189.9 x 40.6 x 15.2 cm
88 3/4” x 16” x 6”
225.4 x 40.6 x 15.2 cm
100 3/4” x 16” x 6”
255.9 x 40.6 x 15.2 cm
42 3/4” x 16” x 6”
108.6 x 40.6 x15.2 cm
50 3/4” x 16” x 6”
128.9 x 40.6 x15.2 cm
60 3/4” x 16” x 6”
154.3 x 40.6 x15.2 cm
44 1/4” x 16 7/8”
112.5 x 43 cm
52 1/4” x 16 7/8”
132.7 x 43 cm
62 1/4” x 16 7/8”
158.2 x 43 cm
220-240V AC 50Hz
L=70.9”
L=180 cm
88 1/4” x 15 5/8” x 5 1/2”
224.1 x 39.6 x 14 cm
100 1/4” x 15 5/8” x 5 1/2”
254.6 x 39.6 x 14 cm
98 3/8” x 13 1/8”
250 x 33.2 cm
102 1/4” x 16 7/8”
259.7 x 43 cm

01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17
18 19 20 21 22 23 24

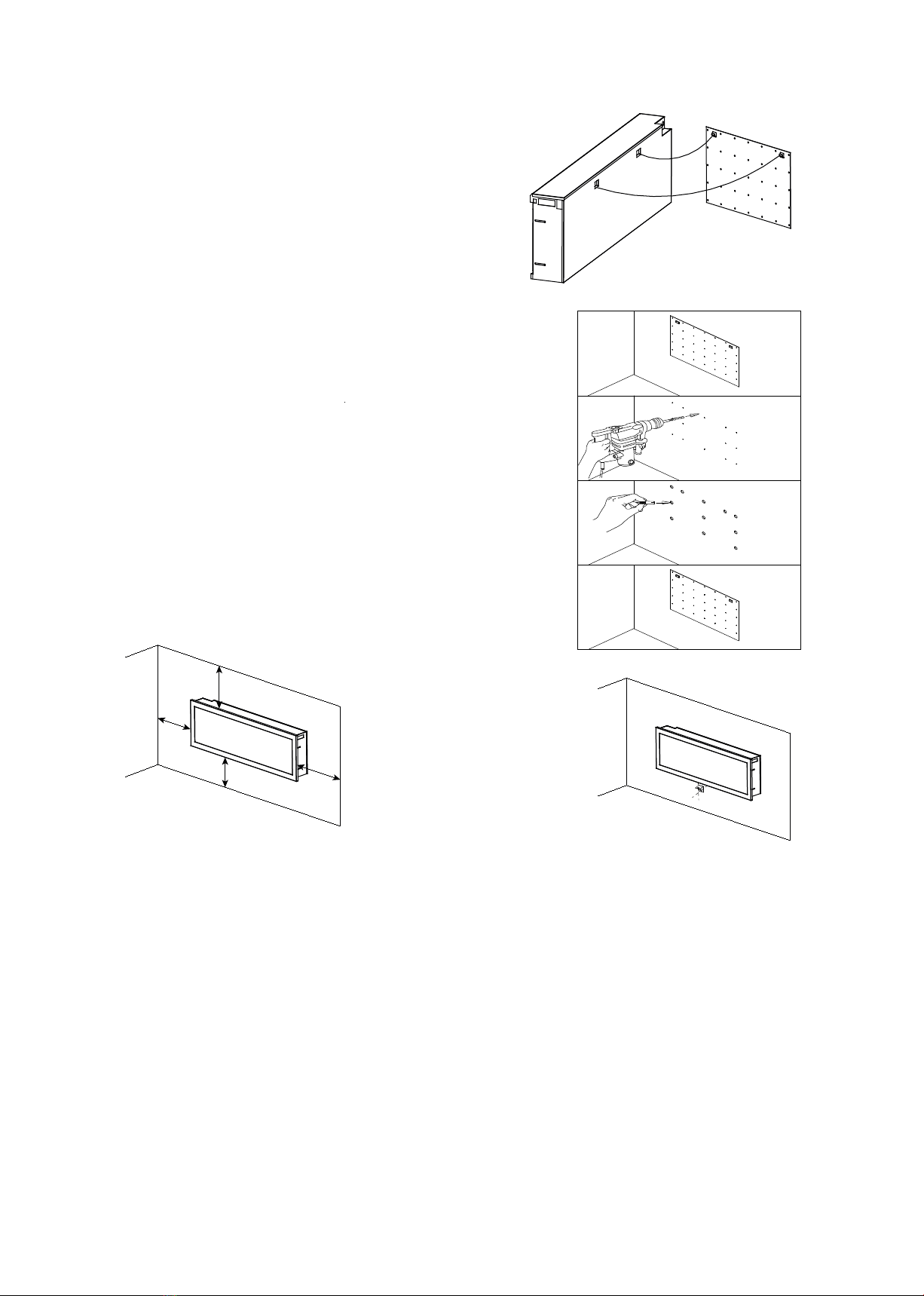

INSTALLATION-WALL MOUNT
1. Select a location that is not prone to moisture and is
located at least 0.91 m or 3 feet away from combustible
materials such as curtains or drapes, furniture,
bedding, paper, etc.
2. Using a spirit level to select a position in which to
mount the heater horizontally. See Figure 1.
3. Check the wall to ensure there is no wiring, pipe
wires etc in the area to be drilled. Drill 6 or more holes
depending on the size of he unit purchased, using a
suitable size drill bit and insert the wall plugs into the
holes.
4. Remove the hanger from the fireplace by removing
the screws. See Figure 2.
5. Fasten the hanger to the wall. See Figure 3.
6. To prevent fireplace from moving, use the provided
safety screw to fasten the fireplace to the wall. See
Figure 4.
WARNING: Be sure that the bolts have been fixed
firmly enough to withstand the weight!
FLOOR
≥2”
≥2”
≥2”
≥2”
Fig 1
Fig 2
Fig 3
Fig 4

01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17
18 19 20 21 22 23 24
INSTALLATION- BUILT-IN
Preparation
NOTE: Due to the many different materials used to build walls, it is highly recommended that you consult your local
builder before you install this appliance on a wall.
1. Select a location that is not prone to moisture and is located at least 0.91m or 3 feet away from combustible materi-
als such as curtains, drapes, furniture, bedding, paper,etc.
2. Mark the desired location on the floor and store the appliance in a safe, dry and dust free place.
3. Prepare a wall with a framed opening to accommodate the size of your unit. Leave at least 1/4” (6mm) around the
edge of the applicnce. Any new wiring must be done in compliance with local and national codes and other applicable
regulations.

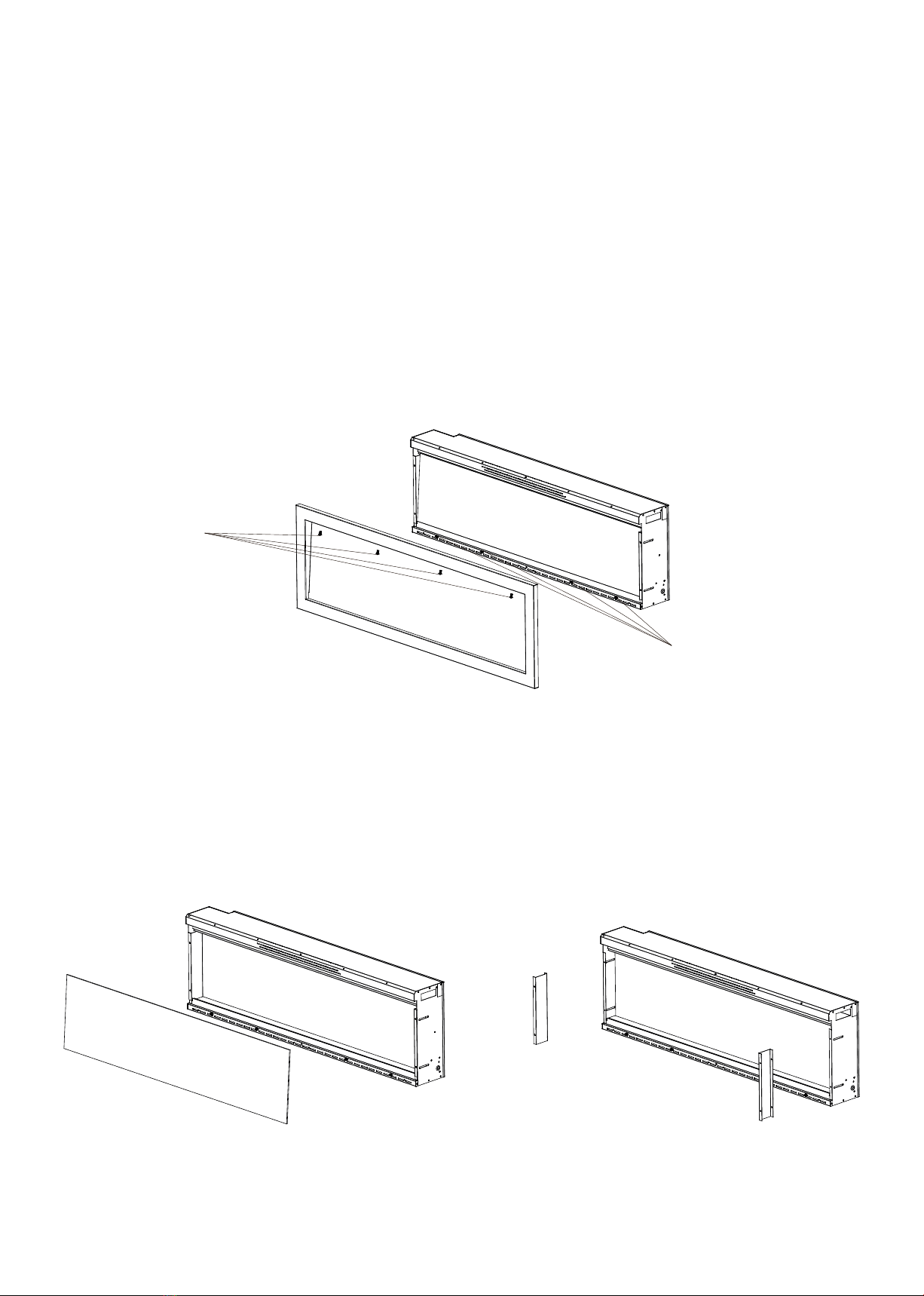

1. Unscrew 4 screws on the top, 4 magnets are at the bottom（The quantity varies depending on the size of the unit）
and take off the trim. (NOTE: Keep hold of the front glass as it may fall down automatically when the trim is removed.)
2. Carefully remove the front glass panel once the trim
has been removed. Use caution as the glass is now
loose.
3. Unscrew the screws located on each side and
take off the inner side steel panels.
Magnetic Stones located here
Screws Located Here

01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17
18 19 20 21 22 23 24
4. Put the trim back onto the appliance and fasten with screws.(NOTE: This step is to make sure that the fireplace fits
the wall opening well and there is no gap between the trim and the wall after installation)
6. Remove the trim following STEP 1. Screw back the inner side steel panels.
7. Insert the front glass panel back in place after the media installation has been completed.
5. Put the fireplace into the wall opening and fix it to the wall by screwing 2 screws each side.

01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17
18 19 20 21 22 23 24
INSTALLING THE DECORATIVE MEDIA
1. Unscrew 4 screws the quantity varies depending on the size of the unit and take off the trim. (NOTE: Keep hold of
the front glass as it may fall down automatically when the trim is removed.)
Magnetic Stones located here
Screws Located Here
2. Carefully remove the front glass panel once the trim has been removed. Use caution as the glass is now loose.
3. Pour the media into the tray. Feel free to use any combination of the fire glass media that you find most appealing.
Insert the front glass panel back in place after the media installation has been completed.
Consumers may purchase optional decorative media if they choose. See dealer for more details.

01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17
18 19 20 21 22 23 24

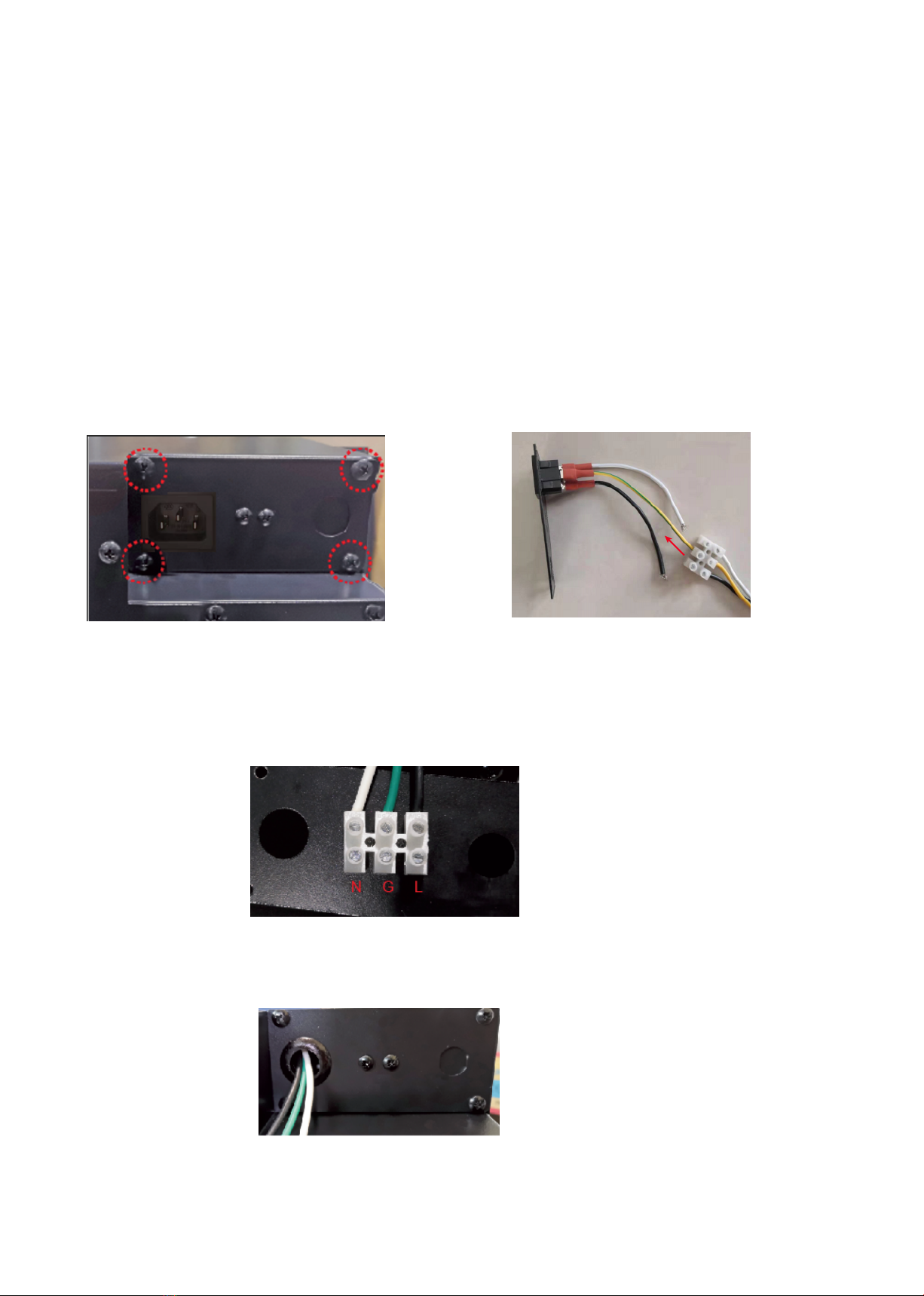

HARDWIRE INSTALLATION
Turn off the appliance completely and let cool before servicing. Only a qualified service person should service and
repair this electric appliance.
If it is necessary to hardwire this appliance, a qualified electrician must remove the cord connection, and wire the
appliance directly to the house hold wiring.
This appliance must be electrically connected and grounded in accordance with local codes, if hardwired.
1. Test the unit before removing the cord.
Remove the cover plate from the back top right corner of the appliance by removing the four screws, as shown below.
Unscrew and remove power cord.
2. Attach the wiring to the junction block. Please make sure the live wire goes into the “L”, the neutral wire into “N” and
the ground wire into “G”.
3. Return the cover plate to the back top right corner and screw the four screws back in to fasten the plate.

01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17
18 19 20 21 22 23 24

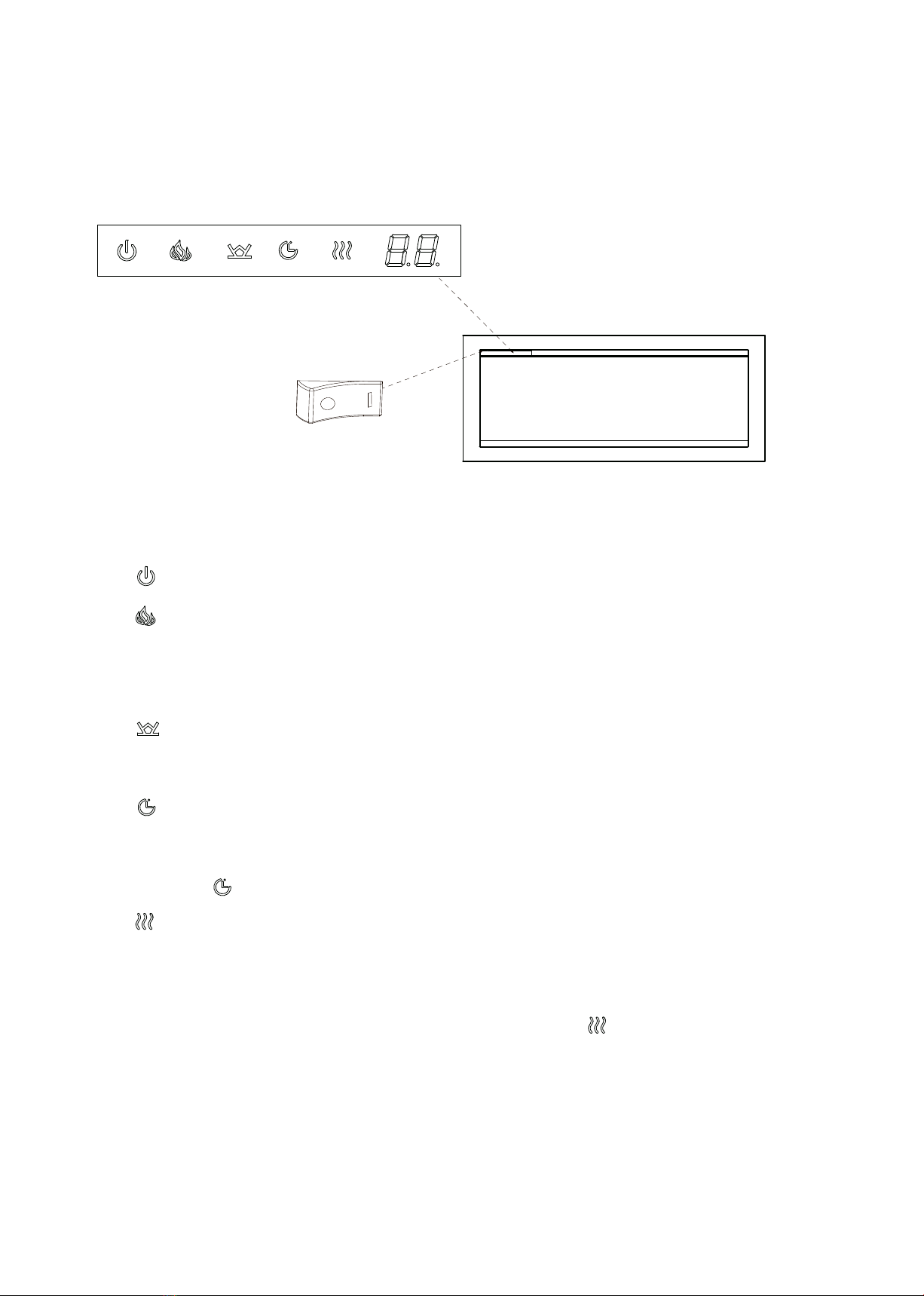

MANUAL OPERATION
The fireplace operates either by the touch panel located on the left front top side of the fireplace or by supplied remote
control.
Ensure that the ON / OFF Power Switch on the fireplace is in the ON position.
1. Press “ ” to turn on and off the fireplace.
2. Press “ ” to adjust the flame brightness. There are 6 brightness levels（L6-L1）and an off(OF) position. Each
time the flame button is pressed, the brightness of the flame decrease.
Press the flame button more than 5 seconds, the timer indicator light on and will rapidly blinks, at this time, you can
use the TuyaSmart APP to connect to the fireplace.
3. Press “ ” to adjust the ember bed brightness. There are 7 brightness levels (d8-d2), dynamic condition(d1) ,and
the OFF(OF) setting you can cycle through. Each time the ember bed button is pressed, the brightness of the ember
bed decrease.
4. Press “ ” for the first time to display the current timing，press the button again to clear the current timing. If the
timing in off position, the second press will show 30. Multiple times to set operating duration to OF, 30 min, 1h, 2h, 3h,
4h, 5h, 6h, 7h, 8h.
Press and hold the “ ” for 5 seconds to turn on the sound.
5. Press “ ” for the first time to display the current setting temperature，press the button again to clear the current
temperature. If the heater in off position, the second press will show22℃(72℉). Multiple times to set ambient tempera-
tures at 22℃(72℉), 23℃(74℉),24℃(76℉), 25℃(78℉), 26℃(80℉), 27℃(82℉), 28℃(83℉),15℃(59℉), 16℃(60℉),
17℃(62℉),18℃(64℉), 19℃(66℉), 20℃(68℉), 21℃(70℉).
Temperature unit convert function: When the heater is on, press and hold the“ ” Button for 5 seconds, current
temperature unit display will convert to another temperature unit.
NOTE:The heater is turned on by switching on the fan first, then after 5 seconds the heating coil. The heater is turned
off by switching off the heating coil first, then after 30 seconds the fan.
Touch the control panel once to “wakes up” the controls. This will cause the controls to light up. At this time, you can
press the power button to turn on fireplace

01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17
18 19 20 21 22 23 24

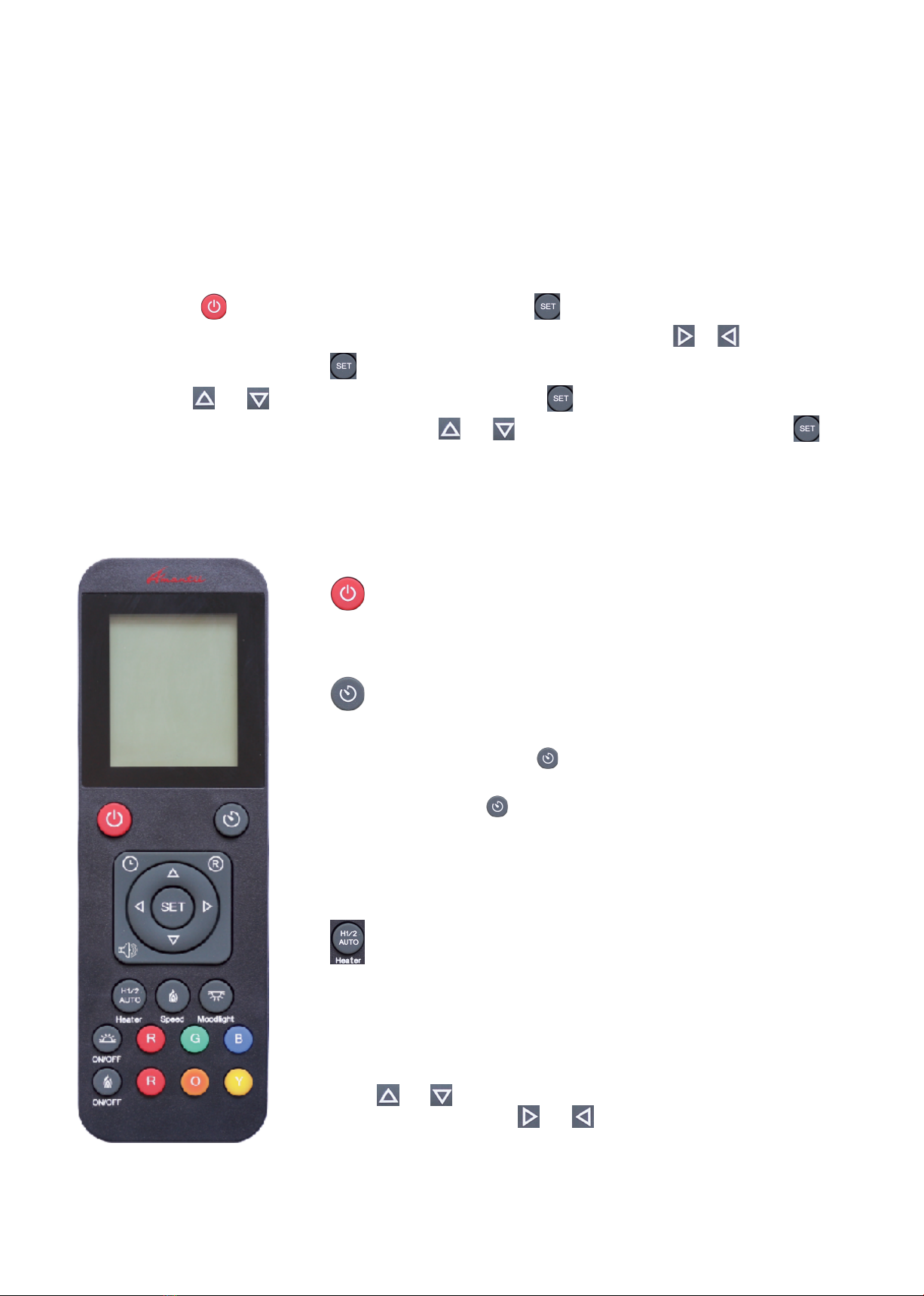

REMOTE CONTROL OPERATION
You must press the key to open the remote control and press the key to enter the setting current time state.
When one of the “Sun”“ Mon”“Tue”“Wed”“Thu”“Fri”“Sat” date is flashing, you can press the or key to select the
current day of the week, and press the key to confirm and enter hour setting. When the digital tube of time hour
flashes, press the or key to set the current time and press the key to confirm and enter minute setting.
When the digital tube of time minute flashes, press the or key to set the current time and press the key
to confirm.
This Power Button turns the fireplace on and off. It has a memory
function, press the power button once to turn power on. Pressing the
power button again will turn the power off.
The Timer Button has adjustable setting at range from 30 minutes to 8
hours. As shown the following: 0:30- 1:00- 1:30- 2:00- 2:30- 3:00-
3:30- 4:00- 4:30- 5:00- 5:30- 6:00- 6:30- 7:00-7 :30- 8:00. Once you
have set the timer, The icon will be displayed on the LCD screen
of the remote control. Press this button again, cancel the timing
setting, and the icon disappears.
When the timer is up, it will close all the functions and enter standby
mode. In this mode, you should touch the power icon to restart the
appliance.
Each time the Heater Button is pressed, the power of the heater will
change. As shown the following: H1- H2- AUTO(22℃)- OFF(no
display).
H1 means the fireplace on Low Heat.
H2 means the fireplace on High Heat.
AUTO means fireplace can automatically adjust to the temperature
you set. When in AUTO, you can set the desired temperature with
0or keys. You can switch temperature unit between Celsius
and Fahrenheit with or keys.
Setting the current time of the remote control
For the remote to function make sure the fireplace is plugged in and the ON / OFF Power Switch on the fireplace is in
the ON position and the remote has batteries.
Important: When operating the remote make sure you point the remote to the center of the fireplace. Each time you
press the button, there will be a beep tone emitted.

01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17
18 19 20 21 22 23 24
The Moodlight Button turns the moodlight on and off. When in on position, the display screen of the remote
control shows AD 1, when the number “1” flash, you can set the color of moodlight with or keys.
There are 10 different moodlight colors(AD1-10) and dynamic condition(AD11) to choose from.
The Ember Bed Button turns the Ember bed light on and off. When in on position, the display screen of the
remote control default shows 8 8 8. You can press or or keys to change the corresponding
color.
Each time Speed Button is pressed, the speed of the flame will change. Three options are available: Medium-
High- Low.
Each time the Red Button is pressed the brightness of the red color decrease. There are 7 brightness
levels (8-2), dynamic level(1) and OFF ( no display) settings that can be cycled through. When no
number is displayed on the remote control LCD screen then the ember bed color is off.
Each time the Green Button is pressed the brightness of the green color decrease. There are 7 bright-
ness levels (8-2), dynamic level(1) and OFF ( no display) settings that can be cycled through. When no
number is displayed on the remote control LCD screen then the ember bed color is off.
Each time the Blue Button is pressed the brightness of the blue color decrease. There are 7 brightness
levels (8-2), dynamic level(1) and OFF ( no display) settings that can be cycled through. When no
number is displayed on the remote control LCD screen then the ember bed color is off.
The Flame Button turns the Flame on and off. When in on position, the LCD screen of the remote control
default shows 6 6 6. You can press or or key to change the corresponding color.
Each time the Red Button is pressed the brightness of the red color decrease. There are 6 brightness
levels (6-1) and OFF ( no display) settings that can be cycled through. When no number is displayed
on the remote control LCD screen then the flame color is off.
Each time the Yellow Button is pressed the brightness of the yellow color decrease. There are 6
brightness levels (6-1) and OFF ( no display) settings that can be cycled through. When no number is
displayed on the remote control LCD screen then the flame color is off.
Each time the Orange Button is pressed the brightness of the orange color decrease. There are 6
brightness levels (6-1) and OFF ( no display) settings that can be cycled through. When no number is
displayed on the remote control LCD screen then the flame color is off.
NOTE: If the flame and ember bed brightness are off before the heating function is turned on, after turning on the
heat, the flame and ember bed brightness is slightly light on by default.

01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17
18 19 20 21 22 23 24
ENERGY SAVING FUNCTION
The Refer Button queries the 7-day timer setting. This will not turn on the timer function but will only show the
previous setting. Press the or key to query the day of the week. Press the or key to
query the start up and shutdown time.
Press key once to enter the query mode, press the key again to exit query mode.
Press the key once, 7 days from Monday to Sunday will display on the LCD screen of the remote control,
press key within 5 seconds to enter 7 day timer function . When “Sun” is flashing use the or key
to select the day that you want to set，pressing the key to confirm. Then “ON” will be displayed on the
LCD screen of the remote control, at the same time, the hour on the digital clock flashes, press the or
key to set the hour and then the minute you want the fireplace to turn on. After setting the start up time, “OFF”
will be displayed on the LCD screen. Use the or key to set the shutdown time the same as setting the
start up time. After setting the shutdown time, “AUTO” will be displayed on the LCD screen of the remote
control. The digital temperature flashes, at this time you can set the desired temperature with or
keys. The fireplace will beep to acknowledge the settings. Now, the 7 day function has been set, the fireplace
will save the setting and run automatically.
When the 7 day timer is set, the icon will be displayed on the LCD screen of the remote control. Press the
0key again to cancel the 7 day timer function, the will disappear.
7 day timer function
NOTE: Ensure that the current time setting accurate, otherwise the effective time of the 7 day timer function
will be different from what you set.
NOTE: If the 7 day timing and general timing exist at the same time, the shutdown time shall be the earlier time. For
example, it is now 6 am on Tuesday, turning on the heaters general timer for 4 hours, will have the shutdown time of
10 am. The previous 7 day shutdown time is 8 am on Tuesday, so today's heater shutdown time is 8 am instead of 10
am.
If the heater detects a drop in temperature caused by an open window or door whilst in heat mode it will shut off the
heater followed by flashing the ember bed light. To restart the heater press the any button.
This button turns the fire crackling sound on and off.

01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17
18 19 20 21 22 23 24
TROUBLE SHOOTING
Each time the heater button is pressed in the E1 state, one beep tone will be given.
Each time the heater button is pressed in the E2 state, two beeps tone will be given.
Each time the heater button is pressed in the E3 state, three beeps tone will be given.
Fault code Fault Cause Solution
E1 The heater overheating
E2 NTC is defective. Call after-sales service.
Call after-sales service.
The heater not working. If the vents are dirty or clogged. Unplug the power,
clean the dust and debris of the vent area. Wait for 5
minutes, plug in and turn on the heater. If the heater
still don't work, please call after-sales service.
E3
MAINTENANCE INSTRUCTIONS
ENVIRONMENT
● Always remove the plug from the socket-outlet and allow the heater to cool down before cleaning it.
● Wipe the exterior surface of the appliance occasionally with a soft damp cloth (not dripping wet) and dry the exterior
surface before operating the heater.
WARNING!
Do not immerse the heater in water.
Do not use any cleaning chemicals such as detergents and abrasives.
Do not allow the interior to get wet as this could create a hazard.
● Light accumulated dust may be removed from the appliance with a soft dry cloth.
● To store away the appliance put it back in to its original packaging and store it in a clean dry place.
● In the event of malfunction do not try to repair the heater yourself as this may result in a fire hazard or electric shock.
NOTE: The blower motor and flame motor are pre-lubricated for a durable period of time and need no further lubrica-
tion or maintenance. As the dust particles will accumulate on/in the fireplace, so periodic cleaning/ vacuuming of the
fireplace is recommended.
Do not dispose of electrical appliances as unsorted municipal waste. Use separate
collection facilities. Contact your local government for information regarding the
collection services available in your local area. If electrical appliances are
disposed of in landfills or dumps hazardous substances can leak into the ground-
water and get into the food chain, thus damaging your health and wellbeing. When
replacing old appliances with new ones the retailer is legally obligated to take
away your old appliance for disposal free of charge.

01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17
18 19 20 21 22 23 24
(SYM-74 BESPOKE)
BS1900074-1/EU4
(SYM-88 BESPOKE)
BS1900088-1/EU4
(SYM-100 BESPOKE)
BS1900100-1/EU4
REPLACEMENT PARTS
FRONT GLASS
EMBER BED GLASS
FLAME EFFECT GLASS
LED STRIP
FOR EMBER BED
LED STRIP
FOR FLAME
PCB BOARD
FRAME
REMOTE (R1)
MOTOR
1
2
3
4
5
6
7
8
9
10
11
14
AC ADAPTER
BLOWER AND
HEATER ASSEMBLY
LED STRIP
FOR TOP LIGHT
NO. DESCRIPTION
PART NUMBER
30002180
3000181230001859 3000185930001961 3000196130001859-74
30002056 30002059 30002059-74
60000190 60000196
60000192
60000191
30002010
10002255P
60000198
60000197
60000199
60000201
60000200
30002013 30002020-74
10002283P 10002386P
30001868
30001978
30002175
10105070
(SYM-34 BESPOKE)
BS1900034-1/EU4
(SYM-42 BESPOKE)
BS1900042-1/EU4
(SYM-50 BESPOKE)
BS1900050-1/EU4
(SYM-60 BESPOKE)
BS1900060-1/EU4
BLUETOOTH SPEAKER SET
SPEAKER SET
12
13
300021183000211930002120
3000203230002057
(POWER PCB +
SPEAKER PCB +
SPEAKER)
(SPEAKER + SPEAKER PCB)

01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17
18 19 20 21 22 23 24
EXPLODED VIEW

01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17
18 19 20 21 22 23 24

01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17
18 19 20 21 22 23 24
