Ambar EP 02 User manual

Instruction Manual
Ambar Bluetooth Headset
Model No.: Ambar EP 02
We, the team of Ambar, thank you for your support by purchasing this Bluetooth Earpiece. In
order to help you use all the functions of this Bluetooth in the best possible way to make your
hectic life easier, we have prepared this User Manual for you.

Instruction Manual

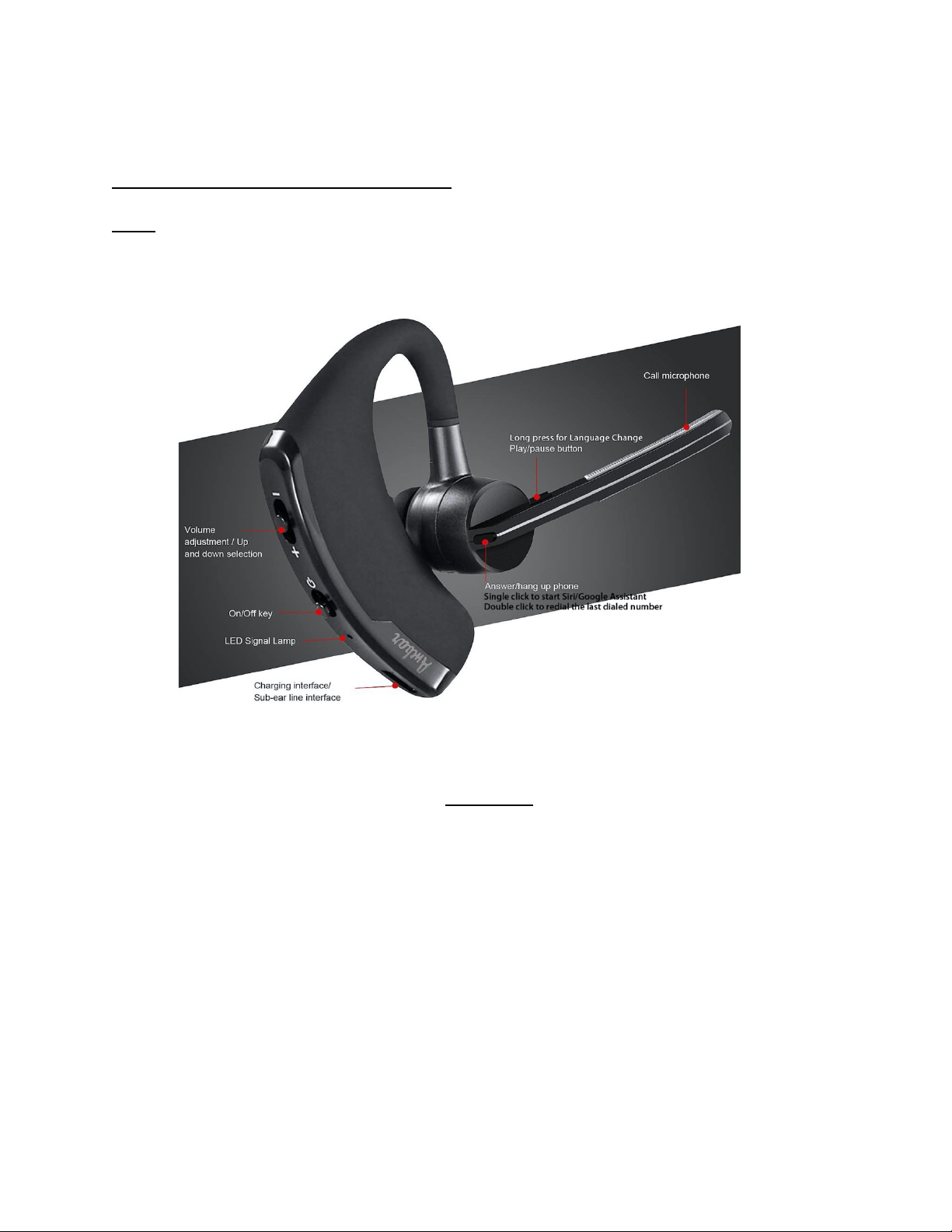

Functions of all Keys/Buttons
Note: Do go through all keys and functions to know what you can do with them in
order to use Bluetooth properly.
(1) Pairing with First Device
Before you make use it for the first time, you need to pair this Bluetooth Earpiece with your mobile
or any other Bluetooth device by following steps:
1. Turn on the Bluetooth, the LED indicator will flash between red and blue alternately. The
Bluetooth will report you “Power on” in your ear if you are wearing it.
2. Turn on your mobile phone's Bluetooth function and search for “Ambar EP 02” from the list
of new available Bluetooth devices. Once you connect, it will report “connected” in your ear.
Image 1.1

Instruction Manual
Next time when you want to connect this Bluetooth to your mobile, you will not need to pair
again. It will be automatically connected.
(2) Answer/End/Disconnect the Call/Redial
a) Once there is an incoming call, press top button on the mic boom as shown in Image 1.1 to
receive call and also to end a call after conversation. If you do not want to receive a call but
disconnect, you can do so by a long press on the same button as shown in Image 1.1 for 2-3
seconds.
b) To redial the last call you made, press top button on the mic boom twice quickly as shown in
Image 1.1, it will immediately call the last dialed number even if your mobile screen is not
on. It’s very quick! J
(3) Play/Pause/Next/Previous
In the normal state, press the side button on the mic as shown in Image 1.1 to play the music,
press again to stop/pause the music.

Instruction Manual
Long press/keep pressing the volume key button to keep increasing or decreasing volume. If you
hit once, it will change to next song/audio when you push towards ‘+’ sign or previous one when
you push towards ‘-‘ sign. You can refer to Image 1.1.
(4) Charging
The product is with built-in rechargeable battery which can be charged by the micro USB cable
provided to you in the package or using any compatible mobile charger. We advise you to charge
your Bluetooth fully before you use it for the first time.
(a) While charging, the Red LED Indicator will light up, after charging is complete, the Red LED
Indicator will be changed to Blue color.
(b) While power is low, the Bluetooth device will report “low battery” every 5 minutes until the
battery is used up. We advise you to charge every 24 hours if you use it daily throughout the day.
(5) How to use Google Assistant or Siri through this Headset?
First of all, you have to make sure that Google Assistant/Siri is already set up in your mobile device
and you are able to use it through your mobile.
After that, simply press the top button on the mic as shown in Image 1.1 of your Bluetooth
Headset to prompt Google Assistant/Siri. Then your mobile will start listening to your commands.
Please note that Bluetooth Headset will just work as microphone and speaker on your mobile’s
behalf while using Google Assistant/Siri. That’s the function/feature in your mobile while this
Headset helps in waking/starting Google Assistant/Siri even without touching your mobile.
(6) How to Change Language of Voice Notifications of Earpiecefrom
English to Chinese or Chinese to English?
Long press the side button on the mic to change the language to Chinese or back to English.
(7) Care and Maintenance
(1) Do not expose the speakerphone to liquid, moisture or humidity.
(2) Do not use abrasive cleaning solvents to clean the speakerphone.

Instruction Manual
(3) Do not place the speakerphone in high temperature.
(4) Do not expose the speakerphone to contract with sharp objects as this will cause scratching
and damage.
(5) Do not attempt to disassemble the speakerphone, as it does not contain serviceable
components.
(6) If you do not use the speakerphone for the long time, be sure to store it in a dry place, free
extreme temperature, humidity and dust.
(8) What if you are facing loss of connection or disconnection
regularly?
1. Turn off Bluetooth and turn on again.
2. Make sure your mobile device to which the Bluetooth is connect is not away from you. It should
be within the 10 meters with no walls in between.
3. Do not keep your phone in your trouser/jeans/lower pocket, rather keep it in your hand or
anywhere else which do not hinder its connection and gives smooth connectivity.
4. If Bluetooth is disconnecting regularly, try unpairing it on your mobile then pairing. Make sure
your other device does not have it paired, if they have then their Bluetooth should be off.
(9) Microphone does not pick voice or the person on the other
side is not able to hear?
1. Make sure your mobile has good cellular network.
2. Do not keep mobile in your trouser/jeans/lower pocket.
3. Turn off Bluetooth and turn on again.

Instruction Manual
(10) Specifications
• Bluetooth Specification: 4.1+EDR
• CSR Chip
• Sweatproof Bluetooth
• In-Built HD Voice Ready Microphone
• Noise Reduction: CVC 6.0
• Transmission Distance: 5-10 meters (20-30 feet): WITH NO WALLS OR HINDRANCE IN BETWEEN
• Battery: Lithium-ion 90mAh
• Charging Port: Micro USB
• Charging Time: 60 to 90 minutes
• Continuous Music Playback Time: 6-10 Hours
• Time with moderate use of Music and Talk: up to 48 Hours (6-10 Hours in case of continue phone
conversation)
• Standby Time: 200 hours
(11) How to wear properly, in any ear either left or right side?
You can rotate the speaker part with mic to change from left to right or right to left to wear any
of your ears.
In case of any questions, complaint or suggestion, please feel free to write to us at
[email protected]. We will right back to help you!
We’re always at your disposal!
