Quick Start Guide
AVC400
Amber Vision C400
Integrated Dual 4G Telematics HD Dashcam

1. Start Guide

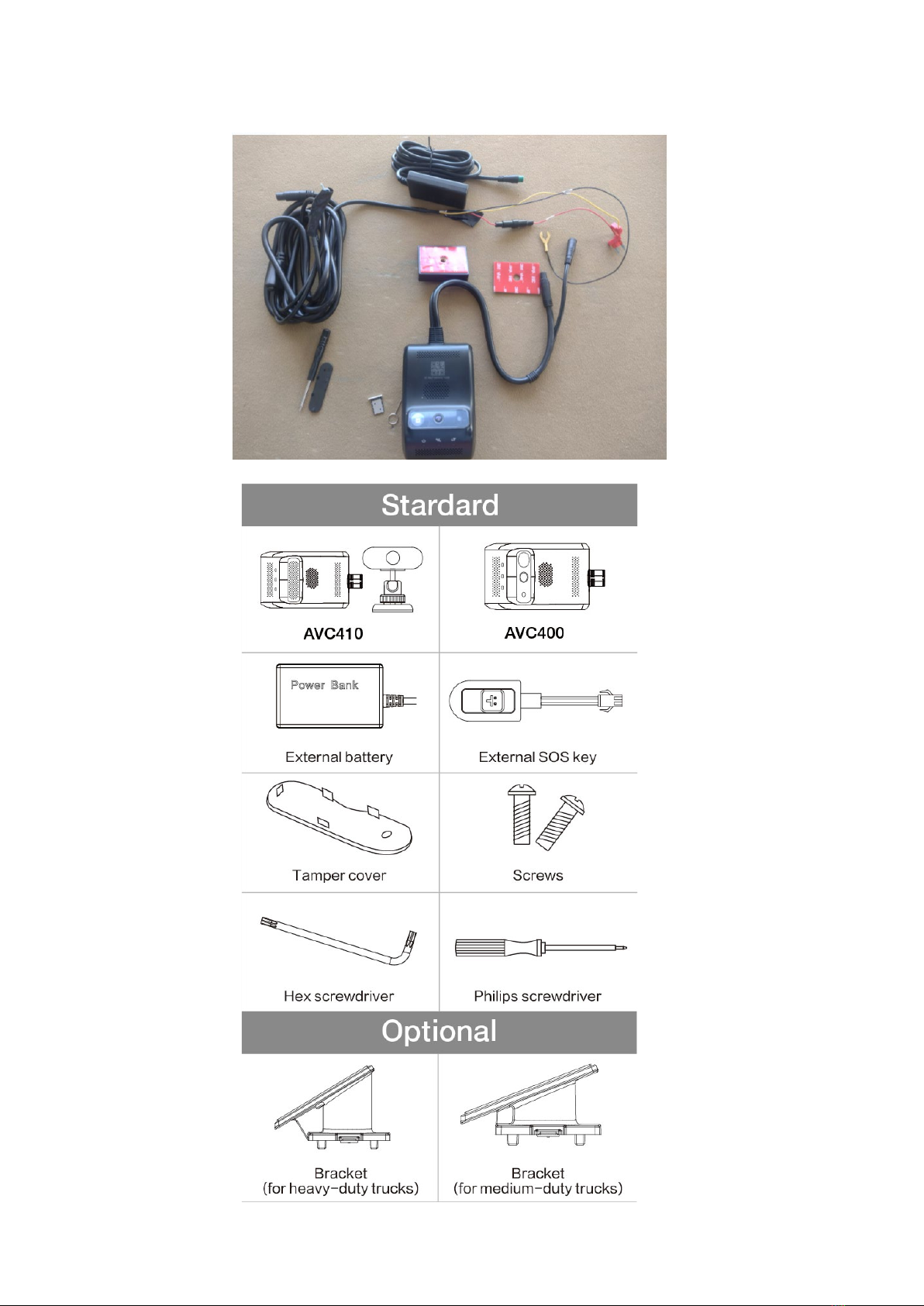

Packing List

Please check the product model you purchased carefully as the packing list varies with the
model.
Overview
AVC400 series uses 4G network for communication. For these dual-channel digital video
recorders (DVRs), except to be able to record simultaneously, the two cameras can also record
locally and live stream remotely at the same time. The front-facing HD camera is used for reel-time
recording; while the cabin-view camera with IR LED for monitoring at night time. Combined with
DMS, driving behavior analysis, multiple alert options, and much more, they can assist the
management in monitoring the vehicle condition and the driver's behavior at any time. This is very
useful to coach driver's behavior, improve management efficiency, and lower operation cost, making
AVC400 series an ideal option for remotely managing ridesharing, rental, public, government, and
enterprise fleets.
Appearance and LEDs
1. Main Unit
Product Model: AVC400/AVC410 main unit
Camera: 1920x1080/25FPS/F 2.0/Full color

2. Subcamera Options
Product
Model AVC400 Integrated Version
Camera
1280x
720/15 FPS/F2. 01
Full
color in daytime and
monochrome in dim
light/No remote camera
Usage Monitor the cabin
Product Model AVC410 DMS Version
Camera 1280x720/15F P S/F2.0/
Monochrome all day
Usage Monitor the driver's
head
Refer to the specifications and features of the product model you purchased. If you have
any questions, please contact your supplier.

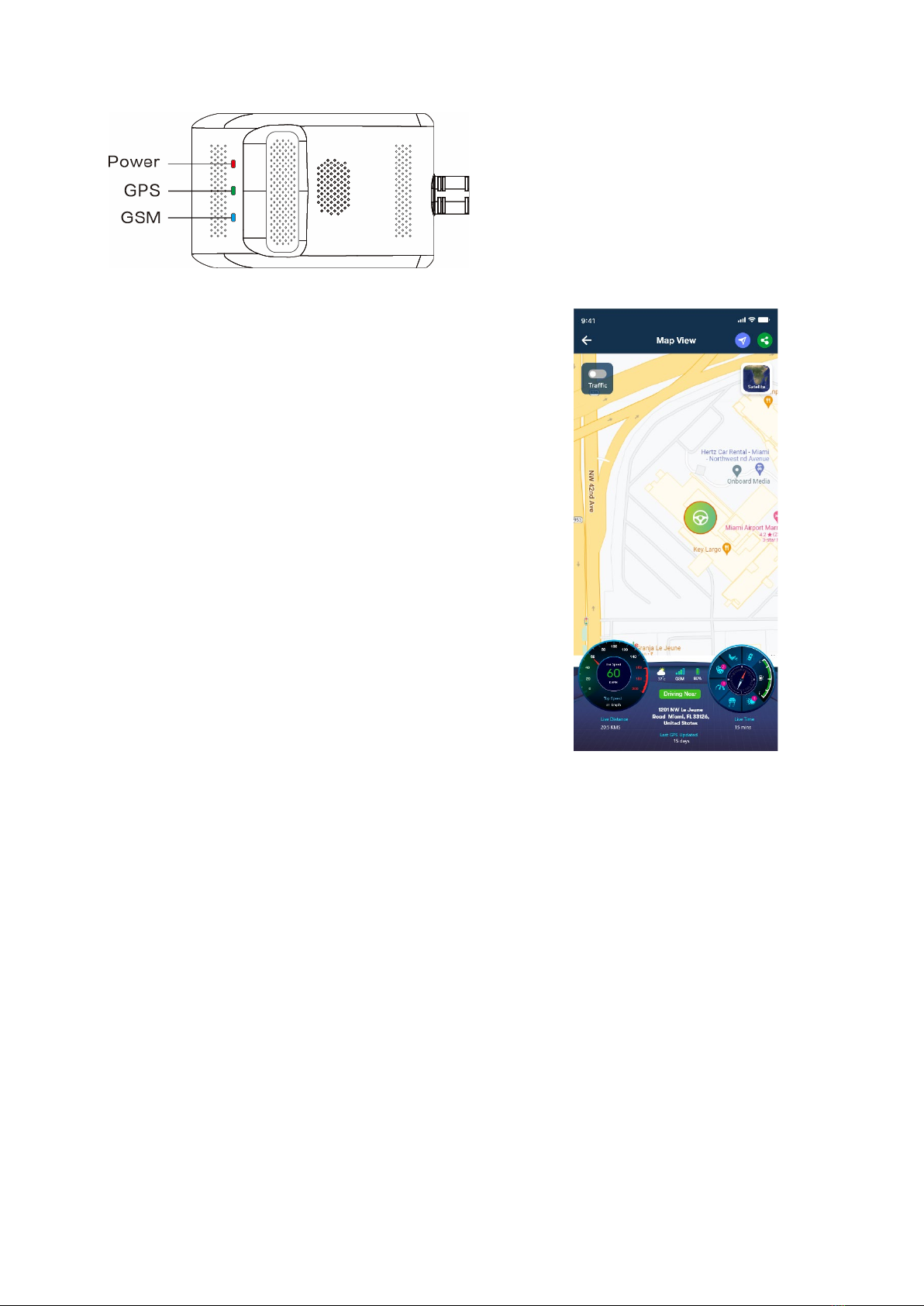

3. LEDs
LED Color Connotation Status
Power LED Red
Solid on Device powered on (ACC ON)
Blink every 10s
Device in sleep (ACC OFF)
OFF
No power connected
GPS LED Green Solid on GPS signal normal
Blink every 1s
Searching for GPS satellites

GPRS LED Blue
OFF Device in sleep (ACC OFF)
Solid on
Network healthy
Blink every 1s
Network error
No SIM
OFF
Device in sleep (ACC OFF)
Defense LED Blue
Fast blink< for 30s Vibrating alert triggered
Blink every 10s
Defense on
OFF
Defense off
4. Wirings
Cable
Definition
Color
Usage
Power B+ Red To battery positive (9-30V), power input
GND Black To battery negative, power input
ACC Yellow To ACC ON/Positive {9~30V), power input
Camera
(optional)
Remote Camera / Monitor the cabin

Battery External Battery /
To provide 450mAh backup battery for the
devic
e to protect it against power outage
resulted from sudden power disconnection.
2. Specifications and Features
1. Specifications
Category
Item
Parameter
Remarks
Hardware
Memory
1GB+16GB
/
AVC400-E
4G
FDD:B1/B3/B5/B7/B8/B9/B20
IDD: B38/B39/B40/B41(100M )
3G
WCDMA: B1/B2/B5/B8
2G
GSM: 850/900/1800/1900
AVC400-LA
4G
FDD: B2/B3/B4/B5/B7/B12/B17
IDD: B38/B41(100M J
3G
WCDMA: B2/B4/B5
2G
GSM: 850/1800n900
WiFi
2.4 GHz
802.11/b/g/n
GNSS
Support
GPS/BDS
Microphone
Support
For remote voice communication
Speaker
Support
To notify drivers of status c, events
Interface/Key
Reset key
Support
On the main unit
Interface
Micro USB
For commissioning and upgrade
Others
Power supply
Fuse Box
B+/ACC/GND
Supply voltage
DC 9-30V
/
Battery
External
450mAh
Operating
temperature
-20°c ~+70°c
/
2. Features
No
Feature
Description
1. Video recording
This enables the device to record in loop when the vehicle is
moving.5.
2. Live video
This enables the device to live stream images captured by
cameras via the L TE network to the platform (web or app).
3. Tracking
This enables the device to upload loca1ion data and motion
information via the mobile network to the platform for analysis.
4. Event alert
This enables the device to upload alert messages and video
files to the platform
when an event is triggered by collision,
vibration, dangerous driving behavior, emergency, OMS
reminder, speeding, etc.
5
Remote control
This enables the user to deliver a lock command to the device

via the platform (web or app) to remotely cut off the fuel and
power to the vehicle when an exception occurs.
Note: For details about features, refer to the operation guide.
3. Installation
Precautions:
•This device is not suitable for battery electric vehicles (BEVs) and hybrid electric vehicles
(HEVs).
•Use accessories specified by the manufacturer only.
•The standard supply for the device is DC9~30V, please use the original power cable and
ensure that 1he positive and negative ends are correctly wired.
•Remove the protective film an the remote camera prior to installation.
•11 is recommended to ask a distributor, a designated business, or an expert to do the
installation and commissioning.
3.1 Preparation
Device check
Check visually whether the device is in good condition and whether the relevant accessories
are complete.
3.2 SIM Card Attachment
Ensure that the device is ACC OFF before attaching a proper SIM card.
To attach and detach the SIM may damage the contacts, please use the completed Micro
SIM card instead. In addition, the SIM should have data service activated and not in arrears.

3.3 TF Card Attachment
Ensure that the device is ACC OFF before attaching a proper TF card.

3.4 Main Unit Installation
1. Connect the power cable of the device to B+, ACC, and GND of the fuse box on the
vehicle. is a reference position.
2. Route the power cable along the A pillar of the vehicle to the upper center of the front
windshield. The red dashed line () in the figure is for reference.
3. Select a proper installation position and wipe the position clean. Remove the protective
film from the 3M tape of the mounting base and attach it to the position. Wait for 2 hours
before proceeding to the next step. See for reference.
4. Mount the device to the base and connect its power cable correctly (see for reference).
Then fasten the cable securely.

.3.5 Installation of Accessories
You can select a proper position to install the remote camera according to actual conditions
3.5.1 Remote AHD Camera
1. Face the camera inward and install it to the windshield behind the rear-view mirror (as
shown in ) or to the middle of the dashboard (as shown in ). Wipe a selected
position clean, remove the protective film from the 3M tape, and attach the device.
2. Use the supplied screwdriver to tighten the screw of the camera, so it keeps at the best
angle. Connect the cables correctly and fas1en them securely.
3.5.2 DMS Camera
This section, is dedicated to AVC410.
The DMS camera is mainly used for monitoring the driver. Fixate the camera at an angle
about 30" to the steering wheel directly facing the driver's head, as the following figure
shows.
