Ambery MPV-16X User manual

1 / 22
9CH/16CH Split-Screen
Video Processor
User Manual

2 / 22
Directory
DirectoryDirectory
Directory
1.System Features………………………………………………2
2. Rear Panel Installation………………………………………3
3. Front Key Operation…………………………………………4
4. Function description………………………………………..5
4.1Button MENU / AUDIO ……………………………………….5
4.2 Button AUTO/ FREEZE ………………………………………5
4.3 Button ZOOM/MODE ………………………………………..5
4.4 Button VCR / ENTER ………………………………………...6
4.5 Button M4-A / ▲ …………………………………………….6
4.6 Button M4-B / ▼ …………………………………………….7
4.7 Button M8/◄ ………………………………………………...7
4.8 Button M9/► ……………………………………………..…7
4.9 Button 1/9 / FULL, 2/10 / FULL, 3/11 / FULL…ect ………….7
4.10 PAL/NTSC System………………………………………7
4.11 PTZ Function…………………………………………….7
5. Setup Menu Operation………………………………………9
5.1 Setup Main menu…………………………………………10
5.2 System Setup Menu………………………………………10
5.3 Display Setup Menu……………………………………….12
5.4 Camera Setup Menu………………………………………13
5.5 Motion Setup Menu………………………………………..14
5.6 Auto Sequence Setup Menu……………………………..15
5.7 Event Setup Menu………………………………………….16
5.8 Event Report………………………………………………..17
5.9 Event List Clear Menu……………………………………..17
6. RS-232 and RS485 Interface…………………………………18
7. External Alarm Interface……………………………………....21

3 / 22
1.System Features
- 4 channel audio input,1 channel audio output (option)
- Connects up to 4/8/16 Video Camera
Adjustable Brightness, Contrast, Saturation, Hue and Sharpness
- High Resolution
720X480 60Hz for NTSC
720X576 50Hz for PAL
VGA(option): 1024x768
- Various Display Modes
4 /8/16 Split Mode
Full Screen Mode
PIP Screen Mode
Realtime 8 Split Mode
Non-realtime 16 Split Mode
Dual Split Mode
Auto Sequence Mode
- High Performance Freeze Function
Flicker Free Image Capture
- High Performance Zoom Function
Selectable Zoom Area
- Various Overlay Information
Camera Title
Real Time and Date
Loss/Alarm Message
- Playback Function
- Provide Various Event Input and Detection
Video Loss Detection
60 Event Report
Built-in Buzzer and Relay Output
- Remote Control by Infrared Transmitter and RS-232 connection (option)
- Camera Control by RS485 connection (option)

4 / 22
2.Rear Panel Installation
e.g. 16 Split system
①
①①
① Camera Connection
Accept 16 loop composite video inputs from the camera.
②
②②
② AUDIO IN Connection
Accept 4 composite audio inputs from the camera.
③
③③
③ VCR IN / VCR OUT Connection
Accept 1 composite video input for playback from the VCR.
Provide 1 composite video output for recording in the VCR.
④
④④
④ Monitor Connection
Provide 1 composite video output for the main monitor.
⑤
⑤⑤
⑤ AUDIO OUT Connection
Provide 1 composite audio output for the main monitor.
⑥
⑥⑥
⑥ VGA OUT Connection (option)
⑦
⑦⑦
⑦ RS485 / RS-232 / External Alarm Connection
⑧
⑧⑧
⑧ Power Jack Connection
DC 12V, Center is positive
⑨
⑨⑨
⑨ Power Switch
1 : ON
○
○○
○ : OFF

5 / 22
3.Front Key Operation
e.g. 16 Split system front panel
Note: (*L) – Press key continuously more than one second to enter menu
options.
(**S) – Press key less than one second to enter menu options.
⑴
⑴⑴
⑴ MENU (*L) : Enter or Exit main menu mode.
AUDIO (**S) : switch audio channel or turn off audio
⑵
⑵⑵
⑵ AUTO (*L) : Auto channel switch ON/OFF
FREEZE (**S) ：
：：
： Press it to freeze/un-freeze display windows.
⑶
⑶⑶
⑶ ZOOM (*L) : Enter or exit ZOOM display mode.
MODE (**S) : Enter 16 Split ,picture in picture and Dual Split mode.
⑷
⑷⑷
⑷ VCR (*L) : Enter Playback function
ENTER (**S) : Enter menu setup
⑸
⑸⑸
⑸ M4-A /
/ /
/ ▲(*L) : Enter or Exit PTZ control function
M4-A /
/ /
/ ▲(**S) : Master QUAD display / up direction button
⑹
⑹⑹
⑹ M4-B /
/ /
/ ▼(**S) : Slave QUAD display / down direction button/switch
channel for PTZ controlling
⑺
⑺⑺
⑺ M8/
M8/M8/
M8/ ◄(**S) : 8 Split display / left direction button
⑻
⑻⑻
⑻ M9/
M9/M9/
M9/ ►(**S) : 9
99
9 Split display / right direction button
⑼
⑼⑼
⑼ 1/9 / FULL : Channel 1 ( channel 9) display
⑽
⑽⑽
⑽ 2/10 / FULL : Channel 2 ( channel 10) display
⑾
⑾⑾
⑾ 3/11 / FULL : Channel 3 ( channel 11) display
⑿
⑿⑿
⑿ 4/12 / FULL : Channel 4 ( channel 12) display
⒀
⒀⒀
⒀ 5/13 / FULL : Channel 5 ( channel 13) display

6 / 22
⒁
⒁⒁
⒁ 6/14 / FULL : Channel 6 ( channel 14) display
⒂
⒂⒂
⒂ 7/15 / FULL : Channel 7 ( channel 15) display
⒃
⒃⒃
⒃ 8/16 / FULL : Channel 8 ( channel 16) display
. Function description
4.1 Button MENU / AUDIO
● MENU: Press the MENU (*L) button to enter or exit menu
setup.
● AUDIO : Press the AUDIO (**S) button to switch audio
channel to listion in or turn off audio.
4.2 Button AUTO/ FREEZE
● Auto : Press the Auto (*L) button to sequentially display the
turned-on video channels (CH1,CH2,CH3,CH4…..CH16, and
4 quad if turned ON in the Auto sequence setup mode) in the
display mode windows. The time of display video channels
can be programmed by menu setup. Press any key exit
AUTO mode.
● Freeze : Press the Freeze (**S) button will freeze/un-freeze
the display window.
4 .3 Button ZOOM/MODE
● ZOOM : Press the ZOOM (*L) button to enter 2 * ZOOM
mode. The user can use the “M4-A /▲ “, “M4-B /▼ “,
“M8 /◄ “, “M9/►“buttons to move the ZOOM-in frame. Press
the ZOOM (*L) button again will return to previous display
mode.

7 / 22
● MODE : Press the MODE (**S) to enter the MODE setup
mode. By default, the display modes are circulated as the
following sequence, Non-realtime 16-Split, realtime 8-split, 2
Picture-in-Picture, 1 Picture-in-Picture and Dual Split for
each MODE key .
ZOOM
MODE
ZOOM
MODE
9/16 Split 2 PIP
ZOOM
MODE
1PIP
ZOOM
MODE
Dual Split
ZOOM
MODE
ZOOM
MODE
8 Split 8 Split
In 8split and PIP mode, press “ENTER” key enter setup function for
select display channel and channel display area. Press up and down
( ▲▼ ) key to select item to setup . Press left and right(◄►) key to
select which value we needed. Press “ENTER” key again to exit this
setup function.
In two screen compared mode, select any two channel to compared
screens. Press “ENTER” key enter setup function for select display
channel and circle display star area. Press up and down( ▲▼ ) key to
select item to setup. Press left and right(◄►) key to select which
value we needed. Press “ENTER” key again to exit this setup
function.
4.4 Button VCR / ENTER
● VCR : Press the VCR (*L) button to enter VCR playback
mode. The user can use 4 arrow keys and 4 channel
keys( ▲ ,
,,
, ▼ ,
,,
, ◄ ,
,,
, ► ，
，，
， 1/9 ， 2/10 ， 3/11,4/12) to select each
channel in the VCR mode. Press the VCR (*L) button again
will return to previous display mode.
● ENTER : In menu setup mode ,press the ENTER (**S) to
select the value.
4.5 Button M4-A / ▲
● M4-A: Press the M4-A (*L) button to enter PTZ controlling
function. Press the M4-B (*L) button again to exit PTZ
controlling function.

8 / 22
● M4-A: Press the M4-A (**S) button to display master QUAD.
● ▲: Press the ▲(**S) to move cursor in menu setup.
4.6 Button M4-B / ▼
● M4-B: Press the M4-B (**S) button to switch channel for PTZ
in opening PTZ function.
● M4-A: Press the M4-A (**S) button to display slaver QUAD.
● ▼: Press the ▼(**S) to move cursor in menu setup.
4.7 Button M8/◄
● M8: Press the M8 (**S) button to switch 8 split display.
● ◄: Press the ◄(**S) to move cursor or adjust the value in
menu setup.
4.8 Button M9/►
● M9: Press the M9 (**S) button to switch 9 split display.
● ►: Press the ►(**S) to move cursor or adjust the value in
menu setup.
4.9 Button 1/9 / FULL, 2/10 / FULL, 3/11 / FULL…ect.
● 16 channel keys select camera to be displayed as full
screen.
4.10 PAL/NTSC System
System can be defined as NTSC or PAL standard with the
following method. The first method is power on with pressing
7/15 or 8/16 key and the second one is to define in the setup
menu.
PAL
Connect Power Cable
NTSC
Connect Power Cable
7/15
FULL
8 /16
FULL

9 / 22
4.11 PTZ Function
⑴ Press the MENU (*L) key to enter the system main menu, choose
"system setup" and enter by press the ENTER (**S) key, "ptz
setup" must establish for "yes" ,then press the ENTER (**S) key
to enter the sub-menu . Then adjust the value to ensure the value
match as the channel of PTZ connected.
⑵ Press the M4-A (*L) button to enter PTZ controlling function. Press
the M4-B (*L) button again to exit PTZ controlling function.
⑶ Press the M4-B (**S) button to switch channel for PTZ controlling
when the ptz controlling is effective
⑷ The control key definition (as follows):
◄ ： stop ； 8/16 FULL ： automatic pattern
► ： right ； 1/9 FULL ： left ； (direction )
2/10 FULL ： down 3/11 FULL ： up ；
4/12 FULL ： near 5/13 FULL ： far (focal distance)
6/14 FULL ： big 7/15 FULL ： small (aperture)

10 / 22
5. Setup Menu Operation
The system provides a built-in GUI setup screen. For each menu, the key
function is described in the lower region to help operation. The following
figure shows the structure of GUI menu.

11 / 22
5.1 Setup Main menu:
Press MENU (*L) key to enter main menu setup.
Move cursor to the item of needed setup with ▲ / ▼ .Press
◄/►to select the value. Press ENTER key to enter submenu.
Press MENU (*L) key to exit last menu.
Press MENU (*L) to exit main menu setup.
5.2 System Setup Menu
1 ） Press ▲ / ▼ to select the item of setup .Press◄/►to select the
value ；
2 ） DATA ： there are three kinds of display format to data ： MM-DD-
YY DD-MM-YY ， YY-MM-DD 。 Default ： YY-MM-DD ， 07-07-07
3 ） TIME: time setup. HH ： MM ： SS is hour, minute and second.
Default ： 12 ： 00 ： 00.
4 ） SYSTEM FORMAT ： PAL / NTSC. Default ： PAL ；
5 ） LANGUAGE : English/Simple chinese. Default: PAL
6 ） PTZ SETUP ： If select YES, press ENTER to enter PTZ setup.
7 ） KEY LOCK: key lock. If select NO, after exit menu setup mode, all
key be locked except MENU key. Default ： OFF ；
8 ） SYSTEM ID:The machine ID, used for external devices, such as
keyboard control through RS232 / RS 85 control the machine, Default: 01

12 / 22
9) RS232: controlled way set, when RS232 set to off, through the
rs 85 control the machine, otherwise, through the 232 control the machine,
default: off
10) FACTORY RESET: comeback to factory setup. Press ◄/►to
select YES or NO. If select NO, press ENTER to enter into next dialog box.
Press ◄/►to select YES and press ENTER to comeback factory setup.
Default ： NO
Factory Reset Menu
WARNING!
WARNING!WARNING!
WARNING!
FACTORY RESET
FACTORY RESETFACTORY RESET
FACTORY RESET
EXIT
EXITEXIT
EXITE
EE
E NTER
NTERNTER
NTER M
MM
M ENU
ENUENU
ENU SELECT
SELECTSELECT
SELECT
THIS SYSTEM GETS TO LOSE
THIS SYSTEM GETS TO LOSETHIS SYSTEM GETS TO LOSE
THIS SYSTEM GETS TO LOSE
THE CURRENT SETTING VALUE
THE CURRENT SETTING VALUETHE CURRENT SETTING VALUE
THE CURRENT SETTING VALUE
AND WILL BE INITIALIZED
AND WILL BE INITIALIZEDAND WILL BE INITIALIZED
AND WILL BE INITIALIZED
WITH FACTORY RESET MODE.
WITH FACTORY RESET MODE.WITH FACTORY RESET MODE.
WITH FACTORY RESET MODE.
ARE YOU SURE?
ARE YOU SURE?ARE YOU SURE?
ARE YOU SURE?
YES
YESYES
YES NO
NONO
NO

13 / 22
5.3 Display Setup Menu
① DISPLAY ON SCREEN ： Select YES or NO to display
camera title, data time in the screen. Press ▲ / ▼ to move
cursor, press ENTER to change state. Display “√”
② SCREEN POSITION ： Select screen display area. X
position: -10 c +10. Y position: -4 ～ +3 . Default(X ： 0 ， Y ：
0).
③ BORDER COLOR ： Border colors have black, gray, white
and selected.
Default: GRAY2.
VGA: change the resolution of the VGA output(optional)

14 / 22

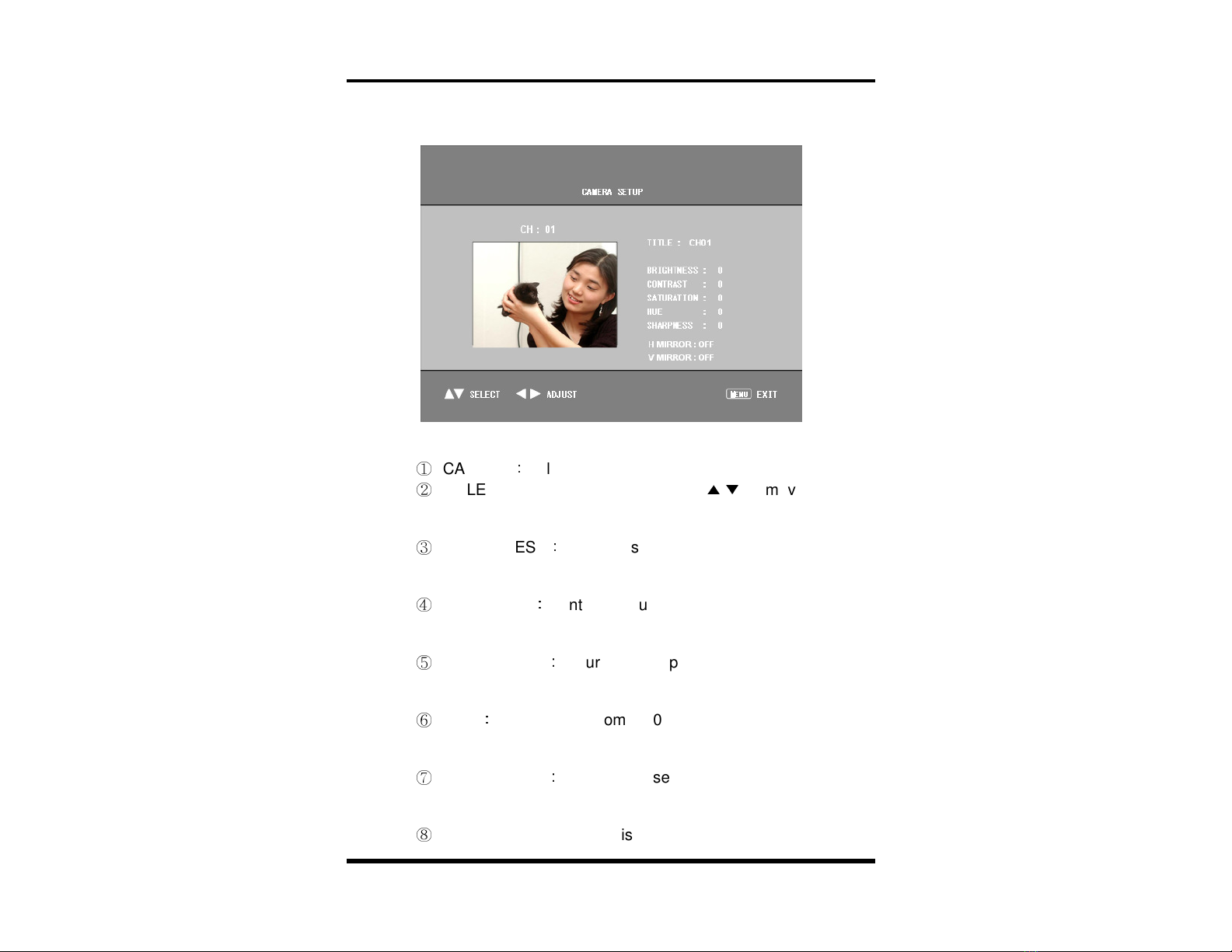

5.4 Camera Setup Menu
Setup each camera’s title / brightness /contrast / saturation / hue /
sharpness and mirroring independently.
① CAMERA ： Select the camera with ◄/►.Default: ch1.
② TITLE: Channel name setup. Press ▲ / ▼ to move cursor to
next character and press ◄/►to change character. Default:
CAMERA1
③ BRIGHTNESS ： Brightness setup. From –100 to +100 can
be selected. Press long ◄/►key, value can be continued
changed. Default: 0
④ CONTRAST ： Contrast setup. From –100 to +100 can be
changed. Press long ◄/►key, value can be continued
changed. Default: 0
⑤ SATURATION ： Saturation setup. From –100 to +100 can be
selected. Press long ◄/►key, value can be continued
changed. Default :0
⑥ HUE ： Hue setup. From –100 to +100 can be selected.
Press long ◄/►key, value can be continued changed.
Default :0
⑦ SHARPNESS ： Sharpness setup. From 0 to 3 can be
selected. Press long ◄/►key, value can be continued
changed. Default :0
⑧ MIRRORING: Mirroring display camera screen. Default: OFF

15 / 22
5.5 Motion Setup Menu
Setup each camera’s detection time/sensitivity/velocity
and masking area
CAMERA ： Select the camera with ◄/►.Default: ch1.
DETECTION TIME: ALWAY ON/ALWAYS OFF/ON/OFF TIME
SENSITIVITY: setup. From –7 to +7 can be selected.
VELOCITY: setup. From –7 to +7 can be selected.
MASKING AREA: every camera has 16x12 area, press ▲ / ▼ /◄/►select
the area,press “enter” to change state.

16 / 22
5.6 Auto Sequence Setup Menu
Setup display times of AUTO sequence to each screen. There are
skip/1sec~99sec be selected.
Default: 1sec.

17 / 22
5.7 Event Setup Menu
Can be set up independently every event is enabled. Press ▲ / ▼
/◄/►to select item o and press ENTER to change state. “√”is ON.
① ALARM : External alarm input enable switch. Default: all off
② LOSS: Video lost alarm enable switch. Default: all on
③ MOTION: Motion detects alarm enable switch. Default: all off
④ BUZZER HOLD TIME ： OFF/1ses~99ses can be selected.
Default: 5ses.
⑤ REPORT HOLD TIME ： Report of relay. Holding time.
OFF/1ses~99ses can be selected. Default: 30sec.
⑥ ALARM POLARITY: low/high. External alarm input polarity
choice. Set to high, high level (closed type) input effective;
Set to low, low-level input (often open type) effective.
Default: low

18 / 22
5.8 Event Report
EVENT REPORT
EVENT REPORTEVENT REPORT
EVENT REPORT
2
22
2
1
11
1
4
44
4
3
33
3
2
22
2
1
11
1
4
44
4
3
33
3
2
22
2
1
11
1
CH
CHCH
CH
LOSS
LOSSLOSS
LOSS1
11
17
77
7:56:03
:56:03:56:03
:56:030
00
07
77
7-
--
-07
0707
07-
--
-30
3030
308
88
8
LOSS
LOSSLOSS
LOSS1
11
17
77
7:56:03
:56:03:56:03
:56:030
00
07
77
7-
--
-07
0707
07-
--
-30
3030
307
77
7
LOSS
LOSSLOSS
LOSS16:56:03
16:56:0316:56:03
16:56:030
00
07
77
7-
--
-07
0707
07-
--
-30
3030
304
44
4
LOSS
LOSSLOSS
LOSS16:56:03
16:56:0316:56:03
16:56:030
00
07
77
7-
--
-07
0707
07-
--
-30
3030
303
33
3
LOSS
LOSSLOSS
LOSS16:56:03
16:56:0316:56:03
16:56:030
00
07
77
7-
--
-07
0707
07-
--
-30
3030
302
22
2
LOSS
LOSSLOSS
LOSS16:56:03
16:56:0316:56:03
16:56:030
00
07
77
7-
--
-07
0707
07-
--
-30
3030
301
11
1
LOSS
LOSSLOSS
LOSS1
11
18
88
8:56:03
:56:03:56:03
:56:030
00
07
77
7-
--
-07
0707
07-
--
-30
3030
3010
1010
10
LOSS
LOSSLOSS
LOSS1
11
18
88
8:56:03
:56:03:56:03
:56:030
00
07
77
7-
--
-07
0707
07-
--
-30
3030
309
99
9
LOSS
LOSSLOSS
LOSS1
11
17
77
7:56:03
:56:03:56:03
:56:030
00
07
77
7-
--
-07
0707
07-
--
-30
3030
306
66
6
LOSS
LOSSLOSS
LOSS1
11
17
77
7:56:03
:56:03:56:03
:56:030
00
07
77
7-
--
-07
0707
07-
--
-30
3030
305
55
5
EVENT
EVENTEVENT
EVENTHH:MM:SS
HH:MM:SSHH:MM:SS
HH:MM:SSYY
YYYY
YY-
--
-MM
MMMM
MM-
--
-DD
DDDD
DDNO
NONO
NO
1 OF 6 PAGE
1 OF 6 PAGE1 OF 6 PAGE
1 OF 6 PAGE
SELECT
SELECTSELECT
SELECT EXIT
EXITEXIT
EXITM
MM
M ENU
ENUENU
ENU
LIST CLEAR : NO
LIST CLEAR : NOLIST CLEAR : NO
LIST CLEAR : NO
SELECT PAGE
SELECT PAGESELECT PAGE
SELECT PAGE
Display every report of alarm. Event report has 6 page totally and
10 recordings per page. Press ◄/►to change pages.
LOSS: video loss.
ALARM: exterior alarm
MOTION: motion detection.
LIST CLEAR: Clear the list of reports.
5.9 Event List Clear Menu
WARNING!
WARNING!WARNING!
WARNING!
LIST CLEAR
LIST CLEARLIST CLEAR
LIST CLEAR
E X I T
E X I TE X I T
E X I TE
EE
E NTER
NTERNTER
NTER M
MM
M E N U
E N UE N U
E N U SELECT
SELECTSELECT
SELECT
THIS SYSTEM GETS TO LOSE
THIS SYSTEM GETS TO LOSETHIS SYSTEM GETS TO LOSE
THIS SYSTEM GETS TO LOSE
THE CURRENT
THE CURRENT THE CURRENT
THE CURRENT EVENT LIST
E VEN T LIS TE VEN T LIS T
E VEN T LIS T
AND WILL BE INITIALIZED
AND WILL BE INITIALIZEDAND WILL BE INITIALIZED
AND WILL BE INITIALIZED
WITH BLINK.
WITH BLINK.WITH BLINK.
WITH BLINK.
ARE YOU SURE?
ARE YOU SURE?ARE YOU SURE?
ARE YOU SURE?
YES
YESYES
YES NO
NONO
NO

19 / 22
6. RS-232C and RS 85 Interface
6.1 PTZ control
Before you operate the PTZ ， make sure 485 is connected correctly, and
make sure the PTZ is available.
Long press “MENU” ， enter the main menu, and select “SYSTEM SETUP”
and press “ENTER” to enter the submenu, set up “PTZ SETUP” to “YES”, and
press ”ENTER” to next submenu, set up the parameter of the PTZ to its
related channel
While the monitor, long press “▲”to enter or quit PTZ control, short
press”▼” ： change channels.◄ ： stop. 1/8 FULL ： auto mode.1/9 FULL ： left.
► ： right.1/3 FULL ： up ； 1/2 FULL ： down ； 1/5 FULL ： zoom
far ； 1/4 FULL ： zoom near ； 1/6 FULL ： zoom
big ； 1/7 FULL ： zoom small ；
6.2 Control instruction
By RS232 or RS485 can control this machine, working boud rate is
9600bps ， control protocol referece to 6.4
6.3 Connection as follow :
The Explanation of connection as follow:
① Ground must be connected into together
② The 3th foot of the serial port connect to RX port of the machine..
③ The 2th foot of the serial port connect to TX port of the machine .

20 / 22
6.4 Control Protocol and operating instructions
The company the color split system controlled type points two kinds,
one kind is common type does not have the keyboard control function,
control instructions simple, suitable for user directly in computer RS232
control. Another kind of have the keyboard control function, and can use
the keyboard B5003HB HANBANGGAOKE control operation, easy to use.
the control equipment and the machine’s baud rate and ID number set
to the same, default ID: 0x01
B5003HB HANBANGGAOKE control keyboard and Receive Protocol
FUNCTION
CODE(hex
, ID: 0x01
)
Keyboard
symbol
Descri tion
MENU/ ESC
F6 30
01
00 1D 00
4E
F6 30
01
00 00 00
31
MENU
MENU/ ESC
AUTO
F6 30
01
00 7D 00
2E
F6 30
01
00 00 00
31
RUN
Auto Sequence
FREEZE
F6 30
01
00 B5 00
66
F6 30
01
00 00 00
31
FAR
Freeze
ON/OFF
ZOOM
F6 30
01
00 25 00
56
F6 30
01
00 0
0 00
31
WIDE
Zoom
ON/OFF
MODE
F6 30
01
00 BD 00
6E
F6 30
01
00 00 00
31
PATRN
Switch mode
VCR
F6 30
01
00 2D 00
5E
F6 30
01
00 00 00
31
OPEN
VCR ON/OFF
ENTER
F6 30
01
00 37 00
68
F6 30
01
00 00 00
31
ENTER
ENTER
▲
F6 30
01
00 1F 00
50
F6 30
01
00 00 00
31
ROCKER UP
UP
/
PRE mode
▼
F6 30
01
00 2F 00
60
F6 30
01
00 00 00
31
ROCKER DOWN
DOWN
/
Next mode
◄
F6 30
01
00 8F 00
40
F6 30
01
00 00 00
31
ROCKER LEFT
LEFT
/
PRE Channel
►
F6 30
01
00 AF 00
60
F6 30
01
00 00 00
31
ROCKER RIGHT
DOWN
/
Next
Channel
1
F6 30
01
00 8D 00
3E
1
Channel 1
2
F6 30
01
00 AD 00
5E
2
Channel
2
3
F6 30
01
00 9D 00
4E
3
Channel
3
4
F6 30
01
00 4D 00
7E
4
Channel
4
5
F6 30
01
00 6D 00
1E
5
Channel
5
6
F6 30
01
00 5D 00
0E
6
Channel
6
7
F6 30
01
00 CD 00
7E
7
Channel
7
8
F
6 30
01
00 ED 00
1E
8
Channel
8
9
F6 30
01
00 DD 00
0E
9
Channel
9
NOTE
NOTENOTE
NOTE：
：：
：
When the equipment ID add 1, the above Bold code, adds 1
