Amer WAP123N User manual

300Mbps Wireless Access Point
WAP123N
300Mbps Wireless Access Point
User Guide

300Mbps Wireless Access Point
Copyright State ent
Amer Networks is the registered trademark of Amer.com. All the
products and product names mentioned herein are the trademarks or
registered trademarks of their respective holders. Copyright of the whole
product as integration, including its accessories and software, belongs
to Amer.com. Any usage without the permission of Amer.com, or by any
individual or party is not allowed.
All the photos and product specifications mentioned in this manual are
for references only. As software update may change the images and the
appearance of the web gui, Amer.com is not responsible for informing in
advance, of theses changes. If you want to know more about our
product information, please visit our website at www.amer.com

300Mbps Wireless Access Point
Contents
Chapter 1 Product Overview...............................................................1
1.1 Product Features.................................................... 2
1.2 Package Contents .................................................. 2
Chapter 2 Product Installation............................................................4
Chapter 3 Configuration Guide...........................................................5
3.1 Web Login............................................................... 5
3.2 Setup Wizard .......................................................... 6
3.3 Wireless Access Point (AP) Mode........................ 7
3.4 Bridge (WDS) Mode ............................................... 9
3.5 Running Status..................................................... 11
3.6 LAN Settings ........................................................ 13
Chapter 4 Wireless Settings .............................................................14
4.1 Basic Settings ...................................................... 14
4.1.1 Access Point (AP) Mode......................... 14
4.1.2 Bridge (WDS) Mode................................. 18
4.2 Security Settings .................................................... 24
4.2.1 AP Security Setting ................................. 24
4.2.2 WDS Security Setting ............................. 31
4.3 Advanced Settings ................................................. 34
4.4 Access Control ....................................................... 36
4.5 Connection Status .................................................. 37
Chapter 5 SNMP Setting....................................................................38
5.1 SNMP Introduction............................................... 38
5.2 SNMP Setting........................................................ 38

300Mbps Wireless Access Point
Chapter 6 Syste Tools ....................................................................40
6.1 Password Change................................................ 40
6.2 Restore to Factory ............................................... 41
6.3 Backup/Restore.................................................... 42
6.4 Ti e Settings........................................................ 42
6.5 Reboot Syste ..................................................... 44
6.6 Fir ware Upgrade................................................44
6.7 Syslog ................................................................... 45
Appendix I: Glossary.........................................................................47
Appendix II: TCP/IP Address Setting ...............................................49
Appendix Ⅲ
ⅢⅢ
Ⅲ: WDS Application Instances.......................................52

300Mbps Wireless Access Point
1
Chapter 1 Product Overview
WAP 23N is a wireless Access Point based on the latest IEEE802. n
standard while at the same time being backwards compatible with
IEEE802. b/g devices. Adopting the advanced “Multiple in and Multiple
out” (MIMO) technology, it can provide a maximum of 300Mbps stable
transmitting rate for wireless users. With appropriate Power over
Ethernet (POE) support, you only need to run one cable to the AP to
deliver both data and power. Ceiling mounted design and POE
technology make it couldn't be easier for family, enterprise, and hotel
users to extend wireless networks indoors.
Wireless AP and WDS working modes support wireless AP, wireless
Repeater, wireless Point-to-Point (P2P) Bridge, and wireless
Point-to-Multipoint (P2MP) Bridge functions. Firstly, it can be used as a
wireless Hot Spot to enable the accesses of wireless users when in AP
mode. Secondly, it can be used as a Bridge to connect two or more
wired networks when it is in P2P or P2MP mode. Thirdly, it can also be
used as a wireless Repeater to expand your wireless network coverage
area.
Furthermore, 64/ 28-bit Wired Equivalent Privacy (WEP), WPA-PSK,
WPA2-PSK, WPA&WPA2, 802. X Authentication, and MAC Address
filter are all supported to protect your data and privacy. Gigabit LAN port
provides you higher LAN transmission rate. SNMP and Web-based
management interface make configuration easier than ever.

300Mbps Wireless Access Point
2
1.1 Product Features
 Complies with the latest 802. n and 802. b/g standards
 Supports AP and WDS working modes
 Provides 300Mbps receiving and transmitting rate
 MIMO technology uses signal reflections to increase 8 times
transmission distance of 802. g standard and efficiently reduce
“dead spots”
 One Gigabit Auto-negotiation LAN port supported for LAN
connection
 POE and external power supported
 SNMP and Web-based management interface
 64/ 28-bit WEP encryption
 WPA-PSK, WPA2-PSK, WPA&WPA2 encryption methods
 Auto MDI/ MDIX
 Wireless VLAN divisible for managing clients conveniently
 Client's access limited
 Watchdog designed to make device run stably
 Supports auto wireless channel selection
 Software controls the wireless signal on/ off and remotely controls
the wireless coverage area.
1.2 Package Contents
Please unpack the package and find the following items:
 One WAP 23N Wireless AP
 One Power Adapter

300Mbps Wireless Access Point
3
 Eight Screws
 One User Guide
 One Network Cable
 Four plastic covers
If any of listed items are missing or damaged, please contact your local
amer.com reseller.

300Mbps Wireless Access Point
4
Chapter 2 Product Installation
You are recommended to install the product after configuring the
settings of WAP 23N according to the guide in chapter 3. The following
steps take AP mode for example.
. Use the included power adapter to power on the AP. You can also
use POE power supply or POE switch to power on the AP.
2. Connect one end of the network cable to the LAN port of WAP 23N,
and another end to your Ethernet broadband, switch or PC.
3. Connect wireless adapter to WAP 23N.
Please refer to the topology below:

300Mbps Wireless Access Point
5
Chapter 3 Configuration Guide
3.1 Web Login
Connect to WAP 23N via wired cable and configure 92. 68.0.x(x
ranges 2-254) as your PC’s IP address, and 255.255.255.0 as subnet
mask. (Please refer to the Appendix II for details on TCP/IP setting)
Launch Internet Explorer. In the address bar, enter the AP’s default IP
address, 92. 68.0.254. Press the Enter key and the login screen will
appear. Enter ad in for both the user name and the password.
Click OK to enter the welcome page of the device.

300Mbps Wireless Access Point
6
You can select “Running Status”, ”LAN Settings”, “Wireless Settings”,
“SNMP Settings” and “System Tools” on the left menu. Click “Next” to
enter the wireless working mode setup page. WAP 23N supports two
working modes: wireless AP (AP), Bridge (WDS). Select a working
mode to configure the settings. For more details please refer to the
following chapters.
3.2 Setup Wizard
Click “Next” in the first page and the next page appears.

300Mbps Wireless Access Point
7
On this page, you can select wireless AP or Bridge to adapt different
wireless access environment.
3.3 Wireless Access Point (AP) Mode
Select “Wireless Access Point (AP)” and then click “Next” to enter the
basic settings.
Picture 4

300Mbps Wireless Access Point
8
Fill in the following items according to the supplied information.
1. SSID: Set the SSID name of the device.
2. Channel: Select the wireless communication channel. The default
is channel 6.

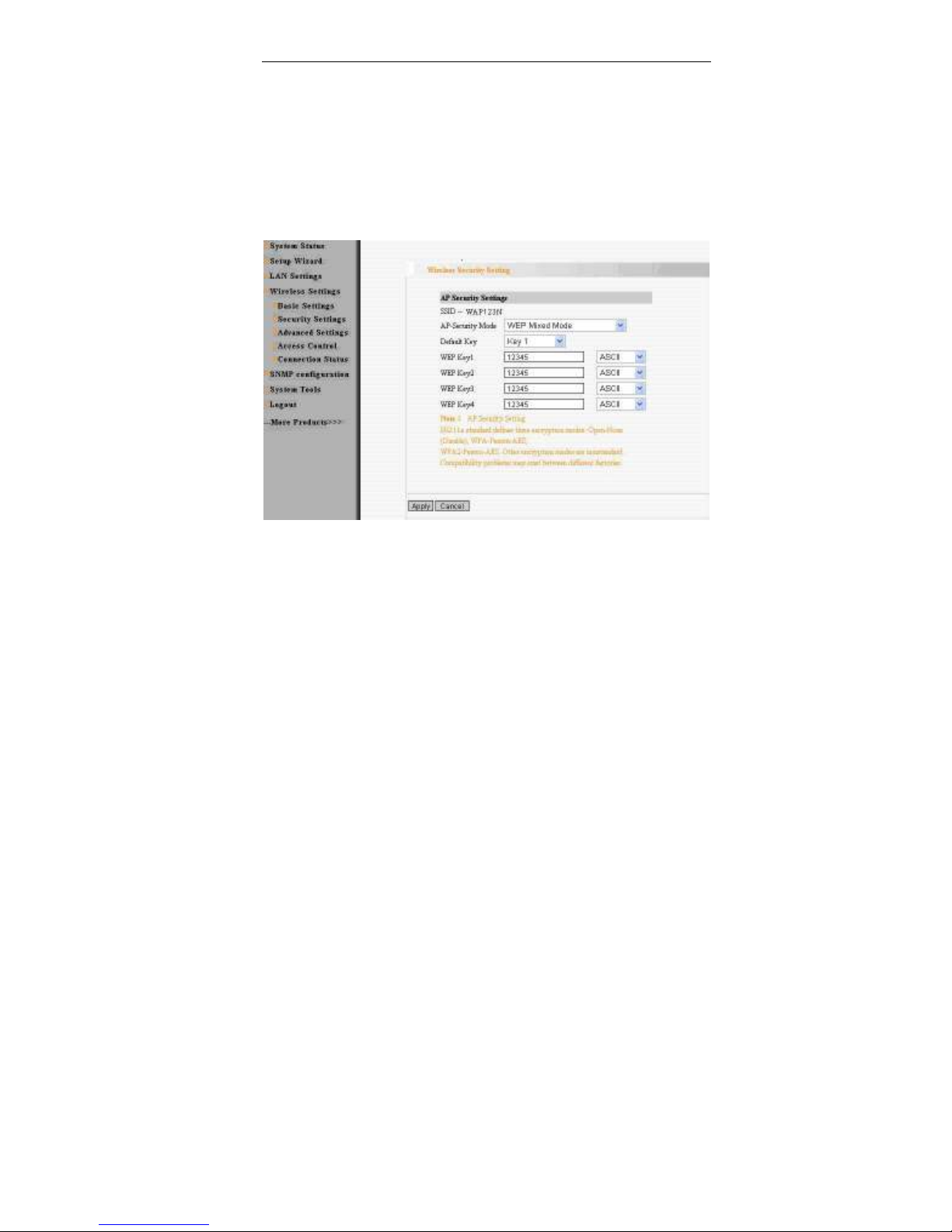

After you finish the settings, click “Next” to enter the “Security Settings”
page as the picture below:
“Security Settings” is used to encrypt the settings for AP and authorize
the wireless client to access the AP for security in wireless network.
Please refer to chapter 4. . .2 for detailed security setting
specifications.
After finishing the settings, click “Next” to finish settings as the picture
below.

300Mbps Wireless Access Point
9
3.4 Bridge (WDS) Mode
Select “Setup Wizard” on the left menu and the working mode selection
interface will appear as the picture below.
Select Bridge (WDS) and then click “Next”. You will enter the WDS setup
page as the picture below.
Bridge (WDS) working mode includes: Point to Point Bridge (WDS P2P),
Point to Multipoint Bridge (WDS P2MP), Wireless Repeater (Repeater).
Users can select the mode according to their need. Please refer to
Chapter 4. .2 for detailed introduction.

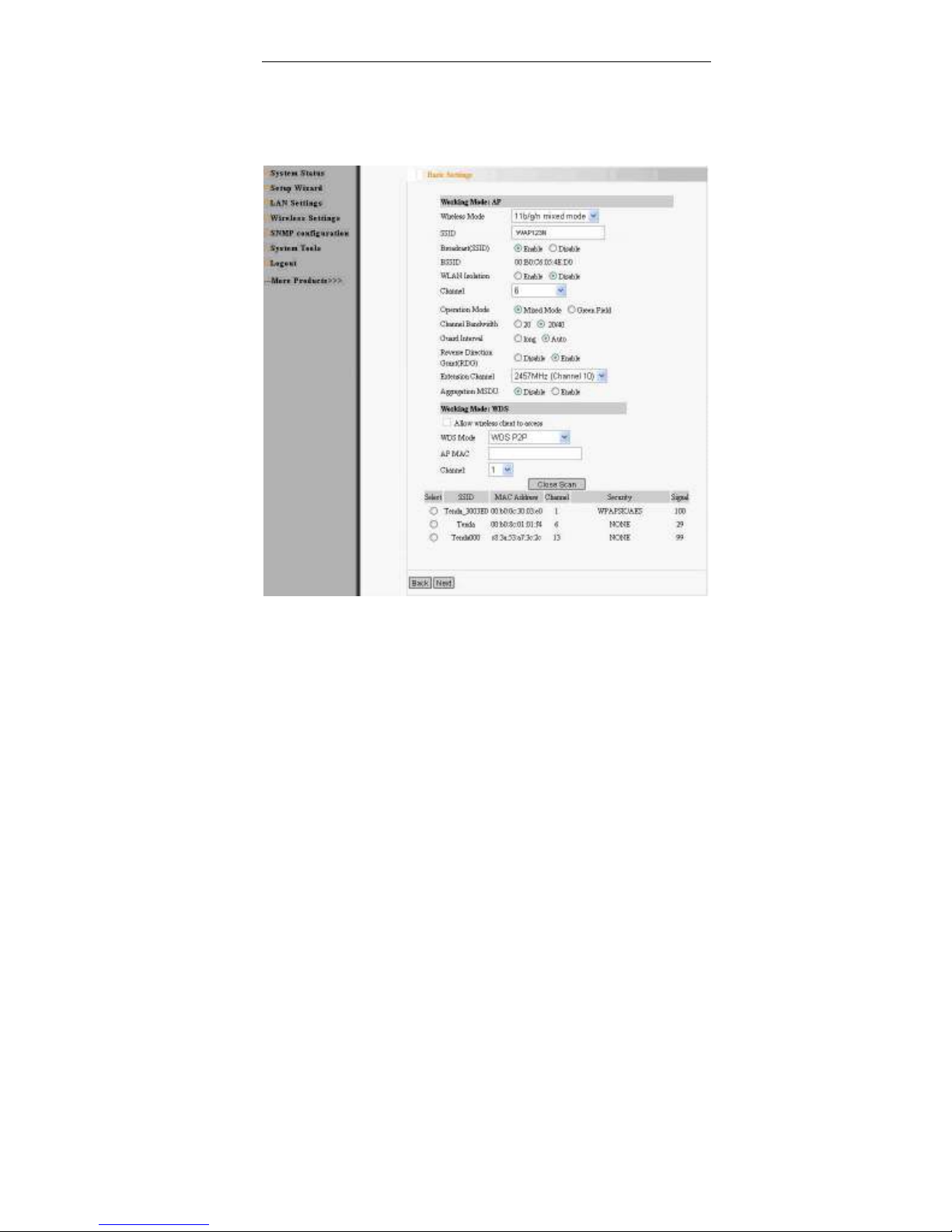

Click “Enable Scan”. AP will scan the available wireless device nearby
automatically and display them under the list (see the picture below).

300Mbps Wireless Access Point
10
Select the AP which you need to bridge and click “Next” to enter the
security setup interface. You can also input the MAC address of the
wireless device which you want to bridge manually and select the
corresponding channel.

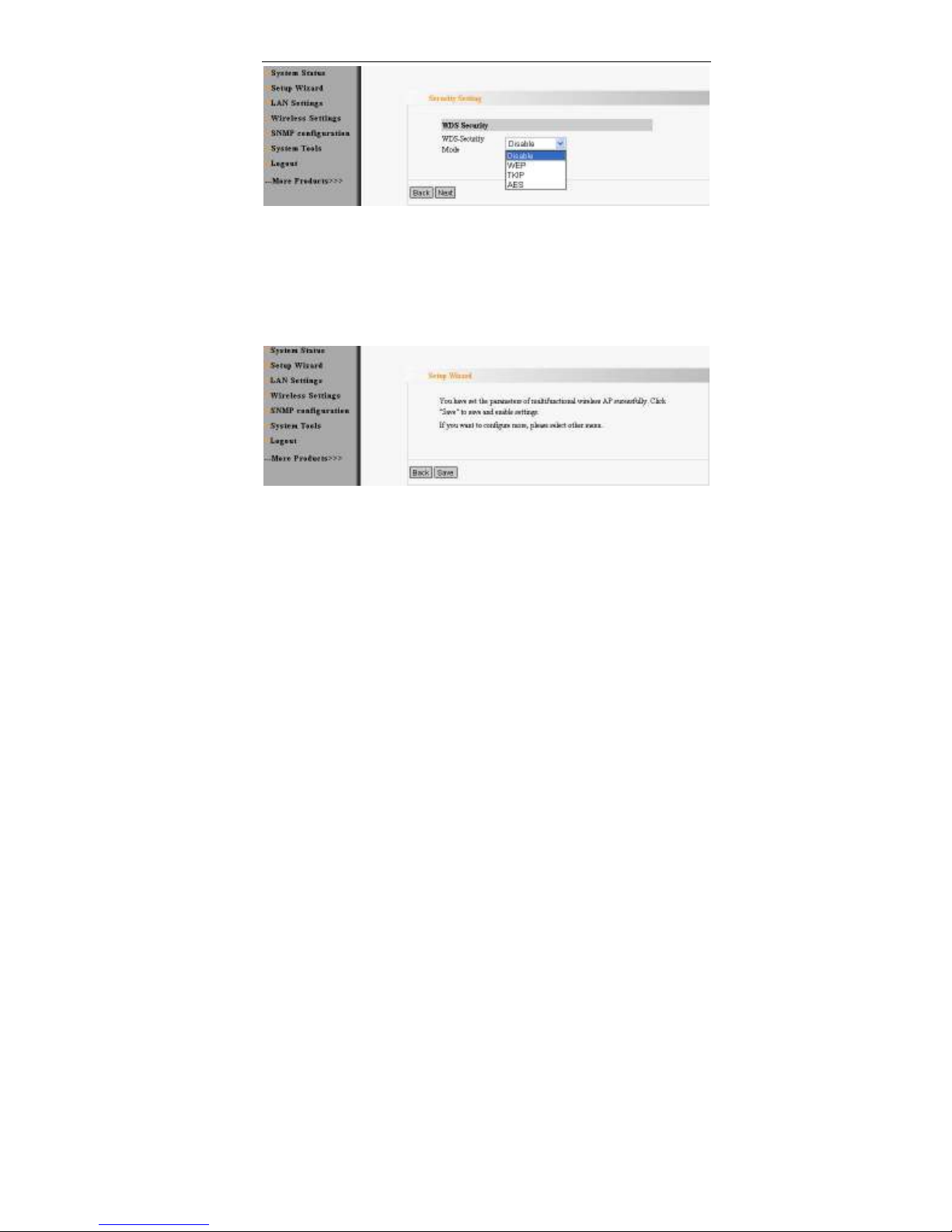

After finish the settings, click “Next” to enter the “Security Setting” option
as the picture below.

300Mbps Wireless Access Point
11
“WDS Security Setting” is used to encrypt the AP and authorize the
device to establish bridge. Only when the passwords of the devices in
the bridge are consistent, will the communication get through normally.
After finishing the settings, click “Next” and “Save” to finish settings.
3.5 Running Status

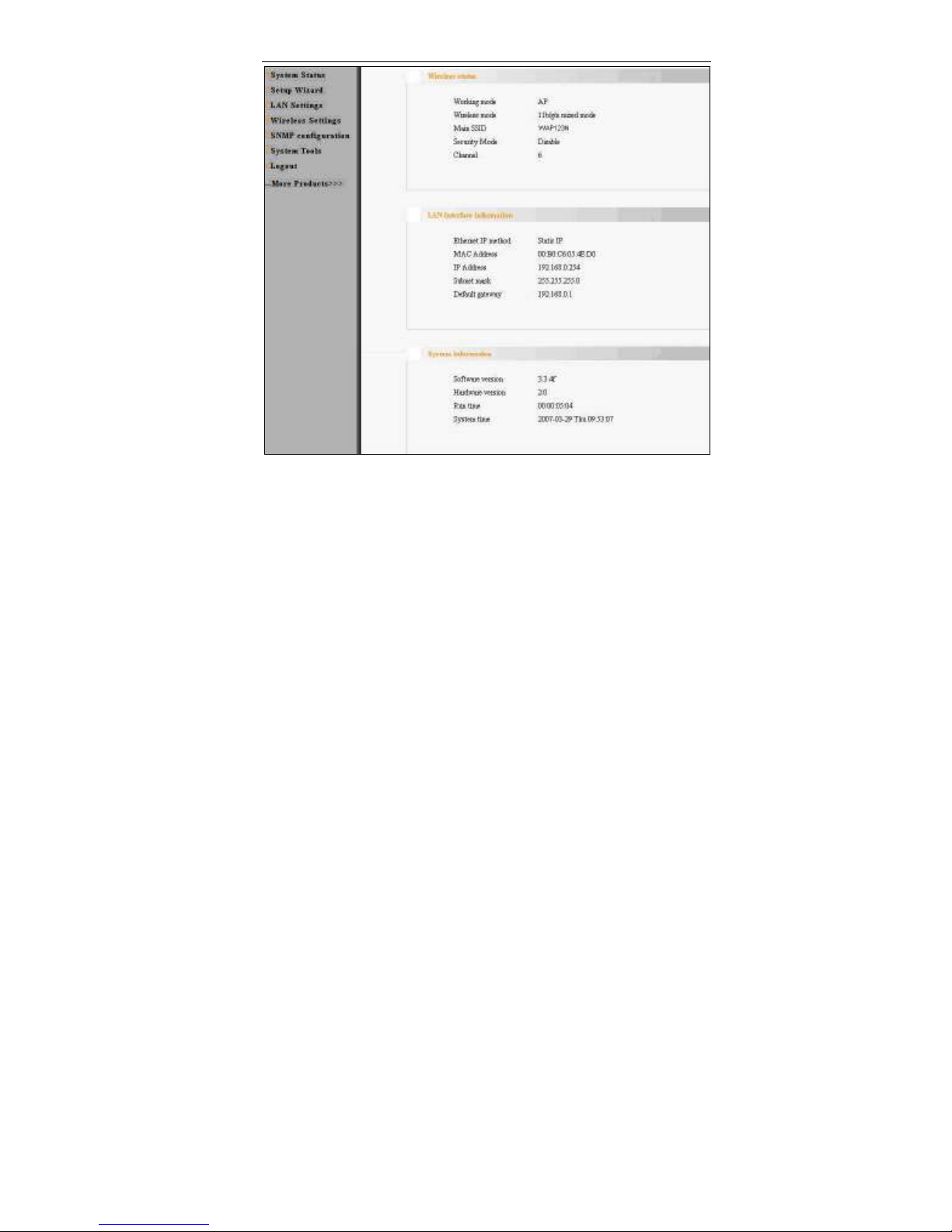

This page shows the wireless AP’s current status, including wireless
status, LAN status and system information.

300Mbps Wireless Access Point
12
 Wireless Status
It shows the current working status, including working mode,
wireless network mode, SSID, Channel, Encryption mode, etc.
 LAN Interface infor ation
It shows LAN IP , MAC address, IP address, subnet mask, etc.
 Syste infor ation
It shows the device’s current software version, hardware version,
etc.

300Mbps Wireless Access Point
13
3.6 LAN Settings
This section mainly deals with LAN’s basic settings.
 Static IP ：
：：
： The default IP address is 92. 68.0.254. If necessary,
you can configure a new IP address, subnet mask and gateway
manually for the device.
 Dynamic IP ：
：：
： Automatically obtain IP address, subnet mask and
gateway address from DHCP server. (Unless you have got
permission to obtain this information from the uplink device, it is not
recommended to use this option).
Note: If the LAN IP address is modified, you will need to use the new IP
address to login to the web interface.

300Mbps Wireless Access Point
14
Chapter 4 Wireless Settings
This chapter introduces you to the wireless settings in two working
modes: Access Point (AP) and Bridge (WDS), including basic settings,
security settings, advanced settings, access control, and connection
status.
4.1 Basic Settings
This mode introduces you the basic settings in AP mode and WDS
mode.
4. . Access Point (AP) Mode
In this mode, the AP will act as a central hub for accesses from wireless
to wireless, wireless to wired, wireless to WAN. The most important is to
provide wireless client access such as wireless network adapters.
4.1.1.1 Application and Topology Plan
The AP mode can convert the wired transmission into wireless signals. If
you have one wired cable connecting to the Internet, and you want to
access the Internet via wireless , then this mode fits perfectly.

300Mbps Wireless Access Point
15
4.1.1.2 Function Explanation
The basic setup page in Access Point (AP) working mode is as follows:

300Mbps Wireless Access Point
16
 Wireless Signal: Click “Disable” to turn off all the wireless features
of this AP; click “Enable” to turn them back on.
 Network Mode：Select one mode from the following. The default is
b/g/n mode.
 11b ode：
：：
：Allow the wireless client to connect with the device in
b mode at the maximum speed of Mbps.
 11g ode：
：：
：Allow the g/ n-compliant client device to connect
with the AP at the maximum speed of 54Mbps.
 11b/g ode：
：：
：Allow the b/g-compliant client device to connect
with the AP with auto-negotiation speed, and n wireless client to
connect the device with g speed.
 11b/g/n ode：
：：
：Allow b/g/n-compliant client device to connect
with the AP with auto- negotiation speed. The maximum speed is
