American Dryer Corp. Phase 7 Gas/Steam AD-464 User manual

AD-464 / ML-460 Installation Manual
Phase 7 Gas / Steam
ADC Part No. 113068-10
American Dryer Corporation
88 Currant Road
Fall River MA 02720-4781 USA
Telephone: [phone] / Fax: [phone]
e-mail: [e-mail]
www.amdry.com
WARNING: For your safety the information
in this manual must be followed to
minimize the risk of fire or explosion and
to prevent property damage, personal
injury or death.
— Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS:
●Do not try to light any appliance.
●Do not touch any electrical switch;
do not use any phone in your
building.
●Clear the room, building or area of
all occupants.
●Immediately call your gas supplier
from a neighbor’s phone. Follow
the gas supplier’s instructions.
●If you cannot reach your gas
supplier, call the fire department.
— Installation and service must be
performed by a qualified installer, service
agency or the gas supplier.
AVERTISSEMENT:Assurez-vous de bien
suivre les instructions données dans cette
notice pour réduire au minimum le risque
d’incendie ou d’explosion ou pour éviter
tout dommage matériel, toute blessure ou
la mort.
—Ne pas entreposer ni utiliser d’essence
ni d’autres vapeurs ou liquides
inflammables à proximité de cet
appareil ou de tout autre appareil.
—QUE FAIRE SI VOUS SENTEZ UNE
ODEUR DE GAZ:
●Ne pas tenter d’allumer d’appareils.
●Ne touchez à aucun interrupteur. Ne
pas vous servir des téléphones se
trouvant dans le bâtiment.
●Évacuez la pièce, le bâtiment ou la
zone.
●Appelez immédiatement votre
fournisseur de gaz depuis un voisin.
Suivez les instructions du fournisseur.
●Si vous ne pouvez rejoindre le
fournisseur de gaz, appelez le service
des incendies.
—L’installation et l’entretien doivent être
assurés par un installateur ou un
service d’entretien qualifié ou par le
fournisseur de gaz.

Retain This Manual In ASafe Place For Future Reference
American Dryer Corporation products embody advanced concepts in engineering, design, and safety. If this product is
properly maintained, it will provide many years of safe, efficient, and trouble free operation.
ONLY qualified technicians should service this equipment.
OBSERVE ALL SAFETY PRECAUTIONS displayed on the equipment or specified in the installation manual included with
the dryer.
The following “FOR YOUR SAFETY” caution must be posted near the dryer in a prominent location.
“IMPORTANT NOTE TO PURCHASER”
Information must be obtained from your local gas supplier on the instructions
to be followed if the user smells gas. These instructions must be posted in a
prominent location near the dryer.
We have tried to make this manual as complete as possible and hope you will find it useful. ADC reserves the right to make
changes from time to time, without notice or obligation, in prices, specifications, colors, and material, and to change or
discontinue models. The illustrations included in this manual may not depict your particular dryer exactly.
Important
For your convenience, log the following information:
DATE OF PURCHASE __________________________________________________ MODEL NO. ________________________
RESELLER’S NAME ________________________________________________________________________________________
Serial Number(s) ________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
Replacement parts can be obtained from your reseller or the ADC factory. When ordering replacement parts from the factory,
you can FAX your order to ADC at [phone] or telephone your order directly to the ADC Parts Department at +1 (508)
678-9000. Please specify the dryer model number and serial number in addition to the description and part number, so that
your order is processed accurately and promptly.
These instructions are only valid if the following country code is on the appliance… If this code is not present on the
appliance, it is necessary to refer to the technical instructions which will provide the necessary information concerning the
modification of the appliance to the condition of use for the country.
In accordance with EN ISO 3166-1, the names of countries shall be represented by the following codes:
GB United Kingdom
IE Ireland
FOR YOUR SAFETY
Do not store or use gasoline
or other flammable vapors
and liquids in the vicinity of
this or any other appliance.
POUR VOTRE SÉCURITÉ
Ne pas entreposer ni utiliser d’essence
ni d’autres vapeurs ou liquides
inflammables à proximité de cet
appareil ou de tout autre appareil.

IMPORTANT
YOU MUST DISCONNECTAND LOCKOUT THE ELECTRIC SUPPLYAND THE GAS
SUPPLY OR THE STEAM SUPPLY BEFORE ANY COVERS OR GUARDS ARE
REMOVED FROM THE MACHINE TO ALLOW ACCESS FOR CLEANING,
ADJUSTING, INSTALLATION, OR TESTING OF ANY EQUIPMENT PER OSHA
(Occupational Safety and Health Administration) STANDARDS.
WARNING
CHILDREN SHOULD NOT BE ALLOWED TO PLAY ON OR NEAR THE DRYER(S).
CHILDREN SHOULD BE SUPERVISED IF NEAR DRYERS IN OPERATION.
CAUTION
DRYERS SHOULD NEVER BE LEFT UNATTENDED WHILE IN OPERATION.
“Caution: Label all wires prior to
disconnection when servicing
controls. Wiring errors can cause
improper operation.”
«Attention: Au moment de l’entretien des commandes,
étiquetez tous les fils avant de les débrancher. Des
erreurs de câblage peuvent entraîner un fonctionnement
inadéquat et dangereux.»
Proposition 65
Use of this product could expose you to substances from fuel combustion
that contain chemicals known to the State of California to cause cancer,
birth defects and other reproductive harm.
In the State of Massachusetts, the following installation instructions apply:
■Installations and repairs must be performed by a qualified or licensed contractor,
plumber, or gasfitter qualified or licensed by the State of Massachusetts.
■If using a ball valve, it shall be a T-handle type.
■A flexible gas connector, when used, must not exceed 3 feet.
!WARNING

WARNING
The dryer must never be operated with any of the back guards, outer tops, or service
panels removed. PERSONAL INJURY OR FIRE COULD RESULT.
IMPORTANT
PLEASE OBSERVE ALL SAFETY PRECAUTIONS displayed on the equipment and/or
specified in the installation manual included with the dryer.
WARNING
DRYER MUST NEVER BE OPERATED WITHOUT THE LINT FILTER/SCREEN IN
PLACE, EVEN IFAN EXTERNALLINT COLLECTION SYSTEM IS USED.
Dryer must not be installed or stored in an area where it will be exposed to water or weather.
The wiring diagram for the dryer is located in the front electrical control box area.
IMPORTANT
Dryer must be installed in a location/environment, which the ambient temperature
remains between 40° F (4.44° C) and 130° F (54.44° C).
FOR YOUR SAFETY
DO NOT DRY MOP HEADS IN THE DRYER.
DO NOT USE DRYER IN THE PRESENCE OF DRY CLEANING FUMES.
WARNING
UNDER NO CIRCUMSTANCES should the dryer door switch, lint drawer switch, or
the heat safety circuits ever be disabled.
WARNING
Do not modify this appliance.

SECTION I
IMPORTANT INFORMATION ............................................................................... 3
A. Receiving and Handling ...................................................................................... 3
B. Safety Precautions .............................................................................................. 4
SECTION II
SPECIFICATIONS / DIMENSIONS ....................................................................... 6
A. Specifications (Gas and Steam) .......................................................................... 6
B. Dimensions (Gas and Steam) ............................................................................. 7
SECTION III
INSTALLATION PROCEDURES ........................................................................... 8
A. Reassembly of Dryer .......................................................................................... 8
B. Location Requirements ..................................................................................... 11
C. Internal Air, Electric, and Water Connections ................................................... 12
D. External Supply Connections ........................................................................... 18
E. Fresh Air Supply Requirements ........................................................................ 21
F. Exhaust Requirements ...................................................................................... 21
G. Steam Information ............................................................................................ 26
H. Shutdown Instructions...................................................................................... 28
I. Compressed Air System ................................................................................... 28
J. Preoperational Test ........................................................................................... 29
K. Preparation for Operation / Start-Up ................................................................ 31
L. Electrical Requirements .................................................................................... 32
SECTION IV
COMPONENT SYSTEM DESCRIPTIONS ........................................................ 35
A. Basket (Tumbler) Drive System ........................................................................ 35
B. Main Air Blower and Heat Reclaimer System ................................................... 36
C. Gas Burner and Ignition System ....................................................................... 38
D. Safety Devices .................................................................................................. 47
SECTION V
PRE START-UP ........................................................................................................ 48
A. Preparation for Operation ................................................................................. 48
Table of Contents

SECTION VI
ROUTINE MAINTENANCE .................................................................................. 49
A. Cleaning ............................................................................................................ 49
B. Adjustments ...................................................................................................... 51
C. Lubrication ........................................................................................................ 51
D. Basket (Tumbler) .............................................................................................. 51
E. Air Blower Drive System .................................................................................. 51
SECTION VII
DATA LABEL LOCATION / INFORMATION .................................................... 52
SECTION VIII
SERVICE / PARTS INFORMATION .................................................................... 53
A. Service .............................................................................................................. 53
B. Parts ................................................................................................................. 53
SECTION IX
SUPPRESSION SYSTEM ....................................................................................... 54
Installation ............................................................................................................... 54
Suppression System Theory of Operation.............................................................. 57
System Reset .......................................................................................................... 57
Non-Coin Suppression System Check Procedure .................................................. 57

113068-10 www.amdry.com 3
SECTION I
IMPORTANT INFORMATION
A. RECEIVING AND HANDLING
The dryer is shipped in a protective stretch wrap cover with protective cardboard corners and top cover (or
optional box) as a means of preventing damage in transit. Upon delivery, the dryer and packaging, and wooden
skid should be visually inspected for shipping damage. If any damage whatsoever is noticed, inspect further
before delivering carrier leaves.
Dryers damaged in shipment.
1. ALL dryers should be inspected upon receipt and before they are signed for.
2. If there is suspected damage or actual damage, the trucker’s receipt should be so noted.
3. If the dryer is damaged beyond repair, it should be refused. Those dryers, which were not damaged in a
shipment should be accepted, but the number received and the number refused must be noted on the
receipt.
4. If you determine that the dryer was damaged after the trucker has left your location, you should call the
delivering carrier’s freight terminal immediately and file a claim. The freight company considers this
concealed damage. This type of freight claim is very difficult to get paid and becomes extremely difficult
when more than a day or two passes after the freight was delivered. It is your responsibility to file freight
claims. Dryer or parts damaged in transit cannot be claimed under warranty.
5. Freight claims are the responsibility of the consignee, and ALL claims must be filed at the receiving end.
ADC assumes no responsibility for freight claims or damages.
6. If you need assistance in handling the situation, please contact the ADC Traffic Manager at +1 (508)
678-9000.
IMPORTANT: The basket (tumbler) section of the dryer must be transported and handled in an
upright position at ALLtimes.

4 American Dryer Corp. 113068-10
B. SAFETY PRECAUTIONS
WARNING: For your safety, the information in this manual must be followed to minimize the risk of
fire or explosion or to prevent property damage, personal injury, or loss of life.
WARNING: The dryer must never be operated with any of the back guards, outer tops, or
service panels removed. PERSONAL INJURY OR FIRE COULD RESULT.
1. DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
2. Do not spray aerosols in the vicinity of this appliance while it is in operation.
3. Purchaser or user should consult the local supplier for proper instructions to be followed in the event the
user smells gas. The instructions should be posted in a prominent location.
4. WHAT TO DO IF YOU SMELL GAS...
a. DO NOT try to light any appliance.
b. DO NOT touch any electrical switch.
c. DO NOT use any phone in your building.
d. Clear the room, building or area of ALL occupants.
e. Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
f. If you cannot reach your gas supplier, call the fire department.
5. Installation and service must be performed by a qualified installer, service agency or gas supplier.
6. Dryers must be exhausted to the outdoors.
7. Although ADC produces a very versatile dryer, there are some articles that, due to fabric composition or
cleaning method, should not be dried in it.
WARNING: Dry only water washed fabrics. DO NOT dry articles spotted or washed in dry
cleaning solvents, a combustible detergent or “all purpose” cleaner. EXPLOSION
COULD RESULT.
WARNING: DO NOT dry rags or articles coated or contaminated with gasoline, kerosene, oil, paint,
or wax. EXPLOSION COULD RESULT.
WARNING: DO NOT dry mop heads. Contamination by wax or flammable solvents will create a
fire hazard.
WARNING: DO NOT use heat for drying articles that contain plastic, foam, sponge rubber or
similarly textured rubber materials. Drying in a heated basket (tumbler) may damage
plastics or rubber and may be a fire hazard.

113068-10 www.amdry.com 5
IMPORTANT: Dryer must be installed in a location/environment, which the ambient
temperature remains between 40° F (4.44° C) and 130° F (54.44° C).
8. A program should be established for the inspection and cleaning of lint in the heating unit area, exhaust
ductwork, and inside the dryer. The frequency of inspection and cleaning can best be determined from
experience at each location.
WARNING: The collection of lint in the burner area and exhaust ductwork can create a potential fire
hazard.
9. For personal safety, the dryer must be electrically grounded in accordance with local codes and/or the
National Electrical Code ANSI/NFPA NO. 70-LATEST EDITION or in Canada, the Canadian Electrical
Codes Parts 1 & 2 CSA C22.1-1990 or LATEST EDITION.
NOTE: Failure to do so will VOID THE WARRANTY.
10. UNDER NO CIRCUMSTANCES should the dryer door switch, lint drawer switch, or the heat safety
circuits ever be disabled.
WARNING: PERSONAL INJURY OR FIRE COULD RESULT.
11. This dryer is not to be used in the presence of dry cleaning solvents or fumes.
12. Remove articles from the dryer as soon as the drying cycle has been completed.
WARNING: Articles left in the dryer after the drying and cooling cycles have been completed can
create a fire hazard.
13. DO NOT operate steam dryers with more than 125 psi (8.61 bar) steam pressure. Excessive steam
pressure can damage steam coil and/or harm personnel.
14. Replace leaking flexible hoses or other steam fixtures immediately. DO NOT operate the dryer with
leaking flexible hoses. PERSONAL INJURY MAY RESULT.
15. READ AND FOLLOW ALL CAUTION AND DIRECTION LABELS ATTACHED TO THE
DRYER.
16. For safety, proper operation, and optimum performance, the dryer must not be operated with a load less
than sixty-six percent (66%), 303 lb (137.4 kg) of its rated capacity.
WARNING: YOU MUST DISCONNECTAND LOCKOUT THE ELECTRIC SUPPLYAND
THE GAS SUPPLY OR THE STEAM SUPPLY BEFOREANY COVERS or
GUARDS ARE REMOVED FROM THE MACHINE TO ALLOW ACCESS
FOR CLEANING, ADJUSTING, INSTALLATION, OR TESTING OFANY
EQUIPMENT PER OSHA (Occupational Safety and HealthAdministration)
STANDARDS.

6 American Dryer Corp. 113068-10
MAXIMUM CAPACITY (DRY WEIGHT) 460 lb 208.65 kg
MINIMUM LOAD SIZE 250 lb 113.40 kg
TUMBLER DIAMETER 69-1/8” 175.59 cm
TUMBLER DEPTH 80-5/16” 203.99 cm
TUMBLER VOLUME 175 cu ft 4955.44 L
D OOR OP E NING ( WID TH X HE IGHT) 5 3 - 1 / 4 ” x 4 9 ” 135.26 cm x 124.46 cm
DOOR SILL HEIGHT, LEVEL 45” 114.30 cm
DOOR SILL HEIGHT, REAR TILT 43-3/4” 111.13 cm
DOOR SILL HEIGHT, FRONT TILT 65-5/8” 166.70 cm
CABINET OPERATING DEPTH, LEVEL (1 DOOR/2 DOOR) 95” / 95” 241.30 cm / 241.30 cm
CABINET WIDTH 122” 309.88 cm
REAR TILT 15°
FRONT TILT 15°
WATER CONNECTION 1” F.N.P.T.
CABINET REAR TILT HEIGHT 138-1/4” 351.16 cm
CABINET OPERATING HEIGHT, LEVEL 121” 307.34 cm
CABINET FULL TILT DEPTH 118” 299.72 cm
APPROX. NET WEIGHT 10,270 lb 4,658.39 kg
APPROX. SHIPPING WEIGHT 10,425 lb 4,728.70 kg
VOLTAGE AVAILABLE 208-480v 3ø 3,4w 50/60 Hz
TUMBLER/DRIVE MOTOR 7-1/2 hp 5.59 kW
BLOWER/FAN MOTOR 25 hp 18.64 kW
BURNER BLOWER MOTOR 1-1/2 hp 1.12 kW
BURNER TYPE On / Off
HEAT INPUT 2,800,000 Btu/hr 705,588 kcal/hr
INL E T P IPE C ONNE C TION (NO N- TILT/TILT) 2 - 1 / 2 ” F. N. P. T.
MAXIMUM GAS PRESSURE 12 in WC 29.89 mb
AIRFLOW 13,000 cfm 368.12 cmm
MAXIMUM EXHAUST BACK PRESSURE 1.25 in WC 3.11 mb
EXHAUST DIAMATER 24” 60.96 cm
COMPRESSED AIR PRESSURE 80 psi (± 10 psi) 5.52 bar (± 0.69 bar)
COMPRESSED AIR VOLUME (1-WAY/2-WAY TILT) 15 cfh / 19 cfh 0.42 cmh / 0.54 cmh
COMPRESSED AIR CONNECTION (NON-TILT/TILT) 3/8” F.N.P.T.
CABINET REAR TILT HEIGHT 138-1/4” 351.16 cm
CABINET OPERATING HEIGHT, LEVEL 121” 307.34 cm
CABINET FULL TILT DEPTH 118” 299.72 cm
APPROX. NET WEIGHT 11,000 lb 4,989.52 kg
APPROX. SHIPPING WEIGHT 11,162 lb 5,063 kg
VOLTAGE AVAILABLE 208-480v 3ø 3,4w 50/60 Hz
TUMBLER/DRIVE MOTOR 7-1/2 hp 5.59 kW
BLOWER/FAN MOTOR 25 hp 18.64 kW
BOILER HORSEPOWER (NORMAL LOAD) 60 Bhp
SUPPLY CONNECTION 2-1/2” F.N.P.T.
RETURN CONNECTION (NON-TILT/TILT) 1-1/4” F.N.P.T.
STEAM CONSUMPTION 2,071 lb/hr 939.39 kg/hr
AIRFLOW 13,000 cfm 368.12 cmm
MAXIMUM EXHAUST BACK PRESSURE 1.25 in WC 3.11 mb
EXHAUST DIAMETER 24” 60.96 cm
COMPRESSED AIR PRESSURE 80 psi (± 10 psi) 5.52 bar (± 0.69 bar)
COMPRESSED AIR VOLUME (1-WAY/2-WAY TILT) 16 cfh / 20 cfh 0.45 cmh / 0.57 cmh
COMPRESSED AIR CONNECTION (NON-TILT/TILT) 3/8” F.N.P.T.
GASSTEAM
Shaded areas are stated in metric equivalents 9/24/04
NOTE: ADC reserves the right to make changes in specifications at any time without notice or
obligation.
SECTION II
SPECIFICATIONS / DIMENSIONS
A. SPECIFICATIONS (GAS AND STEAM)

113068-10 www.amdry.com 7
B. DIMENSIONS (GAS AND STEAM)

8 American Dryer Corp. 113068-10
SECTION III
INSTALLATION PROCEDURES
Installation should be performed by competent technicians in accordance with local and state codes. In the
absence of these codes, the installation must conform to applicable American National Standards: ANSI Z223.1-
LATEST EDITION (National Fuel Gas Code) or ANSI/NFPA NO. 70-LATEST EDITION (National Electrical
Code) or in Canada, the installation must conform to applicable Canadian Standards: CAN/CGA-B149.1-M91
(Natural Gas) or CAN/CGA-B149.2-M91 (Liquid Propane [L.P.] Gas) or LATEST EDITION (for General
Installation and Gas Plumbing) or Canadian Electrical Codes Parts 1 & 2 CSA C22.1-1990 or LATEST EDITION
(for Electrical Connections).
A. REASSEMBLYOF DRYER
IMPORTANT: Always keep the basket (tumbler) section of the dryer in an upright position when
moving it.
1. Reassembly Instructions for Dryer Shipped in Two (2) Pieces
In this method of shipment, the basket (tumbler) section and the basket (tumbler) base section are shipped
as one (1) unit and the heat console section is the second.
a. Reassemble Basket (tumbler) and Basket (tumbler) Base Section To The Heat Console Section
Move both pieces into position by lifting them with cables through the eyebolts located at the top of each
of the two (2) sections. These pieces may also be moved into place with a forklift truck by lifting the
pieces from underneath. The basket (tumbler) and basket (tumbler) base section weighs about 6,400
pounds (2,903 kg) and the heat console section weighs about 4,100 lb (1,860 kg). Once the sections are
in position, the seven (7) clearance holes on the basket (tumbler) base section (four [4] in the front and
three [3] in the rear) must be aligned with the seven (7) 3/8-16 tapped holes in the heat console section.
Use the three (3) #8-16 x 2” long bolts along with the tapered shims supplied to bolt the two (2) sections
together.
b. Reattach The Optional Control Pendant Arm
Position the control pendant arm to the top front of the heat console section by aligning the clearance
holes in the arm with the 1/4-20 tapped holes on the top of the heat console section. Use the 1/4-20 x
3” long bolts supplied with the dryer to attach the arm to the console.
c. Reconnect the internal air, electric, and water connections (refer to page 12 through page 17).

113068-10 www.amdry.com 9
2. Reassembly Instructions for Dryers Shipped In Three (3) Pieces
When the dryer is shipped in three (3) pieces, the basket (tumbler) and the basket (tumbler) base sections
are shipped as two (2) separate pieces. The heat console section is shipped as the third piece.
a. Reassemble The Basket (Tumbler) Base Section To The Heat Console Section
Move the heat console section into position by using cables through the eyebolts located at the top of the
section or by using a forklift truck and lifting the section from underneath. The basket (tumbler) base
section is now moved into position with a forklift truck. The seven (7) clearance holes located on the
right side of the basket (tumbler) base section (four [4] holes in front and three [3] at the back of the
section) must be aligned with the seven (7) 3/8-16 tapped holes on the left side of the heat console
section. Use the 3/8-16 x 3” long bolts and the tapered shims supplied with the unit to bolt the section
together.
b. Reassemble The Basket (Tumbler) Section Over The Basket (Tumbler) Base
Slowly lower the basket (tumbler) section over the basket (tumbler) base. The four (4) large slots
located on the bottom of the basket (tumbler) section (one [1] slot at each corner of the basket [tumbler]
section) must be aligned with the top of the pistons in the basket (tumbler) base section. Use the four
(4) 1-1/4-12 x 3-1/2” long bolts supplied with the unit to secure the basket (tumbler) section to the
basket (tumbler) base section.
c. Reattach The Control Pendant Arm
Position the control pendant arm to the top front of the heat console section by aligning the clearance
holes in the arm with the 1/4-20 tapped holes on the top of the heat console section. Use the 1/4-20 x
3” long bolts supplied with the dryer to attach the arm to the console.
d. Reconnect the internal air, electric, and water connections (refer to page 12 through page 17).
3. Reassembly Instructions for Dryer Shipped in Four (4) Pieces
In this method of shipment the basket (tumbler) section, basket (tumbler) base, lower heat console, and
upper heat console are ALL shipped as separate sections.
a. Reassemble The Heat Console Section
Apply silicone (provided with unit) to the flanges of the lower heat console section. Lift the upper heat
console section by use of cables through the eyebolts located on the top of the upper console section.
Position the upper heat console over the lower heat console section. Use the 5/16-18 hardware provided
with the dryer to secure the sections together.
b. Reassemble The Basket (Tumbler) Base Section To The Heat Console Section
Move the heat console section into position by using cables through the eyebolts located at the top of the
section or by using a forklift truck and lifting the section from underneath. The basket (tumbler) base
section is now moved into position with a forklift truck. The seven (7) clearance holes located on the
right side of the basket (tumbler) base section (four [4] holes in the front and the three [3] at the back
of the section) must be aligned with the seven 3/8-16 tapped holes on the left side of the heat console
section. Use the 3/8-16 x 2” long bolts and the tapered shims supplied with the unit to bolt the sections
together.

10 American Dryer Corp. 113068-10
c. Reassemble The Basket (Tumbler) Section To The Basket (Tumbler) Base
Lift the basket (tumbler) section with a cable through the eyebolts on top of the section. Slowly lower
the basket (tumbler) section over the basket (tumbler) base. The four (4) large slots located on the
bottom of the basket (tumbler) section (one [1] slot at each corner of the basket [tumbler] section)
must be aligned with the tapped holes in the cylinder cleaves located at the top of the basket (tumbler)
section. Use the four (4) 1-1/4-12 x 3-1/2” long bolts supplied with the unit to secure the basket
(tumbler) section to the basket (tumbler) base section.
d. Reattach The Control Pendant Arm
Position the control pendant arm on the top front of the heat console section by aligning the clearance
holes in the arm over the 1/4-20 taped holes in the top of the heat console section. Use the 1/4-20 x 3”
long bolts supplied with the unit to attach the arm to the console.
e. Reconnect the internal air, electric, and water connections (refer to page 12 through page 17).

113068-10 www.amdry.com 11
B. LOCATION REQUIREMENTS
Before installing the dryer, be sure the location conforms to local codes and ordinances. In the absence of such
codes or ordinances the location must conform with the National Fuel Gas Code ANSI.Z223.1 LATEST
EDITION, or in Canada, the installation must conform to applicable Canadian Standards: CAN/CGA-B149.1-
M91 (Natural Gas) or CAN/CGA-B149.2-M91 (Liquid Propane [L.P.] Gas) or LATEST EDITION (for General
Installation and Gas Plumbing).
The dryer requires 36-inches (91.44 cm) of space on each side of the dryer and 36-inches (91.44 cm) of space
behind the unit for ease of maintenance and tilting. The dryer must be leveled for proper operation. If shimming
is required, put 9-1/2” x 9-1/2” (24.13 cm x 24.13 cm) metal shims under the base feet. The dryer must be
lagged to the floor.
IMPORTANT: Dryer should be located where a minimum amount of exhaust duct will be necessary.
1. The dryer must be installed with a proper exhaust duct connection to the outside.
2. The dryer must be installed with provisions for adequate combustion and make-up air supply.
CAUTION: This dryer produces combustible lint and must be exhausted to the outdoors. Every 6
months, inspect the exhaust ducting and remove any lint build up.
IMPORTANT: Dryer must be installed in a location/environment, which the ambient
temperature remains between 40° F (4.44° C) and 130° F (54.44° C).

12 American Dryer Corp. 113068-10
C. INTERNAL AIR, ELECTRIC, AND WATER CONNECTIONS
1. Air

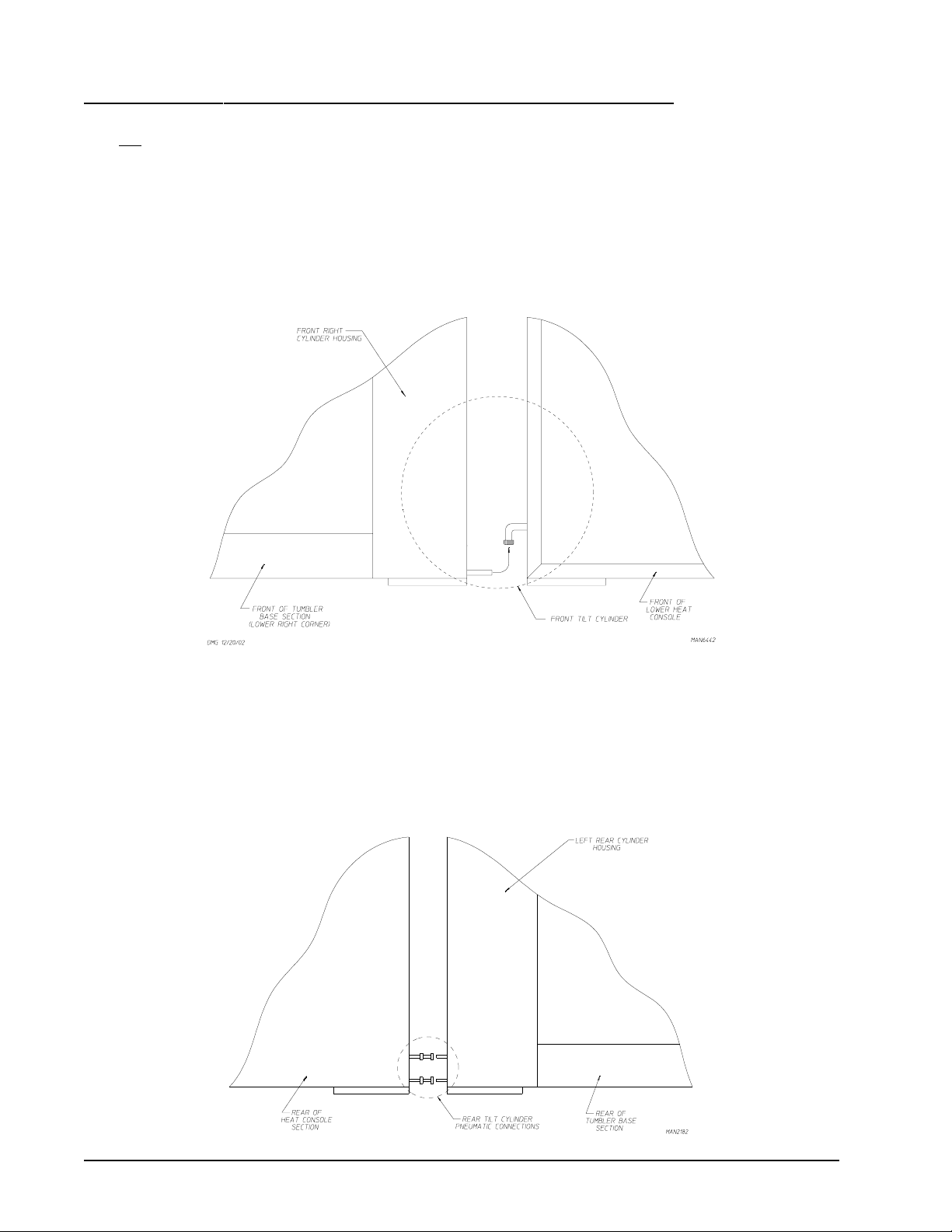

a. Front Tilt Piston
This connection is made at the front of the dryer in the area between the lower heat console section and
the basket (tumbler) base section. To connect the 3/8” poly-flo tubing to the corresponding brass
fittings, match the marked number on the tube with the number on the brass fitting. After inserting the
corresponding tubes into the brass fittings, tighten the brass fitting nuts.
b. Rear Tilt Piston Lines
This connection is made at the rear of the dryer in the space between the lower heat console section
and the basket (tumbler) base section. Insert the 3/8” poly-flo tube coming from the basket (tumbler)
base section to the 3/8” brass fitting marked with the corresponding number. Do the same to the
second tube and brass fitting. Tighten the brass fitting nuts.

113068-10 www.amdry.com 13
c. Load Door Piston Lines
The load door cylinder pneumatic connections are made in the lower heat console section, in the area
behind the pneumatic panel. To connect the 1/4” poly-flo tubing into the corresponding needle valves,
match the number on the line with the number on the needle valve. Insert ALL of the tubing (two [2]
on a 1-door model, four [4] on a 2-door model) into their corresponding valves. Give a moderate pull on
ALL of the air lines to make sure that the connections are complete.

14 American Dryer Corp. 113068-10
2. Electric
a. Basket (Tumbler) Motors
The disconnects for the one (1) basket (tumbler) motor is located in the lower heat console. The left
drum (basket [tumbler]) motor disconnect is located in the base of the lower heat console to the right.
On the cable the mechanical connection should be made to the respective junction box. Remove the
two (2) screws that hold down the cover to each junction box. Insert cable end in the junction box and
fasten with lock nut. Then, begin to connect the four (4) wires with the same color tape identifiers
together with the four (4) wires already in the junction box. Make these connections with wire nuts and
PVC electrical tape. Replace the cover and the two (2) cover screws that hold down the cover to the
junction box.
b. Temperature Probe, Base, and Basket (Tumbler) Disconnects
The disconnects are located in the lower heat console. The temperature probe disconnect is located on
the upper shelf towards the left. The base disconnect and the basket (tumbler) disconnect are located
on the base towards the right. Check identifying tapes to ensure proper assignments of connectors to
the proper base. Check for proper keying and connect disconnect to the proper base. Engage hold
downs on base and verify that the clamps are properly locked.

113068-10 www.amdry.com 15

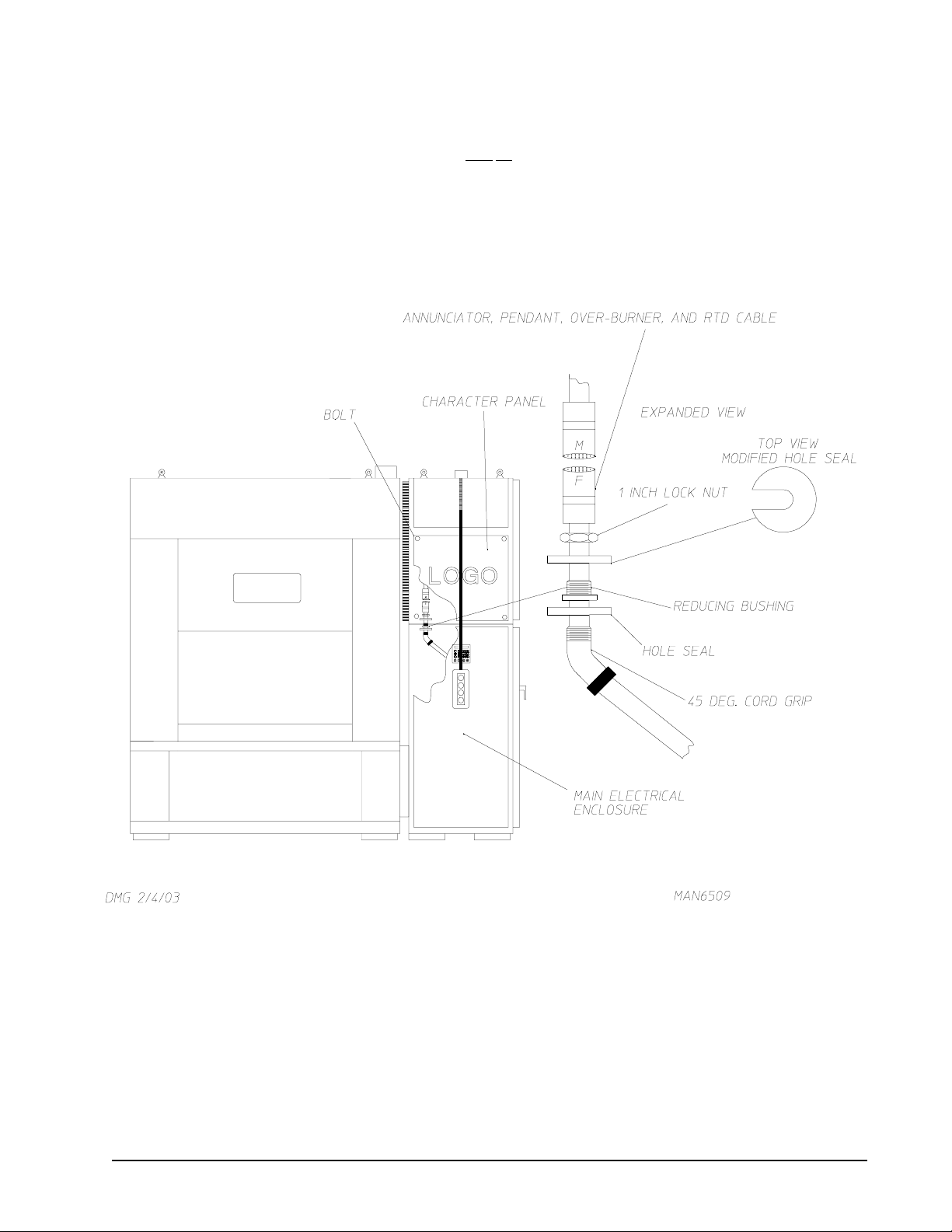

c. Annunciator, Optional Pendant, Over-Burner, and Resistance Temperature Detector (RTD) Cable
Remove the four (4) bolts that hold on the character panel. Open the door to the main electrical
enclosure, the female end of the RTD cable will be found there. Loosen the 1-inch lock nut and remove
the modified hole seal. Put the female end of the RTD cable through the hole in the top of the electrical
enclosure. Connect the male end and the female end of the RTD cable together, pull the cable up until
the threads of the reducing bushing can be seen through the hole into where the character panel was.
Next, get the 1-inch lock nut on by a few threads, slip the modified hole seal under the lock nut holding
the 45° cord grip connector, then tighten the 1-inch lock nut. Replace the character panel and tighten
the four (4) bolts.

16 American Dryer Corp. 113068-10

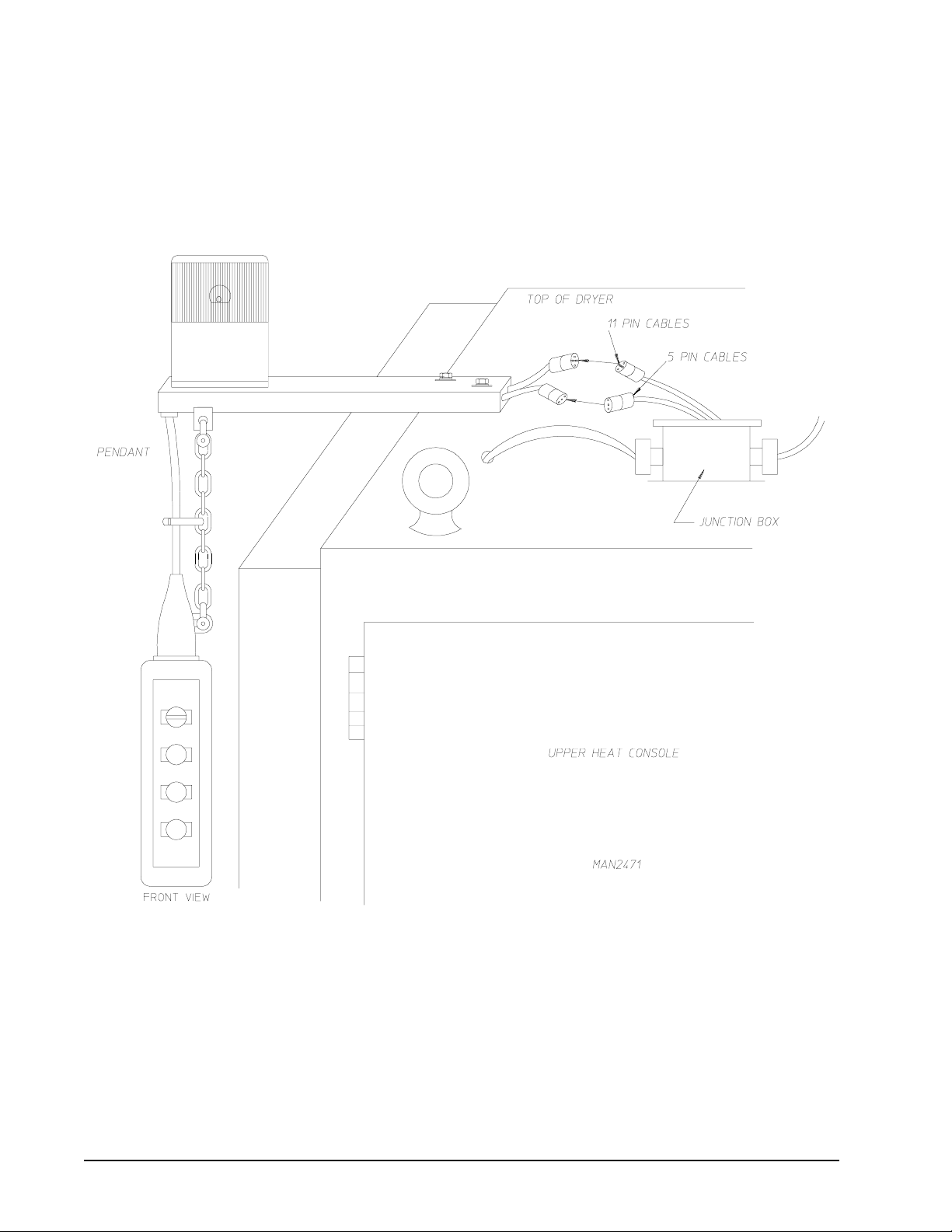

d. Optional Pendant
On the top of the heat console section of the dryer near the pendant, there is a junction box with four (4)
cables coming out of it. Two (2) of the cables from the junction box have connectors on the end, a
5-pin connector and an 11-pin connector. Coming out of the pendant should be two (2) cables, one (1)
with a 5-pin connector and the other with an 11-pin connector. Match up the four (4) cables into
assigned pairs, check keying and connect the male and female connection together.
