AE-BS02
COUNTERTOP BREAD SLICER
OPERATION MANUAL
Visit us online for more product information:
www.americaneaglemachine.com
Mixers, Dough Sheeters, Dough Dividers, Meat Slicers, and more!
WARRANTY REGISTRATION
GO TO: WWW.AMERICANEAGLEMACHINE.COM OR
MAIL THE ENCLOSED WARRANTY REGISTRATION CARD
WARRANTY NOT VALID UNLESS REGISTERED!
REGISTRATION MUST BE COMPLETED WITHIN 30 DAYS OF
PURCHASE AND INCLUDE A COPY OF INVOICE OR RECEIPT
SAVE THIS MANUAL FOR FUTURE REFERENCE
Copyright © 2017, American Eagle Food Machinery, All rights reserved

Page 1 of 11
AE-BS02
Operation Manual
773.376.0800 (P) • 773.376.2010 (F) • 3131 S. Canal St. Chicago, IL 60616
Revision 1/2017
INTRODUCTION AND NOTICE TO USER..................................................................................2
KEY COMPONENTS AND SPECIFICATIONS ............................................................................3
IMPORTANT SAFETY RULES …………….…………………………………………………………..4
INSTALLATION INSTRUCTIONS..…………….............................................................................5
ASSEMBLY INSTRUCTIONS ....................................................................................................6
OPERATING INSTRUCTIONS ....................................................................................................7
CLEANING PROCEDURES……………….................................................................................8-9
TROUBLESHOOTING ...............................................................................................................10
LIMITED WARRANTY STATEMENT..........................................................................................11
Index
FOR FUTURE REFERENCE, PLEASE RECORD THE FOLLOWING INFORMATION:
MODEL: ________________________ DATE OF PURCHASE: ______________________
SERIAL: ________________________ PURCHASED FROM: _______________________
PURCHASED BY: ________________ INVOICE / RECEIPT #: ______________________

Page 2 of 11
AE-BS02
Operation Manual
773.376.0800 (P) • 773.376.2010 (F) • 3131 S. Canal St. Chicago, IL 60616
Revision 1/2017
773.376.0800 (P) • 773.376.2010 (F) • 3131 S. Canal St. Chicago, IL 60616
This Caution Sign will be used in the manual to warn you against injury or potential
injury to the Operator
This Warning Sign will be used in the manual to warn you against damage or
potential damage to the Machine
Thank you for choosing to purchase an American Eagle machine! American Eagle Food
Machinery, Inc. has been manufacturing and distributing restaurant and bakery equipment for
over 30 years. Our machines are designed for heavy duty, commercial use, and are ETL certified
to NSF No. 8, CSA, and CE standards. As long as the equipment is properly maintained and used
in accordance with this manual, you will enjoy years of productive service. You are responsible
for understanding safe and proper use of the machine.
To prevent illness, sickness or death caused by food-borne pathogens, the machine and
machine parts should be cleaned in accordance with state and local health department
regulations. All food contact surfaces are manufactured from 100% food grade stainless steel,
making them very durable and easy to clean. While cleaning and before operating, visually
inspect the machine and parts for any damage. Do not use the machine if anything is
damaged!
NOTE: Unpack the machine as soon as possible. If the machine is damaged, contact the
carrier within fifteen (15) days of delivery. Immediately contact American Eagle about the
machine. After fifteen (15) days there will be no options to remedy any shipping damage.
NOTE: You should receive: bread slicer, warranty card, and a manual.
If you are missing anything, need assistance, need service/repairs, or want to order
accessories, contact American Eagle at 773.376.0800 or 800.836.5756. See next page for key
components, specifications, included accessories and optional accessories.
Introduction and Notice to User

Page 3 of 11
AE-BS02
Operation Manual
773.376.0800 (P) • 773.376.2010 (F) • 3131 S. Canal St. Chicago, IL 60616
Revision 1/2017

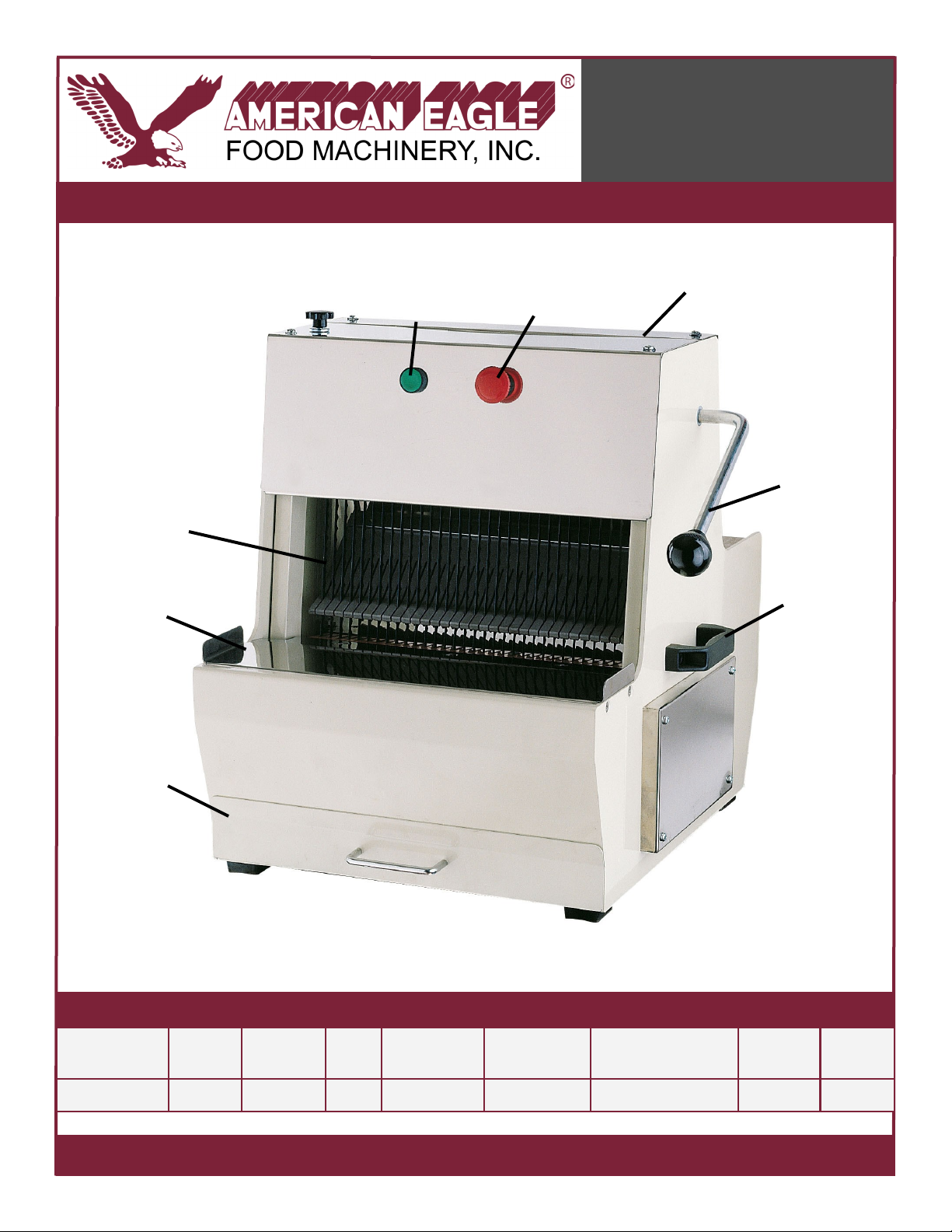

Key Components and Specifications
Specifications
Model Motor Voltage
V/HZ/PH Amp Feed Type Max Loaf Length Ship Net Loaves/Min
AE-BS02 1/3 HP 115/60/1 4Push Lever 15.0” 240 lbs. 176 lbs.7.5
Safety Guard
Handle
Lever
Blades
Front Guide
Board
Bread
Crumb
Drawer
Power
Switch
Safety
Switch

Page 4 of 11
AE-BS02
Operation Manual
773.376.0800 (P) • 773.376.2010 (F) • 3131 S. Canal St. Chicago, IL 60616
Revision 1/2017
IMPORTANT SAFETY RULES
•ONLY install equipment on a clean, level, non-skid surface and in a well-lit area.
•ALWAYS make sure that your outlet meets the electrical specifications of the
machine. Check the name plate for the correct specifications. Using the wrong
electrical specifications may create hazards and will void the warranty.
•DO NOT bypass safety features on this equipment, alter, or modify any component from its
original condition. Doing so may create hazards and will void the warranty.
•DO NOT OPERATE outdoors without shelter from rain, snow, dirt and dust.
•DO NOT OPERATE the slicer in extremely hot or cold air temperatures. Only operate the slicer
between 45ºF and 95ºF (7.2ºC to 35ºC).
•DO NOT put fingers into the slicing area during operation. Secure all articles of loose
clothing, jewelry, and hair before operating.
•DO NOT put hands into the feed when opening pusher of slicer.
•ALWAYS UNPLUG BEFORE CLEANING, SERVICING, OR REMOVING PARTS.
•KEEP the motor unit unplugged when not in use to prevent accidental start up.
•DO NOT put an inflexible material into slicing area.
•This bread slicer is designed and constructed for BREAD PROCESSING ONLY.

Page 5 of 11
AE-BS02
Operation Manual
773.376.0800 (P) • 773.376.2010 (F) • 3131 S. Canal St. Chicago, IL 60616
Revision 1/2017
INSTALLATION:
1. Read this manual completely before installation or operation. DO NOT proceed with
installation and operation if you have any questions or do not understand what is written
in this manual. Contact American Eagle if you need assistance.
2. Carefully remove protective crate and skid to prevent damage to the machine and parts.
3. Placing the bread slicer on a smooth surface (ie. table, counter, etc.) allowing working
area large enough for putting toast on guide board and packing the sliced toast. It is not
necessary to affix the machine to the table, but a smooth surface is important to prevent
vibrations.
4. Thoroughly clean the machine before using. Refer to Cleaning Procedures section.
5. Contact American Eagle if you have any questions or problems with the installation or
operation of this slicer. Do not return to retailer or dealer!
Installation Instructions
THIS MACHINE IS DESIGNED WITH A THREE-PRONG PLUG FOR PROPER
GROUNDING. THE OUTLET USED WITH THE PLUG MUST BE PROPERLY
GROUNDED. CONTACT AN ELECTRICIAN TO FIX YOUR OUTLET IF IT IS NOT
THE PROPER TYPE BEFORE OPERATING THE MACHINE. DO NOT REMOVE OR
CUT OFF THE THIRD GROUND PRONG OR USE AN ADAPTER PLUG.

Page 6 of 11
AE-BS02
Operation Manual
773.376.0800 (P) • 773.376.2010 (F) • 3131 S. Canal St. Chicago, IL 60616
Revision 1/2017
 Push down the handle of pusher to lift safety load pusher, and then place the load bread into
opening space on guide board behind the slicer.
 Push green button to start machine. (IN ANY CASE, DO NOT PUT HAND INTO
SLICING AREA WHEN MACHINE HAS STARTED).
 When you pull the handle back, the safety loaf pusher passes each load completely through
the slicing blades. Power automatically turns off upon completion of slicing.
 Take bread out from front guide board for packaging.
NOTE: Machine is fitted with a safety button to stop operation in case of emergency.
Operating Instructions

Page 7 of 11
AE-BS02
Operation Manual
773.376.0800 (P) • 773.376.2010 (F) • 3131 S. Canal St. Chicago, IL 60616
Revision 1/2017
TO AVOID SERIOUS INJURY AND DAMAGE TO MACHINE:
•BEFORE CLEANING, SERVICING, OR REMOVING COMPONENTS, always turn the
slicer off and disconnect the motor unit from the power outlet.
•DO NOT attempt to clean while the slicer is in operation.
•DO NOT immerse the motor unit in water.
•DO NOT PRESSURE WASH, SPRAY DOWN, OR POUR WATER onto the slicer.
•DO NOT use products that contain sodium hypochlorite (bleach) on the slicer.
•DO NOT use ABRASIVE MATERIAL such as SCRUBBER PAD, or STEEL WOOL to
clean the machine. This will scratch the polished surface of the stainless steel.
•ALWAYS FOLLOW the directions on the sanitizer container or those provided by the vendor.
Allow the parts to air dry, or wipe dry before placing them back in the slicer.
•To prevent illness or death caused by food-borne disease, bacteria, and pathogens, it is
important to clean and sanitize the entire slicer on a regular basis as any component of the slicer
can get contaminated during use. You are responsible for adhering to all guidelines and
laws established by local municipal and/or state health departments to prevent
contamination of the machine and the processed food.
It is critical to properly CLEAN THE ENTIRE MACHINE and follow the instructions very
carefully on your sanitizer container to properly kill harmful bacteria and pathogens.
Chlorine, iodine or quaternary ammonium are common sanitizers safe to use.
IMPORTANT: Use of cleaning solutions NOT DESIGNATED for stainless steel or using
excessive amounts of sanitizer will cause damage to machine not covered by warranty. To
understand proper sanitizer concentration, thoroughly read the FDA FOOD CODE: section 4-
501.114, Manual and Mechanical Ware Washing Equipment, Chemical Sanitization -
Temperature, pH, Concentration, and Hardness.
Cleaning & Maintenance Procedures

Page 8 of 11
AE-BS02
Operation Manual
773.376.0800 (P) • 773.376.2010 (F) • 3131 S. Canal St. Chicago, IL 60616
Revision 1/2017
Cleaning & Maintenance Procedures
CLEANING:
1. The bread slicer should be cleaned daily; wipe slicer with a clean damp cloth or a
brush to aid in cleaning operation. A metal bush is prohibited.
2. The crumb drawer must be emptied at regular intervals to prevent from mechanical failure.
MAINTENANCE:

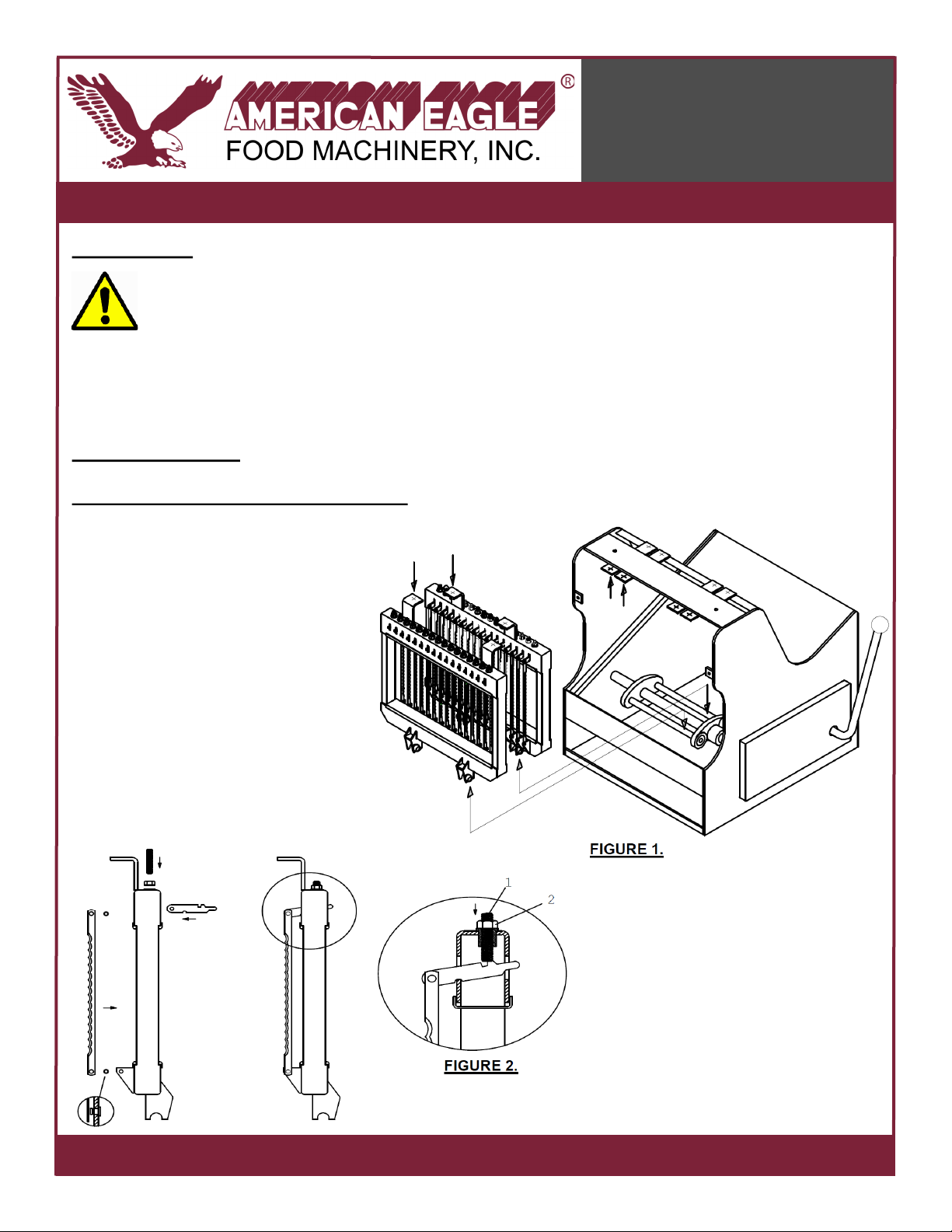

REPLACEMENT OF SLICING BLADES
1. To remove front knives frame for
replacement of blades, it is
necessary to take off the
components of knives frame
(see Figure 1).
2. Take the screw out, then you
can loose the tension of blade
and change blade (see Figure
2).

Page 9 of 11
AE-BS02
Operation Manual
773.376.0800 (P) • 773.376.2010 (F) • 3131 S. Canal St. Chicago, IL 60616
Revision 1/2017
Cleaning & Maintenance Procedures

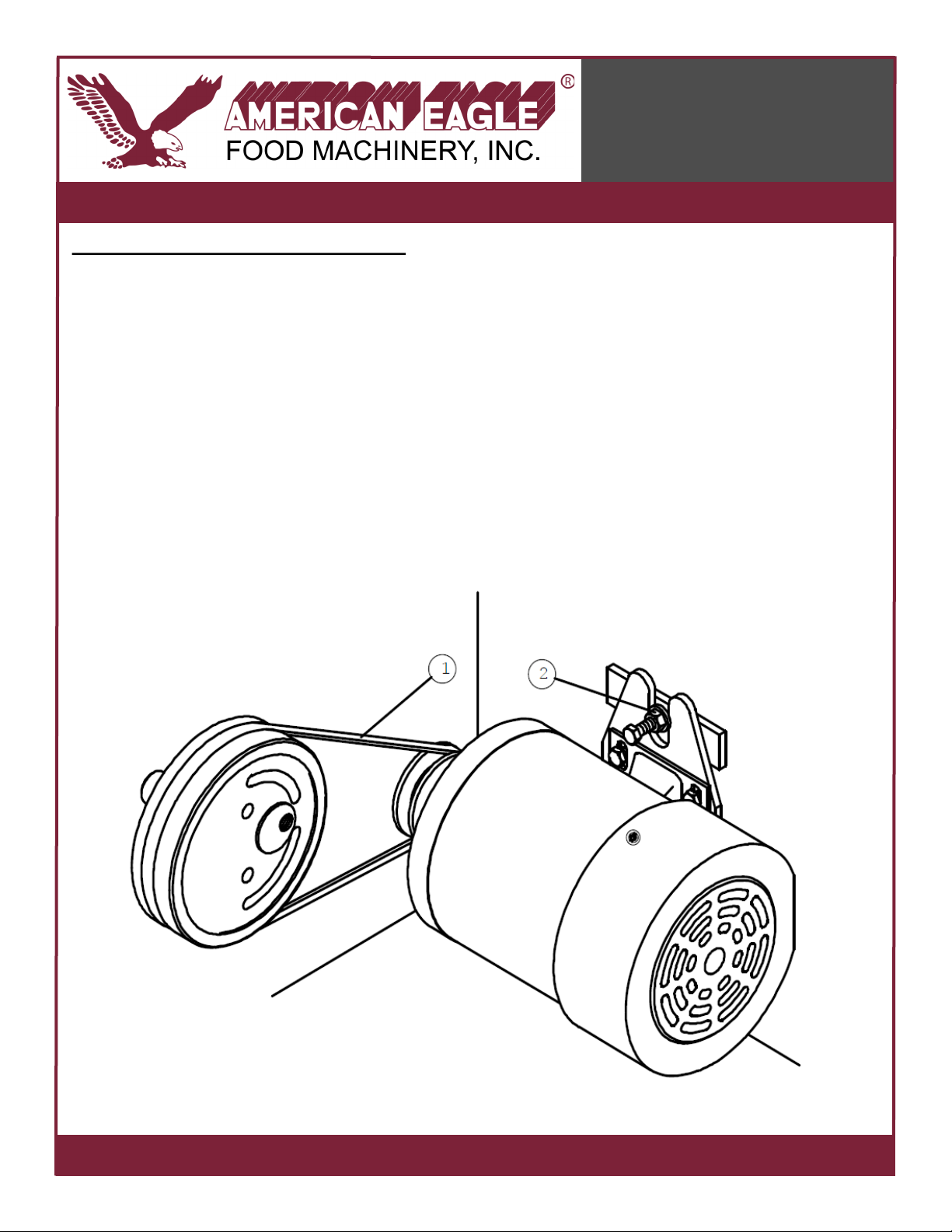

ADJUSTING BELT OF DRIVE PULLEY
1. The tension of belt of drive pulley (#1) becomes improper occasionally and causes inefficient
slicing .
2. To adjust belt:
•Taking off the guard board to expose the transmission mechanism
•Loosen bolt (#2) to move motor to get proper tension
3. The tension should be rechecked after first working day to make sure it is at the proper
position.

Page 10 of 11
AE-BS02
Operation Manual
773.376.0800 (P) • 773.376.2010 (F) • 3131 S. Canal St. Chicago, IL 60616
Revision 1/2017
Troubleshooting
Issue Possible Solutions
The bread slicer does not turn on.
Check if the electric cord is connected.
Check the breaker of the building.
If the slicer is still not working, call American Eagle or a service agent.
The slicer does not slice properly.
Make sure the bread is not hot.
Check if the blades are clean.
Check the guide adjustment.
Check and replace the blades.

Page 11 of 11
AE-BS02
Operation Manual
773.376.0800 (P) • 773.376.2010 (F) • 3131 S. Canal St. Chicago, IL 60616
Revision 1/2017
Parts: 1 Year • Labor: 1 Year
All equipment, which is sold under American Eagle Food Machinery, Inc. (AEFM) trademark and used for commercial purposes, is
warranted against defects in materials and workmanship for a period of one year parts and labor, except as specifically defined
below. The warranty period begins from the date of original purchase as evidenced by original retail purchase receipt or invoice. This
warranty is given solely to the original owner/user of the product from a retail store or dealer. No warranty is given to subsequent
transferees.
WARRANTY EXCLUSIONS (Items not covered under warranty):
All equipment accessories such as bread slicer knives, springs, knobs, and any expendable supply items subject to normal wear-
and-tear. Other adjustments required due to installation, setup, or normal wear of machine.
WARRANTY PROCEDURE: Contact customer service for an RMA (Return Merchandise Authorization) number.
NO WARRANTY SERVICE WILL BE PROVIDED UNLESS EXPLICITLY AUTHORIZED BY AEFM. AEFM will repair or, at its
option, replace the defective product or part. Any replacement item will be refurbished and warrantied with the balance of original
warranty period or 90 days, whichever expires last.
• To obtain warranty service, the owner/end user will be responsible for the costs of returning all items to AEFM’s warehouse. SAVE
ALL ORIGINAL PACKAGING or use comparable packaging. Any damage caused during a return process will void the warranty.
• No warranty will be available for motors or parts damaged by changing directions or gears improperly (i.e. not allowing motor to
stop completely before switching between forward and reverse, or switching gears without stopping), overloading equipment, or
using improper electrical service, as determined by AEFM, or an AEFM Authorized Service Technician
• AEFM may at its option, authorize an Advance RMA and ship a replacement product or part prior to receiving a defective item.
Such cases will require credit card authorization on file. The MSRP cost will be charged for any items not returned within fifteen (15)
days of receiving the replacement.
• AEFM may at its option, authorize a third party service agency to perform on-site repairs for items greater than 100 lbs.
•Any Factory Refurbished Equipment carries a warranty period of 90 days parts, 45 days labor
THIS WARRANTY IS ONLY VALID IF A PROPERLY COMPLETED WARRANTY REGISTRATION FORM AND COPY OF
PURCHASE RECEIPT OR INVOICE HAS BEEN RECEIVED BY AEFM, INC. WITHIN THIRTY (30) DAYS FROM PURCHASE
DATE. Any defects in materials or workmanship must be reported within thirty (30) days of occurrence and said occurrence being
within warranted time period.
REGISTER WARRANTY ONLINE: WWW.AMERICANEAGLEMACHINE.COM OR REFER TO WARRANTY CARD.
This warranty is void if damage occurs because of freight or shipping damage, accident, carelessness, abuse, improper installation,
lack of proper maintenance and cleaning, acts of God or Nature, or if the equipment is installed or operated in any manner contrary
to installation and operating instructions. In those cases, repairs will be made at the owner’s request and authorization, at a
reasonable cost. Work performed by unauthorized personnel or unauthorized service agencies voids this warranty.
LIMITATION OF LIABILITY: The liability of AEFM is expressly limited to repairing or replacing equipment that proves to be
defective in materials or workmanship within the warranty period. AEFM expressly excludes liability for incidental or consequential
damages to purchaser/owner or any third party, including but not limited to and without limitation, damages arising from personal
injuries, lost profits, loss of business opportunity, loss of property, economic losses or statutory or exemplary damages whether
through negligence, strict liability or otherwise.
OTHER WARRANTIES: This warranty is in lieu of all other warranties, express or implied. AEFM expressly disclaims any implied
warranty of merchantability or expressed or implied warranty of fitness for a particular purpose. This is the sole Warranty Agreement
between AEFM, Inc. and the owner/end user. No other agreement is implied, authorized or assumed, whether by AEFM or any third
party.
Limited Warranty Statement
