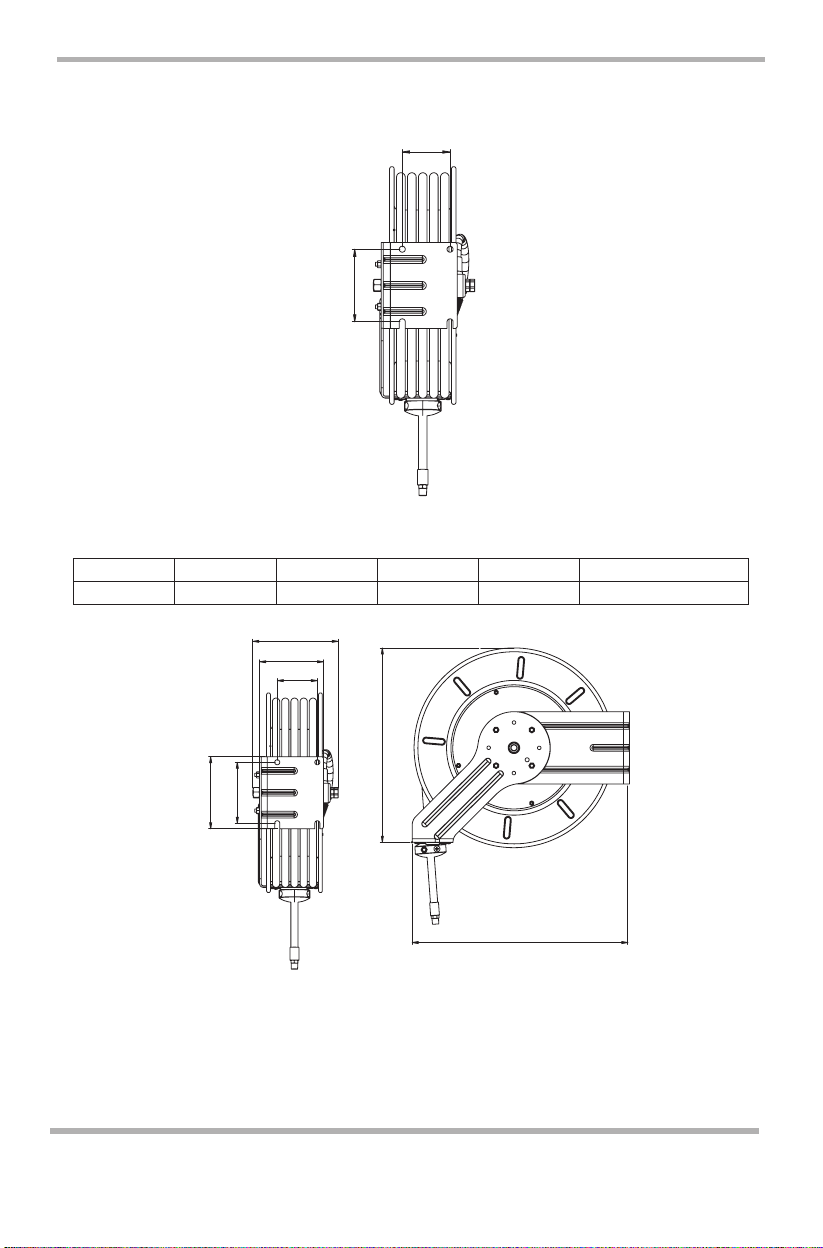

PRODUCT DATA
• Maximum pressure for DEF reels 150PSI.
INSTALLATION
1. For overhead ceiling mounting: Install reels a maximum of 14 feet above the floor.
2. You will need to purchase fasteners for mounting your new reel. Make sure the fasteners are
strong enough for the application. It is imperative to use a 3/8” (Grade 5) nut, bolt, flat
washer and lock washer.
3. The reel base has four holes for mounting on a suitable flat surface. This reel features our
easy slide-in base which can be used with our special mounting bracket (order separately).
When using this feature please refer to the instructions which are packed in the mounting
bracket.
4. The reel is supplied with a hose guide roller bracket. The bracket position may be changed
depending on the reel mounting position. Figure 1 shows “Typical Mounting Positions”. If
bracket position needs to be changed, do the following:
5. Pull out some hose and latch the reel.
6. Remove the bolts that attach the guide roller bracket to the support post.
7. Rotate guide roller bracket to correct position, replace bolts and tighten.
8. Using the four holes in the base, mount the reel in the desired location. Be sure to use
appropriate hardware and tighten securely.
9. Apply Teflon tape (add DEF compatible pipe dope to tape) to supply line threads, attach to
reel inlet and tighten. The other end of the incoming line can now be connected to the supply
line.
10. Apply Teflon tape to outlet fitting on reel hose, then attach to desired tool or nozzle. Check
connection for leakage, also check hose reel for correct operation. (Details see Operation
section.)
WARNING
Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the
safety rules and other basic safety precautions may result in serious personal injury.
Save these instructions in a safe place and on hand so that they can be read when required.
Keep these instructions to assist in future servicing.
SAFETY PRECAUTIONS
GENERAL SAFETY RULES
WARNING: Read and understand all instructions.
WARNING:
The warnings, cautions, and instructions discussed in this instruction
manual cannot cover all possible conditions or situations that could occur. It must
be understood
by the operator that common sense and caution are factors which cannot be
built into this
product, but must be supplied by the operator.
HOSE REEL SAFETY PRECAUTIONS
• Make sure incoming line pressure does not exceed rated operating pressure for your model
hose reel.
• Use proper eye protection when assembling and using the hose reel.
• Assemble the hose reel on a clean workbench.
WARNING
• Exposure of skin directly to pressurized air or fluid could result in severe bodily injury.
