American Sanders AVac 26 07213A User manual

Models: 07213A
07213B
Operator’s Manual

READ THIS BOOK
This book has important information for the use and safe operation of this machine. Failure to
read this book prior to operating or attempting any service or maintenance procedure to your
American Sanders machine could result in injury to you or to other personnel; damage to the
machine or to other property could occur as well. You must have training in the operation of
this machine before using it. If your operator(s) cannot read this manual, have it explained fully
before attempting to operate this machine.
All directions given in this book are as seen from
the operator’s position at the rear of the machine.
WARNING!
To reduce the risk of fire, electric shock, or injury:
lDo not use where explosive vapors, such as gas, solvents, alcohol, fuels, or combustible materials
such as grain, wood dust, are present in the air. Keep the work area well ventilated.
lDust produced from sanding wood or varnish could self ignite causing injury or damage. If this
material has been picked up, empty it immediately after use in a metal container.
lDo not use to pick-up health endangering dust.
lDo not use unless machine is fully assembled. Do not modify the machine. Read all instructional
labels on the machine. Replace damaged labels.
lDo not allow to be used as a toy. Close attention is necessary when used around children.
lUse extra care when cleaning on stairs.
lConnect to properly grounded outlet. See “grounding Instructions”.
lDo not use unless all filtering elements are present. Clean filtering elements frequently.
SAVE THESE INSTRUCTIONS
***This product is intended for commercial use only***
WARNING!
The Products sold with this Manual contain or may contain chemicals that are known to certain
governments (such as the State of California, as identied in its Proposition 65 Regulatory Warning Law)
to cause cancer, birth defects or other reproductive harm. In certain locations (including the State of
California) purchasers of these Products that place them in service at an employment job site or a publicly
accessible space are required by regulation to make certain notices, warnings or disclosures regarding the
chemicals that are or may be contained in the Products at or about such work sites. It is the purchaser’s
responsibility to know the content of, and to comply with, any laws and regulations relating to the use of
these Products in such environments. The Manufacturer disclaims any responsibility to advise purchasers
of any specic requirements that may be applicable to the use of the Products in such environments.

Contents
Symbols Used in the Manual....................................................................4
Purpose and Content of the Manual.........................................................4
Target Group..............................................................................................4
Storing the Use and Maintenance Manual...............................................4
On Delivery of the Machine.....................................................................5
Introductory Comment..............................................................................5
Identification Data.....................................................................................5
Technical Description...............................................................................5
Intended Use............................................................................................5
Safety..................................................................................................5
Serial Number Plate.................................................................................5
Technical Data..........................................................................................6
General Safety Regulations.....................................................................7
Preparation of the Machine......................................................................9
Handling the Packed Machine..........................................................9
Unpacking the Machine....................................................................9
Transport Machine............................................................................9
Machine Components - Main..........................................................10
Machine Components - Tank Cover.................................................10
Machine Components - Tank............................................................10
Machine Safety................................................................................11
Preparing the Machine.............................................................................11
Machine Operation...................................................................................13
Post Operation.........................................................................................14
Maintenance.........................................................................................14
Maintenance Schedule...................................................................14
Removing & Cleaning the Dust Bag...............................................15
Cleaning the Collection Tank..........................................................16
Cleaning the Accessories...............................................................17
Cleaning the Fabric Filter...............................................................18
Cleaning the Motor Air Filter..........................................................19
Disposal............................................................................20
Troubleshooting.........................................................................20
Parts Manual.........................................................................................21
Electrical Schematic........................................................................22
Filters.....................................................................................23
Vacuum Motor Assembly.................................................................24
Tank Assembly................................................................................26
Cover Assembly..............................................................................28
Standard Accessories (Included)...................................................30
Accessories (Optional)....................................................................31
1-1/2” Hose Kit (Optional).............................................................31
1-1/2” Choice Accessory Kit (Optional)..........................................32
1-1/2” Premium Accessory Kit (Optional).......................................33
Warranty............................................................................................34

4
Purpose & Content of the Manual
The aim of this manual is to provide customers with all the information needed to use the appliance in the safest,
most appropriate and most autonomous way. It includes information concerning technical aspects, safety, operation,
appliance downtime, maintenance, spare parts and scrapping. Operators and qualified technicians must read the
instructions in this manual carefully before carrying out any operation on the appliance. If in doubt about the correct
interpretation of instructions, contact your nearest Customer Service Center to obtain the necessary clarifications.
Target Group
This manual is aimed at operators and qualified technicians responsible for appliance maintenance. Operators must
not perform operations that should be carried out by qualified technicians. American Sanders cannot be held liable
for damages resulting from failure to comply with this prohibition.
Manual Storage
The Use and Maintenance Manual must be stored, protected from liquids and anything else that could compromise
its legibility.
Symbols Used in the Manual
Open book symbol:
Tells the operator to read the manual before using the appliance.
Open book symbol:
Tells the operator to read the manual before using the appliance.
Covered place symbol:
the operations preceded by this symbol must always be carried out in a dry, covered area.
Warning symbol:
Carefully read the sections marked with this symbol and observe the indications, for the safety of the
operator and the appliance.
Disposal symbol:
carefully read the sections marked with this symbol for disposing of the appliance.
Protective gloves symbol:
Always wear protective gloves, to avoid the risk of serious injury to your hands caused by sharp objects.
Protective gloves symbol:
Always wear protective gloves, to avoid the risk of serious injury to your hands caused by chemical agents.
Information symbol:
Indicates additional information for the operator, to improve the use of the device.
The descriptions contained in this document are not binding. The company therefore reserves the right to make any
modications at any time to elements, details, or accessory supply, as considered necessary for reasons of improvement
or manufacturing/commercial requirements. The reproduction, even partial, of the text and drawings contained in this
document is prohibited by law.
American Sanders reserves the right to make any technical and/or supply modications. The images are
shown as a reference only, and are not binding as to the actual design and/or equipment.

5
Machine Delivery
When the machine is delivered to the customer, an immediate check must be performed to ensure all the material
mentioned in the shipping documents has been received, in addition to verifying that the equipment has not been
damaged during transportation. If this is the case, the carrier must ascertain the extent of the damage at once,
informing our customer service office. It is only by prompt action of this type that the missing material can be
obtained, and compensation for damage successfully claimed.
Introduction
Any type of equipment can only work properly and effectively if used correctly and kept in full working order by
performing the maintenance operations described in the attached documentation. You should therefore read this
instruction manual carefully, consulting it again if issues arise while using the machine. If necessary, remember
that our assistance service (organised in collaboration with our dealers) is always available for advice or direct
intervention.
Identification Data
For technical assistance or to request replacement parts, always give the model, the version and serial number
written on the serial number plate.
Technical Description
The AVac26 is a vacuum cleaner which uses the vacuum created inside the collection tank by the fan (enabled by
the electric motor) to pick up dust and dry solid elements at ambient temperature, using the accessories in contact
with the floor and the furnishings. The vacuum hose conveys inside the collection tank the air with dust and solid
residues that are retained and collected using the collection bag and the filter. The appliance must only be used for
this purpose.
Intended Use
This appliance is designed and built to be used by a qualified operator to clean (by vacuuming solid, dry elements)
smooth, compact flooring in the commercial, residential and industrial sectors, in proven safety conditions.
The appliance is only suitable for use in indoor - or at least covered - areas. The appliance is not suitable for
use in the rain, or under jets of water. IT IS FORBIDDEN to use the appliance for picking up dangerous dusts
or inflammable liquids in places with an explosive atmosphere. In addition, it is not suitable as a means of
transport for people or objects.
Safety
Operator cooperation is paramount for accident prevention. No accident prevention program can be effective without
the full co-operation of the operator who is directly responsible for machine operation. The majority of occupational
accidents that happen both in the workplace or whilst moving are caused by failure to respect the most basic safety
rules. An attentive, careful operator is most effective guarantee against accidents and is fundamental in order to
implement any prevention program.
Serial Number Plate
The serial number plate is located at the rear of the vacuum cleaner,
and indicates the general characteristics of the appliance, in particular the
appliance’s serial number. The serial number is a very important piece of
information and should always be provided together with any request for
assistance or to purchase spare parts.

6
Technical Data Unit of
Measure AVac 26
(07213A)
AVac 26
(07213B)
Power Supply Voltage Volts (V) 115 V 230 V
Total Power (Nominal) Watts (W) 2400 W 3000 W
Frequency Hertz (Hz) 50-60 Hz 50-60 Hz
Number of Vaccum Motors Number 3 3
Vacuum Motor Qty (V / W / Hz) 3 (120 / 800 / 60) 3 (230V / 1000W / 50)
Type of Vacuum Stage(s) / Discharge 2 / Tangential 2 / Tangential
Maximum Vacuum Inches of Water (inH20)
Kilopascal (kPa)
72 inH20
17.9 kPa 24 kPa
Maximum Air Flow Rate Cubic Feet per Minute (CFM)
Cubic Meters per Minute (CMM)
255 CFM
7.22 CMM 346 m3/hr
Collection Capacity Gallon (gal) / Liter (L) 26.4 gal / 100 L 26.4 gal / 100 L
Filtration Capacity (Class L) in2/ cm25500 in2 / 35500 cm25500 in2 / 35500 cm2
Tank Material N/A Coated Steel Coated Steel
Cord Length Feet (ft) / Meters (m) 50 ft / 15 m 50 ft / 15 m
Dry (Empty) Weight Pounds (lbs)
Kilograms (kg)
121.3 lbs
55 kg
121.3 lbs
55 kg
Dimensions
(Length X Width X Height)
Inches (in)
Centimeters (cm)
21.3 in X 26.8 in X 39.7 in
54 cm X 68 cm X 109 cm
21.3 in X 26.8 in X 39.7 in
54 cm X 68 cm X 109 cm
Hose Diameter Inches (in)
Millimeters (mm)
2.00 in
50 mm
2.00 in
50 mm
Protection Rating IP X4 X4
Sound Level (ISO 11201) dB(A) 80 80
Machine Specications

7
CAUTION:
lCarefully read the warnings contained in this booklet and take care of it for further consultations.
lSince the packaging elements (plastic bags, staples, etc.) are a source of danger they should not be left within
the reach of children, disabled persons, etc.
lThis appliance should only be used for the purpose for which it was constructed, namely: cleaning inert surfaces,
the aspiration of solid non-flammable and non-explosive substances. Any other use is considered incorrect and
hence dangerous.
l When the appliance is operating do not bring it close to delicate organs like ears, mouth, eyes, etc.
lThis appliance should not be used by people (including children) with physical, sensory or mental disabilities, or
by people with little experience or know-how, unless they have been controlled and instructed in the use of the
appliance by people responsible for their safety. Children must be supervised to ensure they do not play with the
appliance.
lCarefully read the labels on the appliance. Do not cover them for any reason and replace them immediately if
they become damaged.
lThe appliance must be only used by authorised, trained personnel.
lThe appliance is not suitable for cleaning rough or uneven floors. Do not use the appliance on slopes.
lIt is necessary to make sure that the power supply cable or the extension cable do not suffer any damage caused
by the vehicle wheels when moving, by crushing, tearing or the like. Protect the cable from heat, oil and sharp
edges. Regularly check the power cable for any damage such as the formation of cracks, or ageing. If you notice
any damage, the cable must be replaced before using the machine.
lIn the event of danger, immediately remove the plug from the electrical outlet or socket.
lFor maintenance work, switch off the appliance using the main switches and remove the power cable plug from
the electrical outlet.
lWhen using the appliance, pay attention to other people and especially to children.
lUse only the accessories recommended by American Sanders Authorized Distributors. The use of other
accessories could compromise the safety of the appliance.
lWhen the appliance is not being used, it should not be left connected to the electrical outlet and/or power supply.
lBefore doing any maintenance work on the appliance pull out the plug from the electrical outlet and/or power
supply.
lDo not immerse the appliance in water, do not use solvents.
lFor scrapping, follow the regulations in force in the country.
lDo not use the appliance with the power cable twisted around any part of the appliance.
lBefore connecting the appliance to the electricity socket, make sure the electrical information on the serial
number plate corresponds to that of the electrical supply. The appliance must only be powered with a voltage
equal to that shown on the serial number plate.
lThe manufacturer cannot be held liable for any damage to persons, animal or objects deriving from improper and
unreasonable use, and in any event not complying with the instructions mentioned above.
The regulations below must be carefully followed in order to avoid harm to the operator and damage to the appliance.
GENERAL SAFETY REGULATIONS

8
GROUNDING INSTRUCTIONS:
This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least
resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord that has
an equipment- grounding conductor and grounding plug. The plug must be inserted into an appropriate outlet that is
properly installed and grounded in accordance with all local codes and ordinances.
WARNING!: Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check
with a qualified electrician or service person if you are in the doubt as to whether the outlet is properly grounded. Do
not modify the plug provided with the appliance-if it will not fit the outlet, have a proper outlet installed by a qualified
electrician.
Make sure that the appliance is connected to an outlet having the same configuration as the plug. No adapter should
be used with this appliance. If the appliance must be reconnected for use on a different type of electric circuit, the
reconnection should be made by a qualified service personnel.
WARNING:
lThis appliance is suitable for dry use only. Never vacuum any liquid substance into the collection tank.
lThe appliance is not suitable for use by children and persons with reduced physical, mental and sensory
capabilities, or people who lack the required experience and knowledge.
lThe appliance must not be used or kept outdoors, in damp conditions or directly exposed to rain.
lThe storage temperature must be between -13°F and 131°F (-25°C and +55°C).
lConditions of use: room temperature between 32°F and 104°F (0°C and 40°C), with relative humidity between
30% and 95%.
lThe power supply cable outlet must have an earth connection in compliance with the regulatory standards.
lThe appliance does not cause harmful vibrations.
lNever vacuum gas, liquids or explosive or inflammable powders, nor non-diluted acids and solvents! These
include gasoline, paint thinners and fuel oil (which, when mixed with the vacuum air, can form explosive vapours
or mixtures), and also non-diluted acids and solvents, acetones, aluminium and magnesium powders. These
substances may also corrode the materials used to construct the appliance.
lThe appliance must never be used in environments with a potentially explosive atmosphere.
lDo not place any liquid containers on the appliance.
lIn the event of a fire, use a powder extinguisher. Do not use water.
lDo not knock against shelving or scaffolding, where there is a danger of falling objects. The operator using the
appliance should always be equipped with suitable safety devices (gloves, shoes, helmet, goggles, etc.).
lIf the appliance does not work properly, ask for intervention of the authorized technical assistance center.
lIf you need to replace any components, request the ORIGINAL spare parts from an Authorized dealer and/or
Retailer.
lRestore all electrical connections after any maintenance interventions.
lBefore using the appliance, check that all the hatches and covers are positioned as shown in this Use and
Maintenance Manual.
lDo not remove the guards that can only be removed with the aid of tools, except for maintenance work (see the
relevant paragraphs).
lDo not wash the appliance with direct water jets or with pressurised water, nor with corrosive substances.
lHave the appliance checked by an authorised technical assistance center every year.
lWhen disposing of consumable materials, observe the laws and regulations in force.
lDust produced from sanding wood or varnish could self ignite causing injury or damage. If this material has
been picked up, empty it immediately after use into a metal container. Never leave sanding dust of any amount
supervised.
lWhen, after years of valuable work, your appliance needs to be finally decommissioned, dispose of the materials
contained within it appropriately, bearing in mind that the appliance is made of fully recyclable materials.

9
Handling the Packaged Machine
Since the packaging elements (plastic bags, staples, etc.) are a potential
source of danger, they should not be left within the reach of children, disabled
persons, etc.
The gross weight of the appliance, including packaging, is 144 lbs (65 Kg).
WARNING: Move the packaged product in accordance with legal
legislation requirements regarding accident prevention, the size and
the mass of the packaging itself.
Unpacking the Machine
The procedure for removing the device from its packaging is the following:
1. Place the lower part of the outer packaging in contact with the floor.
WARNING: Use the pictograms printed on the box as reference.
2. Remove the outer package.
WARNING: these operations must be carried out using protective gloves to avoid any possible contact with
the edges or tips of metal objects.
3. Using a chute, slide the machine from the pallet.
Transport Machine
To transport the machine, proceed as follows:
1. Take all necessary steps to ensure that the device is in a safe condition (see “MACHINE SAFETY”).
WARNING: Users are advised to always wear protective gloves, to avoid the risk of serious injury to hands.
2. Make sure that the collection tank is empty, otherwise empty it (read the paragraph “CHECKING AND
CLEANING THE COLLECTION BAG”).
WARNING: for transportation without a pallet, secure the device according to the directives in force in the
country of use so that it does not slide or tip over.
A43.7 in (1110 mm)
B23.1 in (586 mm)
C25.4 in (646 mm)

10

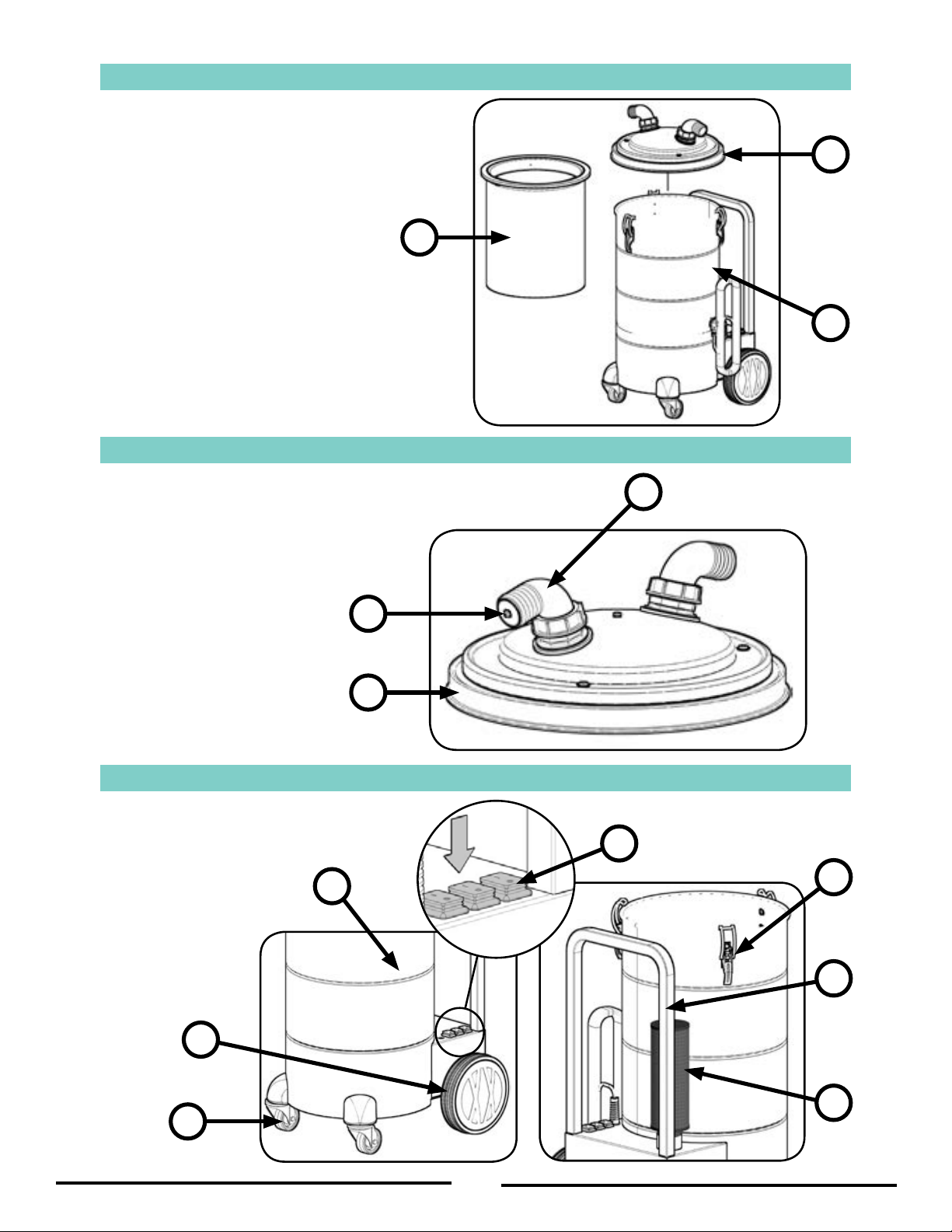

Machine Components - Main
The basic components of the machine are as follows:
1. Collection Tank
2. Tank Cover
3. Filter / Collection Bag
Machine Components - Tank Cover
The basic components of the tank cover are as follows:
1. Tank Lid
2. Vacuum Port
3. Port Plug
Machine Components - Tank
The basic components of the tank are as follows:
1. Collection Tank
2. Swivel Casters
3. Rear Wheels
4. Motor Switches
5. Exhaust Filter
6. Handle
7. Cover Latch
1
3
2
3
1
2
3
2
17
6
5
4

11
Machine Safety
The stages for making the appliance safe, thereby making it possible to carry out operations safely, are as follows:
1. Make sure that the main switch (1) is in the rest position, if not, disable it by pushing the switch to “0” (Fig. 1).
2. Make sure that the plug (2) on the power cable (3) has been taken out of the electrical outlet and/or power
supply socket (4), and if not, disconnect it (Fig. 2).
3. Wind the cable around the control handlebar.
WARNING: Users are advised to always wear protective gloves, to avoid the risk of serious injury to hands.
WARNING: To prevent any damage to the electrical outlet and/or power supply socket, pull out the plug (2)
from the electrical outlet and/or power supply socket (4) by pulling the plug (2) directly instead of the power
cable (3).
Preparing the Machine
Before beginning to work, it is necessary to:
1. Before using, the appliance must be in order and safe to use with the work equipment, especially the power
cable and the extension cable. If everything is not in order, the appliance must not be used.
2. Take all necessary steps to ensure that the device is in a safe condition (see “MACHINE SAFETY’”).
WARNING: Users are advised to always wear protective gloves, to avoid the risk of serious injury to hands.

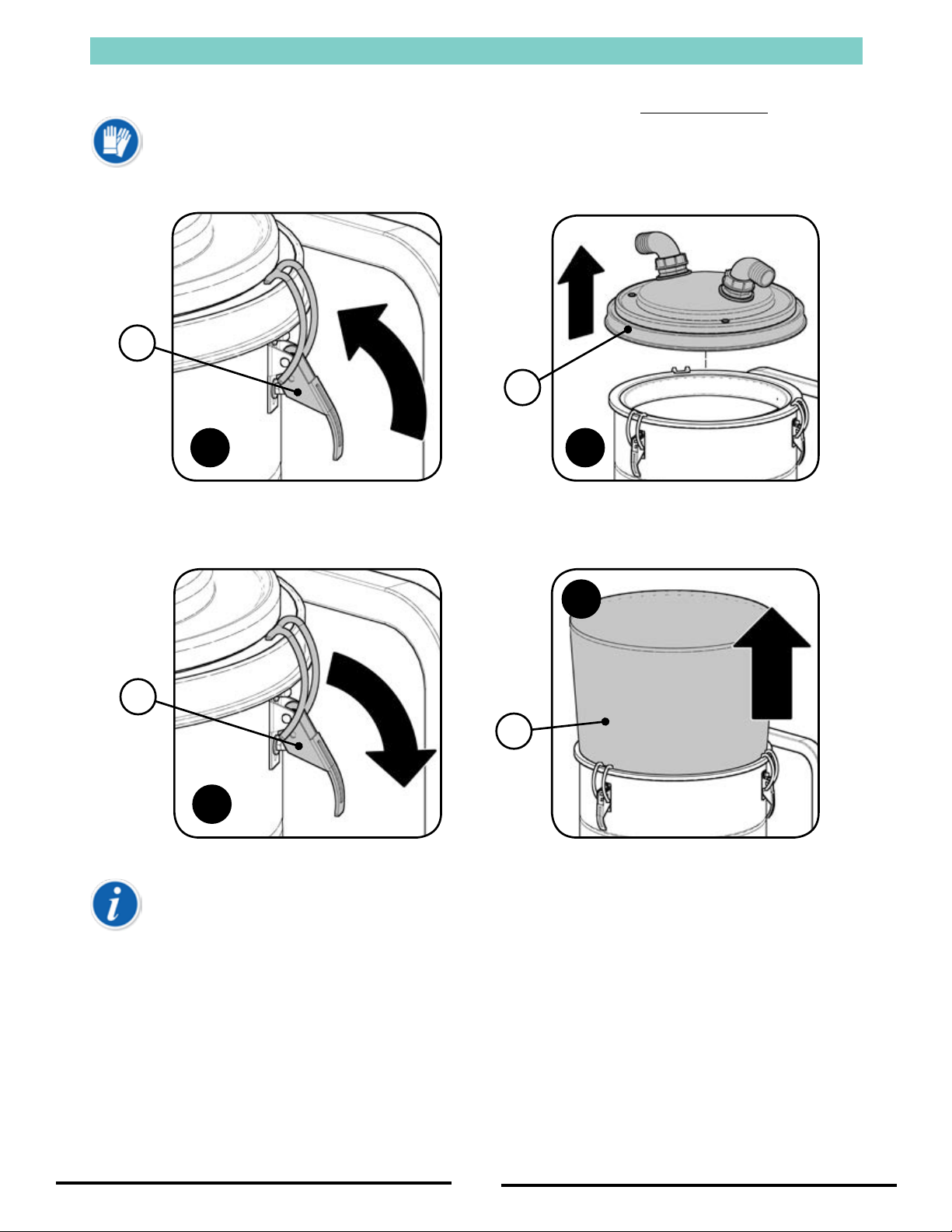

3. Free the cover from the collection tank by releasing its hooks (1) on the side of the collection tank (Fig. 1).
4. Remove the cover (2) from the collection tank (Fig. 2).
5. Put the cover delicately on the floor.
6. Check that the fabric vacuum filter (3) is inside the tank, if not put it in (Fig. 3).
4
2
3
2
1
1
2
2
OFF
1
1

12
7. Insert the collection bag (4) inside the collection tank (Fig. 4), being careful to position it correctly inside the
filter.
WARNING: To fix the collection bag fold the hem around the inlet mouth of the collection tank.
8. Put the cover (2) on the collection tank (Fig. 5).
9. Fix the cover to the collection tank by using its hooks (1) on the side of the collection tank (Fig. 6).
WARNING: The collection bag-filter should only be used for collecting solid waste.
WARNING: When using the collection bag, do not vacuum waste that could cut it, burning embers that could
set it on fire, or acid solutions that could dissolve it
10. Make sure that the cap closing the vacuum nozzle (5) has been correctly inserted (Fig. 7)
11. Insert the vacuum hose (6) into the vacuum nozzle (7) in the cover (Fig. 8)
12. Select the most suitable accessory for the work to be carried out.
3
3
5
2
4
4
6
1
7
5
8
7
6

13
13. Insert the selected accessory into the vacuum hose.
WARNING: Never use the appliance without the filters supplied with the machine.
Machine Operation
To start using the machine, do as follows:
1. Carry out all the checks in the section “PREPARING TO WORK”.
2. Insert the plug (1) of the power supply cable (2) in the electrical outlet and/or power supply socket (3) (Fig. 1).
3. Switch on the machine by positioning one of the three switches (4) to the work position “I” (Fig. 2).
NOTICE: To double or triple the vacuum peformance progressively activate the other two switches.
4. Proceed with the vacuuming.
NOTICE: If, when working, the intensity of the vacuum should drop, read section “CONTROL AND
OPERATION”.
3
2
1
1
ON
4
2

14
Post Operation
At the end of the work, and before carrying out any type of maintenance, perform the following operations:
1. Do what is required to make sure the machine is in a safe condition (see “MACHINE SAFETY”).
2. Take the appliance to the designated place for emptying the collection tank.
CAUTION: The place designated for this operation must comply with current environmental protection
regulations
3. Empty the collection tank (see the section “REMOVING & CLEANING THE REUSABLE / DISPOSABLE DUST BAG”).
4. Remove any accessory attached to the hose or machine and clean it with a damp cloth.
NOTICE: When it is completely dry insert it into the accessories support on the rear of the collection tank
(optional accessory).
5. Remove any extension or wand from the end of the hose and clean it under running water.
NOTICE: When it is completely dry insert it into the
accessories support on the rear of the collection tank
(Optional: Accessory Bag - TMB416986).
6. Remove the vacuum hose (1) (Fig. 1) from the vacuum
nozzle (2) in the cover of the collection tank, clean it under
running water.
NOTICE: Store in the collection tank.
CAUTION: Store the appliance in an enclosed place, on a
flat surface; near the appliance there must be no objects
that could either damage it, or be damaged through
contact with it.
WARNING: Dust produced from sanding wood or varnish
could self ignite causing injury or damage. If this material
has been picked up, empty it immediately after use into a
metal container. Never leave sanding dust of any amount
unsupervised.
Type of Maintenance
At the End of the Work Daily Weekly Before a Long Period of Inactivity Transport
Inspect and clean the collection bag X X X X
Inspect and clean the collection tank X X X X
Inspect and clean the vacuum accessories tools X X
Inspect and clean the fabric lter X X
Inspect and clean the sound insulation X
Inspect and clean the exhaust lter X
Inspect and clean the motor air lter X
1
2
1
Maintenance Schedule
MAINTENANCE

15
Removing & Cleaning the Reusable / Disposable Dust Bag
To empty the collection bag, proceed as follows:
1. Take all necessary steps to ensure that the device is in a safe condition (see “MACHINE SAFETY”).
WARNING: Users are advised to always wear protective gloves, to avoid the risk of serious injury to hands.

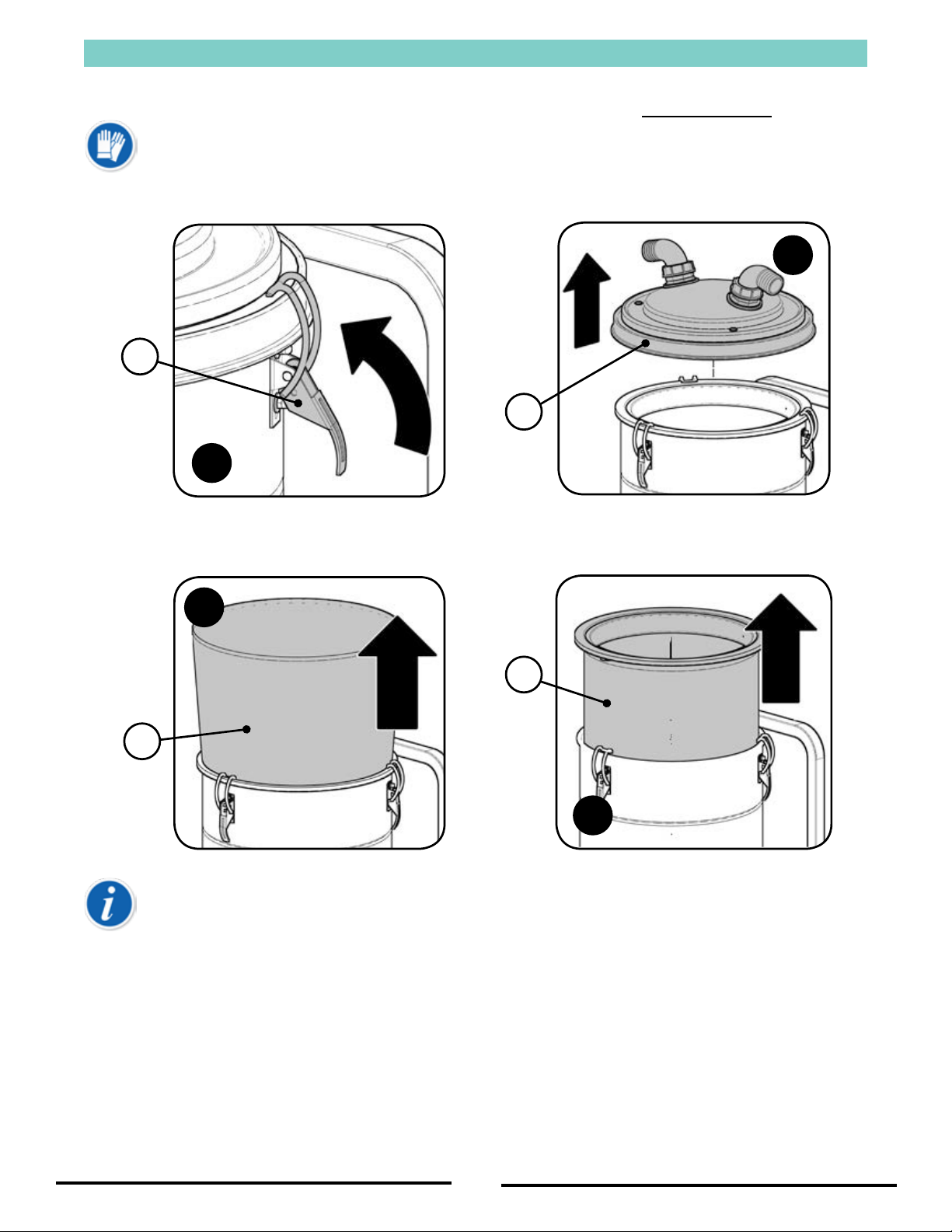

2. Free the cover from the collection tank by releasing its hooks (1) on the side of the collection tank (Fig. 1).
3. Remove the cover (2) from the collection tank (Fig. 2).
4. Put the cover delicately on the floor.
5. Fix the fabric filter to the collection tank by using its hooks (1) on the side of the collection tank (Fig. 3).
6. Remove the collection bag (3) from inside the appliance (Fig. 4).
7. Take it to a suitable place and empty it.
CAUTION: the place designated for this operation must comply with current environmental protection
regulations.
8. Vacuum the bag with a vacuum cleaner.
9. Clean the collection bag with an air jet from a distance of more than 20cm.
10. Inspect the reusable/disposable bag for any damage, holes or tears. If damaged, discard and replace.
11. To refit the collection bag carry out the operations in the reverse order.
1
1
2
2
4
4
3
1

16
Cleaning the Collection Tank
Properly cleaning the collection tank improves the appliance’s efficiency. To clean the collection tank, proceed as
follows:
1. Take all necessary steps to ensure that the device is in a safe condition (see “MACHINE SAFETY”).
WARNING: Users are advised to always wear protective gloves, to avoid the risk of serious injury to hands.
2. Free the cover from the collection tank by releasing its hooks (1) on the side of the collection tank (Fig. 1).
3. Remove the cover (2) from the collection tank (Fig. 2).
4. Put the cover delicately on the floor.
5. Remove the collection bag (3) from inside the appliance (Fig. 3).
6. Remove the fabric filter (4) from inside the appliance (Fig. 4).
7. Take it to a suitable place for cleaning.
CAUTION: The place designated for this operation must comply with current environmental protection
regulations.
8. Clean the inside of the collection tank with a cloth.
9. Clean the inside of the collection tank with a damp cloth.
10. To refit the collection bag carry out the operations in the reverse order. WARNING: To reduce the risk of fire,
electric shock, or injury.
WARNING: Dust produced from sanding wood or varnish could self ignite causing injury or damage. If this
material has been picked up, empty it immediately after use in a metal container.
1
1
2
2
3
3
4
4

17
Cleaning the Accessories
Properly cleaning the vacuum accessories improves the appliance’s efficiency. Proceed as follows to clean the
vacuum accessories:
1. Do what is required to make sure the machine is in a safe condition (see “MACHINE SAFETY”).
2. Take the appliance to the designated place for emptying the collection tank.
CAUTION: The place designated for this operation must comply with current environmental protection
regulations.
3. Remove the accessory from the extension, clean it with a damp cloth.
NOTICE: When it is completely dry insert it into the accessories support on the rear of the collection tank
(Optional: Accessory Bag - TMB416986).
4. Remove the female part of the extension from the male part, clean it under running water.
NOTICE: When it is completely dry insert it into the accessories support on the rear of the collection tank
(Optional: Accessory Bag - TMB416986).
5. Remove the vacuum hose (1) (Fig. 1) from the vacuum nozzle (2) in the cover of the collection tank, clean it
under running water.
NOTICE: When it is completely dry insert it into the collection tank.
1
2
1

18
Cleaning the Polyester Fabric Filter
Properly cleaning the fabric filter improves the appliance’s efficiency. To clean the fabric filter, proceed as follows:
1. Take all necessary steps to ensure that the device is in a safe condition (see “MACHINE SAFETY”).
WARNING: Users are advised to always wear protective gloves, to avoid the risk of serious injury to hands.
2. Free the cover from the collection tank by releasing its hooks (1) on the side of the collection tank (Fig. 1).
3. Remove the cover (2) from the collection tank (Fig. 2).
4. Put the cover delicately on the floor.
5. Remove the collection bag (3) from inside the appliance (Fig. 3).
6. Remove the fabric filter (4) from inside the appliance (Fig. 4).
7. Take it to a suitable place for cleaning.
CAUTION: The place designated for this operation must comply with current environmental protection
regulations.
8. Vacuum the fabric filter with another vacuum cleaner.
9. Clean the fabric filter with an air jet from a distance of more than 8.5 inches (20cm).
10. To refit the fabric filter carry out the operations in the reverse order.
1
1
2
2
3
3
4
4

19
Cleaning the Motor Air Filter
Tilt the machine
1
Remove the protection
4
Blow the filter with an air gun
b
Place the protection
7
2
Clean the filter
5
Vacuum the filter with the vacuum
itself
c
Screw the 4 knobs
8
Unscrew the 4 knobs
3
Shake the filter
a
Place the filter inside the macchine
6
Filter cleaning instruction

20
PROBLEM POSSIBLE CAUSE SOLUTION
The Machine Will
Not Turn On
The main switch is in the off position. Turn on the main switch.
The power cable extension is not connected
to the machine. Connect the power cable plug to the main socket.
The appliance’s electronic specications do
not match the mains supply specications.
Check that the technical information on the serial
number plate. correspond to the mains supply
information.
The power cable is damaged.
If the power cable is damaged replace it, immediately
contact an authorized the technical services of an
American Sander distributor.
Dust Coming Out During Operation
The vacuum hose is not properly connected
to the vacuum nozzle.
Connect the vacuum hose to the nozzle on the
collection tank.
The vacuum hose is not properly connected
to the accessory in contact with the oor.
Connect the vacuum hose to the accessory that is
being used to do the vacuuming.
The collection tank cover has not been
properly positioned.
Remove the collection tank cover and position the
collection bag correctly.
The collection bag has not been positioned
correctly.
Remove the cover of the collection tank and empty the
collection bag or else change it (see the paragraph
“REMOVING & CLEANING THE REUSABLE /
DISPOSABLE DUST BAG”).
The collection bag is full or was torn. Remove the collection tank cover, remove the
collection bag and position the fabric lter correctly.
The fabric lter is not correctly positioned.
Remove the collection tank cover, remove the
collection bag and clean or replace the fabric lter
(read the paragraph “CLEANING THE POLYESTER
FABRIC FILTER”).
The fabric lter is clogged or has torn. Check that there is nothing obstructing the vacuum
hose, if there is, remove it.
The Machine
Is Not
Collecting Dust
The vacuum hose is blocked. Check that there is nothing obstructing the vacuum
hose, if there is, remove it.
The vacuum chamber of the accessory in
contact with the oor is blocked.
Check that there is nothing obstructing the
vacuum chamber of the accessory being used, if
there is, remove it.
The cap of the vacuum nozzle has not been
closed properly. Insert the cap into the vacuum nozzle correctly.
TROUBLESHOOTING
This chapter lists the most common problems linked with the use of the appliance. If you are unable to
resolve the problems with the information given here, please contact your nearest assistance center.
DISPOSAL
To dispose of the appliance, take it to a demolition center or an
authorised collection center.
Before scrapping the appliance, it is necessary to remove and
separate out the following materials, then send them to the appropriate
collection centers in accordance with applicable environmental hygiene
regulations:
l Electric and electronic parts*
l Plastic parts
l Metallic parts
(*) In particular, contact your distributor when scrapping
electric and electronic parts.
