American Sanders AVAC18 User manual

AVAC18
Operator’s Manual

2
SYMBOLS USED IN THE MANUAL .................................................................................. 25
PURPOSE AND CONTENT OF THE MANUAL................................................................. 25
TARGET GROUP ............................................................................................................... 25
STORING THE USE AND MAINTENANCE MANUAL....................................................... 25
ON DELIVERY OF THE APPLIANCE ................................................................................ 25
INTRODUCTORY COMMENT ........................................................................................... 25
IDENTIFICATION DATA ..................................................................................................... 25
TECHNICAL DESCRIPTION.............................................................................................. 26
INTENDED USE................................................................................................................. 26
SAFETY.............................................................................................................................. 26
SERIAL NUMBER PLATE .................................................................................................. 26
TECHNICAL DATA ............................................................................................................. 26
GENERAL SAFETY REGULATIONS ................................................................................. 27

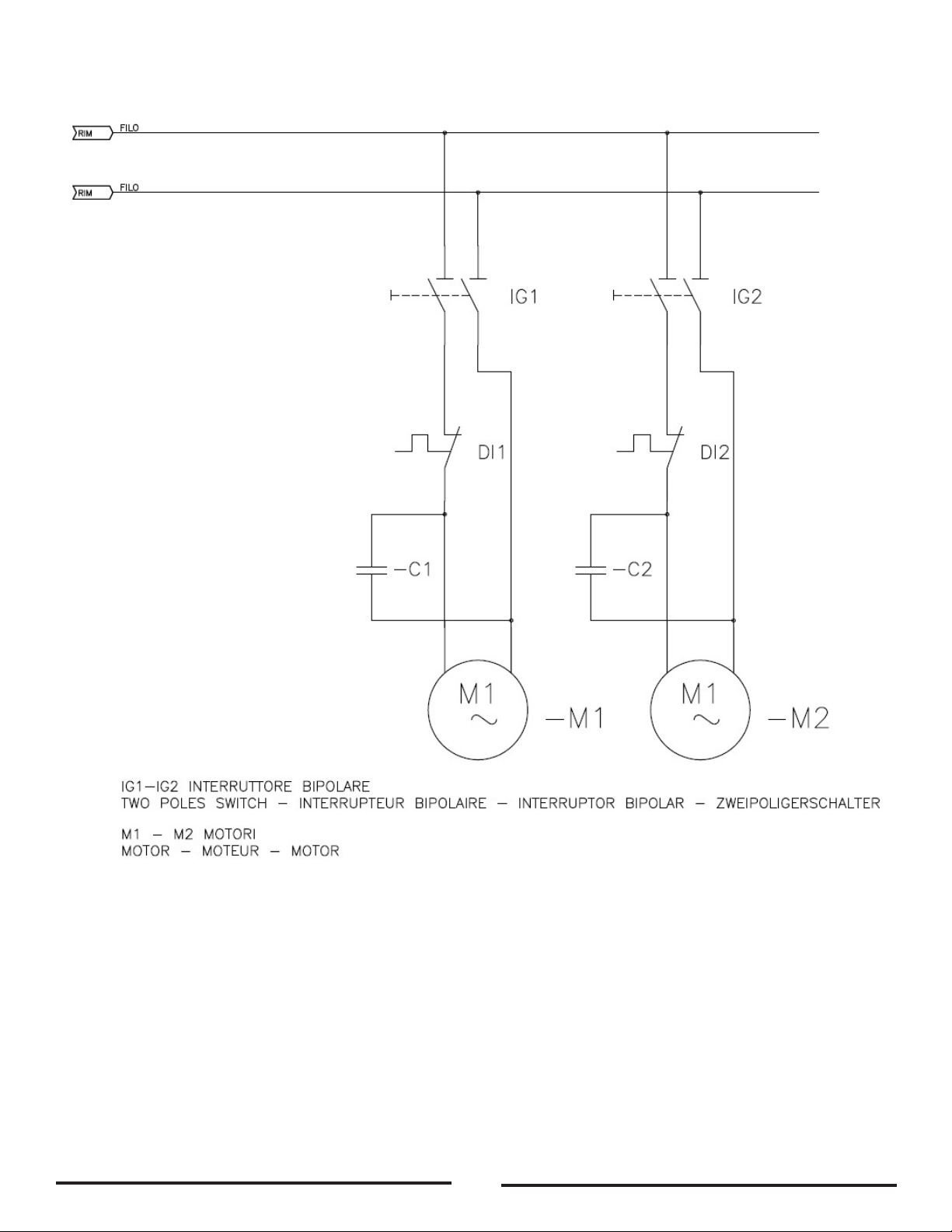

WIRING DIAGRAM.............................................................................................................35
PREPARATION OF THE APPLIANCE ............................................................................... 36
HANDLING THE PACKED APPLIANCE....................................................................... 36
HOW TO UNPACK THE APPLIANCE .......................................................................... 36
HOW TO TRANSPORT THE APPLIANCE................................................................... 36
LOCATION OF THE MAIN COMPONENTS OF THE APPLIANCE.............................. 36
LOCATION OF THE COMPONENTS OF THE COLLECTION TANK COVER UNIT ... 36
LOCATION OF THE COMPONENTS OF FILTER GROUP...........................................36
LOCATION OF THE COMPONENTS OF THE COLLECTION TANK UNIT ................. 37
APPLIANCE SAFETY................................................................................................... 37
PREPARING TO WORK .................................................................................................... 37
WORK ................................................................................................................................ 38
AT THE END OF THE WORK ............................................................................................ 38
MAINTENANCE ................................................................................................................. 39
RECOMMENDED MAINTENANCE OPERATIONS ..................................................... 39
CONTROLLING AND CLEANING THE COLLECTION BAG ....................................... 39
CONTROLLING AND CLEANING THE COLLECTION TANK...................................... 39
CONTROLLING AND CLEANING THE VACUUM ACCESSORIES UNIT ................... 40
CONTROLLING AND CLEANING THE FABRIC FILTER............................................. 40
DISPOSAL.......................................................................................................................... 40
CONTROL AND OPERATION............................................................................................ 41
MOTOR FILTER CLEANING.............................................................................................. 42
LIMITED WARRANTY......................................................................................................... 43
CONTENTS

3
Warning symbol:
Carefully read the sections marked with this symbol and observe the indications, for the safety of the operator and the appliance.
Information symbol:
Indicates additional information for the operator, to improve the use of the device.
Covered place symbol:
the operations preceded by this symbol must always be carried out in a dry, covered area.
Protective gloves symbol:
Always wear protective gloves, to avoid the risk of serious injury to your hands caused by chemical agents.
Open book symbol with an "i":
Indicates the need to consult the instruction manual.
The descriptions contained in this document are not binding. The company therefore reserves the right to make any modications at any time
to elements, details, or accessory supply, as considered necessary for reasons of improvement or manufacturing/commercial requirements. The
reproduction, even partial, of the text and drawings contained in this document is prohibited by law.
The company reserves the right to make any technical and/or supply modications. The images are shown as a reference only, and are not
binding as to the actual design and/or equipment.
Open book symbol:
Tells the operator to read the manual before using the appliance.
Protective gloves symbol:
Always wear protective gloves, to avoid the risk of serious injury to your hands caused by sharp objects.
Disposal symbol:
carefully read the sections marked with this symbol for disposing of the appliance.
SYMBOLS USED IN THE MANUAL
PURPOSE AND CONTENT OF THE MANUAL
TARGET GROUP
STORING THE USE AND MAINTENANCE MANUAL
ON DELIVERY OF THE APPLIANCE
The aim of this manual is to provide customers with all the information needed to use the appliance in the safest, most appropriate and most autonomous
way. It includes information concerning technical aspects, safety, operation, appliance downtime, maintenance, spare parts and scrapping. Operators
and qualied technicians must read the instructions in this manual carefully before carrying out any operation on the appliance. If in doubt about the
correct interpretation of instructions, contact your nearest Customer Service Center to obtain the necessary clarications.
This manual is aimed at operators and qualied technicians responsible for appliance maintenance. Operators must not perform operations that should
be carried out by qualied technicians. American Sanders cannot be held liable for damages resulting from failure to comply with this prohibition.
The Use and Maintenance Manual must be stored in its special pouch close to the appliance, protected from liquids and anything else that could
compromise its legibility.
When the machine is delivered to the customer, an immediate check must be performed to ensure all the material mentioned in the shipping documents
has been received, in addition to verifying that the equipment has not been damaged during transportation. If this is the case, the carrier must ascertain
the extent of the damage at once, informing our customer service ofce. It is only by prompt action of this type that the missing material can be
obtained, and compensation for damage successfully claimed.
INTRODUCTORY COMMENT
Any type of equipment can only work properly and effectively if used correctly and kept in full working order by performing the maintenance operations
described in the attached documentation. You should therefore read this instruction manual carefully, consulting it again if issues arise while using
the machine. If necessary, remember that our assistance service (organised in collaboration with our dealers) is always available for advice or direct
intervention.
IDENTIFICATION DATA
For technical assistance or to request replacement parts, always give the model, the version and serial number written on the serial number plate.

4
TECHNICAL DESCRIPTION
INTENDED USE
SAFETY
SERIAL NUMBER PLATE
The AVAC 18 is a vacuum cleaner which uses the vacuum created inside the collection tank by the fan (enabled by the electric motor) to pick up dust and dry
solid elements at ambient temperature, using the accessories in contact with the oor and the furnishings. The vacuum hose conveys inside the collection tank
the air with dust and solid residues that are retained and collected using the collection bag and the lter. The appliance must only be used for this purpose.
This appliance is designed and built to be used by a qualied operator to clean (by vacuuming solid, dry elements) smooth, compact ooring
in the commercial, residential and industrial sectors, in proven safety conditions.
The appliance is only suitable for use in indoor - or at least covered - areas. The appliance is not suitable for use in the rain, or under jets of water. IT
IS FORBIDDEN to use the appliance for picking up dangerous dusts or inammable liquids in places with an explosive atmosphere. In addition, it is
not suitable as a means of transport for people or objects.
Operator cooperation is paramount for accident prevention. No accident prevention program can be effective without the full cooperation of the operator who
is directly responsible for machine operation. The majority of occupational accidents that happen both in the workplace or whilst moving are caused by failure
to respect the most basic safety rules. An attentive, careful operator is most effective guarantee against accidents and is fundamental in order to implement
any prevention program.
The serial number plate is located at the rear of the vacuum cleaner, and indicates the general characteristics of
the appliance, in particular the appliance's serial number. The serial number is a very important piece of information
and should always be provided together with any request for assistance or to purchase spare parts.
TECHNICAL DATA U/M AVAC 18
Technical characteristics of the motor (voltage - frequency) V
Hz
120
60
Total power (nominal) W 1400
Vacuum motor Nr. / (V / W / Hz) 2/(120/700/60)
Type of vacuum cleaner Dry
Maximum vacuum KPa
inH2o
19
74
Maximum air ow rate CFM
CMM
175
4,95
Collection tank useful capacity Gal
L
18
68
Filtering capacity in2
cm2
3666
23651
Collection tank and vacuum chamber material Painted Steel
Length of power supply cable Ft
m
50
15
Dry weight Lbs
Kg
92,6
42,5
Dimensions (length x width x height) in
cm
21,3 x26,8x40,1
54 x 68 x 102
Hose diameter in
mm
2
50
Tube length in
mm
7,5
24,6
Protection rating IP X4
Sound level (ISO 11201) dB (A) 80

5
WARNING: - To reduce the risk of re,
electric shock, or injury:
A. Do not leave appliance when plugged in.
Unplug from outlet when not in use and before
servicing.
B. Do not use outdoors or on wet surfaces.
C. Do not allow to be used as a toy. Close
attention is necessary when used by or near
children.
D. Use only as described in this manual.
Use only manufacturer’s recommended
attachments.
E. Do not use with damaged cord or plug. If
appliance is not working as it should, has been
dropped, damaged, left outdoors, or dropped
into water, return it to a service center.
F. Do not pull or carry by cord, use cord as
a handle, close a door on cord, or pull cord
around sharp edges or corners. Do not run
appliance over cord. Keep cord away from
heated surfaces.
G. Do not unplug by pulling on cord. To unplug,
grasp the plug, not the cord.
H. Do not handle plug or appliance with wet
hands.
I. Do not put any object into openings. Do not
use with any opening blocked; keep free of
dust, lint, hair, and anything that may reduce air
ow.
J. Keep hair, loose clothing, ngers, and all
parts of body away from openings and moving
parts.
K. Turn off all controls before unplugging.
L. Use extra care when cleaning on stairs.
M. Do not use to pick up ammable or
combustible liquids, such as gasoline, or use in
areas where they may be present.
N. Connect to a properly grounded outlet only.
See Grounding Instructions.
When using an electrical appliance, basic precautions should always be followed,
including the following
IMPORTANT SAFETY
INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE
USING (THIS APPLIANCE)
O. Do not pick up anything that is burning or
smoking, such as cigarettes, matches, or hot
ashes.
P. Do not use without dust bag and/or lters in
place.
Q. Make sure your extension cord is in good
condition.
R. Use only the extension cord provided within
the packaging of the appliance. Do not use
other extension cord which could cause a drop
in line voltage resulting in loss of power and
overheating.
S. Maintain Appliance With Care - Inspect
extension cords periodically. If the extension
cord is damaged immediately contact an
authorized American Sander distributor.
T. To reduce the risk of disconnection of the
appliance cord from the extension cord during
operating, secure the extension cord to the
appliance plug as shown or described in the
Operating Instructions.
U. Maintain Appliance With Care - Inspect
extension cords periodically and replace if
damaged.

6
SAVE THIS INSTRUCTION
SAFETY WARNINGS FOR DRY VACUUM
Before using the appliance for the rst time, read and comply with these safety warnings. Keep
these safety warnings for consultation in the future or to hand them over to successive owners.
Before commissioning, read the appliance’s user manual. The warning plates on the appliance
provide important instructions for its safe use. Always comply with both the directions on the
instructions, as well as current safety standards. Keep the packing lm out of the reach of children.
Risk of asphyxiation!
CONNECTION TO THE ELECTRICITY GRID
DANGER:
•To reduce the risk of re, electric shocks or injury, please read and follow the safety instructions and
warning indications before using. This vacuum cleaner has been designed to be safe when it is used
for cleaning in the specied manner. If damage to electrical or mechanical components is found, the
vacuum cleaner and/or the accessory must be repaired at the relative authorized service center or
else at the manufacturer before use, in order to prevent further damage to the appliance or physical
injury to the user.
•Before connecting the appliance to the electricity socket, make sure the electrical information on
the plate corresponds to that of the electrical supply. The appliance must only be powered with
alternating current and voltage equal to that shown on the serial number plate.
•The power supply cable outlet must have an earth connection in compliance with the regulatory
standards.
•The cable for connecting to the electrical that is supplied with the appliance should be used for the
above-mentioned appliance and not for other appliances.
•Before using, check for any damage on the connection cable and on the power plug. If the cable is
damaged, immediately contact a technician for restoring normal functioning.
•Never touch the power plug with wet hands.
•Make sure that the cable to the electrical or the extension cable have not been damaged by having
been walked on, crushed, pulled or the like. Protect the cable from heat and from contact with oils or
sharp edges.
•Regularly check that the cable connecting to the electrical is not damaged, for example with signs of
ageing or cracks. If damage is found, the cable should be replaced before using the appliance again
•Protection against splashes of water and the mechanical strength need to be ensured also after any
replacement of the joints of the power cable or the extension cable.
•Do not clean the appliance with a hose or a jet of high pressure water (risk of short-circuit or other
electrical faults).
ATTENTION:
•The procedure causes short-term reduction in voltage.
•In unfavourable grid conditions the other appliances could be damaged.
•This damage could occur if the grid impedance is less than 0.15Ω.

7
•Do not use the machine in ways other than
those indicated, otherwise the company is
not responsible for any damage to things and
people or to the failure of the vacuum cleaner.
Use of accessories not recommended by the
device manufacturer may result in unsafe
conditions.
•Never use with a damaged cable or plug. When
removing from an electrical socket, pull the plug
and not the cable. Do not handle the plug or the
vacuum cleaner with wet hands. Deactivate all
the controls before connecting or disconnecting
from the electrical socket
•Do not pull or transport the appliance by the
cable, do not use the cable as a handle, do not
close a door on the cable, and do not pull the
cable around edges or sharp corners. Do not
pass the vacuum cleaner over the cable. Keep
the cable away from hot surfaces.
•Be careful when cleaning on stairs.
•The appliance must not be used or kept
outdoors, in damp conditions or directly exposed
to rain.
•The storage temperature must be between
-13°F and +131°F.
•Conditions of use: ambient temperature between
32°F and 104°F with a relative humidity between
30 and 95%. The vacuum cleaner has been
developed only for dry cleaning and it should not
be used or kept outdoors in moist conditions.
•Before using, make sure the appliance and the
work equipment and in particular the extension
cable are in a good condition. If there is any
damage, immediately pull out the power plug
from the electrical socket. The appliance should
not be used.
•When the appliance is used in dangerous
situations (for example lling stations) the
relative safety regulations must be followed. It
is forbidden to use the appliance in areas with a
high risk of explosion.
•Certain substances can form explosive vapours
and mixtures together with intake air.
USE - EMPLOYMENT
•Never vacuum the following substances:
•Explosive or inammable gases, liquids and
powders (reactive powders).
•Reactive metal powders (for example
aluminium, magnesium, zinc) together with
strongly alkaline detergents and acids.
•Acids and alkalines in their purest state.
•Organic solutions (for example gasoline,
paint thinners, acetone or gasoline).
•Keep hair, loose clothing, ngers and all body
parts away from openings and from moving
parts. Do not put objects into the openings or
use the appliance with the opening blocked.
Keep the openings free of dust, fur, cloths, hair,
and everything else that can reduce the air ow.
•This appliance is not suitable for vacuuming
dangerous powders.
•Do not use to vacuum ammable or combustible
liquids like gasoline, or use in areas where they
may be present.
•Do not vacuum anything that is burning or
smouldering, like cigarettes, matches or glowing
embers.
•Use of the appliance is permitted for children
over 8 years of age and people with reduced
physical, sensorial and metal capacities or
people with no experience or understanding as
long as they are supervised or have received
instructions regarding the safe use of the
appliance and understand the related risks.
•Children must be supervised to make sure they
do not play with the appliance.
•Children should not do any cleaning or
maintenance that is the responsibility of the user
without supervision.
•This appliance should only be used in closed
areas.
•Never leave the appliance unattended when it is
connected to the electrical socket. Take the plug
out of the socket when not used and before any
maintenance.
•It is forbidden to vacuum persons or animals
with this appliance.
•In low temperatures, the appliances should not
be used outdoors.

8
CAUTION:
•When the appliance is operating do not bring it
close to delicate organs like ears, mouth, eyes,
etc.
•The device must only be kept in closed areas.
•If the vacuum cleaner is not working properly or
it has fallen, been damaged, left outside or has
fallen in water, take it to a service center or back
to the retailer.
•Always use the appliance in compliance with
its intended use, taking into consideration local
conditions and looking out for the presence of
others, especially children, when working.
•Never leave the appliance unattended until it
has been switched off and the plug has been
taken out of the electrical socket.
•Always wear suitable protective gloves when
working with the appliance.
•The appliance should only be used by people
trained in its use and who have shown that they
know how to use the appliance and have been
expressly authorized to do so.
•Do not place any liquid containers on the
appliance.
•In the event of a re, use a powder extinguisher.
Do not use water.
•If foam forms or liquid leaks, immediately switch
off the appliance.
MAINTENANCE DANGER:
•Before cleaning and carrying out maintenance
on the appliance and before replacing any
components, switch off the appliance and pull
out the power plug from the electrical socket.
•Repairs should only be carried out by authorized
service centers or by personnel who are experts
in this eld and who are familiar with all the
current safety norms.
•Observe the safety check as per local provisions
for commercial appliances.
ACCESSORIES AND SPARE PARTS
CAUTION:
Only use accessories and spare parts that
have been authorized by the manufacturer.
Original accessories and spare parts ensure the
appliance can be used safely and without any
fault.

9
CABLE EXTENSION
DANGER:
The appliance has been designed only for vacuuming dry solid material and it should not be used for
other purposes.
WARNING:
The appliance is not suitable for vacuuming powders that are damaging to health.
DRY VACUUM CLEANER
GROUNDING INSTRUTIONS
This appliance must be grounded.If it should mafunction or breakdown, grounding provides a path
of least resistance for electric current to reduce the risk of eletric shock.This appliance is equipped
with a cord having an equipment-grounding conductor and grounding plug.The plug must be
inseted into an appropriate outlet that is properly inserted and grounded in accordance with all local
codes and ordinances.
WARNING:
Improper connection of the equipment-grounding conductor can result in a risk of electric shock.
Check with a qualied electrician or service person if you are in doubt as to whether the outlet is
properly grounded.Do not modify the plug provided with the appliance - if it will not t the outlet,
have a proper outlet installed by a qualied electrician. This appliance is for use on nominal 120-volt
circuit and has a grounding attachment plug that looks like the plug illustrated in Figure 1.Make sure
that the applicance is connected to an outlet having the same conguration as the plug.No adaptor
should be used with this appliance.
CAUTION:
Only use the materials expressly recommended by the manufacturer as
cable extensions (contact an authorized retailer) or else high quality models.
When using an extension, respect its minimum cross-section.
CABLE LENGTH
CABLE SECTION
<16A <25A
Up to 20m 1.5mm22.5mm2
From 20m to 50m 2.5mm24.0mm2

10
WIRING DIAGRAM

11
PREPARATION OF THE APPLIANCE
Since the packaging elements (plastic bags, staples, etc.) are a potential
source of danger, they should not be left within the reach of children,
disabled persons, etc.
The gross weight of the appliance, including packaging, is 65 Kg.
The dimensions of the package are as follows:
HANDLING THE PACKED APPLIANCE
The procedure for removing the device from its packaging is the following:
1. Place the lower part of the outer packaging in contact with the oor.
ATTENTION: Use the pictograms printed on the box as reference.
2. Remove the outer package.
ATTENTION: these operations must be carried out using
HOW TO UNPACK THE APPLIANCE
protective gloves to avoid any possible contact with the edges or
tips of metal objects.
3. Using a chute, slide the machine from the pallet.
ATTENTION: Move the packaged product in accordance with
legal legislation requirements regarding accident prevention, the
size and the mass of the packaging itself.
HOW TO TRANSPORT THE APPLIANCE
To transport the machine, proceed as follows:
1. Take all necessary steps to ensure that the device is in a safe
condition (see MACHINE SAFETY’”).
ATTENTION: Users are advised to always wear protective gloves,
to avoid the risk of serious injury to hands.
2. Make sure that the collection tank is empty, otherwise empty it (read
the paragraph “CHECKING AND CLEANING THE COLLECTION
BAG”).
ATTENTION: for transportation without a pallet, secure the
device according to the directives in force in the country of use
so that it does not slide or tip over.
The basic components of the appliance are as follows:
1. Collection tank unit.
2. Collection tank lid unit.
3. Filter - collection bag unit.
4. Engine Cooling air lter
The components of the collection tank cover are as follows:
1. Collection tank lid.
2. Vacuum nozzle.
LOCATION OF THE MAIN COMPONENTS OF THE APPLIANCE
LOCATION OF THE COMPONENTS OF THE COLLECTION TANK COVER UNIT
LOCALIZING FILTER GROUP COMPONENTS
3 1
1
2
2
1
1
4
3.A 3.B 3.C 3.D 3.E
U/M
Ain 43,7
Bin 23,07
Cin 25,43

12
The components of the collection tank are as follows:
1. Collection tank.
2. Front pivoting wheels.
3. Rear wheels.
4. Vacuum motor control switch.
5. Exhaust air noise reduction lter.
6. Control handlebar.
7. Collection tank lid coupling - uncoupling hinges.
LOCATION OF THE COMPONENTS OF THE COLLECTION TANK UNIT

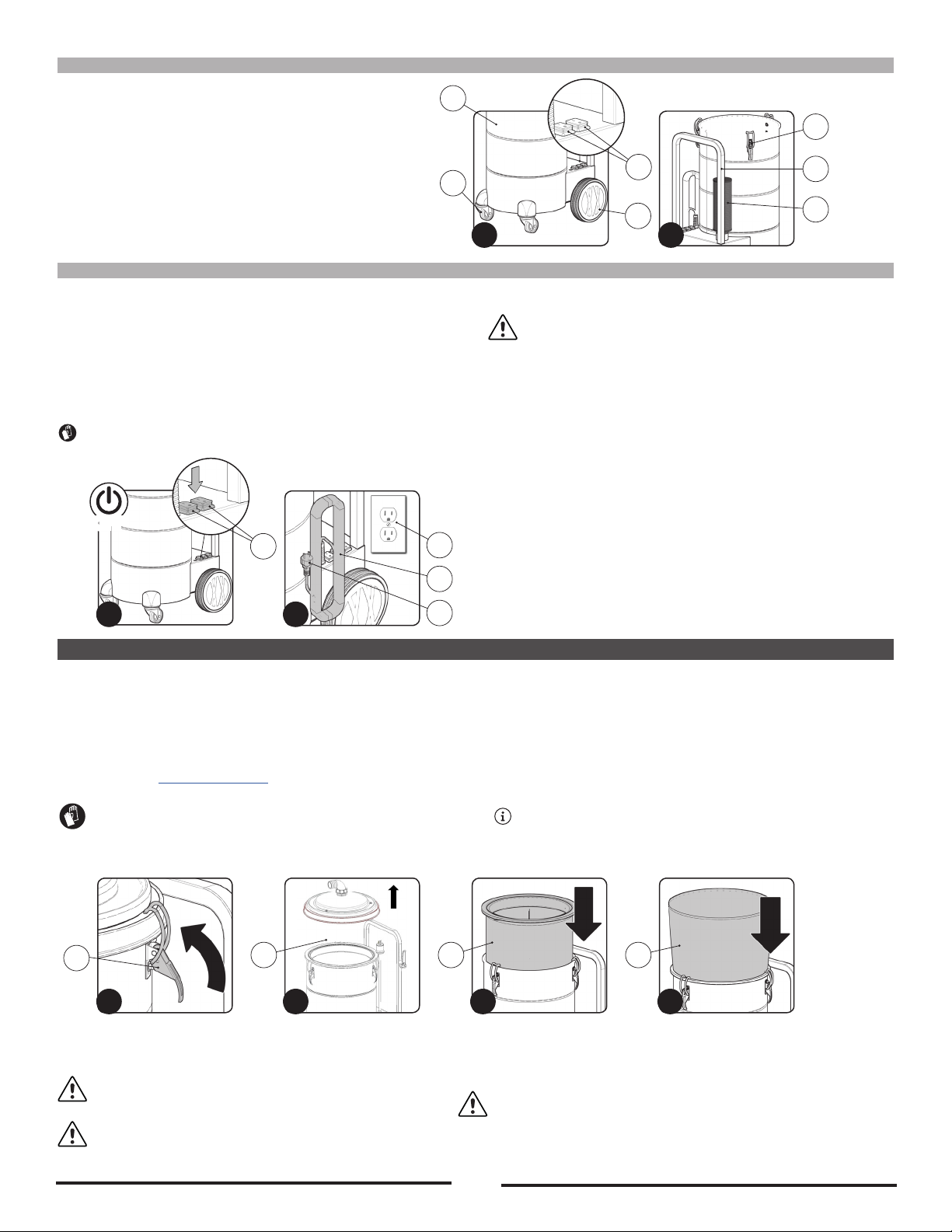

The stages for making the appliance safe, thereby making it possible
to carry out operations safely, are as follows:
1. Make sure that the main switch (1) is in the rest position, if not,
disable it by pushing the switch to “0” (Fig.1).
2. Make sure that the plug (2) on the power cable (3) has been taken
out of the electrical supply socket (4), and if not, disconnect it
(Fig.2).
3. Wind the cable around the control handlebar.
ATTENTION: Users are advised to always wear protective gloves, to avoid the risk of serious
APPLIANCE SAFETY
injury to hands.
ATTENTION: To prevent any damage to the electrical socket, pull
out the plug (2) from the electrical socket (4) by pulling the plug (2)
directly instead of the power cable (3).
PREPARING TO WORK
Before beginning to work, it is necessary to:
1. Before using, the appliance must be in order and safe to use
with the work equipment, especially the power cable and the
extension cable. If everything is not in order, the appliance must
not be used.
2. Take all necessary steps to ensure that the device is in a safe
condition (see MACHINE SAFETY’”).
ATTENTION: Users are advised to always wear protective
gloves, to avoid the risk of serious injury to hands.

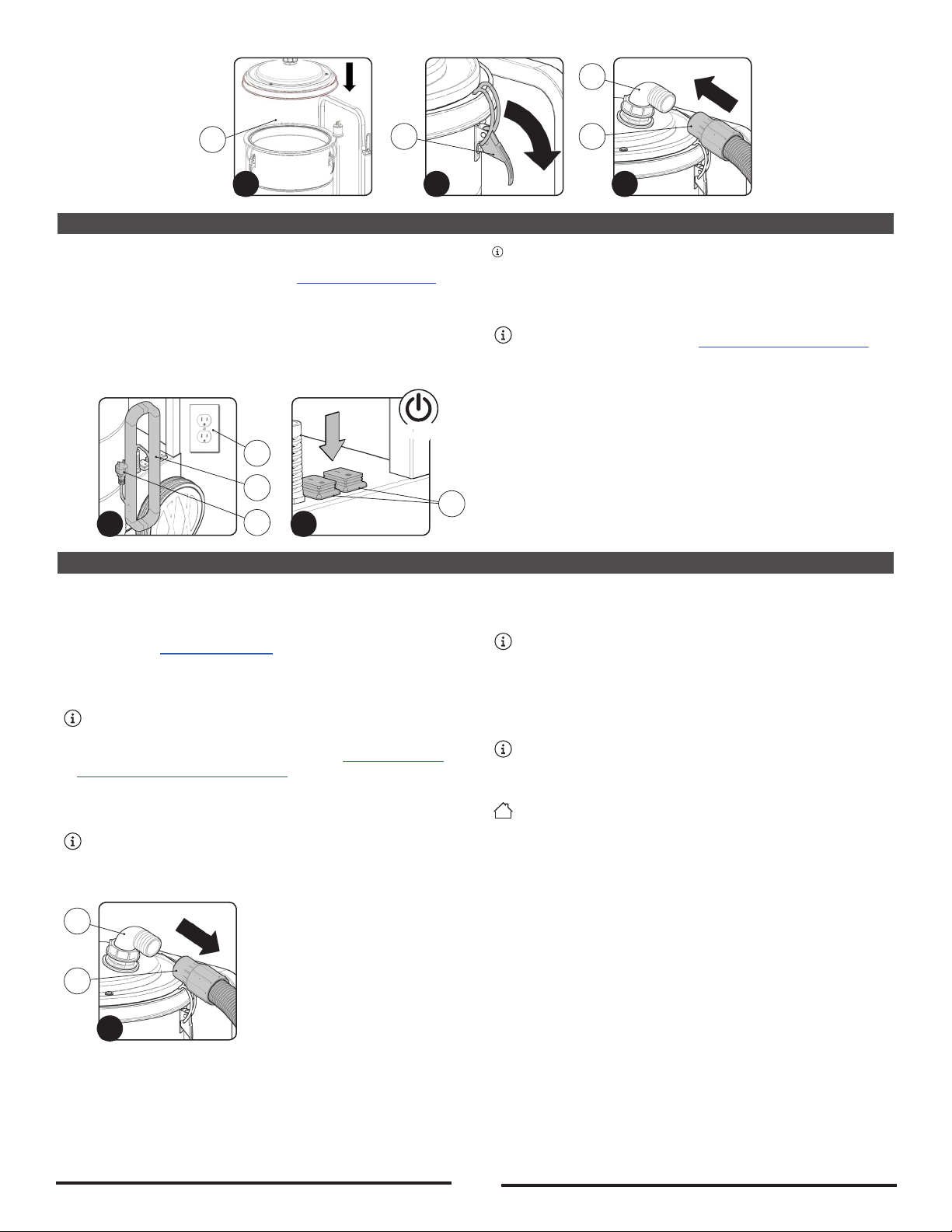

3. Free the cover from the collection tank by releasing its hooks (1) on the
side of the collection tank ( Fig. 1).
4. Remove the cover (2) from the collection tank (Fig.2).
5. Put the cover delicately on the oor.
6. Check that the fabric vacuum lter (3) is inside the tank, if not put it in
(Fig.3).
7. Insert the collection bag (4) inside the collection tank (Fig.4), being
careful to position it correctly inside the lter.
ATTENTION: To x the collection bag fold the hem around the inlet
mouth of the collection tank.
8. Put the cover (2) on the collection tank (Fig.5).
9. Fix the cover to the collection tank by using its hooks (1) on the
side of the collection tank ( Fig. 6).
ATTENTION: The collection bag-lter should only be used for
collecting solid waste.
ATTENTION: When using the collection bag, do not vacuum
waste that could cut it, burning embers that could set it on re,
or acid solutions that could dissolve it.
10. Insert the vacuum hose (6) into the vacuum nozzle (7) in the cover (Fig.7).
11. Select the most suitable accessory for the work to be carried out.
12. Insert the selected accessory into the vacuum hose.
ATTENTION: Never use the appliance without the lters supplied with
the machine.
2
5
6
7
3
1
1
1
2
OFF
4
2
3
2
4
1
12 3 4
1 2 3 4

13
WORK
To start working, do as follows:
1. Carry out all the checks in the section “PREPARING TO WORK”.
2. Insert the plug (1) of the power supply cable (2) in the electrical
supply socket (3) (Fig.1).
3. Switch on the machine by positioning one of the two switches (4)
to the work position “I” (Fig. 2).
ATTENTION: to double the vacuum capacity progressively
activate the other switch.
4. Proceed with the vacuuming.
ATTENTION: “If, when working, the intensity of the vacuum
should drop, read the chapter CONTROL AND OPERATION”.
AT THE END OF THE WORK
At the end of the work, and before carrying out any type of
maintenance, perform the following operations:
1. Do what is required to make sure the machine is in a safe
condition (see MACHINE SAFETY’”).
2. Take the appliance to the designated place for emptying the
collection tank.
ATTENTION: the place designated for this operation must
comply with current environmental protection regulations.
3. Empty the collection tank (see the section “CHECKING AND
CLEANING THE COLLECTION BAG”).
4. Remove the accessory from the extension, clean it with a damp
cloth.
ATTENTION: When it is completely dry insert it into the
accessories support on the rear of the collection tank (optional
accessory).
5. Remove the female part of the extension from the male part, clean it
under running water.
ATTENTION: When it is completely dry insert it into the
accessories support on the rear of the collection tank (optional
accessory).
6. Remove the vacuum hose (1) (Fig.1) from the vacuum nozzle (2) in
the cover of the collection tank, clean it under running water.
ATTENTION: When it is completely dry insert it into the
accessories support on the rear of the collection tank (optional
accessory).
ATTENTION: park the appliance in an enclosed place, on a at
surface; near the appliance there must be no objects that could
either damage it, or be damaged through contact with it.
ON
3
2
121
4
1
2
1
21 6
7
5 6 7

14
RECOMMENDED MAINTENANCE OPERATIONS
CONTROLLING AND CLEANING THE COLLECTION BAG
MAINTENANCE
To empty the collection bag, proceed as follows:
1. Take all necessary steps to ensure that the device is in a safe
condition (see MACHINE SAFETY’”).
ATTENTION: Users are advised to always wear protective
gloves, to avoid the risk of serious injury to hands.
2. Free the cover from the collection tank by releasing its hooks (1)
on the side of the collection tank ( Fig. 1).
3. Remove the cover (2) from the collection tank (Fig.2).
4. Put the cover delicately on the oor.
5. Fix the fabric lter to the collection tank by using its hooks (1) on the side of the collection
tank ( Fig. 3).
6. Remove the collection bag (3) from inside the appliance (Fig.4).
7. Take it to a suitable place and empty it.
ATTENTION: the place designated for this operation must comply
with current environmental protection regulations.
8. Vacuum the bag with a vacuum cleaner.
9. Clean the collection bag with an air jet from a distance of more than
20cm.
10. To ret the collection bag carry out the operations in the reverse order.
CONTROLLING AND CLEANING THE COLLECTION TANK
Properly cleaning the collection tank improves the appliance's
efciency. To clean the collection tank, proceed as follows:
1. Take all necessary steps to ensure that the device is in a safe
condition (see MACHINE SAFETY’”).
ATTENTION: Users are advised to always wear protective
gloves, to avoid the risk of serious injury to hands.
2. Free the cover from the collection tank by releasing its hooks (1)
on the side of the collection tank ( Fig. 1).
3. Remove the cover (2) from the collection tank (Fig.2).
4. Put the cover delicately on the oor.
5. Remove the collection bag (3) from inside the appliance (Fig.3).
6. Remove the fabric lter (4) from inside the appliance (Fig.4).
7. Take it to a suitable place for cleaning.
ATTENTION: the place designated for this operation must comply
with current environmental protection regulations.
8. Clean the inside of the collection tank with a cloth.
9. Clean the inside of the collection tank with a damp cloth.
10. To ret the fabric lter carry out the operations in the reverse order.
1
1
1
3
2
2
4
4
1
1
3
3
2
2
4
4
TYPE OF MAINTENANCE
AT THE END OF THE WORK DAILY WEEKLY BEFORE A LONG PERIOD OF INACTIVITY TRANSPORT
Inspect and clean the collection bag (3.B) X X X X
Inspect and clean the collection tank (1) X X X X
Inspect and clean the vacuum accessories tools X X
Inspect and clean the engine cooling air lter (3.D) X
Inspect and clean the exhaust lter (3.C) X
Inspect and clean the fabric lter CLASS M (3.A) X X
Inspect and clean the Phono absorbent (3.E) X

15
CONTROLLING AND CLEANING THE VACUUM ACCESSORIES UNIT
Properly cleaning the vacuum accessories improves the appliance's
efciency. Proceed as follows to clean the vacuum accessories:
1. Do what is required to make sure the machine is in a safe
condition (see MACHINE SAFETY’”).
2. Take the appliance to the designated place for emptying the
collection tank.
ATTENTION: the place designated for this operation must
comply with current environmental protection regulations.
3. Remove the accessory from the extension, clean it with a damp
cloth.
ATTENTION: When it is completely dry insert it into the accessories
support on the rear of the collection tank (optional accessory).
4. Remove the female part of the extension from the male part, clean it
under running water.
ATTENTION: When it is completely dry insert it into the accessories
support on the rear of the collection tank (optional accessory).
5. Remove the vacuum hose (1) (Fig.1) from the vacuum nozzle (2) in
the cover of the collection tank, clean it under running water.
ATTENTION: When it is completely dry insert it into the accessories
support on the rear of the collection tank (optional accessory).
CONTROLLING AND CLEANING THE FABRIC FILTER
Properly cleaning the fabric lter improves the appliance's efciency.
To clean the fabric lter, proceed as follows:
1. Take all necessary steps to ensure that the device is in a safe
condition (see MACHINE SAFETY’”).
ATTENTION: Users are advised to always wear protective
gloves, to avoid the risk of serious injury to hands.
2. Free the cover from the collection tank by releasing its hooks (1)
on the side of the collection tank ( Fig. 1).
3. Remove the cover (2) from the collection tank (Fig.2).
4. Put the cover delicately on the oor.
5. Remove the collection bag (3) from inside the appliance (Fig.3).
6. Remove the fabric lter (4) from inside the appliance (Fig.4).
7. Take it to a suitable place for cleaning.
ATTENTION: the place designated for this operation must comply
with current environmental protection regulations.
8. Vacuum the fabric lter with another vacuum cleaner.
9. Clean the fabric lter with an air jet from a distance of more than 20cm.
10. To ret the fabric lter carry out the operations in the reverse order.
DISPOSAL
To dispose of the appliance, take it to a demolition center or an
authorized collection center.
Before scrapping the appliance, it is necessary to remove and
separate out the following materials, then send them to the appropriate
collection centers in accordance with applicable environmental
hygiene regulations:
• Electric and electronic parts*
• Plastic parts
• Metallic parts
(*) In particular, contact your distributor when scrapping electric and
electronic parts.
1
2
1
1 3
2
4
1 32 4

16
CONTROL AND OPERATION
This chapter lists the most common problems linked with the use of the appliance. If you are unable to resolve the problems with the information given here,
please contact your nearest assistance center.
PROBLEM POSSIBLE CAUSE SOLUTION
THE APPLIANCE DOES NOT SWITCH ON.
The main switch is in the rest position. Place the main switch on “I”.
The power cable extension is not connected to
the electrical socket. Connect the power cable plug to the electrical socket.
The appliance's electronic specications do not
match the electrical supply specications.
Check that the technical information on the serial number plate
correspond to the electrical supply information.
The power cable is damaged. If the power cable is damaged replace it, immediately contact an
authorized American Sanders distributor.
DUST COMING OUT DURING VACUUMING.
The vacuum hose is not properly connected to
the vacuum nozzle. Connect the vacuum hose to the nozzle on the collection tank.
The vacuum hose is not properly connected to
the accessory in contact with the oor.
Connect the vacuum hose to the accessory that is being used to
do the vacuuming.
The collection tank cover has not been properly
positioned.
Place the cover on top of the collection tank and secure it using the
side hooks.
The collection bag has not been positioned
correctly.
Remove the collection tank cover and position the collection bag
correctly.
The collection bag is full or was torn.
Remove the cover of the collection tank and empty the collection
bag or else change it (see the paragraph “CHECKING AND
CLEANING THE COLLECTION BAG”).
The fabric lter is not correctly positioned. Remove the collection tank cover, remove the collection bag and
position the fabric lter correctly.
The fabric lter is clogged or has torn.
Remove the collection tank cover, remove the collection bag and
clean or replace the fabric lter (read the paragraph “CONTROLLING
AND CLEANING THE FABRIC FILTER”).
THE VACUUM CAPACITY IS INSUFFICIENT
The vacuum hose is blocked. Check that there is nothing obstructing the vacuum hose, if there
is, remove it.
The vacuum chamber of the accessory in
contact with the oor is blocked.
Check that there is nothing obstructing the vacuum chamber of the
accessory being used, if there is, remove it.
Dust coming out during vacuuming. Read the paragraph “DUST COMING OUT DURING VACUUMING”.
The cap of the vacuum nozzle has not been
closed properly. Insert the cap into the vacuum nozzle correctly.

17
IMPORTANT MOTOR FILTER CLEANING

TO QUALIFY FOR THIS WARRANTY
(1) Machine must be registered at the time of
purchase on a form provided by American
Sanders. Your American Sanders Distributor is
responsible for the registration of your machine.
Please cooperate with your Distributor in supplying
necessary information on the card.
(2) The machine must have been purchased from
American Sanders or an authorized American
Sanders Distributor.
(3) This warranty extends to the original purchaser
only and is not transferable to subsequent owners.
TIME PERIODS
(1) ONE (1) YEAR WARRANTY - For the AVAC18.
Warranted to be free from defects in material and
workmanship for a period of one (1) year from
the date of purchase by the original owners. (See
Exclusions)
EXCLUSIONS (Not Covered by Warranty)
(1) Parts that fail through normal wear by reason of
their characteristics (cords, hoses, & etc.).
(2) This warranty does not extend to parts affected by
misuse, neglect, abuse or improper maintenance.
All defective parts must be returned to the
distributor for credit.
THE OBLIGATION OF AMERICAN SANDERS
(1) The obligation of American Sanders under this
warranty is limited to repairing or replacing, at its
option, any part which is proven to be defective in
material or workmanship under normal use for the
applicable period stated above.
(2) Warranty repairs will be made by your American
Sanders Distributor without charge for parts and
labor. They will be compensated with a warranty
labor rate of $45.00 per hour, for the first year of
ownership.
(3) Parts repaired or replaced under this warranty are
warranted only during the balance of the original
warranty period. All defective parts replaced under
these warranties become the property of American
Sanders.
WARRANTY SERVICE
To obtain warranty service, take your machine and
proof of purchase to any authorized American Sanders
Distributor. American Sanders will not reimburse
expenses for service calls or travel. For the Distributor
in your area, call American Sanders Customer Service
Department at 800-367-3550 or 336-372-8080. If you
are dissatisfied with the service that you receive, call or
write American Sanders Customer Service Department
for further assistance.
INSTRUCTIONS AND CONDITIONS FOR WARRANTY
REIMBURSEMENT
l Order replacement part: Orders will be processed
and charged, as normal procedure.
l Call American Sanders for R/A number.
l You will need the Engine Serial Number, Machine
Serial Number, and the Machine Model Number.
l Parts must be returned, accompanied with the
R/A number to be eligible for warranty credit.
l All Warranty Parts will be shipped prepaid
UPS Ground, any other method will be at the
recipients expense.
l Freight on any Warranty Part after 30 days must
be paid for by the Purchaser.
l Warranty labor rate is $45.00 per hour.
l Credit will be issued upon completion of the
above steps, at the above rates.
DISCLAIMER OF CONSEQUENTIAL
AMERICAN SANDERS DISCLAIMS ANY
RESPONSIBILITY FOR LOSS OF USER TIME
OF THE AMERICAN SANDER MACHINE OR
ANY OTHER INCIDENTAL OR CONSEQUENTIAL
DAMAGE EXCEPT AS STATED IN THE WARRANTY
APPLICABLE TO EACH MACHINE. EXCEPT AS
STATED IN SUCH WARRANTIES, THE COMPANY
DOES NOT OTHERWISE WARRANT ANY MACHINE
AND NO WARRANTY, EXPRESS, IMPLIED OR
STATUTORY IS MADE BY THE COMPANY.
© 2019 American Sanders
Limited Warranty
AVAC18
LTXXXXXXX_A; 031919

Notes:
_________________________________
___________________________________
_____________________________________
_____________________________________
_____________________________________
_____________________________________
_____________________________________
_____________________________________
_____________________________________
_____________________________________
_____________________________________
_____________________________________
_____________________________________
_____________________________________
_____________________________________
_____________________________________
_____________________________________
_____________________________________
_____________________________________
_____________________________________
18 Gallon 120V Vaccum
Parts Manual
AVAC18

American Sanders
an AMANO Company
1 Eclipse Rd lPO Box 909
Sparta, North Carolina 28675 lUSA
www.pioneereclipse.com
www.americansanders.com
[phone]
1-800-367-3550
Fax [phone]
© 2019 American Sanders
LTXXXXXXX
0000000A_A
