American Standard SELECTRONIC 606B.111 User manual

1
© 2018 AS America Inc.
Installation Instructions
Certied to comply with ASME A112.19.2
© 2018 AS America, Inc.
NOTE TO INSTALLER: Please give this manual to the customer after installation.
To learn more about American Standard Selectronic®Products visit our website at: www.americanstandard-us.com
or e-mail us at: CR[email protected]
For Parts, Service, Warranty or other Assistance,
please call (844) CRT-TEAM / [phone] (In Canada: 1-800-387-0369)
(In Toronto Area only: 1-905-306-1093)
SELECTRONIC®
EXPOSED TOILET FLUSH VALVE
AC POWERED PROXIMITY
1.1, 1.28, 1.6,
1.6/1.1 & 1.28/1.1 GPF
MODEL NUMBERS
606B.111 606B.121 606B.161 606B.721 606B.761
Exposed Flush Valve
for 1-1/2"Top Spud Bowls
CAUTION: Use only American Standard supplied
transformers and cable sets. Using non-AS supplied
cables, or cutting, splicing or modifying any components
will void the warranty.
COVER PLATE
(Required for Front Installation Only)
M965644 EN REV. 2.1 (9/18)

2M965644 EN REV. 2.1 (9/18)
Thank you for selecting American-Standard...the benchmark of ne quality for over 100 years.To ensure that your
installation proceeds smoothly--please read these instructions carefully before you begin.
Remove the Flush Valve items from the carton. The illustration below shows all items after they have been
removed from the carton. Some items may be packaged partially assembled to other items.
UNPACKING All American Standard Products Are Water Tested At Our Factory.
Some Residual Water May Remain In The Valve During Shipping.
1. Installation Instructions
2. Flush Valve Body Assembly
3. Vacuum Breaker Tube
4. Spud Coupling Nut and Washers
5. Spud Flange
6. Wall Escutcheon
7. Cover Tube
8. Sweat Adapter
9. Stop Valve
28
7
69
1
3
4
5
DO NOT REMOVE PROTECTIVE FILM FROM SENSOR
EYE UNTIL INSTALLATION IS COMPLETE.
POWER KIT - SOLD SEPARATELY
Hard-Wire AC
Power Kit
(PK00.HAC)
COVER PLATE
(Required For
Front Installation
Only)
Multi-AC
Power Kit
+SN331P DF ,
Installation Instructions
© 2015 AS America, Inc.
NOTE TO INSTALLER: Please give this manual to the customer after installation.
Tolearn more about American Standard Selectronic®Productsvisit our website at: www.americanstandard-us.com
or e-mail us at: [e-mail]
For Parts, Service,Warranty or other Assistance,
please call (844) CRT-TEAM/ [phone] (InCanada: 1-800-387-0369)
(InToronto Area only: 1-905-306-1093)
SELECTRONIC®
AC POWERED PROXIMITY
EXPOSED TOILET FLUSH VALVE
1.1, 1.28,1.6,
1.6/1.1 & 1.28/1.1 GPF
MODEL NUMBERS
6067.111 6067.121 6067.161 6067.721 6067.761
6068.111 6068.121 6068.161 6068.721 6068.761
Exposed Flushometer
for 1-1/2"Top Spud Bowls
CAUTION:Use only American Standard supplied
transformers and cable sets.Using non-AS supplied
cables, or cutting,splicing or modifying any components
will void the warranty.
COVER PLATE
(Required for FrontInstallation Only)
CARE INSTRUCTIONS:
DO: CLEAN THE PRODUCT WITH CLEAR WATER, DRY WITH A SOFT COTTON FLANNEL CLOTH.
DO NOT: DO NOT CLEAN THE PRODUCT WITH SOAPS, ACID, POLISH, ABRASIVES, HARSH CLEANERS,
OR A CLOTH WITH A COARSE SURFACE.

3
Roughing-in Dimensions (Front Installation Shown)
Right or Left Hand Installation
See (Section 5) for converting Flush
Valve to Left Hand Installation.
1. Installation Instructions
2. Flush Valve Body Assembly
3. Vacuum Breaker Tube
4. Spud Coupling Nut and Washers
5. Spud Flange
6. Wall Escutcheon
7. Cover Tube
8. Sweat Adapter
9. Stop Valve
GENERAL DESCRIPTION:
SELECTRONIC®PROXIMITY TOILET
FLUSH VALVE for 1-1/2"Top Spud Fixtures
M965644 EN REV. 2.1 (9/18)
CAUTION: Use only American Standard supplied
transformers and cable sets. Using non-AS supplied
cables, or cutting, splicing or modifying any components
will void the warranty.
SEE DETAIL “A”
*Note: The Critical Line (-C-L-) on Vacuum
Breaker must typically be 6"(152mm) above
fixture. Consult Codes for details.
406 mm
(16")
292 mm
(11-1/2")
*-C-L-
-C-L-
114 mm
(4-1/2")
86 mm
(3-3/8)
73 mm
(2-7/8")
DETECTION ZONE:
400 - 800 mm (15-3/4" – 31-1/2")
(FACTORY SETTING: 600 mm (23-5/8")
(1" NPT)
FINISHED WALL
51 mm (2") HOLE
FOR CONDUIT
MANUAL
OVERRIDE
BUTTON
305 mm MAX.
(12" MAX.)
TOP OF
FIXTURE
152 mm MIN.
(6") MIN. 170 mm MAX.
(6-11/16") MAX.
108 - 134 mm
(4-1/4" – 5-1/4")
15˚
FINISHED TILE WALL
FINISHED PLASTER WALL
DETAIL “A”
4"(102 mm) SQ. x 3-1/2"(89 mm) DEEP ELECTRICAL BOX
Hubbel-RACO #256 OR EQUAL (BY CONTRACTOR).
4"(102 mm) SQ. BOX DEVICE COVER (PLASTER RING).
3/4"(19 mm) HIGH Hubbel-RACO #779 OR EQUAL
(BY CONTRACTOR).
NOTE: INSTALL PLASTER RING SO THAT SCREW
HOLES ARE ON THE LEFT AND RIGHT SIDE OF BOX.

4M965644 EN REV. 2.1 (9/18)
RECOMMENDED TOOLS; Fig. 2.
1. Teon Tape
2. Flat Blade Screwdriver
3. Adjustable Wrench
4. Tape Measure
5. Hacksaw
6. Tubing Cutter
7. File
8. For Sweat Connection; Solder and Torch
9. 2.5 mm Hex Wrench
10. 1.5 mm Hex Wrench
PRIOR TO INSTALLATION
Note: Prior to installing the Selectronic™Flush
Valve the following items must be installed.
1. Toilet
2. Drain line
3. Water supply line
IMPORTANT:
• All plumbing and electrical wiring should be
installed in accordance with applicable codes
and regulations.
• The use of water hammer arrestors is strongly
recommended for commercial applications. All piping
behind the walls should be properly secured and
fastened.
• Water supply lines must be sized to provide an
adequate volume of water for each xture.
• Flush all water lines prior to operation. Dirt and debris
can cause ush valve to run continuously.
• With the exception of Stop Valve Inlet, DO NOT
use pipe sealant or plumbing grease on any
valve component or coupling!
• Protect the chrome or special nish on the Flushometer.
DO NOT USE toothed tools on nished surfaces to install
or service these valves. Also see “Care and Cleaning”
section of this manual.
• This product contains mechanical and/or electrical
components that are subject to normal wear. These
components should be checked on a regular basis and
replaced as needed to maintain the valve’s performance.
Fig. 2
123
4
5
6
7 9 10
8
10'

5M965644 EN REV. 2.1 (9/18)
1INSTALL SWEAT ADAPTER; Fig. 3
Note: Install Optional Sweat Adapter (Supplied) for
copper pipe supply line.
1. Measure the distance (A) from the nished wall to the
center of the inlet spud on the xture.
2. Cut the supply pipe 1-1/4" (A-B=C) shorter than the
measurement taken in Step 1. File any rough edges off
the end of the supply pipe.
3. Clean the end of the supply pipe. Push the threaded
Adapter until it is seated against the internal stop.
Sweat the Adapter to the pipe.
2INSTALL COVER TUBE, WALL
ESCUTCHEON and STOP VALVE; Fig. 4
1. Measure from nished wall to rst thread of Adapter
or threaded supply pipe (dimension “X”). Cut
COVER TUBE (1) to length (X). Apply Teon Tape to
the threaded end of the Adapter or supply pipe.
2. Push WALL ESCUTCHEON (2) onto the COVER TUBE (1).
Slide both onto the SUPPLY PIPE (3).
3. Push the COVER TUBE (1) in to expose the threads of
the supply pipe. With a wrench, thread the STOP VALVE (4)
onto the SUPPLY PIPE (3). Align and tighten.
4. Pull COVER TUBE (1) against STOP VALVE (4) and
push WALL ESCUTCHEON (2) against nished wall.
3
INSTALL VACUUM BREAKER
TUBE; Fig. 5
1. Place the SPUD FLANGE (1) over the spud on
the Fixture.
2. Place FRICTION WASHER (3) and SEAL WASHER
(4) inside SPUD COUPLING NUT (2) and thread
onto Spud. Do not tighten fully.
3. Insert the VACUUM BREAKER TUBE (5) into the
SPUD COUPLING NUT (2) and push it down.
Note: If cutting VACUUM BREAKER TUBE (5) to size,
note that Critical Line (C/L) on Vacuum Breaker
must typically be 6"(152mm) above xture. Consult
Code for details.
CAUTION Turn water supplies off before
beginning
CENTER LINE OF
FIXTURE SPUD
FINISHED WALL
FILE EDGES
SOLDER
ADAPTER
Fig.3
ADAPTER
32mm
(1-1/4")
A
(A-B)= B
C
CLEAN
1
1
4
2
3
Fig. 4
TEFLON TAPE
FINISHED WALL
X
X
2
1
23
4
5
1-1/2" TOP SPUD
Fig. 5
FLUSH VALVE INSTALLATION

6M965644 EN REV. 2.1 (9/18)
4FLUSH OUT SUPPLY LINES; Fig. 6
1. Remove STOP VALVE COVER (1) from STOP VALVE (2).
2. Open STOP VALVE (2) with a at blade screwdriver.
3. Tu r n on water supply to ush line of any debris or
sediment.
4. Close STOP VALVE (2) and replace STOP VALVE
COVER (1).
5LEFT OR RIGHT HAND
INSTALLATION; Fig. 7
The unit is shipped with the adjustable tailpiece on
the right side. If needed, the orientation can be
modied by following the steps below.
1. Loosen SET SCREW (1) with 2.5mm Hex Wrench (4)
in back of FLUSH VALVE COVER (2).
2. Rotate FLUSH VALVE COVER (2) to the right and lift off.
3. Rotate FLUSH VALVE BODY (3) 180˚
4. Replace COVER (2) and rotate until key engages.
Tighten SET SCREW (1).
6INSTALL FLUSH VALVE; Fig. 8, 8a
1. Insert ADJUSTABLE TAILPIECE (1) into the STOP
VALVE (2). Lubricate the O-RING (3) with water if
necessary. Lightly tighten COUPLING NUT (4). Fig. 8.
Important: Do not use lubricants (other than water) or
any type of thread sealing paste or tape.
2. Align the FLUSH VALVE BODY (5) directly above the
VACUUM BREAKER TUBE (7) and VACUUM BREAKER
COUPLING NUT (6). Fig. 8a.
Note: There is a +13mm, -6mm (+1/2, -1/4) tolerance for
the 121mm (4-3/4) dimension.
3. Pull the VACUUM BREAKER TUBE (7) up to meet the threaded FLUSH VALVE BODY (5), hand tighten the VACUUM
BREAKER COUPLING NUT (6). Align all components of the ush valve assembly. Fig. 8a.
4. Lightly tighten the COUPLING
NUT (4) connection rst,
then the VACUUM BREAKER
COUPLING NUT (6) and
nally the SPUD COUPLING
NUT (8). Once alligned
correctly, use a wrench to
tighten couplings to make
water tight connections.
Fig. 8a.
1
CLOCKWISE CLOSES
STOP VALVE
COUNTER-CLOCKWISE
OPENS STOP VALVE
REMOVE COVER
Fig. 6 2
2
4
Fig. 7
4
KEY
2
2
1
3
180˚
2
1
7
8
6
5
4
121mm,+13mm, -6mm
(4-3/4)(+1/2, -1/4)
Fig. 8a
Fig. 8
2
4
1
3

7M965644 EN REV. 2.1 (9/18)

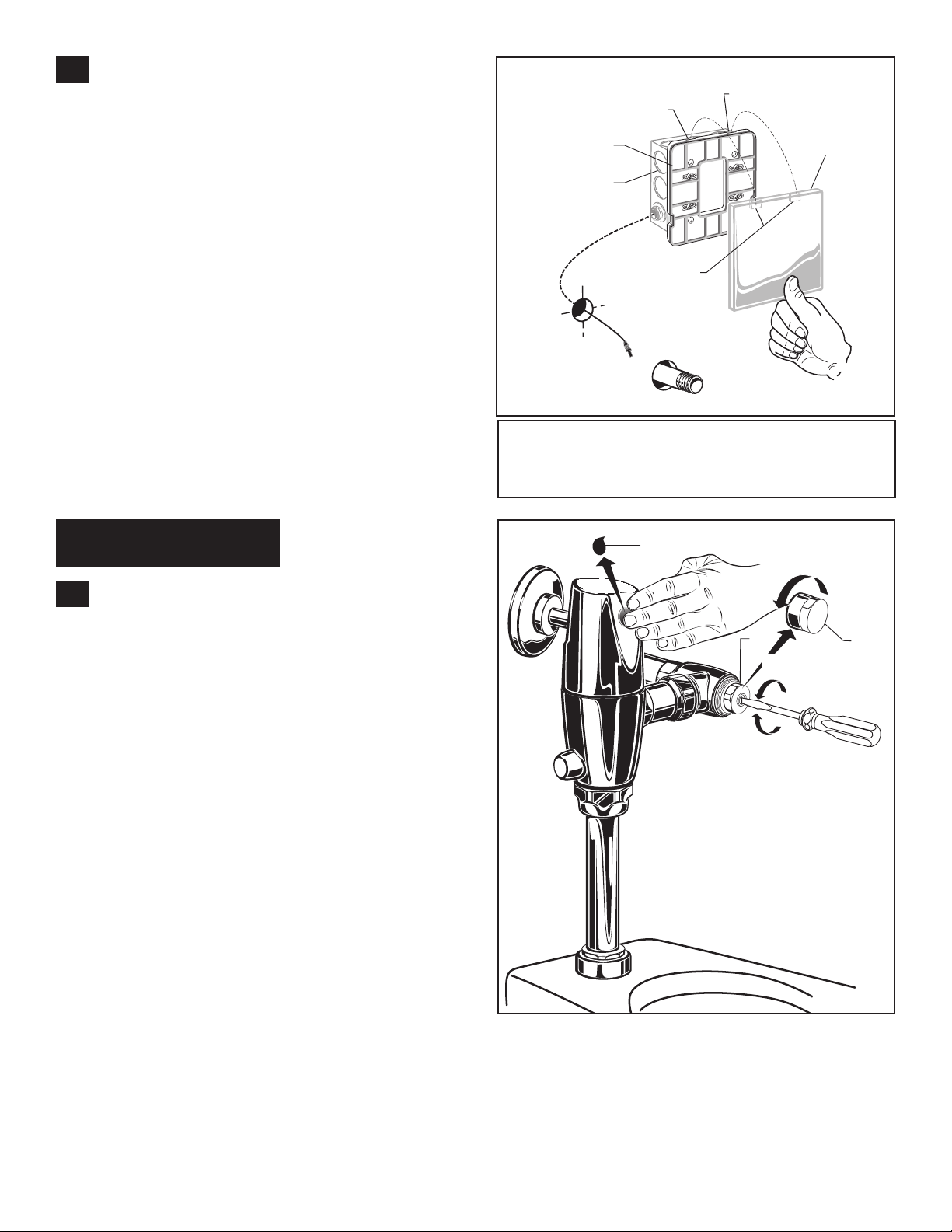

8a INSTALL CONDUIT,
ESCUTCHEON AND SENSOR
CABLE; Fig. 10
1. Drill a 2"diameter hole (shown in Fig. 10) in the nished
wall for the CONDUIT (2).
2. Pull 27" EXTENSION CABLE (3 ) through CONDUIT (2).
3. Slide ESCUTCHEON (1) onto CONDUIT (2).
4. For front installation, connect the 10' EXTENSION
CABLE (4) to the 27" EXTENSION CABLE (3). Secure
this connection with the CONNECTOR LOCKING
DEVICE (5) and place inside electrical box.
5. Slide ESCUTCHEON (1) tight against nished wall and
secure by tightening SET SCREW (6).
ELECTRICAL INSTALLATION
REMOTE INSTALLATION FOR POWER SUPPLY
Mount a 4"x 4"x 2-1/2"(102 x 102 x 64 mm),
ELECTRICAL BOX (1) (by others) within 10'
from the installed ush valve. See Fig. 10.
8
INSTALL ELECTRICAL BOX
(BY OTHERS); Fig. 10
FRONT INSTALLATION (with optional cover plate)
Note: The ELECTRICAL BOX (1) can be installed in
any location along the marked arc.
Cut a 105 x 105 mm (4-1/8"x 4-1/8") opening in nished
wall for ELECTRICAL BOX (1) (by others) and follow
installation template provided in box. See Fig. 10.
Fig. 9
BLACK & WHITE
POWER
CONNECTIONS
10' EXTENSION
1
2
7
NOTE: AC Transformer must be installed on the outside of
the Electrical Box.
10'
Finished Wall
9
SUPPLY
(3/4"NPT)
86mm
(3-3/8")
SMALL END
1
2
3
4
5
6
7
8
(51mm) 2" DIA.
HOLE FOR
CONDUIT
305mm
(12"MAX.)
Fig.10 (TOP SPUD FIXTURE ILLUSTRATED)
7
INSTALL POWER SUPPLY AND
MAKE ELECTRICAL CONNECTIONS;
Fig. 9 (remote and front installation)
1. Connect Black and White power connections to AC
TRANSFORMER (1). Mount AC TRANSFORMER (1)
onto ELECTRICAL BOX (2).
2. Connect the 10' EXTENSION CABLE (sold seperately)
to the CONVERTER (7).
CAUTION Ensure that the line power to bathroom
is OFF prior to making connections.
Electrical Box (by others) is only
required for Front Installation.

8M965644 EN REV. 2.1 (9/18)
CAUTION: Use only American Standard supplied transformers
and cable sets. Using non-AS supplied cables, or cutting,
splicing or modifying any components will void the warranty.
Fig.10b
1
2a
2
*MAXIMUM OF 15 UNITS PER TRANSFORMER.
10' MAXIMUM CABLE LENGTH BETWEEN UNITS.
3
Unit #1 Unit #2 Unit #3
Already installed
(See electrical installation
instructions, page 5)
BLACK & WHITE
POWER
CONNECTIONS
8b MULTI-AC VERSION (DAISY-CHAIN); Fig. 10b.
Important:All cover plates must be removed before beginning to make daisy-chain connections.
Note: For Unit #1 electrical instructions, refer to section #7 & #8a (page 5).
For subsequent Units, refer to section #7 (page 5), as well as instructions below...
1. Connect one end of the 27"EXTENSION CABLE (1) to one of the two available terminals on the one end of the
Y-ADAPTER (2).
2. Take the 10' EXTENSION (3) and connect one end to the single terminal of Y-ADAPTER (2), and
the other end to available terminal of the previous unit’s Y-ADAPTER (2a).
3. Repeat process for each subsequent unit.
4. Place Y-ADAPTERS (2) into respective electrical box.
5. Reconnect the rst unit’s Y-ADAPTER (2a) to power supply once all daisy-chain unit connections have been made.
CAUTION Ensure that the line power to bathroom
is OFF prior to making connections.

9M965644 EN REV. 2.1 (9/18)
AADJUST STOP VALVE; Fig. 12
IMPORTANT: To avoid overowing, the STOP
VALVE (3) must never be opened to the point
where the ow from the valve exceeds the
draining ability of the xture.
1. After installation is complete, peel off the PROTECTIVE
FILM (1) from the sensor. Standing to one side, block the
sensor with your hand for 10 seconds.
Remove your hand and listen for audible “click” from
within the valve.
2. Remove STOP VALVE COVER (2) from STOP VALVE (3).
Turn on water supply 1/4 turn to 1/2 turn (CCW) and test
for leaks.
Note: Unit may ush for approximately 5 to 10 sec. when
water is rst turned on. If ow persists, turn water off and
repeat step #1 above.
3. Actuate the FLUSH VALVE:
A) Cover sensor with hand for 10 seconds.
NOTE: Stand outside of sensor detection area.
B) Remove hand from sensor detection area; unit will
ush in approximately 3 seconds.
4. Adjust STOP VALVE (3) after each ush until the stated
ush volume is achieved, no splashing occurs and the
xture is properly cleansed.
5. When adjustment is complete, replace STOP VALVE
COVER (2) and tighten to ensure vandal-resistance.
1
Fig. 12
2
CLOCKWISE CLOSES
STOP VALVE
3
COUNTER-CLOCKWISE
OPENS STOP VALVE
REMOVE COVER
MAINTENANCE
9
COVER PLATE FRAME AND
COVER PLATE INSTALLATION
(front installation); Fig. 11
1. After power supply is remotely installed and wire
connections are completed, install the COVER PLATE
FRAME (1) onto the ELECTRICAL BOX (2).
2. Install the two tabs on the back side of the COVER PLATE
(3) into the two Slots located on the top edge of the
COVER PLATE FRAME (1). Push on bottom until it snaps
into place.
CAUTION: Use only American Standard supplied transformers
and cable sets. Using non-AS supplied cables, or cutting,
splicing or modifying any components will void the warranty.
Fig.10a
TABS
SLOT
SLOT
13
2
Fig. 9
BLACK & WHITE
POWER
CONNECTIONS
10' EXTENSION
1
2
7
Fig. 11

10 M965644 EN REV. 2.1 (9/18)
Fig. 14
1" - 2" (30 - 50 mm)
BLINKING LED
BLINKING LED
1
1
DETECTION ZONE
400 TO 800 mm (15-3/4"x 31-1/2")
(Factory Setting: 600 mm (23-5/8")
1
2
4
3
5
Fig. 13
1
BSET DETECTION RANGE
(if Required); Fig. 13 & 14
Note: The detection distance is preset and ideal for most
installations. Should an adjustment be required, follow the
steps below.
1. To remove the COVER PLATE (1), insert WIRE KEY (2)
(supplied) into the two holes located at the bottom of the
COVER PLATE (1). Push the WIRE KEY (2) up until it
releases the bottom clips. Pull the bottom edge away
and lift the COVER PLATE (1) off. Fig. 13.
2. Remove the connections from the CONNECTOR LOCKING
DEVICE (5). Disconnect the 27" EXTENSION CABLE (3)
from the 10' EXTENSION CABLE (4), and reconnect.
Note: You have 5 seconds to begin entering the program
code after power connection is made.
3. While the SENSOR CONTROL LED (1) is blinking
slowly, place your hand 1 to 2 in. (30-50 mm.) in front of
the sensor. Fig. 14.
4. When the LED (1) stops blinking and stays “ON”, move
your hand to the desired position from sensor and hold in
place until the LED (1) begins to blink again.
Note: Detection Zone is 400 - 800 mm (15-3/4"x 31-1/2").
(Factory Setting: 400 mm (15-3/4")
5. Once the SENSOR CONTROL LED (1) begins to blink
again, remove your hand from the detection zone. When
the ashing stops, the detection distance is set.
6. Actuate the FLUSH VALVE:
A) Cover sensor with hand for 10 seconds.
NOTE: Stand outside of sensor detection area.
B) Remove hand from detection area; unit will
ush in approximately 3 seconds.

1111
TROUBLESHOOTING FLOW CHARTS
NNOO
YYEESS
NNOO
YYEESS
NNOO
11
22
11
22
YYEESS
NNOO
YYEESS
NNOO
UNIT DOES NOT FUNCTION
NNOO
NNOO
11
22
11
22
YYEESS
NNOO
NNOO
YYEESS
UNIT IS CONTINUOUSLY FLUSHING
YYEESS
NNOO
NNOO
11
22
11
22
NNOO
YYEESS
UNIT WILL ONLY FLUSH MANUALLY
OPEN VALVE
LOW VOLTAGE. TEST OUTPUT OF
TRANSFORMER. MUST BE >5.4 VAC.
BAD TRANSFORMER. REPLACE. REPEAT.
BAD TRANSFORMER. REPLACE. REPEAT.
DAMAGED SENSOR. REPLACE
SENSOR.
DAMAGED SENSOR. REPLACE
SENSOR.
BAD TRANSFORMER. REPLACE. REPEAT.
DAMAGED SENSOR. REPLACE
SENSOR.
DAMAGED SOLENOID. REPLACE
SOLENOID
DAMAGED MANUAL OVERRIDE
BUTTON. REPLACE MANUAL
OVERRIDE BUTTON
CRITICALLY LOW BATETRY. INSTALL
NEW BATTERY
IS ANGLE STOP OPEN?
REPEATED DOUBLE
FLASH ON SENSOR?
RECONNECT TRANSFORMER TO
SENSOR. FLASH ON SENSOR FOR
5 SECONDS?
RECONNECT TRANSFORMER TO
SENSOR. FLASH ON SENSOR FOR
5 SECONDS?
RECONNECT TRANSFORMER TO
SENSOR. FLASH ON SENSOR FOR
5 SECONDS?
PUSH MANUAL OVERRIDE
BUTTON; WILL THE UNIT FLUSH?
REPLACE PISTON ASSEMBLY.
CLOSE ANGLE STOP AND OPEN
AGAIN TO PRIME THE VALVE.
DOES FLUSHING STOP?
PUSH MANUAL OVERRIDE
BUTTON. DOES IT RETURN TO ITS
ORIGINAL POSITION FREELY?
REPLACE PISTON & SOLENOID
ASSEMBLY.
REPEATED DOUBLE
FLASH ON SENSOR?
REPLACE SOLENOID.
HOT LINE FOR HELP
For toll-free information and answers to your questions, call:
(844) CRT-TEAM / [phone]
IN CANADA 1-800-387-0369 (TORONTO 1-905-306-1093)
Weekdays 8:00 a.m. to 7:00 p.m. EST
IN MEXICO 01-800-839-1200
Pr oduct names liste d h erein a re t r ademar ks of AS A merica, Inc. ©2 018
To learn more about American Standard Selectronic®Products visit our website at:
www.americanstandard-us.com or e-mail us at: [e-mail]
Mon.– Fri. 8:00 a.m. to 8:00 p.m. EST Sat. 10:00 a.m. to 4:00 p.m. EST
M965644 EN REV. 2.1 (9/18)

12 M965644 EN REV. 2.1 (9/18)

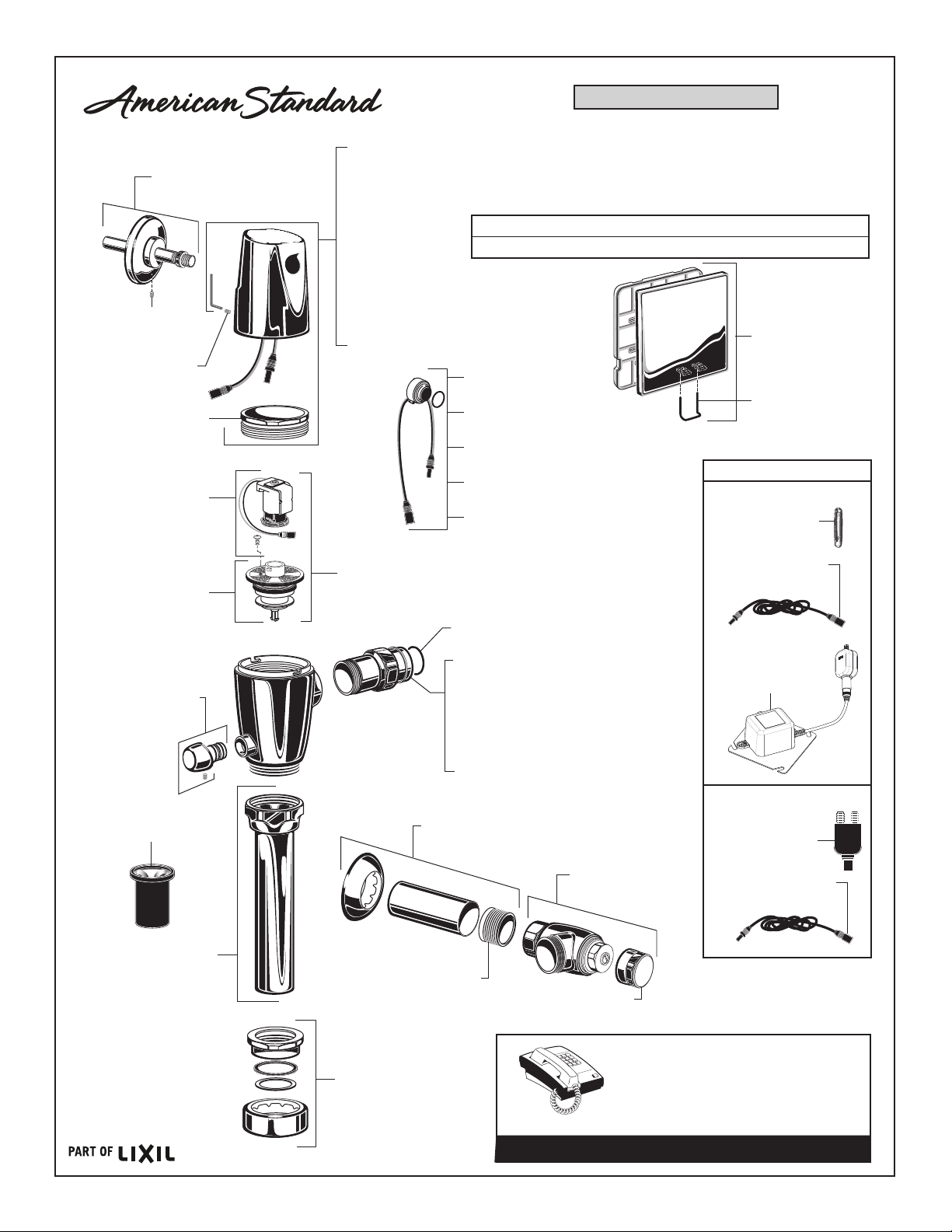

M964551-0070A
PISTON ASSEMBLY
M964411-0020A
1" VACUUM BREAKER
M962926-0070A
1" SWEAT ADAPTER
M964852-0070A
SOLENOID & PISTON
SUBASSEMBLY
M964945-0020A
ADJUSTABLE TAILPIECE
(4-1/4" to 5-1/4" Rough-in)
M950319-0071600A
SENSOR ASSEMBLY
(1.6 gpf)
M950319-0071280A
SENSOR ASSEMBLY
(1.28 gpf)
M950319-0074000A
SENSOR ASSEMBLY
(1.6/1.1gpf)
M950319-0075000A
SENSOR ASSEMBLY
(1.28/1.1gpf)
M950319-0071100A
SENSOR ASSEMBLY
(1.1gpf)
M964943-0021600A
COVER ASSEMBLY
(1.6 gpf)
M964943-0024000A
COVER ASSEMBLY
(1.6/1.1 gpf)
M964943-0023000A
COVER ASSEMBLY
(1.28/1.1 gpf)
M964943-0021280A
COVER ASSEMBLY
(1.28 gpf)
M964943-0021100A
COVER ASSEMBLY
(1.1 gpf)
M964120-0020A
ESCUTCHEON &
CONDUIT ASSEMBLY
A955056-0020A
1" STOP VALVE KIT
M924347-0020A
STOP VALVE CAP
A955057-0020A
INLET PIPE ASSEMBLY
M950354-0020A
MANUAL VALVE
M964302-0070A
SOLENOID ASSEMBLY
M906684-0070A
BONNET NUT
OPTIONAL ADJUSTABLE TAILPIECE
(Purchased Separately)
M962836-0020A (8-1/4" to 9-1/4" Rough-in)
M962835-0020A (7-1/4" to 8-1/4" Rough-in)
M962834-0020A (6-1/4" to 7-1/4" Rough-in)
M962833-0020A (5-1/4" to 6-1/4" Rough-in)
M964402-0070A
VACUUM BREAKER KIT
A912809-0070A
O-RING
M952269-0020A
ESCUTCHEON KIT
M950511-0070A
10' EXTENSION
POWER KITS
Hard-Wired AC
Multi-AC
M950512-0070A
Y-ADAPTER
M950360-0070A
CONNECTOR
LOCKING DEVICE
M950511-0070A
10' EXTENSION
CABLE
A922270-0070A
U-KEY
M964015-0020A
COVER PLATE
ASSEMBLY
M950527-0070A
POWER SUPPLY
A917376-0070A
SET SCREW
M918004-0070A
WALL FLANGE
SET SCREW
BEFORE November 2017
SELECTRONIC®
AC POWERED PROXIMITY
EXPOSED TOILET FLUSH VALVE
1.1, 1.28, 1.6, 1.6/1.1 & 1.28/1.1 GPF
HOT LINE FOR HELP
For toll-free information and answers to your questions, call:
(844) CRT-TEAM / [phone]
Mon. – Fri. 8:00 a.m. to 8:00 p.m. EST Sat. 10:00 a.m. to 4:00 p.m. EST
IN CANADA 1-800-387-0369 (TORONTO 1-905-306-1093)
Weekdays 8:00 a.m. to 7:00 p.m. EST
IN MEXICO 01-800-839-1200
Pr oduct names liste d he rein a re trademarks of AS America, In c. ©2 018
To learn more about American Standard Selectronic®Products visit our website at:
www.americanstandard-us.com or e-mail us at: [e-mail]
MODEL NUMBERS
606B.111 606B.121 606B.161 606B.721 606B.761

13 M965644 EN REV. 2.1 (9/18)
M964551-0070A
PISTON ASSEMBLY
M964411-0020A
1-1/2" VACUUM BREAKER
M962926-0070A
1" SWEAT ADAPTER
M964852-0070A
SOLENOID & PISTON
SUBASSEMBLY
M964945-0020A
ADJUSTABLE TAILPIECE
(4-1/4" to 5-1/4" Rough-in)
M950319-0071600A
SENSOR ASSEMBLY
(1.6 gpf)
M950319-0071280A
SENSOR ASSEMBLY
(1.28 gpf)
M950319-0074000A
SENSOR ASSEMBLY
(1.6/1.1gpf)
M950319-0075000A
SENSOR ASSEMBLY
(1.28/1.1gpf)
M950319-0071100A
SENSOR ASSEMBLY
(1.1gpf)
M970345-0021600A
COVER ASSEMBLY
(1.6 gpf)
M970345-0024000A
COVER ASSEMBLY
(1.6/1.1 gpf)
M970345-0023000A
COVER ASSEMBLY
(1.28/1.1 gpf)
M970345-0021280A
COVER ASSEMBLY
(1.28 gpf)
M970345-0021100A
COVER ASSEMBLY
(1.1 gpf)
M964120-0020A
ESCUTCHEON &
CONDUIT ASSEMBLY
A955056-0020A
1" STOP VALVE KIT
M924347-0020A
STOP VALVE CAP
A955057-0020A
INLET PIPE ASSEMBLY
M950354-0020A
MANUAL VALVE
M964302-0070A
SOLENOID ASSEMBLY
M906684-0070A
BONNET NUT
OPTIONAL ADJUSTABLE TAILPIECE
(Purchased Separately)
M962836-0020A (8-1/4" to 9-1/4" Rough-in)
M962835-0020A (7-1/4" to 8-1/4" Rough-in)
M962834-0020A (6-1/4" to 7-1/4" Rough-in)
M962833-0020A (5-1/4" to 6-1/4" Rough-in)
M964402-0070A
VACUUM BREAKER KIT
A912809-0070A
O-RING
M952269-0020A
ESCUTCHEON KIT
M950511-0070A
10' EXTENSION
POWER KITS
Hard-Wired AC
Multi-AC
M950512-0070A
Y-ADAPTER
M950360-0070A
CONNECTOR
LOCKING DEVICE
M950511-0070A
10' EXTENSION
CABLE
A922270-0070A
U-KEY
M964015-0020A
COVER PLATE
ASSEMBLY
M950527-0070A
POWER SUPPLY
A917376-0070A
SET SCREW
M918004-0070A
WALL FLANGE
SET SCREW
AFTER November 2017
SELECTRONIC®
AC POWERED PROXIMITY
EXPOSED TOILET FLUSH VALVE
1.1, 1.28, 1.6, 1.6/1.1 & 1.28/1.1 GPF
HOT LINE FOR HELP
For toll-free information and answers to your questions, call:
(844) CRT-TEAM / [phone]
Mon. – Fri. 8:00 a.m. to 8:00 p.m. EST Sat. 10:00 a.m. to 4:00 p.m. EST
IN CANADA 1-800-387-0369 (TORONTO 1-905-306-1093)
Weekdays 8:00 a.m. to 7:00 p.m. EST
IN MEXICO 01-800-839-1200
Pr oduct names liste d he rein a re trademarks of AS America, In c. ©2 018
To learn more about American Standard Selectronic®Products visit our website at:
www.americanstandard-us.com or e-mail us at: [e-mail]
MODEL NUMBERS
606B.111 606B.121 606B.161 606B.721 606B.761
