Reichert®7CR
Auto Tonometer + Corneal Response Technology®
User’s Guide
©2018 AMETEK, Inc.
Reichert, Reichert Technologies, Corneal Response Technology and “CR” design mark are registered trademarks of Reichert, Inc.
AMETEK is a registered trademark of AMETEK, Inc.
All other trademarks are property of their respective owners.
The information contained in this document was accurate at time of publication. Specifications subject to change without notice.
Reichert, Inc. reserves the right to make changes in the product described in this manual without notice and without incorporating
those changes in any products already sold.
ISO 13485 Certified – Reichert products are designed and manufactured under quality processes meeting ISO 13485 requirements.
No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic,
mechanical, recording, or otherwise, without the prior written permission of Reichert, Inc.
Caution: Federal law restricts this device to sale by or on the order of a licensed physician. Rx only.
16060-101 Rev. M 3
Contents
Warnings & Cautions............................................................................................. 4
Symbol Information ..................................................................................................6
Introduction ............................................................................................................. 7
Indications for Use .......................................................................................... 7
Contraindications ............................................................................................ 7
Instrument Setup......................................................................................................8
Unpacking Instructions.................................................................................... 8
Application of Input Power .............................................................................. 9
Disconnection of Input Power ......................................................................... 9
......................................................................................... 10
Accessories................................................................................................... 10
..................................................................................................11
Default Settings ...............................................................................................12
Customized Options ...................................................................................13
Tonometer Settings..........................................................................................14
General Settings..............................................................................................15
Printout Settings ..............................................................................................16
Communication Settings..................................................................................17
Instructions for Use ................................................................................................18
..................................... 18
Alignment and Measurement ........................................................................ 18
................................................................................................ 19
Correct Patient Positioning....................................................................... 21
Measurement Count ................................................................................ 24
Score........................................................................................................ 25
Intelligent Averaging of Data .................................................................... 25
Straight Averaging of Data ....................................................................... 25
Example - Intelligent Averaging ............................................................... 26
Example - Straight Averaging .................................................................. 27
Measuring the Next Eye........................................................................... 28
Sleep Mode................................................................................................... 29
............................................................................ 30
Positioning Error Messages .......................................................................... 31
Printing Measurement Data .......................................................................... 32
Cleaning & Maintenance........................................................................................33
Fuses...............................................................................................................33
External Cleaning ............................................................................................33
Forehead Rest Cleaning .................................................................................33
Operator Display Cleaning ..............................................................................33
Printer Paper ...................................................................................................33
Positioning Windows and Airtube Cleaning.....................................................34
Forehead Rest Pad Replacement...................................................................35
Troubleshooting......................................................................................................36
Help Screens ................................................................................................ 36
Chart of Common Errors .............................................................................. 37
Print-Related Errors ...................................................................................... 38
...........................................................................................39
........................................................................................................40
Guidance Tables.................................................................................................. 41
Warranty.............................................................................................................. 46
16060-101 Rev. M
4
Warnings & Cautions
Reichert Technologies®is not responsible for the safety and reliability of this instrument when:
•
• Instrument is not used in accordance with this User’s Guide.
WARNING: AN INSTRUCTION THAT DRAWS ATTENTION TO RISK OF INJURY OR DEATH.
WARNING: UNITED STATES FEDERAL LAW AND EUROPEAN REGULATIONS REQUIRE THAT
WARNING:
WARNING:
WARNING:
.
WARNING: IF THIS INSTRUMENT IS MODIFIED, APPROPRIATE INSPECTION AND TESTING
WARNING:
WARNING:
WARNING:
INPUT CONNECTOR OR THE UNIT’S POWER CORD OF THIS INSTRUMENT OR DAMAGE TO IT
WARNING:
WARNING:
WARNING: DO NOT PLACE FINGERS INTO THE OPENING SURROUNDING THE NOSEPIECE.
16060-101 Rev. M 5
CAUTION: AN INSTRUCTION THAT DRAWS ATTENTION TO THE RISK OF DAMAGE TO THE PRODUCT.
CAUTION:
PRECAUTIONS.
CAUTION:
OR ISO STANDARDS.
CAUTION:
DETAILED CLEANING INSTRUCTION.
CAUTION:
INSTRUCTION.
CAUTION: MEDICAL ELECTRONIC EQUIPMENT NEEDS SPECIAL PRECAUTIONS REGARDING
CAUTION:
ELECTRICAL EQUIPMENT.
CAUTION:
CAUTION:
OPERATION.
CAUTION:
MANUFACTURER.OTHERWISE,DEGRADATIONOFTHEPERFORMANCEOFTHISINSTRUMENT
COULD RESULT.
Warnings & Cautions
16060-101 Rev. M
6
Symbol Information
The following symbols appear on the instrument:
Caution symbol indicating important operating and maintenance
instructions that are included in this User’s Guide
Alternating Current Power
Protective Earth Connection
ON / OFF
2018
Date of Manufacture
Manufacturer
REF Catalog Number
S/N Serial Number
Waste of Electrical and Electronic Equipment
Compliance to Medical Device Directive 93/42/EEC
Authorized to mark given by Intertek ETL Semko for conformance
with electrical standards
Accompanying Documents must be consulted
Authorized Representative in European Community
Fragile Contents in Shipping Container - handle with care
Keep Dry - Package shall be kept away from rain
This Way Up - Indicates correct upright position of package
16060-101 Rev. M 7
Congratulations on your purchase of the Reichert®7CR Auto Tonometer + Corneal Response
Technology®.
The Reichert 7CR is an auto-aligning, non-contact tonometer used to measure the intraocular
applanation process employed in the Reichert 7CR enables the device to quantify the biomechanical
properties of the cornea and minimize the impact of these on the IOP measurement. This new IOP
by corneal properties than other methods of tonometry. Refer to the Instructions for Use section for
further details on IOPcc.
This User’s Guide is designed as a training and reference manual for operation, maintenance, and
troubleshooting. We recommend that you read it carefully prior to use and follow the instructions
in the guide to ensure optimum performance of your new instrument. Properly trained eyecare
professionals such as ophthalmologists, optometrists, opticians and eye care technicians should
operate this instrument.
Please retain this guide for future reference and to share with other users. Additional copies can
be obtained from your authorized Reichert Technologies®dealer or contact our Customer Service
department directly at:
Tel: 716-686-4500
Fax: 716-686-4555
Indications for use
The Reichert 7CR is intended to measure the intraocular pressure of the eye, taking into consideration
the biomechanical response of the cornea.
Contraindications
Use of the Reichert 7CR is contraindicated in instances of:
• Ulcerated cornea
• Following keratoplasty
• Following penetrating trauma
16060-101 Rev. M
8
Great care has been taken to deliver your new Reichert 7CR to you safely. The container and
packaging was specially designed to transport this unit. Please retain the packaging if future
transportation is required.
Unpacking Instructions
Please remove the packaging material from the instrument in the following
The instrument is packaged in a shipping container to protect the
instrument from damage during shipment. Please read the User’s Guide
before operating the unit. A Quick Reference Card is provided for your
convenience and reference during operation of the unit.
1. Remove the accessories from the shipping container.
Accessories box contains:
•
•
•
•
•
•
Note: Power cord not to exceed 10 ft.
2.
3. Locate the handles on the sides of the inner box and remove the
inner box.
4. Lay the inner box on its side and remove the tape.
5. Remove the foam top and bottom inserts from the inner box.
6. Lift the Reichert 7CR out of the inner box.
7. Take the Reichert 7CR out of the plastic bag and set the unit on a
secure table.
8. Place the packing material in a safe place so that if transportation is
required in the future, it will be available.
Shipping Container
16060-101 Rev. M 9
Application of Input Power
WARNING:
WARNING: POSITION THIS INSTRUMENT SO THAT IT IS NOT DIFFICULT TO OPERATE THE DISCONNECTION
1. After the unit is in its secure location, apply the correct input voltage to the instrument using the
Power Cord from the Accessory Tray.
2. Press down on the “|” located on the ON/OFF Switch. The power inlet is located on the
3. Read the User’s Guide and the Quick Reference Card before operating this instrument.
WARNING:
CAUTION:
OCCUR.
CAUTION:
THIS MANUAL.
Disconnection of Input Power
1. At any time, the power switch can be set to OFF. The unit does not have a power down sequence.
2. If this instrument is intended to be OFF for an extended period of time, it can be disconnected from
power by detaching the power cord from the its receptacle.
16060-101 Rev. M
10
Parts Identification
1. Operator Display: Displays measurement data.
2. Printer Door:
3. Forehead Rest: Alignment mechanism that moves right or
left for correct patient positioning.
4. Nosepiece Objective: Air tube that emits “air puff.”
5. Canthus Alignment Marks (right and left side): Alignment
mark that indicates the vertical position of the center of the
patient’s eye.
6. ON/OFF Switch: Switch that controls input power to the
unit. “O” indicates OFF, and “ | ” indicates “ON.”
7. USB Port: Communication port that transfers data to a
computer.
Note:
Reichert 7CR at: http://www.reichert.com
8. Main Power Connector and Fuse Holder: Connection
point for input power and the fuses. Press the top tab and
bottom tab together on the fuse panel to remove the fuse
holder and fuses. It is located on the underside of the unit.
9. Printer: Thermal printer supplied with the unit.
Accessories
•
•
•
•
•
• Forehead Rest Pad
•
3
4
1
2
67
8
9
5
16060-101 Rev. M 11
Icon Definition
The Reichert 7CR incorporates a user-friendly icon/menu-based operating system that will increase
the speed of measurements, training and use. Listed below are the icons that are used during the
operation of this instrument.
Icon Description
MENU — Accesses secondary level menus such as setup and help
MEASURE — Initiates a single-puff measurement process
CLEAR DATA — Clears both right and left data on the Operator Display and in memory
PRINT — Sends data to the printer
CANCEL — Cancels measurement process
RETURN — Returns to preceding screen
RIGHT ARROW — Use to select the character in Practice name in the Printout Setup
LEFT ARROW — Use to select the character in Practice name in the Printout Setup
PLUS — Changes the character or time in Printout Setup
MINUS — Changes the character or time in Printout Setup
— Displays a histogram of the last 400 measurements
IOPG — Shows the measurement histogram for the IOPg values
IOPCC — Shows the measurement histogram for the IOPCC values
16060-101 Rev. M
12
Default Settings
The Reichert 7CR has default settings that are set at the factory. To view a summary of these
settings, refer to page 13. To view a detailed definition and explanation of each setting, refer to
pages 14 through 17.
CAUTION:
Follow these steps to customize the default settings:
1. Tap the MAIN MENU icon.
2.
3. Tap the desired parameter to select it.
4.
5.
16060-101 Rev. M 13
Default Settings
This instrument is sent from the factory with measurement, printer, communication, and
miscellaneous parameters set to default settings. These settings can be changed to suit the needs
of the individual operator or clinician. A summary of these settings is given below with the default
selections shown in bold type. To customize these settings, follow the steps provided on page 12,
Instrument Setup, Default Settings.
Customized Options
This instrument has the following default settings:
Pressure: mmHg,kPa
Measurements: 3, 4
Averaging: Intelligent, Straight
Language: Eng, Fra, Deu, Esp, Por, Ita
Tone: On, Off
Sleep: 5, 10, 15, 20, Off
***********
Eye Title: Right/Left, OD/OS
Printer: On, Off
Date Format: MDY,
Time Format: AM/PM, 24 HR
Date: 01/28/2018
Time: 05:00PM
Practice: Reichert
2400, 4800, 9600, 19200
7, 8
Parity: None, Odd, Even
1, 2
Note: Default settings are shown in Bold type.
16060-101 Rev. M
14
Tonometer Settings
The following options are available in the Tonometer Setup menu:
Parameters Settings
PRESSURE
MEASUREMENTS Choose either 3 or 4 measurements for the multi-measure button function.
Choose either Intelligent or Straight averaging. Refer to the Measurement
Results section of this manual.
16060-101 Rev. M 15
General Settings
The following options are available in the General Setup menu:
Parameters Settings
LANGUAGE Sets the language that appears on the Operator Display.
TONE
Note: Any time a selection is made on the touch screen, a beep will sound if the
option is set to “ON”.
SLEEP
mode is active, touch the screen.
Note: When unit comes out of sleep mode, any measurements that were not
cleared prior to the activation of the sleep mode will still appear, but the
measurement buttons will be disabled in order to prevent accidentally
must be output or cleared before taking new readings.
Adjusts the brightness of the Operator Display by touching the desired level.
Displays the eyes as either Right/Left or OD/OS.
16060-101 Rev. M
16
Printout Settings
The following options are available in the Printout Setup menu:
Parameters Settings
PRINTER PRINT
icon is touched.
DATE FORMAT Choose the date format to display on the printer paper:
TIME FORMAT Choose the time format: AM/PM or 24 HR.
DATE
TIME
PRACTICE
printer paper. To change the characters, use the PLUS and MINUS icons to
scroll through the alphabet. Once you find the letter you need, touch the RIGHT
or LEFT icon to move horizontally to the next letter. To exit, touch the SELECT
icon, then the RETURN icon.
16060-101 Rev. M 17
Communications Settings
The following options are available in the Communications Setup menu:
Parameters Settings
Number of bits that make up data transmission word.
Even are the available options.
Number of bits added to the end of the data transmission word to signal the end of
transmission.
16060-101 Rev. M
18
Definitions & Interpretation of Measurement Values
• IOPg - Goldmann-correlated IOP. IOPg agrees, on average, with the results obtained from an
• IOPcc - Corneal Compensated IOP. IOPcc takes the biomechanical properties of the cornea into
such as corneal visco-elasticity and thickness.
•
is below 3, the measurement will be in orange. It is recommended that you take an additional
measurement.
Note: When IOPcc is higher than IOPg, this indicates that the IOP for this patient may be being
understated using traditional methods of tonometry.
Note: When IOPcc is lower than IOPg, this indicates that the IOP for this patient may be being
overstated when using traditional methods of tonometry.
Alignment and Measurement
When power is applied to the Reichert 7CR, it initially performs a system check. After completion of
the system check, the title screen will be displayed.
16060-101 Rev. M 19
Alignment and Measurement
A message will be displayed to move the Forehead Rest fully to the left or right until it locks into
position if it is not already in this position. From this screen operators may choose to enter the
Menu, demonstrate the airpuff to the patient, or begin the measurement process.
Demo Puff
Touching the DEMO icon initiates a sample air puff. This can be used to demonstrate
the air puff to the patient. After each time the DEMO button is pressed and the air puff
is delivered, an internal check of the Reichert 7CR’s systems is conducted to ensure
optimum performance of your instrument.
Note: The DEMO icon will not display if there are measurements displayed on the screen.
If the forehead rest is not in position, the icons will be inactive, and the message in the image below
will appear.
The side that is ready to measure will become blue, indicating the unit is ready to measure that eye.
16060-101 Rev. M
20
Alignment and Measurement
Slide headrest left or right
The Reichert 7CR features a left/right sliding forehead rest that enables the instrument to
automatically determine which eye is being measured. It must be positioned completely to one side
or to the other in order to take a measurement. Position the forehead rest to the desired position
before beginning the measurement process.
Illuminated
Nosepiece
Air Tube
inside the air tube, surrounded by a ring of red lights. In order to take a measurement, patients must
patient can see any of the red lights. If any red lights can be seen, the automatic alignment system will
Table of contents
Other Ametek Measuring Instrument manuals
Ametek
Ametek 3050-DO User manual
Ametek
Ametek Dycor Dymaxion Mass Spectrometer User manual
Ametek
Ametek 5100P User manual
Ametek
Ametek SPECTRO SPECTROCHECK User manual
Ametek

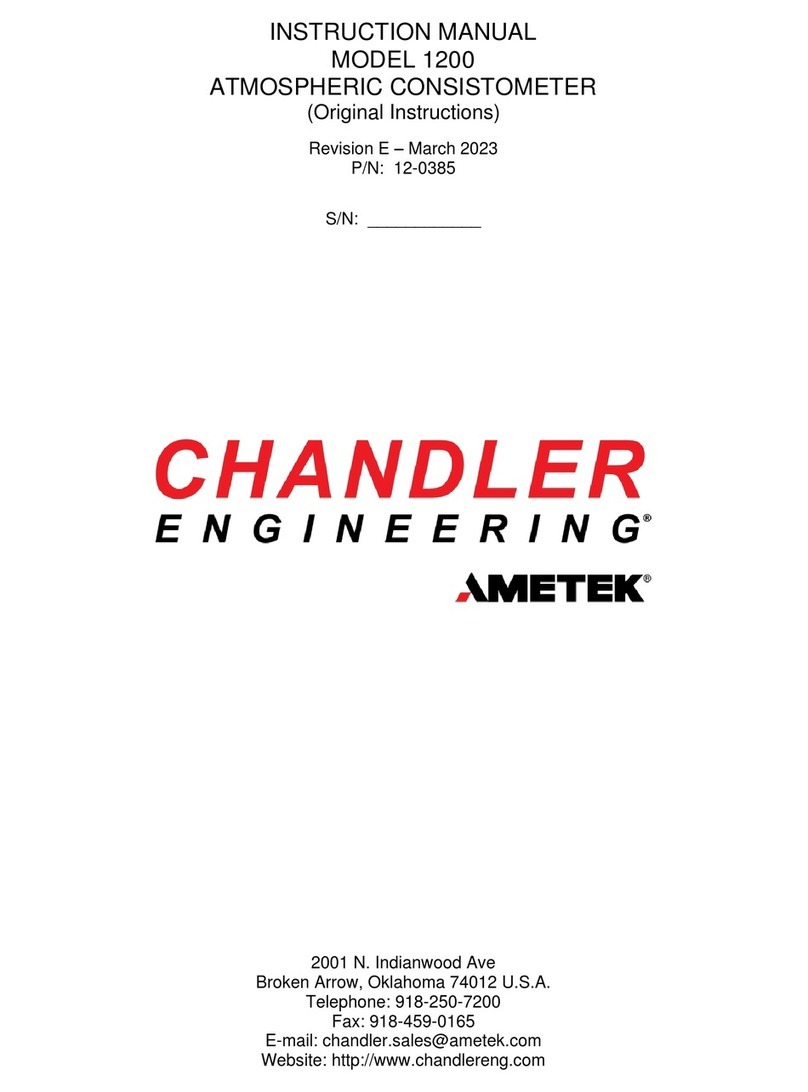

Ametek CHANDLER ENGINEERING 1200 User manual
Ametek
Ametek Reichert 13104190 User manual
Ametek
Ametek LG-002 User manual
Ametek
Ametek 931S Manual
Ametek
Ametek AMEVision 3050 Series User manual
Ametek
Ametek 5000 User manual
Ametek
Ametek AMEVision 3050-OLV User manual
Ametek
Ametek 502-3000 Series User manual
Ametek
Ametek Western Research IPS-4 User manual
Ametek
Ametek BROOKFIELD RSO User manual
Ametek
Ametek Chandler Engineering 8040D10 User manual
Ametek
Ametek Solartron Metrology Digital Mini Probe Manual
Ametek
Ametek VTI Instruments EX1200-1538 User manual
Ametek
Ametek ta7000 User manual
Ametek
Ametek SPECTRO ARCOS FHX3X User manual
Ametek
Ametek DNC-PS700-A10 Specification sheet
