Installation GuideFTI-Eb Fixed Thermal Imaging System
Installation Guide FTI-Eb Fixed Thermal Imaging System
Contents
A1 Introduction A1
A1.1 Summary Specications A2
A1.2 Installing the RS422/485 Serial Communications Card A4
A1.3 Maintenance A6
A1.4 Installation Requirements A7
B1 Installation diagrams B1

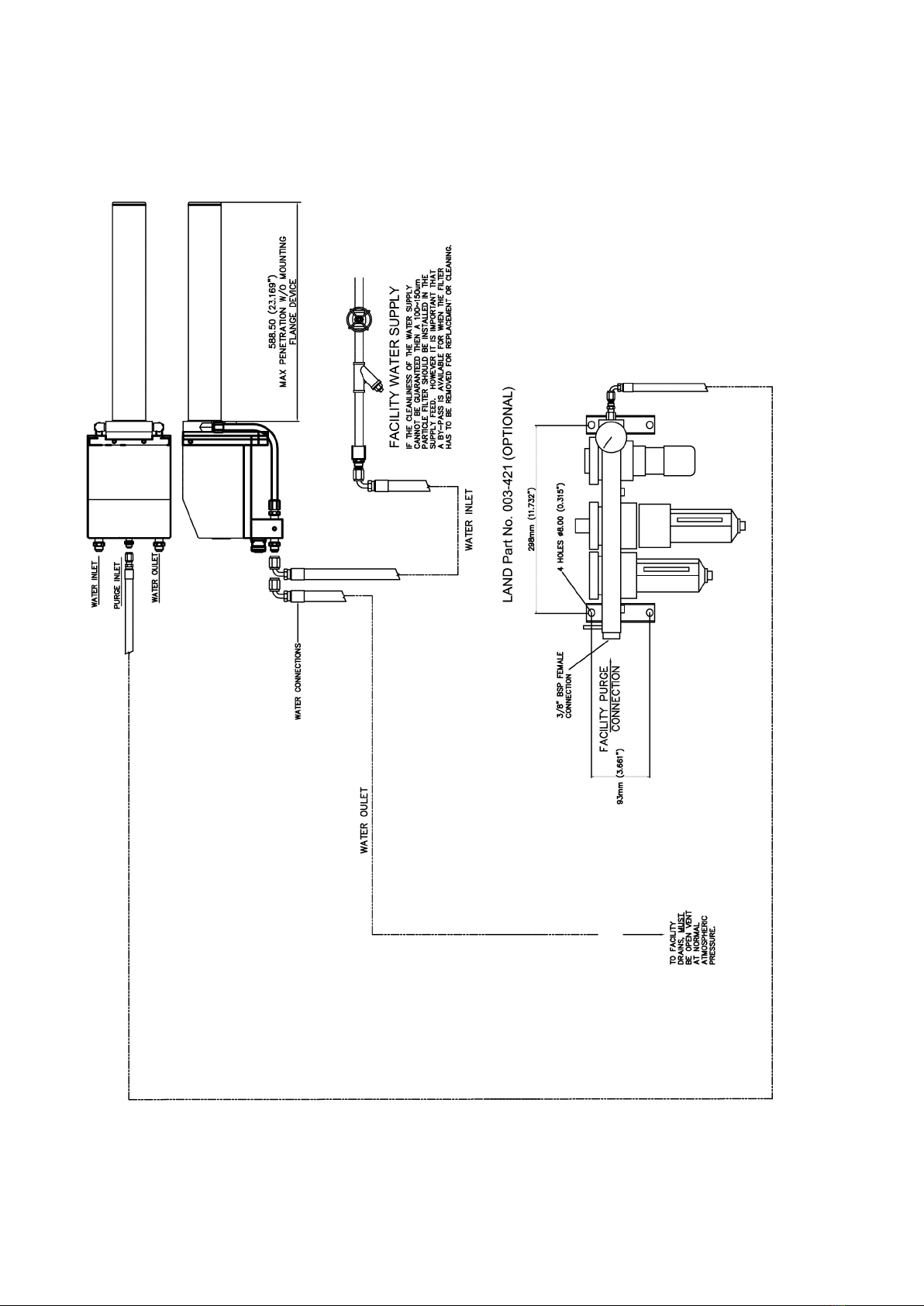

Fig. 1 FTI-Eb System Overview B2

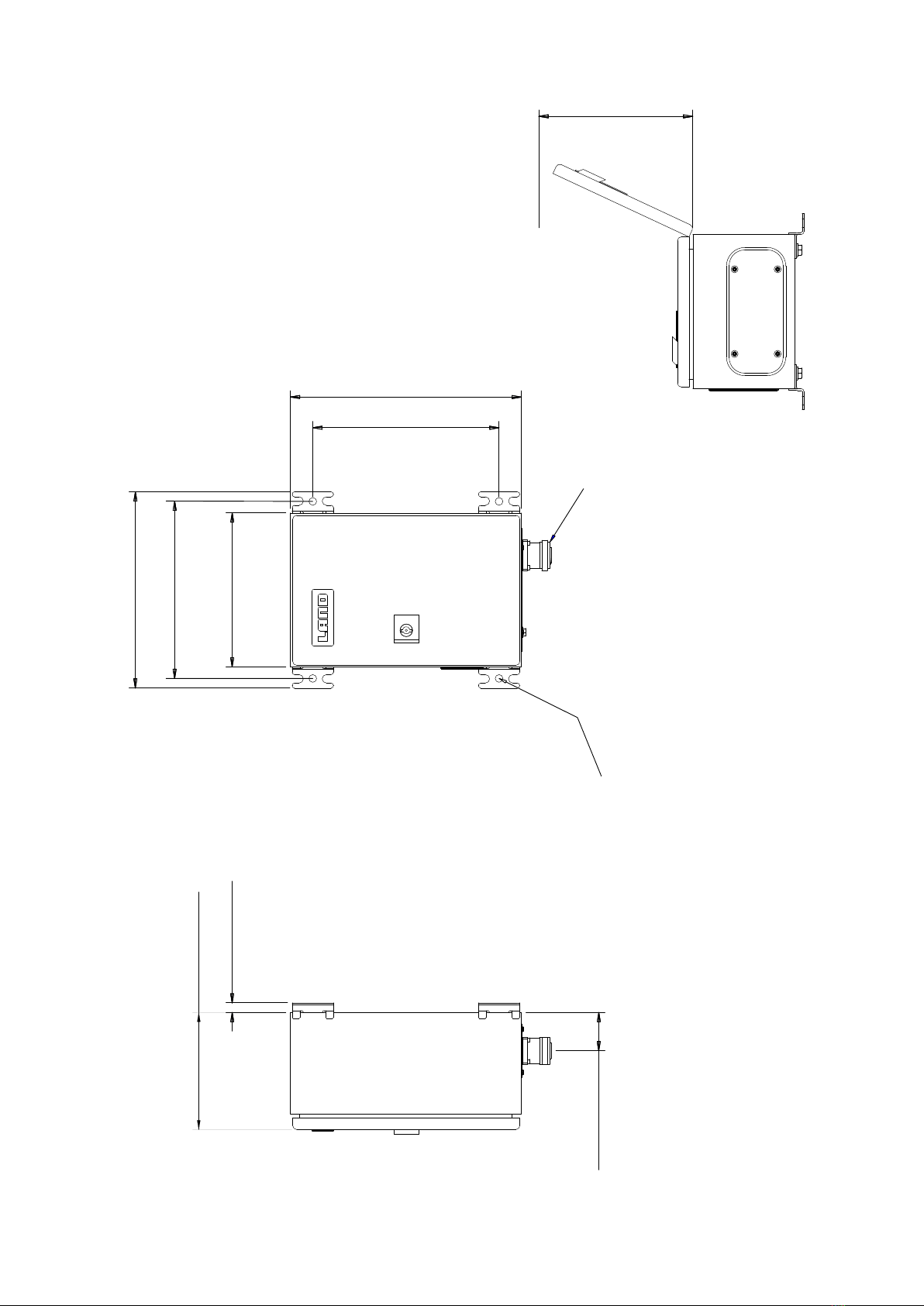

Fig. 2a FTI-Eb Rugged Enclosure and Mounting Dimensions B3
Fig. 2b FTI-Eb Rugged Enclosure and Mounting Dimensions B4
Fig. 3 FTI-Eb PSU Mounting Details B5

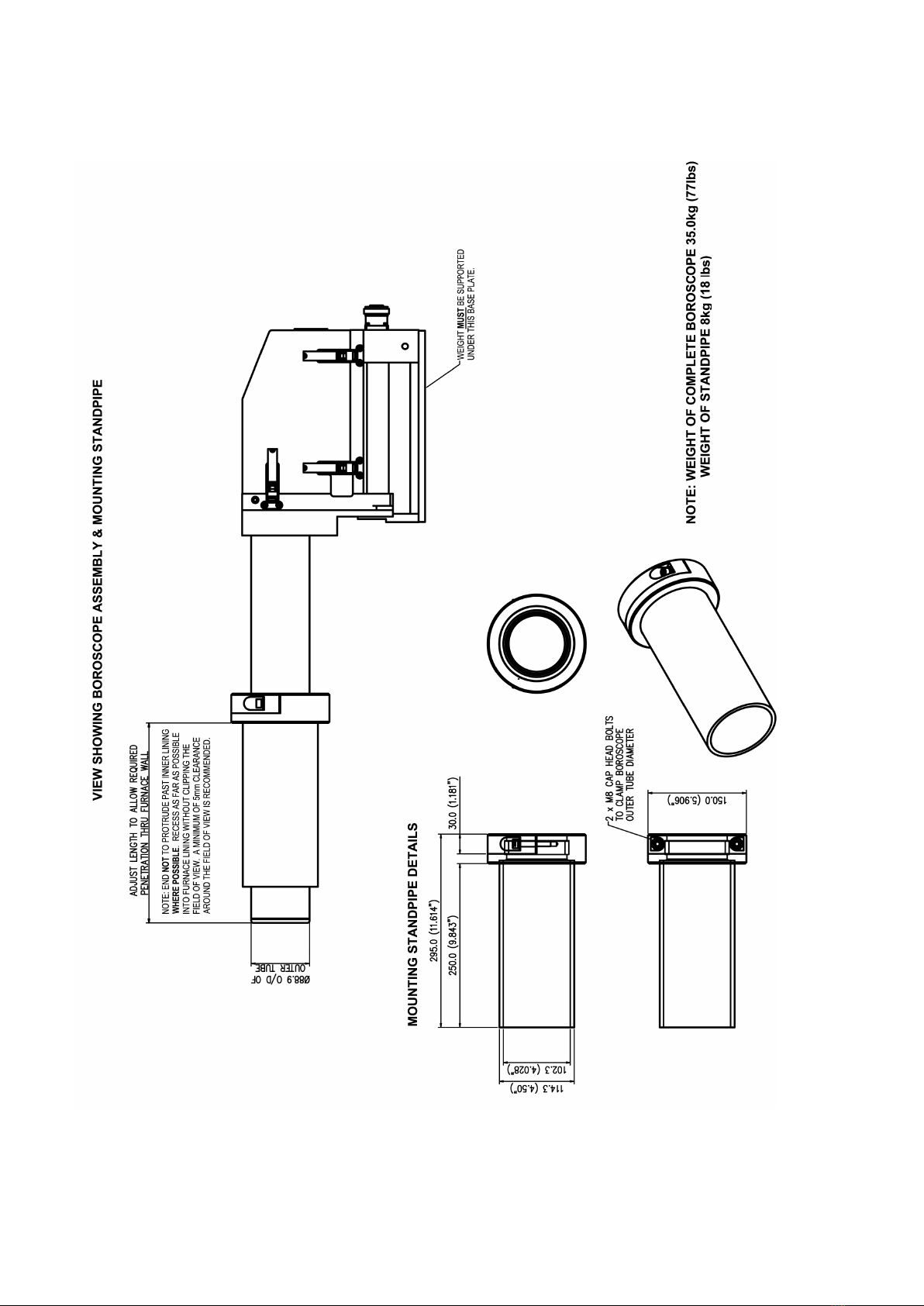

Fig. 4 FTI-Eb Camera Installation and Dimension Diagrams B6
Fig. 5 FTI-Eb System Electrical interconnection Diagrams
and Cable Requirements for FTI-Eb CP B7
Fig. 6 FTI-Eb System Electrical Interconnection Diagrams
and Cable Requirements for FTI-Eb PSU B8
Fig. 7 FTI-Eb Control Processor Installation and Dimensions
Diagram B9
Fig. 8 FTI-Eb Control Processor Electrical Connections Diagram B10
Fig. 9 Power Supply Diagram B11
Fig. 10 Input/Output Module Electrical Connections B12
Installation GuideFTI-Eb Fixed Thermal Imaging System
Section A
Page 1
FTI-Eb Fixed Thermal Imaging SystemInstallation Guide
A1 Introduction
This Installation Guide gives instructions on how to the install the Land Fixed
Thermal Imaging System with FTI-Eb cameras. The system is operated via
the LIPS-FTI-Eb software.
These instructions are provided as a series of simple installation diagrams,
covering the installation of the FTI-Eb thermal camera and its mountings,
accessories and services.
The equipment must be used, maintained and serviced by properly trained
personnel, capable of following the procedures given in these instructions.
Safety may be impaired if the system is not used as indicated.
It is important to check the equipment with which you have been supplied
and then read these instructions thoroughly before proceeding with operation.
Section A
Page 2
FTI-Eb Fixed Thermal Imaging System Installation Guide
A1.1 Summary Specifications
Processor
FTI-Eb CP: Operating Temp Range: -5 to 50°C / 30 to 120°F
Sealing: IP 65 (IP 54 if tted with
optional touchscreen)
Power Requirement: 100 to 240V ac 2.0A 50/60Hz
Weight: 29kg / 64lb
The unit weighs up to 29kg (64lb) and will require at least two
people to lift it.
EMC: EN61326
Safety: EN61010-1
Power Supply
FTI-Eb-PSU: Operating Temp Range: 0 to 50°C / 30 to 120°F
Sealing: IP65
Power Requirement: 100 to 240V ac 1.0A 50/60Hz
EMC: EN61326
Safety: EN61010-1
Camera: Operating Temp Range: 5 to 50°C / 40 to 120°F *1
Sealing: IP65
Weight: 4.5kg / 10lb
EMC: EN61326
IP Address: 10.1.10.10x
Default 10.1.10.102
(x= Rotary Switch Position)
Water Cooled Rugged Housing:
Max furnace temperature: 1200°C / 2192°F
Cooling water req. (max.): 23 l min-1 / 5 gal min-1 *2
Max water pressure: 6.9bar / 100psi
Cooling & purge air req. (max.): 300 l min
-1
/ 11 cuft/min *2
Weight: 35kg / 77lb
Max furnace positive pressure:
75mm / 3in water gauge
*1 Internal sensor value
*2 For details of required ow rates at lower furnace temperatures refer to
section A1.5
CP Input/Output Signals (See NUDAM data sheets for detailed
specication)
Section A
Page 3
FTI-Eb Fixed Thermal Imaging SystemInstallation Guide
Digital Input via NUDAM 6052 Isolated Digital Input Modules
6 bits isolated digital input
VIL: 1V max
VIH: 3.5V min (24V max)
Impedance 1.2KΩ
Isolation 5000V rms
Relay Output via NUDAM 6063 Relay Output Module
7 isolated relay outputs
Output type: form A
Contact rating: AC 0.5A,125V
DC 1A, 30V
Isolation: 1000 MΩ @ 500V DC
Analog Input via NUDAM 6018 Thermocouple Analog Input Module
6 dierential analog inputs
Max common mode (wrt AGND): 30V
Isolation: 2500V rms
Input: programmable mV, V, mA, thermocouple
Analog Output via NUDAM 6024 4 Channel Analog Output Module
4 bipolar analog outputs
Isolation: 2500V rms
Output: programmable
Section A
Page 4
FTI-Eb Fixed Thermal Imaging System Installation Guide
A1.2 Installing the RS422/485 Serial Communications Card
The RS422/485 Serial Comms card supplied with LIPS FTI-E for connecting the
NUDAM input / outputmodules is the Amplicon 200 series, 9-way standard port. Full
installation details for this type of card can be found in the User Manual supplied
with the card.
WARNING
Risk of electric shock. Before opening the PC, ensure that the system
is isolated from the mains power supply.
WARNING Observe precautions for handling static sensitive devices.
To install the RS422/485 Serial Comms Card
•Ensure that the computer and any peripheral devices are switched o and are
disconnected from the mains power supply.
• Remove any obstructions which prevent access to the computer i.e. monitor,
keyboard etc.
• Refer to the PC ‘Operating Instructions’. Remove the cover from the computer to
reveal the motherboard and expansion slots.
• Select an empty expansion slot with a PCI type connector.
• Observe precautions for handling static sensitive devices. Slide the card into the
slot.
•To ensure that the air ow within the computer is sucient to adaquately cool the
machine, make sure that any remaining expansion slot covers are in place.
• Refer to the PC ‘Operating Instructions’. Replace the computer cover.
• Reconnect the computer monitor, keyboard etc.
• Reconnect the computer and any peripheral devices to the mains power supply.
• Switch on the computer.
• When the computer starts up, the Windows® software displays the ‘New
Hardware Found’ dialog box, stating that it has detected new installed hardware.
• Insert the Amplicon CD ROM, provided with the Serial Comms card, into the
CD ROM drive and wait for the ‘Wizard’ to nd the relevant software for the
installed Serial Comms card. Click ‘Finish’ when prompted. If a warning window is
displayed at this point, click ‘Continue Anyway’ to carry on.
• When the ‘New Hardware Found’ prompt is displayed, select ‘Install Automatically’
and click ‘Next’.
• If a warning window is displayed at this point, click ‘Continue Anyway’ to carry
on.
• The ‘New Hardware Found’ prompt is displayed again for the second RS485 port.
Follow the instructions as above.
•Acknowledge any displayed screens to nish the installation process.
ToconguretheRS422/485SerialCommsCard
• Open Control Panel - System - Device Manager
• Find the RS422/485 Serial Ports - usually COM 3 and COM 4
Section A
Page 5
FTI-Eb Fixed Thermal Imaging SystemInstallation Guide
‘D’ Connector Land Cable Colour
(usingcable:048.434)
NUDAM Module
Pin 4 Red }Green
DATA -
Pin 8 White
Pin 5 Black }Yellow
DATA +
Pin 9 Green
• On the port which is connected to the NUDAM input / output modules go into
Properties and then Port Settings
• Check the box for RS485 Half Duplex
• Windows will then ask to restart
The connections to the RS422/485 Serial Comms card are made via the 9-way
D-type connector. The pin assignment details are given below.
Section A
Page 6
FTI-Eb Fixed Thermal Imaging System Installation Guide
A1.3 Maintenance
The body of the camera, mountings and optical tube can be cleaned by wiping
with a clean cloth moistened with either water or a mild, neutral detergent.
The optical tube front window can be cleaned by wiping with a lens tissue.
For stubborn dirt, use a lens cleaner or alcohol on a soft cloth.
The recommended calibration interval for this system is 12 months. Hoses
and pipes should also be checked regularly for leaks, cracks, chang and
other wear and tear.
Section A
Page 7
FTI-Eb Fixed Thermal Imaging SystemInstallation Guide
A1.4 Installation Requirements
To ensure safe and reliable operation of the FTI-Eb system the following
installation guidelines should be followed:
Ensure that the water and air supplies are connected and capable of supplying
the correct ow rate. Refer to Fig. 2a (Section B, Page 3) before installing the
camera and optic into the probe.
If the cleanliness of the water supply cannot be guaranteed, then a 100~150
µm particle lter should be installed in the supply feed. However, it is
important that a by-pass is available for when the lter has to be removed for
replacement or cleaning.
Ensure the ow of water at all times when the probe assembly is mounted,
even when the furnace is cold or the camera is not present.
The weight of the unit must be supported beneath the camera housing and
NOT by the clamp on the water cooled tube.
Beware that the end of the optic will be hot when removed from the furnace
during normal operation.

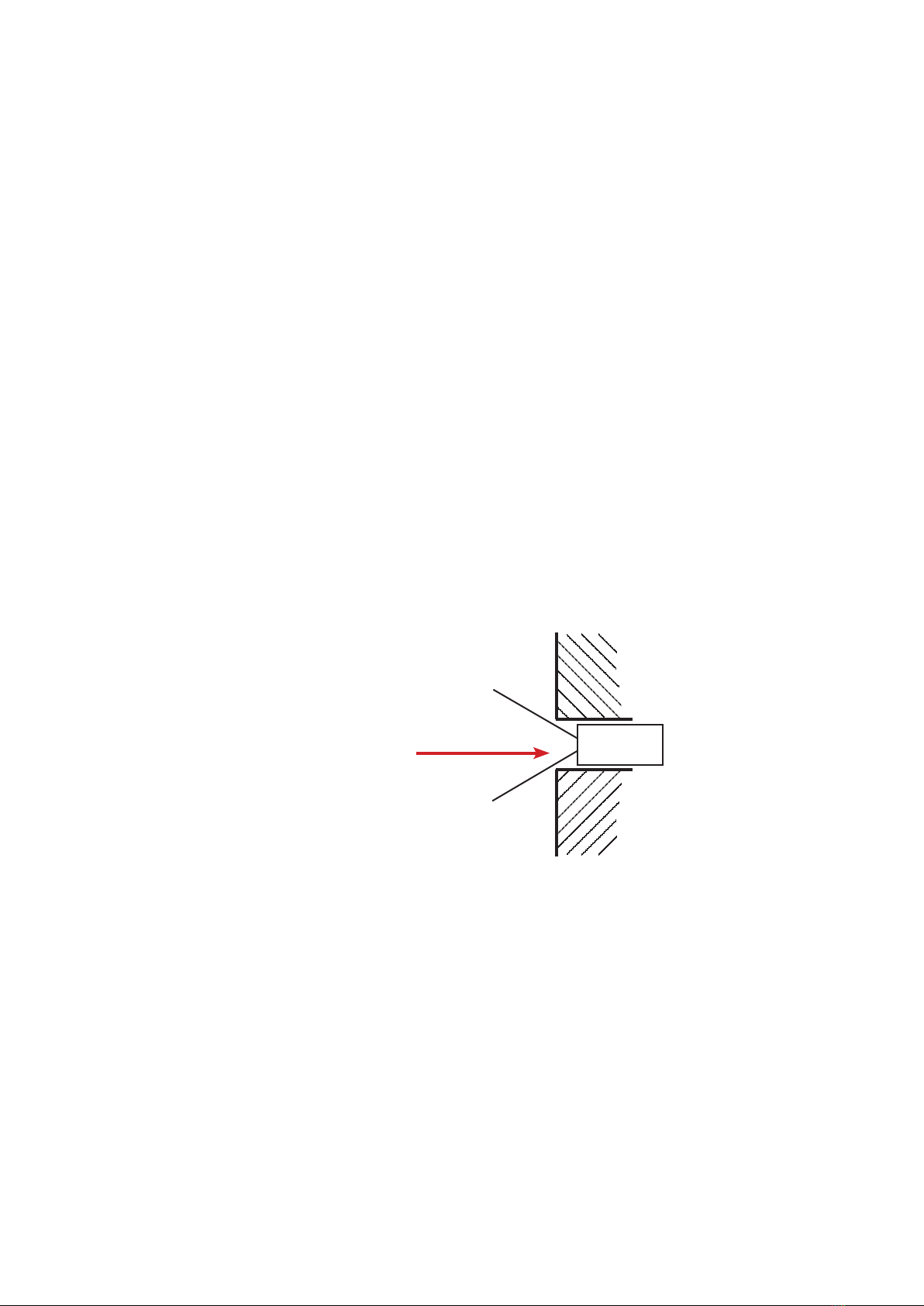

It is recommended that the FTI-E Borescope is installed in such a way that
it does not protrude into the furnace itself. The worst case is that tip should
be in-line with the furnace wall however it is preferred that the tip should be
protected by the furnace wall aperture; see below:
However ensure that the eld of view is not clipped by the inner wall of the
furnace.
While the FTI-E Borescope is designed to measure temperatures up to
1600 °C it is recommended that the ambient temperature at the tip is below
1200 °C
60°
Max. Ambient
1200° C
Section A
Page 8
Fixed Thermal Imaging System Installation Guide
Water / Air Requirements:
NOTE: Apply to water temperature 25 °C / 77 °F
Section B
Page 1
Installation Guide FTI-Eb Fixed Thermal Imaging System
B1 Installation diagrams
This section of the Installation Guide contains a series of simple installation
diagrams, covering the installation of the FTI-Eb thermal camera and its
mountings, accessories and services.
Section B
Page 2
Installation GuideFTI-Eb Fixed Thermal Imaging System
Fig. 1 FTI-Eb System Overview
Section B
Page 3
Installation Guide FTI-Eb Fixed Thermal Imaging System
Fig. 2a Rugged Enclosure and Mounting Dimensions
*
Section B
Page 4
Installation GuideFTI-Eb Fixed Thermal Imaging System
Fig. 2b Rugged Enclosure and Mounting Dimensions
Section B
Page 5
Installation Guide FTI-Eb Fixed Thermal Imaging System
152.0mm (5.9")
230.0mm (9.05")
DOOR SWING
12.5mm (0.5")
50 (1.96")
200.0mm (7.9")
255.0mm (10.04")
242.0 (9.5")
300.0 (11.8")
MOUNTING HOLES
4 OFF
Ø10.0mm (0.39")
CONDUIT FITTING
FOR CABLE TO
RUGGED HOUSING
CASE BOTTOM
200.0 (7.9")
Fig. 3 FTI PSU Mounting Details
Section B
Page 6
Installation GuideFTI-Eb Fixed Thermal Imaging System
Fig. 4 FTI-Eb Camera Installation and Dimension Diagrams
150.0 (5.9")
175.0 (6.9")
102.5 (4.04")
22.3 (0.88")
Ø62.0 (2.45")
175.0 (6.89")
201.3 (7.9")
17.8 (0.7")
VIEW SHOWING COVER REMOVED
FROM RUGGED HOUSING
CONNECT CABLE TO THIS CONNECTOR ON IMAGER
NOTE ALIGN RED DOTS FOR CORRECT ORIENTATION
FIT IMAGER LENS BODY
INTO THIS BORE
SECURE IMAGER TO RUGGED HOUSING USING THESE 2 CLAMPS
ADJUST AS NECESSARY
EXTEND APPROXIMATELY 250mm (10")
OF CABLE INCLUDING CONNECTOR
THROUGH THE CABLE
CLIP BEFORE CLAMPING
TO ADJUST ETHERNET IP ADDRESS, OPEN COVER AND ROTATE SWITCH.
IP ADDRESS = 10.1.10.10X WHERE X = ROTARY SWITCH POSITION.
(FACTORY DELIVERED ADDRESS = 10.1.10.102 POSITION 0 IS FOR DHCP
ONLY)
CONNECT CABLE TO THIS CONNECTOR ON IMAGER
(NOTE: ALIGN RED DOTS FOR CORRECT ORIENTATION)
TO ADJUST ETHERNET IP ADDRESS,
OPEN COVER AND ROTATE SWITCH.
IP ADDRESS = 10.1.10 10X WHERE
X = ROTARY SWITCH POSITION.
(FACTORY DELIVERED ADDRESS =
10.1.10 102 POSITION 0 IS FOR
DHCP ONLY)
NOTE: INSIDE THE WATER COOLED RUGGED ENCLOSURE EXTEND APPROXIMATELY 250mm (10”) OF CABLE
INCLUDING CONNECTOR THROUGH THE CABLE CLIP BEFORE CLAMPING
Other Ametek Thermal Camera manuals
