AMI MB960 User manual

MB960
Intel ®Sandy Bridge / PCH
ATX Motherboard
USER’S MANUAL
Version 1.0A

ii MB960 User’s Manual
Acknowledgments
AMI is a registered trademark of American Megatrends Inc.
PS/2 is a trademark of International Business Machines
Corporation.
Intel and Intel® Sandy Bridge DC/QC Processor are registered
trademarks of Intel Corporation.
Microsoft Windows is a registered trademark of Microsoft
Corporation.
Fintek is a registered trademark of Fintek Electronics Corporation.
All other product names or trademarks are properties of their
respective owners.

MB960 User’s Manual iii
Table of Contents
Introduction.......................................................1
Product Description.............................................................1
Checklist..............................................................................2
MB960 Specifications.........................................................3
Board Dimensions...............................................................5
Installations.......................................................6
Installing the CPU...............................................................7
Installing the Memory.........................................................8
Setting the Jumpers .............................................................9
Connectors on MB960 ......................................................13
BIOS Setup.......................................................20
Drivers Installation......................................46
Intel Chipset Software Installation Utility.........................47
VGA Drivers Installation ..................................................48
Realtek HD Audio Driver Installation...............................49
LAN Drivers Installation...................................................50
Intel® Management Engine Interface...............................52
ASMedia USB 3.0 Drivers................................................54
Appendix...........................................................55
A. I/O Port Address Map...................................................55
B. Interrupt Request Lines (IRQ)......................................56
C. Watchdog Timer Configuration....................................57

iv MB960 User’s Manual
This page is intentionally left blank.

INTRODUCTION
MB960 User’s Manual 1
Introduction
Product Description
The MB960F ATX motherboard is based on the latest Intel®Q67 chipset.
The platform supports 2nd generation Intel®Core processor family with
LGA1155 packing and features an integrated dual-channel DDR3
memory controller as well as a graphics core.
The latest Intel® processors provide advanced performance in both
computing and graphics quality. This meets the requirement of
customers in the gaming, POS, digital signage and server market
segment.
The Q67 platform is made with 32-nanometer technology that supports
Intel’s first processor architecture to unite the CPU and the graphics core
on the transistor level. The MB960FATX board utilizes the dramatic
increase in performance provided this Intel’s latest cutting-edge
technology. Measuring 305mm x 244mm, the MB960F offers fast
6Gbps SATA support (2 ports), USB3.0 (2 ports) and interfaces for
DVI-D, DVI-I and HDMI displays. MB960AF features IntelActive
Management Technology 7.0.
MB960F FEATURES:
Supports Intel®2nd Generation Core i7/i5/i3 QC/DC desktop
processors
Four DDR3 DIMM, 1066/1333MHz, Max. 16GB memory
Dual Intel®PCI-Express Gigabit LAN
Integrated Graphics for DVI-I, DVI-D/HDMI displays
4x SATA 2.0, 2x SATA 3.0, 14x USB 2.0, USB 3.0 (2 ports),
4x COM, Watchdog timer
1x PCI-E (x16), 1x PCI-E (x4), 4x PCI, 1x ISA
Optional AMT (MB960AF only)

INTRODUCTION
2 MB960 User’s Manual
Checklist
Your MB960 package should include the items listed below.
The MB960 ATX motherboard
This User’s Manual
1 CD containing chipset drivers and flash memory utility
Serial ATA cable

INTRODUCTION
MB960 User’s Manual 3
MB960 Specifications
Product Name MB960AF/MB960F
Form Factor ATX
CPU Type - Intel®Sandy Bridge 32nm QC/DC DT processor w/ IMC & Gfx
- LGA package[37.5 mm x 37.5mm](TDP: QC= 95W/65W ; DC = 65W)
**Sandy Bridge-DT is NOT socket compatible with Clarkdale/Lynnfield
CPU Speed Up to 3.1GHz
Cache Up to 8MB
CPU Socket LGA1155 (Socket H2)
Chipset Intel®Q67 PCH
27 x 27 mm package size
BIOS AMI BIOS, support ACPI Function
Memory Intel®2nd generation CoreTM i7/i5/i3 QC/DC mobile processor integrated
controller
DDRIII 1067/1333 MHz
- DIMM x 4 (w/o ECC), Max.16GB
VGA - Intel®2nd generation CoreTM i7/i5/i3 mobile processor integrated Gfx
DVI-I X 1 (thru Level shifter ASM1442)
DVI-D X 1 (thru Level shifter ASM1442)
HDMI X 1 (thru Level shifter ASM1442)
LAN 1. Intel® Lewisville 82579LM GbE PHY [MI960AF only]
or 82579VGbE PHY [MI960F only]
2. Intel®82583V as 2nd GbE
USB USB 2.0 host controller, supports 14 ports w/ two EHCI
- 4 ports in the rear panel
- Others reserved for onboard pin header (10 ports, 2.54mm pitch)
USB 3.0 host controller [ASMedia # ASM1042], support 2 ports
- 2 ports in the rear panel
Serial ATA Intel®Q67 PCH built-in SATA controller, supports total 6 ports
2 x SATA (3.0) 6Gbps+ 4 x SATA (2.0) 3Gbps ports (2 FIS based Port
Multiplier)
Audio Intel®Q67 PCH built-inHigh Definition Audio controller + ALC892 w/ 7.1 CH
LPC I/O Fintek F81865-I (Ver. C)
COM1 (RS232/422/485), COM2/COM3/COM4 (RS232), Hardware
Monitor (2 thermal inputs,4 voltage monitor inputs & 2 Fan headers)
COM1/2 with pin-9 with power for 2 ports (500 mA for each port)
Digital IO 4 in & 4 out
IAMT(7.0) Intel®Q67 PCH built-in (MI960AF only)
- Intel®Active Management Technology ver. 7.0
TPM 1.2 Winbond WPCT210A (MB960AF only)
PCI to ISA ITE IT8888G x 1 for high ISA bus
PATA JMicron JMB368 (PCI-e to PATA) x1 for 1 PATA channel
- CF x1 ( Horizontal type)
Expansion Slots - PCI-Express (16x) x1 [PEG]; PCI-Express (4x) x1; PCI x4; ISA x1
Edge
Connectors DVI-D + DVI-I stack connector; Dual DB9 stack connector for COM #1, #2
Dual USB (3.0) dual stack connector; HDMI stack connector
Gigabit LAN RJ-45 + dual USB (2.0) stack connector x2
RCA Jack 3 x 1 for HD Audio
Onboard
Header/
Connector
2 ports x SATA III [Blue color]; 4 ports x SATA II
2x5 pin-header x5 for 10 ports USB; 2x5 pin-header for front panel audio
2x10 pin-header for COM3 (RS232) & COM4 (RS232)
2x5 pin-header for Digital IO
Watchdog Timer Yes (256 segments, 0, 1, 2…255 sec/min)
System
Voltage ATX
Others LAN Wakeup, EuP feature (Fintek F75160), UL 60950-1 2nd Edition
compatible

INTRODUCTION
4 MB960 User’s Manual
Board Size 305mm x 244mm

INTRODUCTION
MB960 User’s Manual 5
[

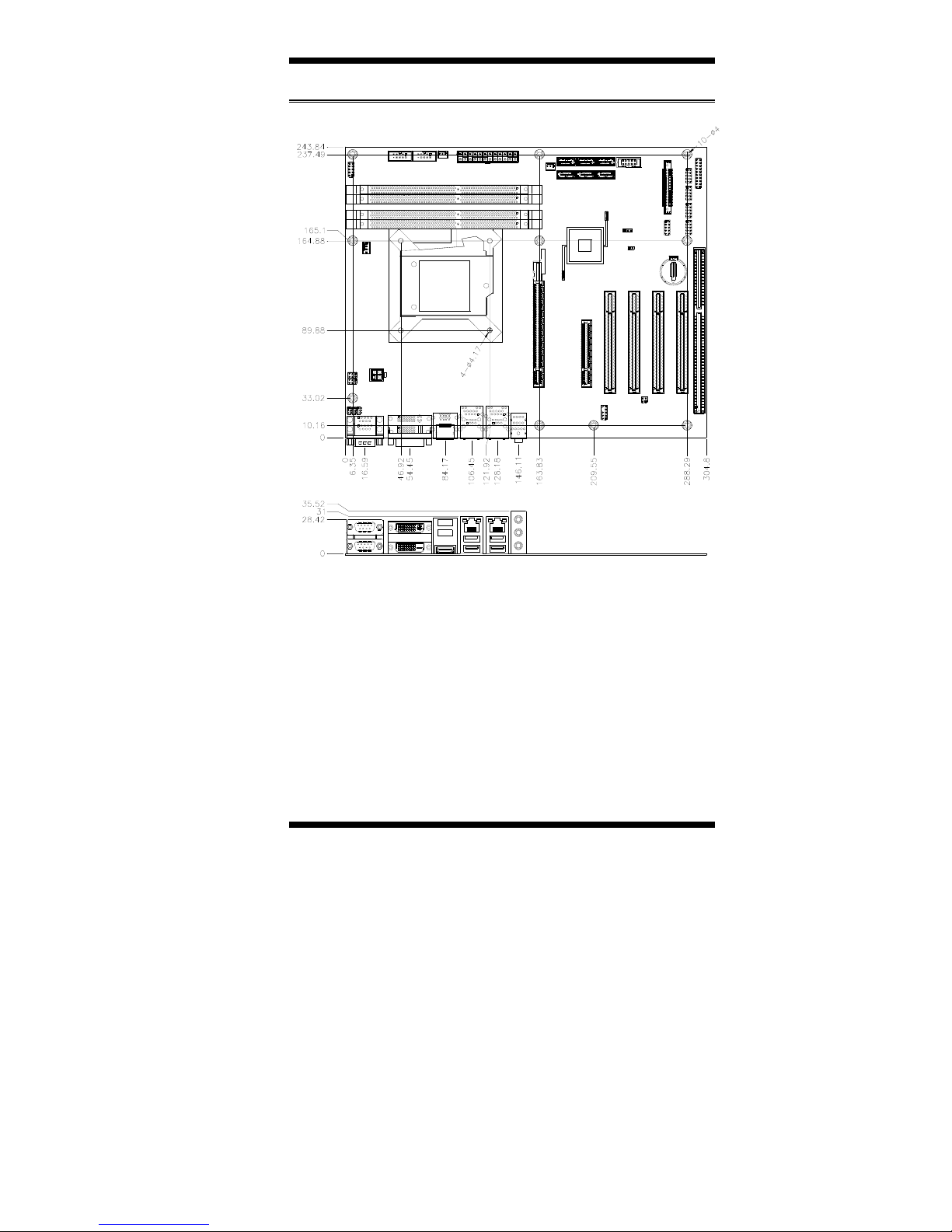

Board Dimensions

INSTALLATIONS
6 MB960 User’s Manual
Installations
This section provides information on how to use the jumpers and
connectors on the MB960 in order to set up a workable system. The
topics covered are:
Installing the CPU..................................................................................7
Installing the Memory............................................................................8
Setting the Jumpers................................................................................9
Connectors on MB960.........................................................................13

INSTALLATIONS
MB960 User’s Manual 7
Installing the CPU
The MB960 board supports an LGA1155 Socket (shown below) for
Intel Sandy Bridge processors.
To install the CPU, unlock first the socket by pressing the lever
sideways, then lift itup to a 90-degree. Then, position the CPU above the
socket such that the CPU corner aligns with the gold triangle matching
the socket corner with a small triangle. Carefully insert the CPU into the
socket and push down the lever to secure the CPU. Then, install the heat
sink and fan.
NOTE: Ensure that the CPU heat sink and the CPU top surface are in
total contact to avoid CPU overheating problem that would
cause your system to hang or be unstable.

INSTALLATIONS
8 MB960 User’s Manual
Installing the Memory
The MB960 board supports four DDR3 memory socket for a maximum
total memory of 16GB in DDR3 DIMM memory type.
Installing and Removing Memory Modules
To install the DDR3 modules, locate the memory slot on the board and
perform the following steps:
1. Hold the DDR3 module so that the key of the DDR3 module aligned
with that on the memory slot.
2. Gently push the DDR3 module in an upright position until the clips of
the slot close to hold the DDR3 module in place when the DDR3
module touches the bottom of the slot.
3. To remove the DDR3 module, press the clips with both hands.
DDR3 Module
Lock Lock
Lock Lock

INSTALLATIONS
MB960 User’s Manual 9
Setting the Jumpers
Jumpers are used on MB960 to select various settings and features
according to your needs and applications. Contact your supplier if you
have doubts about the best configuration for your needs. The following
lists the connectors on MB960 and their respective functions.
Jumper Locations on MB960 .............................................................. 10
JP1, JP2, JP3: RS232/RS422/RS485 (COM1) Selection .................... 11
JP4: COM1 RS232 RI/+5V/+12V Power Setting ............................... 11
JP5: COM2 RS232 RI/+5V/+12V Power Setting ............................... 11
JP8: Flash Descriptor Security Overide (Factory use only) ................ 12
JBAT1: Clear CMOS Contents ........................................................... 12

INSTALLATIONS
10 MB960 User’s Manual

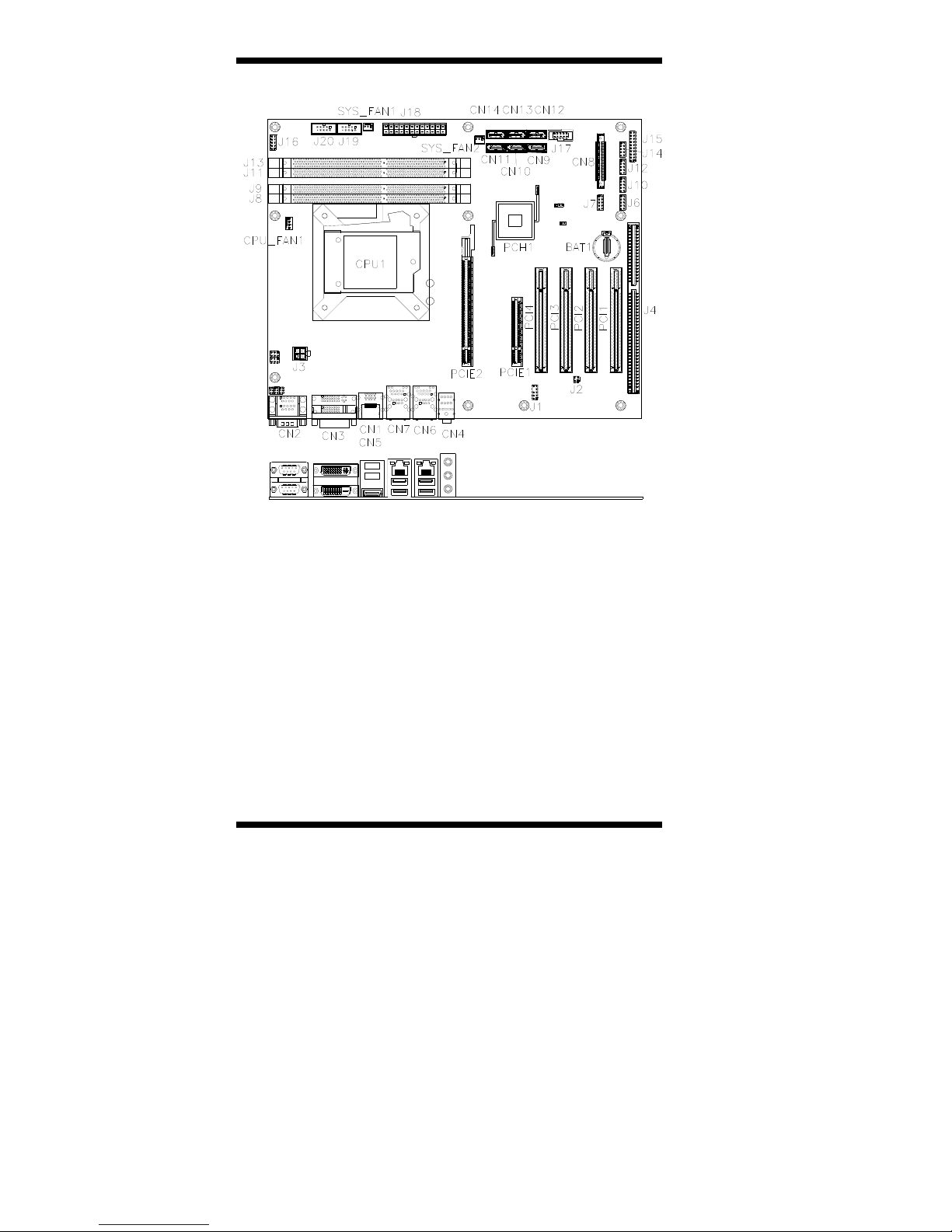

Jumper Locations on MB960
Jumpers on MB960.......................................................................... Page
JP1, JP2, JP3: RS232/RS422/RS485 (COM1) Selection.....................11
JP4: COM1 RS232 RI/+5V/+12V Power Setting................................11
JP5: COM2 RS232 RI/+5V/+12V Power Setting................................11
JP8: Flash Descriptor Security Override (Factory use only) ...............12
JBAT1: Clear CMOS Contents............................................................12

INSTALLATIONS
MB960 User’s Manual 11
JP1, JP2, JP3: RS232/RS422/RS485 (COM1) Selection
COM1
Function RS-232 RS-422 RS-485
Jumper
Setting
(Pin closed)
JP1:
3-5&4-6
JP3:
1-2
JP2:
3-5 & 4-6
JP1:
1-3&2-4
JP3:
3-4
JP2:
1-3 & 2-4
JP1:
1-3&2-4
JP3:
5-6
JP2:
1-3 & 2-4
JP4: COM1 RS232 RI/+5V/+12V Power Setting
JP4 Setting Function
Pin 1-2
Short/Closed +12V
Pin 3-4
Short/Closed RI
Pin 5-6
Short/Closed +5V
JP5: COM2 RS232 RI/+5V/+12V Power Setting
JP5 Setting Function
Pin 1-2
Short/Closed +12V
Pin 3-4
Short/Closed RI
Pin 5-6
Short/Closed +5V

INSTALLATIONS
12 MB960 User’s Manual
JP8: Flash Descriptor Security Override (Factory use only)
JP8 Flash Descriptor Security
Override
Open Disabled
(Default)
Close Enabled

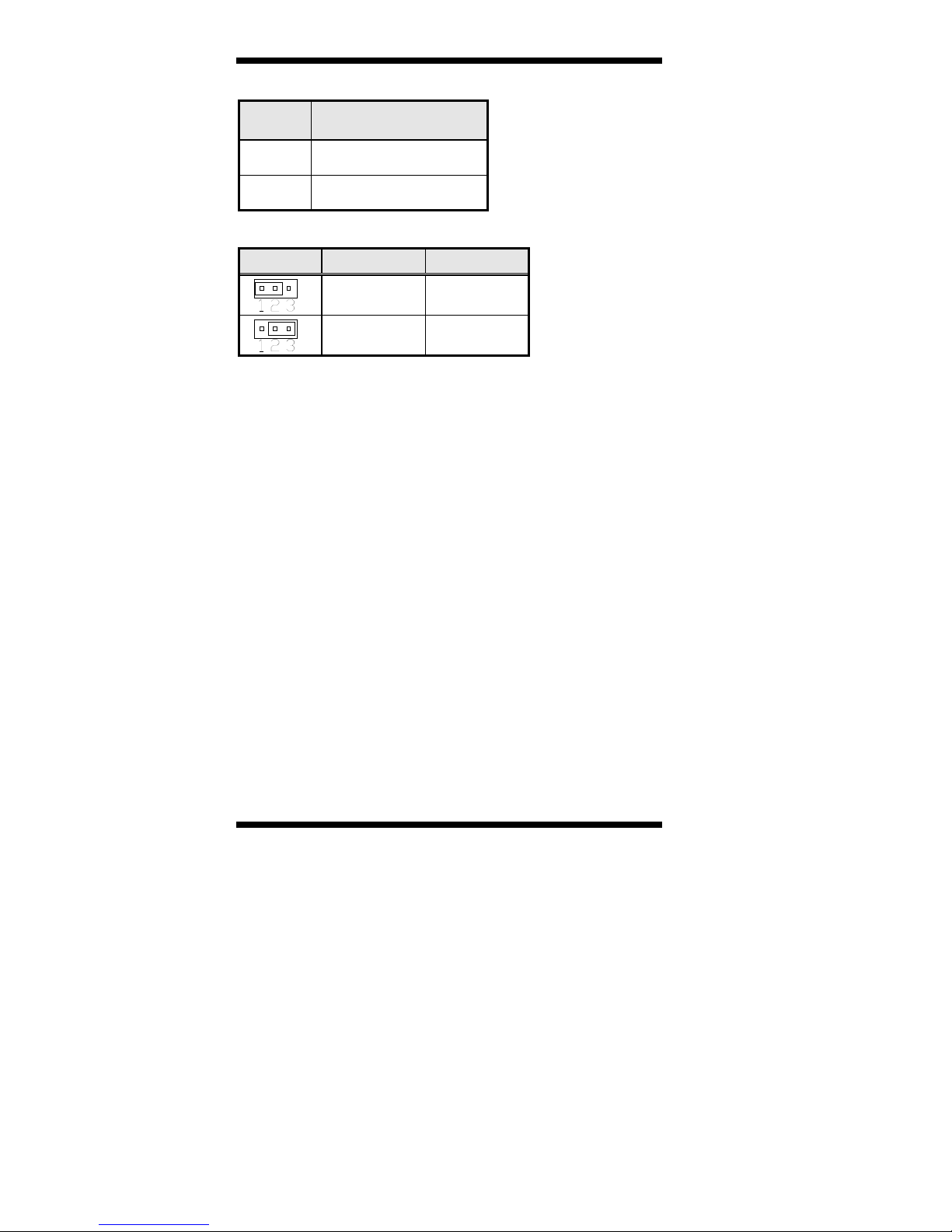

JBAT1: Clear CMOS Contents
JBAT1 Setting Function
Pin 1-2
Short/Closed Normal
Pin 2-3
Short/Closed Clear CMOS

INSTALLATIONS
MB960 User’s Manual 13
Connectors on MB960
Connector Locations on MB960 ......................................................... 14
CN2: COM1 and COM2 Serial Ports.................................................. 15
CN3: DVI-D and DVI-I Connector..................................................... 15
CN5: USB3.0 Connector..................................................................... 16
CN1: HDMI Connector....................................................................... 16
CN7: Gigabit LAN (Intel 82579LM) + USB 2/3................................ 16
CN6: Gigabit LAN (Intel 82583V) + USB 0/1 ................................... 16
CN4: HD Audio Connector................................................................. 16
J16: Digital I/O.................................................................................... 17
J18: ATX Power Supply Connector.................................................... 17
J19, J20: COM3, COM4 RS232 Serial Ports ...................................... 17
J3: ATX 12V Power Connector .......................................................... 17
J6, J7, J10, J12, J14: USB Connectors................................................ 18
J2: SPDIF I/O...................................................................................... 18
J1: Audio Pin Header for Chassis Front Panel.................................... 18
J15: Front Panel Function Connector.................................................. 18
CPU_FAN1: CPU Fan Power Connector............................................ 19
SYS_FAN1: System Fan1 Power Connector...................................... 19
SYS_FAN2: System Fan2 Power Connector...................................... 19
CN9, CN10, CN11, CN12, CN13, CN14: SATA Connectors............ 19
CN8: Compact Flash Connector.......................................................... 19
J17: SPI Flash Connector (Factory use only)...................................... 19
J4: ISA Slot (shared with PCI1).......................................................... 19
PCIE2: PCI-E X16 Slot....................................................................... 19
PCIE1: PCI-E X8 Slot (X4 Link)........................................................ 19
PCI1-PCI4: PCI 32-bit Slot................................................................. 19

INSTALLATIONS
14 MB960 User’s Manual
Connector Locations on MB960

INSTALLATIONS
MB960 User’s Manual 15
CN2: COM1 and COM2 Serial Ports
[
Pin # Signal Name
RS-232 R2-422 RS-485
1 DCD TX- DATA-
2 RX TX+ DATA+
3 TX RX+ NC
4 DTR RX- NC
5 Ground Ground Ground
6 DSR NC NC
7 RTS NC NC
8 CTS NC NC
9 RI NC NC
10 NC NC NC
CN3: DVI-D and DVI-I Connector
Signal Name Pin # Pin # Signal Name
DATA 2- 1 16 HOT POWER
DATA 2+ 2 17 DATA 0-
Shield 2/4 3 18 DATA 0+
DATA 4- 4 19 SHIELD 0/5
DATA 4+ 5 20 DATA 5-
DDC CLOCK 6 21 DATA 5+
DDC DATA 7 22 SHIELD CLK
VSYNC 8 23 CLOCK -
DATA 1- 9 24 CLOCK +
DATA 1+ 10 C1 Red
SHIELD 1/3 11 C2 Green
DATA 3- 12 C3 Blue
DATA 3+ 13 C4 HSYNC
DDC POWER 14 C5 A GROUND2
A GROUND 1 15 C6 A GROUND3

INSTALLATIONS
16 MB960 User’s Manual
[
Signal Name Pin # Pin # Signal Name
DATA 2- 1 16 HOT POWER
DATA 2+ 2 17 DATA 0-
Shield 2/4 3 18 DATA 0+
DATA 4- 4 19 SHIELD 0/5
DATA 4+ 5 20 DATA 5-
DDC CLOCK 6 21 DATA 5+
DDC DATA 7 22 SHIELD CLK
N.C 8 23 CLOCK -
DATA 1- 9 24 CLOCK +
DATA 1+ 10 C1 N.C.
SHIELD 1/3 11 C2 N.C.
DATA 3- 12 C3 N.C.
DATA 3+ 13 C4 N.C.
DDC POWER 14 C5 N.C.
A GROUND 1 15 C6 N.C.
CN5: USB3.0 Connector
CN1: HDMI Connector
CN7: Gigabit LAN (Intel 82579LM) + USB 2/3
CN6: Gigabit LAN (Intel 82583V) + USB 0/1
CN4: HD Audio Connector
