AMI M52 User manual

Operating & Installation
Instruction
M52
T
ESTED and LISTED to CAN/ULC S627 AND UL 1482
Meets the Environmental Protection Agency's 2020 Crib wood Particulate Emission Standards
www.amistoves.com
1

Safety Notice
If this solid fuel room heater is not properly installed, a house fire may result. For your
safety and to reduce the risk of fire, follow the installation instructions. Contact local
building officials, fire officials or the authority having jurisdiction about restrictions and
installation inspection requirements in your area, including the need to obtain a permit.
Kindly save these instructions for future reference.
WARNING
HOT GLASS WILL CAUSE BURNS. DO NOT TOUCH GLASS UNTIL COOLED.
NEVER ALLOW CHILDREN TO TOUCH GLASS.
VERY IMPORTANT
PLEASE READ THIS ENTIRE MANUAL BEFORE YOU INSTALL AND USE YOUR NEW AMI STOVE. FAILURE TO
FOLLOW INSTRUCTIONS MAY RESULT IN PROPERTY DAMAGE, BODILY INJURY, OR EVEN DEATH! FAILURE TO
READ AND FOLLOW THESE INSTRUCTIONS BEFORE YOU PROCEED MAY RESULT IN DAMAGE, VOIDING YOUR
WARRANTY.
DO NOT USE CHEMICALS OR FLUIDS TO START THE FIRE.
DO NOT BURN GARBAGE OR FLAMMABLE FLUIDS SUCH AS GASOLINE, NAPHTHA OR ENGINE OIL.
HOT WHILE IN OPERATION. KEEP CHILDREN, CLOTHING AND FURNITURE AWAY. CONTACT MAY CAUSE SKIN
BURNS.
DO NOT TAMPER WITH OR USE THE SPIN DRAFT AIR CONTROL IN THE FUEL LOADING DOOR. USING THIS
CONTROL WILL CAUSE AN OVERFIRING CONDITION.
Please contact the AMI® dealer in your area if you have any questions about your stove that
are not covered in this manual.
Congratulations on purchasing a genuine AMI® stove. When cared for properly, the high
quality and finely crafted cast iron stoves will offer many years of reliable performance. This
instruction manual has been developed to ensure optimum performance from the AMI®
stove.
2

Table of Contents
Specications ......................................................................................................... 4
Stove Safety ..........................................................................................................4
Check Building Codes .......................................................................................................... 6
Before Installing Your Stove ..........................................................................................................6
Adequate Air Provision ..........................................................................................................6
Stove Dimensions ......................................................................................................... 6
Residential Installation .......................................................................................................... 7
Floor Protection .......................................................................................................... 7
Installation Clearances .......................................................................................................... 8
Well Sealed Flue System ...........................................................................................................10
Chimney Connector ............................................................................................................10
Chimney ............................................................................................................11
Factory Built Chimney ............................................................................................................11
Masonry Chimney ............................................................................................................13
Masonry Fireplace .......................................................................................................... .14
Combustible Wall Chimney Connector Pass-Through .................................................................15
Mobile Home Installation ....................................................................................................... 16
Securing Bracket Installation ...................................................................................................... .16
Mobile Home Clearances .........................................................................................................17
Installation ..........................................................................................................17
Procedure ..........................................................................................................17
Combustion Air .......................................................................................................... 17
Baffle Board / Tube Installation ................................................................................................... 18
Removal ...........................................................................................................19
Installation .......................................................................................................... 19
Operating Your Stove ........................................................................................................... 19
Fuel ........................................................................................................... 20
First Operation of Stove ............................................................................................................20
Air Controls ............................................................................................................20
Air Control Settings For All Four EPA Burn Rates...................................................................21
Ash Removal and Disposal of Ashes ...........................................................................................22
Stove Maintenance ............................................................................................................22
Care of Fire Bricks ................................................................................................................23
Care of Glass ................................................................................................................23
Replacement of Glass .................................................................................................................23
Replacement Parts .................................................................................................................24
Surface Finish .................................................................................................................24
Parts List Diagram ................................................................................................................. 25
Parts List ..................................................................................................................26
Trouble Shooting .................................................................................................................. 26
Fire Not Burning ...................................................................................................................26
Glass Blackens ...................................................................................................................27
Smoke in Room ...................................................................................................................27
Fire Burning Too Quickly ..............................................................................................................28
Chimney Fire ...................................................................................................................28
Warranty Policy & Procedures ...................................................................................................29
Warranty Exclusions and Limitations ..........................................................................................29
Sample of Label ..................................................................................................................30
3

Specifications
This AMI stove meets the 2020 U.S. Environmental Protection Agency's crib wood emission
limits. Under specific test conditions, this stove has been shown as follows:
EPA BTU Output : 13,890 -- 28,962
EPA Certified Emissions : 1.47grams per
hourLHV Tested Efficiency: 78.0%
HHV Tested Efficiency : 72.1% btu/hr
Peak BTU/Hr Output : 33,000 btu/hr.
Heating Area: 1200 Sq. Feet
Size of Fire Box: 0.8 Cubic Feet
Maximum Wood Length : 13 inches
Ideal Wood Length : 12 inches
Real Net Weight: 193 lbs (± 5lbs) / 88 kgs (± 2kgs)
Dimension (H x W x D): 24" x 17 1/2" x 16 3/4" (610mm x 445mm x 425mm)
Flue Size: 6" (150mm)
Fuel : Seasoned Cord wood
Experience will give you the right settings for proper combustion and efficient burning.Remember the
correct air inlet control setting is affected by variables such as type of wood,outside temperature, chimney
size and weather conditions. With practice, you will become proficient in operating your stove and will
obtain the performance for which it was designed.
Stove Safety
Important safety aspects of AMI stove that you need to be aware of when operating. We
recommend that you have your AMI stove installed by a professional installer of solid fuel
burning appliances.
1. If this room heater is not properly installed, a house fire may result. To reduce the risk of
fire, follow the installation instructions. Failure to follow these instructions may result in
property damage, bodily injury, or even death!
2. Avoid creating a low pressure condition in the room where the stove is operating.
Operating an exhaust fan or a clothes dryer could create a low pressure area, causing
poisonous gases to come out of the stove into the room.
4

3. Only use drying solid wood fuel to loading and re-loading ; Do not burn treated wood ,
unseasoned wood, colored paper, cardboard, solvents, trash and garbage;
4. DO NOT USE CHEMICALS TO START THE FIRE. Never use gasoline, kerosene, charcoal,
lighter fluid, engine oil, or similar liquids to start or ‘freshen up’ a fire . Keep all such liquids
well away from the stove while it is in use.
5. The burning of wood gives off gases which can be extremely dangerous. It is important
that your flue system is properly installed and that you check all joints regularly to ensure
that there are no cracks or gaps. Check the door sealing rope and replace when damaged.
We recommend a smoke detectors and carbon monoxide monitors be fitted in rooms where
stoves are installed. Do not use stove in a room where negative pressure conditions may
occur , such as through the use of extraction fans.
6. Creosote and soot may accumulate in your flue pipe and chimney. This may ignite,
causing a chimney fire. If you suspect a chimney fire, evacuate people from the building,
close down the air controls on the stove and call the Fire Department. To prevent
accumulation of soot or creosote, check flue and chimney regularly and clean as necessary.
Good burning, hot stoves will generally cause a lot less build-up than slow burning stoves.
Likewise, dry wood will cause less build-up than wet wood. We recommend a fire
extinguisher be available where stoves are in operation. In the event of a chimney fire, do
not re-light the stove until it and the flue chimney system have been thoroughly checked by
fire officials and repaired as necessary.
7. Stoves get extremely hot and should not be touched when lit. When young children are in
the area, we recommend the use of a suitable fire guard around the stove. Always wear
protective gloves when reloading the stove.
8. Never over-fire your stove. If external parts of your stove are glowing red, then the stove
is over-firing and your draft settings should be reduced. Never use a fan to supply air to the
stove or to extract air from it.
9. All users of the stove should be aware of the contents of this manual. Please leave the
manual where it is accessible to stove users and do not allow anyone to use the stove that is
unfamiliar with its correct operation.
10. Never use the stove if any parts are missing or damaged. Only use genuine parts as
replacements. Never modify your stove.
5

Check Building Codes
•When installing, operating and maintaining your stove, follow the guidelines presented in
these instructions, and make them available to anyone using or servicing the stove.
•Your city, town, county or province may require a building permit to install a solid fuel
burning appliance.
• In the U.S., the National Fire Protection Association's Code, NFPA 211, Standards for
Chimneys, Fireplaces, Vents and Solid Fuel Burning Appliances, or similar regulations, may
apply to the installation of a solid fuel burning appliance in your area.
• Always consult your local building inspector or authority having jurisdiction to determine
what regulations apply in your area.
Before installing your stove
You need to consider the following to ensure the safe operation of your stove:
• Provision of adequate air to support efficient combustion of the fuel
• A well-sealed flue/chimney system, herein after referred to as the "flue system"
• The protection of combustible materials in proximity to the stove
Adequate air provision
It is essential for the safe and efficient use of your stove that you provide an adequate air
supply when lighting a fire. Crack the door open a little and allow air to enter. Once the air
in the stove and the flue stabilize, you can then close the door of the stove. Failure to do so
will mean that fuel is burned inefficiently, causing smoke and blackening the glass and may
also cause smoke to come back into the room.
Stove Dimensions
Figure 1: Dimensions
6

Residential Installation
Unpacking and preparing your stove for installation:
1. Open the door and unfasten the wire on the fire fence. It is used to ensure that the glass
does not break during transportation.
2.
*
* Spare glass clips --- 4 pcs
* Spare screws (M5 x 8mm) --- 2 pcs
* Wooden handle ---
* Wooden handle holder ---
*
* Operating tool ---
*
* Securing bracket - 2 pcs
* Bracket screws ( M10 x 100 mm) --- 2 pcs
3. Fix the flue collar on the outlet which you selected by using the M6 x 20mm flat cross
head screw. Ensure all seals are secure to prevent air leakage. If you choose the rear flue
outlet, remove the flue cover before fixing the flue collar.
4. Fix the wooden handle on the stainless steel door handle with the M8 x 90mm bolt.
5. Keep the rest of the screws and Allen wrench for future use.
In the unlikely event that something is missing, please contact your dealer immediately.
This wood heater has a manufacturer-set minimum low burn rate that must not be altered. It
is against federal regulations to alter this setting or otherwise operate this wood heater in a
manner inconsistent with operating instructions in this manual.
The floor protection
If the stove is to be installed on a combustible floor, it must be placed on a non-combustible
(a minimum K value of 23.7 btu/ft h °F /the equivalent of 20 Gauge steel) hearth pad. Floor
protection under the stove must be a UL 1618 Type 1 Ember Protector composed of non-
combustible material for protection from radiant heat, sparks and embers.
7

Individual sections of floor protection must be mortared together to prevent sparks from
falling through to combustible materials. Any carpeting must be removed from under the
floor protection.

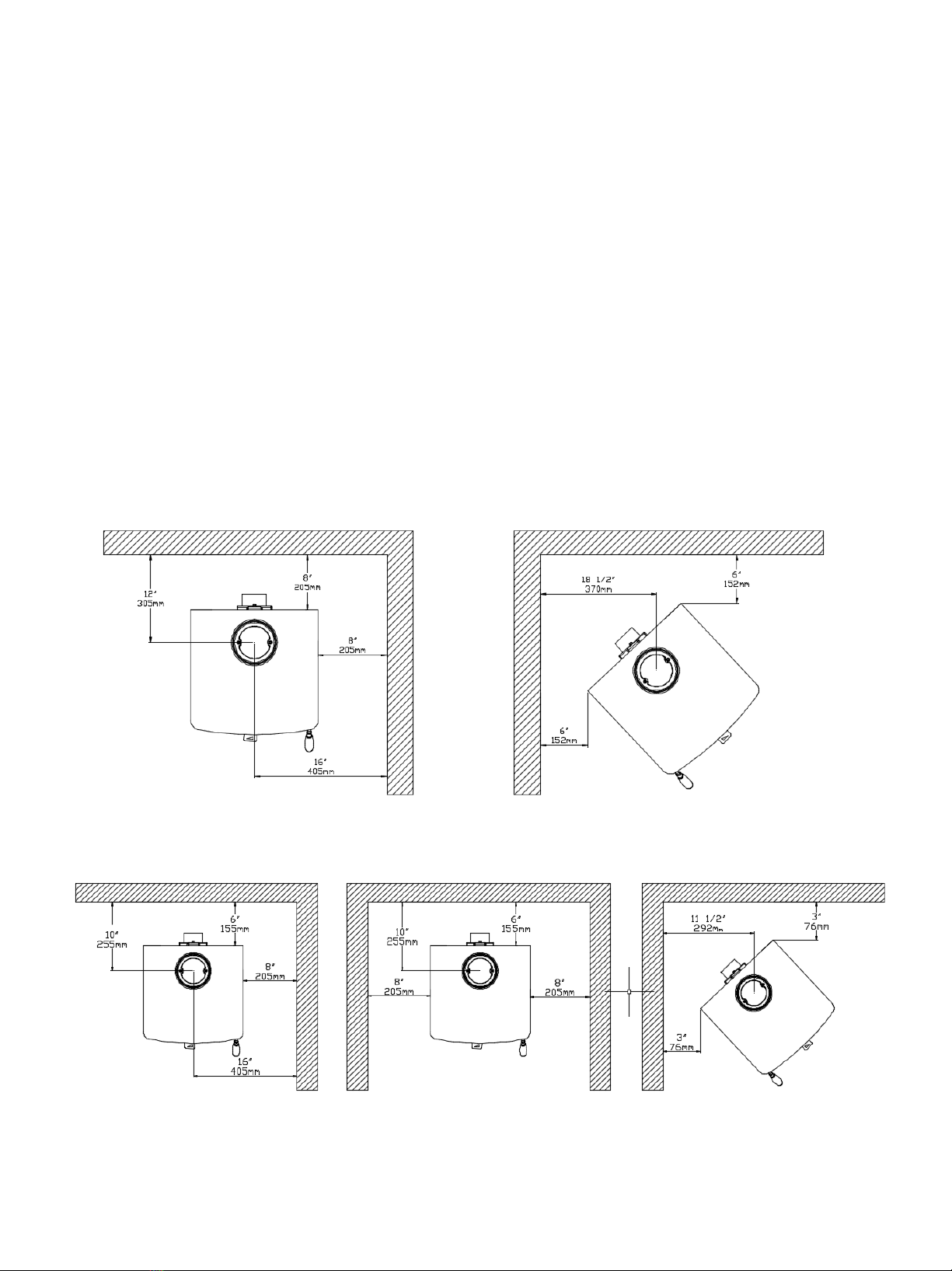

This protection must extend as follows:
In Canada: 18" (457 mm) from the loading door on the ring side and 8" (203 mm) from the
sides as below.
In USA: 16" (406 mm) to the front of the fire-box and 8" (203 mm) from the side; This
protection is also required under the chimney connector and 2" (51 mm) beyond each side.
参考 P13：
Figure 3: TN10 - CAN Floor protector. Figure 4: TN10 - US Floor protector
Figure 2: CAN Floor protector Figure 3: US Floor protector
Installation Clearances
It is extremely important that you respect required installation distances and that you
respect local installation regulations. This is for your safety. The manufacturer is not
responsible for the product if it is not installed following these recommendations. These
clearances may only be reduced by means approved by the regulatory authority.
One necessary precaution when installing AMI stove is to leave sufficient space between the
room heater (top, sides, back, front, and under stove pipes) and any other material that can
catch fire. The clearance from the top of the unit to the ceiling is 75" (190.5 cm). All other
clearances are found in the table below.
A combustible surface is anything that can burn (i.e. sheet rock, wall paper, wood, fabrics,
etc.) These surfaces are not limited to those that are visible and also include materials that
are behind non-combustible materials. If you are not sure of the combustible nature of a
material, consult your local fire officials.
8

CHIMNEY SYSTEM AND CONNECTOR MUST BE 6"(150mm) DIAMETER AND LISTED TO:
CANADA ：CONNECTOR LISTED to ULC S-641 and CHIMNEY LISTED to ULC-S-629
USA ：CONNECTOR AND CHIMNEY LISTED to UL-103 HT
1. Residential Clearances to Combustible surfaces and materials;
This stove may be installed using a single-wall connector (smoke pipe) as per local and
National fire and Installation codes. Clearances may be reduced with various heat shielding
or insulating materials. Consult national fire codes and authorities for approval ( U.S. -NFPA
211 or CAN. - CSA B365) ,For closer clearances, use a listed double-wall connector.
2. Mobile Home installation must use listed double-wall connector.
Minimum Clearance to Combustibles
Single Wall Connector - Residential
Double Wall Connector - Residential
Alcove: Min. Height 4' / 1.125m Max. Depth 3' / 915mm
Figure 4 : clearances
9

Well Sealed Flue System
Only materials and items approved for solid fuel stoves should be used for your stove.
Under no circumstances should you use aluminum or galvanized steel pipes for your stove
flue.
Always fit pipes with the narrow side down. This will allow any creosote to run down the
inside of the pipe and not to come out and cause an unsightly mess and possible fire hazard.
All joints in the flue system should be sealed with fire cement and/or an appropriate fire
resistant rope or gasket.
Pipe bends should be kept to a minimum and we do not recommend using more than 2
bends on any installation. Flues must not pass through ceilings, floors, attics, roofs, or
combustible walls without adequate and approved insulation being provided to protect
combustible materials.
The chimney and flue provide a means of taking combusted fuel from the stove, as well as a
draft to enable the stove to work. It is essential that the flue system is kept in good
condition and there are no breaks or cracks allowing contact with any other combustible
materials of the house. It is also essential that the flue system is kept clean and seals are
maintained to ensure the draft is not lost.
The open end of the flue system must be above the height of the apex of the building and
any other obstructions, such as trees, which are within 10 feet (3m) of the flue system.
Failure to do this will affect the efficiency of the stove and may cause down drafts, which
will mean dangerous products of combustion are emitted into room.
Chimney Connector
Double-Wall Connector
• Use a listed double-wall connector.
• Install all components to the chimney connector manufacturer's installation requirements.
Single-Wall Connector
The chimney connector MUST be 6" in diameter, with a minimum thickness of 24 gauge
black steel or 26 gauge blue steel.
10

Aluminum and galvanized steel pipe is not acceptable for use with the appliance. These
materials cannot withstand the extreme temperatures of a wood fire and can give off toxic
fumes when heated.
Do not use the connector pipe as a chimney.
Each chimney connector or stove pipe section must be installed to the stove flue collar and
to each other with the male (crimped) end toward the stove.
Chimney
• DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING ANOTHER
APPLIANCE.
• DO NOT CONNECT TO ANY AIR DISTRIBUTION DUCT OR SYSTEM.
• THIS STOVE MUST BE CONNECTED TO:
CHIMNEY SYSTEM LISTED TO: UL 103HT (USA) or ULC-S629 (CANADA)
OR A CODE APPROVED MASONRY CHIMNEY WITH A FLUE LINER.
Chimney Height
A masonry chimney or a listed factory-built chimney must be the required height above the
roof and any other nearby obstructions. The chimney must be at least 3 feet (91 cm) higher
than the highest point where it passes through the roof and at least 2 feet (61 cm) higher
than the highest part of the roof or structure that is within 10 feet (305 cm) of the chimney,
measured horizontally. not too close to neighbors or in valleys that would cause unhealthy
air quality or nuisance conditions.
Figure 6 : Chimney Height
Factory-Built Chimney
When a metal prefabricated chimney is used, the manufacturer's installation instructions
must be followed.
You must also purchase (from the same manufacturer) and install the ceiling support
package or wall pass-through and "T" section package, fires tops (where needed), insulation
shield, roof flashing, chimney cap, etc. Maintain proper clearance to the structure as
recommended by the manufacturer. The chimney must be the required height above the
roof or other obstructions for safety and proper draft operation.
F
figure 5 : Chimney Connector
11

Spark arrester
rain cap
Follow chimney manufacture specifcations for
distance between vent termination heigth and
chimney at roof line. Also consult local building
regulations.
Listed
Insulated
Chimney
Storm collar
Roof
flashing
Minimum 5’[1.52m]
Ceiling Height
The chimney may incorporate an
offset. To do this safely, all
sections of listed connector, offset
elbows and chimney section must
be screwed together by at least
three sheet metal screws per joint.
The chimney must be suitably
supported by the chimney
manufacturer's listed offset
support. All vent manufacturer or
national fire code clearances to
combustible must be observed.
36“[915mm]
Minimum
Chimney
connector
as per Local
and Federal
codes
12”[300mm]
Minimum first
section of pipe
*
Chimney Support
WallThimble
Alternate up and
out installation
Unit may be harder
to start. Please provide
as much vertical length
for the first section
of pipe as possible
Combustibles in
front of the unit
48”
[1.2 m]
Non-combustible
Ember Protector
* 3”(76 mm) diameter airinlet
with rodent screen.
* If the crawl space is well ventilated
it is not necessary to extend air inlet
to outside.
3" diameter hooded
air inlet or 90 elbow
turned down with
rodent screen.
*

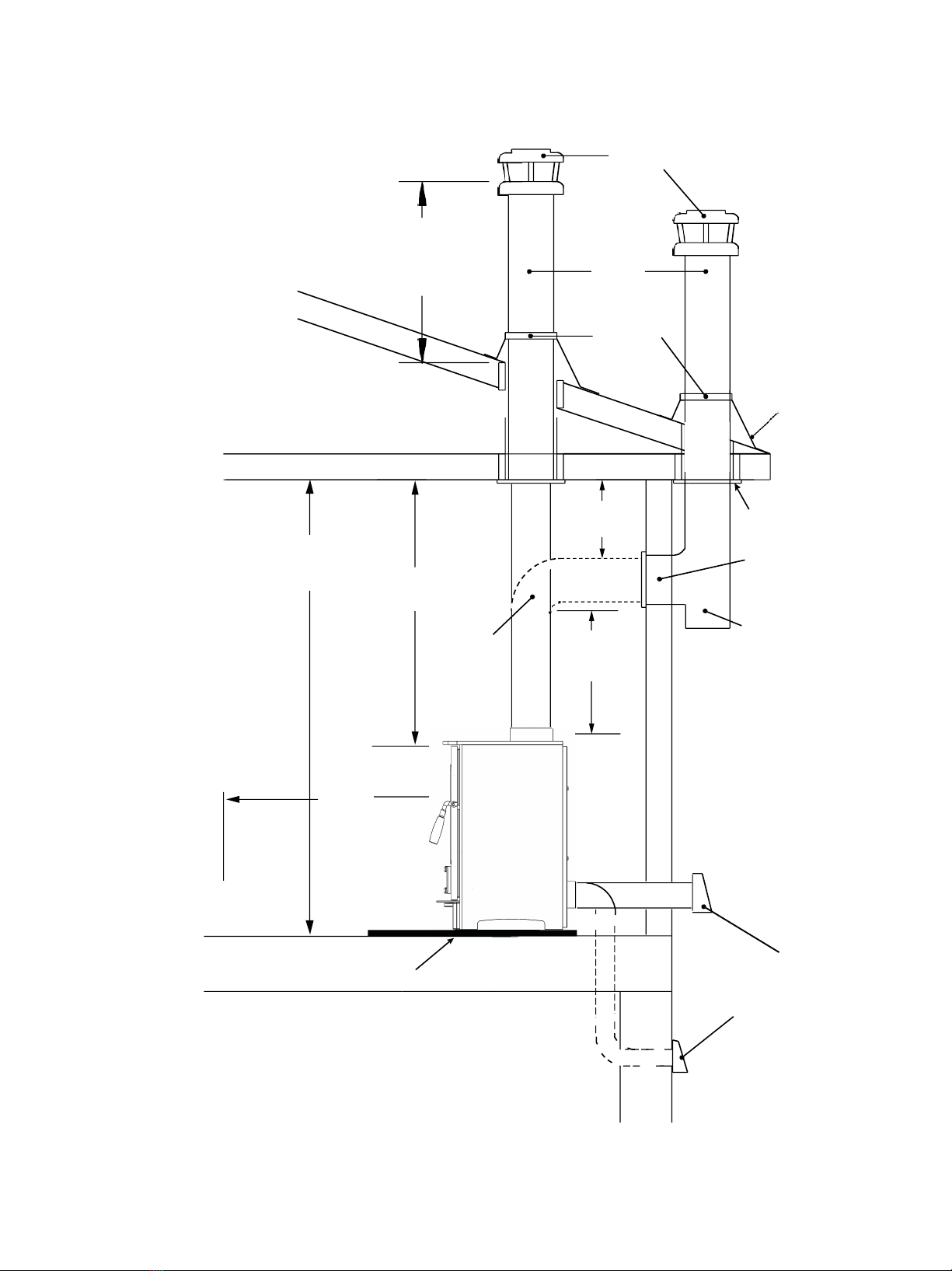

Figure 7 : Factory-Built Chimney
12

Fireclay Flue Liner
Concrete Cap
Chimney
Minimum Ceiling
Height 5’(1.52 m)
36”(915mm)
Minimum
Approved Through
Wall Installation
Chimney
Connector
Combustibles
in front of the
unit
48”
(1219mm)
Non-combustible
Ember Protector
* 3"(76mm) diameter air inlet with rodent screen
* If the crawl space is well ventilated it is not necessary
to extend air inlet to outside
Hooded vent or 90°
elbow turned down.
Ensure that the Masonry chimney
meets all National Fire Protection
Association and local building codes.
Have the chimney cleaned and
inspected bya professional toensure
there are no cracks, weak mortar or
other signs of deterioration. See pipe
manufactuersinstallationinstructions
for further information
Figure 8 : Masonry Chimney
Masonry Chimney
Ensure that a masonry chimney meets the minimum standards of the National Fire
Protection Association (NFPA) by having it inspected by a professional. (Must meet
13

Masonry Fireplace
Ensure that a masonry fireplace meets the minimum standards of the National Fire
Protection Association (NFPA) by having it inspected by a professional. (Must meet
installation specifications provided in NFPA 211.) There are listed kits available to connect a
stove to a masonry fireplace. The kit is an adapter that is installed at the location of the
fireplace damper. The existing damper may have to be removed to allow installation.
Figure 9 : Masonry Fireplace
14

Combustible Wall Chimney Connector Pass-Throughs
15

Mobile Home Installation
Warning: Under no circumstances is the stove to be installed in a makeshift or "temporary"
manner. It may be fired only after the following conditions have been met.
• DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING ANOTHER APPLIANCE.
• DO NOT INSTALL IN A SLEEPING ROOM.
THIS HEATER MUST BE INSTALLED WITH LISTED DOUBLE-WALL CONNECTOR. BOTH
CHIMNEY SYSTEM AND CONNECTOR MUST BE 6"(150mm) DIAMETER AND LISTED TO:
IN CANADA - ULC S-641 LISTED CONNECTOR AND ULC-S-629 LISTED CHIMNEY,
IN USA - UL-103 HT LISTED CONNECTOR AND CHIMNEY
• Outside combustion air supply must be used for Mobile Home installations see
"Combustion Air"
Securing bracket Installation
It will be needed to anchor the stove in a mobile home installation and are recommended
when installing combustion air to prevent movement of the unit and separation of the
combustion air intake.
The securing brackets are provided in the stove. Insert the brackets by sliding them through
the slots in the rear legs. Then lag the bracket to the floor or hearth pad.
Figure 10 : Securing bracket
16

Mobile Home Clearances
Double Wall Connector - Mobile Home

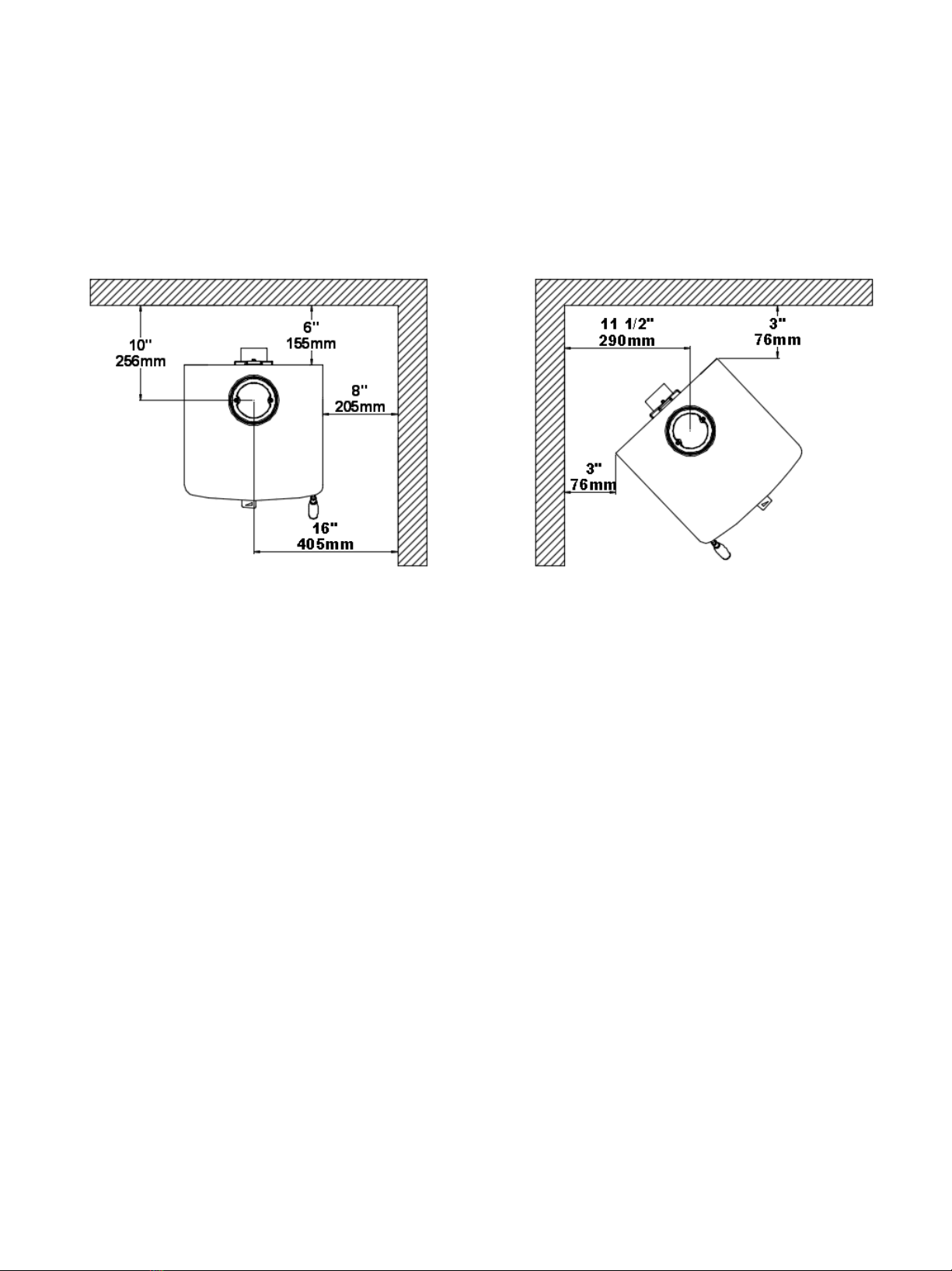

Figure11: Mobile home clearances
Installation
Minimum chimney height from top of unit is 12' (3.66 m) or as per chimney manufacturers
roof clearances whichever is greater.
NOTE: Longer chimney and different pitch flashing may be used. Install all components to
the connector or chimney manufacturer's installation requirements. Consult your chimney
supplier for installation advice.
Procedure
WARNING: THE STRUCTURAL INTEGRITY OF THE MOBILE HOME FLOOR, WALL AND CEILING/ROOF MUST BE
MAINTAINED.
• Attach stove to floor using two 1" or longer lag screws, and insert anchor tabs into slot on
bottom of two rear legs and secure to floor with the lag screws.
Combustion Air
Combustion air can be supplied to the stove in one of two ways. Consult your local building
code or CAN/ CSA-B365, or NFPA 211
1. Direct outside air supply (Necessary for mobile home installation, optional for residential
installation.)
17

•To draw outside air through the floor ; Attach the outside air adapter to the stove. Mark
then cut or drill a 4"(100mm) diameter or larger hole in the floor under the adapter .This
hole must get its air from a ventilated crawl space or be extended with duct to the outdoors
(Figure 7 : Factory-Built Chimney )
**If you are getting the intake air from a well ventilated crawl space, Connect the adapter to
4"(100 mm) flexible or rigid metal venting passing thru the hole using into the ventilated
space. Cover the inlet of the pipe with a 20GA wire mesh minimum rodent screen, and
clamp in place.
**If you are extending the pipe thru to the outside, Install an approved 4"(100mm) inlet
vent cap into the closest outside wall. Connect the stove's adapter to the Inlet vent through
the hole using 4"(100 mm) flexible and/or rigid metal venting.
•To draw air from behind the stove. Cut or drill a corresponding hole in the closest exterior
wall. Install an approved 4"(100 mm) inlet vent cap. Attach the outside air adapter to the
stove. Connect the adapter to the inlet vent cap using 4"(100mm) flexible and/or rigid metal
venting. Provide water protection as required.
2. Room air supply - Keep outside adapter open,the stove will draw its air from the room
through this opening and into the firebox intake
Note:
The use of outside combustion air for installation requires the unit to be secured to the
structure to prevent dislodging of the air duct ( Securing Bracket Installation).
The living space around the heater must be well ventilated with good air circulation.
Anything that may cause a negative pressure can cause gases or fumes to be pulled into the
living area.
This unit is not designed to be operated with the fire door open. In addition to the obvious
hazard of sparks landing on combustibles, an open fire door will cause the heater to draw
air from the living space and possibly cause suffocation in an air tight home.
Baffle Board / Tube Installation
For clean and inspect the chimney, you should remove Baffle Board and tubes inner stove.
DO NOT OPERATE WITH BAFFLE BOARD INSULATION OR TUBES REMOVED.
18

Removal
1. With a set of vise-grips, grasp the front baffle tube on the right, slightly away from the
baffle air assembly. from the hole on the left. Allow the tube to hang freely from the hole on
the right.
2. Repeat step #1 for second baffle tube.
3. Grasp the front edge of the right half of the baffle board and tilt up at the back. Guide the
board down and through the door opening.
4. Grasp the left half of the baffle board and slide it over to the right.
5. Tilt the back of the board up and guide it down and through the door opening.
6. Reverse the process to replace the baffle assembly.
Installation
1. Insert one half of baffle board above the two back baffle tubes inside the firebox, slide
over to the right
2. Insert the other half of the baffle board.
3. With the holes facing forward and the notch to the right side, insert a baffle tube into the
hole in the baffle air channel on the left at an angle and then raise and insert into the
opposite hole on the right side baffle air assembly.
4. With a set of vise-grips, grasp the baffle tube on the right, slightly away from the baffle air
assembly, and push the tube to the right to engage the tube in the hole on the right.
5. Repeat steps #3 & #4 with the remaining baffle tube.
6. Slide the baffle board halves together and then separate slightly to ensure there are no
gaps on either side of the baffle board.
7. Push baffle board tight against the rear of the firebox.
Operating Your Stove
• Do not use a grate, andiron or other fuel support method. Build fire directly on the hearth.
• Only open door to fuel/refuel the stove. Excess air can cause the stove to over fire. Do not
over fire. If chimney or stove is glowing red, you are over firing.
• Do not build the fire too close to the glass. Do not abuse the glass doors. Do not strike or
slam the door shut.
Fuel
Your stove is designed to burn solid wood fuel only; it is not designed to burn :
A. Garbage;
B. Lawn clippings or yard waste;
C. Materials containing rubber, including tires;
19

D. Materials containing plastic;
E. Waste petroleum products, paints or paint thinners, or asphalt products;
F. Materials containing asbestos;
G. Construction or demolition debris;
H. Railroad ties or pressure-treated wood;
I. Manure or animal remains;
J. Salt water driftwood or other previously salt-water saturated materials;
K. Unseasoned wood; or
L. Paper products, cardboard, plywood, or particleboard. The prohibition against
burning these materials does not prohibit the use of fire starters made from
paper, cardboard, saw dust, wax and similar substances for the purpose of
starting a fire in an affected wood heater.
Burning these materials may result in release of toxic fumes or render the heater ineffective
and cause smoke.
Fuel should be stored in a dry place; wood should be dried for at least 1 year. Do not store
fuel within the installation clearances or within the space required for refueling and ash
removal. Wet wood may cause serious creosote, which may damage your flue system and
even your stove. Therefore, the use of wet wood is strongly discouraged.
First operation of stove
You should begin using your stove by lighting small fires which get progressively bigger. We
recommend a series of about five small fires before you put the stove into full service. Allow
the stove to fully cool between each of these fires. There may be some smell and a small
amount of smoke from the stove during the initial operations. This is perfectly normal and is
merely the curing of the stove paint. Opening a window or door to provide additional
ventilation will help alleviate this.
Air controls
Your stove needs air to burn the fuel. This air is supplied through an opening along the
underneath left side, front of the stove (Primary) and the small holes on the tube on the top
inside of the stove. (Secondary). The secondary air supply is fed from two small air channels
at the back of the stove.
Primary air, as the name suggests, is used for the initial burning of the fuel and also to keep
the stove glass clean. Secondary air is used for secondary combustion, which makes the
20
