Amica 601EE1.37YFG User manual

INSTRUCTION MANUAL
IOAK-1022 / 8034978
(01.2011./1)
601EE1.37YFG(W)
601EE1.37YFG(Xx)
601EE2.37TaYFG(W)
601EE2.37TaYFG(Xx)
ELECTRIC COOKER

2
DEAR CUSTOMER,
The cooker is exceptionally easy to use and extremely efcient. After reading the instruction
manual, operating the cooker will be easy.
Before being packaged and leaving the manufacturer, the cooker was thoroughly checked
with regard to safety and functionality.
Before using the appliance, please read the instruction manual carefully.
By following these instructions carefully you will be able to avoid any problems in using the
appliance.
It is important to keep the instruction manual and store it in a safe place so that it can be
consulted at any time.
It is necessary to follow the instructions in the manual carefully in order to avoid possible
accidents.
Caution!
Do not use the cooker until you have read this instruction manual.
The cooker is intended for household use only.
The manufacturer reserves the right to introduce changes which do not affect the
operation of the appliance.

3
TABLE OF CONTENTS
Safety instructions ............................................................................................................. 4
Description of the appliance ............................................................................................. 7
Installation......................................................................................................................... 10
Operation........................................................................................................................... 12
Baking in the oven – practical hints ............................................................................... 20
Cleaning and maintenance.............................................................................................. 25
Technical data................................................................................................................... 29

4
SAFETY INSTRUCTIONS
The appliance becomes hot during operation. Take care not to touch the hot parts inside
the oven.
Always keep children away from the cooker.
While in operation direct contact with the cooker may cause burns!
Ensure that small items of household equipment, including connection leads, do not touch
the hot oven or the hob as the insulation material of this equipment is usually not resistant
to high temperatures.
 Do not leave the cooker unattended when frying. Oils and fats may catch re due to
overheating or boiling over.
Do not put pans weighing over 15 kg on the opened door of the oven and pans over 25
kg on the hob.
Do not use harsh cleaning agents or sharp metal objects to clean the door as they can
scratch the surface, which could then result in the glass cracking.
 Donotusethecookerintheeventofatechnicalfault.Anyfaultsmustbexedbyan
appropriatelyqualiedandauthorisedperson.
In the event of any incident caused by a technical fault, disconnect the power and report
the fault to the service centre to be repaired.
The rules and provisions contained in this instruction manual should be strictly observed.
Do not allow anybody who is not familiar with the contents of this instruction manual to
operate the cooker.
The cooker should not be cleaned using steam cleaning equipment.

5
Using energy in a respon-
sible way not only saves
money but also helps the
environment. So let’s save
energy! And this is how you
can do it:
Use proper pans for cooking.
Panswiththick,atbasescansaveupto1/3
on electric energy. Remember to cover pans
if possible otherwise you will use four times
as much energy!
Match the size of the saucepan to the
surface of the heating plate.
A saucepan should never be smaller than a
heating plate.
Ensure heating plates and pan bases
are clean.
Soils can prevent heat transfer – and repeat-
edly burnt–on spillages can often only be
removed by products which cause damage
to the environment.
Do not uncover the pan too often
(a watched pot never boils!).
Do not open the oven door unnecessarily
often.
Switch off the oven in good time and make
use of residual heat.
For long cooking times, switch off heating
plates5to10minutesbeforenishingcook-
ing. This saves up to 20% on energy.
Only use the oven when cooking larger
dishes.
Meat of up to 1 kg can be prepared more
economically in a pan on the cooker hob.
HOW TO SAVE ENERGY
Make use of residual heat from the
oven.
If the cooking time is greater than 40 minutes
switch off the oven 10 minutes before the
end time.
Important! When using the timer,
set appropriately shorter cooking
times according to the dish being
prepared.
Make sure the oven door is properly
closed.
Heat can leak through spillages on the door
seals. Clean up any spillages immediately.
Do not install the cooker in the direct
vicinity of refrigerators/freezers.
Otherwise energy consumption increases
unnecessarily.

6
During transportation, protec-
tive packaging was used to
protect the appliance against
any damage. After unpacking,
please dispose of all elements
of packaging in a way that will
not cause damage to the environment.
All materials used for packaging the appli-
ance are environmentally friendly; they are
100% recyclable and are marked with the
appropriate symbol.
Caution! During unpacking, the packag-
ing materials (polythene bags, polystyrene
pieces, etc.) should be kept out of reach of
children.
UNPACKING DISPOSAL OF THE APPLIANCE
Old appliances should not sim-
ply be disposed of with normal
household waste, but should
be delivered to a collection and
recycling centre for electric and
electronic equipment. A symbol
shown on the product, the in-
struction manual or the packaging shows that
it is suitable for recycling.
Materials used inside the appliance are
recyclable and are labelled with information
concerning this. By recycling materials or
other parts from used devices you are making
asignicantcontributiontotheprotectionof
our environment.
Information on appropriate disposal centres
for used devices can be provided by your
local authority.

7
DESCRIPTION OF THE APPLIANCE
1Temperature control knob
2Oven function selection knob
3, 4, 5, 6 Heating plate control knobs
7Temperatureregulatorsignal light red
8Cooker operation signal light yellow
9 Oven door handle
10 Drawer
11 Electric hob
1
7
3, 4
2
5, 6
8
9
10
11

8
DESCRIPTION OF THE APPLIANCE
1Temperature control knob
2Oven function selection knob
3, 4, 5, 6 Heating plate control knobs
7Temperatureregulatorsignal light red
8Cooker operation signal light yellow
9 Oven door handle
10 Drawer
11 Electric hob
12 Electronic programmer
1
7
3, 4
2
5, 6
8
9
10
11 12

9
SPECIFICATIONS OF THE APPLIANCE
Oventtings:
Baking tray* Grill grate
(drying rack)
Roasting tray
*optional

10
INSTALLATION
Installing the cooker
The kitchen should be dry and airy and
have effective ventilation according to the
existingtechnicalprovisions.
The room should be equipped with a ven-
tilationsystemthatpipesawayexhaust
fumes created during combustion. This
system should consist of a ventilation
grid or hood. Hoods should be installed
according to the manufacturer’s instruc-
tions. The cooker should be placed so
as to ensure free access to all control
elements.
 Coatingorveneerusedonttedfurniture
must be applied with a heat resistant
adhesive (100°C). This prevents surface
deformation or detachment of the coat-
ing. If you are unsure of your furniture’s
heat resistance, you should leave ap-
proximately 2 cm of free space around
the cooker. The wall behind the cooker
should be resistant to high temperatures.
During operation, its back side can warm
up to around 50°C above the ambient
temperature.
The cooker should stand on a hard, even
oor(donotputitonabase).
Before you start using the cooker it should
be leveled, which is particularly important
for fat distribution in a frying pan. To this
purpose, adjustable feet are accessible
after removal of the drawer. The adjust-
ment range is +/- 5 mm.

11
1
2
3
3
4
5
230V 1N~
INSTALLATION

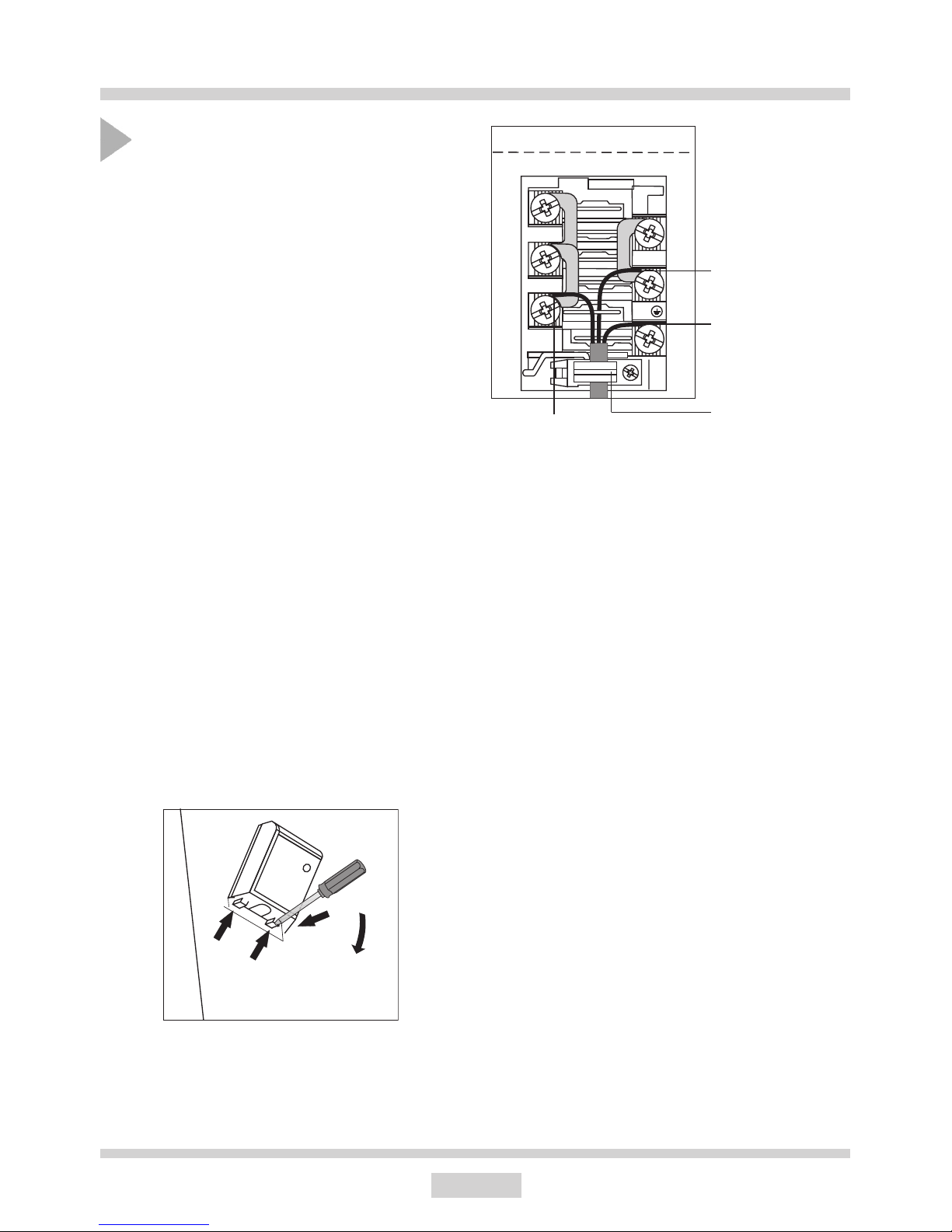

Electrical connection
Warning: This appliance must be earthed.
The appliance must be installed by a com-
petent electrician using a double pole control
unit of 40 ampere minimum capacity with
3mm minimum contact separation at all
poles.
We recommend that the appliance is con-
nectedbyaqualiedelectricianwhoismem-
ber of the N.C.E.I.C. and who will comply with
the I.E.E. and local regulation.
Access to the main terminal is gained by
opening the terminal block cover at the
rear of the appliance (use a small at-
bladed screwdriver).
Connection shuld be made with 6mm2
twin and earth cable.
First strip the wires, then push the cab-
lethrough the cable clamp in the terminal
block cover.
Connect the cable to the terminal block
and tighten the cable clamp screw (see
diagram).
 Closetheterminalbox,ensuringthatthe
cover is engaged on the locking tabs.
Live
(Red or Brown)
Neutral
(Black or Blue)
Earth
(Green / Yellow
or sleeving)
Cable clamp
2
1

12
Remove packaging, clean the interior of the
oven and the hob.
Take out and wash the oven ttings with
warm water and a little washing–up liquid.
Switch on the ventillation in the room or
open a window.
Heat the oven (to a temperature of 250°C,
forapprox.30min.),removeanystainsand
wash carefully; the heating plates of the hob
should be heated for around 4 min. without
a pan.
Before rst use
OPERATION

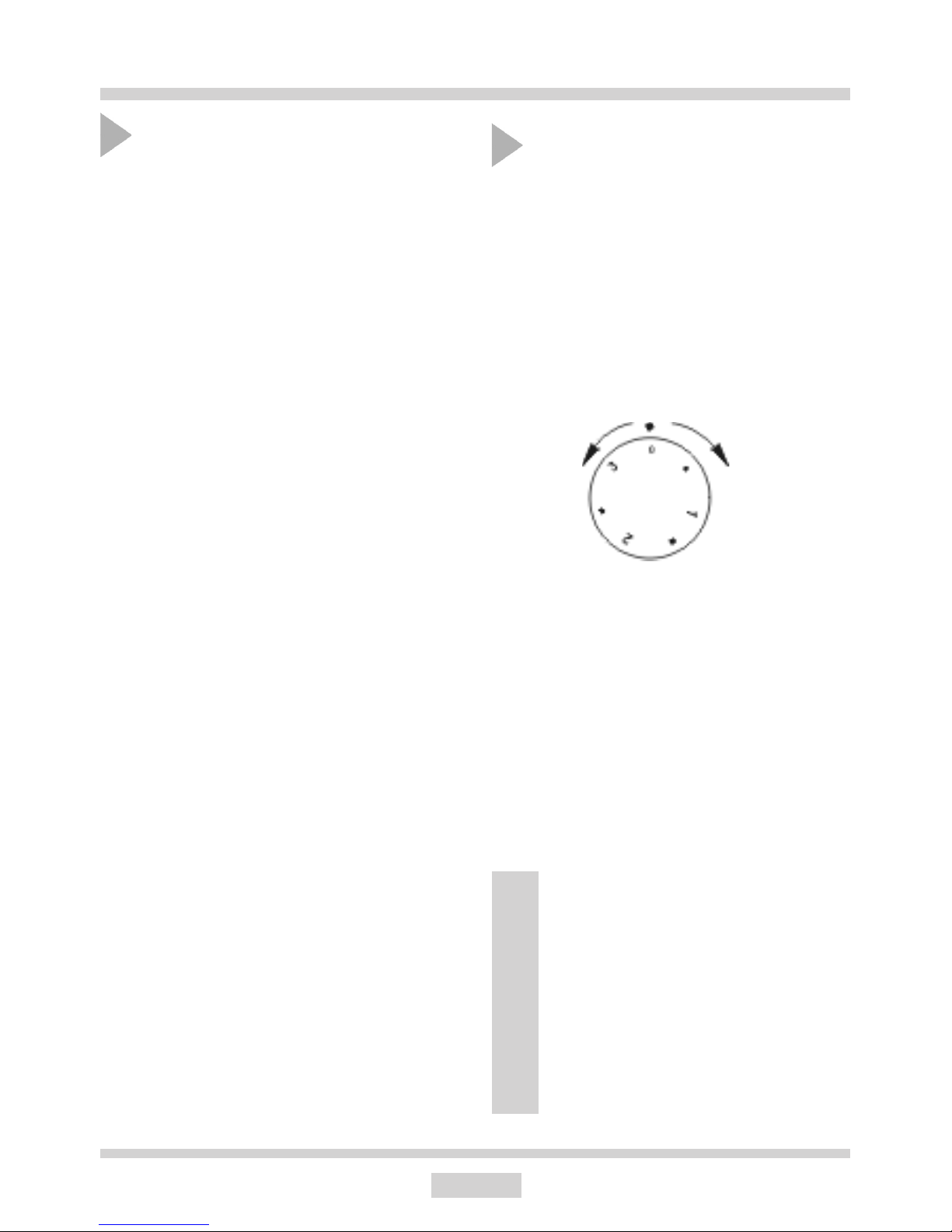

How to use the heating plate
The level of heat can be adjusted gradually
by turning the appropriate knob to the right or
left. Switching on the plate results in a yellow
signal light on the control panel turning on.
An appropriately selected pan saves energy.
Apanshouldhaveathick,atbasewitha
diameter equal to the plate diameter as in that
caseheatistransferredmostefciently.
Caution!
Ensure the heatuiing plate is clean
– a soiled zone does not transfer all
of the heat.
Protect the plate against corrosion.
Switch off the zone before a pan is
removed.
Do not leave pans with prepared
dishes based on fats and oils unat-
tended on the switched – on plate; hot
fatcanspontaneouslycatchre.
0Switch off
MIN. Warming up
1Stewing vegetables, slow cooking
Cooking soups, larger dishes
2Slow frying
Grillingmeat,sh
3MAX. Fast heating up,
fast cooking, frying
Important!
In cookers equipped with the electronic pro-with the electronic pro-
grammer, the time “0.00” will start ashing
in the display eld upon connection to the
power supply.
The programmer should be set with the cur-
rent time. (See Electronic programmer ). If the
current time is not set operation of the oven
is impossible.

13
A
2 31
2 31

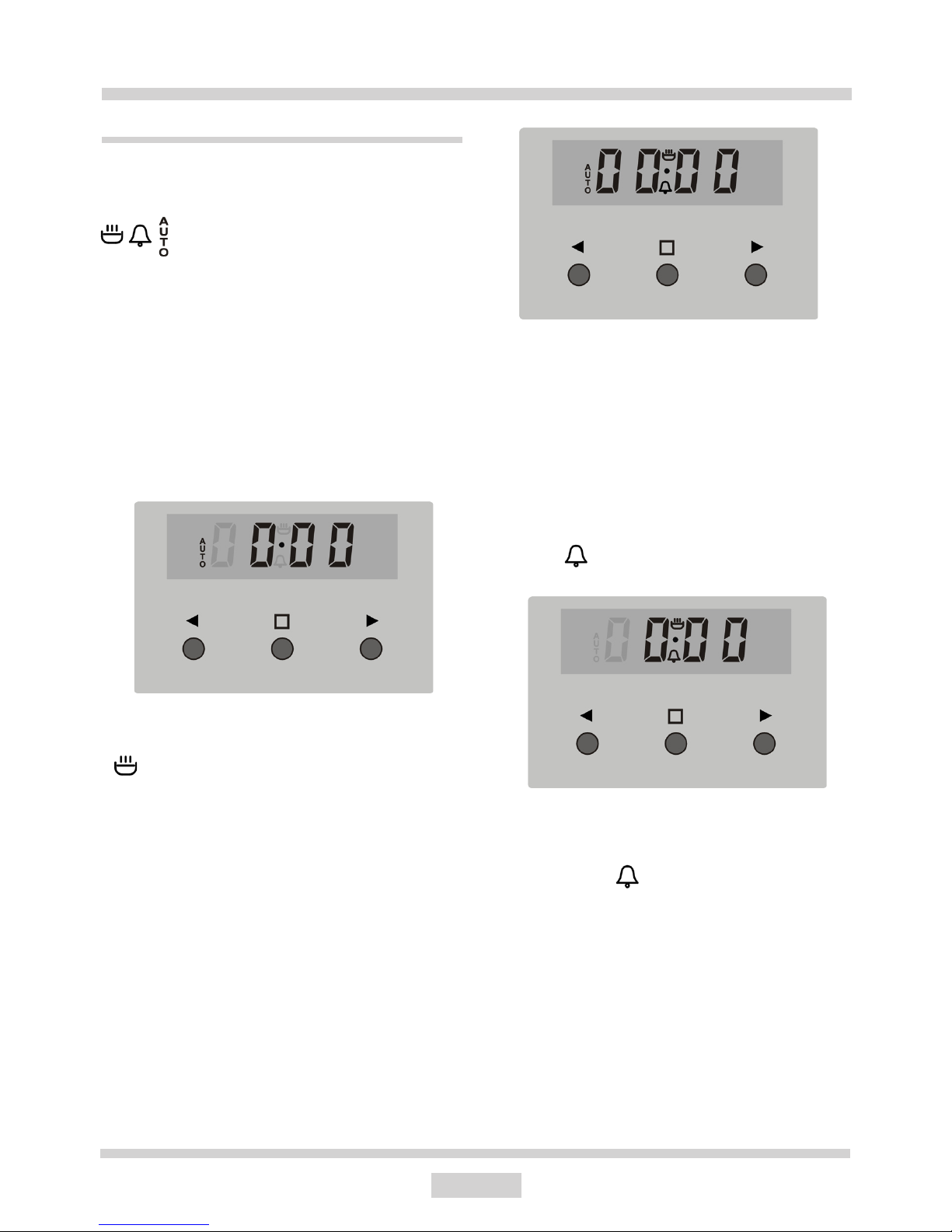

Electronic programmer*
A– displayeld
B– functions
functions
1 – function selection button
2 – “–” button
3 – “+” button
OPERATION
Setting the time
After connection to the mains or reconnec-
tion after a power cut the display shows
ash0.00:
Timer
The timer can be activated at any time, re-
gardless of the status of other functions. The
timer can be set for from 1 minute to up to 23
hours and 59 minutes.
To set the timer you should:
Press button 1, then the display will show
ashing,
Press button 1, then the display will show
,
set the time using buttons 3and 2.
7 seconds after the time has been set the
new data will be saved.
Caution!
If the correct time is not set then proper opera-
tion of the oven is not possible.
set the timer using buttons 3and 2.
The time set is shown on the display and the
signal function is on.
Press button 1, 2or 3in order to switch off
the signal, the signal function will go out and
the display will show the current time.
Caution!
If the alarm signal is not turned off manually,
itwillbeturnedoffautomaticallyafterapprox.
7 minutes.
2 31
*optional

14
OPERATION
Semi–automatic operation
If the oven is to be switched off at a given
time, then you should:
Set the oven function knob and the tem-
perature regulator knob to the setting at which
you want the oven to operate.
Press button 1 until the display will show:
Set the required time using buttons 3and 2,
within a range from 1 minute to 10 hours.
The set time will be introduced to the memory
afterapprox.7secondsandthedisplaywill
show AUTO function.
When the set time has passed the oven is
switched off automatically, the alarm signal
is activated and the signal function AUTO
ashingagain;
Set the oven function knob and the tem-
perature regulator knob to the switched–off
position.
Press button 1, 2or 3in order to switch off
the signal; the signal function will go out and
the display will show the current time.
Caution!
In ovens equipped with one control knob,
the oven function knob is integrated with the
temperature regulator knob.
2 31
2 31
2 31
Automatic operation
Iftheovenistobeswitchedonforaspecied
periodoftimeandswitchedoffataxedhour
then you should set the operation time and
the operation end time:
Press button 1 until the display will show:
Set the required time using the buttons
3and 2within a range from 1 minute to 10
hours.
Press button 1 until the display will show:
Set the switch–off time (operation end time)
using buttons 3and 2, which is limited to a
period of 23 hours and 59 minutes from the
current time.
Set the oven function knob and the tem-
perature regulator knob to the setting at which
you want the oven to operate.

15
OPERATION
The signal lights by and are now on; the
oven will start operating from the point when
the difference between the set operation end
time and the operation duration time occurs
(e.g. the operation time is set to 1 hour, the
operation end time is set to 14.00, so the oven
will start working automatically at 13.0
The function AUTO is now on; the oven will
start operating from the point when the differ-
ence between the set operation end time and
the operation duration time occurs (e.g. the
operation time is set to 1 hour, the operation
end time is set to 14.00, so the oven will start
working automatically at 13.00).
When the oven reaches the operation end
time it will switch off automatically, the alarm
will be activated and the function AUTO will
startashingagain.
Set the oven function knob and the tem-
perature regulator knob to the switched–off
position.
Press button 1, 2or 3in order to switch off
the alarm; the function AUTO will go out and
the display will show the current time.
2 31
Cancel settings
Timer and automatic function settings may
be cancelled at any time.
Cancel automatic function settings:
press buttons 2and 3simultaneously,
Cancel timer settings:
press button 1to select timer settings,
press buttons 2and 3again,
Change the timer beeps
The tone of the timer beeps may be
changed as follows:
press buttons 2and 3simultaneously,
select “tone” function with the 1button,
the display panel will start to blink:
●withthe2buttonpresstheappropriate
buttons from 1 to 3 to select the option you
wish.
2 31

16
Separate oven lighting
By setting the knob to this posi-
tion, the lighting inside the oven is
switchedon.Use,forexample,when
washing the oven chamber..
Grill heater on
Setting the knob to this position
allows dishes to be grilled on the
grate or rotisserie.
Bottom heater on
When the knob is set to this po-
sition, the oven is heated using
only the bottom heater. Use for,
e.g.nalbakingfromthebottom.
OPERATION
Oven functions and operation.
Natural convection oven
(conventional)
Possible knob positions
Switching on the oven is indicated by two
signal lights, yellow and red, turning on. The
yellow light turned on means the oven is work-
ing. If the red light goes out, it means the oven
has reached the set temperature. If a recipe
recommends placing dishes in a warmed-up
oven, this should be not done before the red
lightgoesoutforthersttime.Whenbaking,
the red light will temporarily come on and go
out (to maintain the temperature inside the
oven). The yellow signal light may also turn
on at the knob position of “oven chamber
lighting”.
Top heater on
When the knob is set to this po-
sition, the oven is heated using
only the top heater, e.g. use for,
nalbakingfromabove.
The oven can be warmed up using the bottom
and top heaters, as well as the grill. Operation
of the oven is controlled by the oven function
knob – to set a required function you should
turn the knob to the selected position,
as well as the temperature regulator knob
– to set a required function you should turn
the knob to the selected position.
The oven can be switched off by setting both
of these knobs to the position “”/“0”.
Caution!
When selecting any heating function (switch-
ing a heater on etc.) the oven will only be
switched on after the temperature has ben
set by the temperature regulator knob.
0
Bottom and top heaters on
Setting the knob to this position
allows the oven to be heated
conventionally.

17

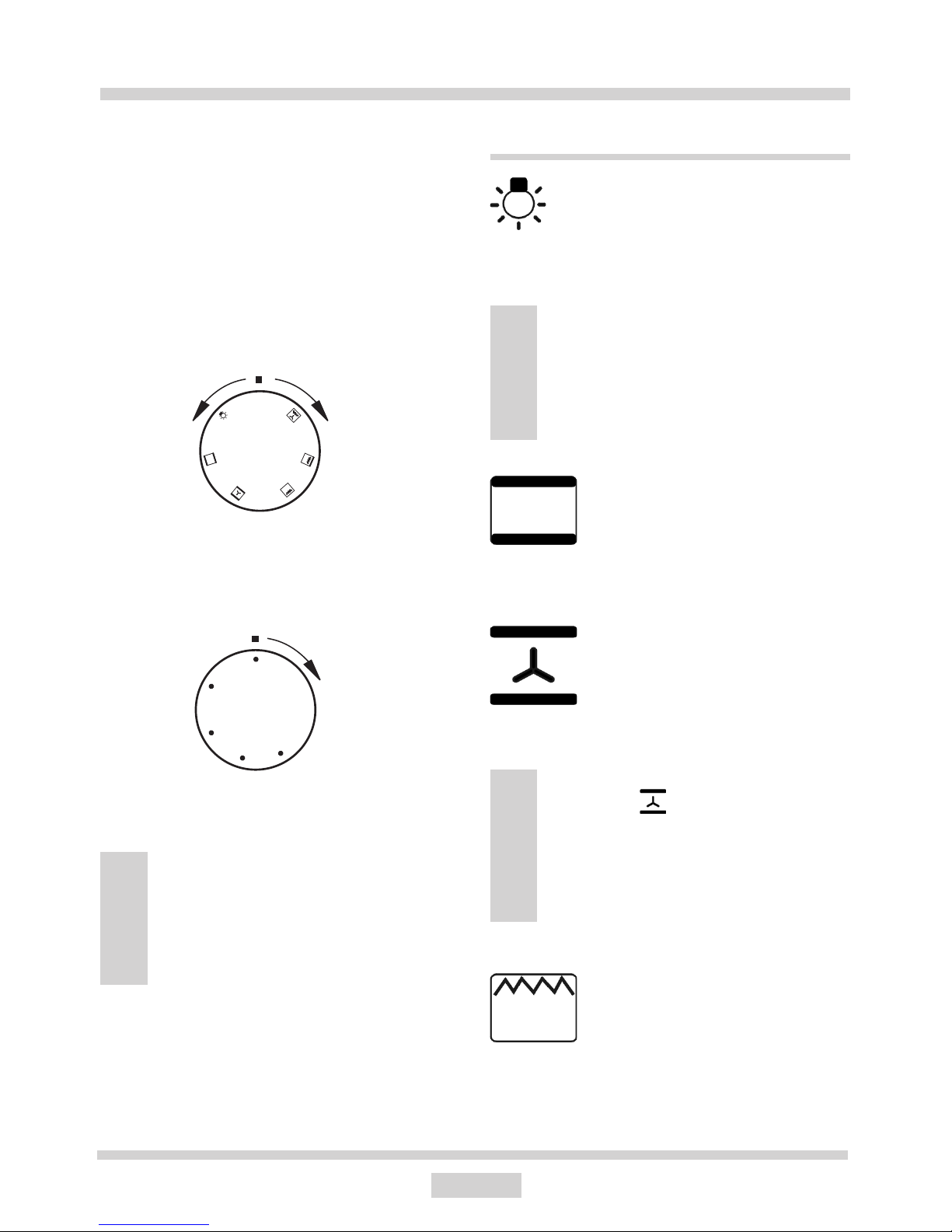

Oven with automatic air circulation
(including fan)
The oven can be warmed up using the bottom
and top heaters, as well as the grill. Operation
of the oven is controlled by the oven function
knob – to set a required function you should
turn the knob to the selected position,
OPERATION
as well as the temperature regulator knob – to
set a required function you should turn the
knob to the selected position.
The oven can be switched off by setting both
of these knobs to the position “”/“0”.
Possible settings of the oven function
knob
Separate oven lighting
By setting the knob to this posi-
tion the lighting inside the oven is
switched on, e.g. use when washing
the oven chamber.
Bottom and top heaters on
Setting the knob to this position
allows the oven to be heated
conventionally.
Caution!
At this oven function knob position,
when setting the temperature regula-
tor to a position other than zero, the
red light may go on, although the oven
is not being warmed up.
Fan, bottom and top heaters
on
At this knob position the oven
executesthecakefunction.Con-
ventional oven with a fan.
Grill heater on
Setting the knob to this position
allows dishes to be grilled on
the grate.
Caution!
When the functions have been
selected but the temperature knob is
set to zero only the fan will be on. With
this function you can cool the dish or
the oven chamber.
Caution!
When selecting any heating func-
tion (switching a heater on etc.) the
oven will only be switched on after
the temperature has ben set by the
temperature regulator knob.
50
100
150
200
250
0

18
OPERATION
Combined grill
(Grill and the top heater)
When the “combined grill” is ac-
tive it enables grilling with the grill
and with the top heater switched on at the
same time. This function allows a higher tem-
perature at the top of the cooking area, which
causes more intense browning of the dish and
permits larger portions to be grilled.
Fan and combined grill on
When the knob is turned to this
position, the oven activates the
combined grill and fan function.
In practice, this function allows
the grilling process to be speeded
up and an improvement in the taste of the
dish. You should only use the grill with the
oven door shut.
Switching on the oven is indicated by red
signal light, turning on. If the red light goes
out, it means the oven has reached the set
temperature. If a recipe recommends plac-
ing dishes in a warmed-up oven, this should
be not done before the red light goes out for
thersttime.Whenbaking,theredlightwill
temporarily come on and go out (to maintain
the temperature inside the oven).

19
In order to switch on the grill you need to:
set the oven knob to the position marked
with .
heattheovenforapproximately5minutes
(with the oven door shut).
insert a tray with a dish onto the appropri-
ate cooking level, and if you are grilling
on the grate insert a tray for dripping on
the level immediately below (under the
grate).
the oven door shut.
OPERATION
Use of the grill
The grilling process operates through infrared
rays emitted onto the dish by the incandes-
cent grill heater.
Caution!
The grill should be used with the oven
door shut.
When the grill is in use, accessible
parts can become hot.
It is recommended to keep children
away from the oven.
For grilling with the function the
temperature must be set to 250°C.

20
BAKING IN THE OVEN – PRACTICAL HINTS
Baking
we recommend using the baking trays which were provided with your cooker;
it is also possible to bake in cake tins and trays bought elsewhere which should be
put on the drying rack; for baking it is better to use black trays which conduct
heat better and shorten the baking time;
shapes and trays with bright or shiny surfaces are not recommended when using the
conventional heating method (top and bottom heaters), use of such tins can result in
undercooking the base of cakes;
before the cake is taken out of the oven, check if it is ready using a wooden stick (if
the cake is ready the stick should come out dry and clean after being inserted into
the cake);
after switching off the oven it is advisable to leave the cake inside for about 5 min.;
 thebakingparametersgiveninTablesareapproximateandcanbecorrectedbased
onyourownexperienceandcookingpreferences;
 ifinformationgiveninrecipebooksissignicantlydifferentfromthevaluesincluded
in this instruction manual, please apply the instructions from the manual.
